Used Sany 95Excavator

Reading: 12

🏢 1. Manufacturer Overview

Item	Details
Brand	SANY (三一重工)
Company	SANY Heavy Industry Co., Ltd.
Headquarters	Changsha, Hunan Province, China
Global Rank	Top 3 construction machinery manufacturer worldwide
Founded	1989

SANY is one of the world's leading heavy equipment manufacturers, known for reliable and cost-effective machines.

🔧 2. Machine Classification

Category	Specification
Model	SY95 / SY95C / SY95H (variants exist)
Class	Medium-sized hydraulic excavator
Weight Class	~9.5 tons (9,000–9,800 kg)
Application	General construction, municipal works, landscaping, road building, small-scale mining

📐 3. Key Technical Specifications

Parameter	SY95 (Standard)	SY95C
Operating Weight	~9,200–9,500 kg	~9,400–9,800 kg
Engine Model	Yanmar 4TNV98-ZPLYS / Isuzu CC-4JG1	Yanmar / Isuzu
Engine Power	55–57 kW (74–76 HP) @ 2,200 rpm	55–57 kW
Bucket Capacity	0.30–0.40 m³	0.30–0.45 m³
Max Digging Depth	5,700–5,950 mm	5,800–6,000 mm
Max Reach (Ground Level)	8,700–8,900 mm	8,800–9,000 mm
Max Digging Height	8,400–8,700 mm	8,500–8,800 mm
Max Dumping Height	6,100–6,300 mm	6,200–6,400 mm
Swing Speed	~10 rpm	~10 rpm
Travel Speed	2.5 / 4.5 km/h	2.5 / 4.8 km/h
Ground Pressure	~40–42 kPa	~42–45 kPa
Fuel Tank	~170 L	~170 L
Hydraulic Oil Tank	~80 L	~85 L

& 4. Core Systems & Technology

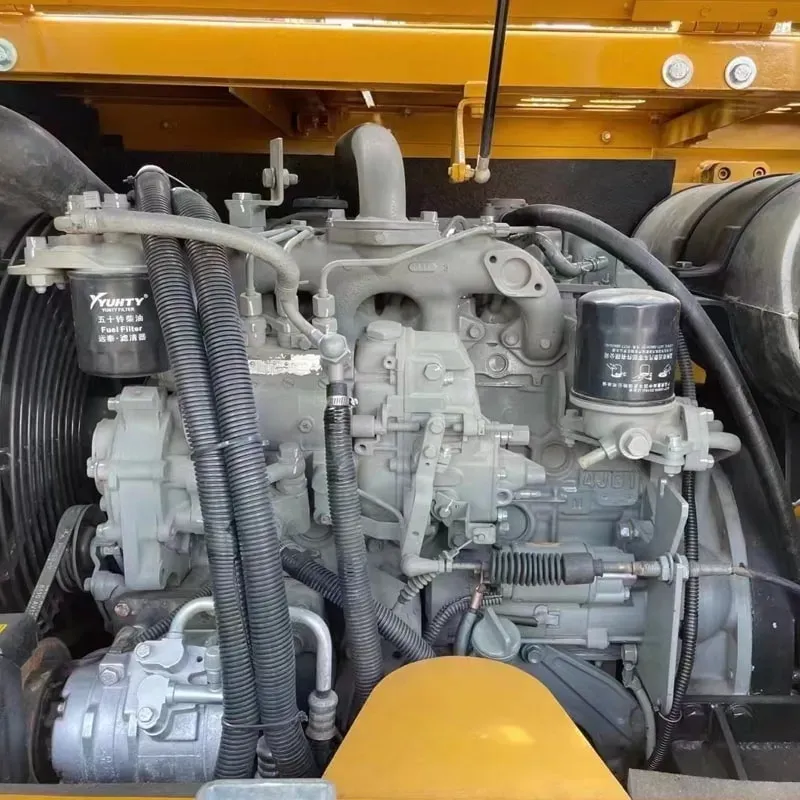

🔩 A. Engine

Yanmar 4TNV98 (most common) — 4-cylinder, turbocharged, intercooled diesel
Emission Standard: China III / Euro Stage IIIA (upgradeable to Stage IV)
Known for fuel efficiency and low noise
Some markets offer Isuzu CC-4JG1 as an alternative

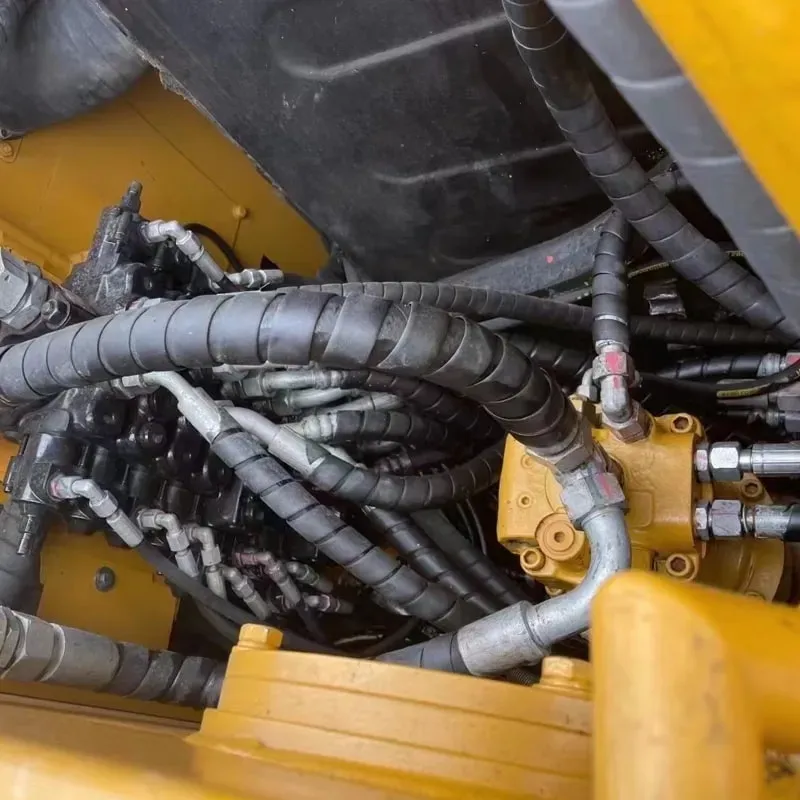

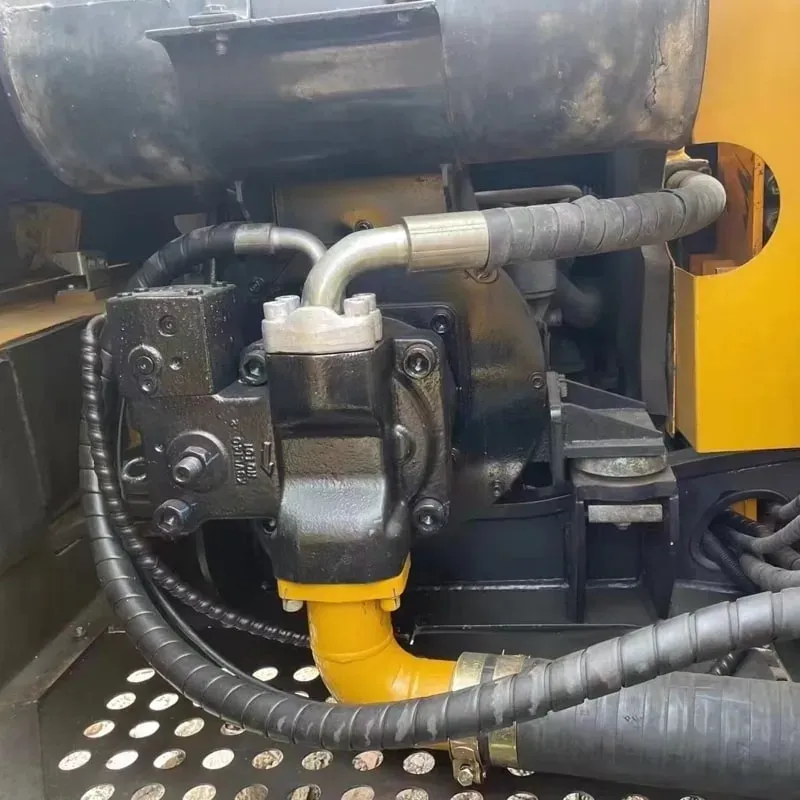

🛢️ B. Hydraulic System — SANY's Positive Flow Control (PFC)

Feature	Benefit
Load-sensing system	Matches pump output to demand → saves 10–15% fuel
Independent boom/arm/bucket circuits	Smooth, simultaneous operation
High-pressure main relief valve	Stable power under heavy loads
Pilot-operated controls	Light, precise joystick operation

🏗️ C. Undercarriage

Reinforced X-frame structure
Heavy-duty track shoes (600mm width) — optional 700mm for soft ground
Adjustable track tension (hydraulic or manual)
Dozer blade available as option

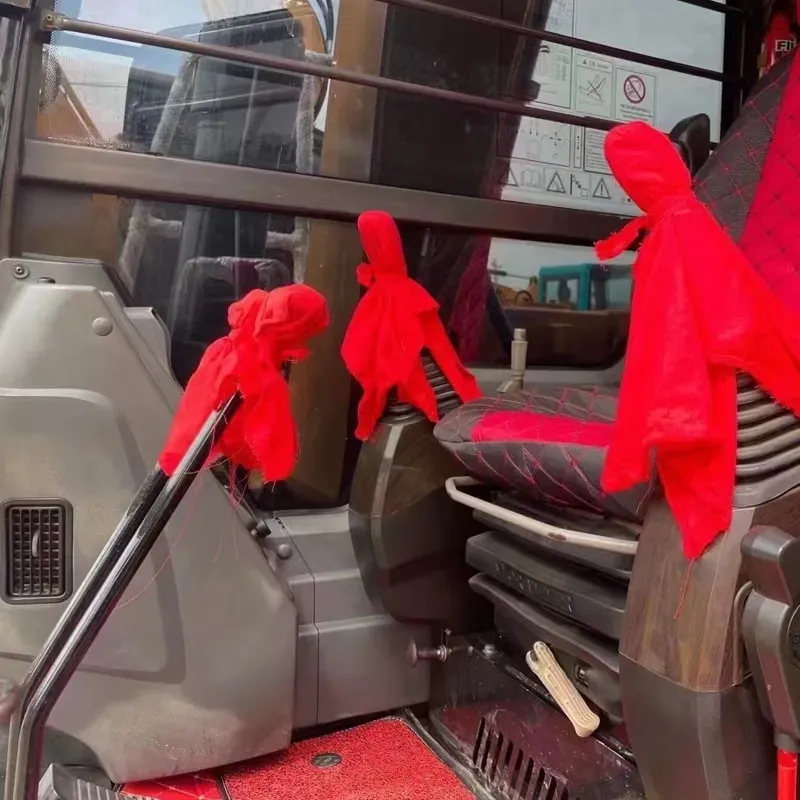

🏠 D. Cab & Operator Comfort

Feature	Details
ROPS/FOPS certified	Roll-over & falling object protection
Air-conditioned cab	Standard on most variants
Suspended seat	Reduces vibration & fatigue
LCD monitor	Engine diagnostics, hour meter, fuel level
Pilot joysticks	Ergonomic, with thumb-activated auxiliary lines
LED work lights	Front & rear (optional roof lights)
USB charging port	Available on newer models
Noise level	~72 dB(A) — relatively quiet for its class

🛡️ 5. Safety & Smart Features

Feature	Description
🔒 Anti-theft system	Engine immobilizer / password lock
📹 Rearview camera	Standard on SY95C / optional on SY95
🔧 Self-diagnosis system	Real-time fault code display on LCD
🚨 Overload alarm	Audible & visual warning
💡 Auto-idle	Engine reduces RPM when not working → saves fuel
📊 SANY Cloud (optional)	Telematics — remote monitoring via app/web

🔄 6. Attachments (Versatility)

The SY95 is a quick-coupler compatible machine, allowing fast attachment changes:

Attachment	Use Case
🪣 Standard bucket (0.3–0.4 m³)	General digging
🔨 Hydraulic breaker	Demolition, rock breaking
🪝 Thumb / Grapple	Log handling, scrap
🔄 Auger drill	Pile driving, fencing
🪵 Log grapple	Forestry
🧹 Tiltrotator	Precise pipe laying, grading
🏗️ Ripper (single shank)	Hard ground breaking
🧹 Bucket with teeth	Rock/gravel work

💰 7. Price Range (Approximate — 2024)

Market	Price Range (USD)
China (domestic)	$45,000 – $55,000
Southeast Asia	$50,000 – $60,000
Middle East / Africa	$55,000 – $65,000
Europe / Americas	$60,000 – $75,000

⚠️ Prices vary by configuration, dealer, and market conditions.

✅ 8. Advantages (Why Choose SY95?)

✅ Advantage	Explanation
💰 Cost-effective	15–25% cheaper than Japanese brands (Komatsu PC95, Kubota KX96)
🔧 Easy maintenance	Wide parts availability, simple design
⛽ Fuel efficient	PFC hydraulic system saves fuel
🌐 Global service network	SANY has 500+ service centers worldwide
🔄 High resale value	Strong brand recognition in emerging markets
🛡️ Reliable	Backed by SANY's 30+ years of experience
📦 Warranty	Typically 12 months / 2,000 hours (varies by region)

⚠️ 9. Limitations

⚠️ Limitation	Detail
🔧 After-sales in Western markets	Not as dense as Cat/Komatsu in US/Europe
🔊 Cab noise	Slightly louder than Japanese competitors
📉 Resale in developed markets	Lower than Komatsu/CAT due to brand perception
& Hydraulic flow	Slightly lower than premium brands for heavy breaker work

🆚 10. Comparison with Competitors

Spec	SANY SY95	Komatsu PC95	Kubota KX96-4	XCMG XE95DA
Weight	~9.5t	~9.4t	~9.6t	~9.5t
Power	55 kW	52 kW	49 kW	55 kW
Bucket	0.3–0.4 m³	0.25–0.35 m³	0.25–0.35 m³	0.3–0.4 m³
Price	💰💰	💰💰💰	💰💰💰	💰💰
Brand Premium	⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐
Service Network	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

📋 11. Summary


Best For	Contractors in developing markets, rental companies, mid-scale construction
Ideal Jobs	Excavation, pipe laying, landscaping, road work, small demolition
Rating	⭐⭐⭐⭐☆ (4/5) — Excellent value for money

🔑 Bottom Line: The SANY SY95 is one of the best value-for-money 9-ton excavators on the market. It offers 80–90% of the performance of a Japanese competitor at 60–70% of the price, making it a top choice for cost-conscious buyers worldwide.
