Used Caterpillar 312D2GCExcavator

Reading: 23

📌 Overview

The CAT 312D2 GC is a mid-size (12-tonne class) hydraulic excavator from Caterpillar's D2 Generation C (GC) series. It is one of the most popular models in the 12-tonne category, widely used in general construction, utility work, landscaping, road building, and rental fleets worldwide.

"GC" = Gravity Cast — Refers to the boom and arm manufacturing process (gravity-cast iron), offering a great balance of strength, durability, and cost-effectiveness compared to welded or premium cast versions.

🔧 Key Specifications

Parameter	Specification
Operating Weight	~12,350 – 12,500 kg (27,227 – 27,558 lb)

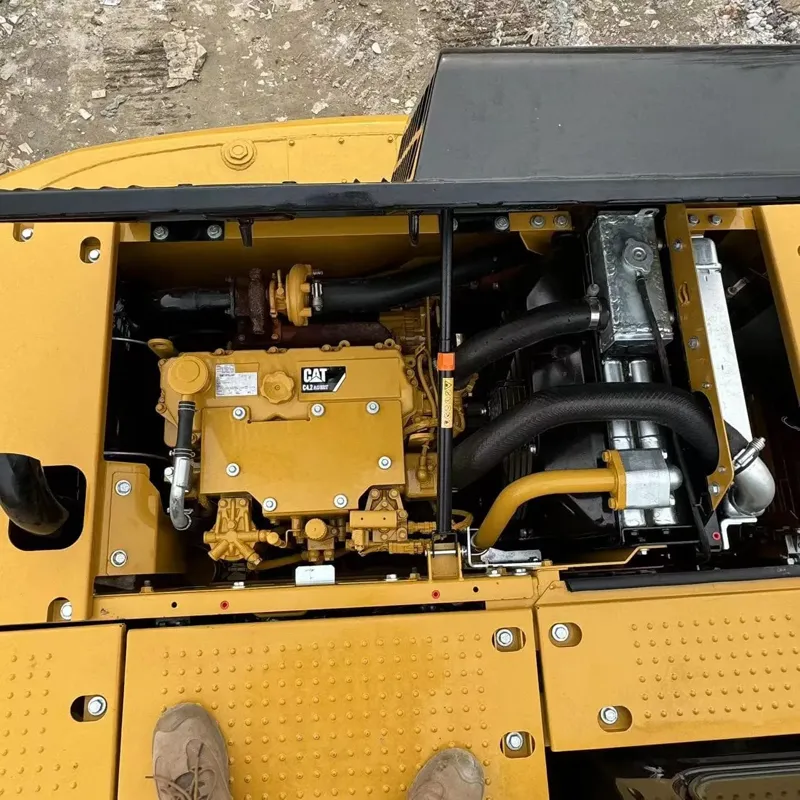

Engine	Cat C4.4 ACERT
Engine Power	86 HP (64 kW) @ 2,000 rpm
Torque	329 Nm (243 lb-ft) @ 1,400 rpm
Emissions	EPA Tier 4 Final / EU Stage V
Displacement	4.4 Liters, 4-cylinder, turbocharged & aftercooled
Fuel Tank	~210 L (55.5 gal)
Track Length (on ground)	2,820 mm (111 in)
Track Shoe Width	450 mm (17.7 in) / 600 mm (23.6 in) options
Ground Clearance	~400 mm (15.7 in)
Tail Swing Radius	1,940 mm (76.4 in) — Zero Tail Swing

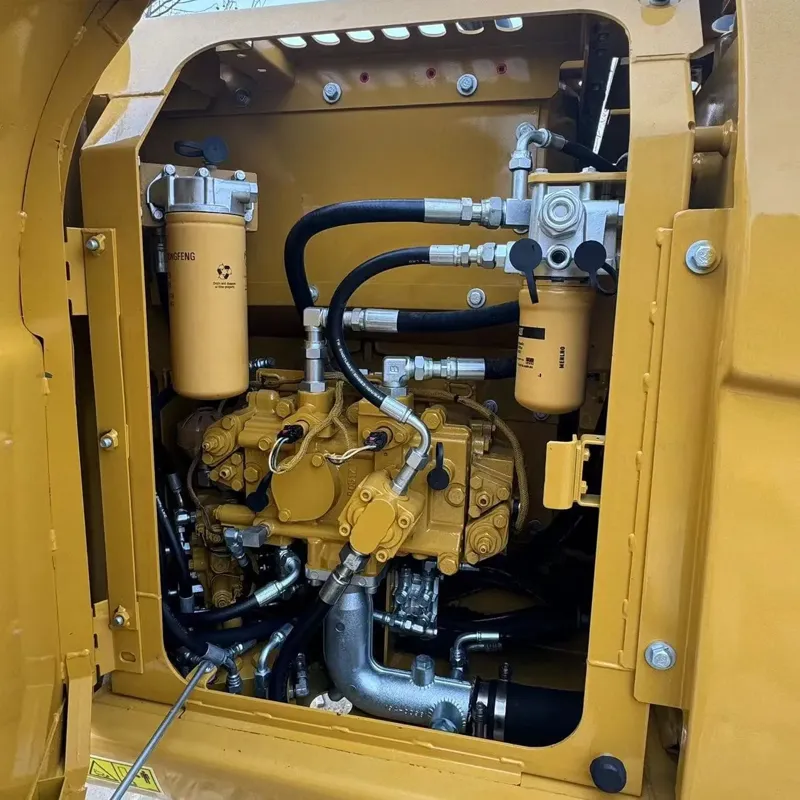

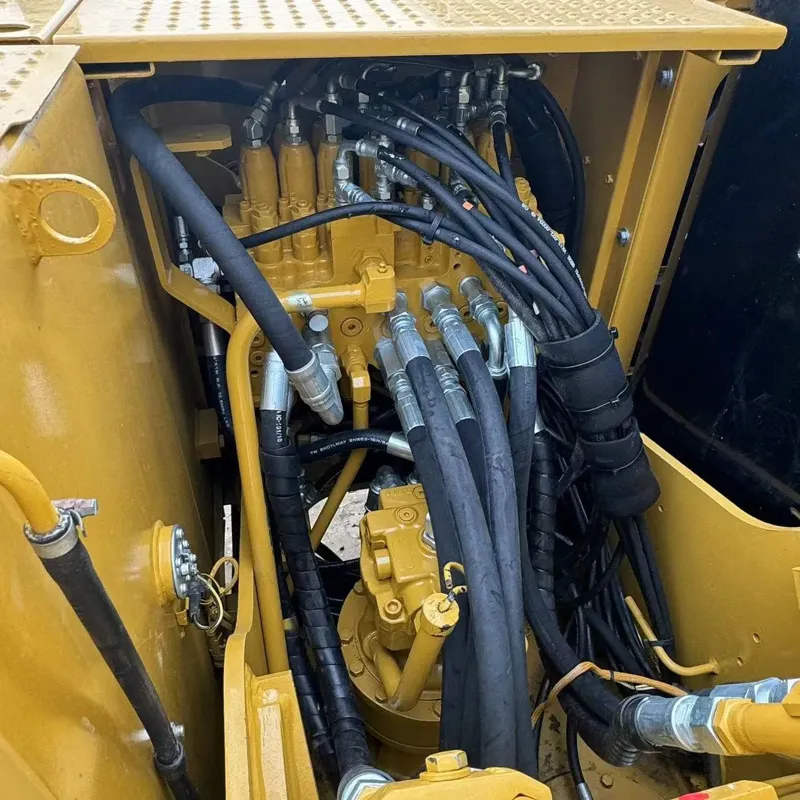

💪 Hydraulic System

Parameter	Specification
Pump Type	Variable displacement piston pump
Total Flow	2 × 128 L/min (28.2 gpm)
Operating Pressure	34,500 kPa (5,000 psi)
Auxiliary Flow	40 L/min (optional)

🏗️ Digging Performance

Parameter	Specification
Max Digging Depth	5,700 mm (18.7 ft)
Max Reach (Ground Level)	8,850 mm (29.0 ft)
Max Digging Height	8,730 mm (28.6 ft)
Max Dumping Height	6,200 mm (20.3 ft)
Max Vertical Wall Dig	4,950 mm (16.2 ft)
Max Digging Force (Boom)	72.2 kN (16,230 lbf)
Max Digging Force (Arm)	50.6 kN (11,375 lbf)

🪣 Bucket Capacities

Bucket Type	Capacity
General Purpose (GP)	0.36 – 0.47 m³ (0.47 – 0.62 yd³)
Heavy Duty (HD)	0.57 m³ (0.75 yd³)

⭐ Key Features & Highlights

Feature	Description
✅ Gravity Cast Boom & Arm	Superior strength & fatigue resistance; lower cost than premium L-series
✅ Zero Tail Swing	Ideal for working in confined spaces

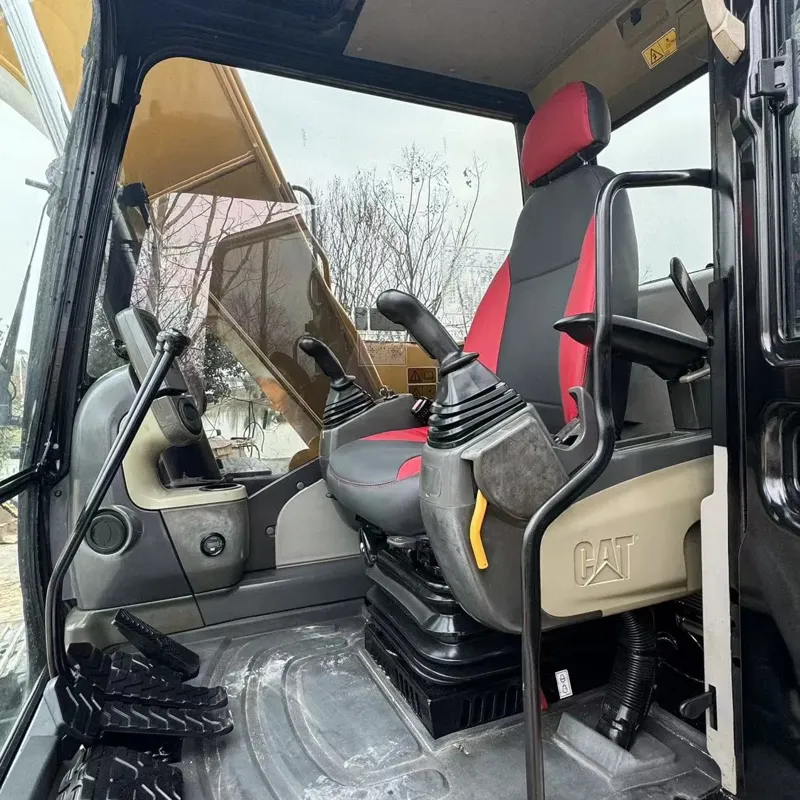

✅ ROPS/FOPS Cab	Fully enclosed, pressurized cab with excellent visibility
✅ Cat GRADE Ready	Optional 2D/3D grade control for precise digging
✅ Cat Product Link™	Remote machine monitoring & fleet management
✅ Advanced Control System	Electro-hydraulic joystick controls, auto-idle, eco-mode
✅ Walk-Around Design	Easy access for daily maintenance
✅ Cold Start Capability	Rated to -20°C (-4°F) with optional packages
✅ Long Service Intervals	Engine oil change every 1,000 hrs; hydraulic filter every 2,000 hrs
✅ Rental-Ready	One of the most rented excavators in its class globally

🆚 Comparison: 312D2 GC vs Other Variants

Model	Boom/Arm	Positioning
312D2 GC	Gravity Cast	⭐ Best Value — Most popular, great durability/price
312D2 L GC	Premium Cast (L-series)	Higher strength, heavier duty, higher price
312D2	Welded	Lighter, lower cost, less fatigue-resistant
313D2 GC	Gravity Cast	13-tonne class, more power (~98 HP)

🌍 Common Applications

Application	Details
🏗️ General Construction	Foundation work, trenching, backfilling
🛣️ Road Building	Utility installation, pipe laying
🌳 Landscaping	Grading, digging, material handling
🔌 Utilities	Water, sewer, gas line installation
🏚️ Demolition	Light to medium demolition (with breaker)
📦 Material Handling	Loading trucks, stockpiling

📊 Quick Summary

Category	Rating
🔋 Power	⭐⭐⭐⭐ (86 HP — adequate for 12T class)
💪 Durability	⭐⭐⭐⭐⭐ (Gravity cast = excellent)
🤖 Technology	⭐⭐⭐⭐⭐ (Product Link, GRADE-ready, advanced controls)
💰 Value for Money	⭐⭐⭐⭐⭐ (Best-seller for a reason)
🏢 Operator Comfort	⭐⭐⭐⭐ (Spacious cab, good visibility)

🔢 Model Naming Breakdown

Code	Meaning
312	12-tonne class (approx. 12,000 kg)
D2	Generation C (2nd gen of D-series)
GC	Gravity Cast boom & arm

🏁 Bottom Line

The CAT 312D2 GC is arguably the best all-rounder in the 12-tonne excavator market. It offers the perfect blend of performance, durability, technology, and value. Whether you're a contractor, rental company, or owner-operator, this machine delivers reliable productivity with low operating costs. It's no wonder it's one of Caterpillar's best-selling excavators worldwide. 🏆
