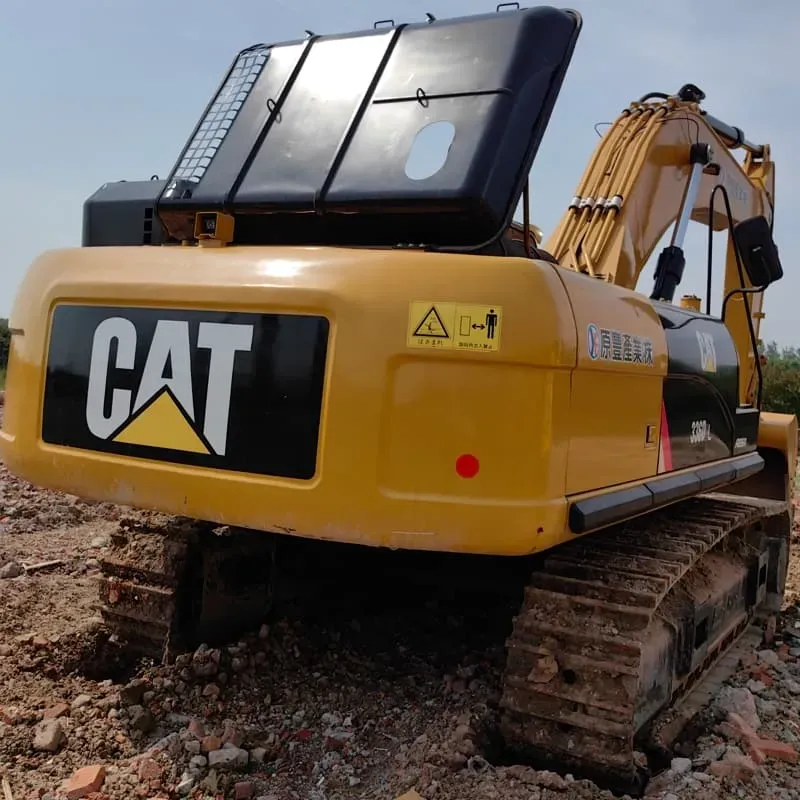

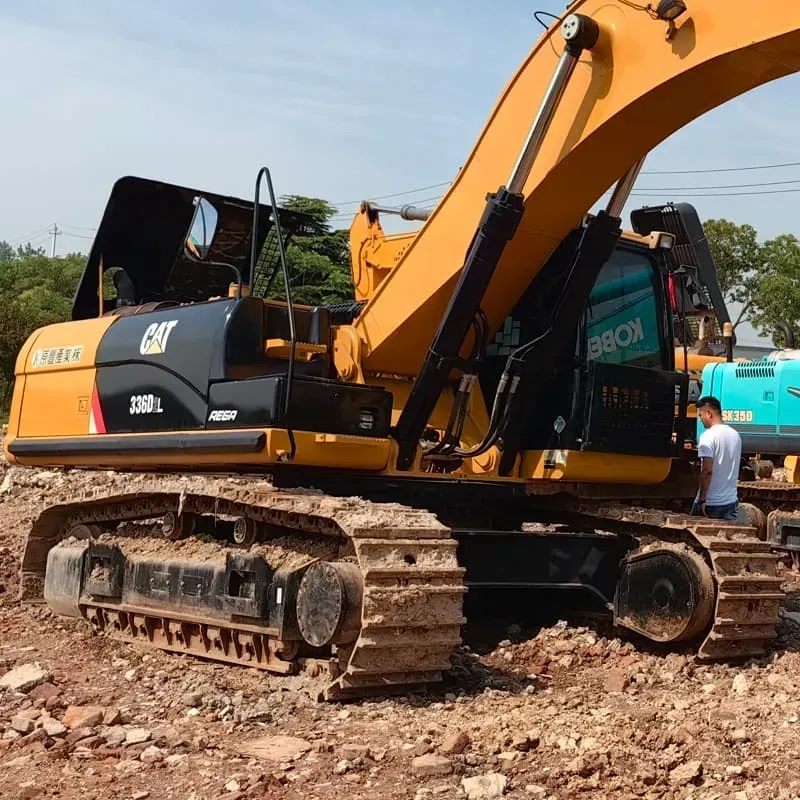

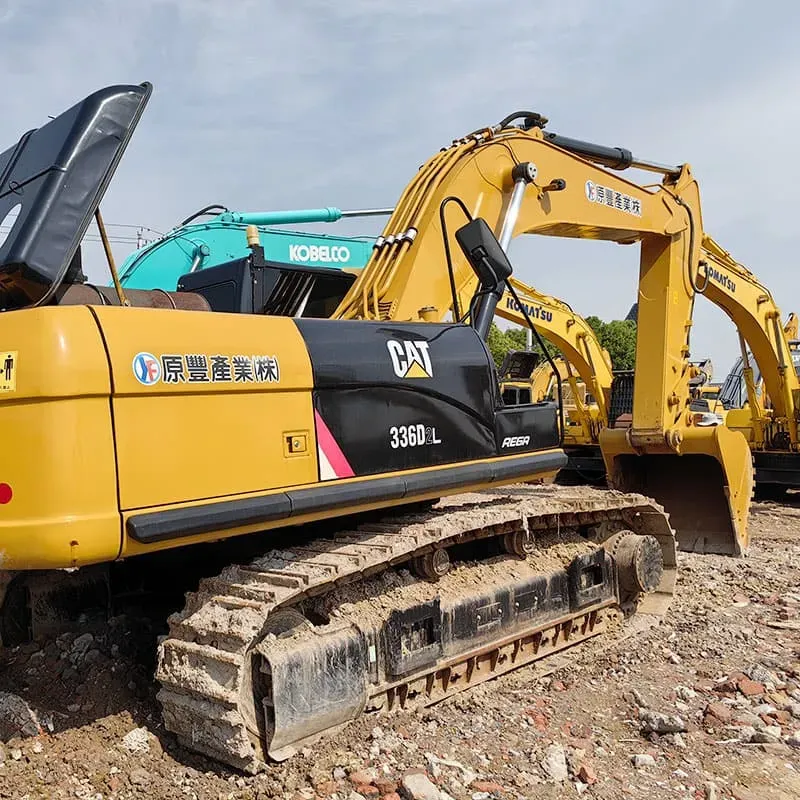

Used Caterpillar 336D2LExcavator

Reading: 16

📌 Overview

The CAT 336D2L is a medium-to-large hydraulic excavator from Caterpillar's D2 GC (Next Generation) series. The "L" stands for "Long Reach", meaning it's specifically designed for extended digging and loading applications such as deep foundation work, river dredging, slope trimming, and material handling over obstacles.

It replaced the older 336D L (D1 series) and brings significant improvements in fuel efficiency, operator comfort, technology, and emissions compliance.

Specification	Details
Series	D2 GC (Next Generation)
Model	336D2L
Configuration	Long Reach (L)
Operating Weight	~36,900 kg (81,350 lb)
Engine	CAT C7.1 ACERT
Power	205 hp (153 kW) @ 2,000 rpm
Emissions	EPA Tier 4 Final / EU Stage V

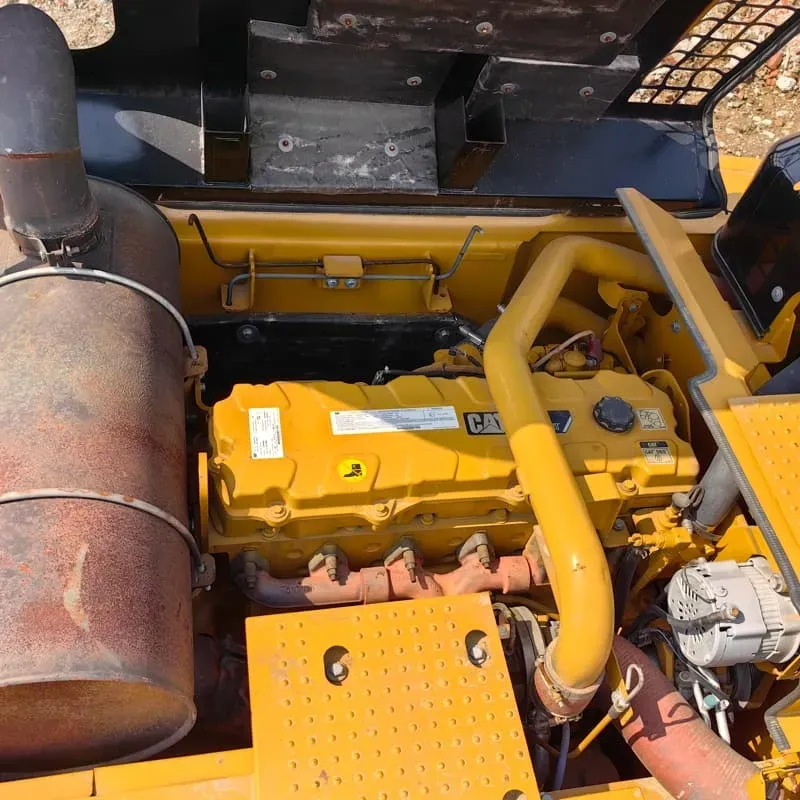

🔧 1. ENGINE — CAT C7.1 ACERT

Parameter	Specification
Type	6-cylinder, in-line, turbocharged & aftercooled diesel
Displacement	7.1 liters (433 cu in)
Rated Power	205 hp (153 kW) @ 2,000 rpm
Max Torque	617 lb·ft (837 N·m) @ 1,400 rpm
Emissions	EPA Tier 4 Final / EU Stage V (using DPF + SCR)
Fuel Tank Capacity	~568 L (150 gal)

✅ Engine Features:

ACERT Technology — Advanced combustion efficiency for lower fuel consumption
Auto-engine speed control — Adjusts RPM based on load demand
Extended service intervals — Oil change every 1,000 hours
Electronically controlled fuel injection

📐 2. DIMENSIONS & CONFIGURATION (Long Reach)

Dimension	Metric	Imperial
Operating Weight	~36,900 kg	81,350 lb
Transport Length	~11,810 mm	38.7 ft
Transport Width	3,190 mm	10.5 ft
Transport Height	3,320 mm	10.9 ft
Track Gauge	2,590 mm	8.5 ft
Ground Clearance	480 mm	18.9 in
Long Reach Boom	5.5 m (18 ft)	18 ft
Stick Length	2.9 m – 3.5 m (9.5 – 11.5 ft)	varies

💪 3. PERFORMANCE (Long Reach Configuration)

Performance Metric	Value
Max Digging Depth	~10.2 m (33.5 ft)
Max Reach (Ground Level)	~14.8 m (48.6 ft)
Max Digging Height	~11.2 m (36.7 ft)
Max Dump Height	~7.6 m (24.9 ft)
Max Vertical Wall Dig	~7.4 m (24.3 ft)
Bucket Capacity (ISO)	0.8 – 1.6 m³ (1.0 – 2.1 yd³)
Swing Speed	11.4 rpm
Travel Speed	4.8 km/h (3.0 mph)
Gradeability	70% (35°)
Max Tractive Force	~220 kN (49,500 lbf)

🔑 The Long Reach configuration trades some digging force for extended reach, ideal for working from a distance (e.g., over walls, into riverbanks, deep trenches).

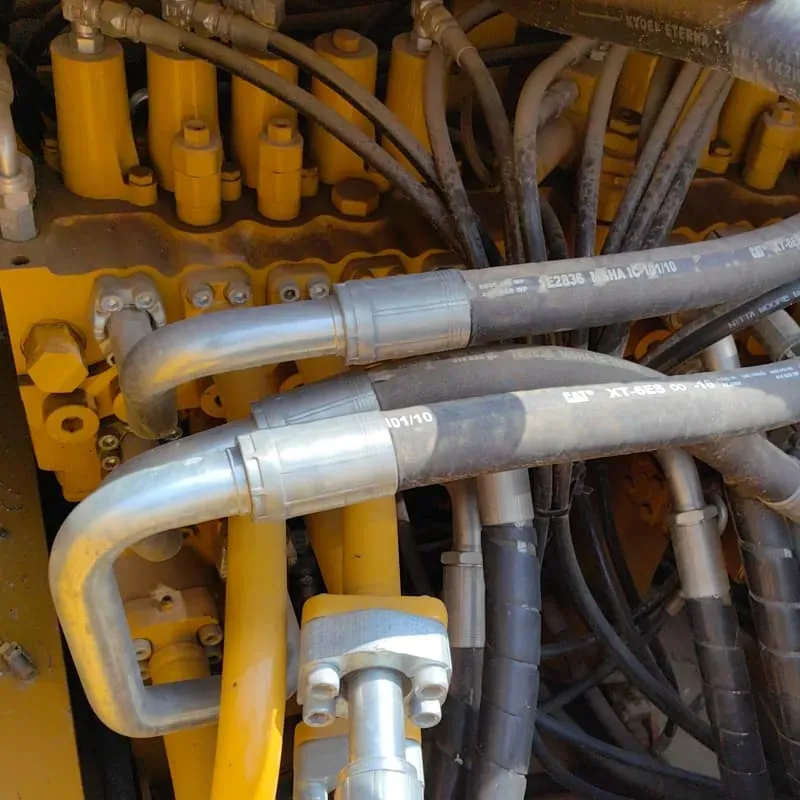

🛢️ 4. HYDRAULIC SYSTEM

Parameter	Specification
Pump Type	2 × Variable Displacement Piston Pumps
Total Flow	2 × 354 L/min (2 × 93.5 gal/min)
Working Pressure	350 bar (5,075 psi)
Swing Motor	Variable displacement axial piston

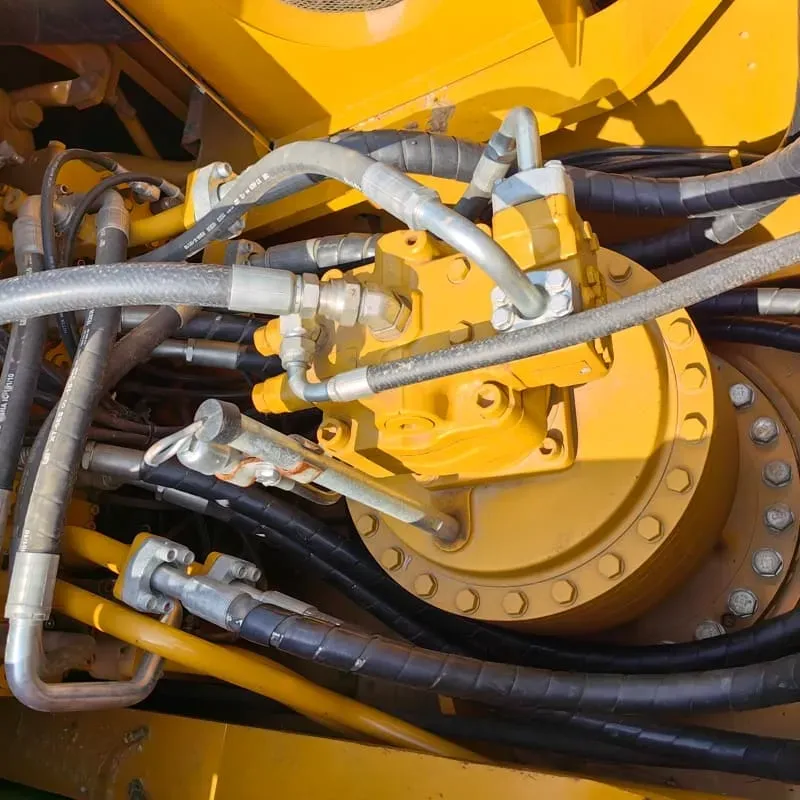

Travel Motors	Variable displacement axial piston (with brake)
Auxiliary Hydraulic Flow	85 L/min (22.5 gal/min) @ 345 bar
Hydraulic Tank	~180 L (47.5 gal)

✅ Hydraulic Features:

Boom Float & Stick Float — Smooth, simultaneous movement
Sequential Boom Float — Automatic return-to-dig
Lift Assist — Auto-raises boom & stick during swing for faster cycle times
Auto-Swing Kickout — Reduces swing overload
Power Boost — Temporary extra hydraulic power for heavy digs

🖥️ 5. TECHNOLOGY & ELECTRONICS

Technology	Description
📡 Cat Product Link™	Telematics — real-time machine monitoring, location tracking, diagnostics
📊 VIMS™ 3G	Vital Information Management System — engine & machine health monitoring
🏗️ Cat Grade (2D/3D)	GPS-guided grading — boom, stick, and bucket automation
🚧 E-Fence	Virtual boundary alert — prevents machine from entering restricted zones
📹 Rearview Camera	Standard on D2 series
🎛️ Touchscreen Monitor	10" (254 mm) LCD display with multi-language support
🧠 Smart Control System	Auto-adjusts engine & hydraulic output for optimal efficiency
⚡ Auto Engine Idle	Reduces idle time to save fuel
🔄 Auto Throttle	Maintains set RPM regardless of load

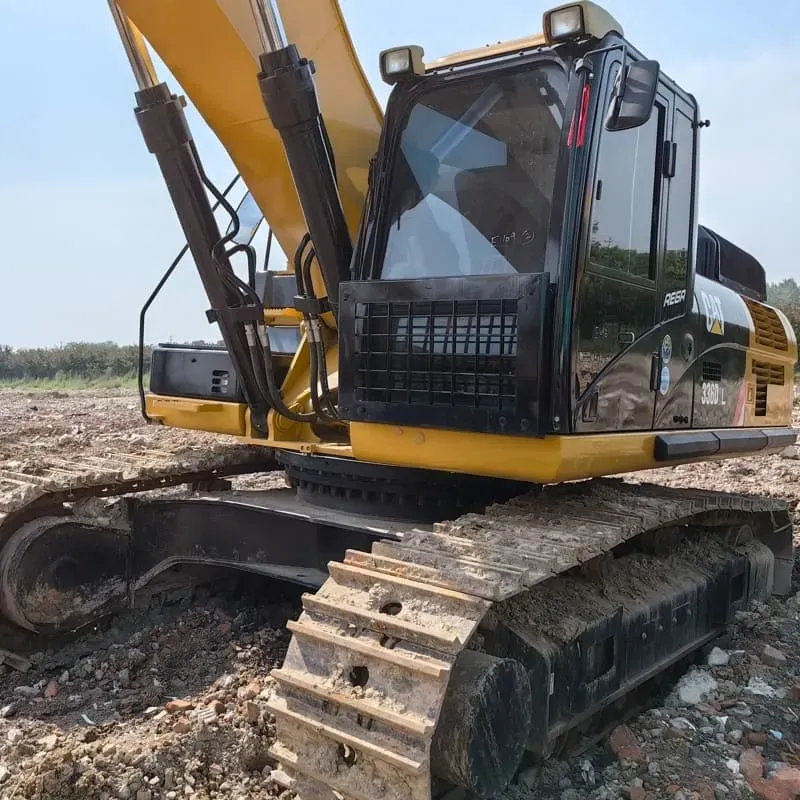

🪑 6. OPERATOR COMFORT — Cab (D2 Series)

The D2 series cab is a major upgrade over the D1:

Feature	Details
Cab Type	ROPS/FOPS certified, pressurized
Noise Level	~72 dB(A) — significantly quieter than D1
Air Conditioning	Auto climate control
Seat	Air-ride, heated, with armrests & suspension
Controls	Electronic joysticks (proportional) with auto-return
Display	10" touchscreen with rear-view camera
Headlight	LED work lights
USB Ports	For charging devices
Vibration Isolation	Improved mounts reduce operator fatigue

🛡️ 7. UNDERCARRIAGE

Component	Specification
Track Type	Heavy-duty steel, 600 mm (24 in) wide
Track Shoes	600 mm triple-grouser (or optional single/double)
Number of Rollers	5 per side (lower) + 2 carrier rollers
Shoe Length	4,500 mm (177 in)
Ground Bearing Pressure	~78 kPa (11.3 psi)

& 8. MAINTENANCE & SERVICEABILITY

Item	Interval
Engine Oil Change	1,000 hours
Hydraulic Oil Change	4,000 hours
Fuel Filter	1,000 hours
Track Adjustment	Auto-tension system
Greasing Points	Centralized auto-lube system
Ground-Level Access	Engine hood, fuel tank, hydraulic tank — all accessible from ground

✅ The D2 series is designed for easy daily maintenance with ground-level service points.

🏗️ 9. TYPICAL APPLICATIONS

Application	Why 336D2L?
🌊 River Dredging	Long reach extends over water
🏗️ Deep Foundation Work	Reaches deep piles & caissons
⛰️ Slope Trimming / Landscaping	Works from safe distance on steep slopes
🏭 Material Handling	Long reach loads trucks from a distance
🕳️ Demolition	Long reach keeps operator away from debris
🛤️ Railway Work	Works from trackside at safe distance
🪨 Quarry & Mining	Loading from elevated positions

📊 10. COMPARISON: 336D2L vs 336D2 (Standard)

Feature	336D2 (Standard)	336D2L (Long Reach)
Boom Length	5.8 m (19 ft)	5.5 m (18 ft)
Max Dig Depth	~7.4 m (24.3 ft)	~10.2 m (33.5 ft)
Max Reach	~11.5 m (37.7 ft)	~14.8 m (48.6 ft)
Operating Weight	~36,200 kg	~36,900 kg
Best For	General excavation	Extended reach tasks

✅ SUMMARY — Key Strengths

Strength	Detail
🔋 Fuel Efficient	Up to 10% less fuel than D1 series
📱 Connected	Product Link + VIMS 3G for fleet management
🪑 Comfortable	New D2 cab — quieter, more spacious
🤖 Smart	Auto-engine, auto-throttle, Grade ready
💪 Powerful	205 hp with excellent hydraulic performance
🌐 Low Emissions	Tier 4 Final / Stage V compliant
🔧 Easy Service	Ground-level access, extended intervals

🎯 Bottom Line

The CAT 336D2L is one of the most versatile and technologically advanced medium-large excavators in its class. The Long Reach configuration makes it the go-to machine for jobs where you need to dig deep and reach far — all while enjoying the fuel efficiency, comfort, and smart technology of Caterpillar's D2 Next Generation platform.
