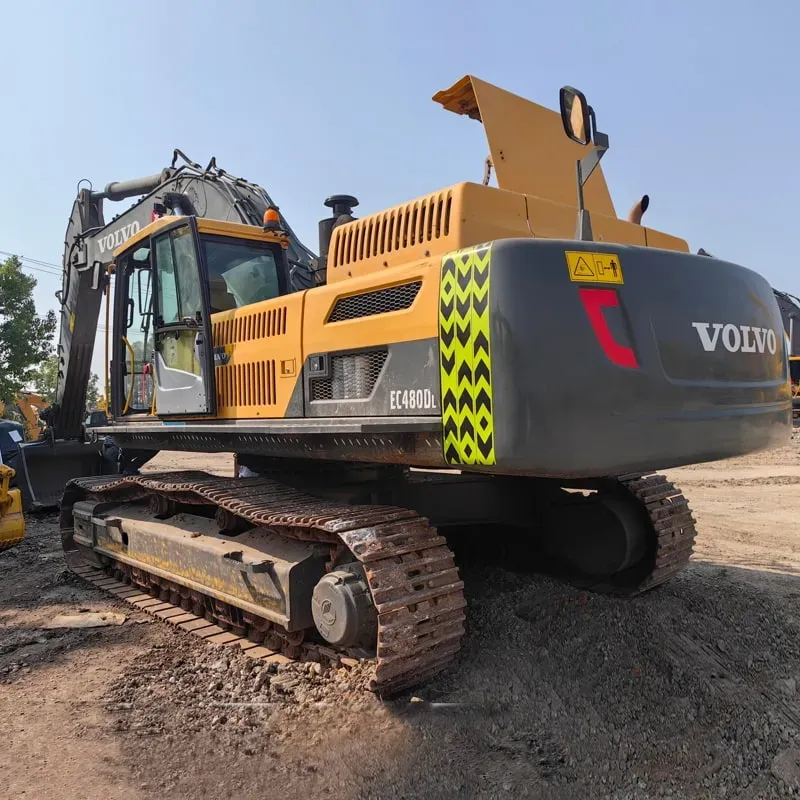

Used Volvo 480Excavator

Reading: 18

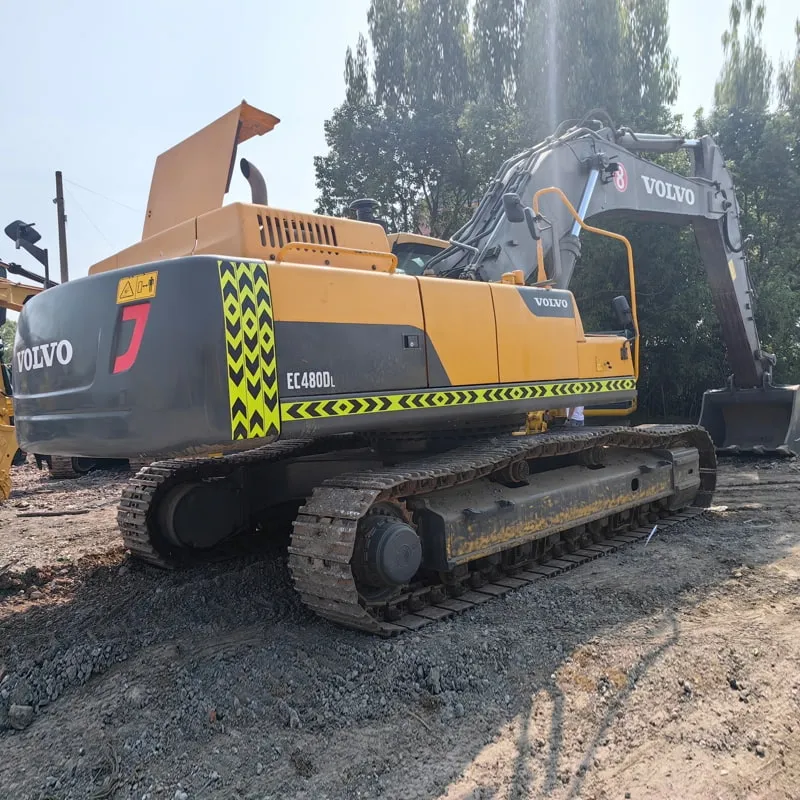

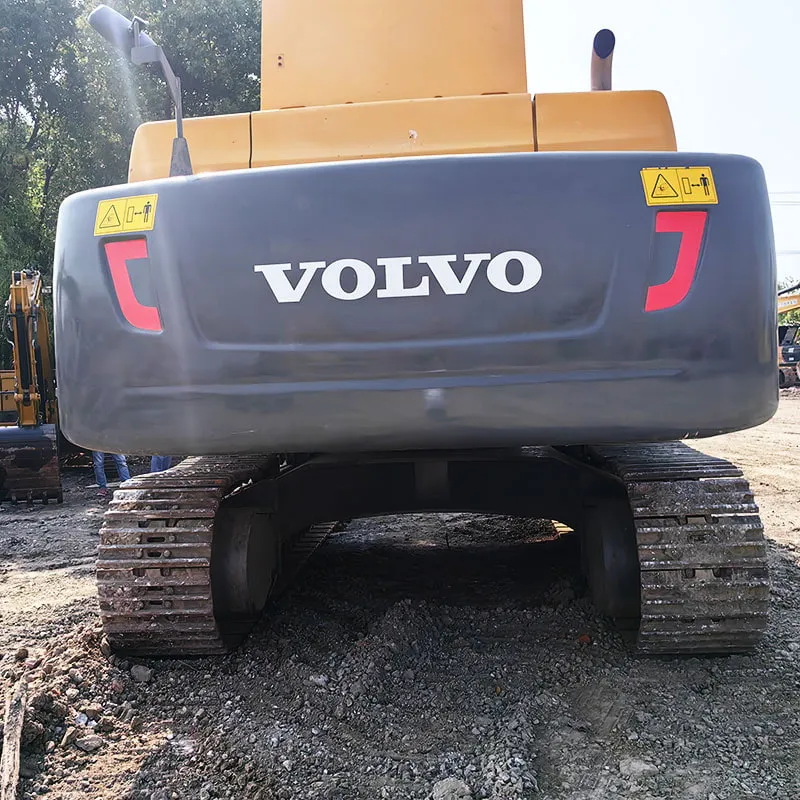

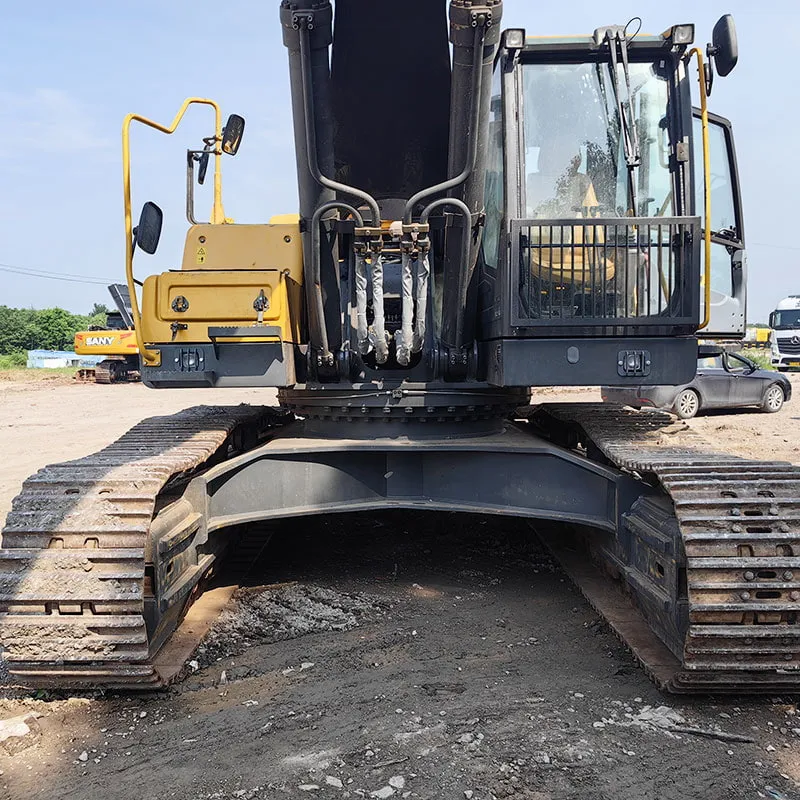

The Volvo EC480E is a large-class crawler excavator (48–50 tonne class) from Volvo Construction Equipment's E-Series (EC) lineup. It is designed for heavy-duty applications in mining, quarrying, large-scale earthmoving, and demolition.

📋 1. OVERVIEW

Parameter	Details
Model	Volvo EC480E (Current Gen)
Predecessor	EC480B
Class	Large Crawler Excavator
Operating Weight	~47,900 – 51,000 kg (48–51 tonnes)
Manufacturer	Volvo Construction Equipment (Sweden)
Production	Ongoing (launched ~2018)

There is also a wheeled version: Volvo EW480E with similar specs but on rubber tires.

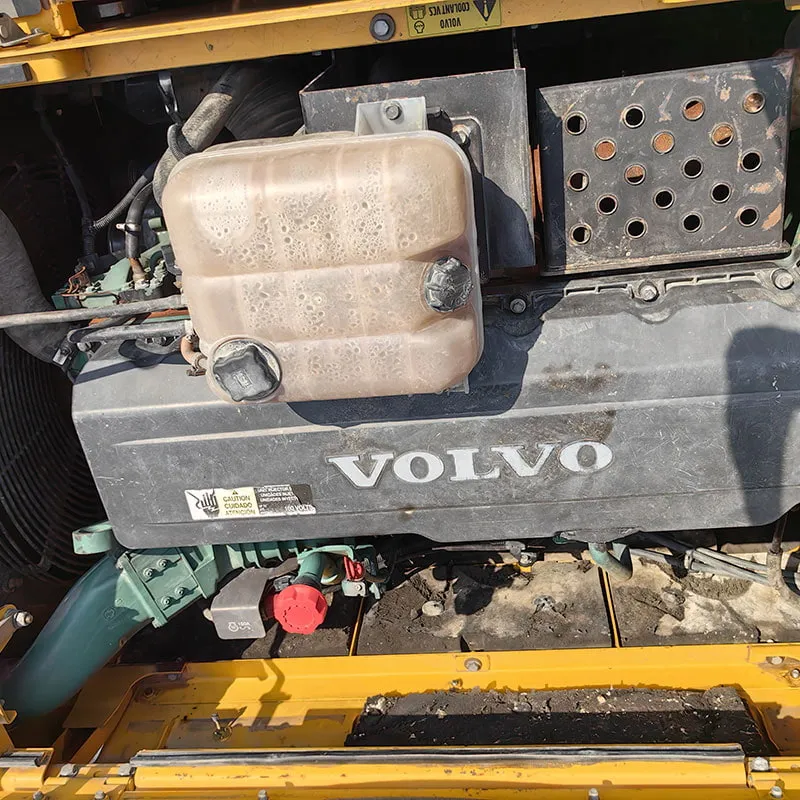

& 2. ENGINE & POWER

Specification	Details
Engine	Volvo D13 TC
Type	6-cylinder, turbocharged, intercooled diesel
Displacement	12.8 liters
Power Output	370 hp (272 kW) @ 1,800 rpm
Max Torque	~1,870 Nm @ 1,400 rpm
Emission Standard	Stage V / Tier 4 Final (EPA)
Fuel Tank	~650 liters
DEF Tank	~40 liters (for SCR system)

The engine features Volvo's ECO mode and Power mode for fuel optimization under varying load conditions.

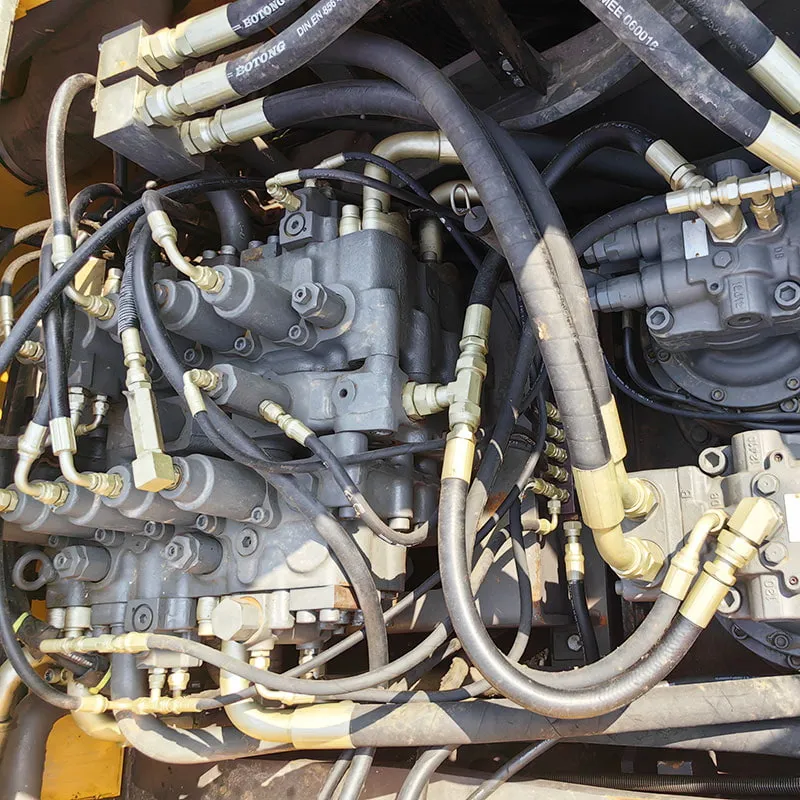

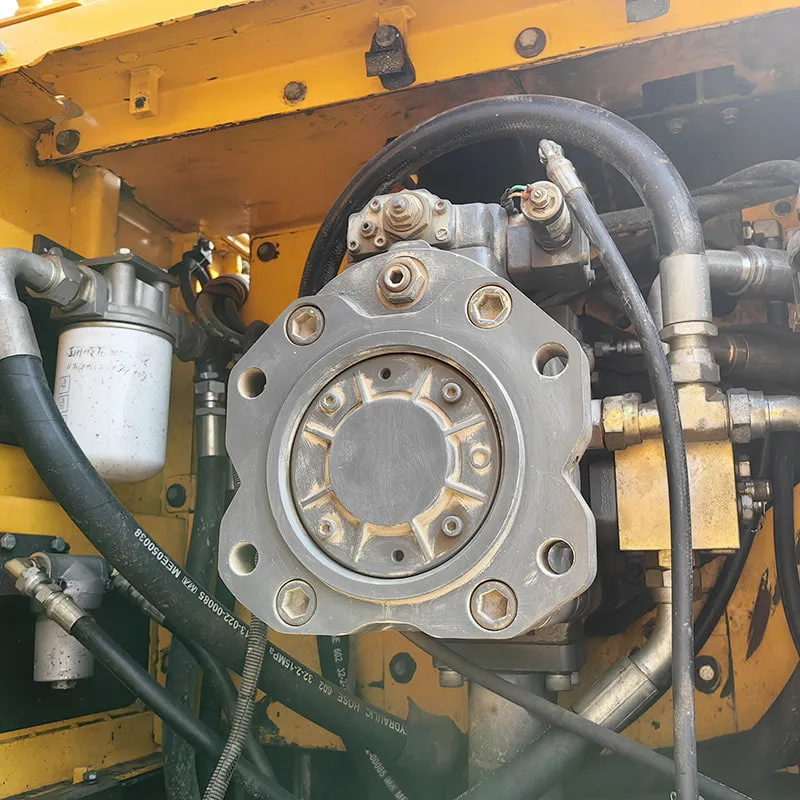

🔩 3. HYDRAULIC SYSTEM

Parameter	Details
Pump Type	Variable displacement axial piston
Max Flow	~2 × 370 L/min (dual pump)
System Pressure	350 bar (5,076 psi) / 380 bar peak
Hydraulic Oil Capacity	~480 liters

🪣 4. PERFORMANCE (DIGGING SPECS)

Parameter	Value
Max Digging Depth	~7,350 mm (24.1 ft)
Max Reach (Ground Level)	~10,900 mm (35.8 ft)
Max Digging Height	~10,600 mm (34.8 ft)
Max Dumping Height	~7,500 mm (24.6 ft)
Max Digging Force (Boom)	~290–300 kN (65,200 lbf)
Breakout Force (Bucket)	~210–220 kN (47,200 lbf)
Swing Speed	~8.5 rpm
Travel Speed	5.0 km/h (3.1 mph)
Gradeability	70% (35°)
Ground Pressure	~85 kPa (12.3 psi)

🪣 5. BUCKET CAPACITY

Bucket Type	Capacity
Standard Bucket	1.8 – 2.0 m³ (2.4 – 2.6 yd³)
Heavy Duty Bucket	2.2 – 2.8 m³ (2.9 – 3.7 yd³)
Ripper (optional)	1–3 shank ripper

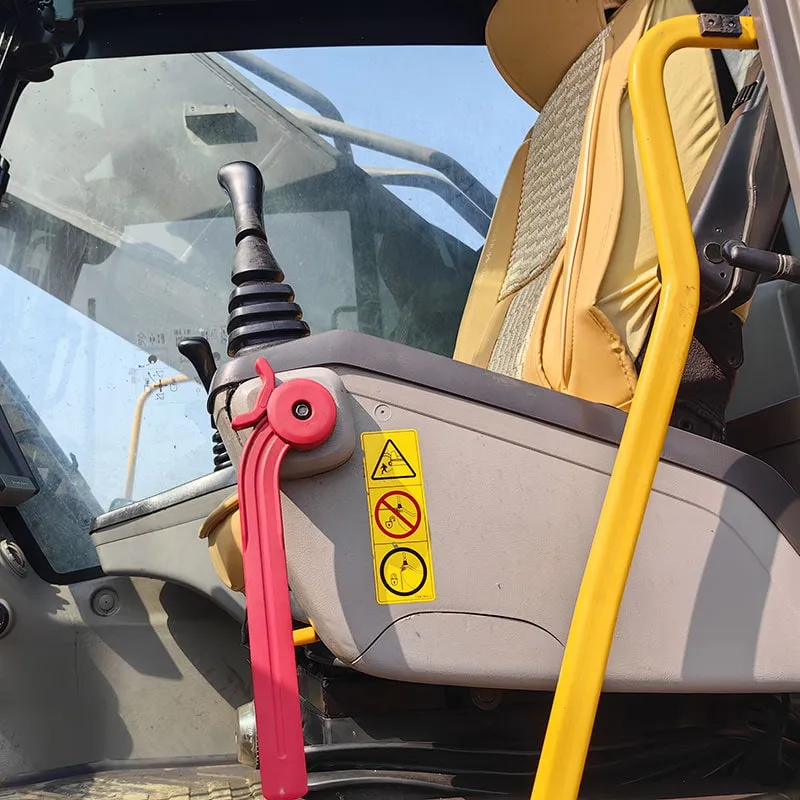

🖥️ 6. CAB & OPERATOR ENVIRONMENT – CareCab

One of Volvo's hallmark features:

Feature	Details
Cab Name	CareCab
Noise Level	~64 dB(A) – among the quietest in class
ROPS/FOPS	Fully certified (Roll-Over & Falling Object Protection)
Climate Control	Auto AC with micron filter
Seat	Air-suspended, heated, fully adjustable
Display	9" or 12" high-res touchscreen monitor
Camera System	4× cameras (rear, side, boom tip, bucket)
Visibility	Excellent all-round with large glass area

🤖 7. TECHNOLOGY & SMART FEATURES

Technology	Description
🎯 Volvo Co-Pilot	Semi-automatic digging – operator controls boom/stick, Co-Pilot handles bucket & swing for faster, more precise cycles
📡 LINK System	Remote telematics – real-time monitoring of fuel, location, hours, diagnostics, idle time
📊 Volvo Active Control (VAC)	(on some variants) Auto-leveling, return-to-dig, and smooth motion control
🔧 Volvo Production Measurement (Payload)	Real-time bucket load weighing
🛡️ Volvo Guard System	Anti-theft engine immobilizer
🔄 Eco Mode	Auto engine speed reduction during idle/light work – saves up to 15% fuel
🔧 Quick Coupler Ready	Hydraulic quick coupler for fast attachment change
📐 2D/3D Grade Control Ready	Compatible with Topcon, Trimble, Leica systems

🏗️ 8. APPLICATIONS

Sector	Use
🪨 Mining & Quarrying	Large-scale rock excavation, loading
🏗️ Heavy Earthmoving	Foundation work, deep excavation
🏚️ Demolition	With hydraulic breaker or crusher
🛤️ Infrastructure	Pipeline, road construction
🏭 Material Handling	Loading large haul trucks (100T+ class)
🌲 Forestry	With grapple attachment

🆚 9. EC480E vs EC480B (Predecessor)

Feature	EC480B	EC480E (Current)
Engine	D12D (350 hp)	D13 TC (370 hp)
Weight	~47,000–49,000 kg	~47,900–51,000 kg
Fuel Efficiency	Good	~15% better
Co-Pilot	❌	✅
LINK Telematics	Basic	Advanced
Cab Noise	~67 dB(A)	~64 dB(A)
Emissions	Tier 4i	Stage V / Tier 4 Final

💰 10. APPROXIMATE PRICING (2024)

Region	Estimated Price (USD)
North America	$350,000 – $450,000+
Europe	€300,000 – €400,000+
Asia-Pacific	Varies by market

Price varies significantly based on configuration (bucket, ripper, GPS, Co-Pilot, etc.)

✅ SUMMARY – WHY CHOOSE VOLVO EC480E?

Strength	Detail
✅ Fuel Efficiency	Best-in-class ~15% savings vs previous gen
✅ Operator Comfort	Quietest cab, best visibility, smart controls
✅ Productivity	Co-Pilot + smart functions = faster cycle times
✅ Reliability	Volvo's legendary uptime & dealer network
✅ Resale Value	Strong residual value globally
✅ Uptime	Volvo's Uptime Services & CareTrack support

📌 The Volvo EC480E is one of the most advanced and productive large excavators on the market, combining raw power with intelligent technology for maximum efficiency in the toughest jobs.
