📌 1. OVERVIEW

The CAT 324D2 is a medium-class hydraulic excavator belonging to Caterpillar's D2 Series (introduced around 2015–2017 as an updated version of the 324D/324DL). It is designed for versatile performance in general construction, road building, utility work, and material handling. It sits between the smaller 320D2 and the larger 326D2 in Cat's lineup.

Parameter	Specification
Series	D2 Generation
Class	Medium Excavator (~24 tonne class)
Manufacturer	Caterpillar Inc.
Production	~2015 – Present
Primary Markets	Construction, Mining, Infrastructure, Demolition

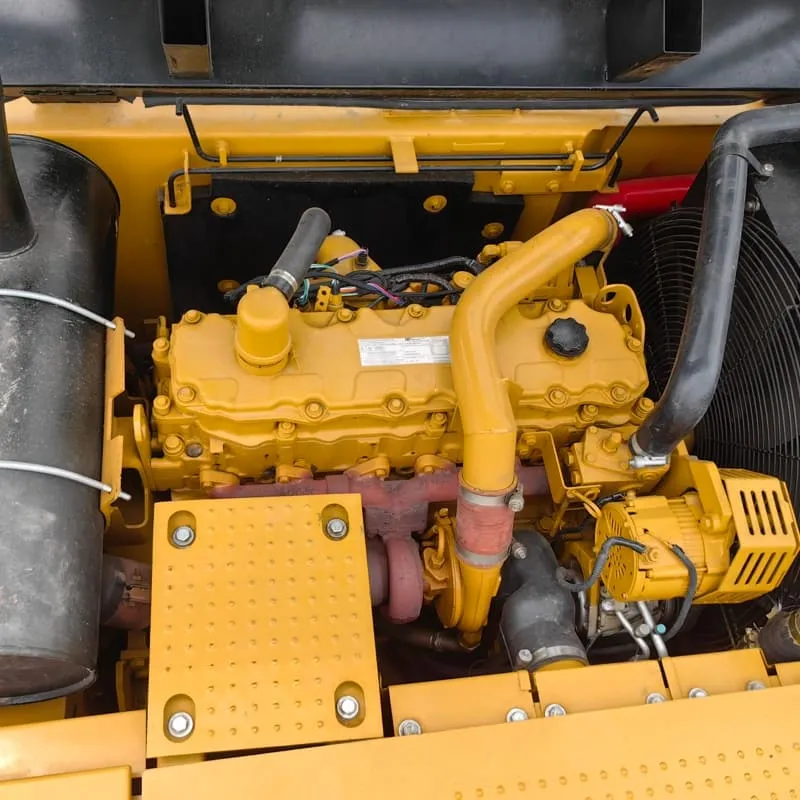

🔧 2. ENGINE & POWER

Specification	Detail
Engine Model	Cat® C4.4 ACERT® 4-cylinder turbo diesel
Displacement	4.4 L (268 cu in)
Rated Power (ISO 9249)	129 hp (96 kW) @ 2,000 rpm
Net Power (SAE J1995)	~125 hp (93 kW)
Emissions Standard	EPA Tier 4 Final / EU Stage V (with DPF + SCR)
Fuel Tank Capacity	~400 L (106 gal)
Cooling System	Pressurized, 18.9 L (5 gal)

✅ The ACERT® technology combines Air-to-Air Aftercooling (AAA) with Electronic Unit Injection (EUI) for optimal fuel efficiency and low emissions.

& 3. OPERATING WEIGHT & DIMENSIONS

Specification	Detail
Operating Weight	~24,500 kg (54,010 lb)
Transport Length	~9,870 mm (32 ft 5 in)
Transport Width	~2,990 mm (9 ft 10 in)
Transport Height	~3,130 mm (10 ft 3 in)
Ground Clearance	~460 mm (18 in)
Track Gauge	~2,300 mm (7 ft 7 in)
Track Shoe Width	600 mm (24 in) — Triple Grouser option available

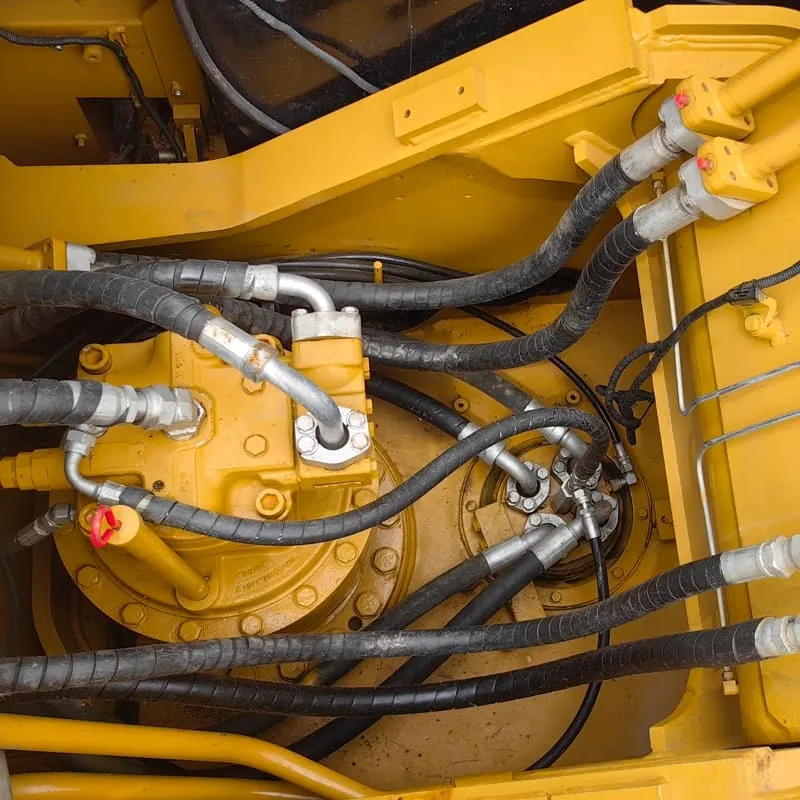

🪣 4. HYDRAULIC SYSTEM & PERFORMANCE

Specification	Detail

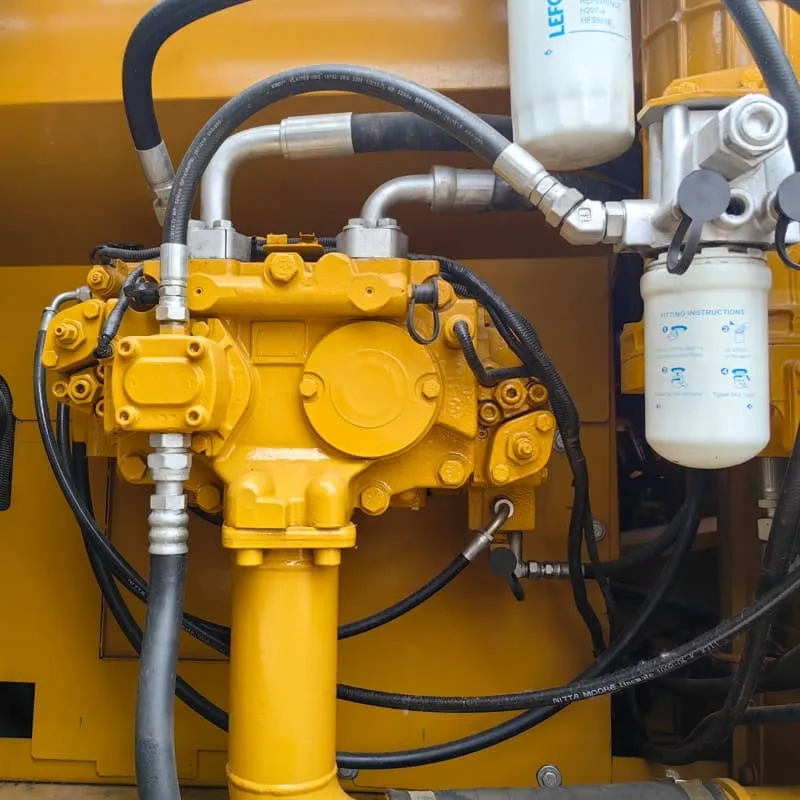

Hydraulic Pump Type	Variable displacement piston pump
System Pressure	350 bar (5,076 psi)
Hydraulic Flow	~2 × 168 L/min (2 × 44.4 gal/min)
Swing Speed	~11.5 rpm
Swing Torque	~78 kN·m (57,500 lb·ft)
Travel Speed	~5.0 km/h (3.1 mph)
Gradeability	70% (35°)

📐 5. DIGGING PERFORMANCE

Specification	Detail
Max Digging Depth	~7,010 mm (23 ft 0 in)
Max Reach (Ground Level)	~9,800 mm (32 ft 2 in)
Max Dumping Height	~7,300 mm (23 ft 11 in)
Max Digging Radius	~9,500 mm (31 ft 2 in)
Max Vertical Wall Dig	~5,700 mm (18 ft 8 in)
Bucket Capacity (SAE)	0.93 – 1.20 m³ (1.22 – 1.57 yd³)
Bucket Capacity (ISO)	0.85 – 1.10 m³
Max Bucket Digging Force	~112 kN (25,200 lbf)
Max Arm Digging Force	~81 kN (18,200 lbf)

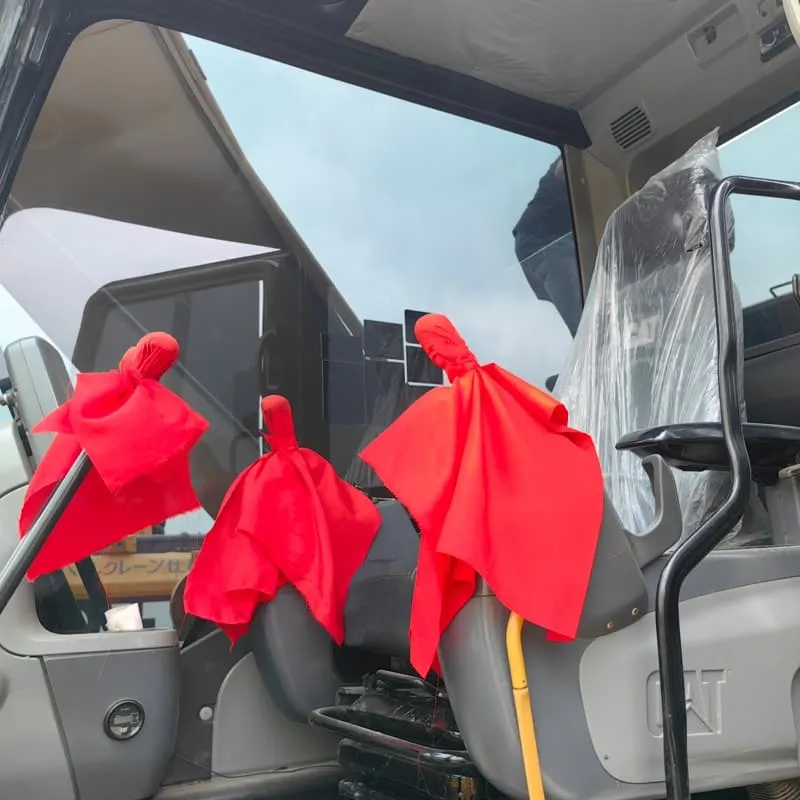

🖥️ 6. CAB & OPERATOR ENVIRONMENT

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Noise Level (inside)	~71 dB(A)
Seat	Air-suspended, heated, adjustable
Display	7-inch (178 mm) color LCD touchscreen monitor
Controls	Electronic joystick with programmable buttons
Climate Control	Auto A/C with heater
Camera System	Rearview & work tool camera (optional)
Radio/USB/Bluetooth	✅ Standard
Vandalism Guards	Optional

✅ The D2 cab is a significant upgrade over the D1 series — improved visibility, lower noise, better ergonomics, and the Cat Product Link™ telematics system is standard.

🧠 7. TECHNOLOGY & SMART FEATURES

Technology	Description
Cat Product Link™	Real-time telematics — location, hours, fuel, diagnostics
Grade with 2D (Optional)	GPS-based automatic blade control for grading
Payload (Optional)	Real-time bucket load weighing
Cat Detect with Vision (Optional)	Object detection using camera + radar for safety
Auto Engine Idle Shutdown	Saves fuel when idle
ECO Mode	Reduces engine speed during light work to save up to 15% fuel
Power Mode	Boosts performance for heavy digging
Cat Grade Control Ready	Compatible with 3D GPS grading systems

🔌 8. ATTACHMENTS & VERSATILITY

The 324D2 is a highly versatile machine with quick coupler capability:

Attachment	Application

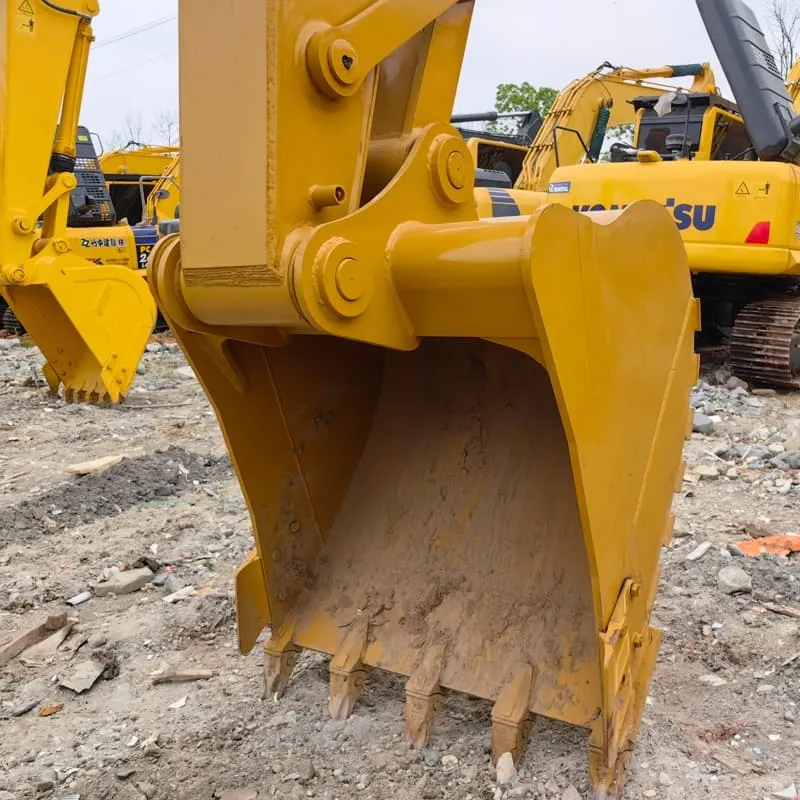

🪣 General Purpose Bucket	Digging, loading
🦷 Rock Bucket	Quarrying, hard material
🔨 Hydraulic Breaker (Hammer)	Demolition, concrete breaking
✂️ Hydraulic Shear	Steel cutting, demolition
🪓 Grapple	Material handling, scrap
🔧 Thumb	Pipe handling, log grabbing
🌀 Auger	Drilling, piling
🪣 Tiltrotator	360° rotation of attachment
🌊 Compaction Wheel	Trench compaction
🧹 Rake	Leveling, cleaning

⚡ Quick Coupler (Cat CW) or Pin Grabber available for fast attachment changes — under 2 minutes.

📊 9. FUEL EFFICIENCY

Condition	Approximate Fuel Consumption
Idle	~5.5 L/hr (1.5 gal/hr)
Light Work	~12–15 L/hr (3.2–4.0 gal/hr)
Heavy Work	~22–28 L/hr (5.8–7.4 gal/hr)
Average Daily (8 hrs)	~120–180 L (32–48 gal)

✅ With ECO mode + Auto Idle Shutdown, fuel savings of 10–15% vs. D1 series.

🆚 10. COMPARISON: 324D2 vs Competitors

Feature	CAT 324D2	Komatsu PC240LC-11	Hitachi ZX240-6	Volvo EC240E
Engine Power	129 hp (96 kW)	129 hp (96 kW)	133 hp (99 kW)	129 hp (96 kW)
Operating Weight	24,500 kg	24,100 kg	24,000 kg	24,200 kg
Bucket (SAE)	1.2 m³	1.15 m³	1.0 m³	1.1 m³
Max Dig Depth	7.01 m	7.22 m	7.25 m	7.05 m
Swing Speed	11.5 rpm	11.0 rpm	11.0 rpm	10.5 rpm
Tech	Product Link, Vision	KOMTRAX	Hi-Care III	CareTrack

✅ 11. KEY ADVANTAGES

✅ Advantage	Explanation
🔋 Fuel Efficient	ECO mode, auto idle, ACERT engine
🧠 Smart Technology	Product Link, Vision, Payload, Grade Ready
💺 Comfortable Cab	Best-in-class operator environment
🔧 Low Maintenance	Extended service intervals (500/2000 hr)
💪 Strong Digging Force	112 kN bucket force — class-leading
🔄 Versatile	Quick coupler + wide attachment range
📈 High Resale Value	Cat brand = strong residual value
🌍 Global Support	Cat dealer network in 180+ countries

🔧 12. MAINTENANCE INTERVALS

Service	Interval
Engine Oil Change	500 hours
Hydraulic Oil Change	2,000 hours
Hydraulic Filter	2,000 hours
Fuel Filters	500 hours
Track Tension Check	500 hours
Coolant Change	4,000 hours / 2 years
Final Drive Oil	4,000 hours
Swing Bearing Grease	250 hours

💰 13. APPROXIMATE PRICING (2024)

Configuration	Price Range (USD)
New Machine (Base)	$180,000 – $220,000
With Grade/Vision/Payload	$230,000 – $270,000
Used (2018–2020, 3,000–6,000 hrs)	$110,000 – $160,000
Rental (Daily)	$800 – $1,200/day

(Prices vary by region, dealer, and configuration)

🎯 14. IDEAL APPLICATIONS

🏗️ Application	✅ Suitable?
General Earthmoving	✅✅✅
Road Construction	✅✅✅
Utility/Pipeline Work	✅✅✅
Demolition (with hammer)	✅✅✅
Material Handling	✅✅✅
Landscaping	✅✅
Mining (small-medium)	✅✅
Foundation Work	✅✅✅
Dredging (with long reach)	✅✅

🏁 15. SUMMARY

🏆 Rating	Score
Performance	⭐⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐⭐
Operator Comfort	⭐⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐
Durability/Reliability	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐☆

🔑 The CAT 324D2 is one of the best medium-class excavators on the market — offering an excellent balance of power, efficiency, technology, and operator comfort. It's a workhorse machine trusted by contractors worldwide.
