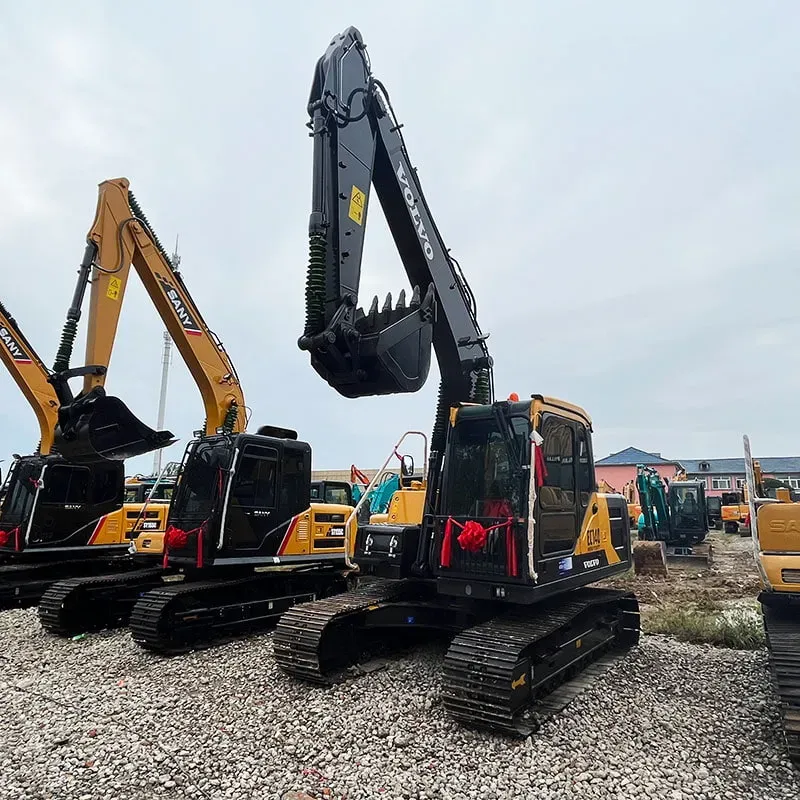

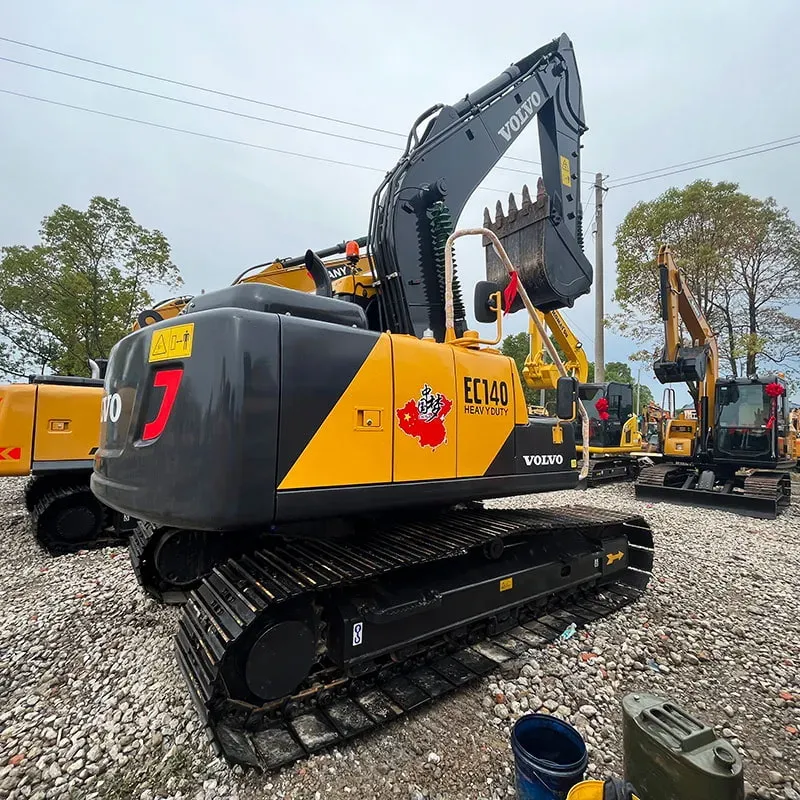

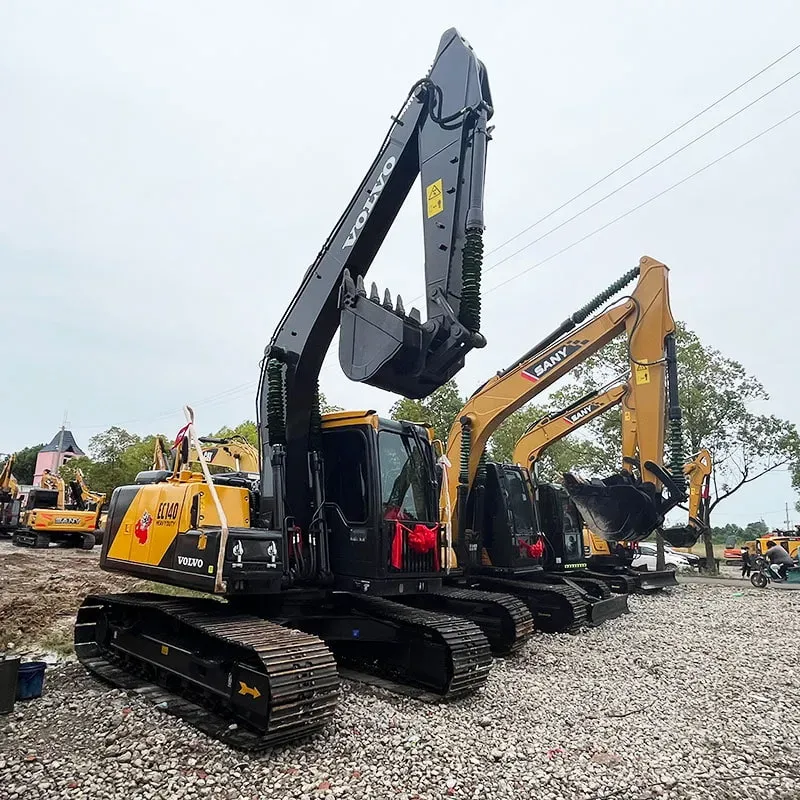

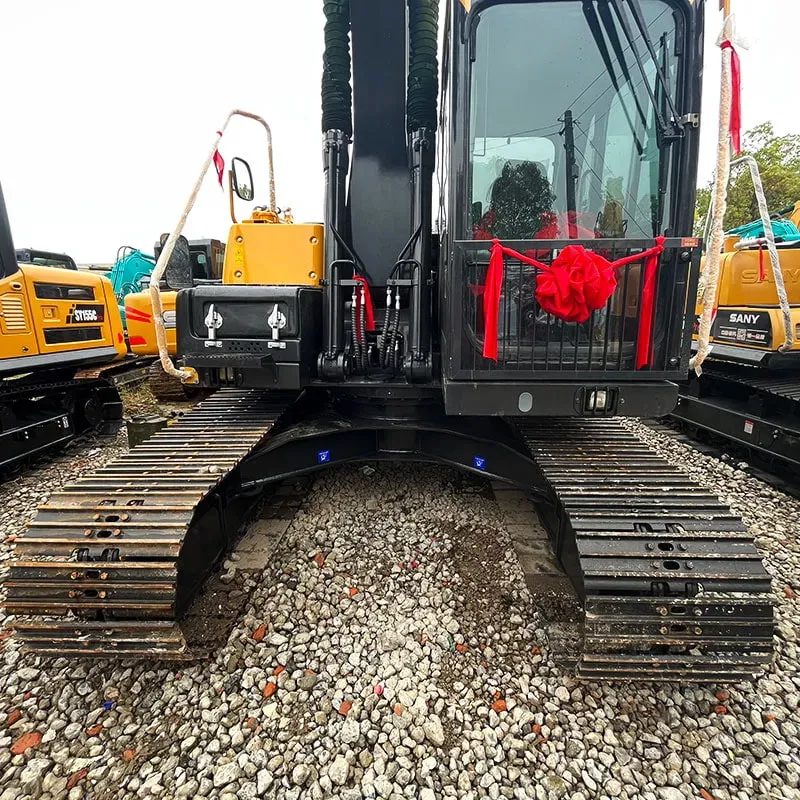

Used Volvo 140Excavator

Reading: 17

📋 Overview

The Volvo EC140 is a mid-size (14-ton class) crawler excavator manufactured by Volvo Construction Equipment (VCE). It sits in the popular 13–15 ton range and is designed for versatile performance in general construction, road building, utilities, landscaping, and demolition work.

It is part of Volvo's E-Series lineup and has evolved through several generations:

Generation	Model	Years (Approx.)
1st	EC140B	2002–2008
2nd	EC140C	2008–2013
3rd	EC140D	2013–2018
4th	EC140E	2018–Present
Long Reach	EC140EL	2018–Present

🔧 Key Specifications (EC140E — Latest Gen)

Parameter	Specification
Operating Weight	~14,000 – 14,500 kg (30,865 – 31,967 lbs)
Engine	Volvo D4.4 / Stage V compliant diesel
Power Output	88 kW (118 hp) @ 1,900 rpm
Max Torque	~460 Nm @ 1,300 rpm
Fuel Tank Capacity	~250 liters (66 gallons)
Hydraulic Flow	2 × 190 L/min (dual pump)
Max Digging Depth	~5,800 – 6,000 mm (19–19.7 ft)
Max Reach (Ground Level)	~8,500 – 9,000 mm (28–29.5 ft)
Max Digging Height	~9,200 – 9,500 mm (30–31.2 ft)
Bucket Capacity	0.4 – 0.65 m³ (0.52 – 0.85 yd³)
Blade Width	3,000 mm (118 in)
Track Width	600 mm (23.6 in) — adjustable
Transport Width	2,990 mm (117.7 in)
Transport Height	3,000 mm (118.1 in)

(Specs may vary slightly by market/configuration)

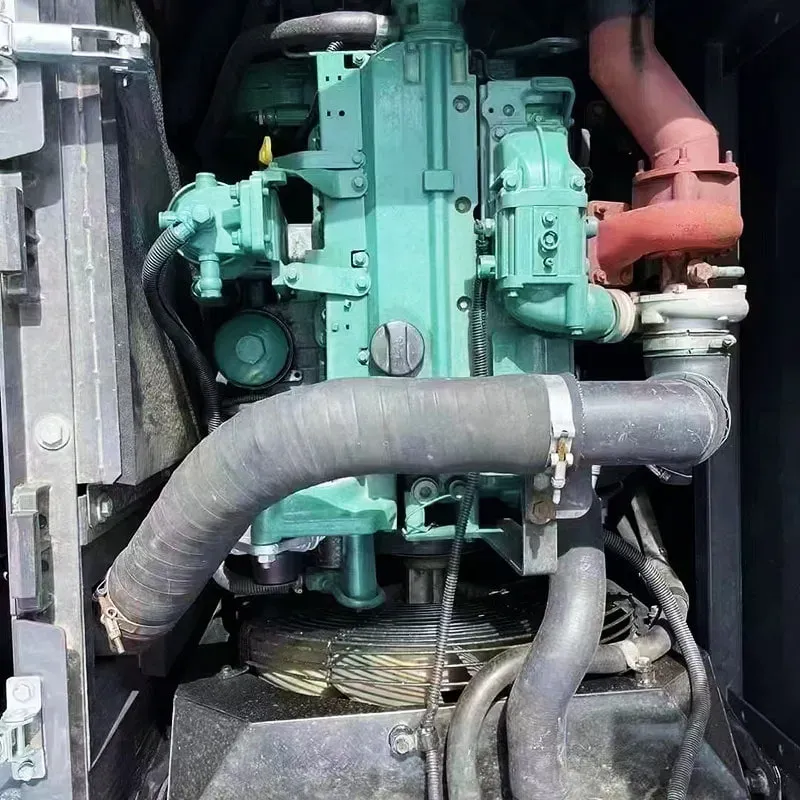

& Engine & Powertrain

Feature	Detail
Engine Model	Volvo D4.4 (4-cylinder, turbocharged, intercooled)
Emission Standard	EU Stage V / EPA Tier 4 Final
Technology	DOC + DPF + SCR (no EGR in some versions)
Cooling System	Low-temperature cooling for fuel efficiency
Transmission	Hydrostatic with auto-shift

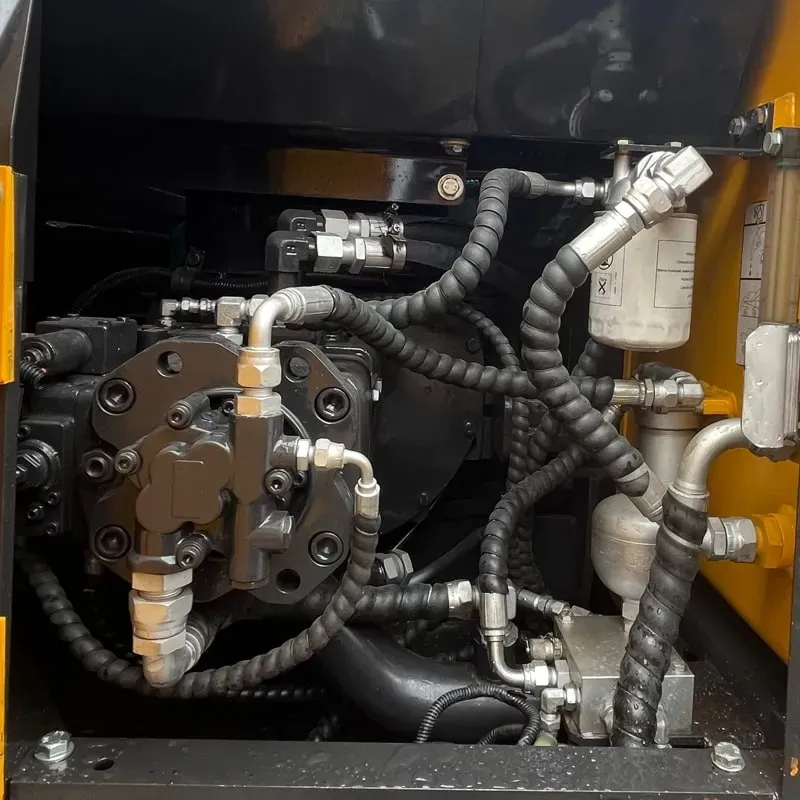

Pumps	2 × Variable displacement axial piston pumps
Swing System	Slewing bearing with hydraulic motor
Travel Motors	Axial piston motors with planetary gears

🧠 Intelligent Features (EC140E Highlights)

1. Volvo Co-Pilot / I-Site Compatible 📡

Real-time machine data & fleet management
Works with Volvo I-Site and TOPCON machine control
GPS-ready for precision grading

2. ECO Mode 🌱

Automatically adjusts engine speed & hydraulic flow to save up to 15% fuel
No loss in productivity

3. CareTrack™ Telematics 📊

Remote monitoring of:
- Fuel consumption
- Engine hours & idle time
- Location & geofencing
- Diagnostic codes & maintenance alerts

4. Auto-Idle Shutdown

Engine automatically shuts off after preset idle time (saves fuel)

5. Boom/Arm Regeneration Circuit

Recovers energy during swing/boom lowering → improves cycle times by ~10%

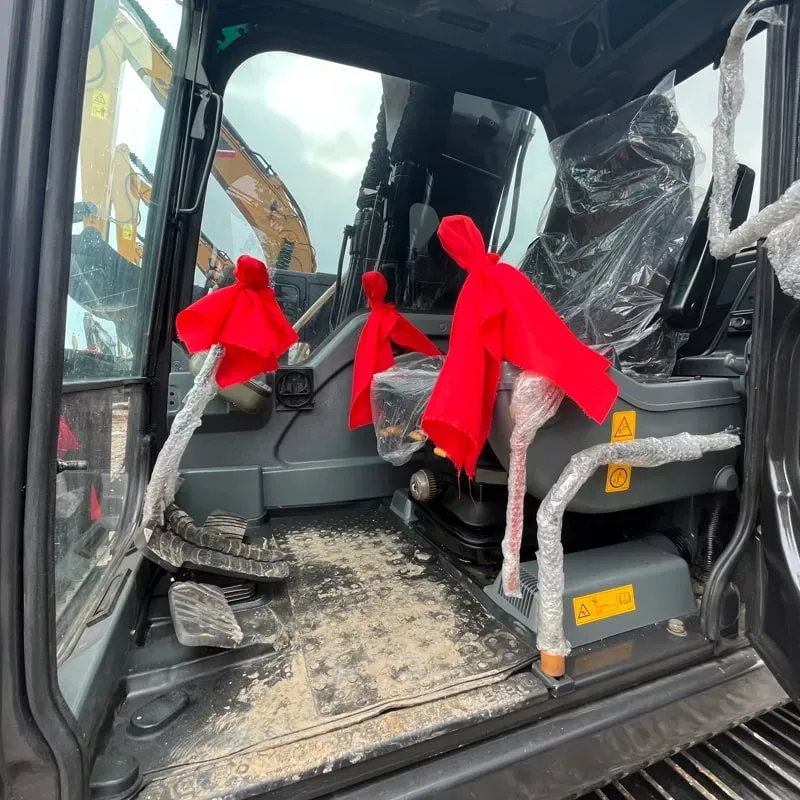

🛡️ Operator Comfort & Safety (EC140E Cab)

Feature	Description
ROPS/FOPS Certified Cab	Roll-over & falling object protection
Air-Suspended Seat	Full adjustment, heated option
Climate Control	Auto AC with 4-zone ventilation
7" / 9" Touchscreen Display	Intuitive control panel
Joystick Controls	Ergonomic with fingertip controls
LED Work Lights	Full 360° visibility at night
Camera System	Rear-view & side-view cameras (optional)
Sound Level	~73 dB(A) inside cab
Visibility	Large glass area, slim pillars

🔩 Attachments & Versatility

The EC140 features Volvo's SMP (Safe Mobile Pin) quick coupler and can use:

Attachment	Use Case
🪣 General Purpose Bucket	Earthmoving, loading
🪨 Heavy Duty Bucket	Rock, hard material
🔨 Hydraulic Breaker (Hammer)	Demolition, rock breaking
🥄 Grading Bucket	Road grading, leveling
🪚 Thumb / Grab	Log handling, scrap
🔧 Tiltrotator	Multi-purpose (tilts ±45°)
🕳️ Auger Drill	Piling, foundation
🧹 Sweeper	Cleaning
🪵 Grapple	Wood, debris handling

📊 Performance Comparison (vs Competitors)

Feature	Volvo EC140E	CAT 314	Komatsu PC140	Doosan DX140
Engine Power	118 hp	119 hp	119 hp	121 hp
Operating Weight	~14,000 kg	~14,300 kg	~14,100 kg	~14,200 kg
Max Dig Depth	~5.9 m	~5.8 m	~5.8 m	~5.8 m
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Tech/Telematics	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐

✅ Advantages (Why Choose EC140?)

✅ Pro	Detail
🏆 Fuel Efficiency	Best-in-class with ECO mode + intelligent hydraulics
🤖 Advanced Tech	I-Site ready, CareTrack, Co-Pilot
🔧 Low Maintenance	Long service intervals (500/1000/2000 hrs)
💰 High Resale Value	Volvo holds value exceptionally well
🛡️ Safety	Industry-leading ROPS/FOPS cab
🔄 Easy Service Access	Ground-level service points, tilt-up hood
🌍 Global Support	Volvo's extensive dealer network worldwide

💵 Approximate Pricing (2024, New)

Market	Price Range (USD)
North America	$130,000 – $165,000
Europe	€110,000 – €145,000
Asia/Middle East	$100,000 – $140,000
Used (5-8 yrs)	$55,000 – $90,000

(Prices vary by configuration, attachments, and region)

🎯 Ideal Applications

Application	Suitability
Road Construction	⭐⭐⭐⭐⭐
Utility/Pipeline Work	⭐⭐⭐⭐⭐
General Earthmoving	⭐⭐⭐⭐⭐
Landscaping	⭐⭐⭐⭐⭐
Demolition (with breaker)	⭐⭐⭐⭐
Mining/Quarry	⭐⭐⭐
Forestry	⭐⭐⭐ (better with tiltrotator)

🏁 Summary


Class	14-Ton Mid-Size Excavator
Best For	General construction, versatility, fuel efficiency
Strengths	Technology, comfort, resale value, low operating cost
Weaknesses	Higher purchase price vs some Korean brands
Verdict	🏆 One of the best mid-size excavators on the market

💡 The Volvo EC140E is the go-to choice for contractors who value fuel efficiency, technology, operator comfort, and long-term value over the lowest upfront cost.
