Used Sany 75Excavator

Reading: 21

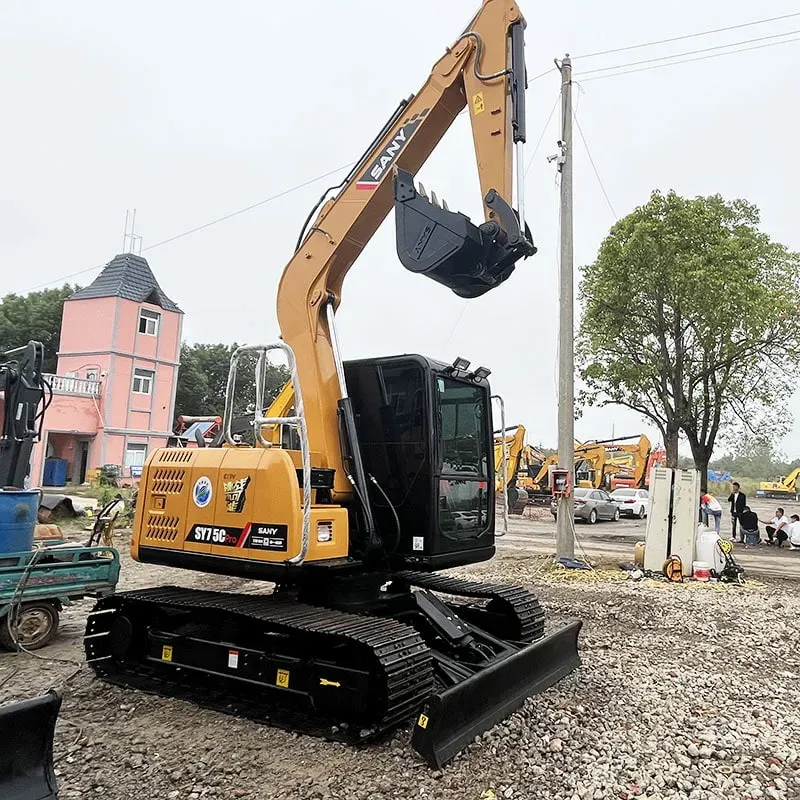

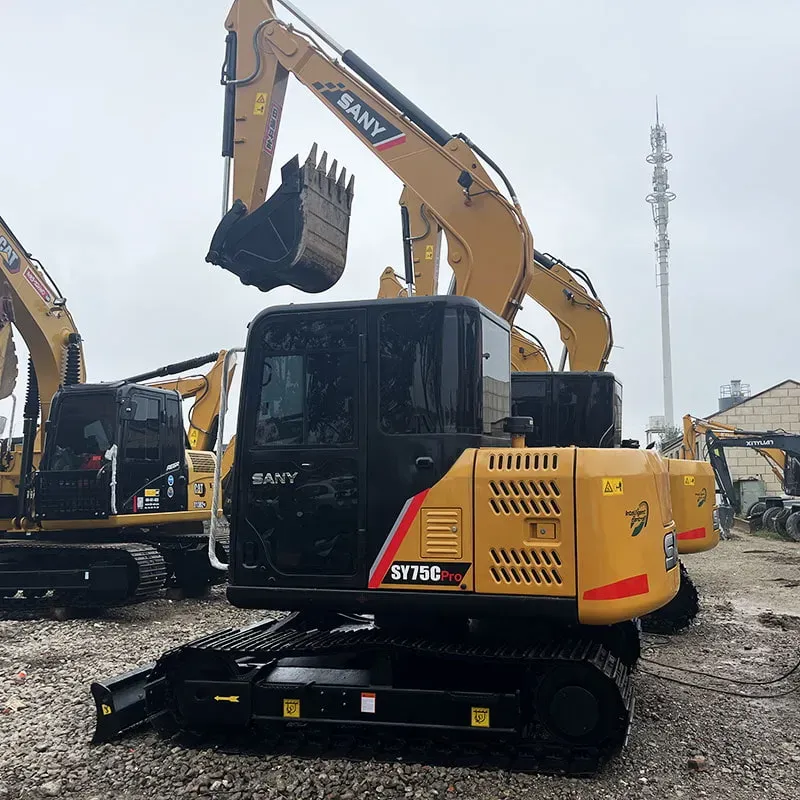

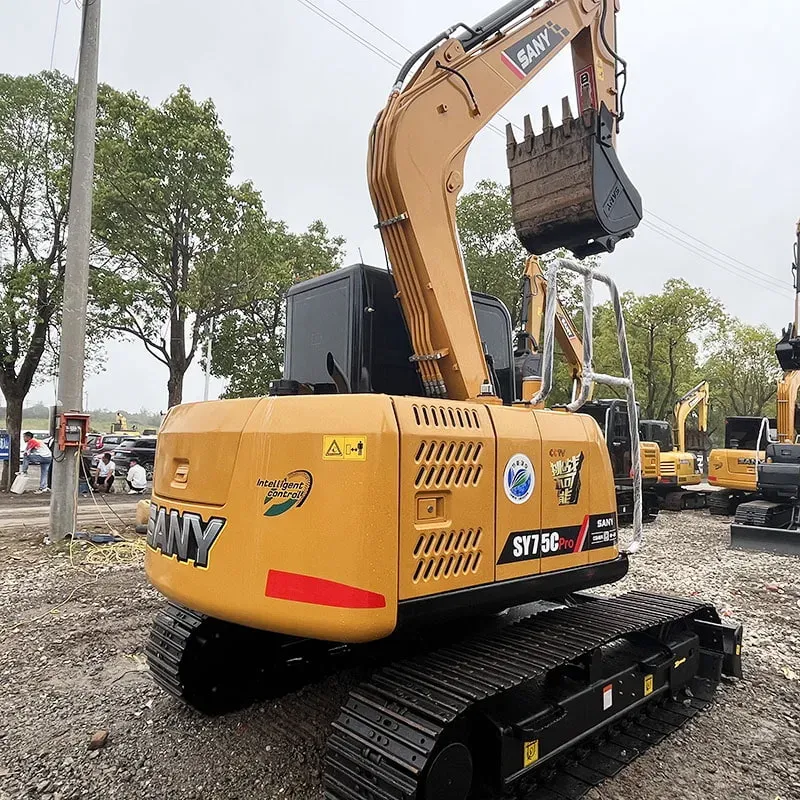

The SANY SY75C is one of the most popular 7.5-tonne class mini excavators produced by SANY Heavy Industry, China's largest and one of the world's top construction machinery manufacturers.

📋 1. GENERAL OVERVIEW

Parameter	Details
Model	SY75C / SY75U
Manufacturer	SANY Heavy Industry Co., Ltd.
Class	Mini / Compact Excavator (7~8 ton)
Origin	Changsha, Hunan, China 🇨🇳
Production	Mass-produced, exported globally (100+ countries)
Price Range	~$50,000 – $75,000 USD (varies by market)

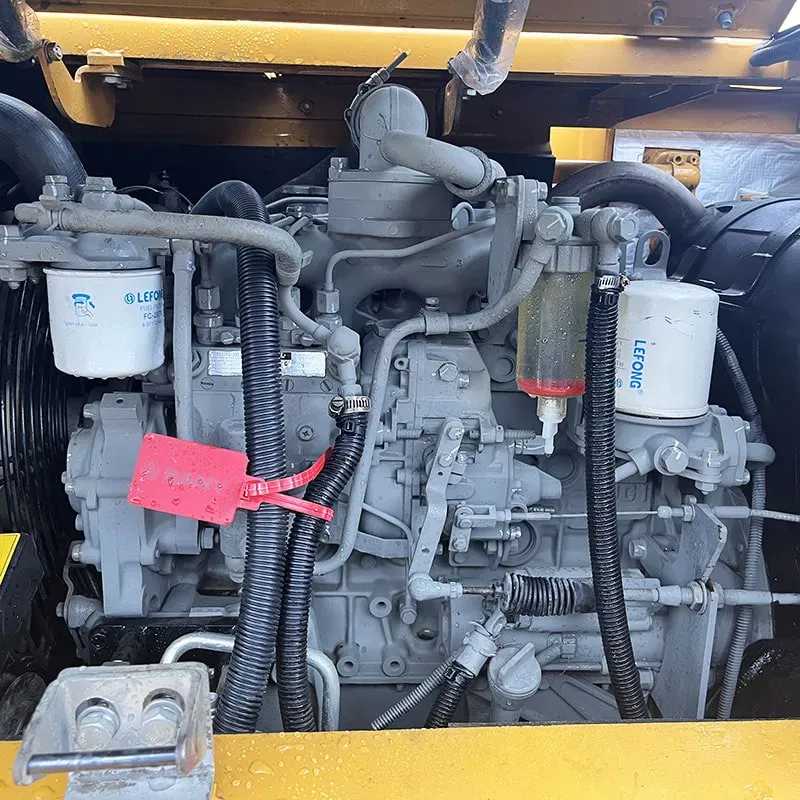

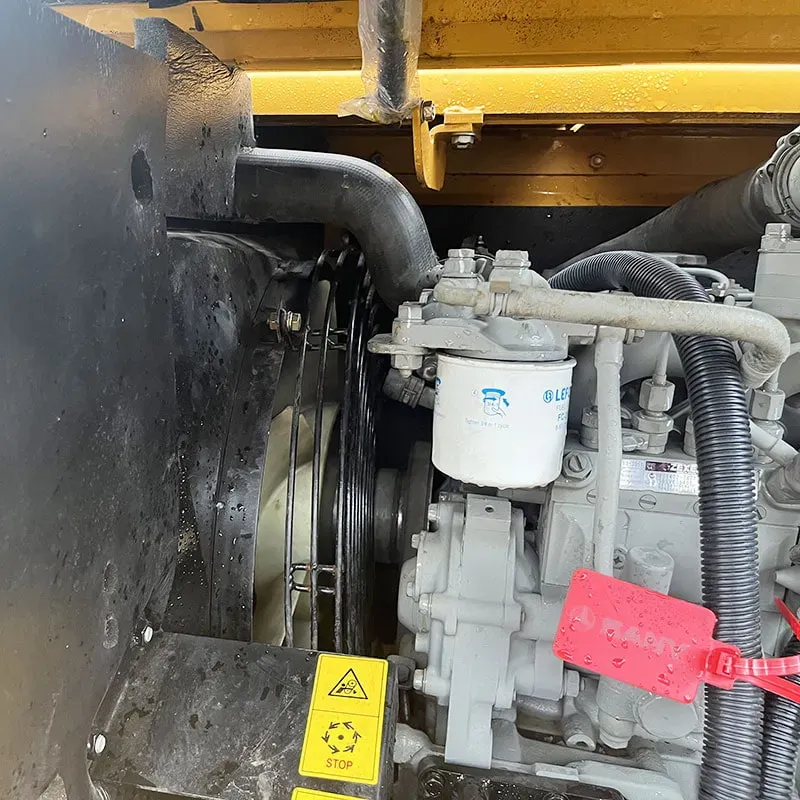

🔧 2. ENGINE & POWER SYSTEM

Specification	Details
Engine Brand	ISUZU CC-4JG1 (most common) / Yanmar 4TNV98 (some markets)
Engine Type	4-cylinder, turbocharged, water-cooled diesel
Displacement	2.99L
Rated Power	~50.4 HP (37.6 kW) @ 2,200 rpm
Emission Standard	EU Stage V / China III / EPA Tier 4 Final
Fuel Tank Capacity	~130 L
Fuel Consumption	~8–12 L/hour (depending on workload)

✅ The ISUZU engine is known for reliability, fuel efficiency, and low maintenance costs.

📐 3. DIMENSIONS & WEIGHT

Parameter	Value
Operating Weight	7,350 – 7,500 kg
Transport Length	~6,100 mm
Transport Width	~2,190 mm
Transport Height	~2,580 mm
Ground Clearance	~390 mm
Track Width	Adjustable: 1,300 – 1,800 mm
Shoe Width	400 mm (rubber track option available)

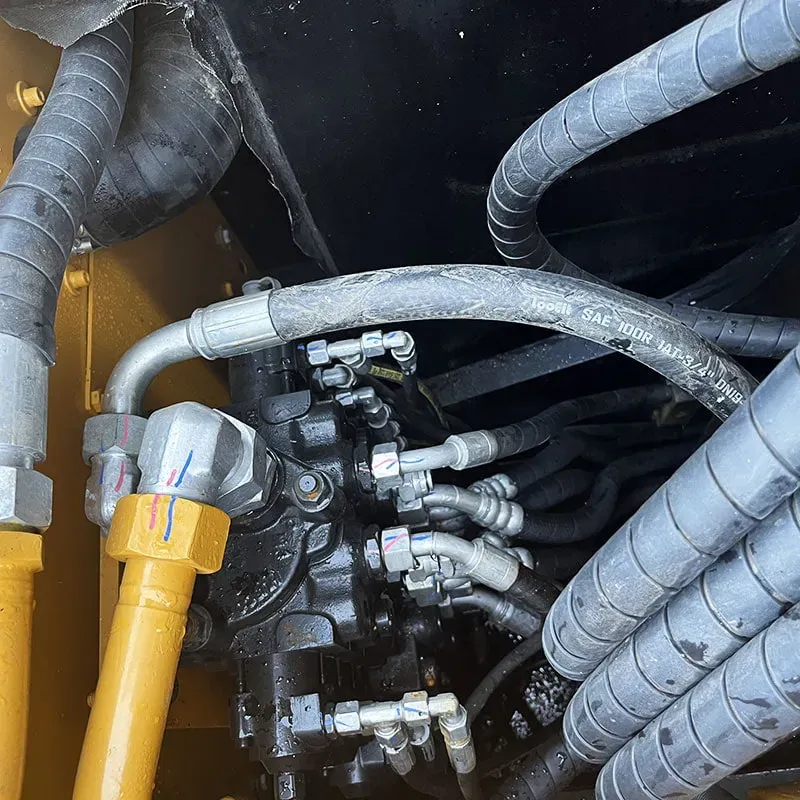

🪣 4. WORKING PERFORMANCE (Hydraulic System)

Parameter	Value
Max Digging Depth	~4,240 mm
Max Reach (Ground Level)	~6,520 mm
Max Digging Height	~6,100 mm
Max Dump Height	~4,350 mm
Max Digging Force (Boom/Arm)	~36.5 kN / ~27.3 kN
Bucket Capacity	0.2 – 0.3 m³ (standard)

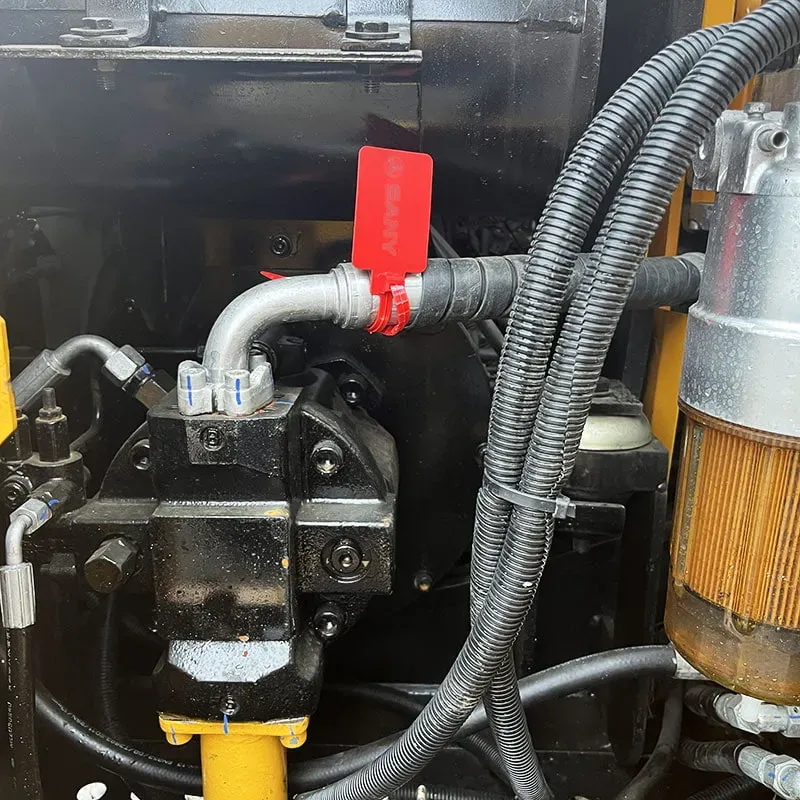

Hydraulic Pump	Double variable piston pump (KYB/Kawasaki)
System Pressure	34.3 MPa (343 bar)
Hydraulic Flow	2 × 60 L/min

🏠 5. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	Enclosed ROPS/FOPS certified cab
Air Conditioning	✅ Standard
Suspension Seat	✅ Adjustable with armrests
Control Type	Joystick + pedal (proportional)
Display	LCD monitor (engine info, fault codes, camera)
Sound Level	~72 dB(A) — relatively quiet
Wiper & Washer	✅
LED Work Lights	✅ Front & rear
Camera	Rearview camera (optional on some versions)

🛋️ The cab is designed for 8+ hours of comfortable operation, reducing operator fatigue.

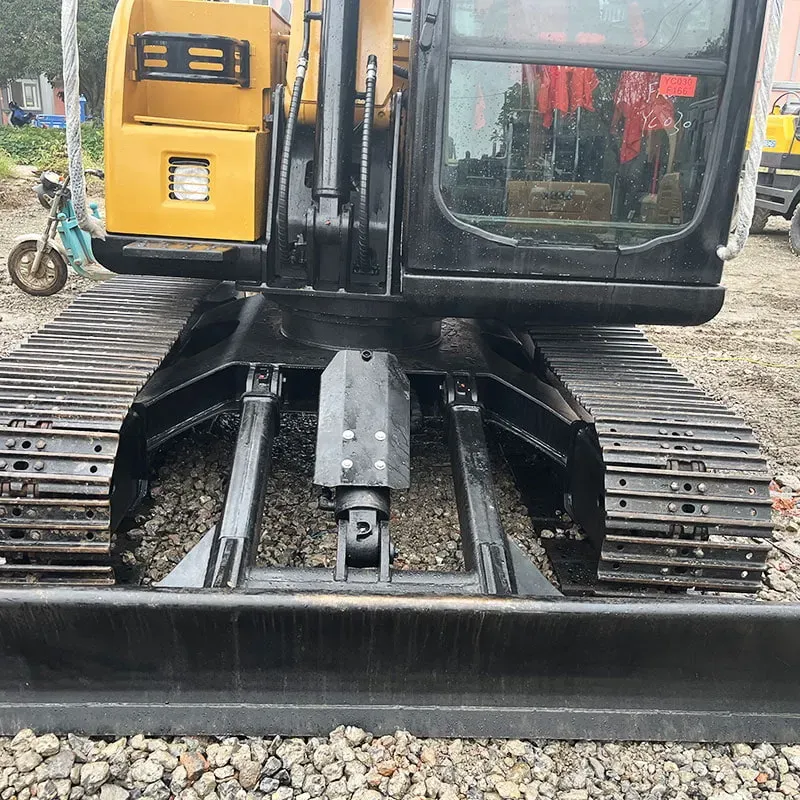

🛞 6. UNDERCARRIAGE & MOBILITY

Feature	Details
Track Type	Steel track (rubber track optional)
Travel Speed	2.5 / 4.5 km/h (Low / High)
Gradeability	70% (~35°)
Dozer Blade	✅ Available (width ~2,190 mm)
Swing Speed	~9.5 rpm
Swing Brake	✅

🔌 7. SMART & TECHNOLOGY FEATURES

Technology	Description
SANY i-Monitor	📱 Remote monitoring via smartphone app (location, fuel, hours, fault codes)
Anti-Theft System	GPS tracking + engine immobilizer
Auto-Idle	Engine automatically reduces RPM when idle to save fuel
2-Speed Travel	High speed for transport, low speed for precision work
Auxiliary Hydraulics	2 circuits for attachments (hammer, auger, grapple, etc.)
Quick Coupler	Available for fast attachment change

🔩 8. COMMON ATTACHMENTS (Hydraulic)

Attachment	Application
🪣 Standard Bucket	General digging
🔨 Hydraulic Breaker	Rock demolition
🔩 Auger / Drill	Post holes, piling
🪓 Grapple	Log handling, scrap
🌱 Thumb	Pipe handling, grading
🧹 Tiltrotator	Versatile 360° rotation
🗑️ Compactor Plate	Soil compaction
🪵 Rotating Grab	Log/timber loading

🌍 9. APPLICATIONS

Sector	Use Cases
🏗️ Construction	Foundation excavation, trench digging, utility work
🏡 Residential	Landscaping, septic tank, backyard digging
🌾 Agriculture	Drainage, fence post, orchard work
🏭 Municipal	Road repair, pipe laying, cable trenching
🏚️ Demolition	Small building tear-down (with breaker)
🌲 Forestry	Tree planting, land clearing
🛢️ Mining	Small-scale mining, quarrying

✅ 10. ADVANTAGES

✅ Pros	Explanation
💰 Cost-Effective	30–40% cheaper than Komatsu/CAT/JCB equivalents
🔧 Low Maintenance	ISUZU engine + SANY parts are affordable & widely available
🌐 Global Service Network	SANY has 200+ service centers worldwide
💪 Strong Build Quality	SANY is ranked #1 globally in concrete machinery & top 5 in excavators
📱 Smart Tech	i-Monitor system is ahead of many competitors
&Fuel Efficient**	~20% less fuel than older models
🔄 High Resale Value	Strong brand recognition growing worldwide

⚠️ Cons	Explanation
🏗️ Brand Perception	Still catching up to JCB/CAT in some Western markets
🔧 Parts Availability	Can be limited in some remote areas (improving rapidly)
📉 Resale	Slightly lower than Japanese brands in some regions

🆚 11. COMPARISON WITH COMPETITORS

Model	Weight	Power	Bucket	Price (Approx.)
SANY SY75C	7.5T	50 HP	0.25 m³	$55K–$70K ✅
Komatsu PC75	7.5T	50 HP	0.25 m³	$70K–$85K
CAT 307	7.5T	55 HP	0.25 m³	$75K–$90K
JCB 8075	7.5T	54 HP	0.25 m³	$70K–$85K
Doosan DX75	7.5T	52 HP	0.25 m³	$65K–$80K
XCMG XE75	7.5T	50 HP	0.25 m³	$50K–$65K

🏆 SANY SY75C offers the BEST value for money in its class.

📞 12. WARRANTY & AFTER-SALES

Item	Details
Warranty	12–18 months / 2,000 hours (whichever comes first)
Engine Warranty	Up to 24 months (ISUZU)
SANY Service Network	200+ countries, 1,000+ service stations
Parts Delivery	Fast — major warehouses in Dubai, Russia, Brazil, USA, Africa

🎯 13. WHO SHOULD BUY THE SANY SY75C?

✅ Ideal For	❌ Not Ideal For
Small contractors	Large-scale mining (need bigger machine)
Rental companies	Operators who only trust Japanese brands
First-time buyers (budget-friendly)	Extreme cold climates (-30°C without heater)
Farmers & landscapers	Heavy rock demolition (need 10T+)
Developing markets (Africa, SE Asia, S. America)

🏅 SUMMARY

Rating	Score
Performance	⭐⭐⭐⭐☆ (4/5)
Reliability	⭐⭐⭐⭐☆ (4/5)
Value for Money	⭐⭐⭐⭐⭐ (5/5) 🏆
Comfort	⭐⭐⭐⭐☆ (4/5)
After-Sales	⭐⭐⭐⭐☆ (4/5)
Overall	⭐⭐⭐⭐½ (4.3/5)

💡 Bottom Line: The SANY SY75C is arguably the best value 7.5-ton mini excavator on the market today. It combines Japanese-level reliability (ISUZU engine) with Chinese-level pricing, backed by SANY's massive global service network. It's rapidly becoming the #1 choice for budget-conscious operators worldwide. 🌏💪

Would you like more details on pricing in a specific country, comparison with another model, or attachment recommendations? 🚜
