Used Caterpillar 312D2GCExcavator

Reading: 95

🏗️ Overview

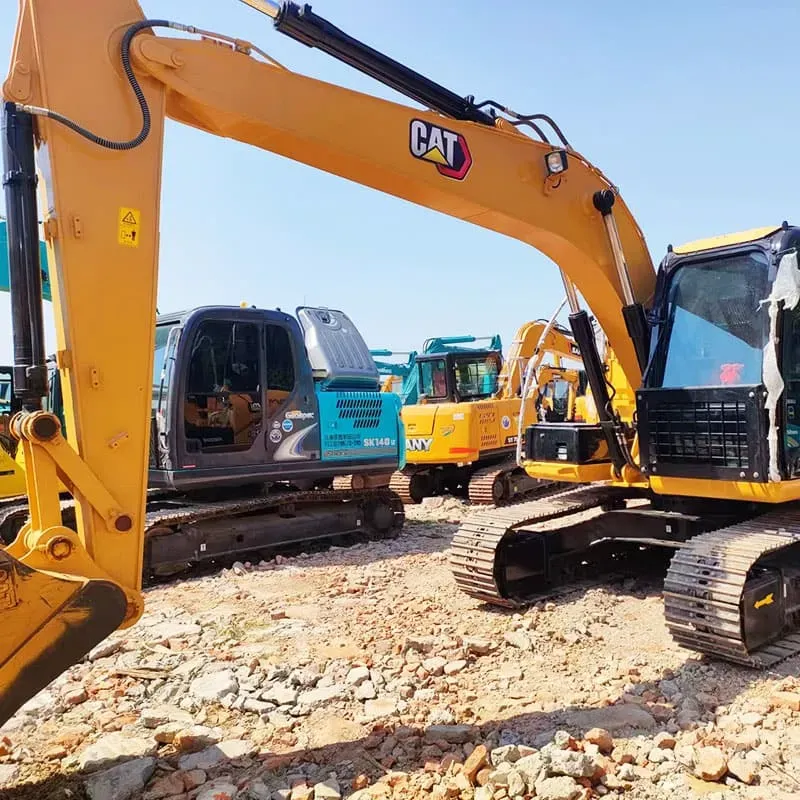

The CAT 312D2 GC is a mid-size hydraulic excavator (~12–13 tonne class) from Caterpillar's D2 GC (Generation C) Series. It is designed for general construction, road building, utility work, landscaping, and demolition. The "GC" typically denotes a General Construction configuration optimized for versatility and productivity.

It is the successor to the popular 312D/312DL models and belongs to Caterpillar's Next Generation D Series, featuring significant upgrades in operator comfort, fuel efficiency, technology, and performance.

& Key Specifications

Parameter	Details
Model	312D2 GC
Series	D2 GC (Generation C)
Operating Weight	~12,500 – 13,000 kg (27,558 – 28,660 lbs)
Engine	Cat® C4.4 ACERT®
Engine Type	4-cylinder, turbocharged, aftercooled diesel
Net Power	~86 HP (64 kW) @ 2,000 rpm
Emissions	Tier 4 Final / EU Stage V
Bucket Capacity (Standard)	0.28 – 0.52 m³ (0.37 – 0.68 yd³)
Max Digging Depth	~5.7 – 6.0 m (18.7 – 19.7 ft)
Max Reach (Ground Level)	~8.4 – 8.8 m (27.6 – 28.9 ft)
Max Dumping Height	~6.3 – 6.7 m (20.7 – 22.0 ft)
Swing Speed	11.0 rpm
Travel Speed	4.8 km/h (3.0 mph)
Hydraulic System	Load Sensing with POWER BOOST
Fuel Tank Capacity	~200 L (52.8 gal)

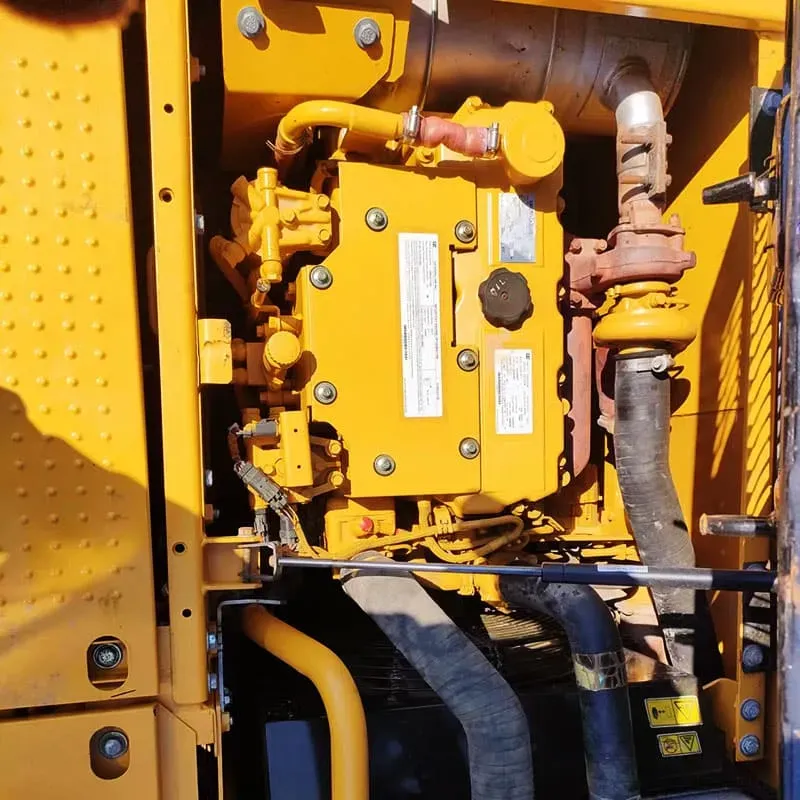

🔧 Engine — Cat C4.4 ACERT®

Feature	Detail
Displacement	4.4 L (268 cu in)
Cylinders	4 in-line
Turbocharger	Yes
Aftercooler	Yes
Emission Technology	DOC + DPF + SCR (DEF/AdBlue not required on some configurations)
Fuel Efficiency	Improved ~10–15% over previous D-series

The C4.4 is one of Cat's most proven engines — reliable, fuel-efficient, and compliant with the strictest global emissions standards.

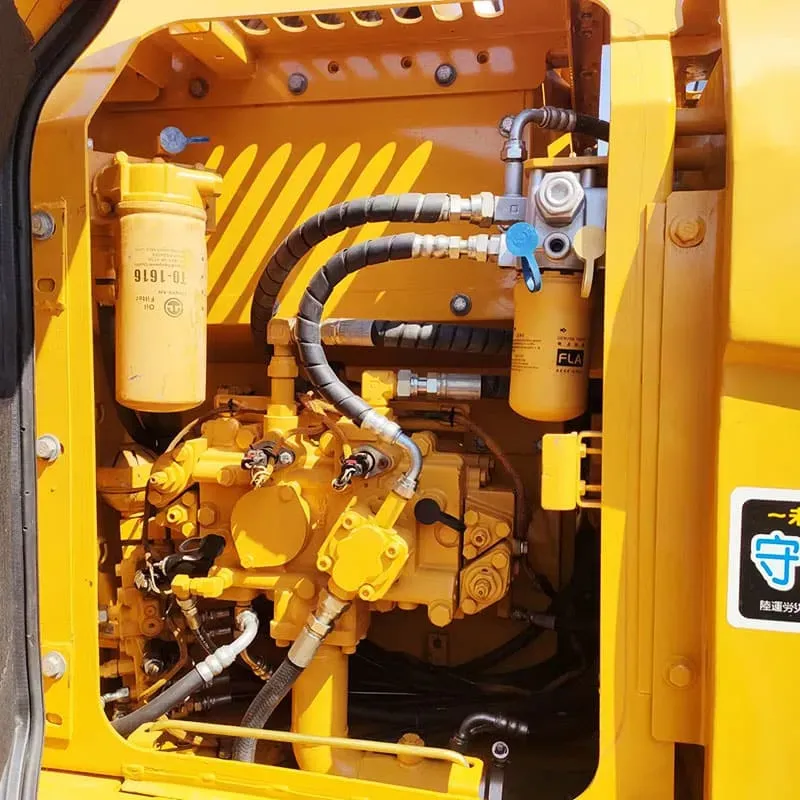

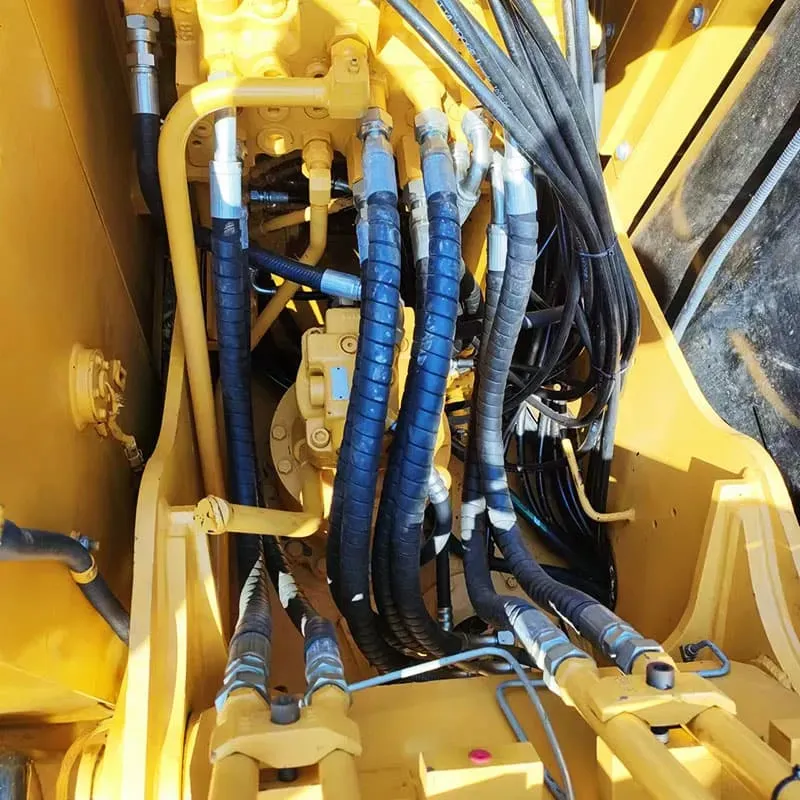

🖐️ Hydraulic System & Performance

Feature	Description
Main Pump	Variable displacement piston pump
POWER BOOST	Provides extra hydraulic flow for tough digging conditions (up to ~15% more power)
Flow Sharing	Allows simultaneous operation of multiple functions
Auxiliary Hydraulics	2nd & 3rd circuit available for attachments (breakers, grapples, thumbs)
Hydraulic Quick Coupler	Available as option for fast attachment changes

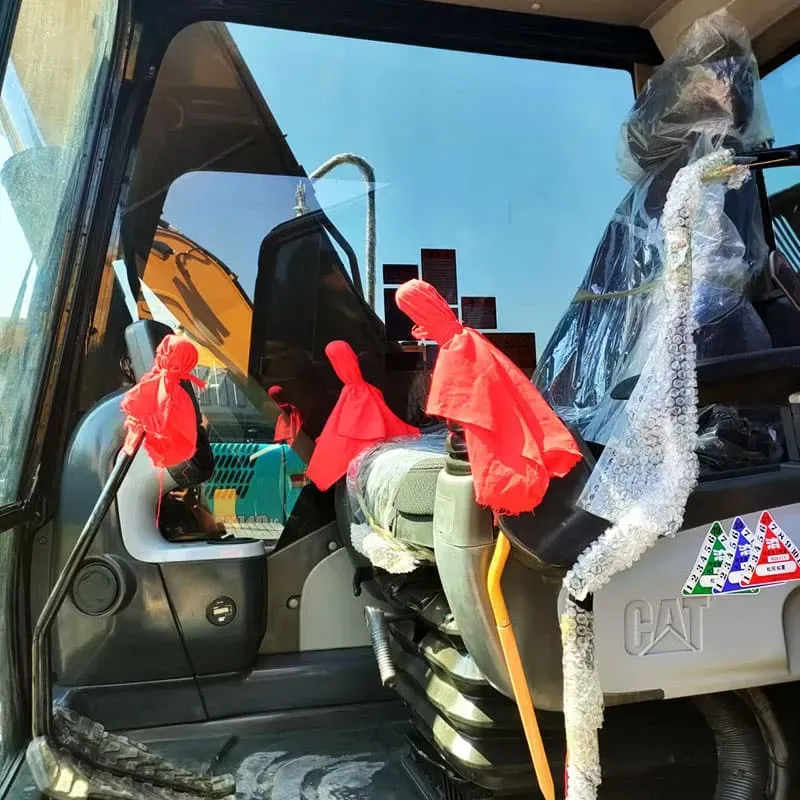

🖥️ Operator Environment (Cab)

This is one of the biggest upgrades from the older D-series:

Feature	Detail
Cab Type	Enclosed, pressurized ROPS/FOPS certified
Suspension Seat	Air-suspended, heated, with armrests
Climate Control	Full air conditioning with auto-climate
Noise Level	~73 dB(A) — significantly quieter
Touchscreen Monitor	10" (254 mm) LCD display with smartphone connectivity
Cat Connect Ready	Integrated telematics for fleet management
Camera System	Rearview and optional side-view cameras
Lighting	LED work lights (front, rear, cab)
Controls	Electronic joysticks with programmable buttons

🧠 Technology & Smart Features

Technology	Function
Cat GRADE with 2D	Ready for GPS/laser grading (option)
Cat PAYLOAD	Real-time bucket load weighing
Cat ECO Mode	Auto-reduces engine speed during idle/light work → saves fuel
Auto-Idle	Engine automatically reduces RPM when not working
VisionLink®	Remote machine monitoring via web/app
Product Link™	GPS tracking, hours, location, diagnostics
Security	CAT Security (anti-theft immobilizer)

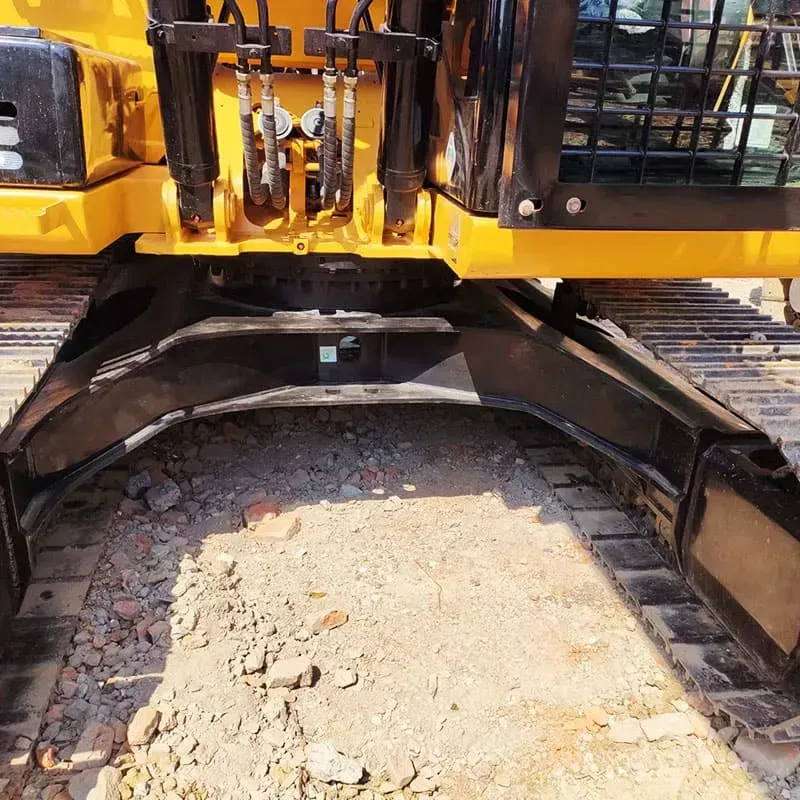

🛠️ Undercarriage Options

Option	Use Case
Steel Tracks (600 mm / 700 mm)	Standard general construction
Rubber Tracks	Pavement-friendly, reduces damage
Track Width	Adjustable — 2.2 m to 2.6 m
Blade	Available for dozing/leveling
Dozer Blade	Optional

📊 Comparison: 312D2 GC vs Previous Models

Feature	312D (Old)	312D2 GC (New)
Engine	C4.2 ACERT	C4.4 ACERT ✅
Power	~82 HP	~86 HP ✅
Fuel Efficiency	Baseline	+10–15% ✅
Cab Comfort	Good	Excellent ✅
Technology	Basic	Cat Connect, VisionLink ✅
Noise	~75 dB	~73 dB ✅
Service Access	Good	Improved ✅

💰 Approximate Pricing (2024)

Market	Estimated Price (USD)
New Machine	$110,000 – $140,000
Used (2019–2022)	$70,000 – $100,000
Rental (Daily)	$400 – $600/day

(Prices vary by region, configuration, and dealer)

✅ Strengths (Pros)

✅	Description
🔋 Fuel Efficient	Eco mode + improved engine = lower operating cost
🪑 Comfortable Cab	Best-in-class for this size class
📱 Connected	Full Cat Connect telematics integration
💪 Versatile	Handles digging, grading, breaker work, material handling
🔧 Low Maintenance	Extended service intervals (500/1000/2000 hr)
🌍 Emissions Compliant	Tier 4 Final — works in strict emission zones

⚠️ Limitations (Cons)

❌	Description
📏 Not for heavy mining	12-ton class — limited for large-scale mining
💰 Higher upfront cost	More expensive than some competitors
🔩 DEF/SCR system	Requires urea (AdBlue) in some markets
📦 Parts availability	Cat parts can be pricier than some brands

🎯 Typical Applications

Application	Suitability
🏗️ General Construction	⭐⭐⭐⭐⭐
🛣️ Road Building	⭐⭐⭐⭐⭐
🌱 Landscaping	⭐⭐⭐⭐
🏚️ Demolition (with breaker)	⭐⭐⭐⭐
🔌 Utility/Pipeline Work	⭐⭐⭐⭐⭐
🏭 Material Handling	⭐⭐⭐⭐
⛰️ Heavy Mining	⭐⭐ (Not ideal)

🏁 Summary

The CAT 312D2 GC is one of the best mid-size excavators on the market in 2024. It combines proven Cat reliability with modern technology, operator comfort, and fuel efficiency. It's an ideal choice for contractors who need a versatile, productive, and connected 12-tonne excavator for general construction work.

Would you like more details on any specific aspect — such as attachments, maintenance schedule, or comparison with competitors (Komatsu PC128, Kobelco SK135, Doosan DX140)? 🚜
