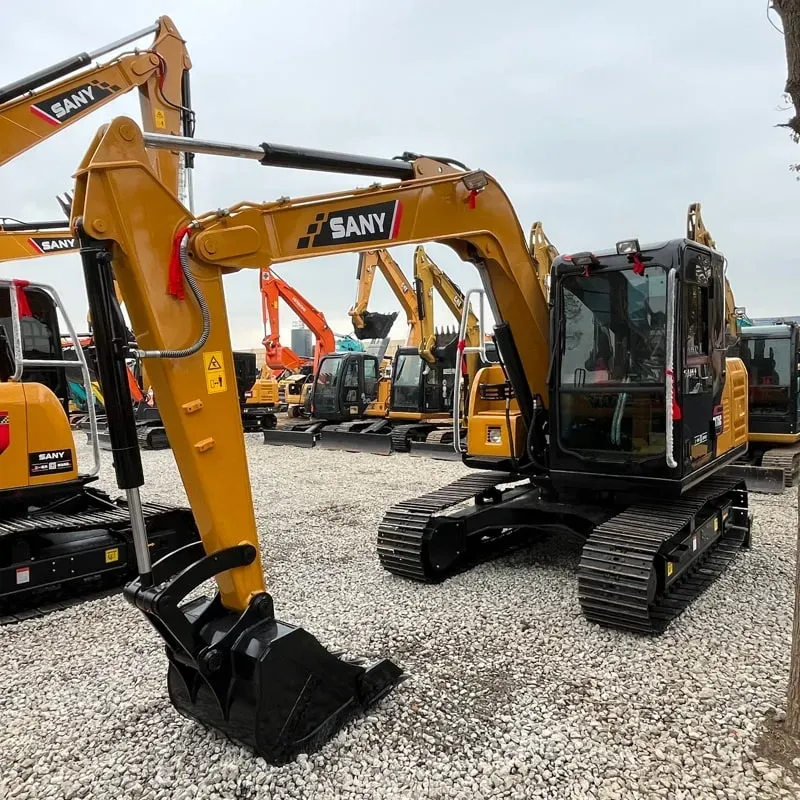

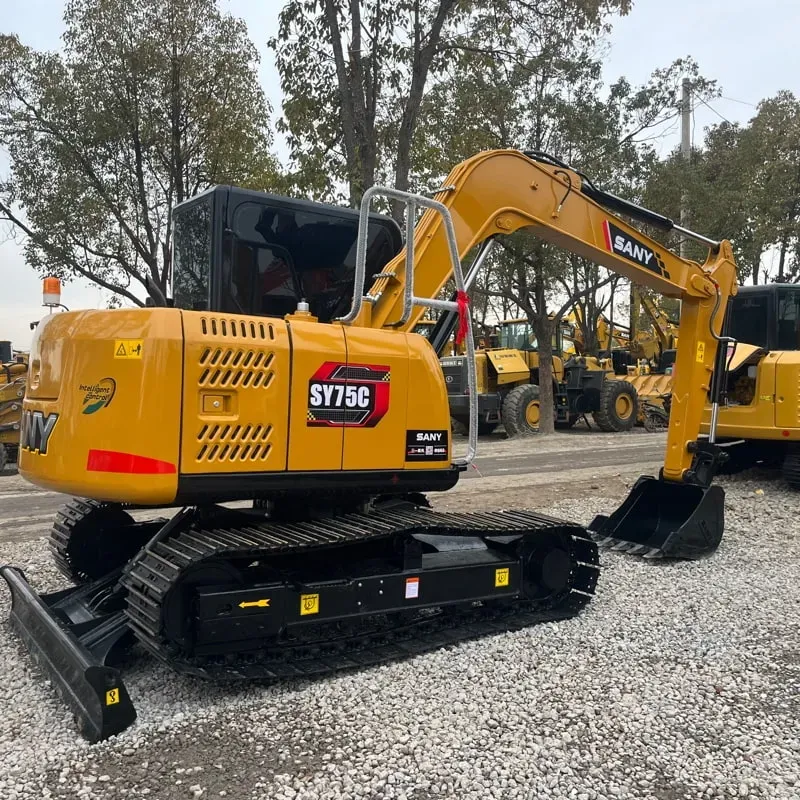

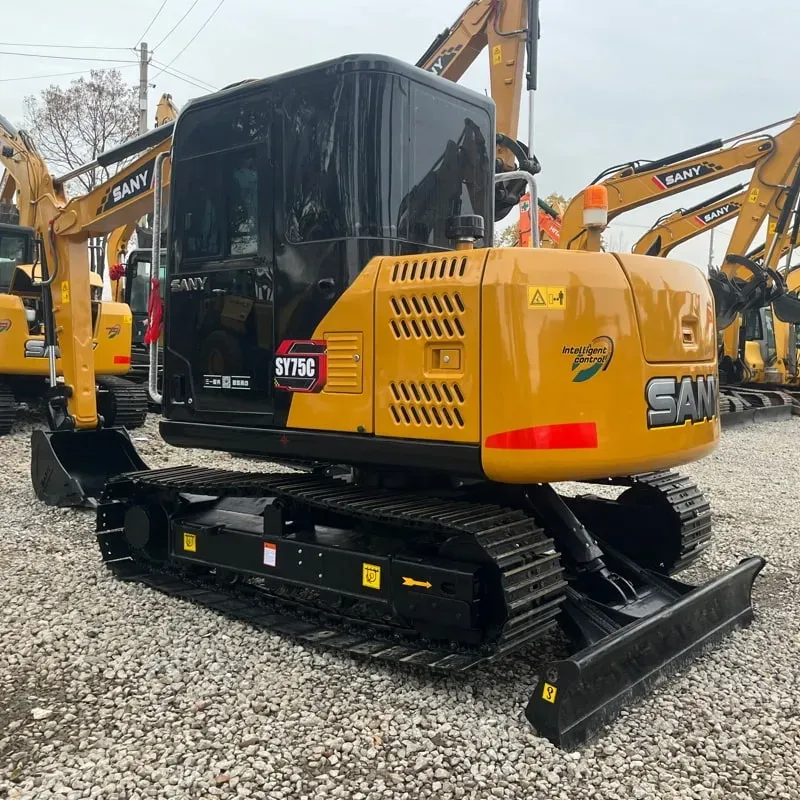

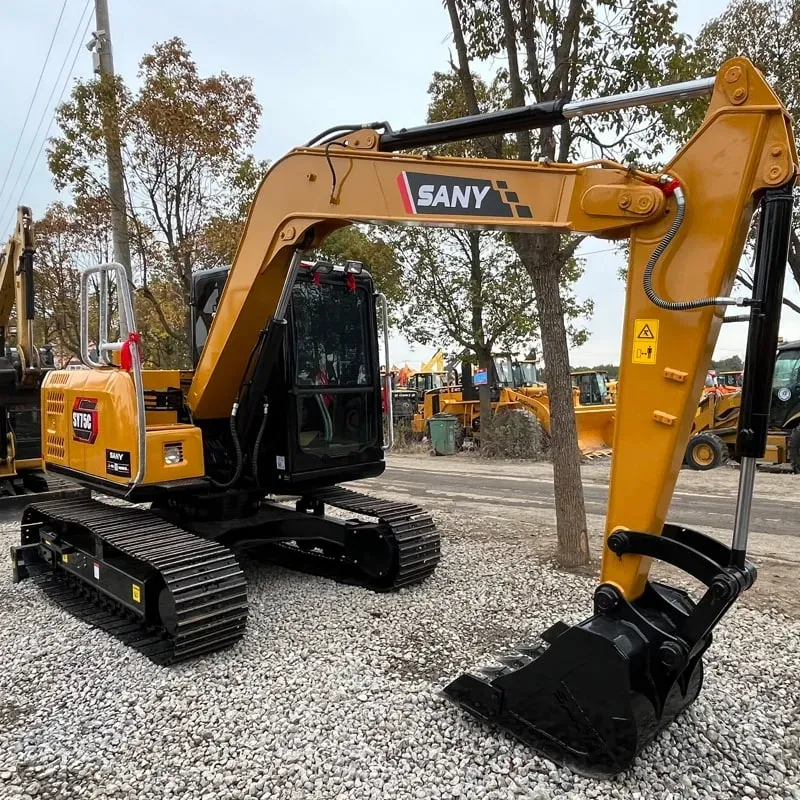

Used Sany 75Excavator

Reading: 57

📌 1. Overview

Item	Details
Brand	SANY Group (三一重工) — World's 5th largest construction machinery manufacturer
Model	SY75C / SY75C Pro (updated version)
Class	Medium-sized / 7-8 Ton class excavator
Origin	China (manufactured at SANY's Changsha factory)
Target Market	Construction, landscaping, mining, municipal works, farming

The SY75C is one of SANY's best-selling models globally, known for its excellent price-to-performance ratio and strong after-sales support.

🔧 2. Key Specifications

Parameter	SY75C	SY75C Pro (Upgraded)
Operating Weight	~7,490 kg	~7,500 kg
Engine	Isuzu AJ-4HK1X / Yanmar 4TNV98	Isuzu AJ-4HK1XQP
Rated Power	40.5 kW (55 HP) @ 2,200 rpm	41.3 kW (56 HP)
Max Torque	215 N·m	228 N·m
Fuel Tank	130 L	130 L
Hydraulic Tank	80 L	80 L
Bucket Capacity	0.22 – 0.32 m³	0.22 – 0.33 m³
Max Digging Depth	~4,320 mm	~4,390 mm
Max Digging Reach	~7,880 mm	~8,050 mm
Max Dumping Height	~5,450 mm	~5,550 mm
Max Digging Force	~50.2 kN	~53 kN
Track Width	450 mm (triple grouser)	450 mm
Ground Pressure	~42 kPa	~42 kPa
Travel Speed	2.8 / 4.6 km/h	2.8 / 4.8 km/h

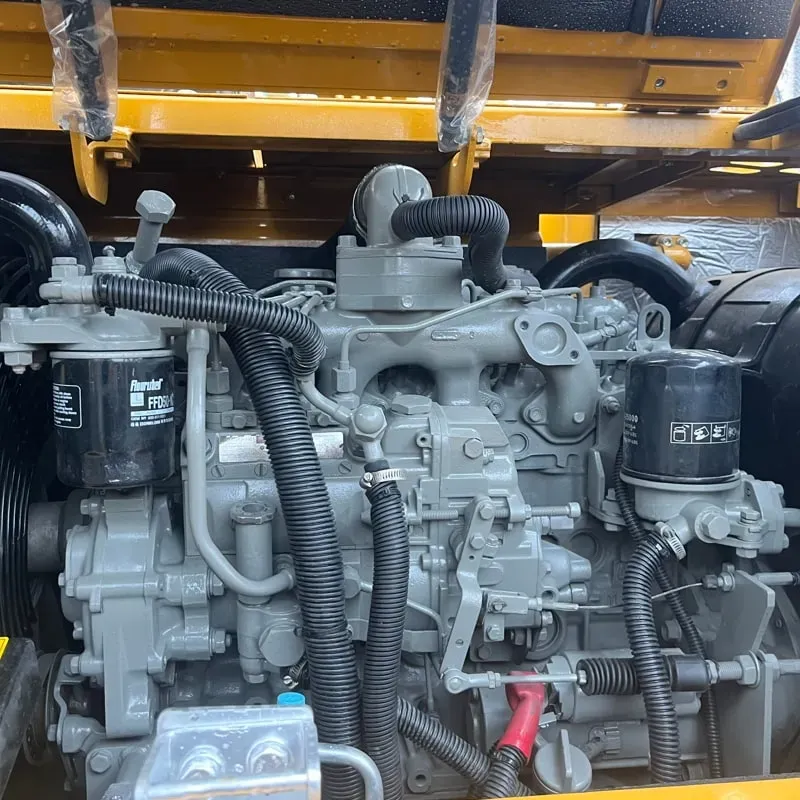

🏗️ 3. Engine & Powertrain

Feature	Detail
Engine Brand	Isuzu (most common) / Yanmar (some markets)
Emission Standard	China III / Euro Stage IIIA / EPA Tier 4 Final (depending on region)
Fuel Type	Diesel
Cooling System	Water-cooled with radiator + fan
Fuel Consumption	~8 – 10 L/hour (average working condition)
Transmission	Hydrostatic with piston pump
Main Pump	Double variable-displacement axial piston pump
Travel Motor	Swing-type with planetary gear reduction

✅ The Isuzu engine is widely praised for its reliability, fuel efficiency, and easy maintenance.

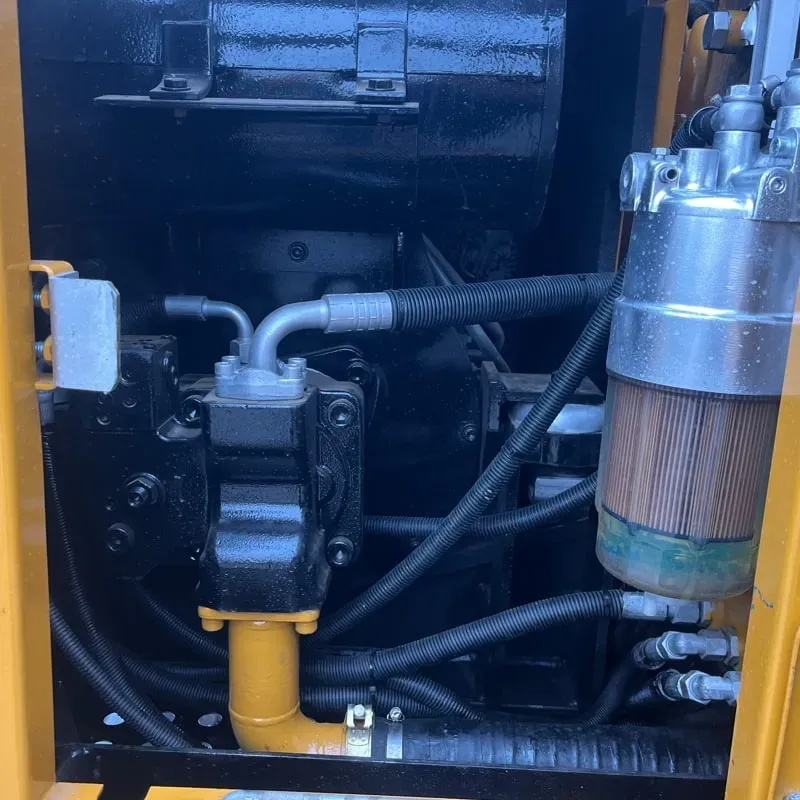

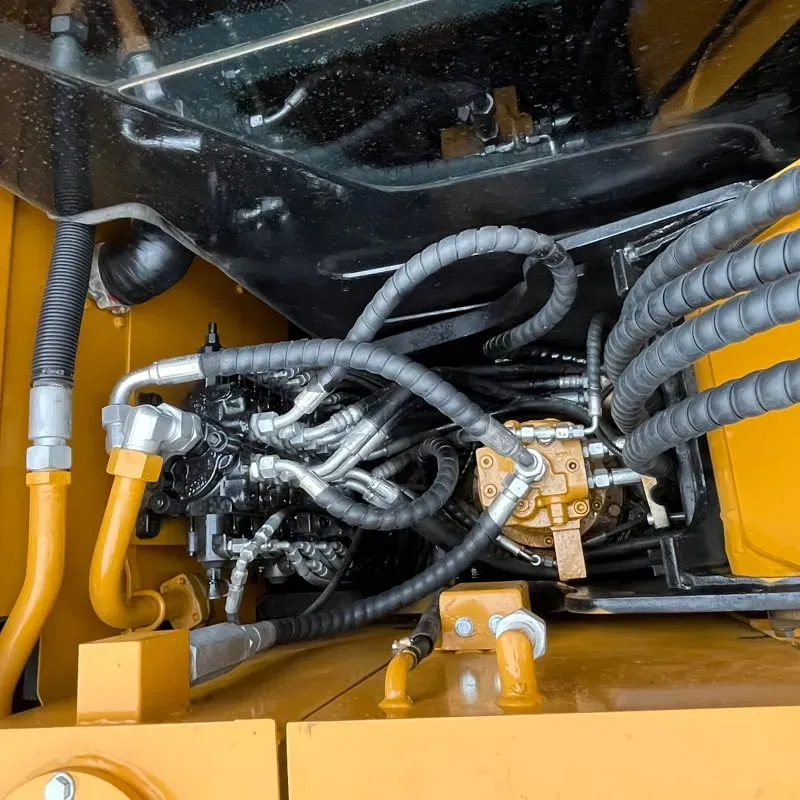

🖥️ 4. Hydraulic System

Feature	Detail
System Type	Open-center load-sensing hydraulic system
Main Pump Flow	2 × 65 L/min (total ~130 L/min)
Working Pressure	34.3 MPa (343 bar)
Attachment Circuit	Yes (breaker, grapple, auger ready)
Auxiliary Hydraulics	2 lines (for hammer/thumb)

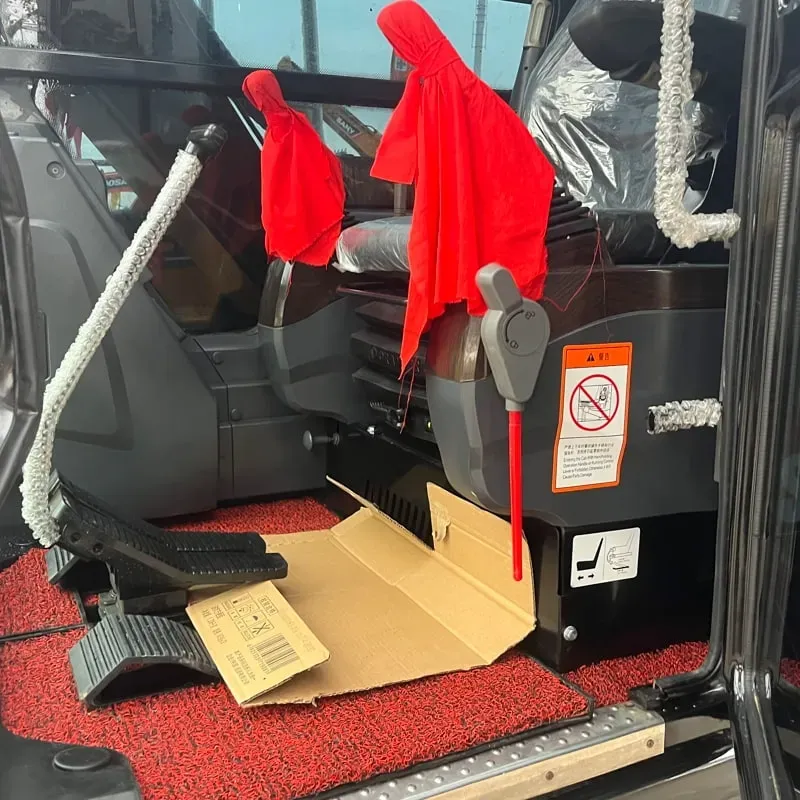

🏠 5. Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, sealed & pressurized
Air Conditioning	✅ Standard
Seat	Suspension seat with armrest
Display	LCD monitor with fuel level, engine hours, fault codes
Control	Joystick control (smooth & precise)
Noise Level	~72 dB(A) (relatively quiet for its class)
Vibration	Low vibration design with rubber mounts
Visibility	Large windows, rear-view camera (on Pro version)

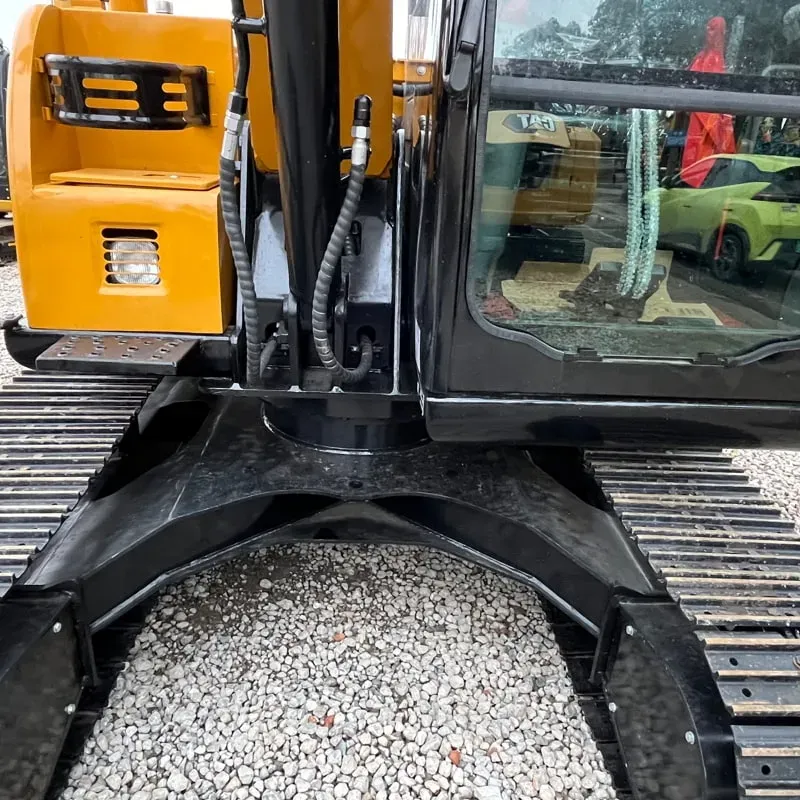

🛡️ 6. Undercarriage & Durability

Component	Detail
Track Frame	High-strength steel, reinforced X-frame
Track Shoe	450 mm triple grouser (wear-resistant)
Rollers	5 per side (sealed & lubricated)
Idler	Adjustable tension
Sprocket	Segmented, replaceable teeth
Boom/Arm	High-strength steel, stress-relieved welds
Bucket	Reinforced with side cutters (optional teeth)
Undercarriage Life	~4,000 – 6,000 hours

🔩 7. Maintenance & Serviceability

Feature	Detail
Service Intervals	Engine oil: 500h / Hydraulic oil: 2,000h / Fuel filter: 500h
Ground-level Greasing	✅ All points accessible from ground
Engine Hood	Gas-spring assisted, opens wide
Air Filter	Pre-cleaner + main filter (dry type)
SANY Service Network	1,500+ service stations worldwide
Parts Availability	Very good globally

⚡ 8. Smart Features (SY75C Pro)

Feature	Description
📡 SANY IoT / SmartBox	Remote monitoring via app (location, hours, fuel, faults)
📹 Rear Camera	Standard on Pro version
🔧 One-Key Diagnosis	Quick fault code reading
🌡️ Auto Idle	Engine auto-stops when not working (saves fuel)
🚧 Working Mode	Eco / Power / Smart modes
📱 SANY App	Fleet management compatible

🆚 9. Comparison with Competitors

Model	Weight	Power	Bucket	Price Range (USD)
SANY SY75C	7.5T	55 HP	0.3 m³	$45,000 – $55,000
CAT 307 E2	7.5T	54 HP	0.29 m³	$65,000 – $75,000
Komatsu PC75	7.5T	54 HP	0.28 m³	$60,000 – $70,000
Doosan DX75	7.5T	56 HP	0.28 m³	$55,000 – $65,000
XCMG XE75	7.5T	55 HP	0.28 m³	$42,000 – $52,000

🏆 SANY wins on price, technology, and after-sales network, while CAT/Komatsu have stronger brand resale value.

✅ 10. Advantages & Disadvantages

✅ Advantages	❌ Disadvantages
Excellent price-to-performance ratio	Brand prestige lower than CAT/Komatsu in some markets
Fuel-efficient Isuzu engine	Resale value slightly lower than Japanese brands
Comfortable & modern cab	Limited availability in some Western markets
Strong SANY global service network	Parts quality (OEM vs aftermarket) varies
Smart/IoT features (Pro version)	Some users report minor electrical gremlins
Low maintenance cost	Paint durability could be improved
High digging force for its class

🌍 11. Common Applications

Application	Details
🏗️ General Construction	Foundation, trenching, backfilling
🌿 Landscaping	Grading, tree planting, pond digging
🪨 Mining & Quarrying	Loading trucks, rock breaking
🏚️ Demolition	With hydraulic breaker/crusher
🌾 Agriculture	Drainage, land clearing
🛣️ Road Work	Pipe laying, road repair

💰 12. Approximate Pricing (2024-2025)

Region	Price (USD)
🇨🇳 China	¥350,000 – ¥420,000 (~$48K–$58K)
🌍 Southeast Asia	$42,000 – $52,000
🌍 Middle East / Africa	$45,000 – $55,000
🌍 South America	$48,000 – $58,000
🌍 Europe	€45,000 – €55,000 (limited availability)

🏆 13. Summary

Rating	Score
Performance	⭐⭐⭐⭐ (4/5)
Fuel Efficiency	⭐⭐⭐⭐⭐ (5/5)
Comfort	⭐⭐⭐⭐ (4/5)
Durability	⭐⭐⭐⭐ (4/5)
After-Sales	⭐⭐⭐⭐⭐ (5/5)
Value for Money	⭐⭐⭐⭐⭐ (5/5)

🎯 Bottom Line:
The SANY SY75C is one of the best value-for-money 7-ton excavators on the market today. It combines a reliable Isuzu engine, modern cab comfort, smart technology, and aggressive pricing — making it an excellent choice for contractors, rental companies, and developing markets. If budget is a priority but you don't want to compromise on quality, SANY SY75C is hard to beat. 💪

Would you like more details on any specific aspect — such as attachments, financing, or comparison with a specific competitor? 🚜
