Used Sany 95Excavator

Reading: 24

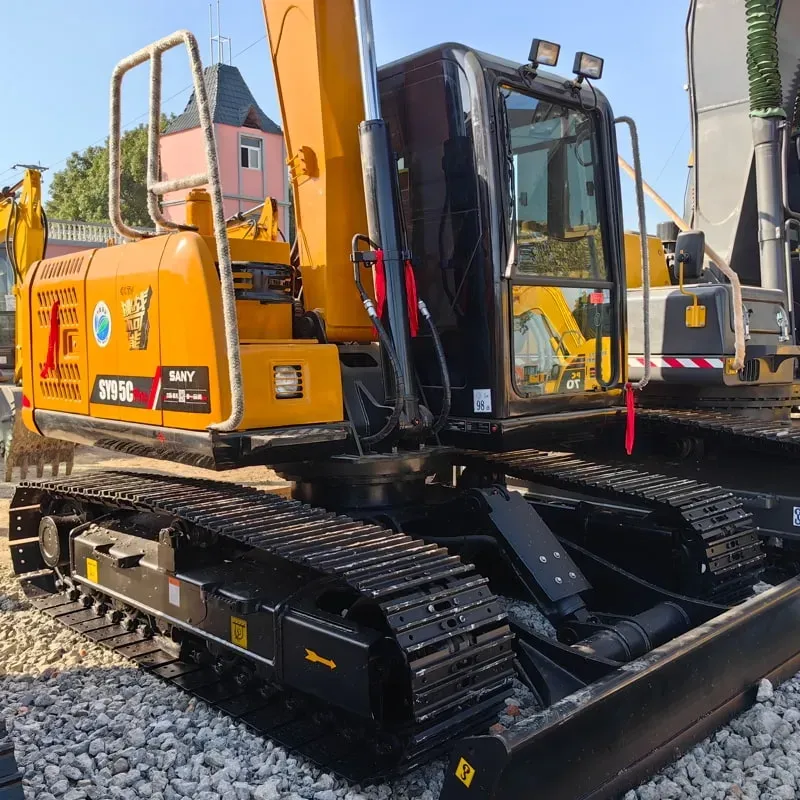

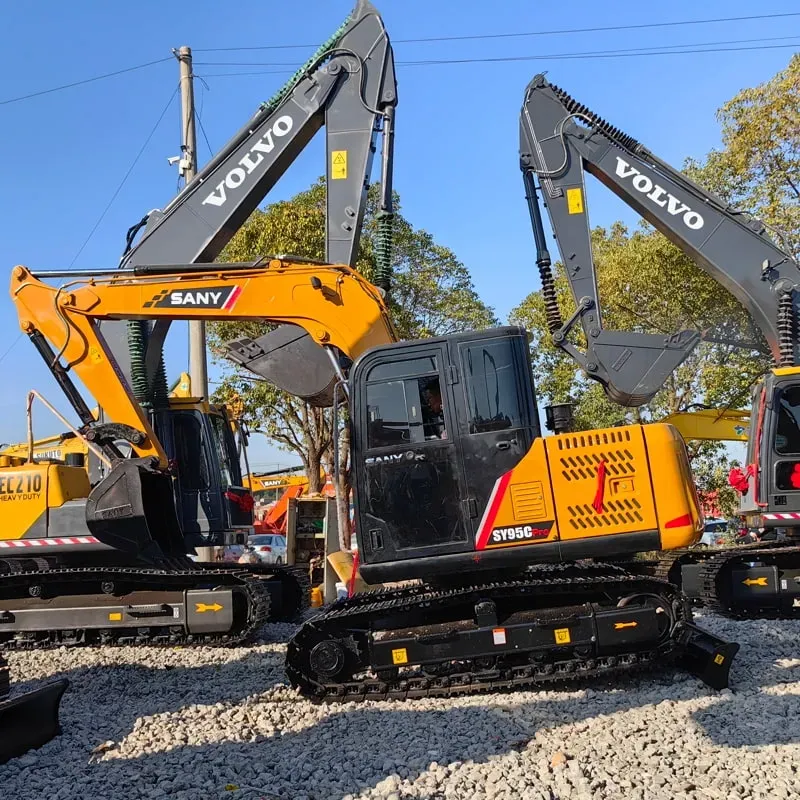

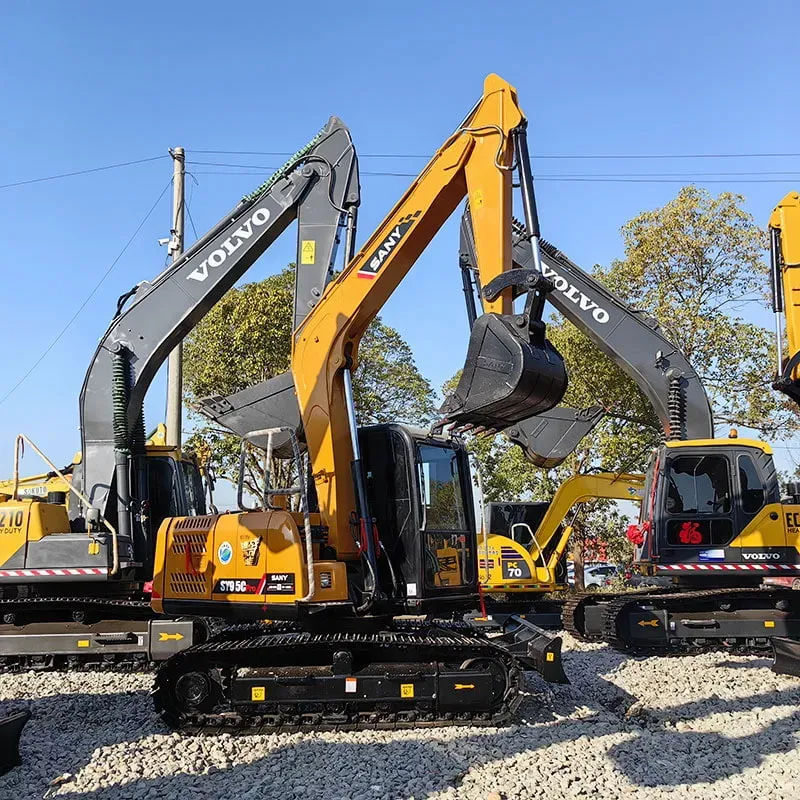

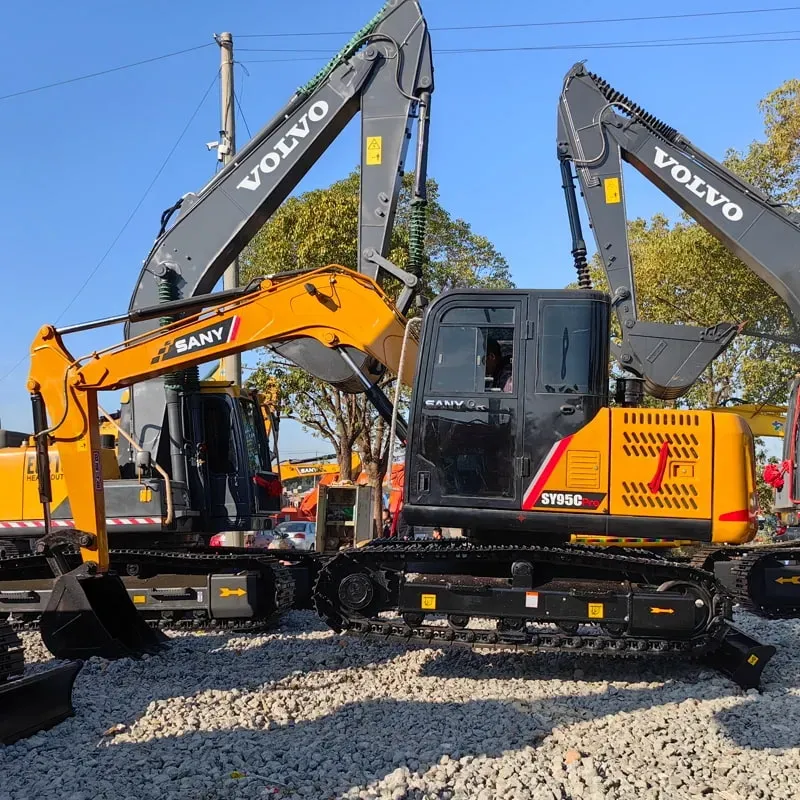

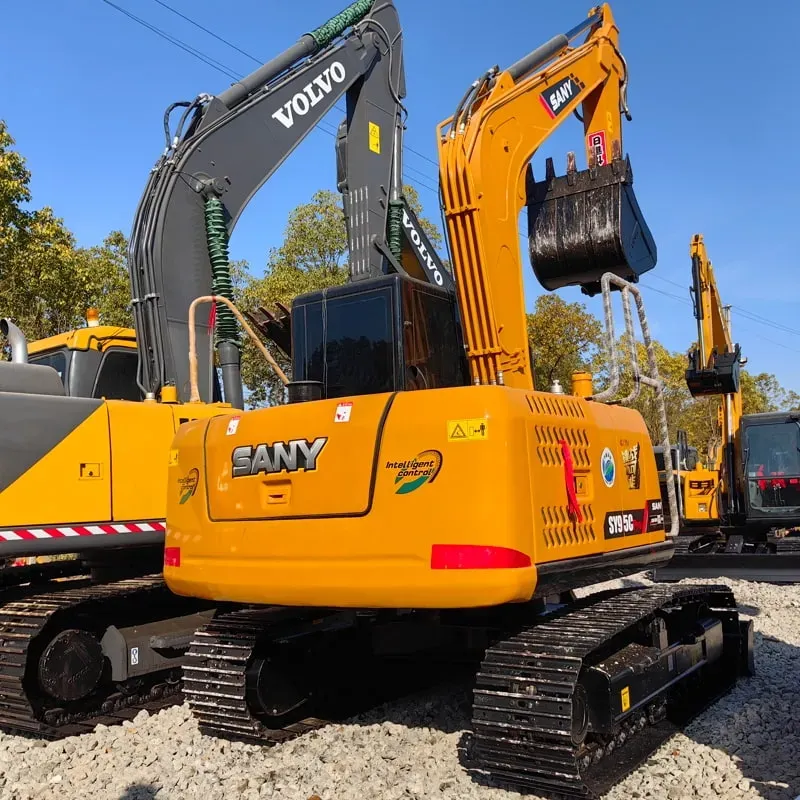

The SANY SY95C is a 9.5-ton class compact/mini excavator manufactured by SANY Heavy Industry Co., Ltd., one of the world's top construction machinery makers. It is designed for versatility in urban construction, landscaping, pipeline work, and small-scale earthmoving.

📋 1. GENERAL OVERVIEW

Item	Details
Brand	SANY (三一重工)
Model	SY95C / SY95U (Ultra-mini variant)
Class	Compact / Mini Excavator (~9.5 tons)
Country of Origin	China 🇨🇳
Intended Use	Urban construction, landscaping, utility work, farm use, pipeline laying
Competitors	CAT 309, Komatsu PC95, Doosan DX90, XCMG XE95

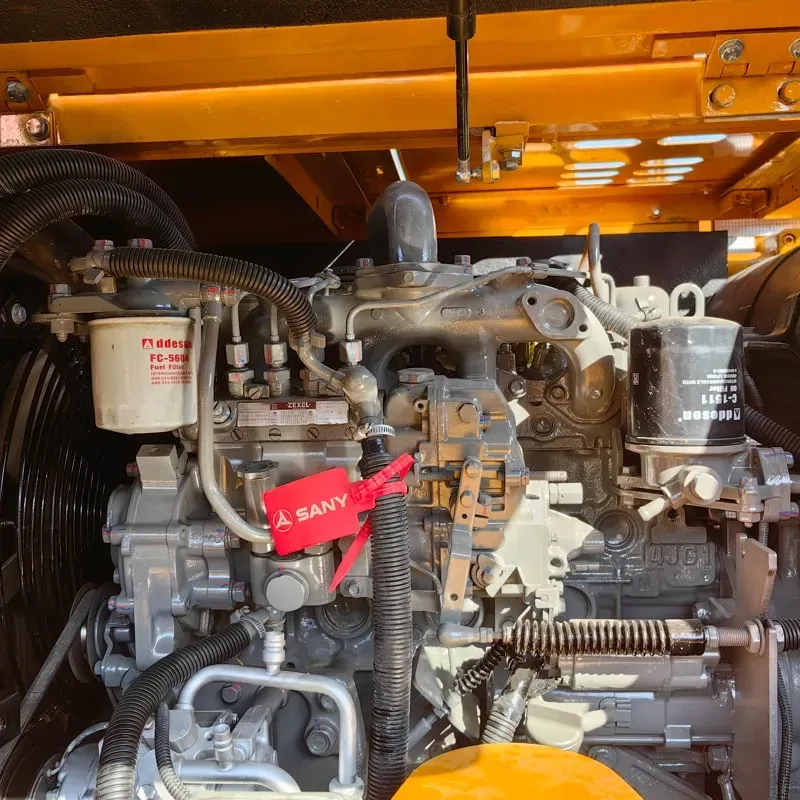

⚡ 2. ENGINE SPECIFICATIONS

Parameter	Details
Engine Model	Yuchai YC4FA130-50 (or Isuzu/Yanmar depending on market)
Engine Type	4-cylinder, turbocharged, intercooled diesel
Displacement	3.8 L
Rated Power	74.5 kW (100 HP) @ 2,200 rpm
Max Torque	~420 N·m
Emission Standard	China III / EPA Tier 4 Final (varies by region)
Fuel Tank Capacity	~150 L
Fuel Consumption	~12–15 L/hour (economy mode)

📐 3. DIMENSIONS & WEIGHT

Parameter	Value
Operating Weight	9,400 – 9,800 kg
Transport Length	~6,180 mm
Transport Width	~2,190 mm
Transport Height	~2,570 mm
Ground Clearance	~380 mm
Track Width	1,600 mm (adjustable: 1,200–1,800 mm)
Track Shoe Width	400 / 450 / 500 mm (options)

🏗️ 4. PERFORMANCE (WORKING RANGE)

Parameter	Value
Max Digging Depth	5,160 mm
Max Digging Reach	8,720 mm
Max Dumping Height	6,530 mm
Max Digging Height (at ground level)	~8,500 mm
Max Vertical Wall Digging Depth	~3,800 mm
Bucket Capacity	0.28 – 0.40 m³ (standard)
Breakout Force (Boom)	~42 kN
Breakout Force (Arm)	~30 kN
Swing Speed	~10 rpm
Travel Speed	2.8 / 4.7 km/h (Low/High)
Gradeability	70% (35°)
Max Tractive Force	~60 kN

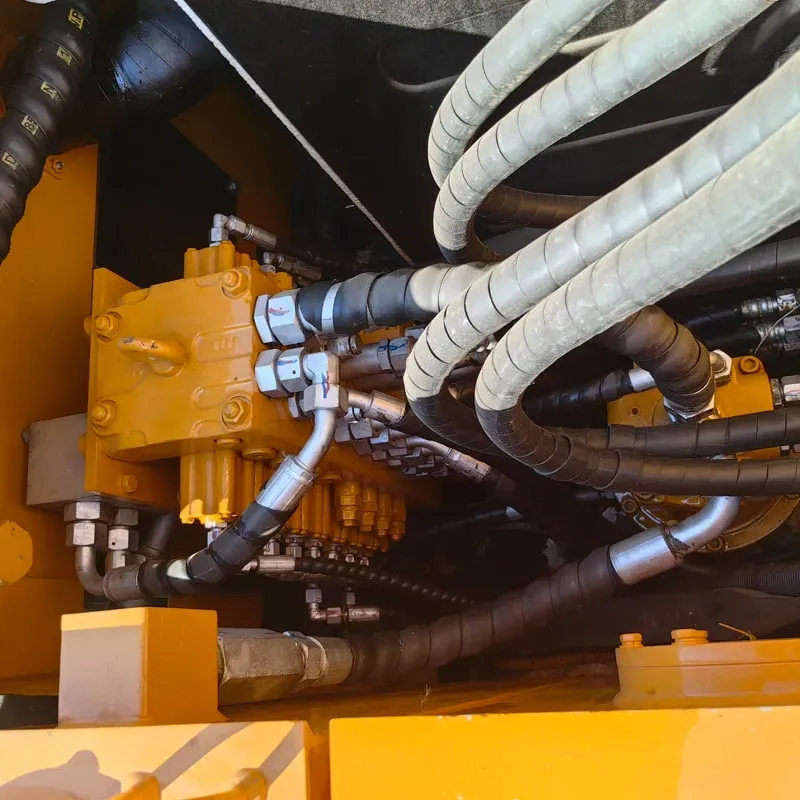

🔧 5. HYDRAULIC SYSTEM

Feature	Details

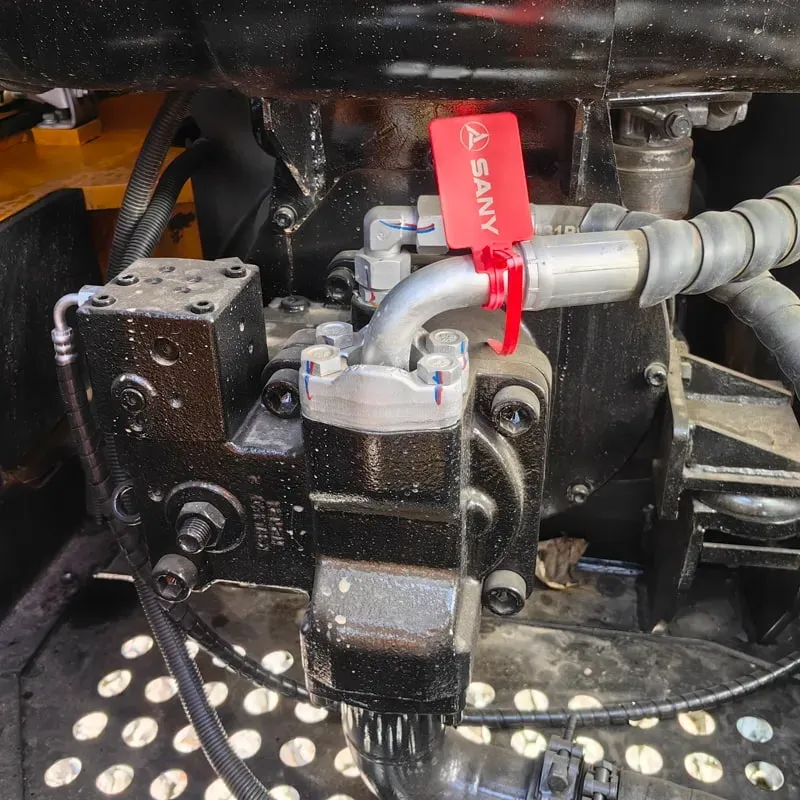

Pump Type	Variable displacement axial piston pump
System Pressure	34.3 MPa (343 bar)
Flow Rate	~2 × 110 L/min
Hydraulic Quick Coupler	✅ Optional (for attachments)
Auxiliary Hydraulic Lines	2 circuits available
Pilot Control	Joystick pilot + foot pedal

🪑 6. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	Enclosed ROPS/FOPS certified cab
Air Conditioning	✅ Standard
Seat	Suspension seat with armrest
Display	LCD monitor (engine info, fault codes, hour meter)
Noise Level	~72 dB(A)
Zero Tail Swing	✅ Available on some variants
Bluetooth/Radio	✅ Optional
Camera System	Rearview + side camera (optional)

🔩 7. KEY FEATURES & HIGHLIGHTS

✅ Feature	Description
🔹 Fuel Efficiency	Eco-mode & smart load-sensing hydraulic system saves 10–15% fuel
🔹 Easy Maintenance	Ground-level service points, large-opening hood
🔹 Compact Design	Zero tail swing option — ideal for tight urban spaces
🔹 Rubber Track Option	Available for road travel & delicate surfaces
🔹 Attachment Versatility	Supports buckets, breakers, augers, grapples, rakes, thumbs
🔹 Smart Technology	SANY iControl system (GPS tracking, remote diagnostics, fleet management)
🔹 Durable Undercarriage	Heavy-duty X-frame with reinforced rollers
🔹 Warranty	2 years / 2,000 hours (varies by region)

🔄 8. COMMON ATTACHMENTS

Attachment	Use Case
🪣 Standard Bucket (280/360/400mm)	General digging
🔨 Hydraulic Breaker	Demolition, rock breaking
🌀 Auger / Earth Drill	Post-hole, piling
🦷 Grapple Bucket	Scrap handling, sorting
🪵 Thumb	Log/pipe handling
🌿 Rake	Landscaping, grading
❄️ Quick Coupler	Fast attachment change

💰 9. APPROXIMATE PRICING (2024)

Region	Price Range (USD)
China	$45,000 – $58,000
Southeast Asia	$50,000 – $65,000
Middle East / Africa	$55,000 – $70,000
Europe / North America	$65,000 – $80,000+

Prices vary by configuration, attachments, and market.

📊 10. PROS & CONS

✅ PROS	❌ CONS
Excellent price-to-performance ratio	After-sales network still growing (vs. CAT/Komatsu)
Fuel-efficient engine	Parts availability varies by region
Comfortable & modern cab	Resale value lower than Japanese brands
SANY global service network expanding	Some users report minor fit-finish issues
Strong hydraulic performance for its class	Limited availability of OEM parts in some markets
Smart fleet management (iControl)

🏆 11. SUMMARY

Rating	Score (out of 10)
Performance	⭐⭐⭐⭐⭐ (8.5/10)
Fuel Efficiency	⭐⭐⭐⭐ (8/10)
Comfort	⭐⭐⭐⭐⭐ (8.5/10)
Build Quality	⭐⭐⭐⭐ (8/10)
Value for Money	⭐⭐⭐⭐⭐ (9/10)
After-Sales	⭐⭐⭐⭐ (7.5/10)

🎯 WHO SHOULD BUY THE SANY SY95C?

✅ Small to medium contractors✅ Urban/municipal work✅ Rental companies✅ Landscaping & farming businesses✅ Buyers looking for Japanese-level performance at Chinese pricing

📌 Bottom Line: The SANY SY95C is one of the best-value compact excavators on the market in 2024, offering near-premium performance with strong fuel efficiency, modern comfort, and smart technology — all at a very competitive price point.
