Used Sany 60Excavator

Reading: 9

The SANY SY60C is a 6-ton class mini excavator manufactured by SANY Heavy Industry Co., Ltd., one of the world's top 5 construction machinery makers. It is one of the most popular compact excavators in the global market, widely used in urban construction, landscaping, agriculture, and small-scale earthmoving projects.

📋 1. GENERAL OVERVIEW

Item	Details
Model	SANY SY60C / SY60C Pro
Class	Mini Excavator (6-ton)
Manufacturer	SANY Heavy Industry (Changsha, China)
Production	Since ~2018 (SY60C), Pro version ~2021+
Target Market	Global (Europe, Asia, Americas, Africa, Middle East)
Positioning	Mid-range mini excavator — ideal for tight-space operations

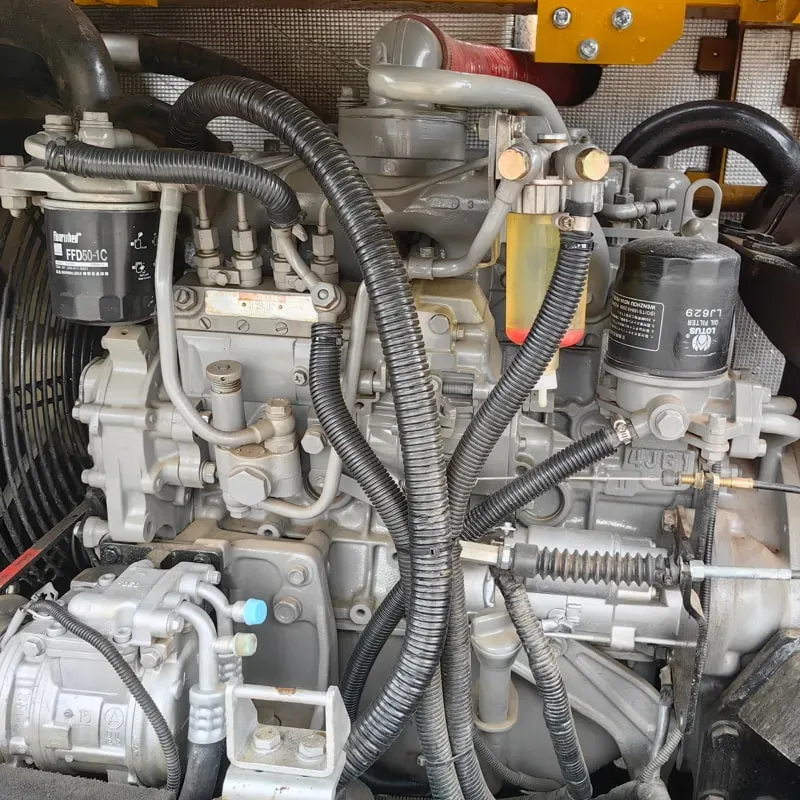

⚙️ 2. ENGINE & POWER SYSTEM

Specification	SY60C	SY60C Pro
Engine Model	YANMAR 4TNV98-ZPLYS	YANMAR 4TNV98 (Updated/Euro Stage V)
Type	4-Cylinder, Water-Cooled, Turbocharged Diesel	Same
Rated Power	36.8 kW (49.3 HP) @ 2,200 rpm	36.8 kW (49.3 HP)
Emission Standard	Euro III / China III	Euro V / China IV
Fuel Tank Capacity	~80 L	~80 L
Fuel Consumption	~8–10 L/hour (varies by load)	~7–9 L/hour (improved efficiency)

✅ The Pro version features improved fuel efficiency and lower emissions, meeting stricter environmental regulations.

📐 3. DIMENSIONS & WEIGHT

Specification	Value
Operating Weight	5,850 – 6,000 kg
Transport Length	5,980 mm
Transport Width	1,980 mm (with standard bucket)
Transport Height	2,620 mm (to top of canopy)
Ground Clearance	360 mm
Track Width	Adjustable: 1,200 – 1,600 mm
Track Shoe Width	300 mm (or 400 mm rubber track option)

🚛 Transport-friendly: Can be loaded on a standard flatbed trailer without special permits in most countries (under 6 tons).

🔨 4. PERFORMANCE (WORKING RANGE)

Specification	SY60C	SY60C Pro
Max Digging Depth	3,920 mm	3,980 mm
Max Digging Reach	5,980 mm	6,100 mm
Max Dumping Height	4,020 mm	4,100 mm
Max Digging Force (Boom)	36.3 kN	38.0 kN
Max Digging Force (Arm)	25.5 kN	27.0 kN
Bucket Capacity	0.17 – 0.22 m³ (standard)	0.17 – 0.25 m³
Swing Speed	~10 rpm	~10.5 rpm
Travel Speed	2.5 – 4.8 km/h	2.8 – 5.0 km/h
Gradeability	70% (35°)	70% (35°)

🏗️ 5. KEY FEATURES & HIGHLIGHTS

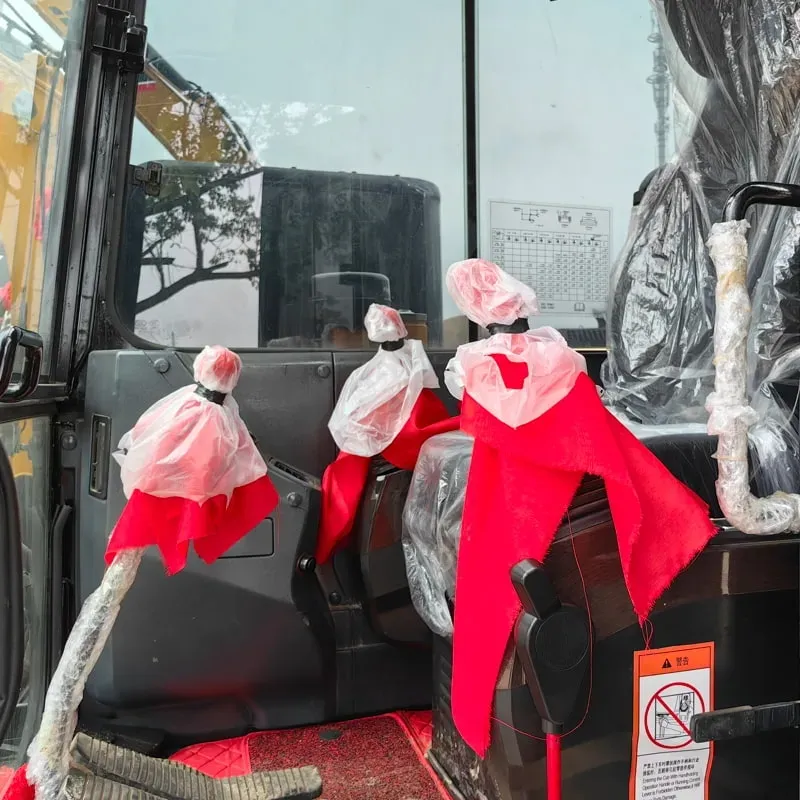

🔹 A. Smart & Comfortable Cabin

Feature	Detail
ROPS/FOPS Certified	Yes — rollover & falling object protection
Air Conditioning	Standard (Pro version: auto climate control)
Seat	Suspension seat with armrests
Display	LCD monitor with real-time diagnostics
Noise Level	~68 dB(A) — relatively quiet for its class
Visibility	Wide-angle windows, excellent all-around visibility

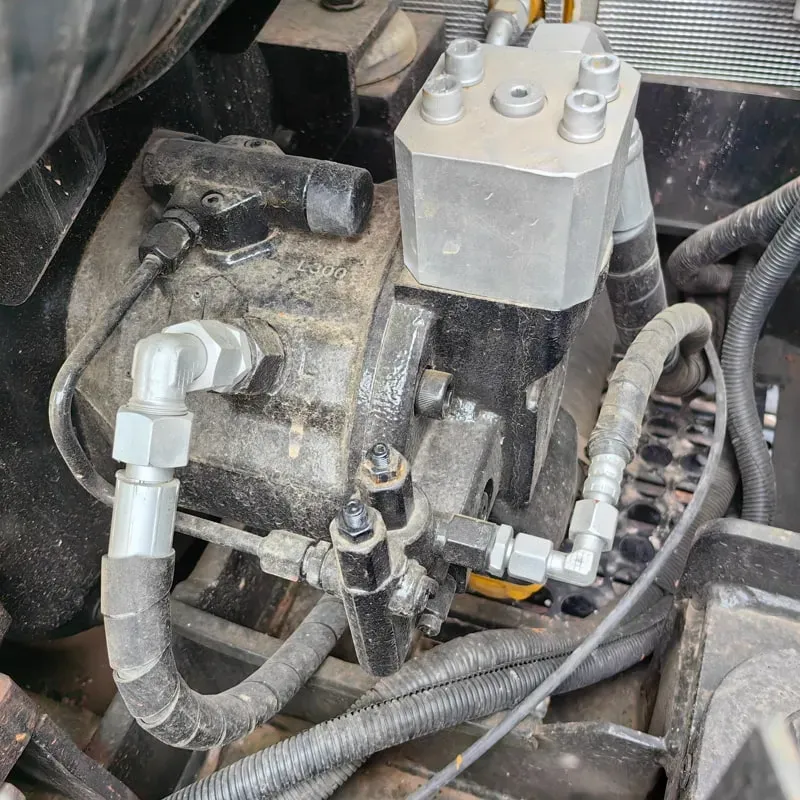

🔹 B. Hydraulic System

Feature	Detail
System Type	Load-sensing hydraulic system (LS)
Pump Type	Variable displacement axial piston pump
Auxiliary Hydraulic Flow	Available for attachments (hammers, augers, etc.)
Hydraulic Quick Coupler	Optional — allows tool change in seconds

🔹 C. Intelligent Control (Pro Version)

Feature	Detail
Eco Mode	Auto-adjusts engine RPM to save fuel
Smart Mode	Auto-optimizes hydraulic flow based on operation
Auto-Idle	Engine auto-stops when idle to save fuel
SANY i-Controller	Touchscreen with GPS tracking, maintenance alerts
Bluetooth/WiFi	Remote monitoring via SANY app

🔹 D. Durability & Maintenance

Feature	Detail
Undercarriage	Heavy-duty X-frame with reinforced track links
Service Intervals	500 hours (oil change), 1,000 hours (filters)
Ground-Level Service Points	Easy access to filters, grease points
Working Hours Meter	Digital with maintenance reminders

🔧 6. AVAILABLE ATTACHMENTS

The SY60C is highly versatile with a wide range of attachments:

Attachment	Application
🪣 Standard Bucket (200/300/400/600mm)	General digging
🔨 Hydraulic Breaker (Hammer)	Demolition, concrete breaking
🌀 Auger / Earth Drill	Post holes, piling
🔧 Hydraulic Thumb	Pipe handling, log grabbing
🪵 Grapple	Log/debris handling
🌿 Rake	Landscaping, leveling
❄️ Snow Blade	Snow removal
🔩 Quick Coupler	Fast attachment switching
🚜 Dozer Blade (optional)	Grading, pushing

🌍 7. APPLICATIONS

Sector	Use Cases
🏙️ Urban Construction	Trench digging, utility work, basement excavation
🏡 Residential	Foundation work, landscaping, driveway preparation
🌾 Agriculture	Drainage, fence post holes, field leveling
🌳 Landscaping & Gardening	Tree planting, grading, drainage
🏗️ Infrastructure	Pipe laying, cable trenching, road repair
🏚️ Demolition	Small building demolition (with breaker)
❄️ Municipal	Snow removal, sidewalk repair

💰 8. PRICING (Approximate, 2024)

Region	Price Range (USD)
🇨🇳 China	$35,000 – $45,000
🇪🇺 Europe	€40,000 – €55,000
🇺🇸 North America	$45,000 – $60,000
🇸outheast Asia	$38,000 – $50,000
🇦🇫 Africa / Middle East	$42,000 – $58,000

💡 The SY60C Pro is typically $3,000–$5,000 more than the standard SY60C.

🏆 9. COMPETITORS COMPARISON

Model	Weight	Power	Bucket	Price (Approx.)
SANY SY60C Pro	6,000 kg	49 HP	0.22 m³	$45K–$60K
🟠 Kubota KX060-4	5,970 kg	47 HP	0.19 m³	$50K–$65K
🟡 CAT 306 CR	6,200 kg	48 HP	0.20 m³	$60K–$75K
🟢 John Deere 60G	6,040 kg	48 HP	0.19 m³	$55K–$70K
🔵 XCMG XE60DA	6,000 kg	49 HP	0.22 m³	$38K–$50K
🟣 Doosan DX60R-5	6,100 kg	48 HP	0.19 m³	$50K–$62K

✅ SANY's advantage: Best price-to-performance ratio, strong after-sales network, and fast-growing global dealer network.

✅ 10. PROS & CONS

✅ PROS	❌ CONS
Excellent value for money	Brand perception still behind CAT/Kubota in some markets
Fuel-efficient (especially Pro)	Limited dealer network in some regions (improving)
Comfortable & modern cabin	Parts availability can vary by region
Wide attachment compatibility	Resale value slightly lower than Japanese brands
Strong hydraulic performance	Newer model — long-term reliability still being proven
Good after-sales support (SANY global)	Rubber track option adds cost

🎯 11. SUMMARY

Rating	Score (out of 10)
🔧 Performance	⭐ 8.5
💰 Value for Money	⭐ 9.0
🪑 Comfort	⭐ 8.5
🔩 Reliability	⭐ 8.0
🌍 After-Sales	⭐ 8.0
OVERALL	⭐ 8.4 / 10

🔑 BOTTOM LINE

The SANY SY60C / SY60C Pro is one of the best-value 6-ton mini excavators on the market in 2024. It combines solid performance, modern technology, fuel efficiency, and competitive pricing — making it an excellent choice for contractors, rental companies, and small-to-medium construction businesses worldwide. The Pro version is the recommended choice for buyers wanting the latest tech (Euro V, smart controls, better fuel economy).
