Used Caterpillar 323D2LExcavator

Reading: 30

📌 Overview

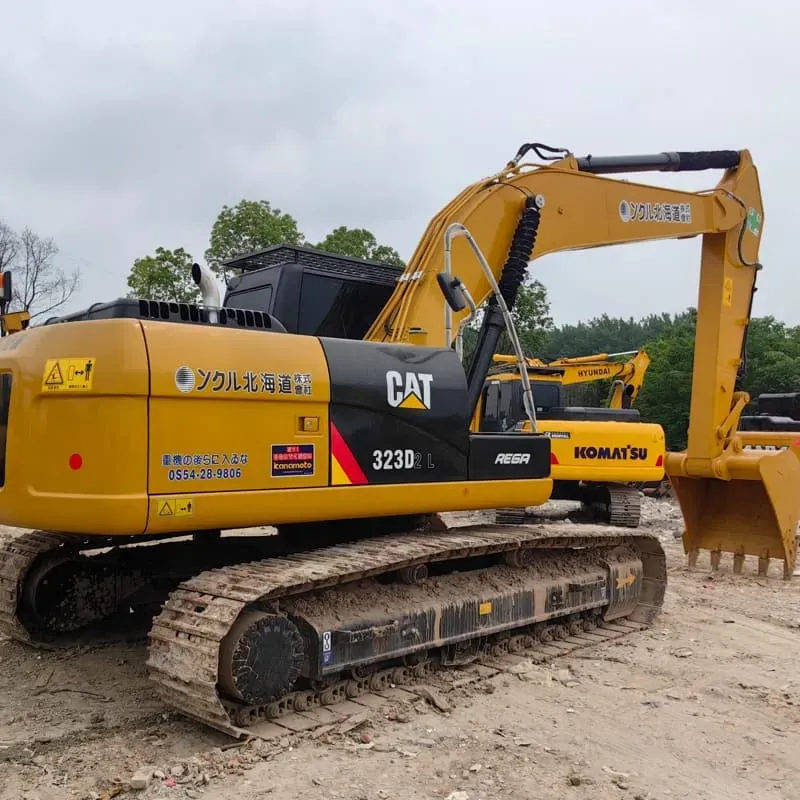

The Cat 323D2L is a medium-class, long-reach (L) hydraulic excavator from Caterpillar's D2 Series. The "L" stands for Long Reach, meaning it features an extended boom and arm configuration designed for applications requiring greater reach — such as dredging, riverbank work, demolition, landscaping, and deep excavation.

It sits in the ~23-tonne operating weight class and is powered by the reliable Cat C4.4 ACERT® engine, meeting Tier 4 Final / EU Stage V emission standards.

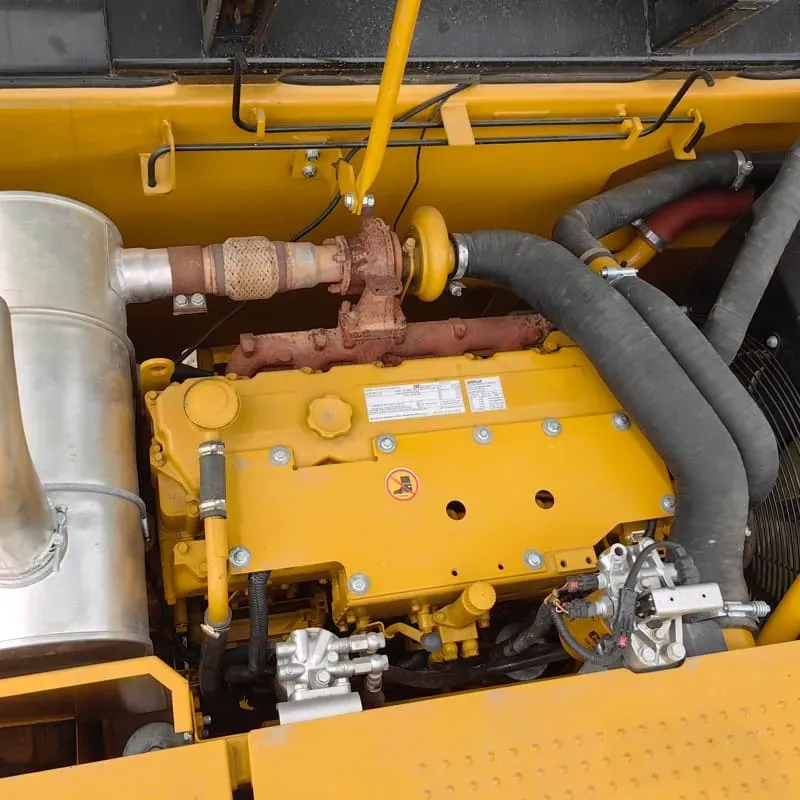

🔧 1. ENGINE & EMISSIONS

Specification	Detail
Engine Model	Cat C4.4 ACERT®
Type	4-cylinder, turbocharged, air-to-air aftercooled diesel
Displacement	4.4 L (268 in³)
Net Power	129 hp (96 kW) @ 1,800 rpm
Emissions	EPA Tier 4 Final / EU Stage V (no DPF in some regions)
Fuel Tank Capacity	~400 L (106 gal)
Cooling System	18.5 L (4.9 gal)

✅ The C4.4 is known for its fuel efficiency, durability, and low maintenance — a workhorse engine in Cat's lineup.

⚖️ 2. OPERATING WEIGHT & DIMENSIONS

Specification	Metric	Imperial
Operating Weight	~23,400 kg	~51,588 lb
Transport Length	~10,640 mm	34.9 ft
Transport Width	~2,990 mm	9.8 ft
Transport Height	~3,150 mm	10.3 ft
Ground Clearance	~450 mm	17.7 in
Track Width	Adjustable: 2,200–2,990 mm	7.2–9.8 ft

🔄 The variable-gauge undercarriage allows the tracks to be adjusted for transport (narrow) or work (wide), making it compliant with road transport regulations.

📐 3. PERFORMANCE (Long Reach Configuration)

This is where the "L" version shines compared to the standard 323D2:

Parameter	Metric	Imperial
Max Digging Depth	~6,920 mm	~22.7 ft
Max Reach at Ground Level	~10,500 mm	~34.4 ft
Max Cutting Height	~9,900 mm	~32.5 ft
Max Dumping Height	~7,100 mm	~23.3 ft
Max Digging Radius	~10,300 mm	~33.8 ft
Breakout Force (Arm)	~84 kN	~18,900 lbf
Breakout Force (Boom)	~118 kN	~26,500 lbf

📏 Compared to the standard 323D2, the 323D2L offers 1.5–2 meters more reach, making it ideal for deep/far work.

🪣 4. BUCKET CAPACITY

Configuration	Capacity (m³)	Capacity (yd³)
Standard Bucket	0.8 – 1.0 m³	1.0 – 1.3 yd³
Wide Bucket (optional)	1.2 m³	1.6 yd³
Long Reach Arm + Bucket	0.5 – 0.8 m³	0.65 – 1.0 yd³

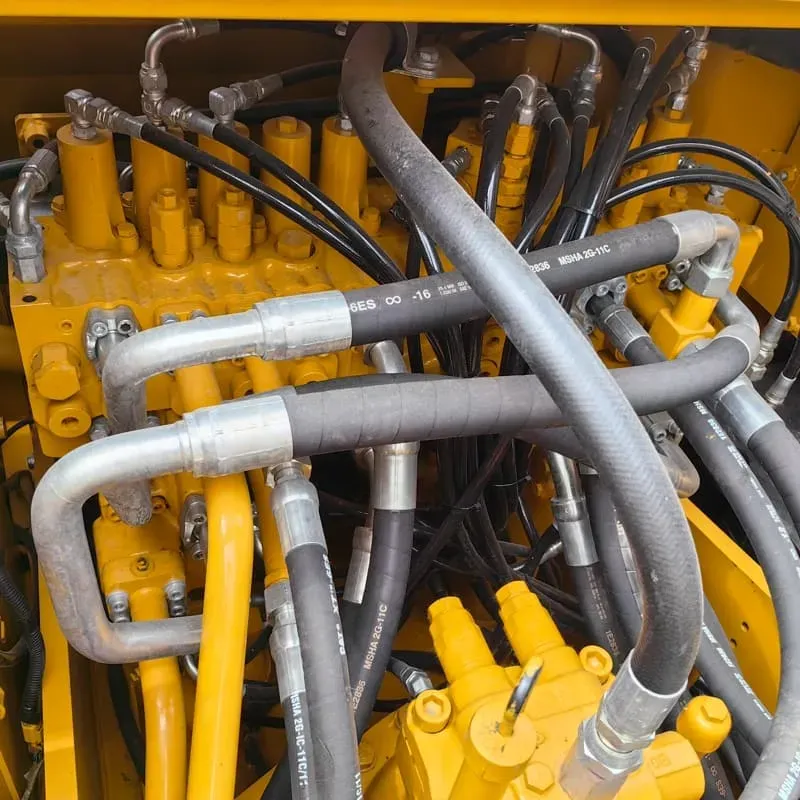

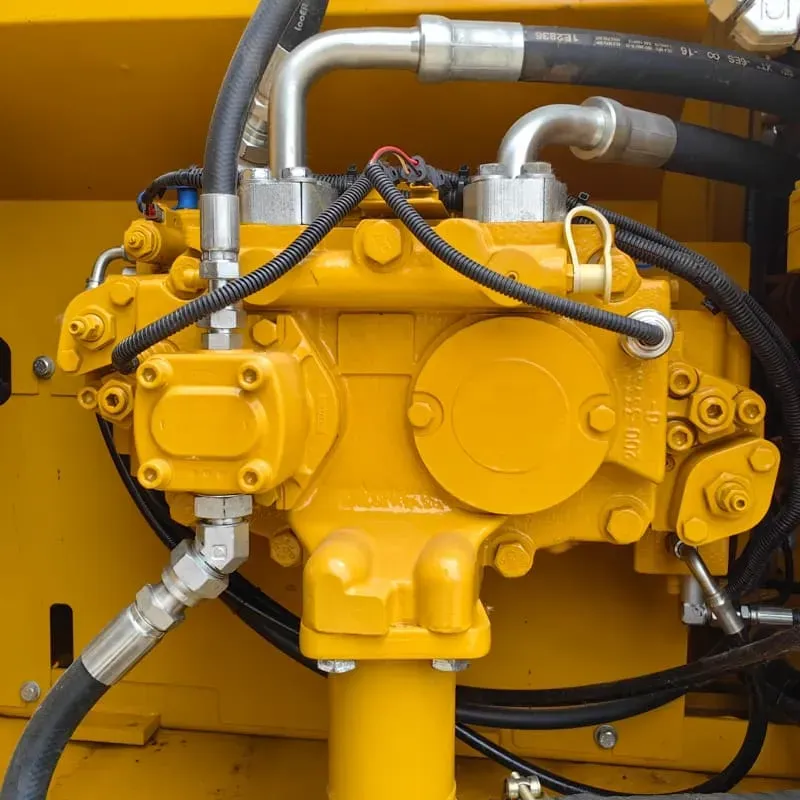

🛢️ 5. HYDRAULIC SYSTEM

Specification	Detail
System Pressure	350 bar (5,076 psi)
Pump Flow (Total)	~2 × 255 L/min = ~510 L/min (135 gal/min)
Hydraulic Tank	~130 L (34 gal)
Auxiliary Hydraulics	2 circuits available (for thumbs, hammers, shears)
Travel Motor	Variable displacement piston motor

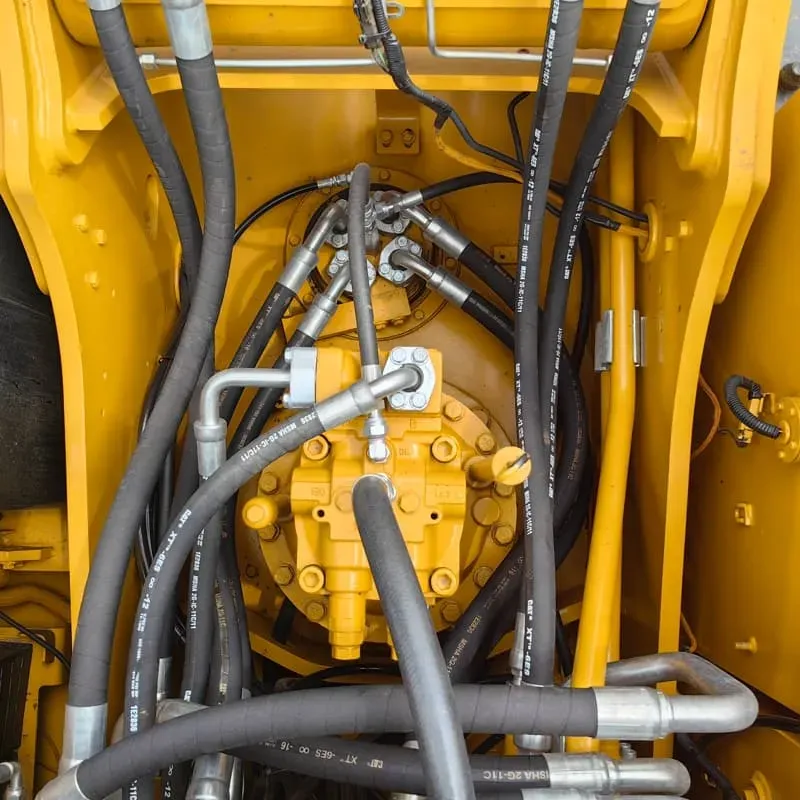

Swing Motor	Axial piston motor with brake

🔨 The high flow rate supports attachments like hydraulic breakers, grapples, and compactors efficiently.

🏗️ 6. KEY FEATURES & TECHNOLOGY

Feature	Description
🖥️ Cat GRADE with 2D/3D	Optional GPS-based grading system for precision earthmoving
📡 Product Link™ / VisionLink®	Remote machine monitoring, diagnostics, fleet management

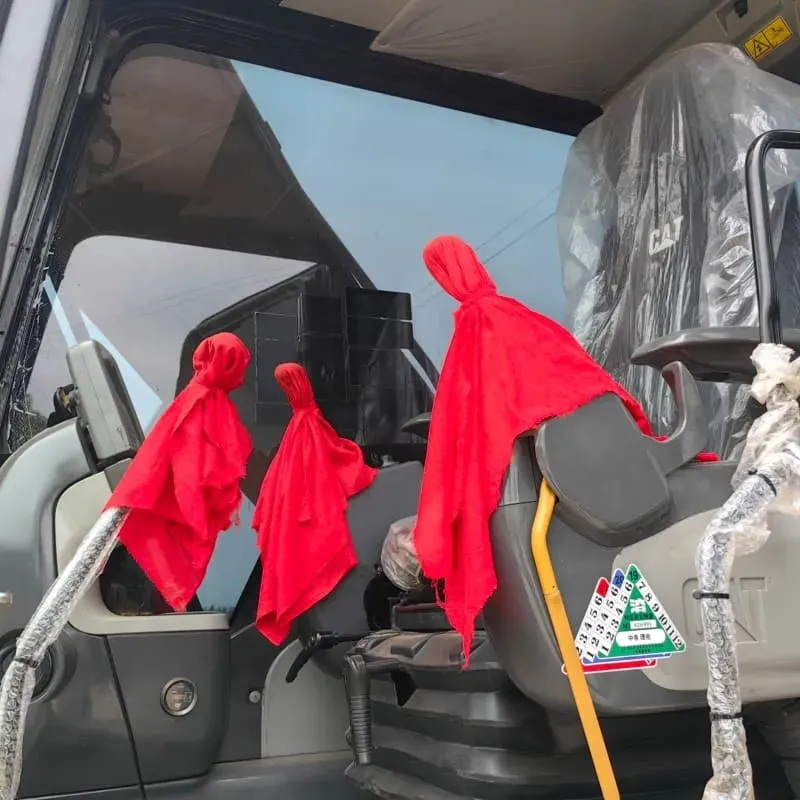

🪑 ROPS/FOPS Cab	Rollover & falling object protective structure
❄️ Climate Control	Air conditioning + heater standard; optional seat heater
🔧 Variable Gauge Undercarriage	Adjustable track width (2.2m–3.0m)
⚡ Eco Mode	Reduces engine RPM when full power isn't needed — saves fuel up to 15%
🔄 Power Boom (Optional)	Increases boom force for heavy-duty digging
🖥️ Cat Touchscreen Monitor	10" (254 mm) LCD display with rear-view camera
🛡️ Undercarriage Protection	Heavy-duty track shoes, rollers, idlers
🔌 USB / Bluetooth	Operator convenience features

🎯 7. TYPICAL APPLICATIONS

Application	Why 323D2L?
🏗️ Riverbank & Dredging Work	Long reach + deep digging capability
🏚️ Demolition	Extended reach keeps operator at safe distance
🌳 Landscaping & Grading	Precision + versatile attachment compatibility
🛣️ Road Construction	Digging trenches, utility work
🏭 Material Handling	Long reach for loading trucks from a distance
🌿 Environmental Remediation	Excavation in sensitive/hard-to-access areas

🆚 8. COMPARISON: 323D2 vs 323D2L

Feature	323D2 (Standard)	323D2L (Long Reach)
Operating Weight	~23,400 kg	~23,400 kg
Max Digging Depth	~6,200 mm	~6,920 mm
Max Reach	~9,000 mm	~10,500 mm
Boom Length	Standard	Extended
Best For	General excavation	Deep/far reach work
Price (approx.)	~$165,000–$185,000	~$185,000–$210,000

💡 The "L" adds roughly $15,000–$25,000 but gives significantly more versatility.

📊 9. SUMMARY SPECIFICATIONS TABLE

Category	Specification
Model	Cat 323D2L
Series	D2 (Next Gen)
Engine	C4.4 ACERT, 129 hp (96 kW)
Operating Weight	23,400 kg (51,588 lb)
Bucket Range	0.5 – 1.2 m³ (0.65 – 1.6 yd³)
Max Digging Depth	6,920 mm (22.7 ft)
Max Reach	10,500 mm (34.4 ft)
System Pressure	350 bar (5,076 psi)
Fuel Capacity	400 L (106 gal)
Emissions	Tier 4 Final / Stage V
Cab	ROPS/FOPS, A/C, 10" monitor

✅ PROS & CONS

✅ PROS	❌ CONS
Excellent reach for its class	Heavier than standard 323D2
Fuel-efficient C4.4 engine	Higher purchase price than standard
Strong hydraulic performance	Long reach = slightly less breakout force
Cat dealer network & parts availability	Transport width at max gauge is wide
Advanced technology (GRADE, VisionLink)	Not ideal for tight urban sites
Variable undercarriage = road-legal

🏆 Bottom Line

The Cat 323D2L is one of the best medium-class long-reach excavators on the market. It combines Cat's legendary reliability and fuel efficiency with an extended reach configuration that makes it perfect for dredging, demolition, riverbank work, and deep excavation. If you need a 23-tonne machine that can dig deeper and reach farther than the competition, the 323D2L is an excellent choice.

⚠️ Specifications may vary by region and configuration. Always verify with your local Cat dealer for the exact model in your market.
