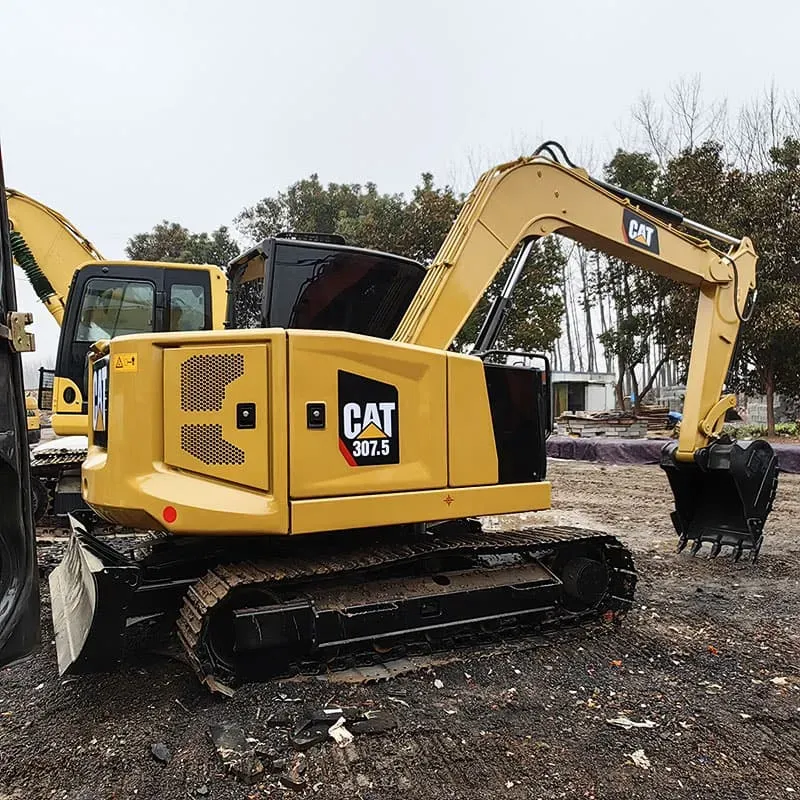

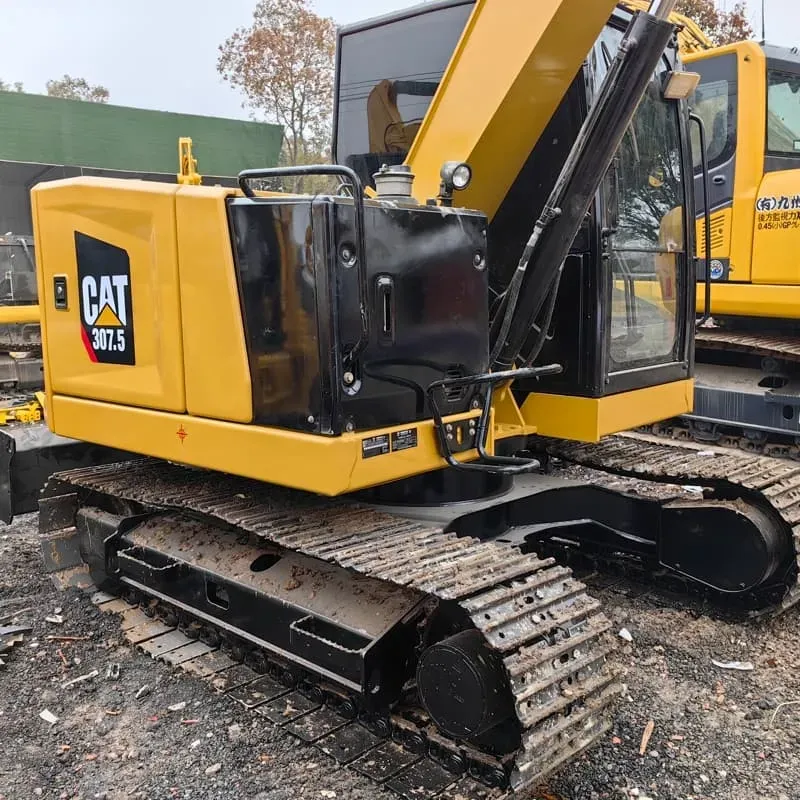

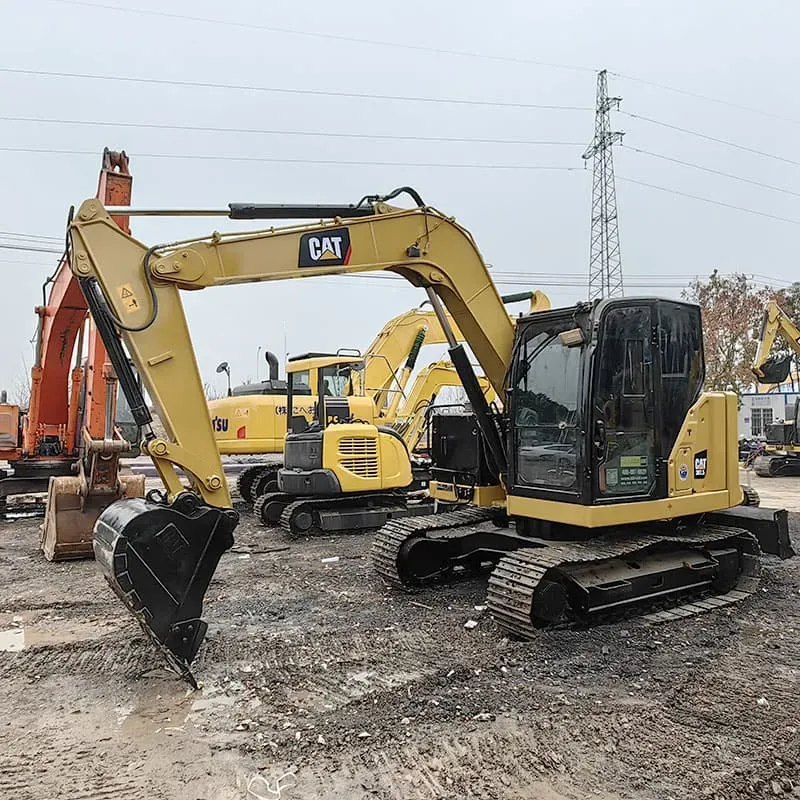

Used Caterpillar 307.5Excavator

Reading: 16

📌 1. OVERVIEW

The Caterpillar 307.5 is a Next Generation compact/mini hydraulic excavator in the 7-ton class, introduced around 2021 as part of Cat's updated small excavator lineup. It replaced the 307 D2 and 307.5 CR2 models, offering improved fuel efficiency, operator comfort, and smart technology integration.

It is designed for utility work, landscaping, construction, pipeline installation, and general earthmoving in tight or confined spaces.

📌 2. KEY SPECIFICATIONS

Parameter	Specification
Operating Weight	~7,500 – 7,800 kg (16,535 – 17,196 lb)
Engine	Cat C2.2 ACERT – 4-cylinder turbocharged diesel
Engine Power	52 hp (38.7 kW) @ 2,200 rpm
Max Digging Depth	4.47 m (14 ft 8 in)
Max Reach (Ground Level)	5.94 m (19 ft 6 in)
Bucket Capacity	0.16 – 0.30 m³ (0.21 – 0.39 yd³)
Swing Speed	~10 rpm
Travel Speed	~4.7 km/h (2.9 mph)
Hydraulic Flow	~130 L/min (34.3 gpm)
Operating Pressure	350 bar (5,076 psi)
Undercarriage Width	1,400 / 1,600 / 1,800 mm (adjustable)
Tail Swing	Zero Tail Swing (ZTS) ✅
Emissions	Tier 4 Final / Stage V

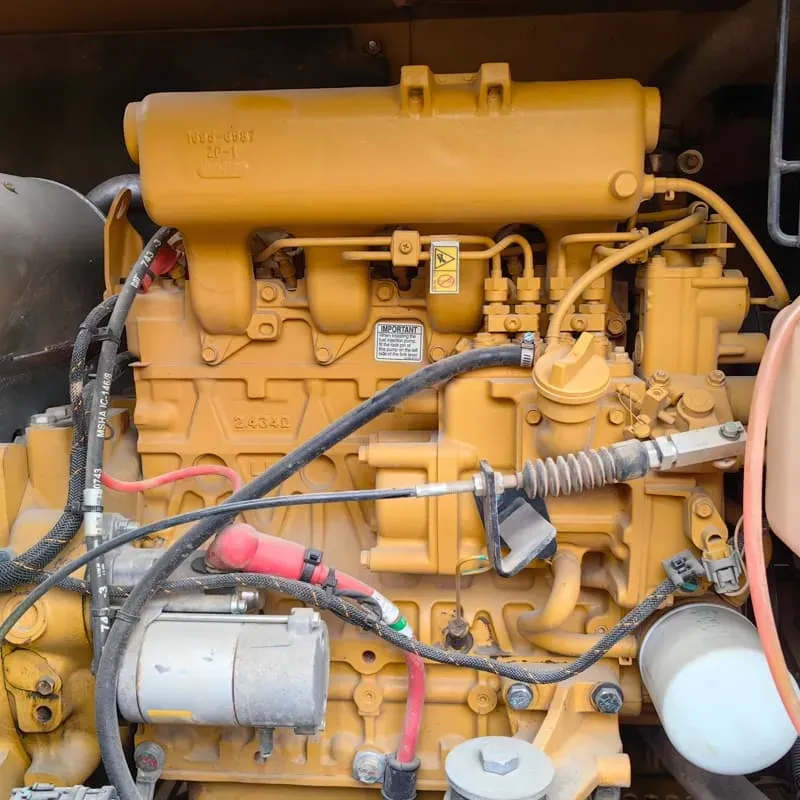

📌 3. ENGINE — Cat C2.2 ACERT

Feature	Detail
Type	4-cylinder, turbocharged, aftercooled diesel
Displacement	2.2 L
Power Output	52 hp (38.7 kW)
Emissions	Meets Tier 4 Final (US) / Stage V (EU)
Fuel Efficiency	Improved ~10–15% over previous gen
Eco Mode	✅ Automatic power reduction under light loads

The C2.2 engine is known for reliability, low maintenance, and excellent fuel economy — critical for rental and fleet operators.

📌 4. DESIGN & STRUCTURE

🔄 Zero Tail Swing (ZTS)

The upper structure does NOT swing beyond the tracks when rotating 360°
Allows operation very close to walls, fences, and structures
Ideal for urban and confined-site work

🛡️ Cab (ROPS/FOPS Certified)

Next Generation enclosed cab with:
- Large glass area for excellent all-around visibility
- Climate-controlled HVAC system
- Adjustable air-suspension seat with armrests
- Reduced noise levels (~72 dB(A))
- Joystick controls with proportional boom/arm/bucket
- 7-inch LCD monitor with rearview camera
- USB ports, 12V outlet, storage compartments

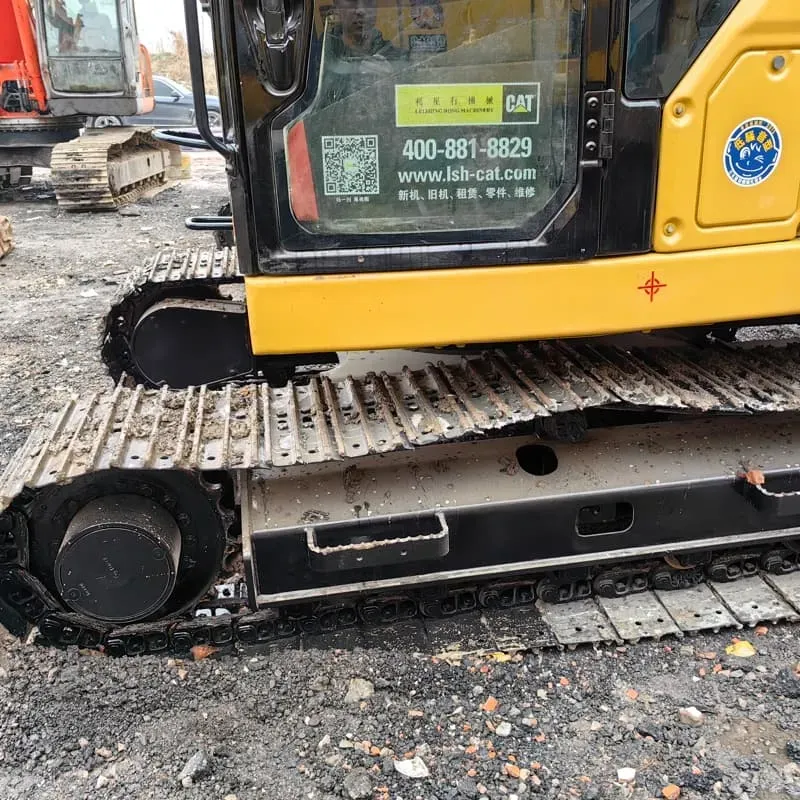

🔧 Undercarriage

Steel tracks with rubber pads available
Three width options: 1,400mm / 1,600mm / 1,800mm
Adjustable track gauge for transport vs. stability

📌 5. HYDRAULIC SYSTEM & PERFORMANCE

Feature	Detail
System Type	Load Sensing (LS) hydraulics
Max Flow	~130 L/min
Auxiliary Hydraulics	✅ 2 circuits (for hammers, thumbs, grapples)
Quick Coupler Ready	✅ (Cat® Pin Grabber or BP)
Boom/Arm/Bucket	Reinforced for heavy digging
Blade Option	✅ Dozer blade available (2,440 mm wide)

The Load Sensing system matches hydraulic flow to demand, saving fuel and providing smooth, precise operation.

📌 6. SMART TECHNOLOGY & CONNECTIVITY

Technology	Function
📡 Cat Product Link™	GPS tracking, machine hours, location, diagnostics
📱 Cat app / VisionLink®	Remote monitoring via smartphone/web
🤖 Grade with 2D (Optional)	GPS-assisted digging to design grade
🔋 Payload (Optional)	Real-time bucket load weighing
🛠️ Remote Flash / Diagnostics	Software updates & troubleshooting via cellular

📌 7. ATTACHMENTS & VERSATILITY

The 307.5 is a multi-purpose machine compatible with a wide range of attachments:

Attachment	Application
🪣 Various Buckets (160–300mm)	General digging, trenching
🔨 Hydraulic Breaker (Hammer)	Concrete/rock breaking
🤏 Thumb	Material handling, log grappling
🔩 Auger	Post holes, fencing, piling
🪓 Hydraulic Grapple	Demolition, sorting
🪚 Trencher	Utility trenching
🧹 Sweeper	Road/site cleaning
🔲 Dozer Blade	Grading, pushing
🪣 4-in-1 Bucket	Versatile digging

📌 8. KEY ADVANTAGES ✅

Advantage	Description
✅ Compact Size	Fits through standard gates, narrow access
✅ Zero Tail Swing	Works flush to walls/obstacles
✅ Fuel Efficient	Eco mode + C2.2 engine = lower operating cost
✅ Operator Comfort	Best-in-class cab for its size
✅ Low Maintenance	Long service intervals (500 hr / 1,000 hr)
✅ Smart Connected	Product Link for fleet management
✅ High Resale Value	Cat brand reliability = strong residual value
✅ Emissions Compliant	Tier 4 Final / Stage V — works in regulated zones

📌 9. COMPARISON: 307.5 vs Predecessor (307 D2)

Feature	307 D2 (Old)	307.5 (New)
Engine	C3.3B (66 hp)	C2.2 (52 hp)
Fuel Efficiency	Good	~15% Better
Cab	Basic	Next Gen — Superior comfort
Tech	Basic	Product Link, VisionLink
Emissions	Tier 3	Tier 4 Final / Stage V
Weight	~7,300 kg	~7,500–7,800 kg
Swing	ZTS	ZTS

⚠️ The 307.5 has less raw horsepower than the 307 D2, but offers better fuel economy, lower emissions, and smarter operation — a trade-off favoring efficiency over raw power.

📌 10. TYPICAL APPLICATIONS

Industry	Use Case
🏗️ Construction	Foundation work, utility trenches, small earthmoving
🌳 Landscaping	Tree planting, grading, drainage
🔌 Utilities	Pipe laying, cable trenching
🏠 Residential	Pool excavation, septic systems, driveway work
🏚️ Demolition	Small building tear-down with breaker
🚜 Agriculture	Ditch cleaning, fence line work
🏢 Rental	High-demand rental machine due to versatility

📌 11. PRICING (Approximate — 2024)

Configuration	Approximate Price (USD)
New Machine	$85,000 – $110,000
Used (2,000–4,000 hrs)	$55,000 – $80,000
Rental (Daily)	$250 – $400/day
Rental (Weekly)	$1,000 – $1,600/week
Rental (Monthly)	$2,500 – $4,500/month

Prices vary by region, configuration, and dealer.

📌 12. SUMMARY

	Rating
🔧 Power	⭐⭐⭐⭐ (Adequate for 7t class)
⛽ Fuel Efficiency	⭐⭐⭐⭐⭐ (Excellent)
🪑 Comfort	⭐⭐⭐⭐⭐ (Best in class)
📱 Technology	⭐⭐⭐⭐⭐ (Fully connected)
💪 Digging Performance	⭐⭐⭐⭐ (Strong for its size)
💰 Value	⭐⭐⭐⭐ (Great resale, low TCO)

🎯 Bottom Line:

The Cat 307.5 is one of the best mini excavators in the 7-ton class — offering a perfect balance of compact size, fuel efficiency, operator comfort, and smart technology. It is ideal for contractors, rental companies, and utility workers who need a reliable, versatile, and emissions-compliant small excavator for tight-space operations.
