Used Kubota KX165Excavator

Reading: 25

🏗️ Overview

The Kubota KX165 (also marketed as KX0165-5 in some regions) is a mini/compact excavator in the 1.5–1.8 ton class, designed for versatility in tight job sites, landscaping, utility work, and small-scale construction. It sits at the upper end of Kubota's mini excavator lineup, offering more power and digging capability than smaller models while maintaining a compact footprint.

📐 Key Specifications

Parameter	Specification
Operating Weight	~1,650 kg (3,638 lbs)
Engine	Kubota D722-E3B — 3-cylinder, turbocharged diesel
Engine Power	12.9 HP (9.6 kW) @ 2,200 rpm
Fuel Tank Capacity	~25 L (6.6 gal)
Max Digging Depth	~2,820 mm (9.25 ft)
Max Reach (Ground Level)	~4,600 mm (15.1 ft)
Max Dump Height	~3,100 mm (10.2 ft)
Bucket Capacity	0.04 – 0.06 m³ (varies by bucket)
Hydraulic Flow	~30 L/min (7.9 GPM)
Operating Pressure	21 MPa (3,045 PSI)
Track Width	200 mm (rubber tracks)
Track Length (Ground Contact)	~1,400 mm
Overall Width (w/ blade)	~980 mm
Overall Height (ROPS)	~2,430 mm
Transport Length	~3,700 mm

& Bucket Options

The KX165 accepts multiple bucket widths for different applications:

Bucket Width	Typical Use
100 mm	Trenching, narrow work
200 mm	General digging
300 mm	General purpose
400 mm	General purpose
500 mm	Grading, filling
600 mm	Bulk material handling

🔧 Quick Coupler is available as an option for fast attachment changes.

🚜 Undercarriage

Feature	Detail
Type	Rubber Tracks (standard)
Width	200 mm
Benefit	Reduced ground damage, no mark on pavement, quieter operation, no need for track shoes
Steel Track Option	Available in some markets for heavy-duty/rocky terrain
Blade	Standard dozer blade included

🖥️ Cab & Operator Comfort

Feature	Detail
ROPS/FOPS	✅ Roll-Over & Falling Object Protective Structure
Canopy	Open-style canopy (enclosed cab option in some markets)
Seat	Suspended, adjustable, high-back
Climate Control	Heater & air conditioning (AC available)
Controls	Joystick-operated hydraulic controls (pilot control)
Display	Digital monitor (engine info, hours, diagnostics)
Lighting	LED work lights (front & rear)
Zero Tail Swing	✅ Yes — house doesn't swing, ideal for wall-side work

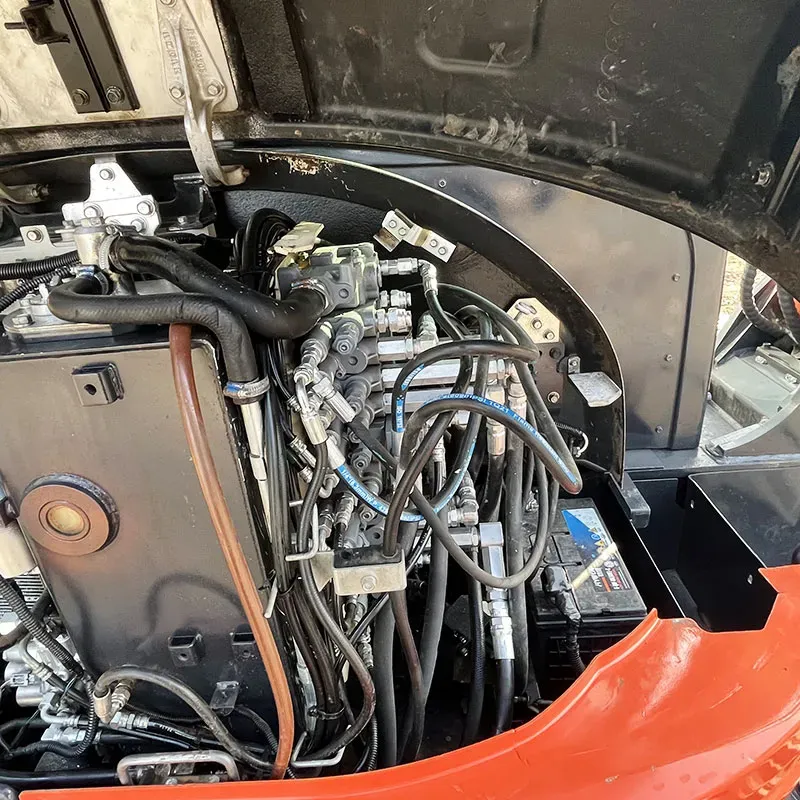

🔧 Hydraulic System & Attachments

Feature	Detail
Auxiliary Hydraulic Lines	✅ 2 circuits (standard)
Flow Rate	~30 L/min
Compatible Attachments	Hydraulic breaker, auger, grapple, thumb, ripper, compactor plate, pallet fork, etc.
Auxiliary Flow (High Flow Option)	Available in some configurations

🌟 Key Features & Highlights

Feature	Benefit
✅ Zero Tail Swing Design	Works flush against walls, fences, buildings
✅ Rubber Tracks	Pavement-friendly, low-noise, low-vibration
✅ Compact Size	Fits through standard gates (~980 mm width)
✅ Kubota Diesel Engine	Fuel-efficient, reliable, low emissions (Tier 4 Final / Stage V)
✅ Pilot Control Joysticks	Smooth, precise operation, less operator fatigue
✅ Dozer Blade	Included for grading & leveling
✅ Long Boom Option	Available for deeper digging (~3.2 m)
✅ Low Vibration	Enhanced operator comfort for long hours

📊 Performance Summary

Capability	Rating
Digging Power	⭐⭐⭐⭐ (Excellent for its class)
Maneuverability	⭐⭐⭐⭐⭐ (Zero tail swing + compact)
Fuel Efficiency	⭐⭐⭐⭐⭐ (~2–3 L/hr typical)
Operator Comfort	⭐⭐⭐⭐ (Very good for mini excavator)
Versatility	⭐⭐⭐⭐⭐ (Wide attachment range)
Ground Friendliness	⭐⭐⭐⭐⭐ (Rubber tracks)

🆚 Comparison with Similar Models

Model	Weight	Engine HP	Max Depth
Kubota KX165	1,650 kg	12.9 HP	2.82 m
Kubota KX018-4	1,830 kg	15.2 HP	2.85 m
Kubota KX025-4	2,510 kg	24.7 HP	3.10 m
CAT 301.7	1,750 kg	13.6 HP	2.85 m
Yanmar SV17	1,740 kg	14.8 HP	2.80 m
John Deere 35G	1,790 kg	14.9 HP	2.78 m

The KX165 is competitive with the CAT 301.7, Yanmar SV17, and John Deere 35G in its class.

💰 Approximate Pricing (2024 estimates)

Market	Price Range (USD)
USA	$35,000 – $45,000 (depending on options)
Europe	€35,000 – €48,000
Australia	AUD $55,000 – $70,000
Used (2018–2022)	$22,000 – $32,000

🔑 Who Should Buy the KX165?

✅ Ideal For	❌ Not Ideal For
Landscaping & gardening contractors	Heavy demolition
Utility/trenching work	Large-scale earthmoving
Residential construction	Deep excavation (>3m)
Rental companies	High-production mining
Municipal/council work	Very rocky terrain (without steel tracks)
Farmers & rural properties

🛠️ Maintenance Highlights

Item	Interval
Engine Oil Change	250 hrs / 6 months
Hydraulic Oil Change	500 hrs / 12 months
Fuel Filter	250 hrs
Air Filter	500 hrs
Track Tension Check	Every 100 hrs
Grease Points	Every 8 hrs (daily)

📝 Summary

The Kubota KX165 is one of the best-in-class compact excavators in the 1.5–1.8 ton segment. It combines Kubota's legendary diesel engine reliability, zero tail swing maneuverability, rubber track versatility, and excellent operator comfort in a machine that can fit through a standard garden gate. Whether you're a landscaper, utility contractor, or rental company, the KX165 delivers professional performance in a compact package.

⚠️ Note: Specifications may vary slightly by market/model year. Always verify with your local Kubota dealer for the exact specifications applicable to your region.
