Used Caterpillar 140H Grader

Reading: 15

🏗️ Overview

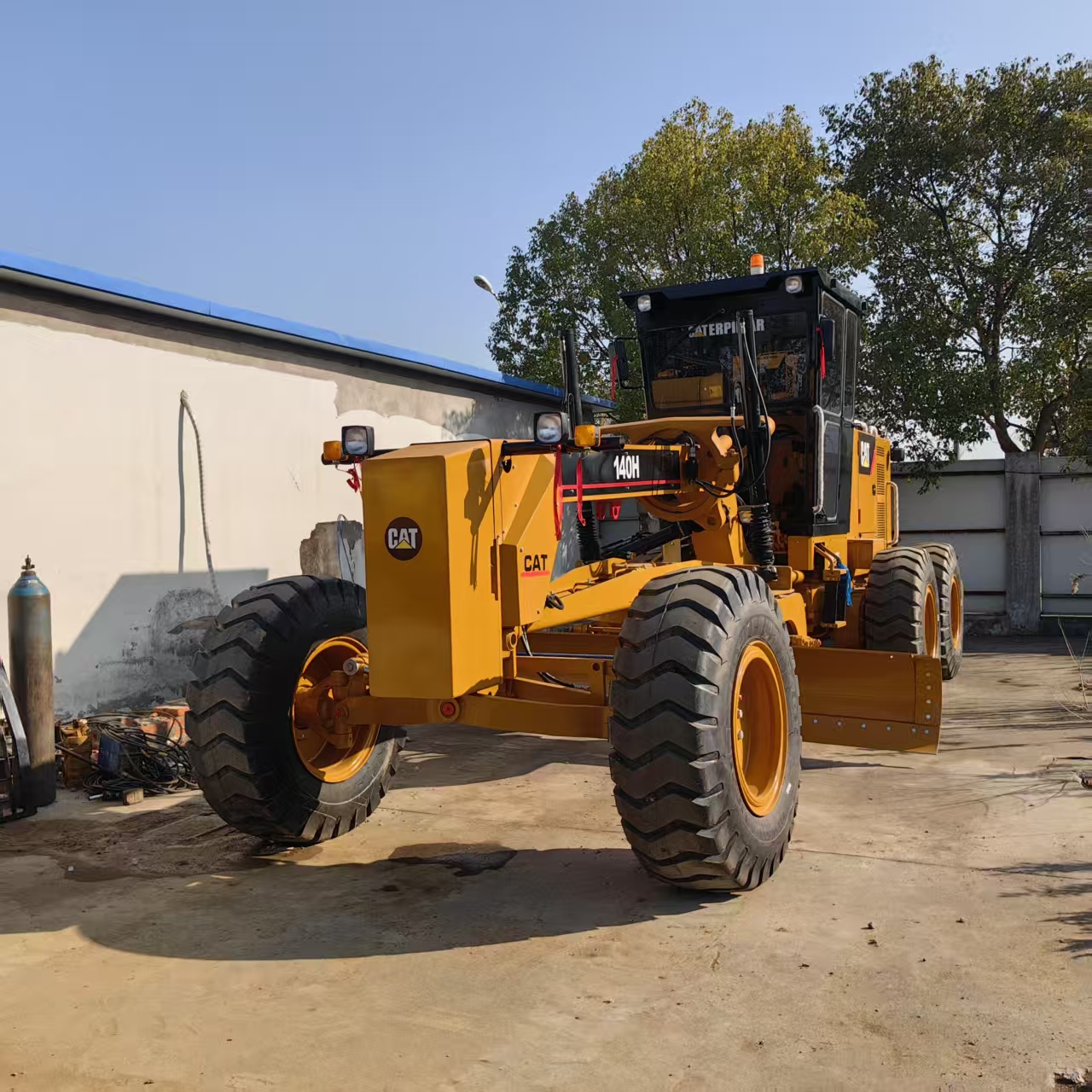

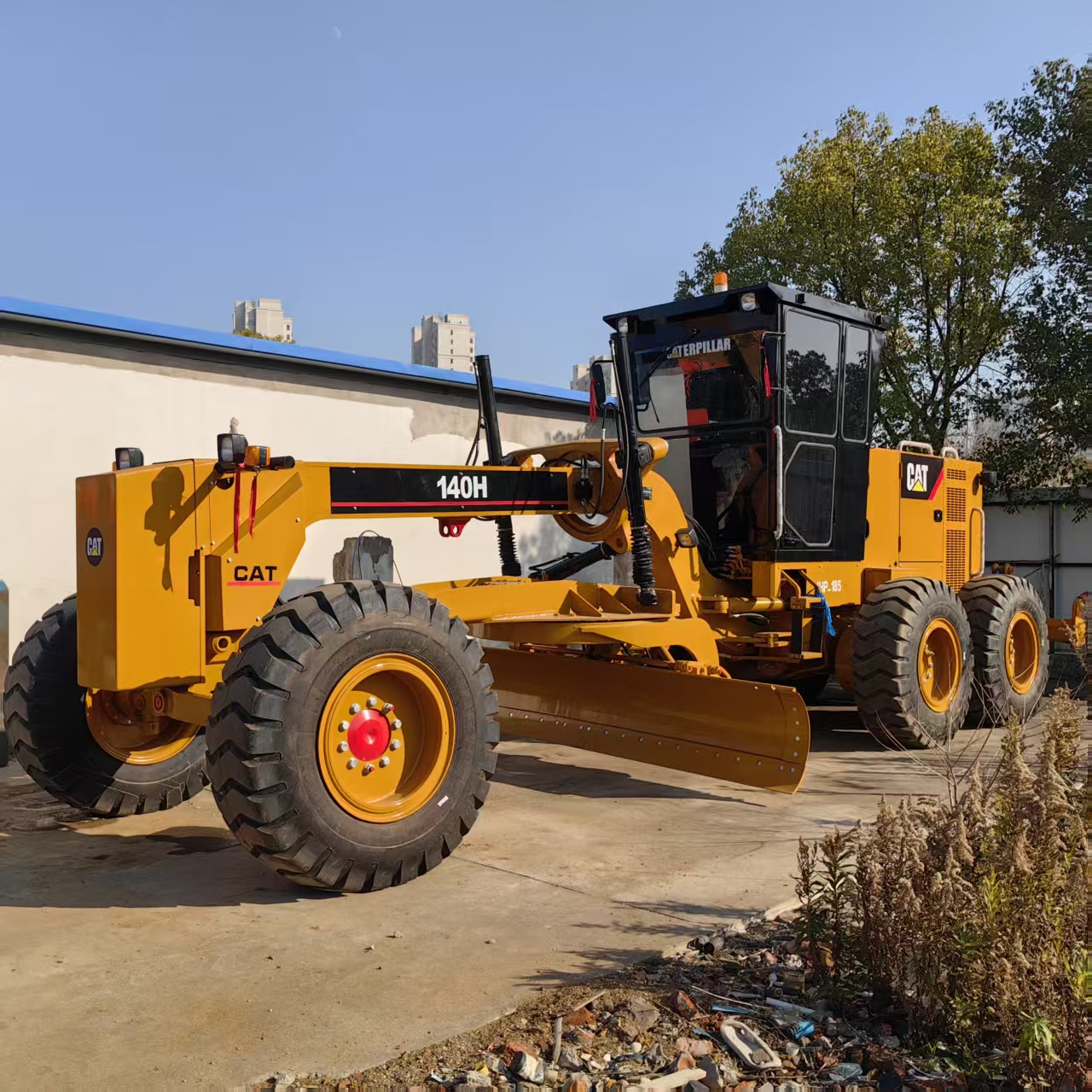

The Cat 140H is a medium-sized motor grader manufactured by Caterpillar Inc., primarily produced from 1999 to 2006. It is widely used in road construction, maintenance, mining, and land-clearing operations. The "H" in the model name indicates it is part of Caterpillar's "H Series" — a line of graders known for improved operator comfort, productivity, and fuel efficiency compared to earlier models.

& Key Specifications

Specification	Details
Engine Model	Cat® 3116C TAA (Turbocharged Aftercooled)
Engine Type	6-cylinder inline diesel
Displacement	437 cu in (7.2 L)
Rated Power	155 hp (116 kW) @ 2,200 rpm
Torque	503 lb-ft (682 N·m) @ 1,500 rpm
Transmission	6-speed forward / 3-speed reverse (Powershift)
Blade Width	12 ft (3.7 m) — standard straight blade
Operating Weight	~26,830 lbs (12,170 kg)
Fuel Capacity	80 US gal (303 L)
Gradeability	35%
Turning Radius	24.2 ft (7.4 m)
Ripper Option	Single shank (optional)

🔧 Engine & Powertrain

Feature	Detail
Engine	Cat 3116C — Reliable, electronically controlled diesel engine
Emission Standard	Meets EPA Tier 1 / EU Stage I (depending on region)
Cooling System	Pressurized with thermostatic control
Air Filtration	Dual-element dry air filter with dust indicator
Transmission	Full powershift — no need to stop to shift gears, increasing productivity
Axles	Oscillating rear axle for better traction and grade control
Tires	Standard: 17.5R25 (12-ply); Optional: 20.5R25

🪛 Blade & Work Equipment

Feature	Detail
Standard Blade	12 ft (3.7 m) straight blade
Blade Options	• Universal (U-blade) • V-blade • S-blade • Patch blade • Snow blade
Blade Controls	Tilt, angle, shift, and lift — all hydraulic
Blade Float	Available for improved finish grading

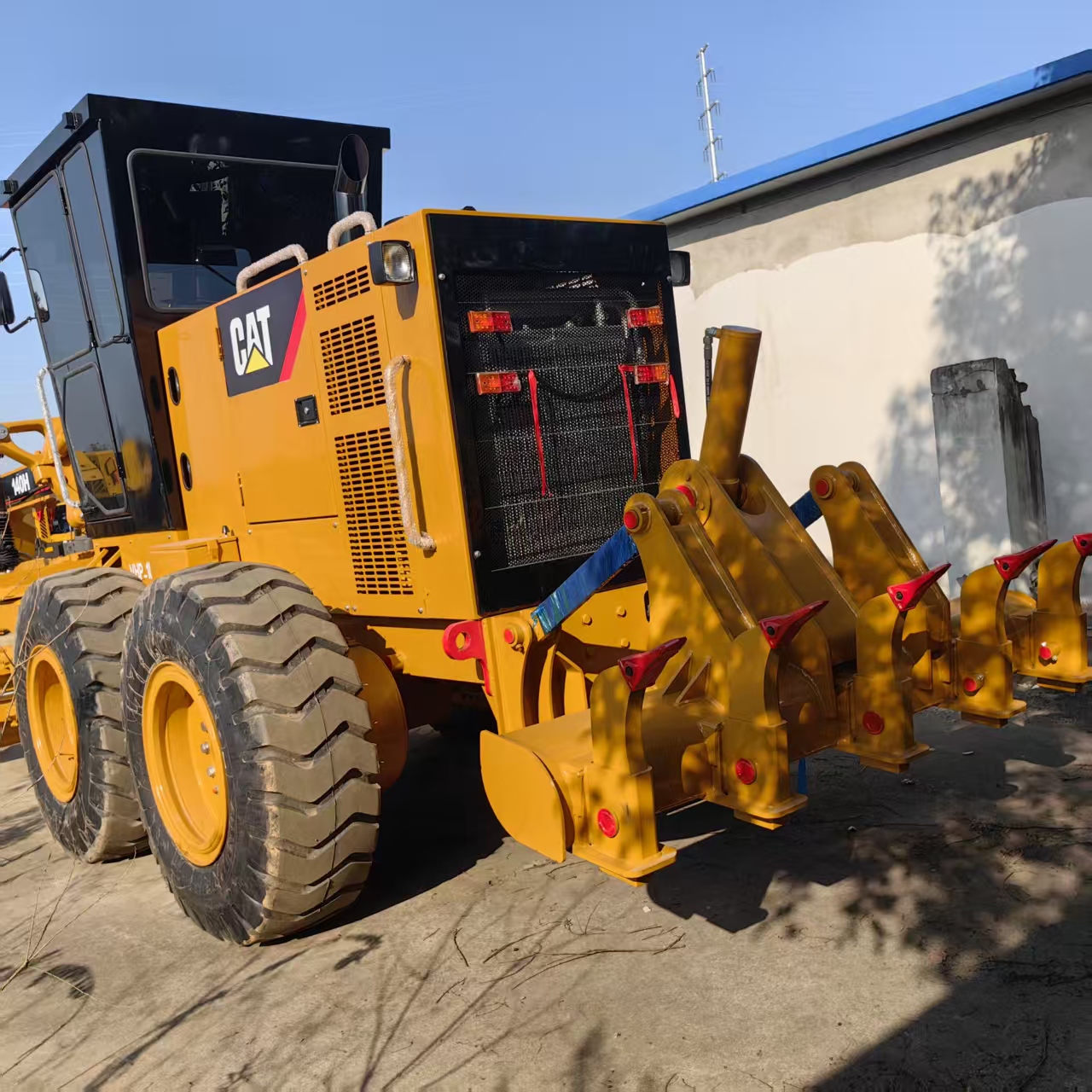

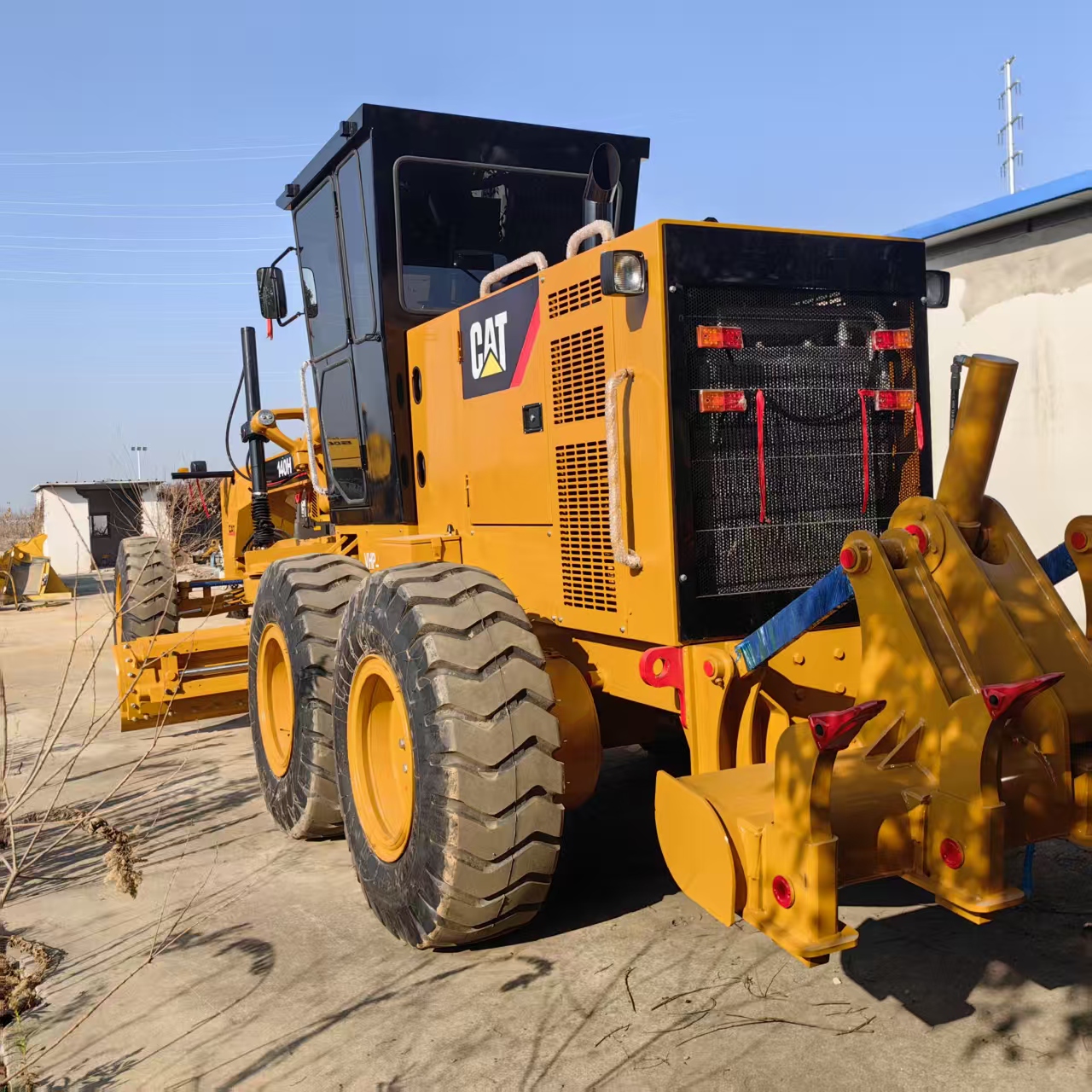

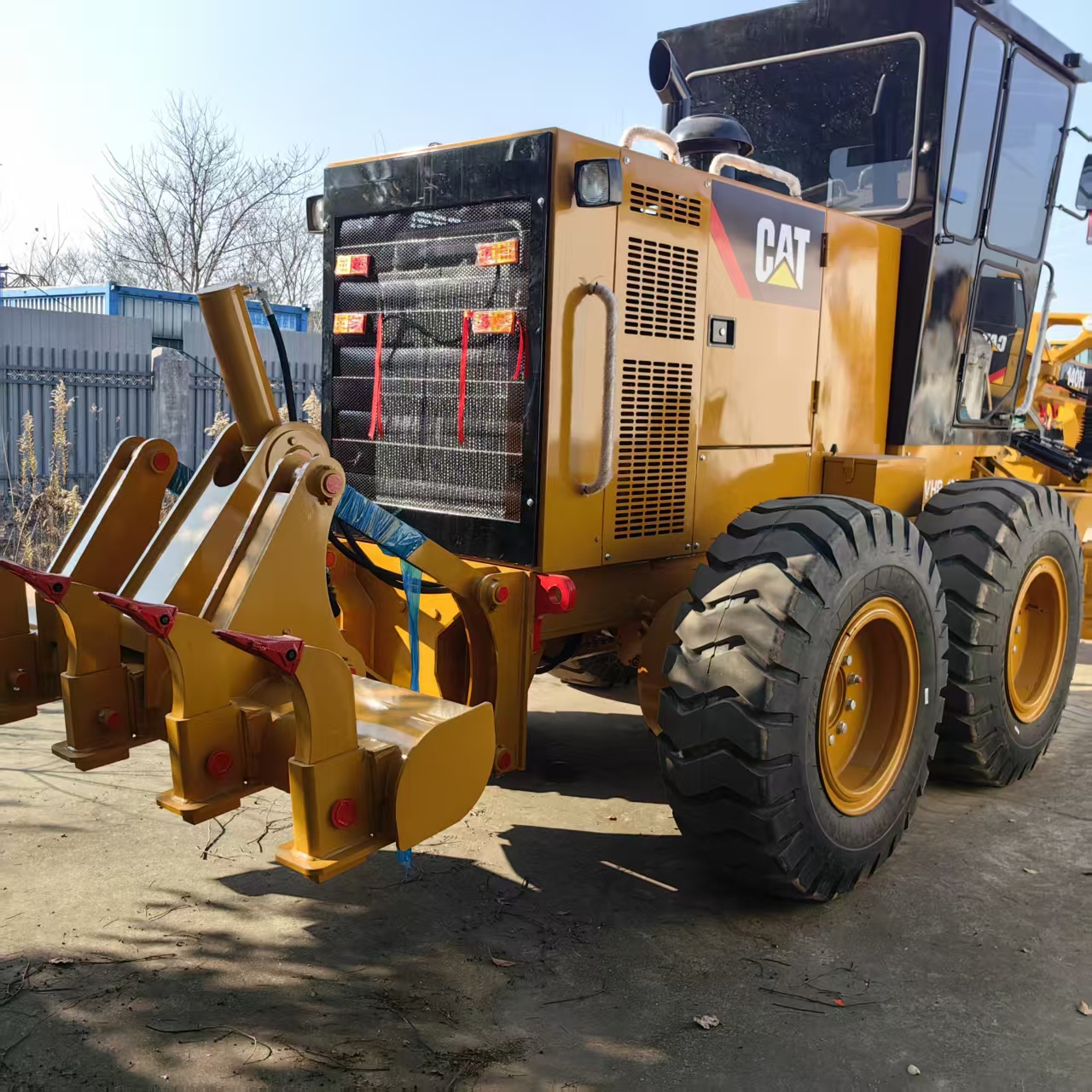

Ripper	Optional single-shank ripper for breaking hard ground (up to ~12" deep)
Scarifier	Optional for scarifying paved surfaces

🪑 Operator Station & Comfort

The 140H was designed with operator comfort as a priority:

Feature	Detail
Cab	Fully enclosed, pressurized cab with ROPS/FOPS certified
Air Conditioning/Heating	Standard climate control
Seat	Suspended, air-ride seat with armrests
Controls	Joystick-style blade controls, fingertip levers
Visibility	Large glass area with excellent all-around visibility
Noise Level	~74 dB(A) — relatively quiet for its class
Instrument Panel	Digital display with engine diagnostics, hour meter, fuel gauge

📊 Performance Highlights

Parameter	Value
Max Speed (Forward)	~25 mph (40 km/h)
Max Speed (Reverse)	~12 mph (19 km/h)
Travel Speed (Grading)	0 – 10 mph (0 – 16 km/h) variable
Hydraulic Flow	~33 GPM (125 L/min) — sufficient for most attachments
Drawbar Pull	~14,000 lbs (6,350 kg)

🆚 Comparison with Similar Models

Model	Power	Weight	Blade	Class
Cat 120H	145 hp	24,500 lbs	12 ft	Light
⭐ Cat 140H	155 hp	26,830 lbs	12 ft	Medium
Cat 143H	185 hp	31,000 lbs	14 ft	Medium-Heavy
Cat 160H	200 hp	35,000 lbs	14 ft	Heavy

The 140H sits in the sweet spot — powerful enough for most road-building tasks but lighter and more maneuverable than the 143H/160H.

✅ Advantages

✅ Pros	📝 Explanation
Reliability	Cat 3116C engine is proven and durable
Fuel Efficiency	~2–4 GPH under load (varies by application)
Versatility	Blade + ripper + scarifier = multiple jobs in one machine
Parts Availability	Wide global dealer network; parts still readily available
Resale Value	Holds value well due to Cat brand reputation
Low Maintenance	Easy access to service points, long service intervals

⚠️ Limitations

❌ Cons	📝 Explanation
Age	1999–2006 model — may need component upgrades
Emissions	Not EPA Tier 4 Final — may be restricted in some zones
Technology	Pre-dates modern telematics (Cat Product Link not standard)
Power Ceiling	May struggle with very heavy ripping or large-scale mining

🌍 Common Applications

Application	Usage
🛣️ Road Construction	Grading gravel/dirt roads, creating crown and slopes
🔧 Road Maintenance	Resurfacing, ditching, shoulder repair
⛏️ Mining	Haul road maintenance, site leveling
🌾 Agriculture	Farm road grading, land leveling
🌲 Land Clearing	Preparing sites for development
❄️ Snow Removal	With snow blade — winter road maintenance

🔧 Maintenance Intervals (Approximate)

Service	Interval
Engine Oil Change	250 hours or 6 months
Hydraulic Oil Change	500 hours
Transmission Oil Change	1,000 hours
Final Drive Oil	1,000 hours
Coolant Flush	2,000 hours / 2 years
Fuel Filter	250 hours
Air Filter	500 hours

💰 Estimated Pricing (Used Market, 2024)

Condition	Price Range (USD)
Good Condition (5,000–8,000 hrs)	$45,000 – $75,000
Excellent Condition (<5,000 hrs)	$75,000 – $100,000+
Heavy Use (10,000+ hrs)	$30,000 – $45,000

Prices vary significantly by region, condition, and attachments.

📋 Summary

Category	Rating
Power	⭐⭐⭐⭐ (155 hp — solid for medium grader)
Reliability	⭐⭐⭐⭐⭐ (Cat 3116C is legendary)
Comfort	⭐⭐⭐⭐ (Good cab, especially for its era)
Versatility	⭐⭐⭐⭐⭐ (Blade, ripper, scarifier options)
Value	⭐⭐⭐⭐ (Excellent used value)

🔑 Bottom Line: The Cat 140H is a workhorse motor grader that remains highly relevant in the used equipment market. It offers the perfect balance of power, reliability, and versatility for contractors who need a dependable medium-sized grader without the cost of a newer Tier 4 machine.

Would you like more details on any specific aspect — such as troubleshooting, parts diagrams, or comparison with the 140H NA (non-H series)? 🚜
