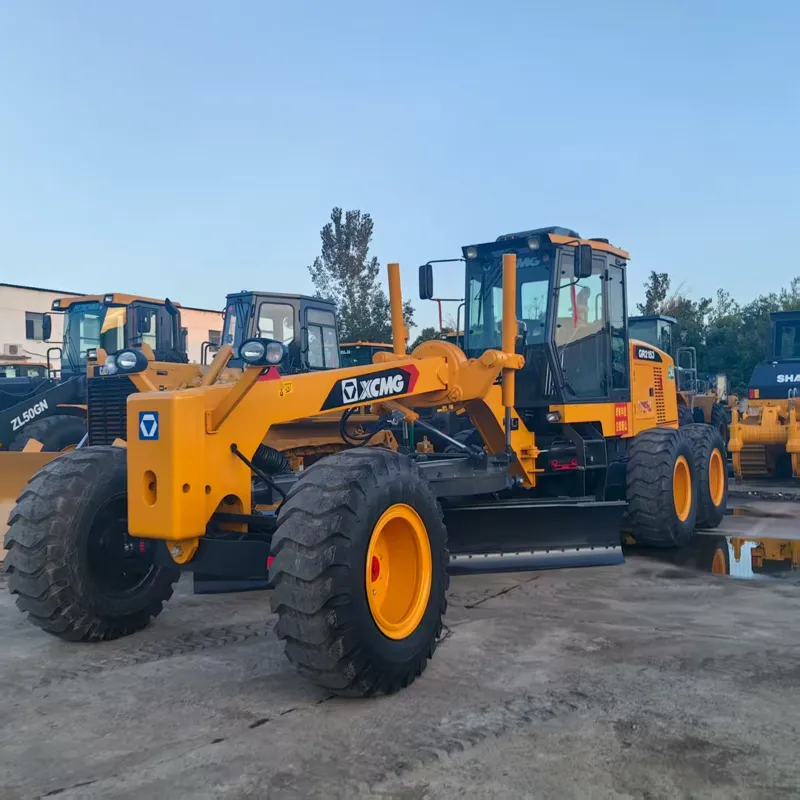

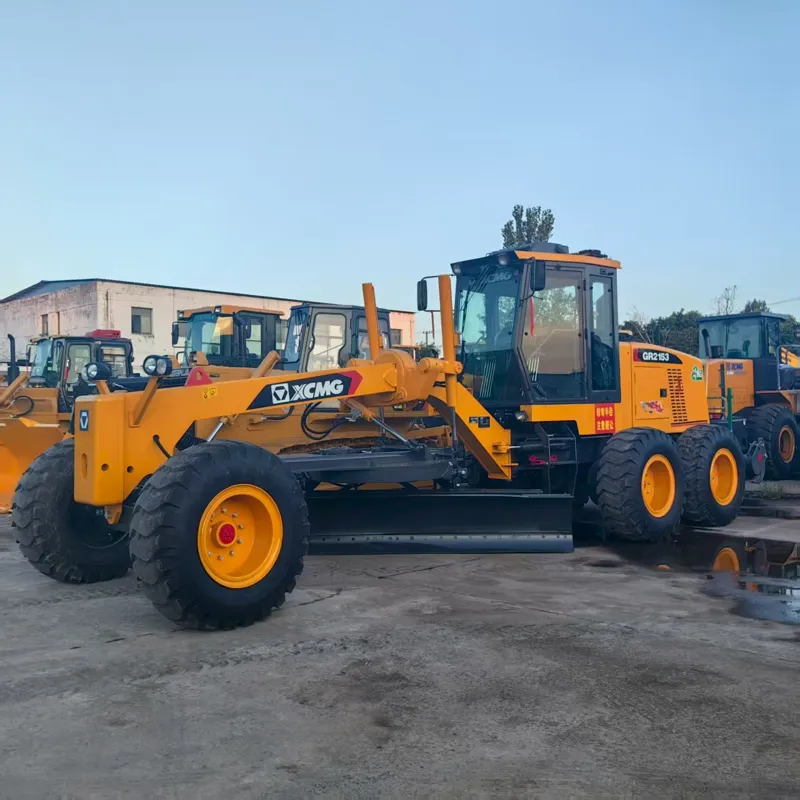

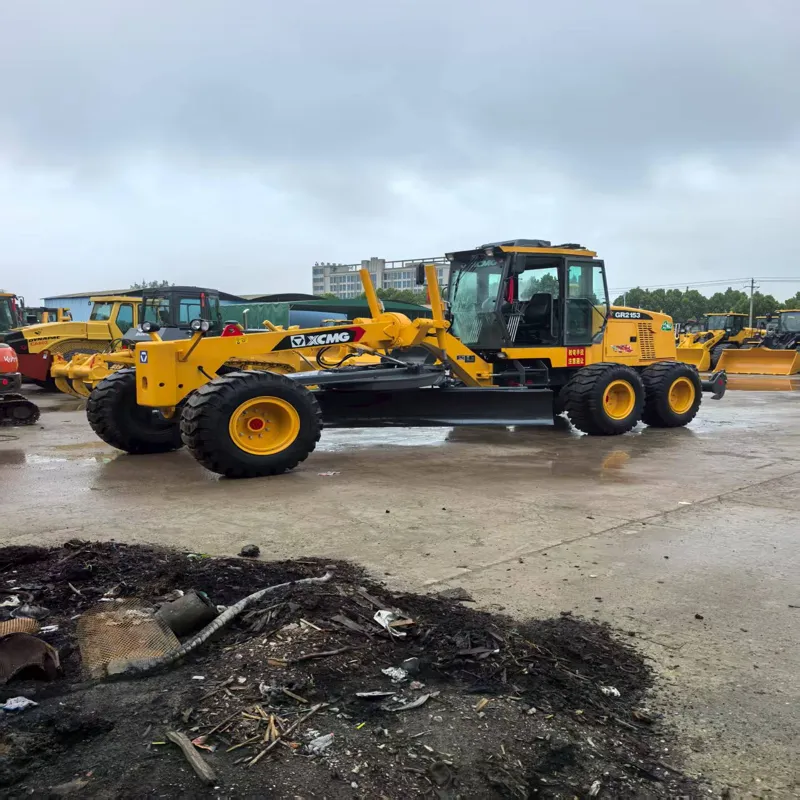

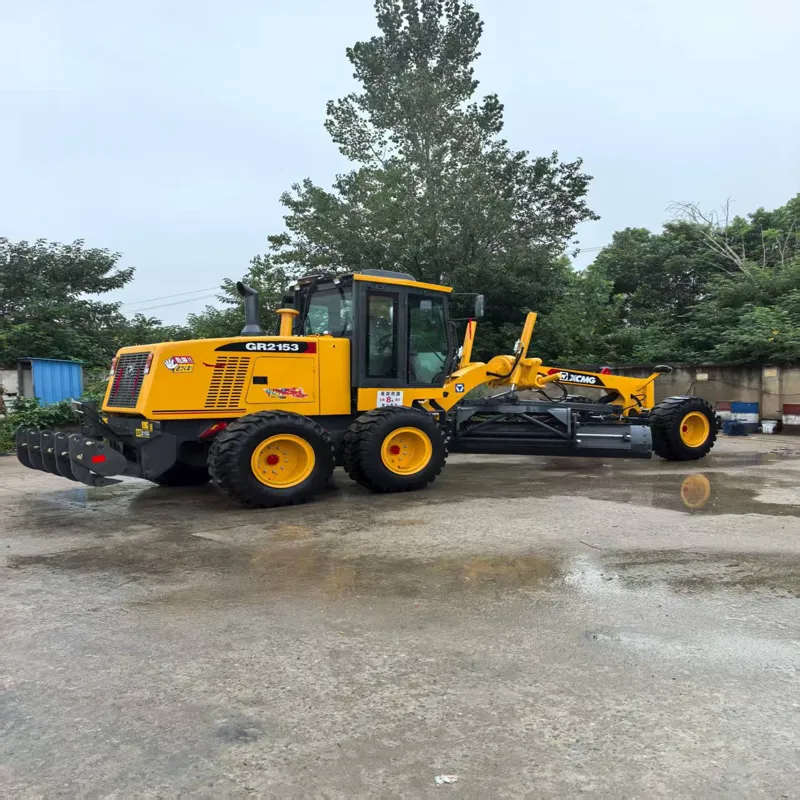

Used Xcmg GR2153 Grader

Reading: 17

🏭 Overview

The XCMG GR2153 is a medium-to-large class motor grader manufactured by XCMG (Xuzhou Construction Machinery Group), one of the world's top 5 construction machinery manufacturers. The "215" in the model name denotes its ~215 HP (158 kW) engine power class, and it is widely used in road construction, highway maintenance, mining, and large-scale earthmoving projects.

It belongs to XCMG's G-Series motor grader lineup and is positioned as a high-efficiency, cost-effective machine for demanding grading operations.

🔧 Key Technical Specifications

Parameter	Specification
Model	GR2153
Engine	Cummins QSB6.7-C215 / Shangchai SC9D220G2B1
Engine Type	6-cylinder, turbocharged, intercooled diesel
Displacement	6.7 L
Rated Power	215 HP (158 kW) @ 2,200 rpm
Max Torque	~830 N·m @ 1,500 rpm
Emission Standard	China III / EPA Tier 4 Final (market-dependent)
Operating Weight	~17,500 – 18,000 kg
Overall Length	~8,500 mm
Overall Width	~2,490 mm
Overall Height	~3,400 mm
Wheelbase	~3,800 mm
Ground Clearance	~400 mm

🔪 Blade Specifications

Parameter	Specification
Blade Width	3,660 mm (12 ft) standard / 3,960 mm (13 ft) optional
Blade Height	610 mm
Max Grading Depth	~810 mm
Blade Side Shift	±1,000 mm (hydraulic)
Blade Tilt Angle	±30°
Blade Rotation	360° (full rotation)
Blade Cutting Edge	Replaceable, high-wear steel

⚙️ Transmission & Drivetrain

Parameter	Specification
Transmission Type	Powershift (Full Powershift)
Gears	6 Forward + 6 Reverse
Max Forward Speed	~36 km/h (0–36 km/h, infinitely variable)
Max Reverse Speed	~13 km/h
Drive Type	6×6 (All-wheel drive)
Axles	Oscillating front axle + tandem rear axle
Differential Lock	Rear axle differential lock (optional front)

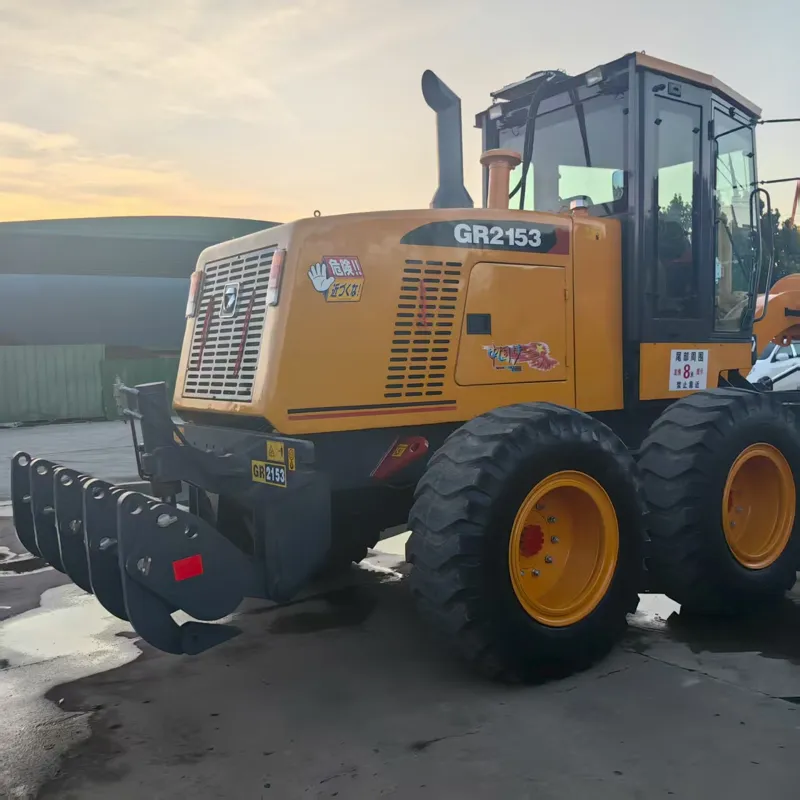

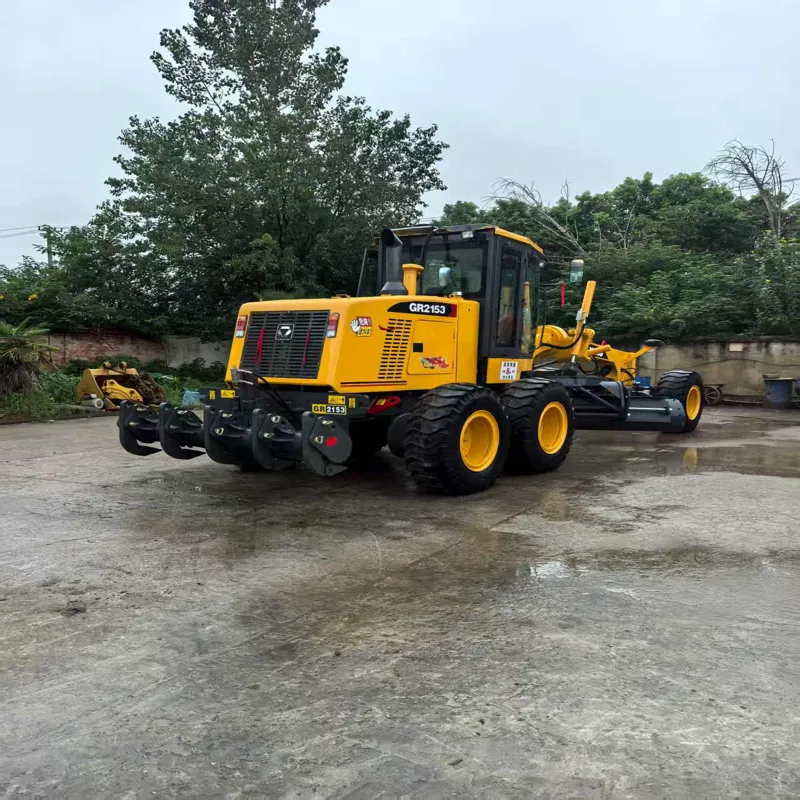

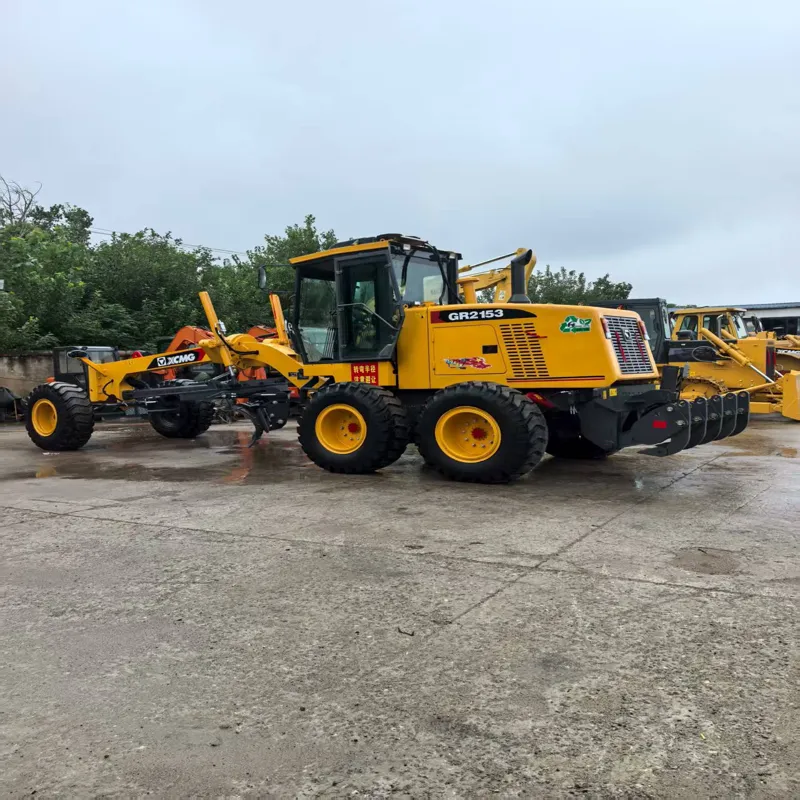

🪓 Ripper System

Parameter	Specification
Ripper Type	Single shank (standard)
Optional	5-shank ripper (for heavy-duty ripping)
Max Ripper Depth	~500 mm (single shank)
Ripper Control	Hydraulic lift & tilt

🛢️ Hydraulic System

Parameter	Specification
Working Pressure	17.5 MPa (2,540 psi)
Total Flow	~160 L/min
Steering Type	Articulated frame steering (hydraulic)
Braking System	Wet disc brakes (service) + spring brake (parking)

🛞 Tires & Wheels

Parameter	Specification
Tire Size	14.00-24 (12PR) or 17.5-25 (optional)
Rim Size	24"
Tire Type	Radial, heavy-duty off-road

🖥️ Cab & Operator Comfort

Feature	Details
Cab Type	ROPS/FOPS certified enclosed cab
Air Conditioning	✅ Standard
Seat	Suspended, adjustable, with armrest
Controls	Joystick-style (electro-hydraulic)
Display	Digital instrument panel with multi-function LCD
Noise Level	≤78 dB(A) (comfortable for long hours)
Visibility	Large glass area, excellent all-around visibility
Lighting	LED work lights (front & rear)

🤖 Advanced Features & Technology

Feature	Description
Auto-Grade Control	✅ Optional — 2D/3D automatic grading system
GPS Compatibility	✅ Compatible with Trimble, Topcon, Leica, etc.
XCMG Smart System (X-GCS)	✅ Remote monitoring, diagnostics, fleet management
Eco Mode	✅ Engine speed auto-optimization for fuel savings
Anti-Slip Control (ASC)	✅ Traction control for slippery conditions
Engine Idle Speed Reduction	✅ Auto-idle to save fuel
Centralized Lubrication	✅ Easy maintenance

📊 Performance Highlights

Metric	Value
Fuel Tank Capacity	~350 L
Fuel Consumption	~28–35 L/hr (varies by working condition)
Gradeability	~30%
Turning Radius (outer)	~7,500 mm
Service Interval	500 hrs (engine oil) / 2,000 hrs (hydraulic oil)

🌍 Application Areas

Application	Details
🛣️ Highway Construction	Road base preparation, subgrade grading
🔧 Road Maintenance	Resurfacing, pothole repair, shoulder grading
🏗️ Large Earthmoving	Land leveling, cut & fill operations
⛰️ Mining	Haul road maintenance, pit leveling
🌾 Agriculture/Forestry	Field leveling, access road construction
🏙️ Urban Construction	Site preparation, utility trench backfilling

✅ Advantages of GR2153

Advantage	Explanation
💪 High Power-to-Weight Ratio	215 HP for ~17.5T → excellent productivity
🔄 360° Blade Rotation	Superior side-slope grading capability
🧠 Smart Technology	GPS-ready, auto-grade, remote monitoring
🔧 Easy Maintenance	Ground-level service points, centralized lubrication
💰 Cost-Effective	Competitive pricing vs. Cat/Komatsu equivalents
🌐 Global Support	XCMG has 300+ service centers worldwide
🛢️ Fuel Efficient	Eco-mode + turbocharged engine → lower operating cost

🆚 Comparison with Competitors

Feature	XCMG GR2153	Caterpillar 140M3	Komatsu GD611A
Power	215 HP	190 HP	172 HP
Operating Weight	~17,500 kg	~16,500 kg	~16,300 kg
Blade Width	3,660 mm	3,660 mm	3,660 mm
Transmission	6F+6R Powershift	6F+6R	6F+6R
GPS Ready	✅	✅	✅
Approx. Price	💰💰	💰💰💰	💰💰💰

📈 The GR2153 offers more power at a lower price point, making it a strong value proposition.

📦 Summary

Category	Rating
⭐ Overall Rating	⭐⭐⭐⭐☆ (4/5)
💪 Power & Performance	⭐⭐⭐⭐⭐
🔧 Reliability & Durability	⭐⭐⭐⭐☆
🧠 Technology & Smart Features	⭐⭐⭐⭐⭐
💰 Value for Money	⭐⭐⭐⭐⭐
🛠️ After-Sales Service	⭐⭐⭐⭐☆

The XCMG GR2153 is an excellent choice for contractors looking for a powerful, technologically advanced, and cost-competitive motor grader in the 215 HP class. It combines XCMG's proven engineering with modern smart construction technology, making it suitable for both developing and developed markets worldwide.

Note: Specifications may vary slightly by market/region and production year. Always verify with your local XCMG dealer for the latest configuration.
