🏭 Overview

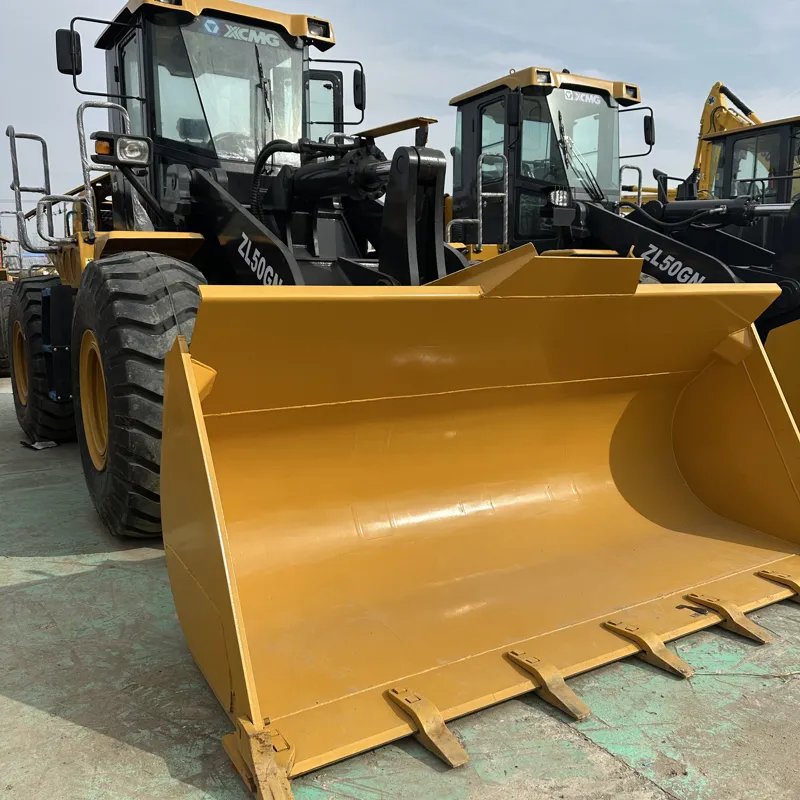

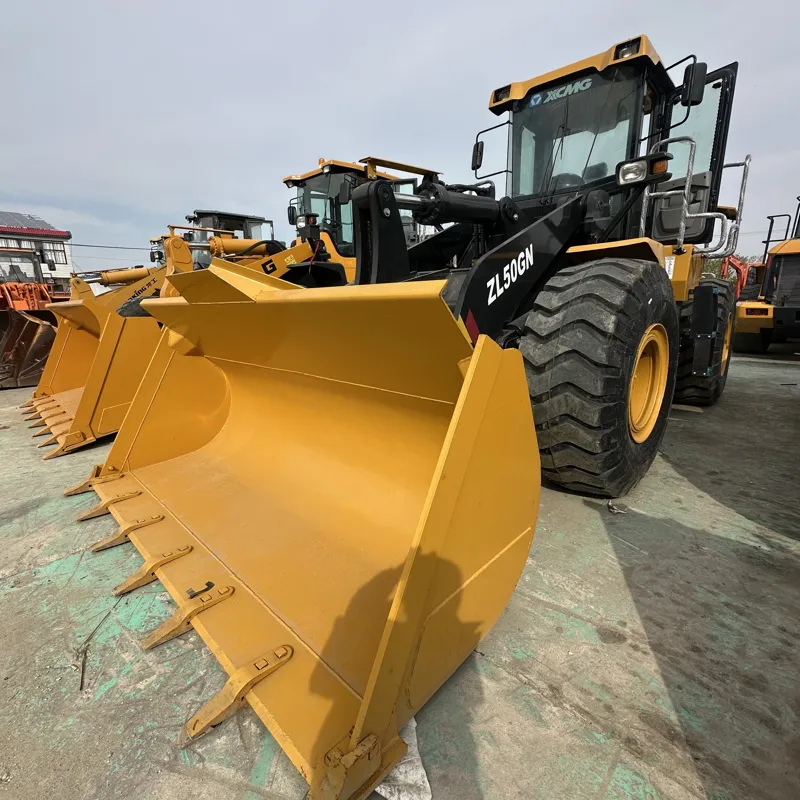

The XCMG LW50GN (also marketed as 50GN) is a 5-ton rated load wheel loader manufactured by XCMG (Xuzhou Construction Machinery Group) — one of the world's top 3 construction equipment makers. The "GN" suffix stands for "Guo Nei" (国内), meaning it's the domestic Chinese market version, optimized for local conditions and price-competitiveness.

It belongs to XCMG's G-Series lineup, designed for medium-to-heavy duty earthmoving, loading, and material handling in construction, mining, agriculture, and municipal projects.

📋 Key Specifications

Parameter	Specification
Model	LW50GN
Rated Load Capacity	5,000 kg (11,023 lbs)
Rated Bucket Capacity	3.0 m³ (3.9 yd³)
Operating Weight	~17,000 kg (37,479 lbs)
Overall Dimensions (L×W×H)	~7,950 × 3,050 × 3,350 mm
Wheelbase	~3,100 mm
Ground Clearance	~450 mm
Max. Breakout Force	~175 kN (39,340 lbf)
Max. Tractive Force	~160 kN (35,970 lbf)
Max. Dumping Height	~3,200 mm (10.5 ft)
Max. Dumping Reach	~1,100 mm (3.6 ft)
Max. Digging Depth	~150 mm (below ground)
Travel Speed (Forward/Reverse)	0–30 / 0–12 km/h
Gradeability	30° (58%)
Turning Radius (Outside)	~6,500 mm
Tire Size	23.5-25 (E-3/L-3 pattern)
Fuel Tank Capacity	~280 L
Hydraulic Tank	~170 L

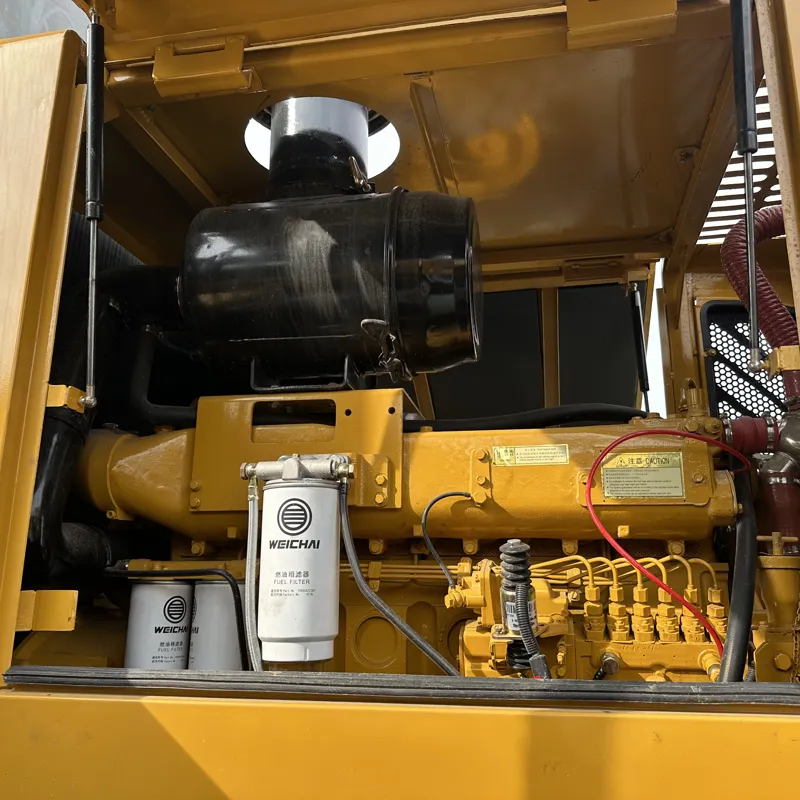

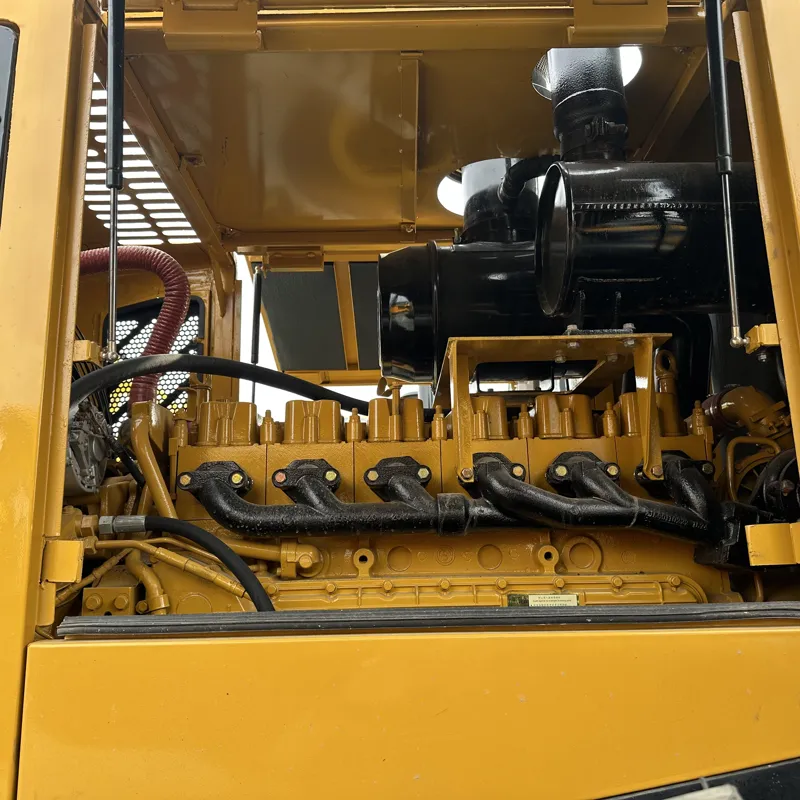

& Engine & Powertrain

Component	Details
Engine Brand	Weichai (潍柴) — WD10G220E23 (most common)
Engine Type	6-cylinder, Turbocharged, Intercooled Diesel
Power Output	220 HP (162 kW) @ 2,000 rpm
Emission Standard	China III / Euro III (some markets: Euro IV)
Transmission	ZF 4WG-200 (4-speed powershift) or XCMG proprietary
Torque Converter	Single-stage, 3-element
Drive Type	4×4 Full-time / Articulated steering
Axles	Heavy-duty planetary reduction axles
Brakes	Wet disc brakes (sealed, oil-bath)

🔧 Alternative engine options (export markets): Cummins QSB6.7 (220 HP), Deutz, or Yuchai — depending on the region.

🔧 Hydraulic System

Feature	Details
Pump Type	Gear pump / Load-sensing variable displacement pump
System Pressure	21 MPa (3,045 psi)
Flow Rate	~270 L/min
Steering Type	Articulated (Center-pivot) steering
Steering Angle	±35°
Cycle Time (Loading)	~10–12 seconds

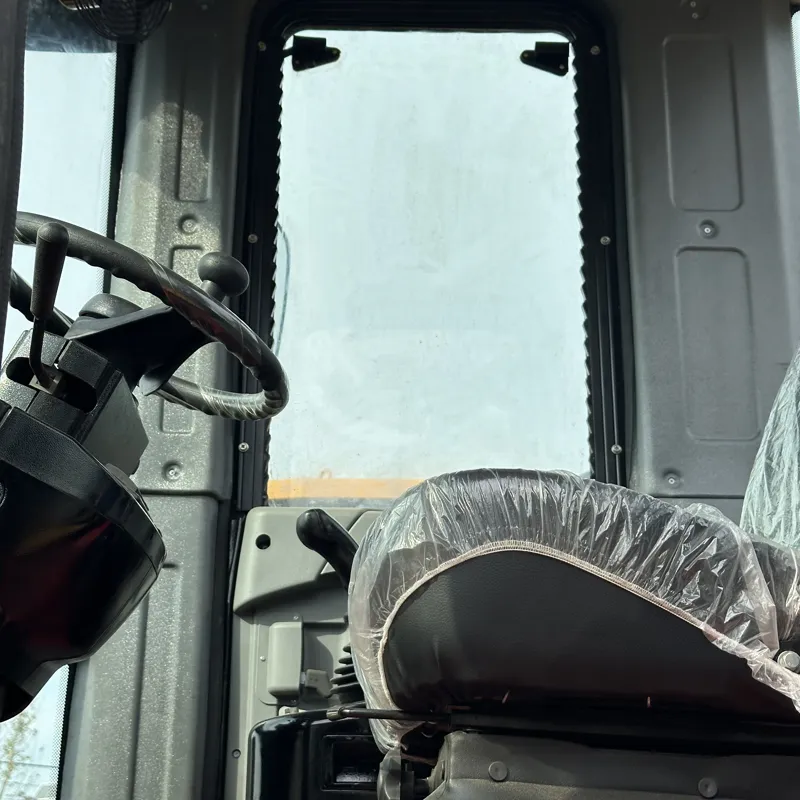

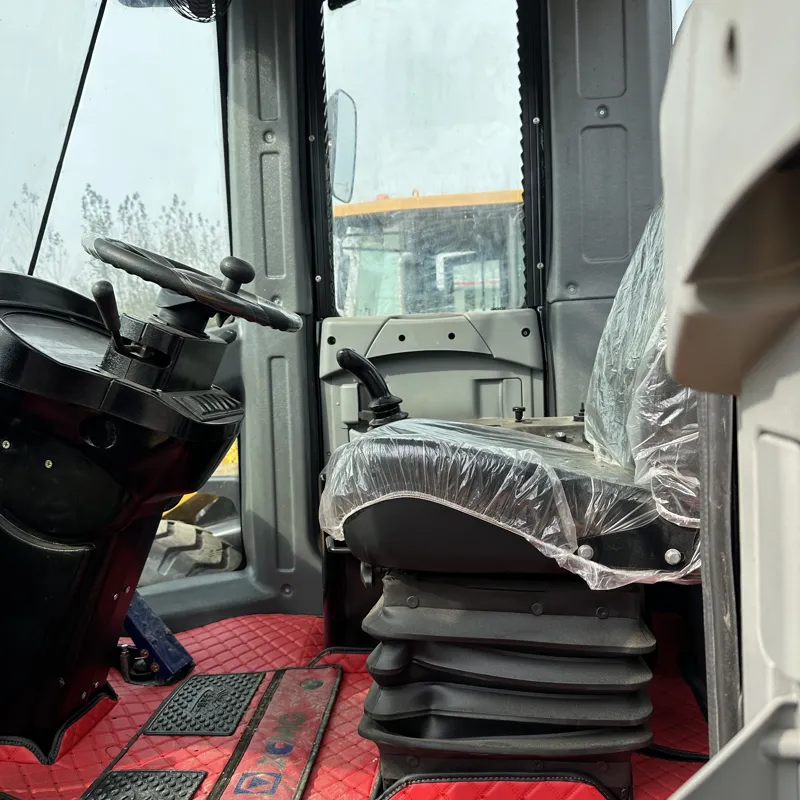

🛡️ Cab & Operator Comfort

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed
Seat	Air-suspension seat with armrests
Climate Control	A/C + Heater (standard)
Display	LCD instrument panel (engine info, fuel, hours)
Noise Level	≤78 dB(A)
Visibility	Large front/rear glass, rear-view camera (optional)
Controls	Joystick or lever-type (market dependent)
Safety Features	Seatbelt, backup alarm, emergency stop, fire extinguisher

⭐ Key Features & Advantages

Feature	Benefit
✅ High Breakout Force (175 kN)	Excellent digging & loading in hard material
✅ Weichai 220 HP Engine	Reliable, fuel-efficient, easy maintenance in China
✅ ZF Transmission	Smooth shifting, proven durability
✅ 3.0 m³ Bucket	High productivity per cycle
✅ Articulated Steering	Excellent maneuverability in tight spaces
✅ Heavy-Duty Axles & Brakes	Long service life, low downtime
✅ Low Maintenance Design	Easy access to filters, ground-level service points
✅ Domestic Optimized (GN)	Affordable pricing for Chinese market
✅ Optional Attachments	Forks, grapple, snow blade, sweeper, pallet forks

🏗️ Typical Applications

Application	Details
🪨 Mining & Quarrying	Loading ore, rocks, gravel
🏗️ Construction Sites	Loading trucks, stockpiling materials
🌾 Agriculture	Handling grain, feed, biomass
🏭 Ports & Logistics	Container yards, material handling
🛣️ Road Building	Gravel/asphalt loading, snow removal (with blade)
🏢 Municipal	Waste management, landfill operations

📊 Comparison with Competitors

Model	Rated Load	Engine (HP)	Bucket (m³)	Weight (kg)
XCMG LW50GN	5,000 kg	220 HP (Weichai)	3.0	~17,000
SDLG L956F	5,000 kg	220 HP (Weichai)	3.0	~17,000
Liugong CLG856H	5,000 kg	220 HP (Cummins)	3.0	~17,200
SEM 655D	5,000 kg	220 HP (Weichai)	3.0	~17,000
Caterpillar 950 GC	5,216 kg	254 HP (Cat C7.1)	3.1	~18,500

💡 The XCMG 50GN is very competitive on price-to-performance ratio, especially in the Chinese and developing markets.

💰 Approximate Pricing (2024, China Market)

Configuration	Price Range (RMB)	Approx. USD
Standard (LW50GN)	¥350,000 – ¥420,000	~$48,000 – $58,000
High Config (A/C, camera, GPS)	¥420,000 – ¥480,000	~$58,000 – $66,000
Export Version (LW500GN/KN)	$55,000 – $70,000 (FOB China)	—

Prices vary by region, dealer, and configuration.

🔧 Maintenance Intervals

Item	Interval
Engine Oil Change	250 hours
Hydraulic Oil Change	1,000 hours
Transmission Oil Change	2,000 hours
Fuel Filter	250 hours
Air Filter	500 hours
Grease Points (Articulation)	Every 8 hours
Coolant Change	1,000 hours

🏅 Summary

Aspect	Rating
Power & Performance	⭐⭐⭐⭐⭐
Reliability	⭐⭐⭐⭐⭐
Operator Comfort	⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐
After-Sales (China)	⭐⭐⭐⭐⭐ (XCMG has 300+ service centers)
Fuel Efficiency	⭐⭐⭐⭐

🎯 Bottom Line:
The XCMG LW50GN is one of the best-selling 5-ton wheel loaders in China, offering a powerful Weichai engine, ZF transmission, high breakout force, and excellent value. It's ideal for customers who want reliable, heavy-duty performance at a competitive price — making it a top choice in mining, construction, and material handling across China, Southeast Asia, Africa, and South America.
