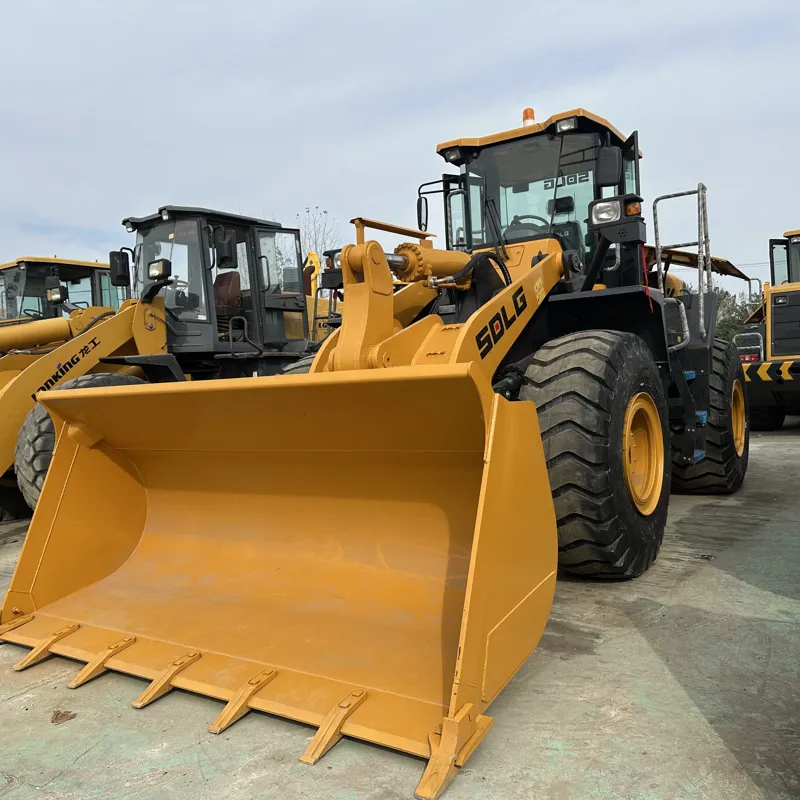

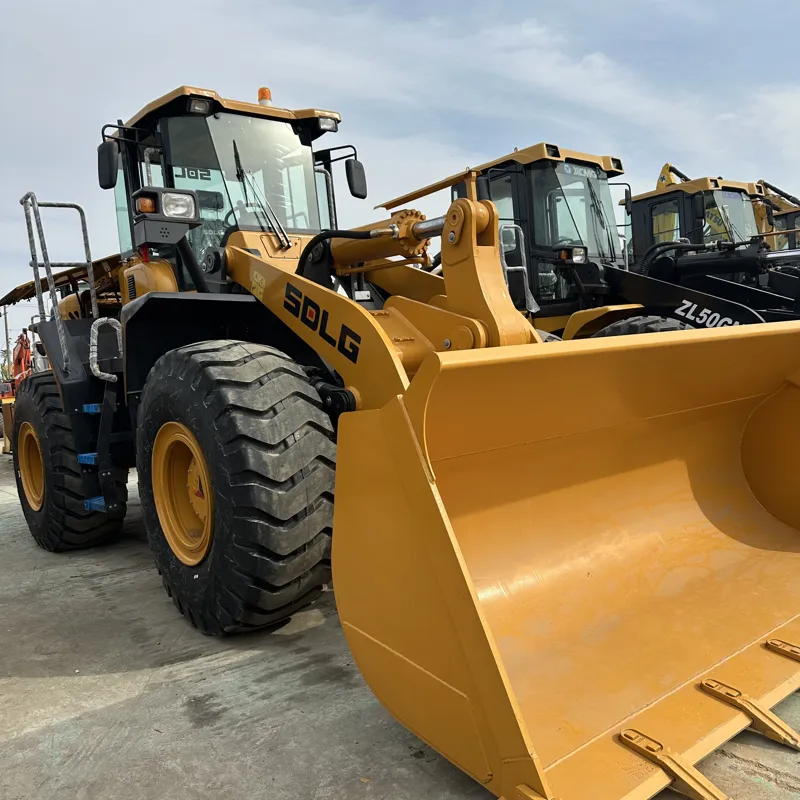

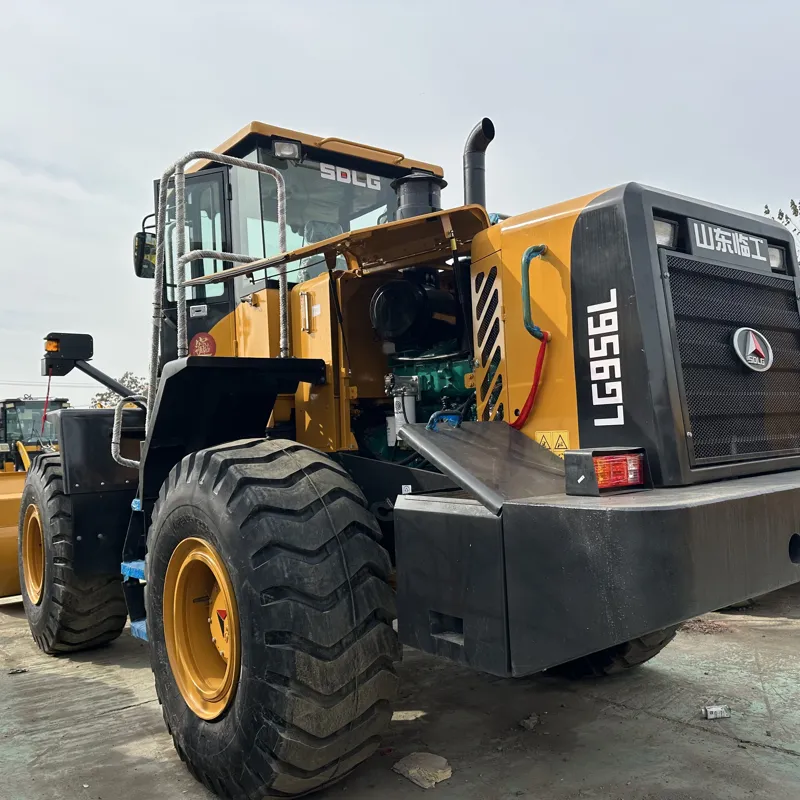

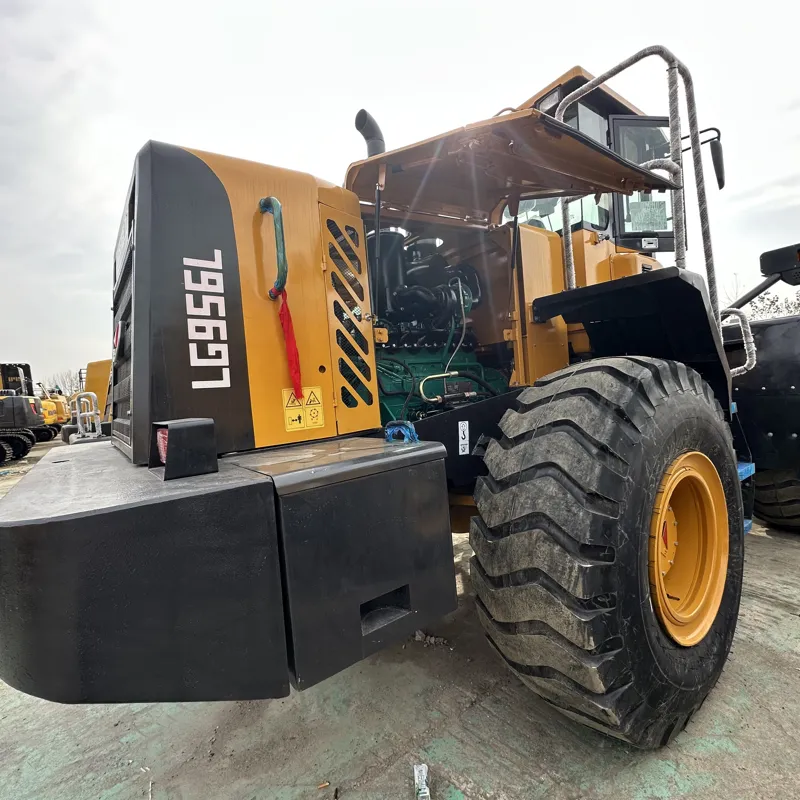

Used Sdlg 956L Loader

Reading: 61

🏭 Overview

Item	Details
Manufacturer	SDLG (Shandong Lingong Construction Machinery Co., Ltd.)
Parent Company	Volvo Group (since 2006)
Model	956L
Class	5-Ton (Medium-Large) Wheel Loader
Primary Use	General construction, mining, quarrying, landfill, material handling
Production Base	Linyi, Shandong Province, China

The SDLG 956L is one of SDLG's best-selling 5-ton wheel loaders and is widely used globally — especially in Southeast Asia, Africa, the Middle East, Central Asia, and South America. It is known for reliability, fuel efficiency, and low operating cost, combining Chinese cost-effectiveness with Volvo Group technology standards.

🔧 Key Technical Specifications

Parameter	Specification
Rated Bucket Capacity	3.0 m³ (3.0 – 3.5 m³, depending on bucket type)
Operating Weight	~16,500 – 17,200 kg
Rated Load	5,000 kg (5 tons)
Max. Breakout Force	~170 – 180 kN
Max. Tractive Force	~160 – 175 kN
Dump Height (at full raise)	~3,100 – 3,250 mm
Dump Reach (at full raise)	~1,100 – 1,200 mm
Bucket Digging Force	~175 kN
Max. Travel Speed	~33 – 35 km/h
Gradeability (loaded)	~30° (58%)
Turning Radius (outer)	~6,800 – 7,200 mm

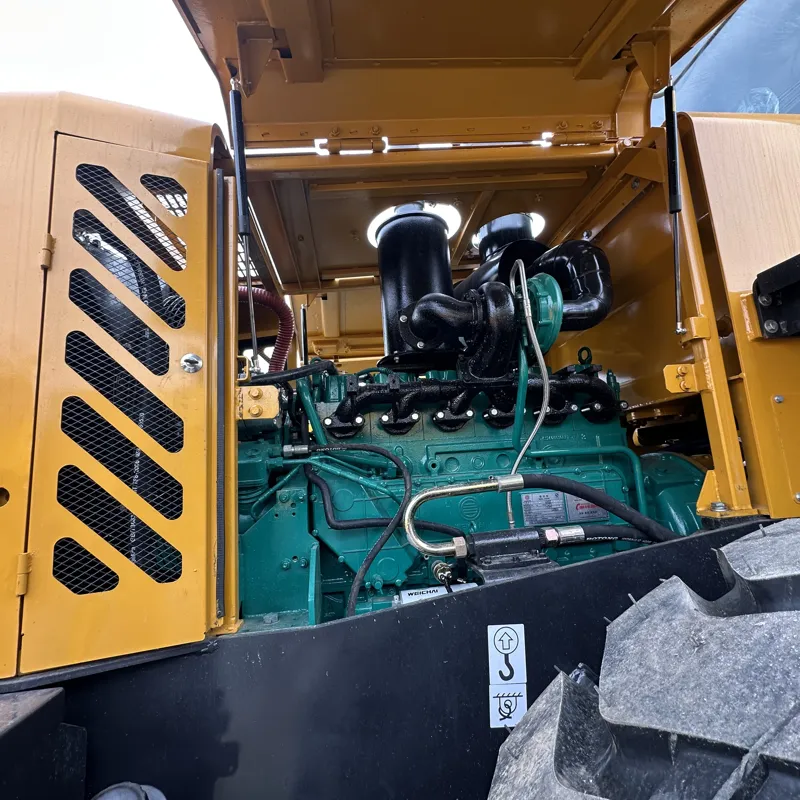

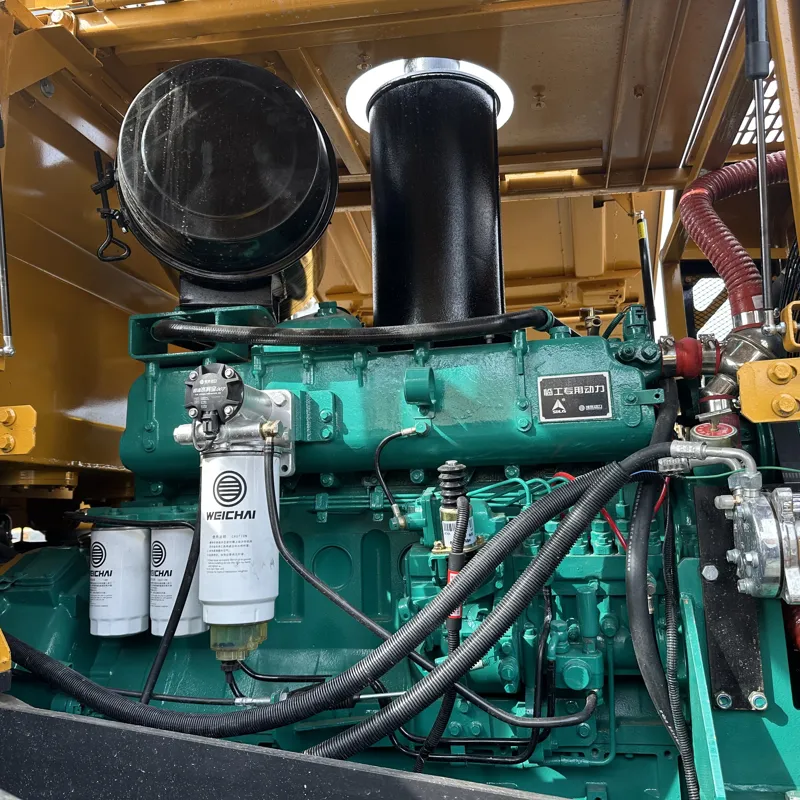

⚡ Engine

Feature	Details
Engine Model	Weichai WP10G220E32 (or WP10 series)
Type	6-cylinder, turbocharged, intercooled, electronically controlled diesel
Power Output	~162 kW (217 HP) @ 1,900 rpm
Emission Standard	China III / Euro IIIA (some export versions: Tier 3 / Stage III)
Fuel Tank Capacity	~300 L
Fuel Consumption	~28 – 32 L/hour (varies by working condition)

✅ The Weichai engine is famous for durability and easy parts availability worldwide — a major advantage in developing markets.

🔄 Transmission & Drivetrain

Component	Details
Transmission Type	Full Powershift Transmission (4F/4R)
Torque Converter	Single-stage, heavy-duty
Drive Axles	Heavy-duty planetary reduction axles (wet disc brakes)
Steering	Articulated frame steering (±35°)
Tires	23.5-25 (E-3/L-3 pattern, 18PR or 20PR)

✅ The powershift transmission provides smooth, impact-free gear changes — better than torque converter types for productivity.

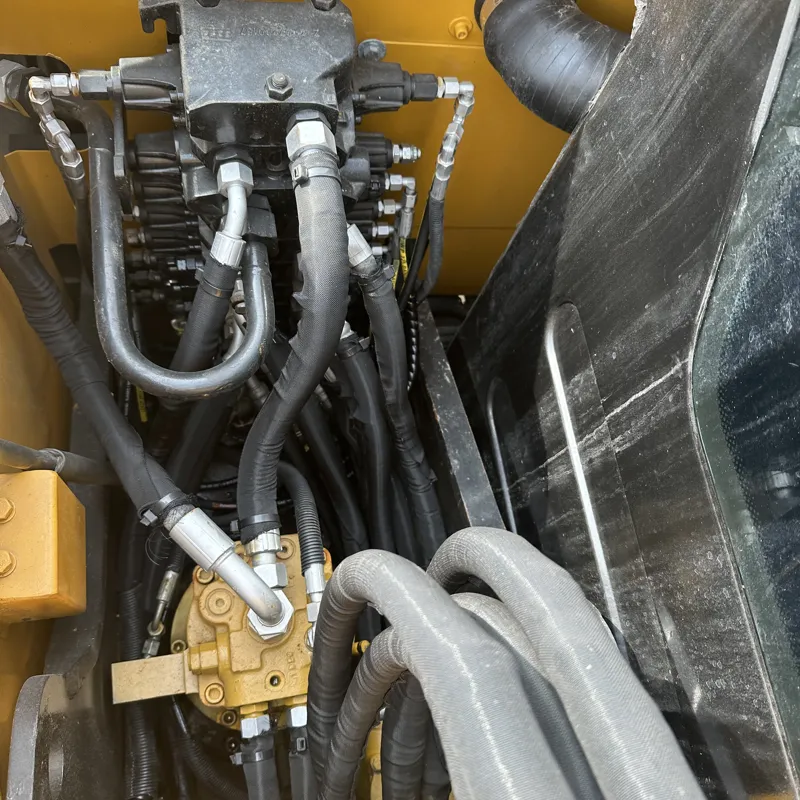

🛢️ Hydraulic System

Feature	Details
System Type	Load-Sensing (LS) + Flow Sharing
Working Pressure	17.5 MPa (2,540 psi)
Pump Type	Gear pump (double pump, variable displacement)
Hydraulic Flow	~170 – 190 L/min
Lift Time (empty → full raise)	~5.5 – 6.5 seconds
Lower Time	~3.5 – 4.0 seconds
Tilt Time	~1.5 – 2.0 seconds

✅ The load-sensing system automatically adjusts pump output to match demand → saves fuel by 10-15% compared to fixed-displacement systems.

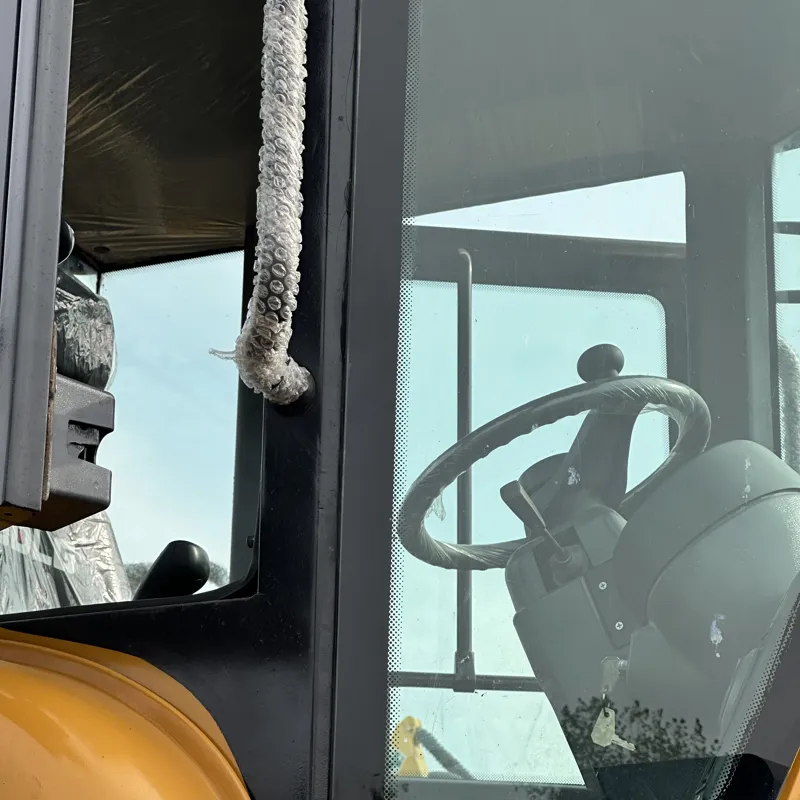

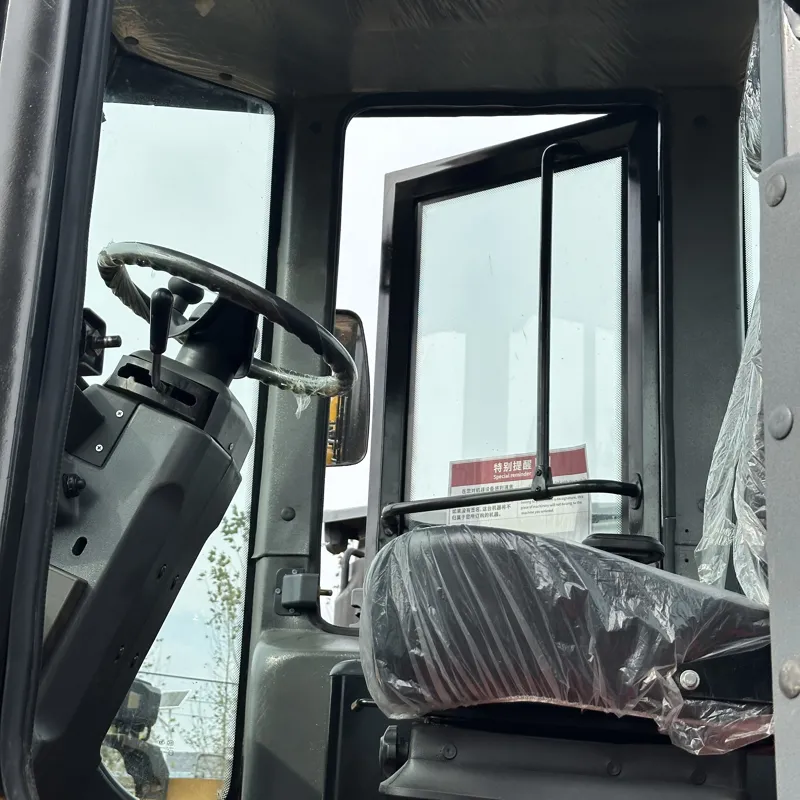

🪑 Operator Cab

Feature	Details
Certification	ROPS / FOPS (Roll-Over & Falling Object Protection)
Air Conditioning	✅ Standard (heating + cooling)
Seat	Suspended air seat with armrest, adjustable
Control	Joystick control (optional), or lever control (standard)
Display	LCD instrument panel (engine info, fault diagnostics, hours)
Visibility	Large front windshield, rear-view camera available
Noise Level	≤ 78 dB(A) (relatively quiet for this class)
Weight	~480 kg

🛡️ Structural & Durability Features

Feature	Details
Frame	Articulated center joint with sealed grease lubrication
Articulation Angle	±35° (excellent maneuverability)
Bucket Linkage	Heavy-duty Z-bar linkage (high breakout force)
Counterweight	Cast iron, bolted for easy replacement
Service Intervals	Engine oil: 500h / Hydraulic oil: 2,000h
Ground Clearance	~450 mm
Approach/Departure Angle	~38° / ~35°

🧠 Smart & Optional Features

Option	Description
📊 Weighing System	Real-time bucket weighing (±1% accuracy) — prevents overloading trucks
📍 GPS/Telematics	Fleet management, location tracking, remote diagnostics
🪣 Automatic Bucket Leveling	Keeps bucket level during lifting (increases loading speed by ~20%)
🔧 Quick Coupler	Hydraulic quick coupler for attachment change (bucket, fork, grapple, etc.)
❄️ Cold Start Package	Engine block heater, battery heater (for -30°C environments)
🛞 Central Tire Inflation System (CTIS)	Adjust tire pressure from cab (optional)
🔦 LED Work Lights	Front & rear LED lights for night operations

🆚 SDLG 956L vs Competitors

Feature	SDLG 956L	XCMG LW500KN	LiuGong CLG856H	SEM 656D
Engine Power	162 kW (217 HP)	162 kW (217 HP)	162 kW (217 HP)	162 kW (217 HP)
Bucket Capacity	3.0 m³	3.0 m³	3.0 m³	3.0 m³
Transmission	Powershift	Powershift	Powershift	Powershift
Price (Approx.)	💰💰	💰💰💰	💰💰💰	💰💰
Parts Availability	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

✅ SDLG 956L's biggest advantage: Backed by Volvo Group quality standards + Weichai engine reliability + most competitive pricing in its class.

🌍 Main Markets

Region	Popularity
🇨🇳 China	⭐⭐⭐⭐⭐ (domestic market leader)
🇻🇳 Vietnam	⭐⭐⭐⭐⭐
🇮🇩 Indonesia	⭐⭐⭐⭐⭐
🇵🇭 Philippines	⭐⭐⭐⭐⭐
🇦🇿 Central Asia (Kazakhstan, Uzbekistan)	⭐⭐⭐⭐⭐
🌍 Africa	⭐⭐⭐⭐
🌎 South America	⭐⭐⭐⭐
🌏 Middle East	⭐⭐⭐⭐

✅ Advantages Summary

#	Advantage
1	💰 Lowest total cost of ownership in 5-ton class
2	🔧 Weichai engine — parts available EVERYWHERE, cheap & reliable
3	🏗️ Volvo Group quality control — built to international standards
4	⛽ Load-sensing hydraulics — fuel saving 10-15%
5	🪑 Comfortable cab with AC, joystick option
6	🔄 Easy maintenance — ground-level service points
7	📦 High resale value in developing markets

⚠️ Limitations

#	Limitation
1	Brand perception still behind CAT/Komatsu in premium markets
2	After-sales service network weaker than XCMG in some regions
3	Resale value lower than Japanese brands (Komatsu, Kobelco)

💵 Approximate Price (2024)

Market	Price Range (USD)
China (domestic)	$55,000 – $65,000
Export (FOB China)	$60,000 – $75,000
With options (GPS, weighing)	$75,000 – $85,000

📌 Conclusion

The SDLG 956L is arguably the best value-for-money 5-ton wheel loader on the market today. It combines Volvo Group engineering standards, a bulletproof Weichai engine, modern load-sensing hydraulics, and a very competitive price. It's the go-to choice for contractors in developing countries who want reliability without paying Japanese/European prices.
