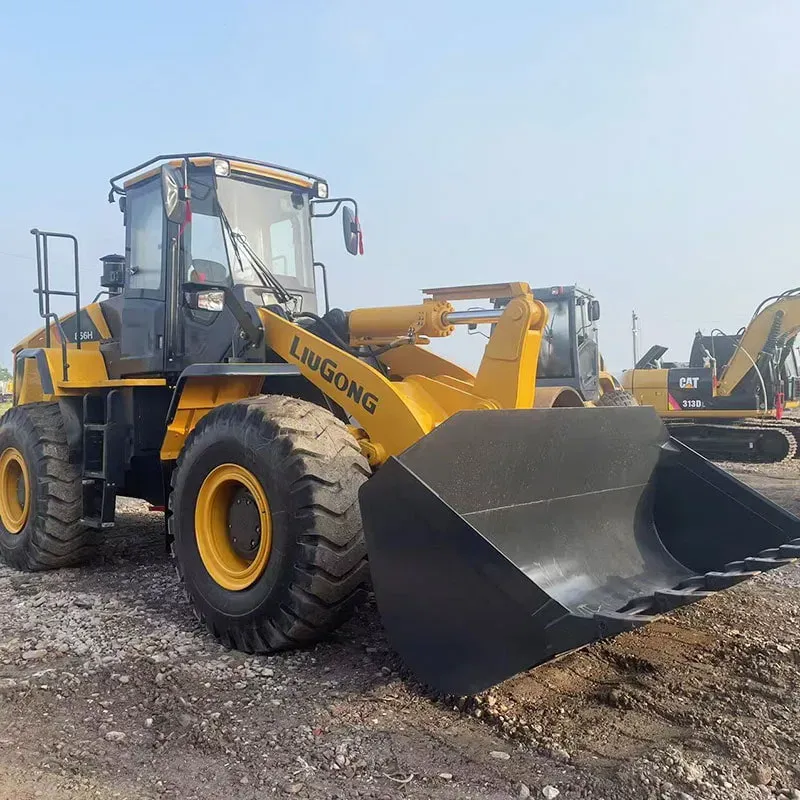

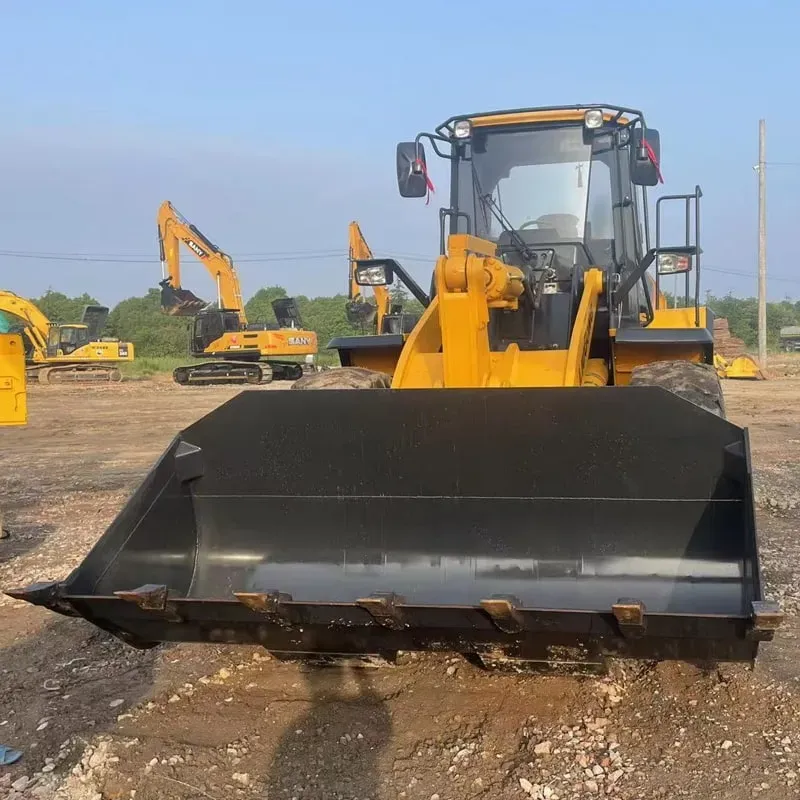

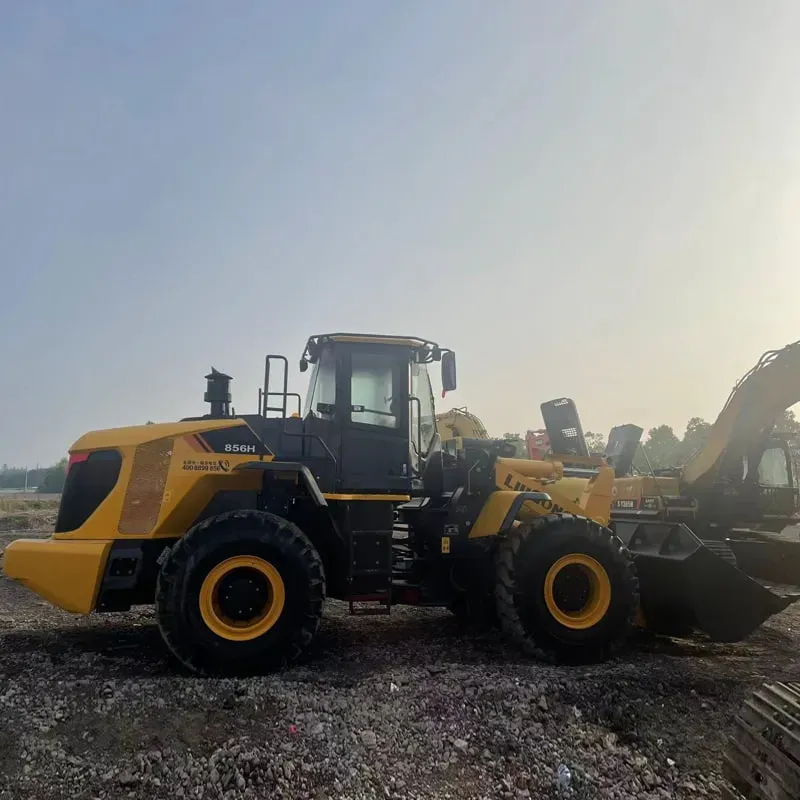

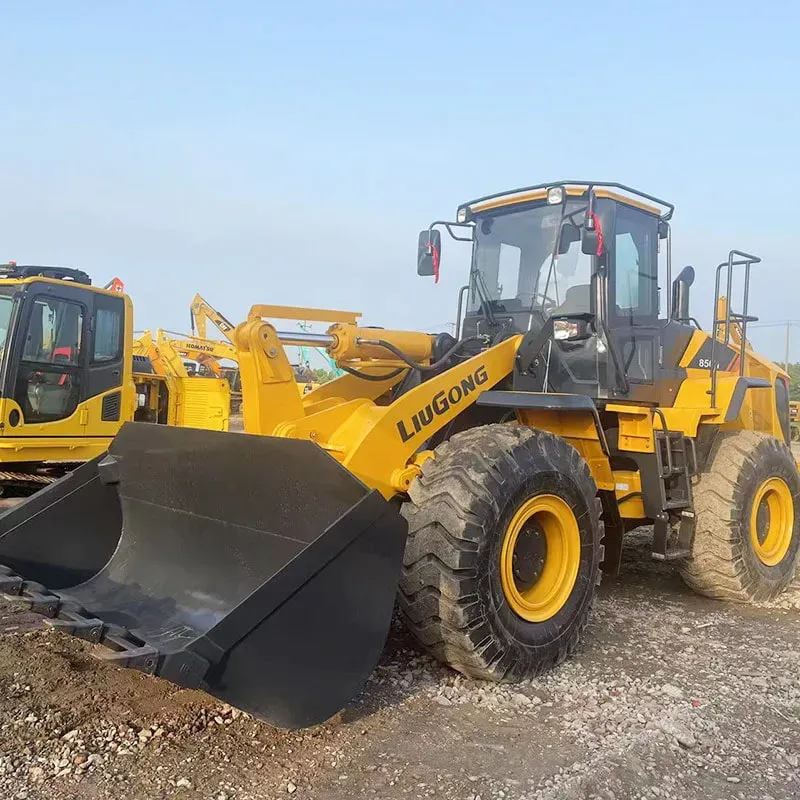

Used Liugong 856HLoader

Reading: 12

🏭 Overview

The LiuGong 856H is a 5-ton (5,000 kg rated load) class wheel loader manufactured by Guangxi Liugong Machinery Co., Ltd., one of China's largest and most recognized construction machinery manufacturers. The "H" stands for the heavy-duty/high-efficiency series. It is designed for demanding applications in mining, quarrying, construction, ports, and large-scale earthmoving operations.

📐 Key Specifications

Parameter	Specification
Rated Load	5,000 kg (5 tons)
Operating Weight	~17,000 – 17,500 kg
Bucket Capacity (Standard)	3.0 m³ (3.8 cu. yd)
Rated Bucket Capacity	3.0 m³
Max Dump Height	~3,250 mm
Max Dump Reach	~1,150 mm
Max Breakout Force	~175 – 180 kN
Max Tractive Force	~165 – 175 kN
Engine Model	Weichai WP10G220E22 (or Cummins QSB6.7 in some markets)
Engine Power	162 kW (217 hp) @ 1,800 rpm
Emission Standard	China III / EPA Tier 3 (Tier 4 Final available in some versions)
Transmission	Powershift (ZF or Liugong proprietary)
Top Speed (Forward/Reverse)	~38 km/h / ~35 km/h
Hydraulic System Pressure	17.5 MPa (2,538 psi)
Hydraulic Flow	~240 L/min
Fuel Tank Capacity	~300 L
Tire Size	23.5-25 (standard)

🔧 Engine & Powertrain

Feature	Detail
Engine	Weichai WP10G220E22 — 6-cylinder, turbocharged, intercooled diesel engine
Displacement	9.726 L
Power Output	162 kW (217 hp)
Torque	~950 N·m @ 1,400 rpm
Aftertreatment	DOC + DPF + SCR (for Tier 4 Final versions)
Transmission	Powershift with torque converter, 2-speed forward / 2-speed reverse
Axles	Heavy-duty planetary final drives with wet disk brakes

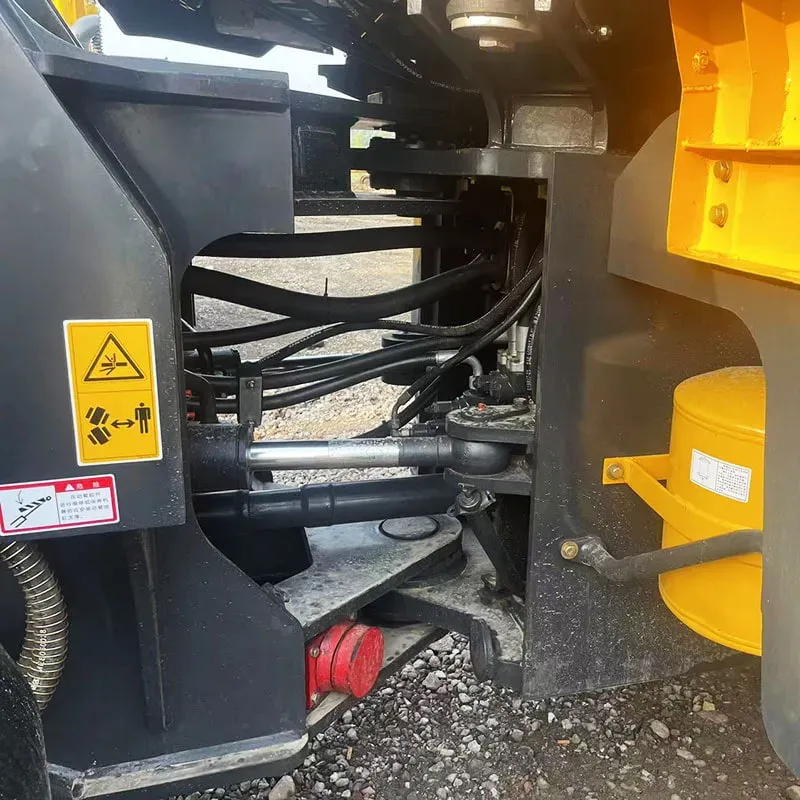

Steering	Articulated frame steering, full hydraulic power steering

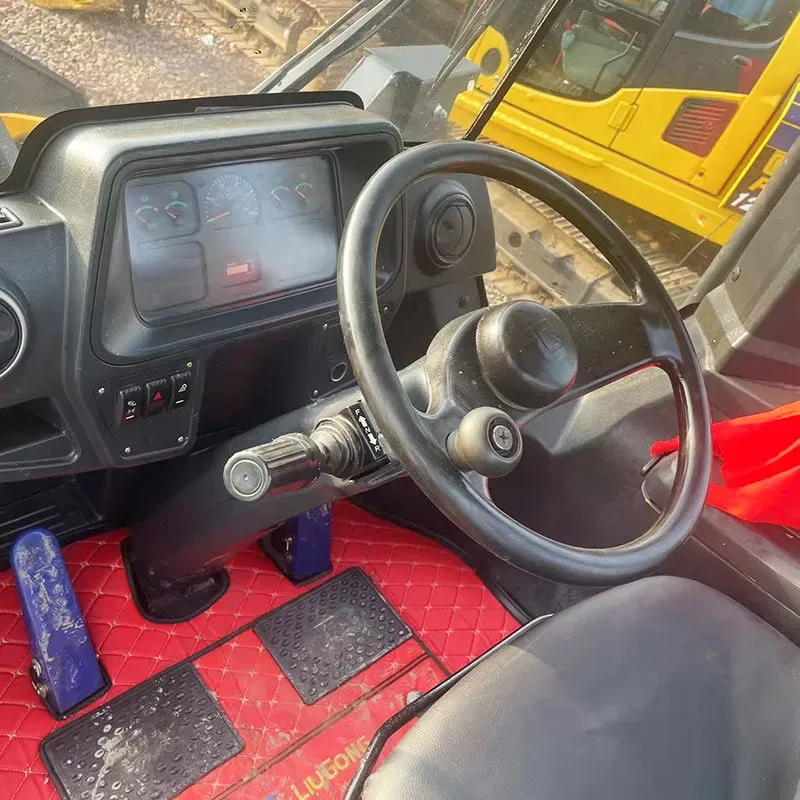

🖥️ Cab & Operator Comfort

The 856H is known for its operator-friendly cab design, which is a hallmark of LiuGong's H-series:

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Seat	Air-suspension seat with adjustable armrests
Controls	Electronic joystick controls (smooth, precise operation)
Display	LCD multi-function monitor (engine info, diagnostics, fuel consumption)
Climate	Full air conditioning with heater
Visibility	Large front windshield, wide-angle rear-view mirrors, rear camera option
Noise Level	≤ 74 dB(A) (relatively quiet for its class)
Lighting	Full LED working lights (front, rear, roof)
Other	USB charging port, cup holders, storage compartments, 12V/24V power outlets

💪 Hydraulic System & Performance

The 856H features a load-sensing hydraulic system for efficient power utilization:

Feature	Detail
System Type	Load-sensing, closed-center
Working Pressure	17.5 MPa
Pump Flow	~240 L/min (gear pump + variable displacement)
Lift Time (Empty → Full)	~5.5 – 6.0 seconds
Lift Time (Full → Dump)	~2.5 – 3.0 seconds
Cycle Time	~9 – 10 seconds (optimized for productivity)
Attachments	Bucket, forks, grapple, snow blade, log grapple, etc. (quick coupler compatible)

🛡️ Durability & Reliability Features

Feature	Detail

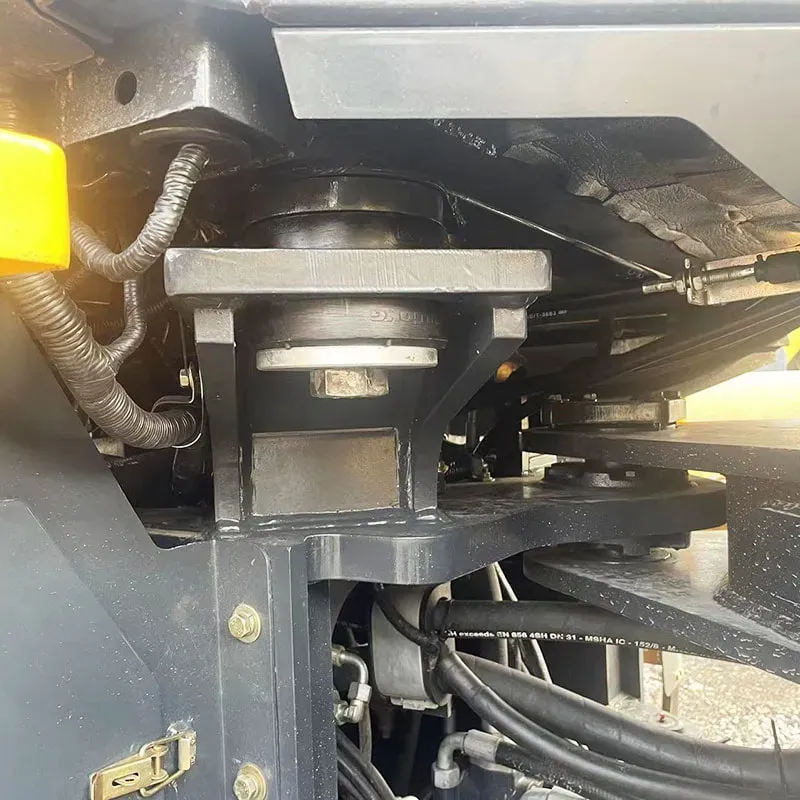

Articulated Frame	Oscillating frame with ±8° articulation angle for better traction on uneven ground
Heavy-Duty Axles	Reinforced axles with planetary reduction gears
Brakes	Wet multi-disc brakes in oil bath — longer life, better heat dissipation
Tires	23.5-25 E-3/L-3 rated tires (heavy-duty)
Centralized Lubrication	Automatic centralized grease lubrication system (reduces maintenance)
TPMS	Tire Pressure Monitoring System (standard)

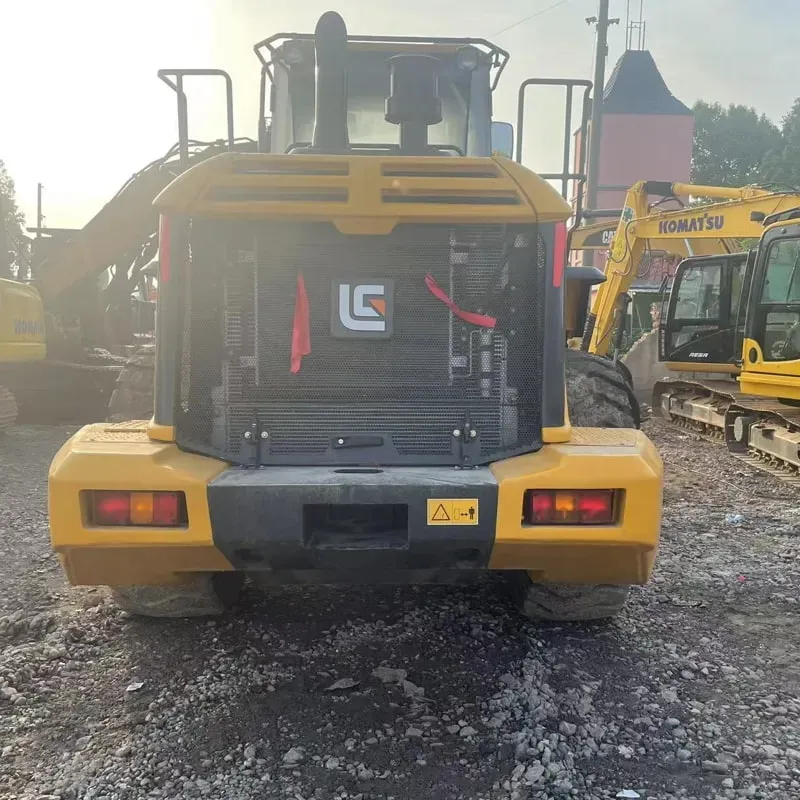

Counterweight	Large rear counterweight for stability at full lift
Service Intervals	Extended service intervals — 500h engine oil, 1,000h hydraulic oil filter
Ground Clearance	~450 mm
Turning Radius (Outside)	~7,200 mm

📊 Comparison with Competitors

Model	Rated Load	Engine Power	Bucket	Weight
LiuGong 856H	5,000 kg	217 hp	3.0 m³	~17,200 kg
XCMG LW500FN	5,000 kg	217 hp	3.0 m³	~17,000 kg
SDLG L956F	5,000 kg	217 hp	3.0 m³	~17,000 kg
CAT 950 GC	5,100 kg	235 hp	3.1 m³	~18,500 kg
Komatsu WA500-8	5,000 kg	231 hp	3.0 m³	~18,200 kg

The LiuGong 856H is competitively priced while offering comparable or superior features to Japanese/Western brands, making it a popular choice in emerging markets and cost-sensitive projects.

✅ Advantages (Pros)

✅	Advantage
💰	Excellent value for money — 15-30% cheaper than CAT/Komatsu equivalents
🔧	Wide parts availability — LiuGong has 300+ dealers worldwide
🛋️	Superior cab comfort — Among the best in the 5-ton class
⚡	Efficient load-sensing hydraulics — Fuel savings of 10-15% vs. older models
🔩	Easy maintenance — Centralized lubrication, wide-opening hood
📈	Strong residual value in Chinese and Southeast Asian markets
🌐	Global support — Exported to 150+ countries

⚠️ Considerations (Cons)

⚠️	Consideration
🏗️	Resale value lower than CAT/Komatsu in Western markets
🔧	Dealer/service network less developed in North America & Europe
📊	Some operators report slightly higher fuel consumption vs. Komatsu WA500
🎚️	Transmission can be less smooth than ZF-equipped competitors

🌍 Typical Applications

Application	Use Case
🪨 Mining & Quarrying	Loading trucks, stockpiling
🏗️ Construction	General earthmoving, road building
📦 Ports & Logistics	Container handling, bulk material loading
🪵 Forestry	Log handling (with fork attachment)
❄️ Snow Removal	With snow blade attachment
🏭 Steel Mills	Scrap handling, slag loading

📌 Summary

Category	Rating (out of 5)
Performance	⭐⭐⭐⭐
Reliability	⭐⭐⭐⭐
Comfort	⭐⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐
After-Sales Support (Global)	⭐⭐⭐⭐

The LiuGong 856H is one of the best-selling 5-ton wheel loaders in the world, offering a compelling combination of power, comfort, durability, and affordability. It is an excellent choice for contractors who want near-premium performance at a mid-range price.
