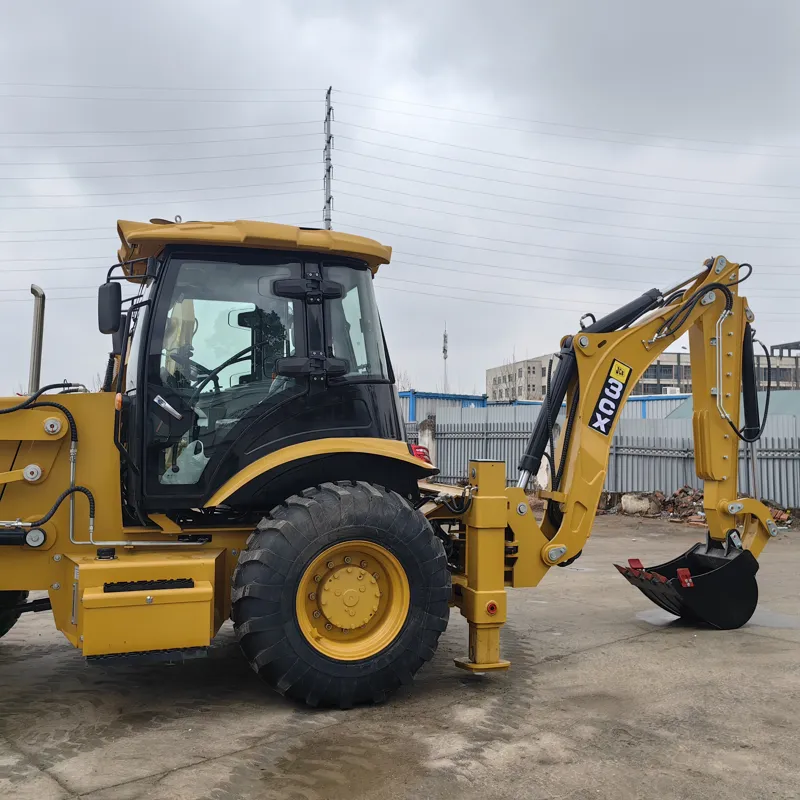

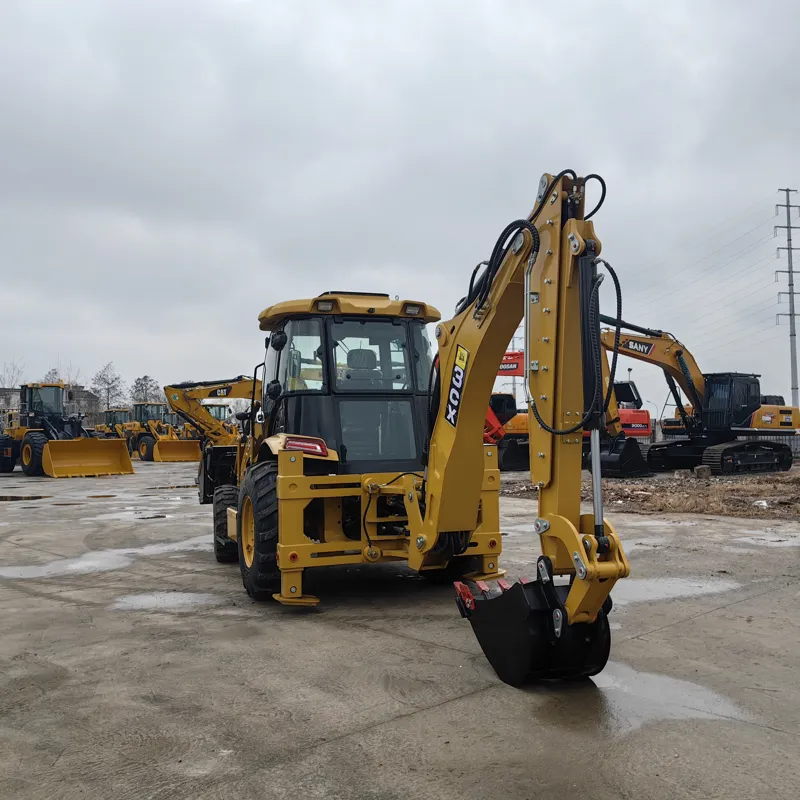

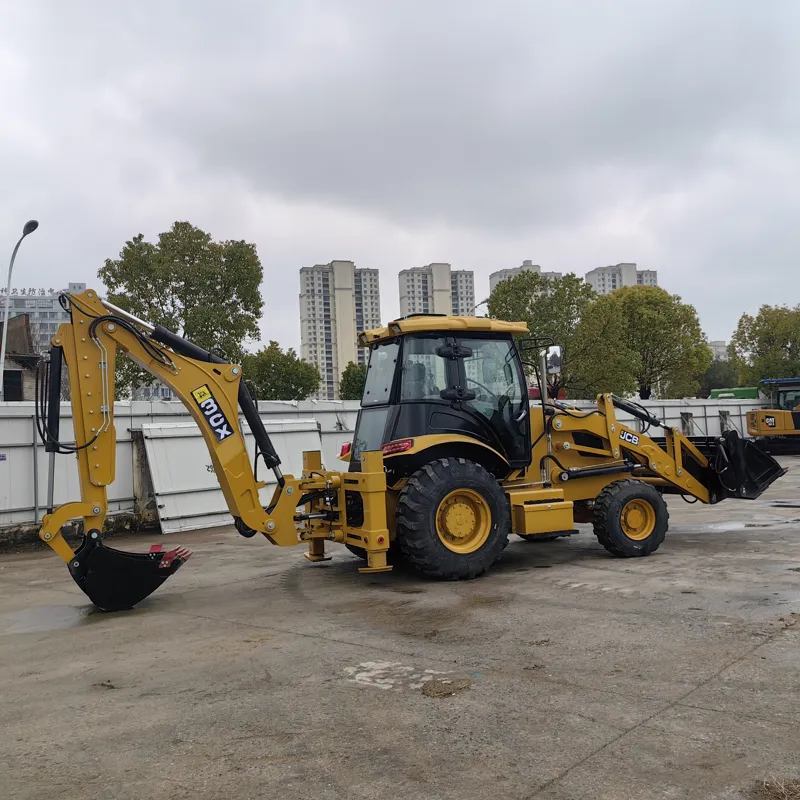

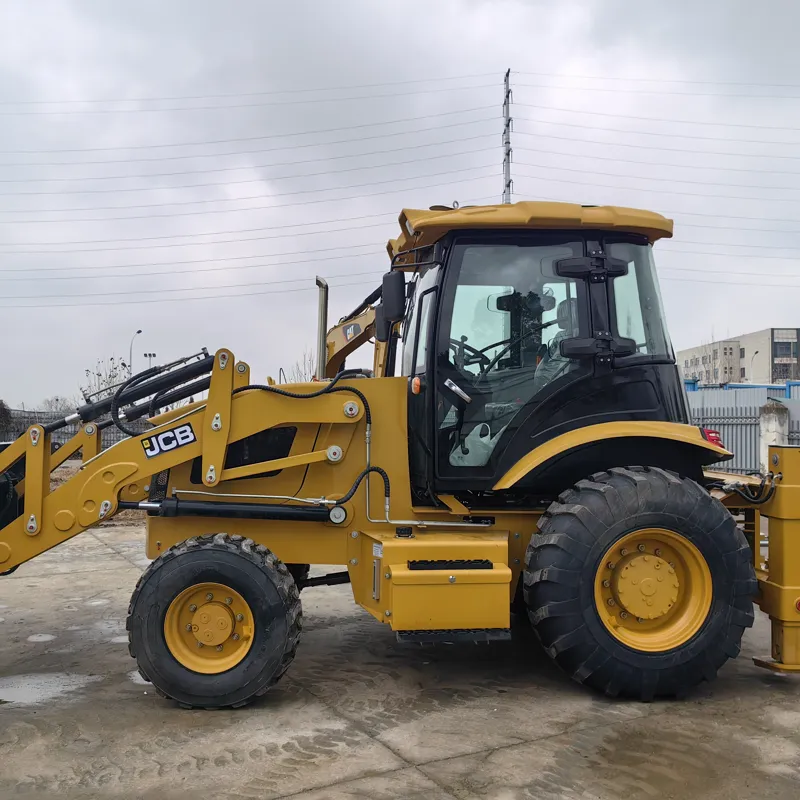

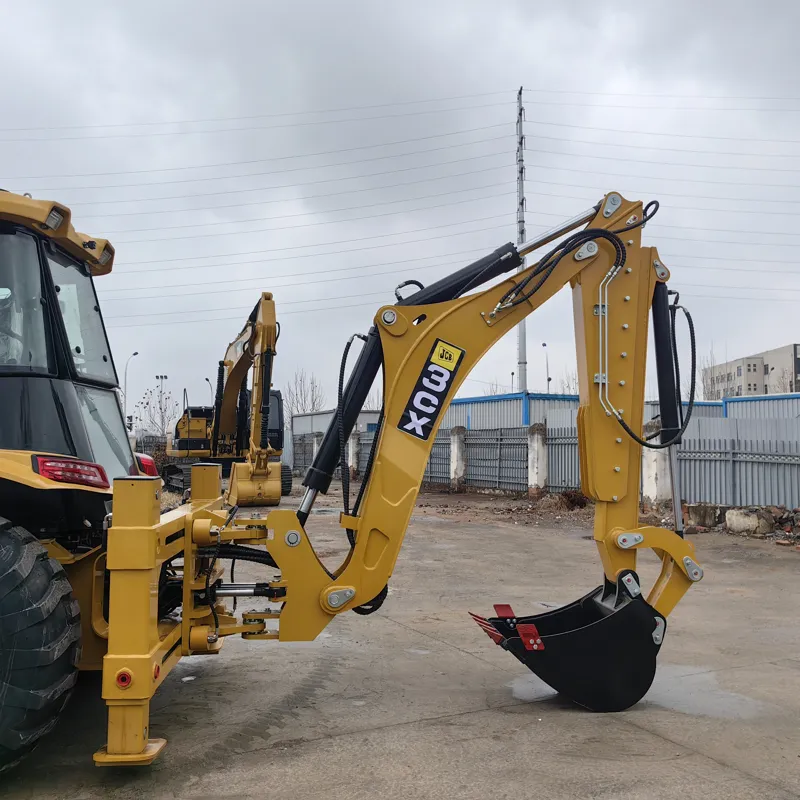

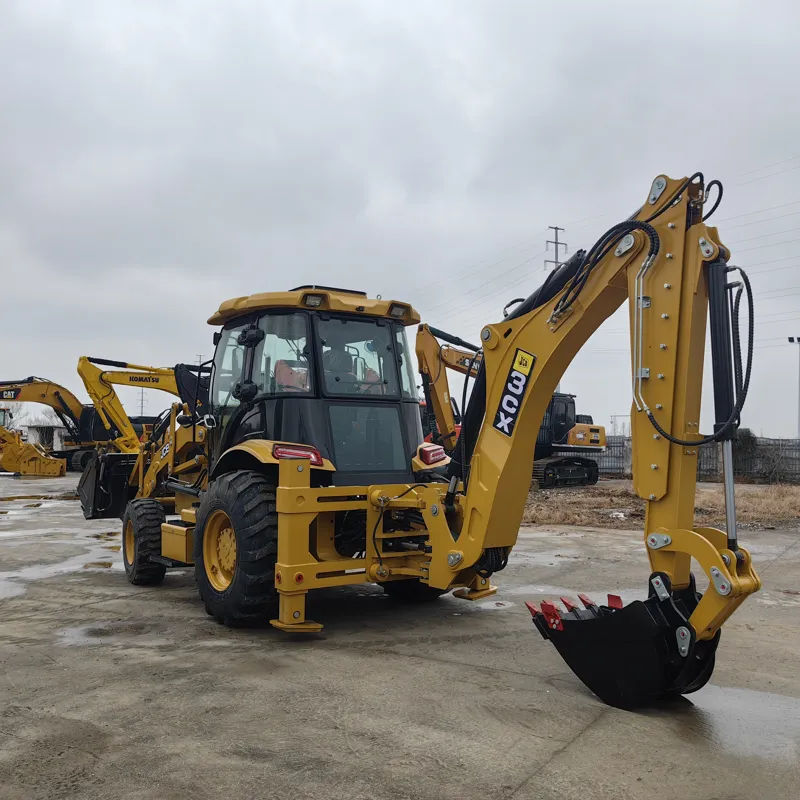

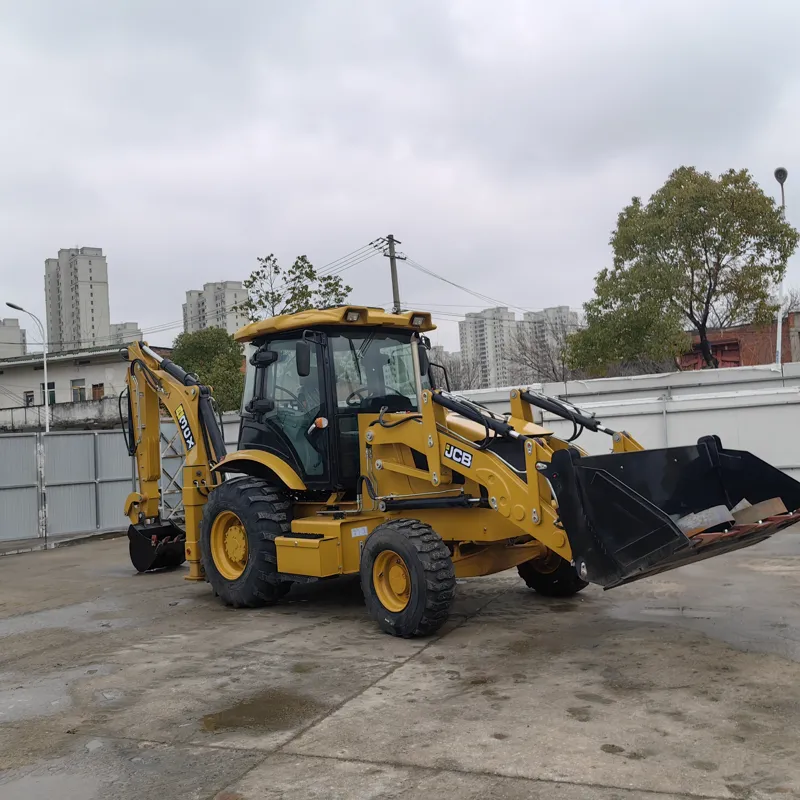

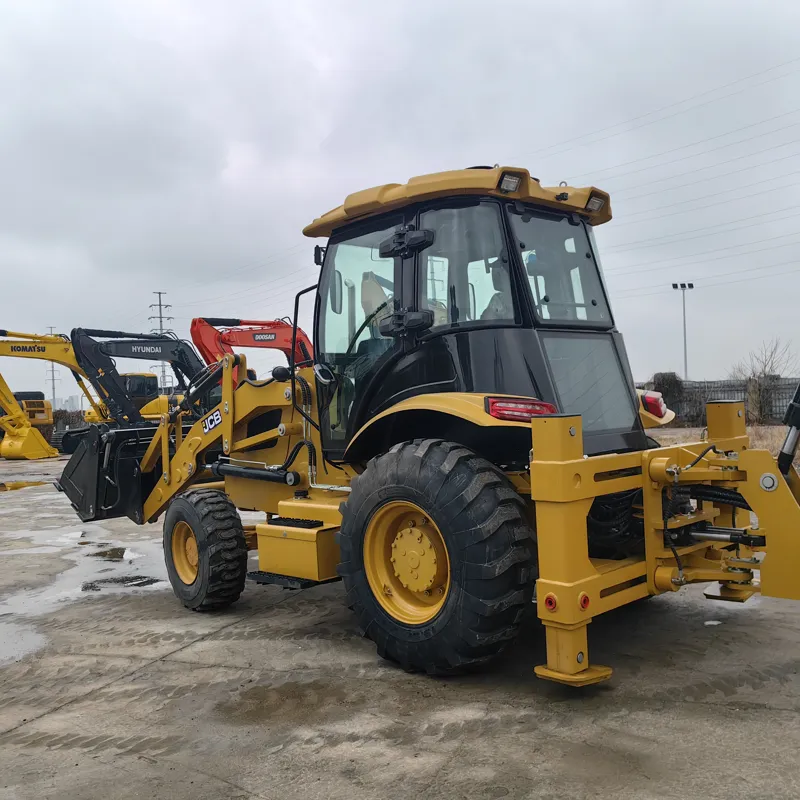

Used Jcb 3CX Loader

Reading: 14

📜 1. OVERVIEW & HISTORY

Detail	Information
Manufacturer	J.C. Bamford Excavators Ltd (JCB)
Founded	1945, Rochester, Staffordshire, England
Founder	Joseph Cyril Bamford
Headquarters	Rocester, Staffordshire, UK
First Backhoe Loader	1953 — The JCB 10 (first hydraulic backhoe loader in the world)
Global Presence	22+ factories, 150+ countries
Tagline	"If it moves, it's a JCB"

🔑 JCB invented the backhoe loader concept in 1953, revolutionizing the construction industry by combining a front loader and a rear backhoe on a single machine.

🔧 2. WHAT IS A BACKHOE LOADER?

A Backhoe Loader is a multi-purpose heavy equipment that combines:

Component	Function
🔲 Front Loader Bucket	Digging, loading, grading, material handling
🔲 Rear Backhoe Arm	Excavation, trenching, digging below grade level
🔲 4-Wheel Drive	Mobility on rough terrain
🔲 Stabilizer Legs (Outriggers)	Provide stability during backhoe operations

🔄 How It Works:

        FRONT VIEW   [====LOADER BUCKET====]  ← Loading / Grading   [                    ]   [   CAB / ENGINE    ]   [                    ]        [====] [====]     ← Rear Wheels         |LEGS| |LEGS|     ← Stabilizer Legs                REAR VIEW   [==BACKHOE ARM==]  ← Excavation / Trenching   [BOOM - STICK - BUCKET]

📊 3. POPULAR JCB BACKHOE LOADER MODELS

Model	Engine Power (HP)	Operating Weight (kg)	Max Dig Depth (m)	Bucket Capacity
JCB 1CX	74 HP	~3,400	4.26 m	0.11 m³ (backhoe)
JCB 2CX	74 HP	~3,500	4.39 m	0.11 m³
JCB 3CX	92 HP	~5,500	5.65 m	0.15 m³
JCB 3CX Eco	92 HP	~5,300	5.65 m	0.15 m³
JCB 4CX	97 HP	~7,700	6.30 m	0.25 m³
JCB 4CX Eco	97 HP	~7,400	6.30 m	0.25 m³
JCB 3DX	109 HP	~6,000	5.80 m	0.15 m³
JCB 4DX	110 HP	~8,600	6.60 m	0.30 m³
JCB 5CX	111 HP	~9,500	7.00 m	0.30 m³
JCB 3CXT (Telehandler)	109 HP	~6,500	8.50 m (telescopic)	0.15 m³

📌 CX Series = Compact / Standard📌 DX Series = Heavy Duty / Extra Dig📌 XT Series = Telescopic (Longer Reach)

& 4. KEY TECHNICAL FEATURES

🛢️ A. ENGINE & POWERTRAIN

Feature	Details
Engine	JCB EcoMAX / DieselMax (Stage V / Tier 4 Final)
Fuel Type	Diesel
Transmission	Powershift (Auto / Semi-Auto)
Max Speed	35–40 km/h (Road)
Drive	4WD (4-Wheel Drive) with diff locks
Emission Standard	BS-VI / Stage V / EPA Tier 4

🔩 B. HYDRAULIC SYSTEM

Feature	Details
System	Load-Sensing Hydraulic System
Flow Rate	Up to 120 L/min (varies by model)
Pressure	280–350 bar
Auxiliary Hydraulics	Available for attachments (breaker, auger, etc.)

🧱 C. BACKHOE (REAR) SPECIFICATIONS

Parameter	3CX	4CX
Max Dig Depth	5.65 m	6.30 m
Max Reach (Horizontal)	7.20 m	8.00 m
Max Dig Height	6.90 m	7.70 m
Dump Height	3.50 m	4.00 m
Swing Angle	200° (full)	200° (full)

🏗️ D. FRONT LOADER SPECIFICATIONS

Parameter	3CX	4CX
Bucket Width	1.20 m / 1.50 m	1.80 m / 2.40 m
Lift Height	3.20 m	3.80 m
Breakout Force	28 kN	45 kN
Bucket Capacity	0.30 m³	0.50 m³

🛡️ 5. SAFETY & COMFORT FEATURES

Feature	Description
✅ ROPS/FOPS Cabin	Roll-Over & Falling Object Protective Structure
✅ Air-Conditioned Cabin	Climate-controlled operator environment
✅ Suspension Seat	Ergonomic with armrests
✅ Rear View Camera	Enhanced visibility
✅ LED Work Lights	For night operations
✅ Auto-Leveling	Automatic loader leveling system
✅ Digital Display	Engine diagnostics & fuel monitoring
✅ IntelliShift	Smart transmission system (DX models)
✅ Eco Mode	Fuel-saving engine mode

🌍 6. APPLICATIONS & USES

Sector	Applications
🏗️ Construction	Excavation, foundation work, trench digging
🛣️ Road Building	Pipe laying, road repair, grading
💧 Utilities	Water/sewer line installation, cable laying
🌾 Agriculture	Land clearing, drainage, farm work
🏭 Landscaping	Grading, digging ponds, planting
🗑️ Waste Management	Landfill work, material handling
⚡ Mining	Small-scale excavation, quarry work
🏠 Residential	Swimming pools, septic tanks, basements

🔌 7. POPULAR ATTACHMENTS (JCB QUICK-HITCH)

Attachment	Use
🔨 Hydraulic Breaker (Hammer)	Rock breaking, concrete demolition
🔩 Auger (Earth Drill)	Post hole digging, pile driving
🪵 Pallet Forks	Material handling
🪣 Grapple Bucket	Scrap handling, waste management
🔄 Thumb	Pipe handling, log gripping
🧹 Sweeper	Road sweeping
❄️ Snow Blade	Snow removal
🔧 Ripper	Hard ground breaking

⚡ JCB uses the Universal Quick Hitch (UQH) system for fast attachment changeover (under 2 minutes!)

🆚 8. JCB vs COMPETITORS

Feature	JCB 3CX/4CX	Caterpillar 428/432	Case 580N/590N	John Deere 310L/410L
Engine Power	92–97 HP	97–99 HP	97–109 HP	85–97 HP
Max Dig Depth	5.65–6.30 m	5.80 m	5.80 m	5.50 m
Transmission	Powershift	Powershift	Powershift	Powershift
Global Service	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Parts Availability	Excellent	Excellent	Good	Good
Price (Approx.)	₹18–35 Lakh*	₹22–40 Lakh*	₹20–38 Lakh*	₹18–32 Lakh*

Prices vary by country & configuration (India approx.)

💰 9. PRICE RANGE (INDIA — APPROXIMATE 2024)

Model	Price Range (INR)
JCB 1CX	₹12 – 16 Lakh
JCB 2CX	₹14 – 18 Lakh
JCB 3CX	₹18 – 24 Lakh
JCB 3CX Eco	₹20 – 26 Lakh
JCB 4CX	₹28 – 38 Lakh
JCB 4CX Eco	₹30 – 40 Lakh
JCB 3DX	₹24 – 30 Lakh
JCB 4DX	₹32 – 42 Lakh

✅ 10. WHY CHOOSE JCB BACKHOE LOADER?

Advantage	Explanation
🏆 Pioneer Brand	Invented the backhoe loader in 1953
🔧 Easy Maintenance	Wide service network, affordable parts
💪 High Resale Value	Best in class resale value globally
🚜 Versatility	One machine = Loader + Excavator + Carrier
🛢️ Fuel Efficient	EcoMAX engines save 10-15% fuel
🔄 Quick Attachment Change	UQH system — under 2 minutes
🌐 Global Support	150+ countries, 2,200+ dealers
📈 Strong Demand	High rental & resale demand

📋 11. QUICK SPECIFICATION SUMMARY — JCB 3CX (Best Seller)

Parameter	Value
Engine	JCB DieselMax 2.2L, 92 HP (Stage V)
Operating Weight	5,400 kg
Max Dig Depth	5.65 m
Max Reach	7.20 m
Bucket Capacity (Loader)	0.30 m³
Bucket Capacity (Backhoe)	0.15 m³
Transmission	6F / 6R Powershift
Max Speed	35 km/h
Fuel Tank	80 Liters
Tires	10.5/80-18 (Industrial)

🎯 12. CONCLUSION

The JCB Backhoe Loader is arguably the most iconic and versatile construction machine ever built. Whether it's the compact 1CX for tight spaces or the heavy-duty 5CX for demanding jobs, JCB offers a backhoe loader for every need and budget.

🔑 Key Takeaway:

"If you need ONE machine that can dig, load, carry, and break — the JCB Backhoe Loader is the ANSWER." 🏗️🚜

Would you like detailed information on any specific model, pricing in your country, or comparison with a particular competitor? 😊
