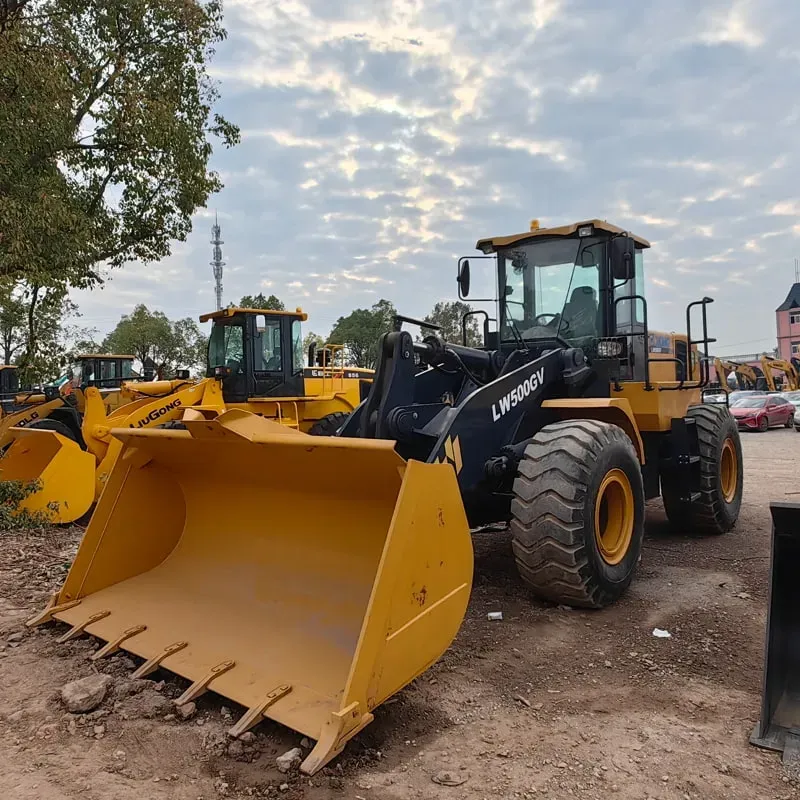

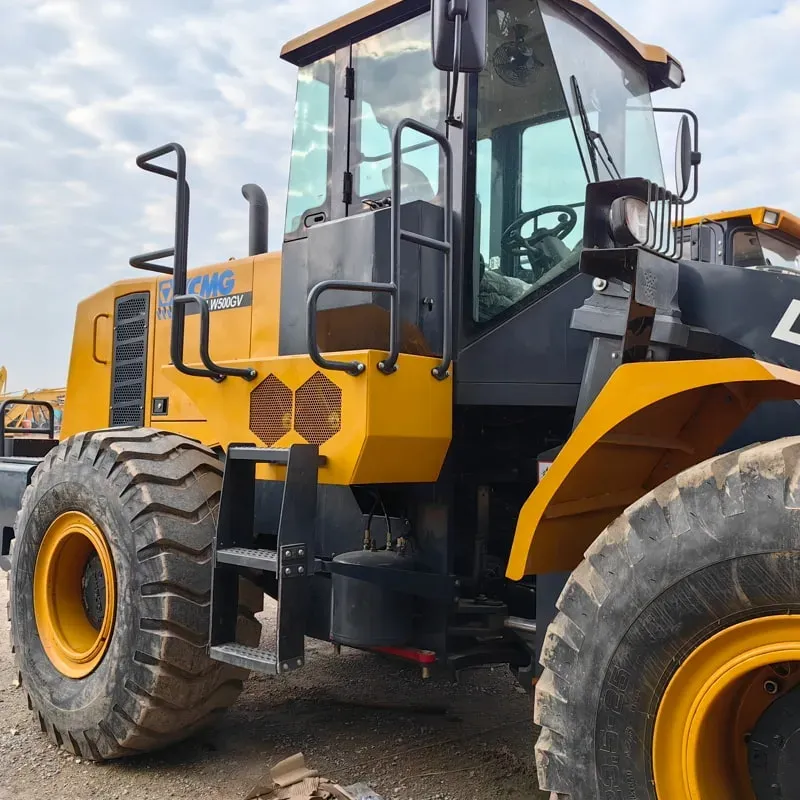

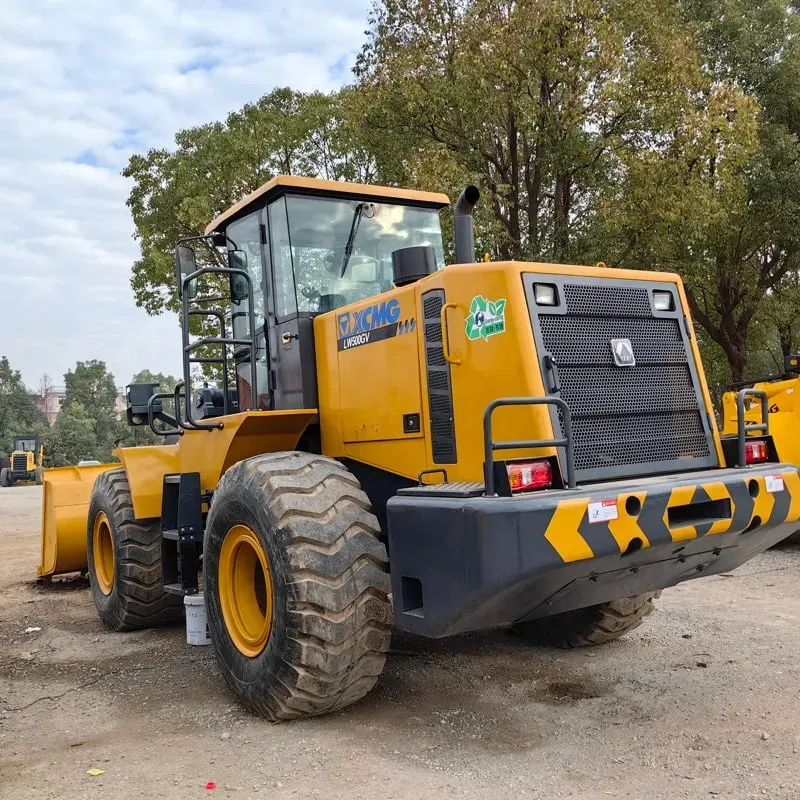

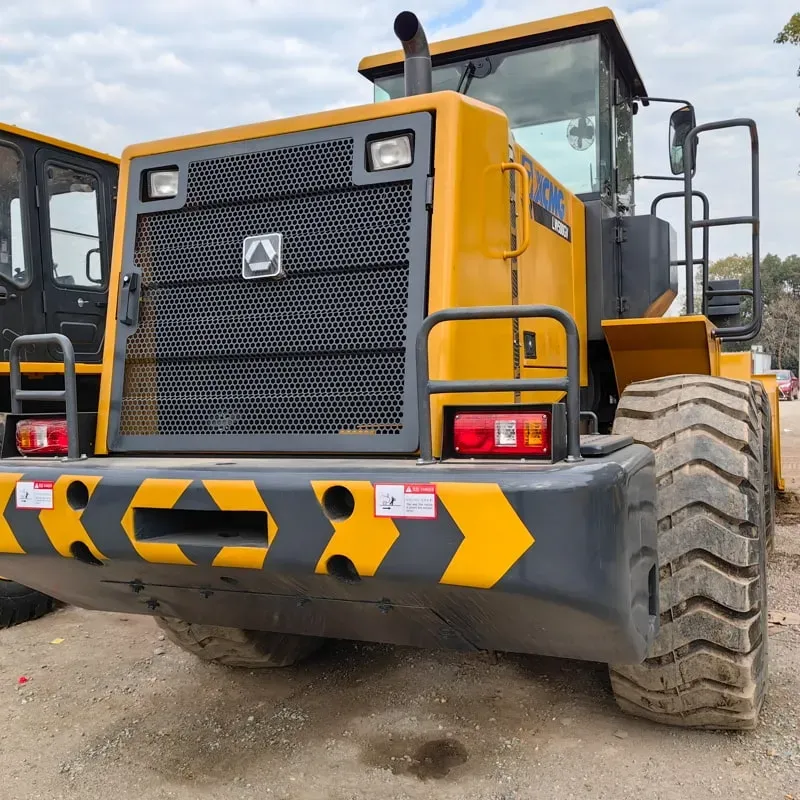

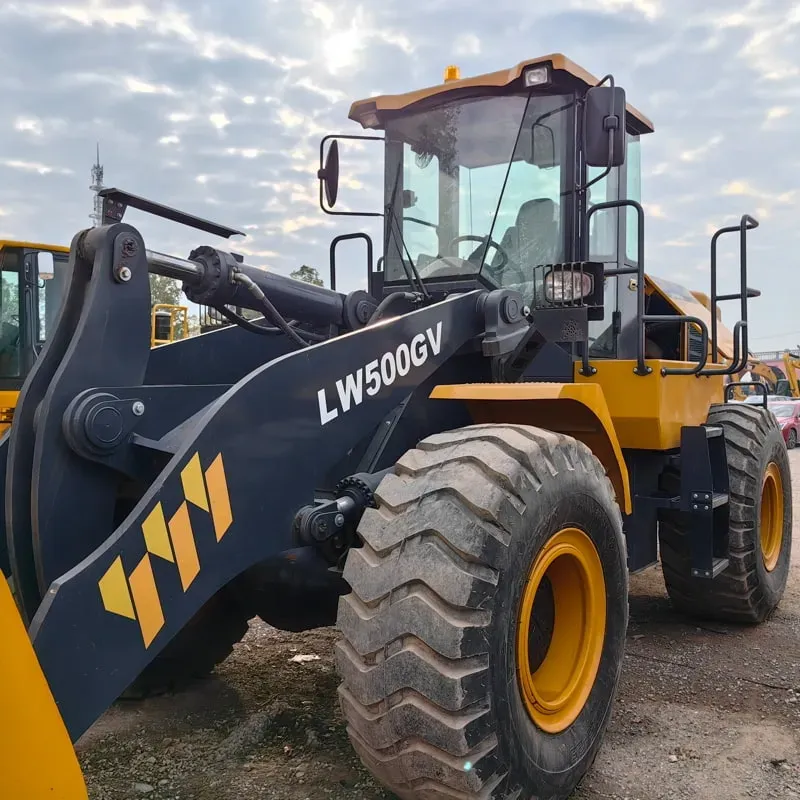

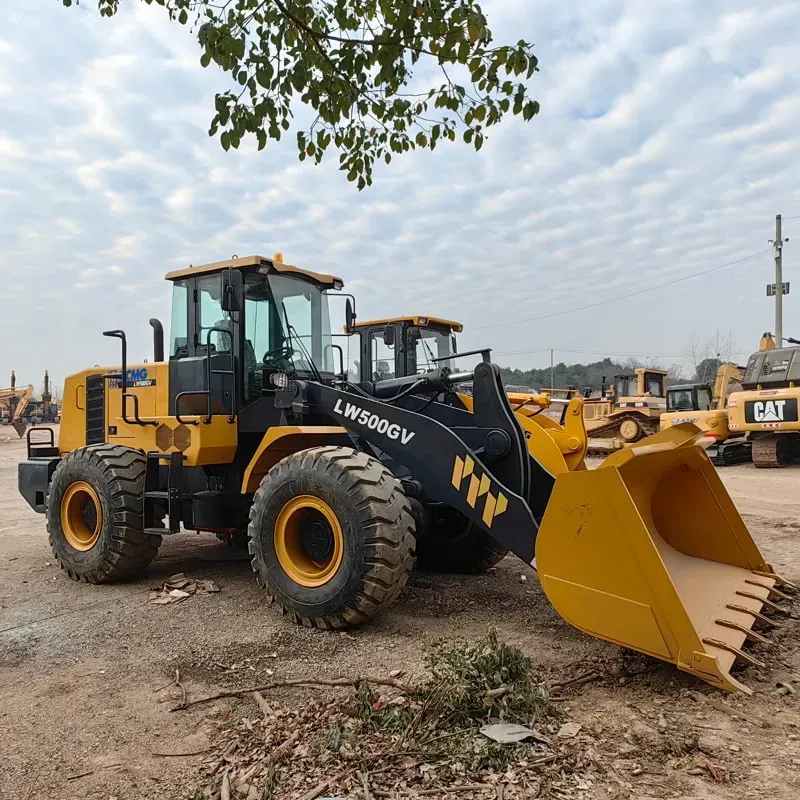

Used Xcmg 50GVLoader

Reading: 34

🏢 Overview

The XCMG LW50GV is a 5-ton (5,000 kg) rated load capacity wheel loader, belonging to XCMG's G-Series (Generation V) lineup. It is designed for heavy-duty operations in mining, quarrying, construction sites, ports, and large-scale earthmoving projects. It is one of XCMG's flagship mid-to-large class wheel loaders, competing with international brands like Caterpillar, Komatsu, and Volvo.

📋 Key Technical Specifications

Parameter	Specification
Model	LW50GV / LW500GV
Rated Load Capacity	5,000 kg (5 tons)
Bucket Capacity (Standard)	3.0 m³ (3.8 m³ optional/heaped)
Operating Weight	~17,000 – 17,500 kg
Overall Dimensions (L×W×H)	~8,100 × 3,100 × 3,400 mm
Wheelbase	~3,300 mm
Ground Clearance	~480 mm
Max. Dumping Height	~3,200 mm
Max. Dumping Reach	~1,150 mm
Max. Digging Depth	~180 mm
Breakout Force	~180 kN
Traction Force	~175 kN
Max. Travel Speed	38 – 40 km/h
Gradeability	30° (58%)
Turning Radius (Outer)	~6,800 mm

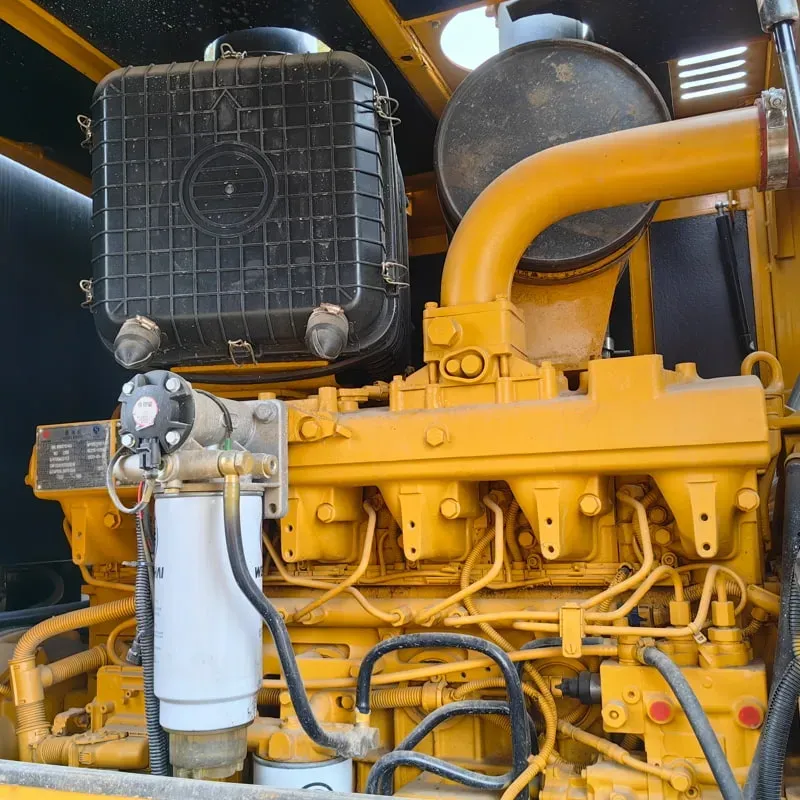

🔧 Engine

Parameter	Specification
Engine Brand	Weichai (潍柴) WP10 / WP12 series (or Cummins QSB6.7 in some export markets)
Engine Type	Turbocharged, Water-cooled, Electronic Controlled Diesel
Displacement	9.7 – 12 L
Rated Power	162 kW (217 hp) @ 2,000 rpm
Emission Standard	China III / EPA Tier 4 Final / EU Stage V (depending on market)
Fuel Tank Capacity	~300 L

✅ The engine features electronic fuel injection (EFI) for better fuel efficiency, lower emissions, and smoother performance.

⚙️ Transmission & Hydraulics

Component	Specification
Transmission Type	Power Shift Transmission (Planetary gear)
Gears	2 Forward / 2 Reverse
Hydraulic System	Load-Sensing (LS) + Flow Sharing hydraulic system
Pump Type	Variable displacement axial piston pump
System Pressure	21 – 24 MPa
Hydraulic Flow	~240 L/min
Steering Type	Articulated frame steering (Optional: ZF power steering for reduced effort)
Brakes	Wet disc brakes (sealed, oil-immersed)

🛞 Tires & Axles

Parameter	Specification
Tire Size (Standard)	23.5-25 (E-3/L-3 pattern)
Rim Size	25-25 / 10-25
Axle Type	Heavy-duty planetary reduction axles
Differential Lock	Available (optional for off-road/mining use)

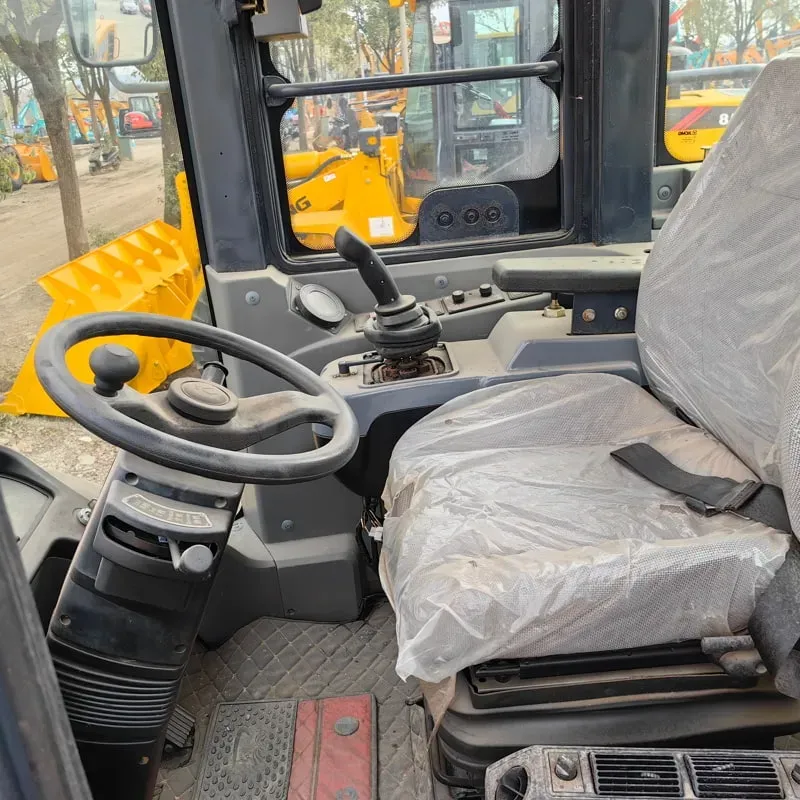

🪑 Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Air Conditioning	✅ Fully automatic climate control
Seat	Air-suspended, heated, fully adjustable grammer-type seat
Display	LCD multi-function monitor (engine data, diagnostics, camera)
Joystick Control	✅ Optional electronic joystick (single-lever operation)
Sound Level	≤ 75 dB(A) inside cab
Visibility	Large panoramic glass, rear-view & side-view cameras available
Noise Reduction	Advanced insulation, <73 dB(A) at operator ear

🧠 Intelligent & Smart Features (G-Series Highlights)

Feature	Description
XCMG Intelligent Management System (X-Smart)	Real-time fleet management, GPS tracking, remote diagnostics
Weighing System	✅ Built-in electronic bucket weighing (±1% accuracy) — prevents overloading
Auto-Idle	Engine auto-reduces RPM when idle → saves fuel
Fuel Efficiency Mode	ECO mode optimizes engine + hydraulic matching
Tire Pressure Monitoring (TPMS)	✅ Real-time monitoring
Anti-Slip Control (ASC)	✅ Prevents wheel spin on slippery surfaces
Auto-Lubrication	Centralized automatic grease lubrication system
Diagnostics	CAN-bus based fault code system, OBD compatible

💪 Work Applications

Application	Details
🏗️ Construction	Road building, land leveling, foundation work
& Mining & Quarrying	Loading ore, rock, gravel (heavy-duty bucket available)
🏭 Steel Mills	Handling slag, coke, scrap metal
🚢 Ports & Logistics	Container handling, bulk material loading
🗑️ Waste Management	Landfill operations, recycling facilities
🪨 Aggregate Plants	Stockpile management, feeding crushers

🆚 Comparison with Competitors

Feature	XCMG LW50GV	CAT 950 GC	Komatsu WA500-8	Volvo L50H
Rated Load	5,000 kg	5,150 kg	4,900 kg	5,000 kg
Engine Power	162 kW	188 kW	180 kW	164 kW
Operating Weight	~17,200 kg	~20,000 kg	~18,700 kg	~18,000 kg
Bucket	3.0 m³	3.0 m³	2.8 m³	3.0 m³
Price (Approx.)	💰💰 (Best Value)	💰💰💰💰	💰💰💰	💰💰💰

🏆 XCMG LW50GV is widely regarded as offering the BEST price-to-performance ratio in the 5-ton class globally.

💰 Approximate Pricing (2024)

Market	Price Range (USD)
China (Domestic)	¥550,000 – ¥680,000 (~$78K – $95K)
Southeast Asia	$85,000 – $100,000
Middle East / Africa	$90,000 – $110,000
Europe / Australia	$100,000 – $125,000
South America	$95,000 – $115,000

Prices vary by configuration, emission standard, and optional attachments.

✅ Advantages Summary

✅ Strength	Explanation
💪 High Reliability	XCMG is the world's #3 construction machinery brand (2024)
💰 Cost-Effective	20-30% cheaper than CAT/Komatsu with comparable performance
🔧 Easy Maintenance	Wide global dealer network, parts availability
🧠 Smart Technology	Weighing system, GPS, remote diagnostics standard/optional
🛢️ Fuel Efficient	Eco mode + auto-idle saves 10-15% fuel
🔩 Durability	Heavy-duty axles, planetary reduction, sealed brakes
🌐 Global Support	XCMG has 300+ service centers in 190+ countries

🔧 Optional Attachments

Attachment	Use
🪣 Rock Bucket (Heavy Duty)	Mining, quarrying
🧹 Pallet Forks	Material handling
❄️ Snow Blade	Winter operations
🪵 Log Grapple	Forestry
🔨 Hydraulic Breaker	Demolition
🧲 Magnetic Chuck	Scrap metal
📦 Bucket with Teeth	Hard material loading

📞 Warranty & After-Sales

Item	Detail
Warranty	12 months / 2,000 hours (whichever comes first) — extendable
Spare Parts	Available globally through XCMG network
Training	Free operator training at dealer locations
Remote Support	✅ 24/7 remote diagnostic support via XCMG cloud

🏁 Conclusion

The XCMG LW50GV is an excellent 5-ton wheel loader that delivers near-premium performance at mid-range pricing. With its Weichai engine, load-sensing hydraulics, intelligent weighing system, and robust construction, it is ideal for customers who want reliability, productivity, and value for money — making it one of the best-selling wheel loaders globally in its class.
