Used Xcmg 50GNLoader

Reading: 32

🏢 Overview

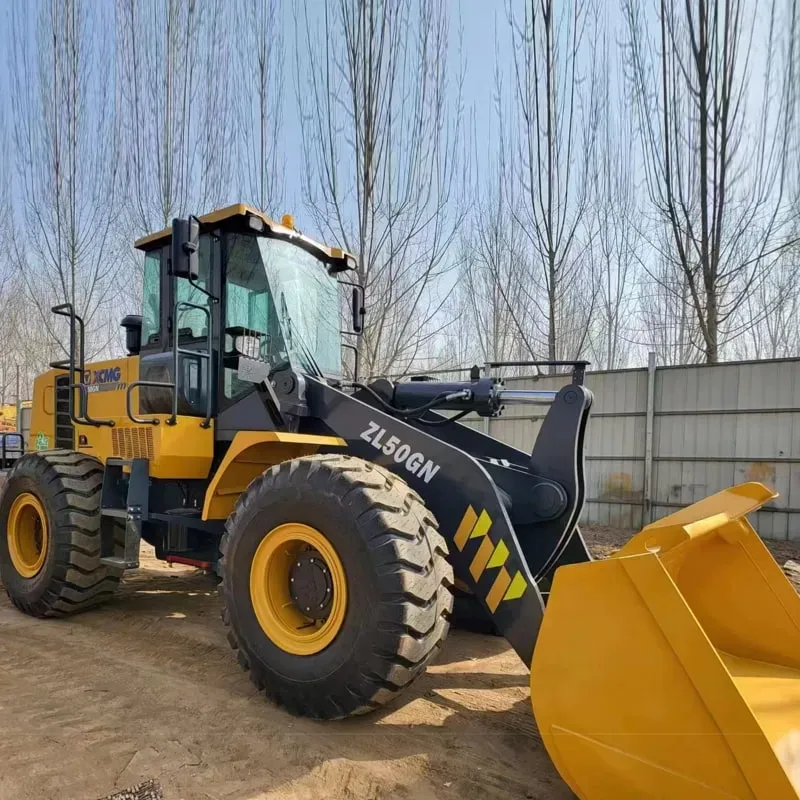

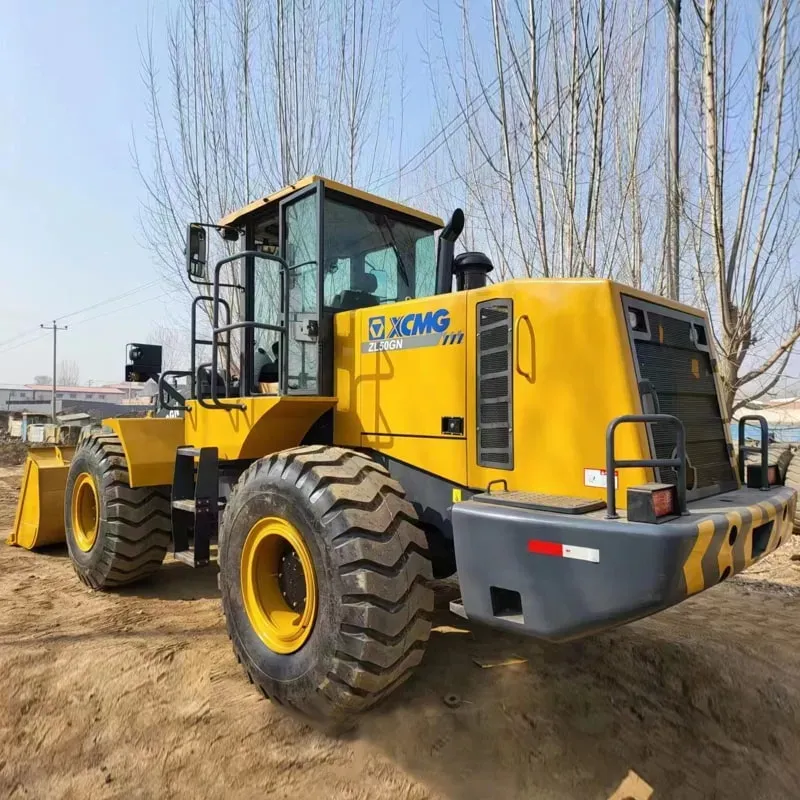

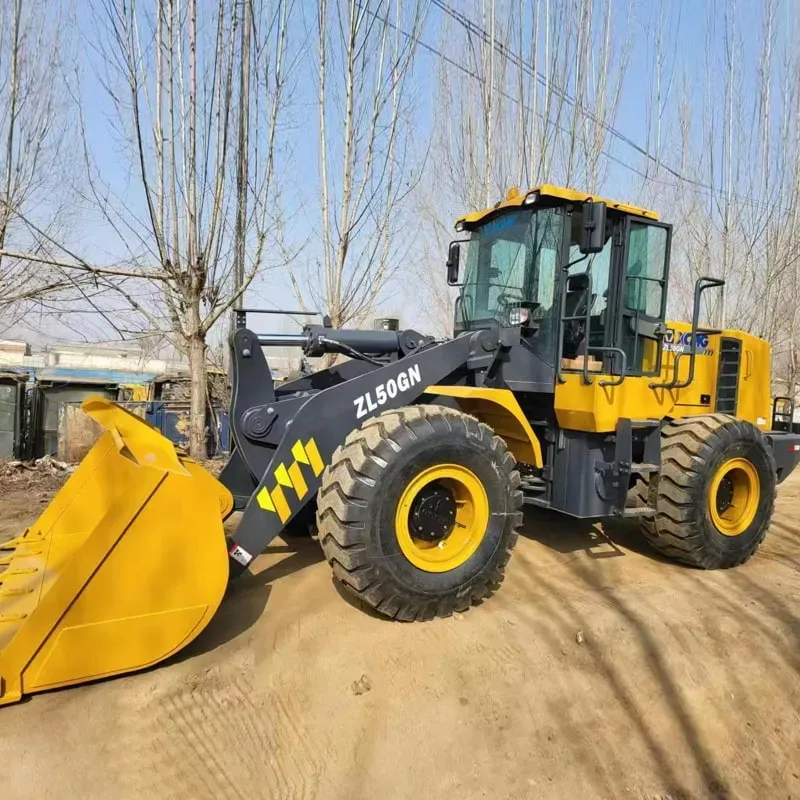

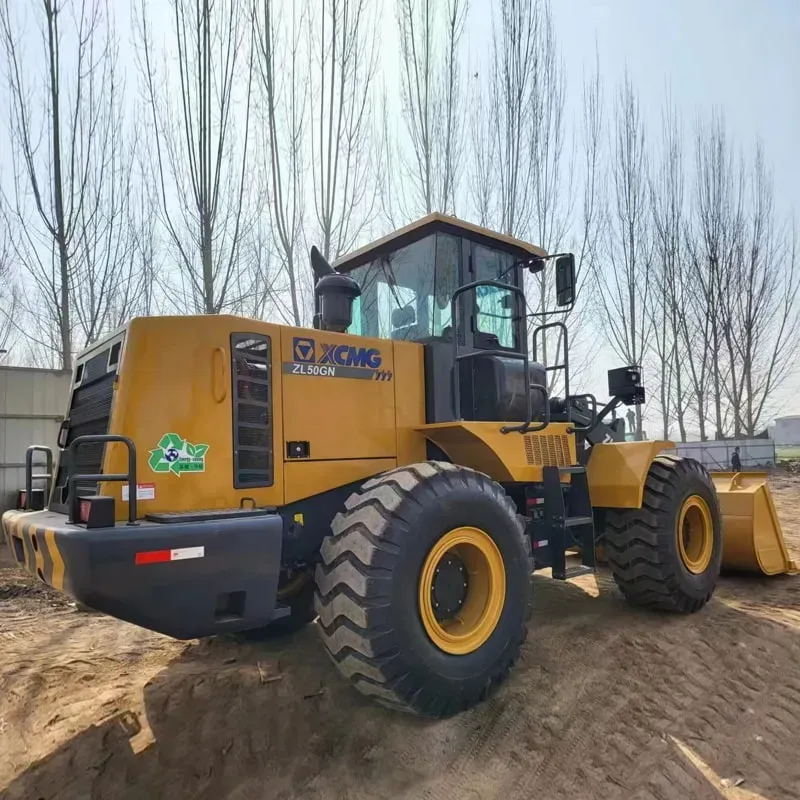

The XCMG LW50GN is a 5-ton (5,000 kg rated load capacity) wheel loader manufactured by XCMG Group, China's largest and one of the world's top construction machinery makers. The "GN" suffix typically indicates a green/energy-efficient & national-standard (China IV emission) variant, designed for high efficiency, low fuel consumption, and strong performance in heavy-duty operations.

📋 Key Technical Specifications

Parameter	Specification
Model	LW50GN
Type	Wheel Loader
Rated Bucket Capacity	3.0 – 3.5 m³
Rated Load Capacity	5,000 kg (5 tons)
Operating Weight	~17,000 – 17,500 kg
Engine Model	Weichai WD10G220E21 (or similar)
Engine Power	~162 kW (217 hp) @ 2,000 rpm
Emission Standard	China IV / Tier 3 (equivalent)
Transmission	Power-Shift Transmission (8F/8R)
Max. Dumping Height	~3,100 – 3,200 mm
Max. Dumping Reach	~1,100 – 1,200 mm
Max. Digging Depth	~140 – 150 mm
Max. Breakout Force	~175 – 180 kN
Max. Travel Speed	~38 km/h
Gradeability	30° (~58%)
Tire Size	23.5-25 (Standard)
Fuel Tank Capacity	~300 L
Hydraulic System	Load-Sensing Closed-Center System

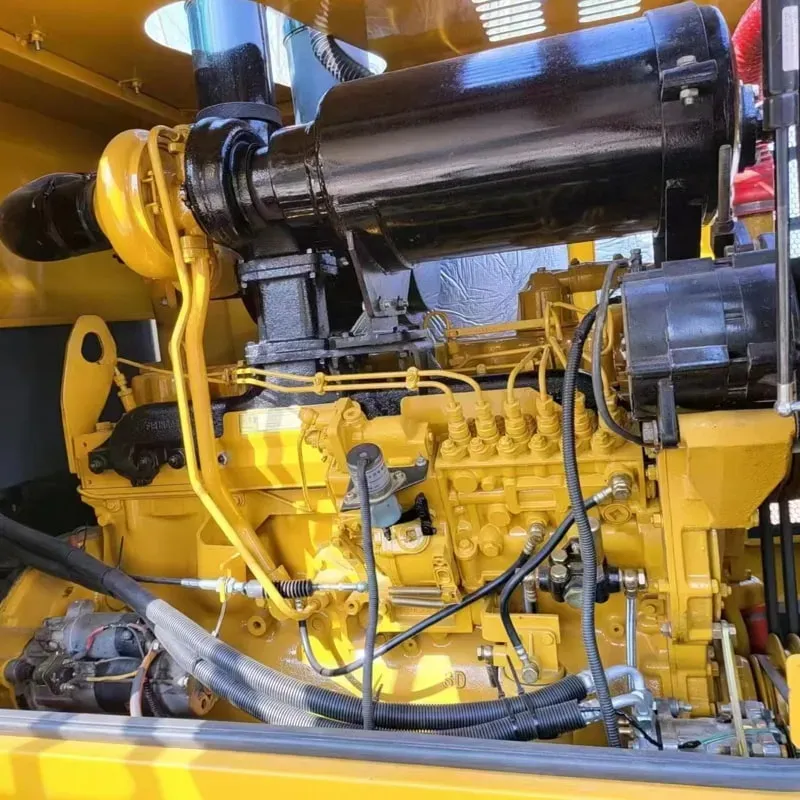

🔧 Engine & Powertrain

Feature	Detail
Engine Brand	Weichai (潍柴) — China's leading heavy-duty engine manufacturer
Type	6-cylinder, turbocharged, intercooled diesel
Displacement	~9.7 L
Fuel System	Common Rail Direct Injection (CRDI)
After-treatment	DOC + DPF + SCR (for emission compliance)

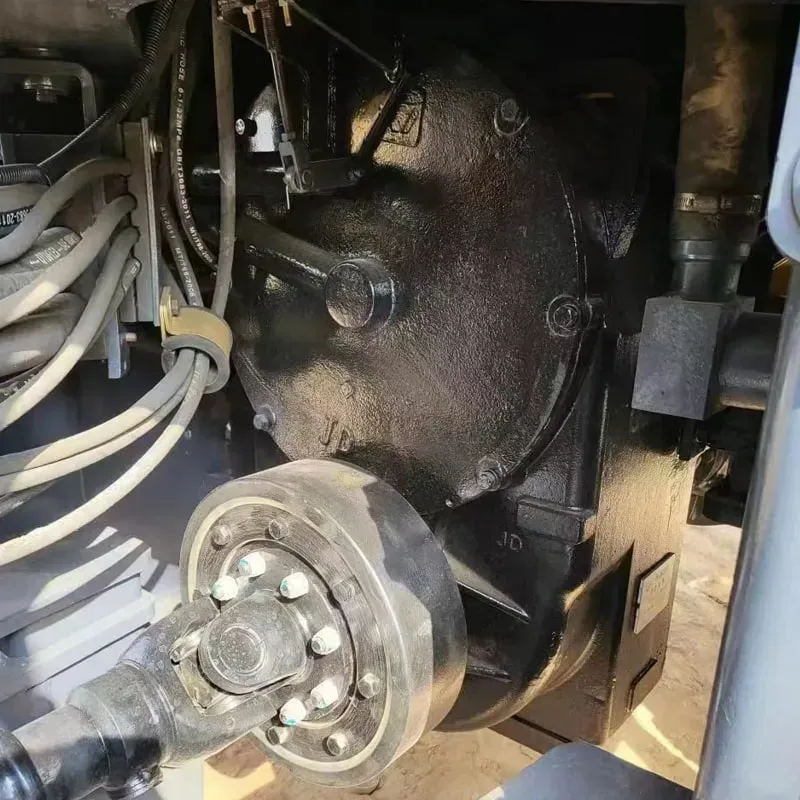

Transmission	XCMG proprietary power-shift gearbox, 8 forward / 8 reverse gears
Drive System	Full hydraulic drive with planetary final drives

✅ The Weichai engine is known for high torque at low RPM, providing excellent loading and digging performance with good fuel economy.

🏗️ Structural & Design Highlights

1. Reinforced Frame & Articulation

Central pivot articulation with large-diameter pins for durability
Heavy-duty Z-bar linkage for high breakout force
Reinforced boom and arm with high-strength steel (Q690/Q960 grade)

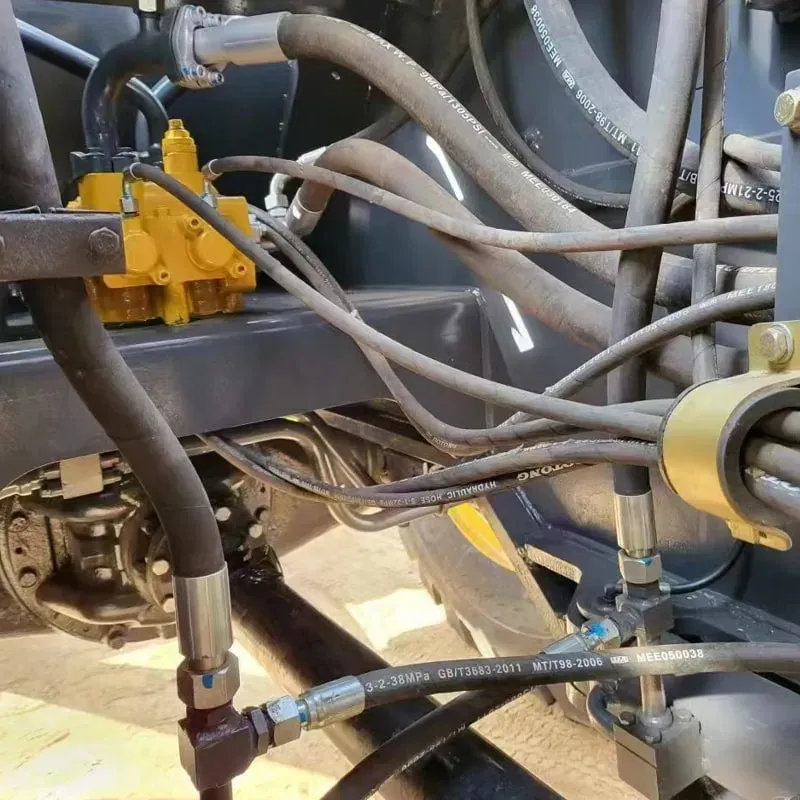

2. Hydraulic System

Load-sensing (LS) hydraulic system — flow matches demand → saves fuel
Priority steering — ensures smooth steering even under full load
Fast lift/tilt cycle time (~5.5–6.0 seconds)

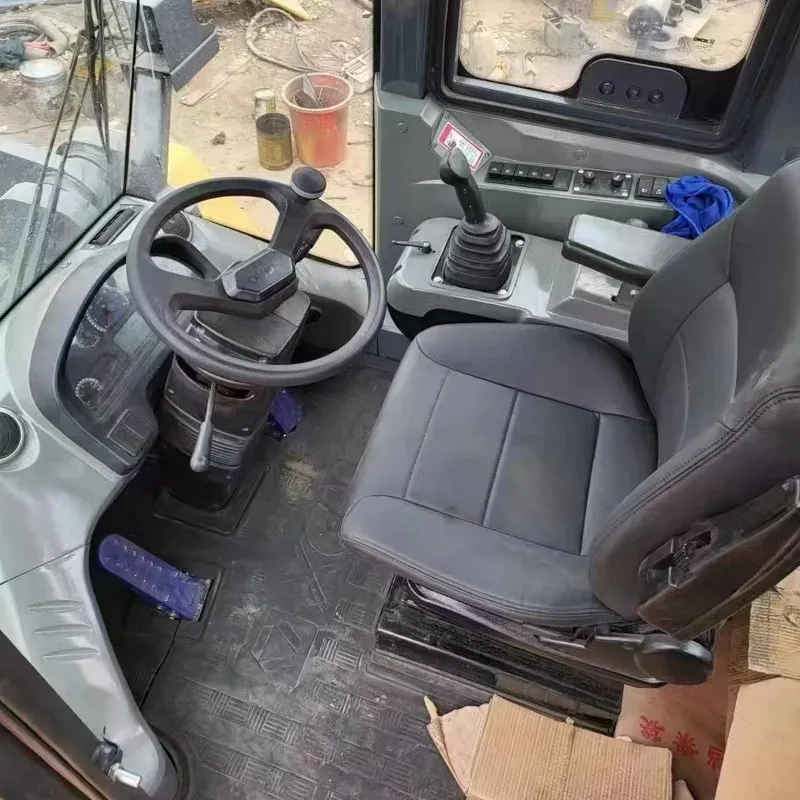

3. Cab & Operator Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Air Conditioning	Standard with heater
Seat	Suspended, air-cushioned, adjustable
Display	LCD monitor with engine diagnostics, fuel level, working hours
Noise Level	≤ 75 dB(A) (relatively quiet for its class)
Visibility	Large glass area, rear-view camera available

4. Tires & Axles

Heavy-duty planetary hub reduction axles
Optional radial tires (23.5-25) for better traction and longer life
Central tire inflation system (optional)

⚡ Performance Highlights

Performance Metric	Value
Full Bucket Cycle Time	~5.5 – 6.0 sec
Max. Tractive Force	~170 kN
Fuel Consumption	~28 – 32 L/hour (typical working condition)
Working Efficiency	~150 – 200 m³/hour (depending on material)

🔋 The GN variant is optimized for ~8-15% better fuel efficiency compared to the standard LW500K model, thanks to the engine-transmission matching and LS hydraulics.

🛠️ Applications

The LW50GN is designed for heavy-duty operations in:

Application	Description
🏗️ Mining & Quarries	Loading rock, ore, gravel
🏭 Construction Sites	Loading sand, soil, aggregate
🚛 Logistics & Ports	Material handling, stockpiling
🏢 Municipal Works	Snow removal (with snow bucket), landfill
🪵 Forestry	Log loading (with fork/grapple attachment)
🔄 Recycling	Scrap metal, waste handling

🆚 Competitive Comparison

Feature	XCMG LW50GN	SDLG LG956L	LiuGong CLG856H	Cat 950 GC
Rated Load	5,000 kg	5,000 kg	5,000 kg	5,000 kg
Engine Power	162 kW	162 kW	162 kW	169 kW
Bucket Cap.	3.0–3.5 m³	3.0 m³	3.0 m³	3.0–3.8 m³
Transmission	Power-Shift 8F/8R	Power-Shift 8F/8R	Power-Shift 8F/8R	Power-Shift
Price (Approx.)	💰💰	💰💰	💰💰	💰💰💰💰
Value for Money	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐

✅ XCMG LW50GN offers excellent value for money with strong after-sales support (XCMG has one of the largest service networks globally).

🌐 After-Sales & Support

Item	Detail
Warranty	12 months / 2,000 hours (whichever comes first)
Spare Parts	XCMG has global parts distribution in 190+ countries
Service Network	300+ service stations worldwide
Remote Diagnostics	XCMG X-Connet telematics system available
Training	Operator training programs available at XCMG centers

✅ Summary — Why Choose XCMG LW50GN?

Strength	Explanation
💪 Powerful	162 kW Weichai engine + strong hydraulics
⛽ Fuel Efficient	Load-sensing hydraulics + optimized powertrain
🛡️ Durable	Heavy-duty frame, boom, axles — built for tough conditions
🧑‍✈️ Comfortable	Modern cab with excellent visibility & low noise
💰 Cost-Effective	Lower purchase price than CAT/Komatsu, with comparable performance
🌍 Global Support	XCMG's massive service network worldwide
🌱 Eco-Friendly	China IV emission, lower fuel burn = lower CO₂

📌 The XCMG LW50GN is one of the best-selling 5-ton wheel loaders in China and increasingly popular in Southeast Asia, Africa, the Middle East, South America, and Eastern Europe. It represents the sweet spot between performance, reliability, and affordability in the 5-ton class.
