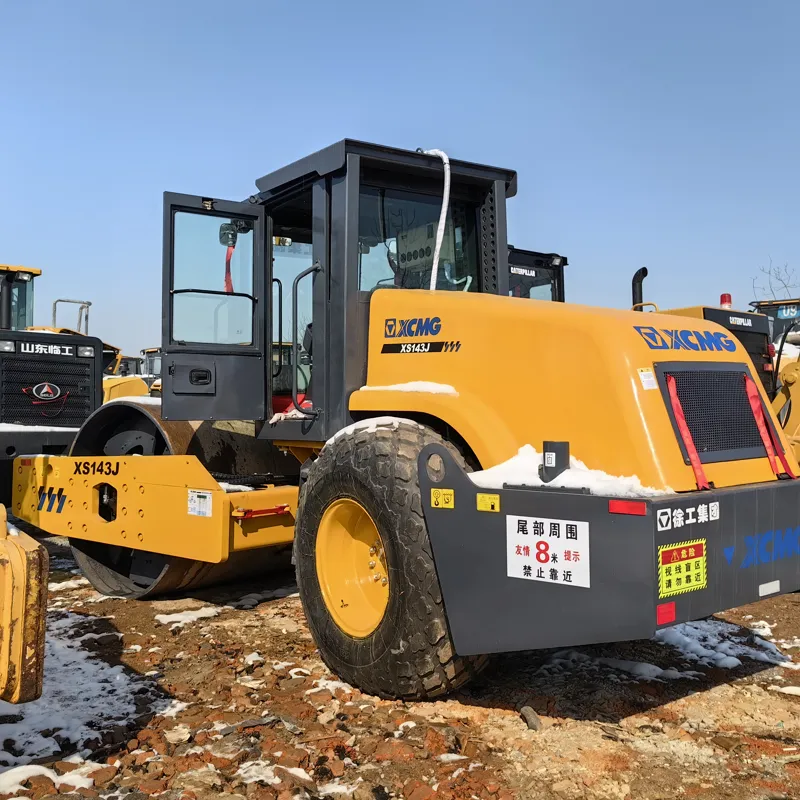

Used Xcmg XS143J Roller

Reading: 20

📌 1. OVERVIEW

The XCMG XS143J is a mechanical single-drum vibratory road roller manufactured by XCMG Group, one of the world's top 5 construction machinery manufacturers. It belongs to XCMG's "J" series (mechanical drive) single drum rollers, designed primarily for asphalt pavement compaction in municipal roads, highways, and industrial sites.

Item	Specification
Model	XS143J
Type	Single Drum, Vibratory, Mechanical Drive
Operating Weight	~14,000 kg (14 tons)
Manufacturer	XCMG (Xuzhou Construction Machinery Group)
Application	Asphalt compaction (highway, municipal, industrial)

🔧 2. KEY TECHNICAL SPECIFICATIONS

Parameter	Details
Operating Weight	14,000 kg

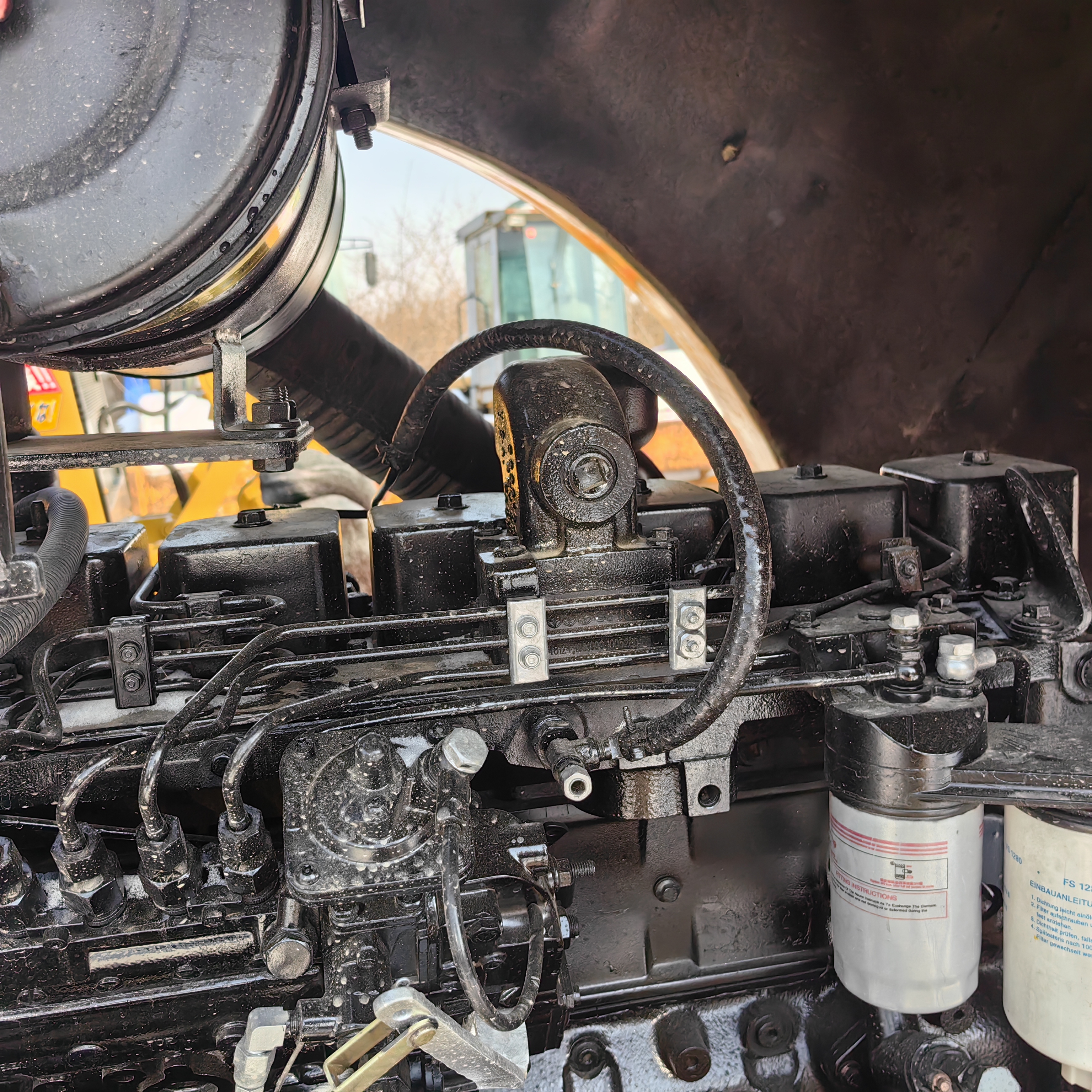

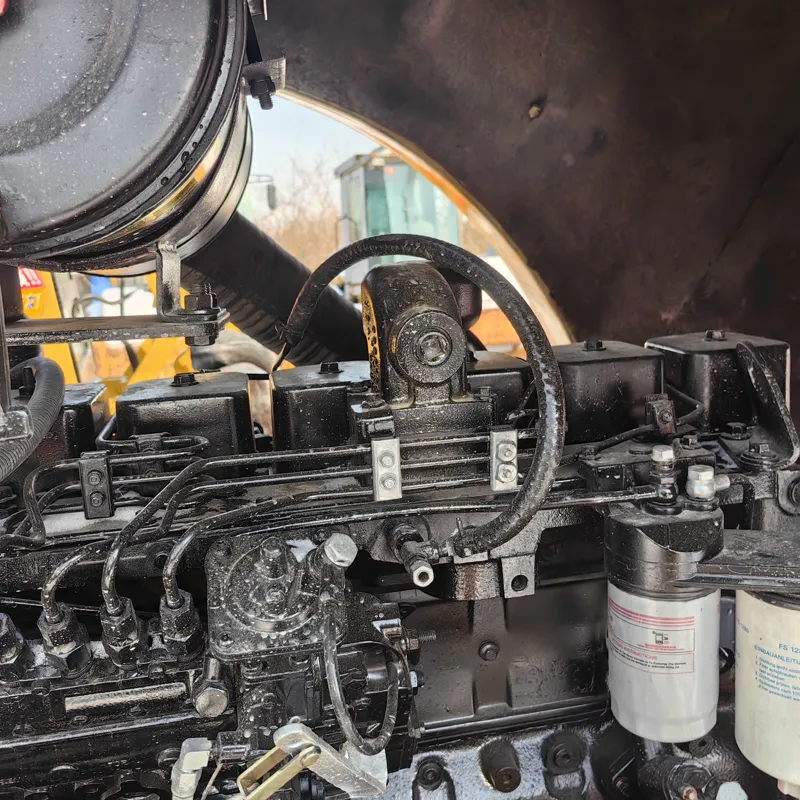

Engine Model	Yuchai YC6B125 / Chaochai (commonly)
Engine Power	~93–125 kW (125–170 HP)
Vibration Frequency	28–30 Hz
Centrifugal Force	230–250 kN
Drum Diameter	1,600 mm
Drum Width	2,130 mm
Travel Speed	0 – 10 km/h (variable)
Gradeability	35% (max)
Water Tank Capacity	~500 L
Fuel Tank Capacity	~200 L
Turning Radius	~3,600 mm (outer)

& 3. MAJOR SYSTEMS & FEATURES

🏗️ 3.1 Vibration System

Mechanical vibratory drive (no hydrostatic system → simpler, more reliable, lower maintenance)
Dual-amplitude design: High amplitude for thick layers; low amplitude for thin surface layers
Centrifugal force up to 250 kN → excellent compaction efficiency
Vibration frequency of 28–30 Hz provides optimal compaction for asphalt

🛞 3.2 Drive System

Fully mechanical transmission
Hydraulic steering for precise maneuverability
Wet brake system for safe and reliable stopping
Climbing ability of 35% → suitable for hilly terrain

🥁 3.3 Drum

1,600 mm diameter steel drum with replaceable wear-resistant segments
2,130 mm compaction width → high work efficiency per pass
Sprinkler system with 500L water tank to prevent asphalt sticking
Drum can be easily disassembled for maintenance

🪑 3.4 Operator Cab

ROPS/FOPS certified cab (Rollover/Falling Object Protection)
Air-conditioned cab for operator comfort
Ergonomic control layout with intuitive levers
Wide-angle visibility for safety
Vibration-isolated seat to reduce operator fatigue

✅ 4. KEY ADVANTAGES

Advantage	Description
🔩 Simple & Reliable	Fully mechanical drive = fewer failures, easier maintenance
💪 High Compaction	250 kN centrifugal force ensures dense asphalt layers
🛠️ Low Maintenance Cost	Mechanical system = less hydraulic components to repair
🏔️ Good Climbing	35% gradeability for hilly road construction
💰 Cost-Effective	Competitive pricing for the 14-ton class
🌏 Wide Application	Suitable for highways, urban roads, parking lots, airports

📊 5. COMPARISON WITH SIMILAR MODELS

Model	Weight	Drive	Drum Width	Feature
XS143J	14T	Mechanical	2,130 mm	Simple, low cost
XS142J	14T	Mechanical	1,680 mm	Narrower drum
XS143	14T	Hydraulic	2,130 mm	More advanced, higher cost
XS163J	16T	Mechanical	2,130 mm	Heavier, more force

💡 The "J" suffix = Mechanical drive (simple, durable, economical)Without "J" = Hydraulic drive (more advanced, higher cost)

🌍 6. APPLICATION SCENARIOS

Scenario	Suitability
🛣️ Highway asphalt paving	⭐⭐⭐⭐⭐
🏙️ Municipal road construction	⭐⭐⭐⭐⭐
🅿️ Parking lot paving	⭐⭐⭐⭐
🏭 Industrial site compaction	⭐⭐⭐⭐
✈️ Airport runway (base layer)	⭐⭐⭐

🛠️ 7. MAINTENANCE HIGHLIGHTS

Item	Interval (Approx.)
Engine oil change	250 hours
Hydraulic oil change	500 hours
Drive belt inspection	500 hours
Vibration bearing greasing	50 hours
Drum segment replacement	As needed (wear-based)

📝 8. SUMMARY

Aspect	Rating
Compaction Performance	⭐⭐⭐⭐⭐
Reliability	⭐⭐⭐⭐⭐
Operator Comfort	⭐⭐⭐⭐
Maintenance Ease	⭐⭐⭐⭐⭐
Cost-Effectiveness	⭐⭐⭐⭐⭐

🏆 Bottom Line: The XCMG XS143J is an excellent entry-to-mid-range mechanical road roller ideal for contractors who prioritize reliability, low maintenance, and cost efficiency. It's one of XCMG's best-selling models in the 14-ton class, especially popular in Southeast Asia, Middle East, Africa, and South America.

Note: Some specifications may vary slightly by market/region. Always refer to the official XCMG datasheet for the exact configuration in your area. 🏗️
