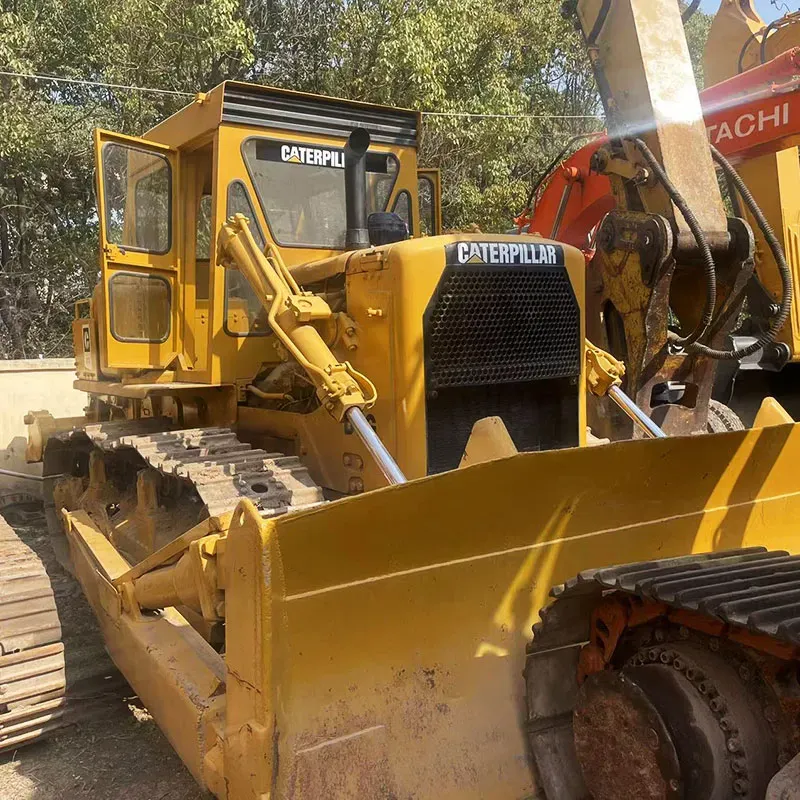

Used Caterpillar D7GBulldozer

Reading: 18

📌 Overview

Item	Detail
Manufacturer	Caterpillar Inc.
Series	G-Series (2nd Generation)
Production Years	~1987 – 1996
Predecessor	D7F
Successor	D7H
Class	Medium-sized Crawler Dozer

The D7G was one of Caterpillar's most popular mid-range bulldozers, widely used in construction, road building, mining, land clearing, pipeline work, and general earthmoving.

🔧 Engine

Specification	Detail
Model	Cat 3176B TA
Type	6-cylinder, turbocharged, aftercooled diesel
Displacement	637 cu in (10.4 L)
Bore × Stroke	5.0 × 5.4 in (127 × 137 mm)
Rated Power	250 hp (186 kW) @ 2,200 rpm
Torque	~710 lb-ft (963 Nm)
Emissions	Pre-Tier 4 (mechanical injection)

The 3176B was known for its ruggedness and reliability, making it a workhorse engine for demanding applications.

& Transmission & Drivetrain

Specification	Detail
Type	Powershift
Gears	6 Forward / 3 Reverse
Final Drive	Planetary
Track Width	24 in (610 mm)
Track Shoes	24 in (610 mm) wide, single grouser or dual grouser options

📐 Dimensions & Weight

Specification	Detail
Operating Weight	~47,000 – 48,000 lbs (21,319 – 21,772 kg)
Length (w/ blade)	22.8 ft (6.95 m)
Width	11.4 ft (3.47 m)
Height (to ROPS top)	11.0 ft (3.35 m)
Ground Pressure	~7.9 psi (54.5 kPa)
Fuel Capacity	125 gal (473 L)

🔩 Blade & Ripper Specifications

Component	Specification	Capacity
Straight (S) Blade	12'4" × 44" (3.76 × 1.12 m)	4.4 cu yd (3.4 m³)
Universal (U) Blade	12'4" × 44" (3.76 × 1.12 m)	5.5 cu yd (4.2 m³)
Semi-U Blade	12'4" × 44"	5.0 cu yd (3.8 m³)
Ripper	Single shank	14.1 cu yd (10.8 m³)
Tilt Cylinder	Hydraulic, 30° each direction	—
Lift Cylinder	Hydraulic	—

🛢️ Hydraulic System

Specification	Detail
Pump Type	Gear pump
Flow Rate	36 gpm (136 L/min)
System Pressure	3,500 psi (24,130 kPa)
Auxiliary Flow	Available (varies by config)

🚀 Speed & Performance

Direction	Speed Range
Forward	0 – 7.5 mph (0 – 12.1 km/h)
Reverse	0 – 8.5 mph (0 – 13.7 km/h)
Max Drawbar Pull	~34,000 lbs (151 kN)
Gradeability	~30° (58%)

🪑 Operator Comfort & Safety (G-Series Improvements)

The G-series was a major upgrade over the F-series, introducing:

Feature	Benefit
✅ Improved ROPS/FOPS Canopy	Better rollover & falling object protection
✅ Enhanced Sound Insulation	Reduced noise to ~82 dB(A)
✅ Air-Suspension Seat	Improved operator comfort on long shifts
✅ Better Visibility	Redesigned hood & ROPS for improved sightlines
✅ Climate Control	Heater & A/C available
✅ Improved Instrumentation	Better gauges & monitoring
✅ Wider Track	24" vs 20" on F-series = better stability

🏗️ Common Applications

Application	Description
🛣️ Road Construction	Grading, sub-base preparation
🏔️ Mining	Overburden removal, haul road maintenance
🌲 Land Clearing	Pushing trees, brush, debris
🔧 Pipeline Work	Trenching, backfilling
🏗️ General Earthmoving	Site prep, stockpiling, backfilling
❄️ Snow Removal	With straight blade attachment

📊 D7G vs Comparable Models

Model	Power	Weight	Production
D6G	205 hp	~40,000 lbs	1986–1996
⭐ D7G	250 hp	~47,000 lbs	1987–1996
D8N	295 hp	~53,000 lbs	1987–1996
D7H	250 hp	~49,000 lbs	1996–2001

The D7G sits in the "sweet spot" — powerful enough for heavy work but more fuel-efficient and easier to transport than the D8.

✅ Strengths & ⚠️ Weaknesses

✅ Strengths	⚠️ Weaknesses
Extremely reliable 3176B engine	No electronic engine management (harder to diagnose)
Excellent parts availability	Higher fuel consumption vs modern Tier 4 machines
Simple, field-serviceable design	Older hydraulics (lower flow vs modern dozers)
Low ground pressure for its size	No GPS/machine control from factory
Strong aftermarket support	Cab noise still noticeable vs modern standards
Proven in the harshest conditions	Emissions don't meet current Tier 4 Final standards

💰 Market Value (2024 Estimate)

Condition	Price Range (USD)
Fair / Working	$35,000 – $60,000
Good / Low Hours	$60,000 – $90,000
Excellent / Restored	$90,000 – $120,000+

💡 The D7G remains one of the most sought-after used dozers due to its simplicity, reliability, and massive parts availability worldwide.

🏁 Summary

The Caterpillar D7G is a legendary mid-size bulldozer that defined the 1980s–90s earthmoving industry. With its 250 hp 3176B engine, 5.5 cu yd U-blade capacity, and legendary durability, it earned a reputation as one of Cat's most dependable machines. Even today, decades after production ended, thousands of D7Gs are still working on job sites around the world — a testament to Caterpillar's engineering excellence.
