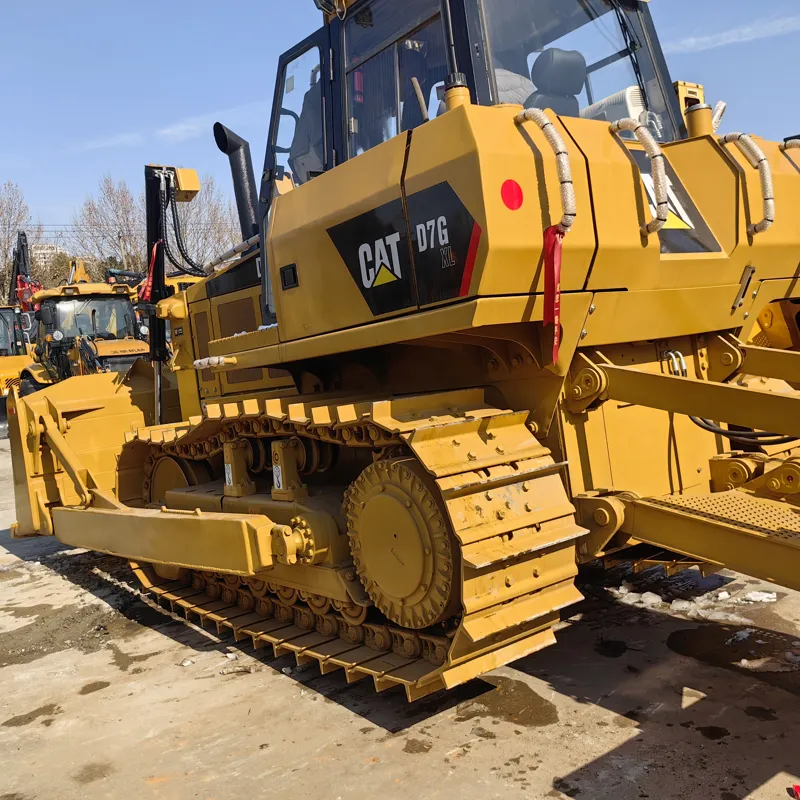

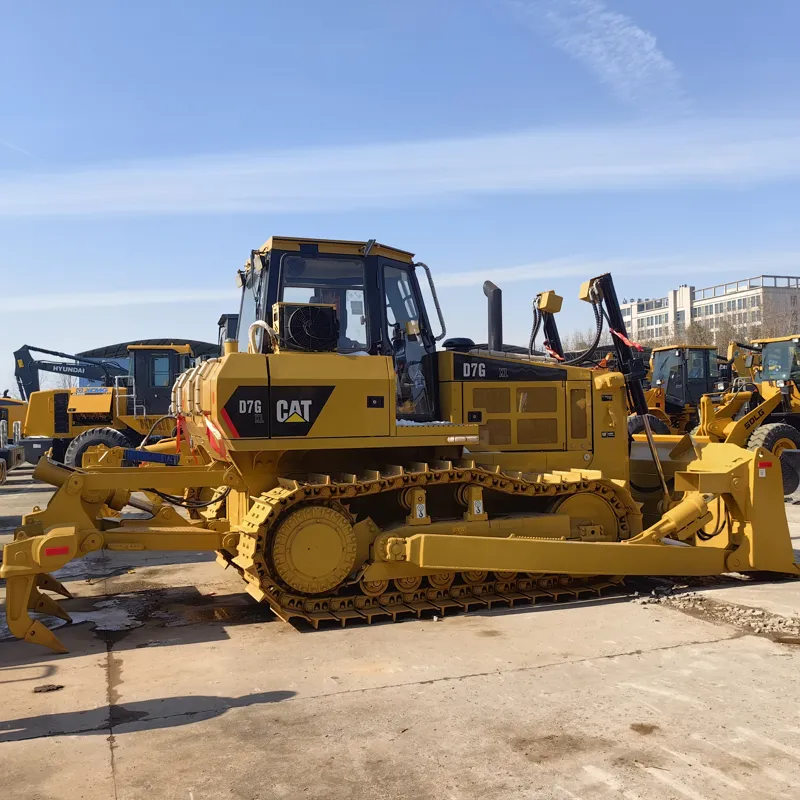

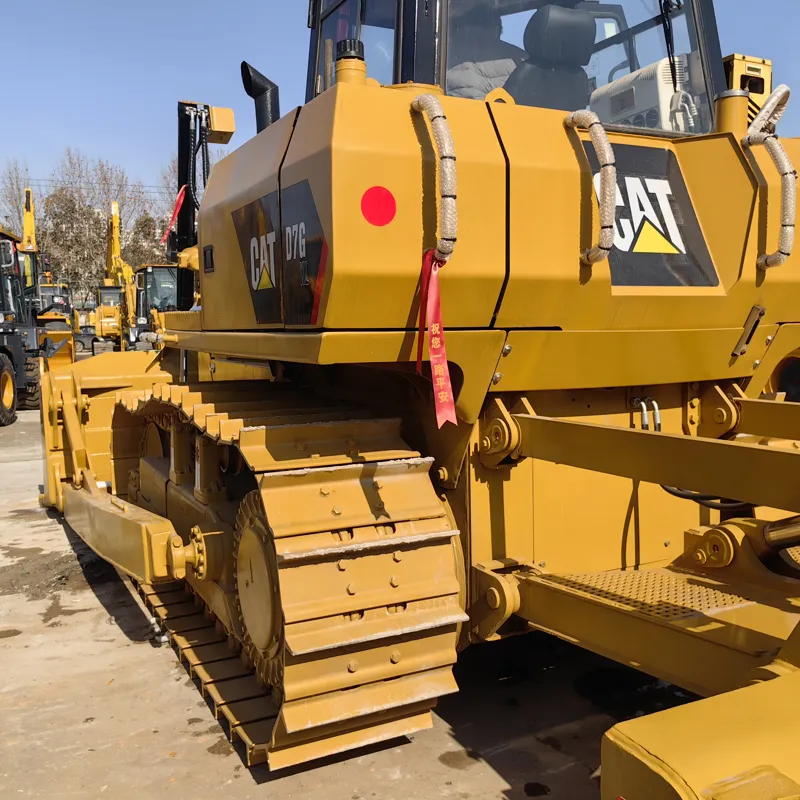

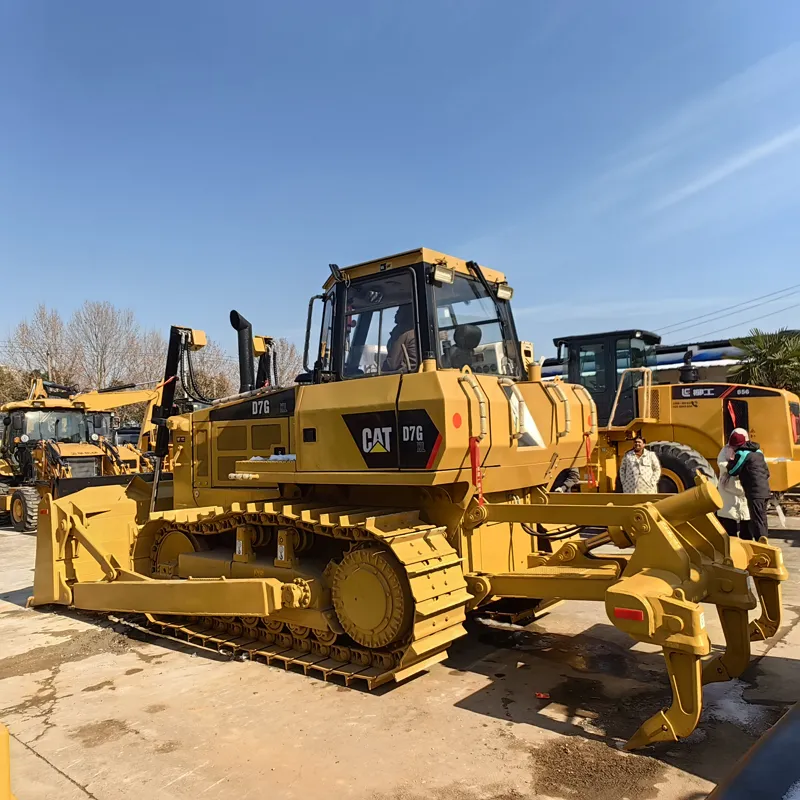

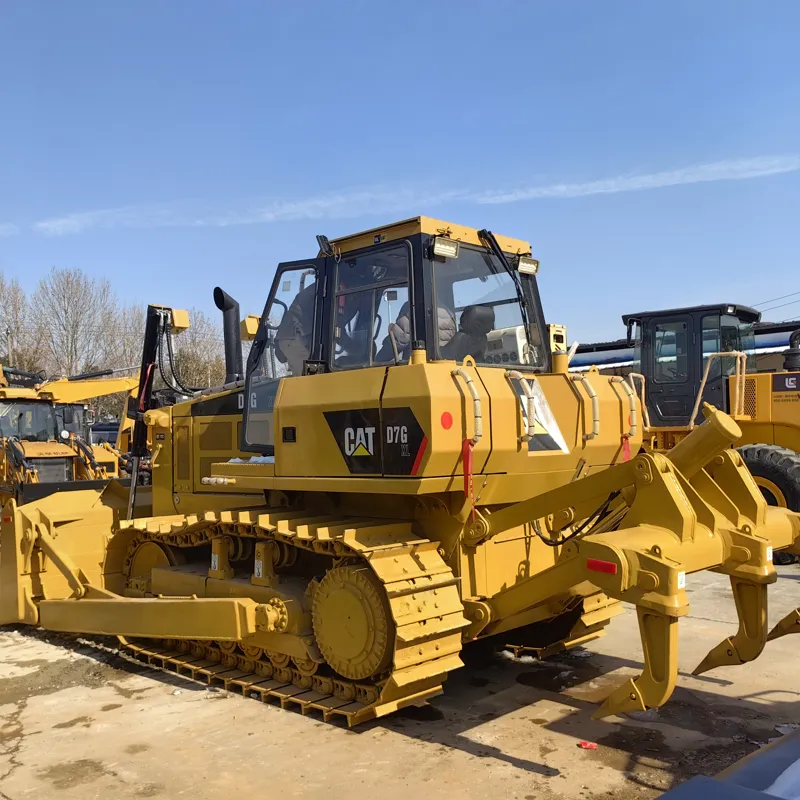

Used Caterpillar D7GBulldozer

Reading: 22

📌 Overview

The Caterpillar D7G is a medium-sized crawler tractor (bulldozer) manufactured by Caterpillar Inc. It was produced from 1989 to 1994 as part of the "G-Series" lineup. The D7G replaced the D7F and was later succeeded by the D7H in 1994. It was designed for heavy earthmoving, grading, ripping, and pipeline construction work.

🔧 Engine

Specification	Detail
Engine Model	Caterpillar 3196 TA (Turbocharged & Aftercooled)
Later Upgrade	C15 ACERT (in some late models)
Type	6-cylinder, inline, turbocharged diesel
Displacement	918 cubic inches (15.0 L)
Rated Power	250 hp (186 kW) @ 2,200 RPM
Torque Rise	~30%
Fuel System	Electronic unit injection (EUI)
Emissions	Meets EPA Tier 0 / Tier 1 standards

& Power Train

Specification	Detail
Transmission	Power Shift (Planetary)
Gears	6 Forward / 2 Reverse
Final Drives	Sealed & Lubricated
Steering	Clutch & Brake steering (double disc)

📐 Dimensions & Weight

Specification	Detail
Operating Weight	45,770 lbs (20,760 kg)
Length (with blade)	19.7 ft (6.0 m)
Width (over tracks)	11.8 ft (3.6 m)
Height (to ROPS top)	10.4 ft (3.2 m)
Ground Contact Length	8.4 ft (2.56 m)
Track Gauge	7.1 ft (2.16 m)
Track Shoe Width	24 in (610 mm) — single grouser

🔩 Hydraulic System

Specification	Detail
Pump Type	Gear-type
Flow Rate	46 GPM (174 L/min)
System Pressure	3,450 PSI (238 bar)
Lift Capacity (at pin)	~22,000 lbs (9,980 kg)
Blade Download	~11,000 lbs (4,990 kg)
Ripper Lift	~19,000 lbs (8,620 kg)

🔪 Blade Options & Capacities

Blade Type	Capacity	Width	Use
S-Blade (Straight)	4.5 yd³ (3.4 m³)	11.8 ft (3.6 m)	General purpose, fine grading
U-Blade (Universal)	5.4 yd³ (4.1 m³)	12.2 ft (3.7 m)	Heavy material, waste handling
SU-Blade (Semi-U)	5.4 yd³ (4.1 m³)	12.2 ft (3.7 m)	Versatile, combined functions
PAT Blade (Power Angle Tilt)	4.5 yd³ (3.4 m³)	11.8 ft (3.6 m)	Side-casting, finishing
Carrydozer	4.5 yd³ (3.4 m³)	—	Load & carry applications

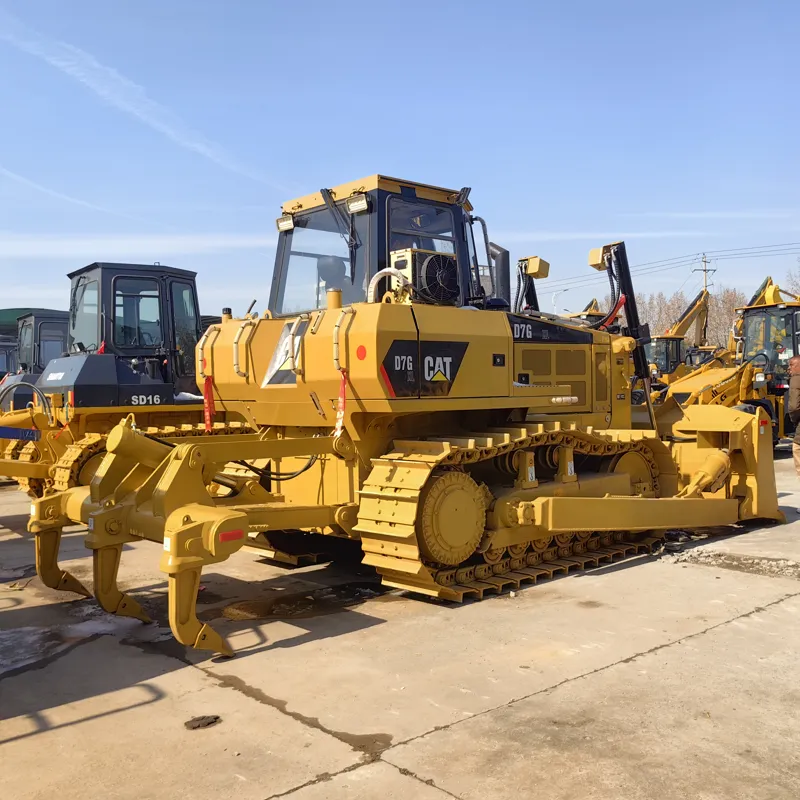

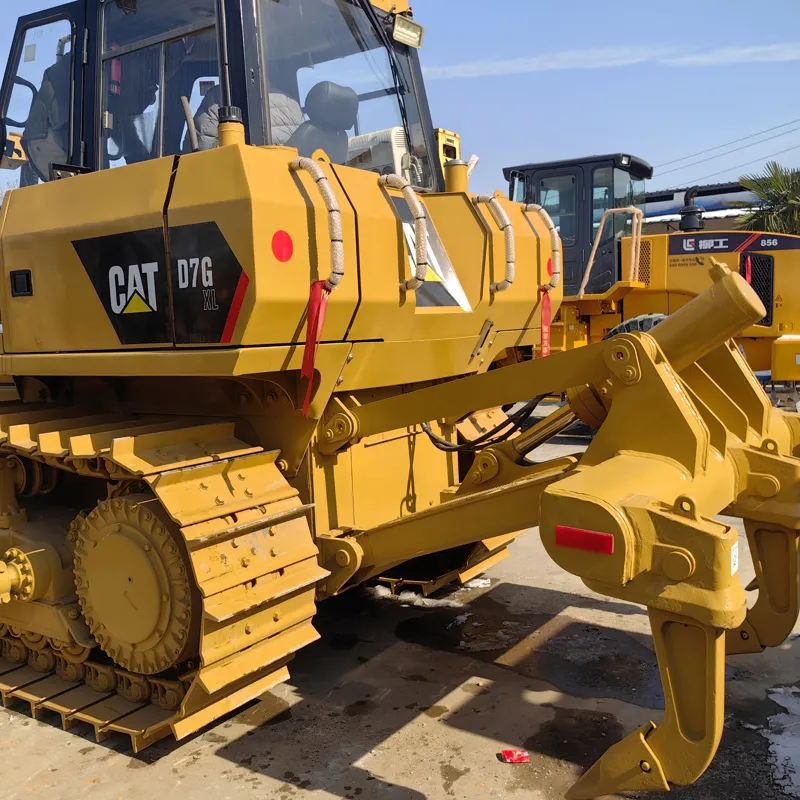

🪓 Ripper

Specification	Detail
Type	Single Shank
Maximum Depth	24 in (610 mm)
Number of Teeth	1 (replaceable tip)
Ripper Lift Capacity	~19,000 lbs
Ripper Down Force	~35,000 lbs (15,875 kg)

⛽ Fuel & Fluids

Specification	Detail
Fuel Tank Capacity	120 US gal (454 L)
Engine Oil	8.7 US gal (33 L)
Hydraulic Tank	20 US gal (76 L)
Cooling System	8.0 US gal (30 L)
Final Drives (each)	2.6 US gal (10 L)
Transmission	14 US gal (53 L)

🛡️ Operator Environment

Feature	Detail
Cab	Enclosed, pressurized ROPS/FOPS certified
Air Conditioning	Standard
Seat	Suspended, fully adjustable
Controls	Lever-operated (joystick optional)
Visibility	Excellent all-around with large glass area
Noise Level	~79 dBA (at operator ear)
Vibration	Low due to engine mounts & cab suspension

🏗️ Applications

Application	Description
✅ Earthmoving & Grading	Road construction, site preparation
✅ Pipeline Construction	Trenching, backfilling
✅ Ripping	Breaking hardpan, rock, frozen ground
✅ Waste Management	Landfill compaction, waste handling
✅ Mining	Overburden removal, haul road maintenance
✅ Forestry	Land clearing, fire line construction
✅ Demolition	Pushing debris, site clearing

📊 Performance Summary

Parameter	Value
Power-to-Weight Ratio	~12.2 hp/ton
Ground Pressure	~7.2 psi (49.6 kPa)
Max Travel Speed (Fwd)	7.6 mph (12.2 km/h)
Max Travel Speed (Rev)	8.8 mph (14.2 km/h)
Gradeability	60% (31°)
Side Slope Ability	30% (17°)
Drawbar Pull (max)	~35,000 lbs

🔄 D7 Series Evolution (Timeline)

Model	Years	Power	Notes
D7F	1986–1989	235 hp	Predecessor
⭐ D7G	1989–1994	250 hp	ACERT engine, improved hydraulics
D7H	1994–1999	250 hp	Improved cab & electronics
D7R	1999–2001	250 hp	Series I
D7R II	2001–2005	250 hp	Series II
D7E	2005–2011	250 hp	ACERT, electronic controls
D7E XR	2011–2014	250 hp	High-lift blade option
D7E3 / D7E4	2014–Present	250 hp	Current model, Tier 4 Final

✅ Advantages of the D7G

Advantage	Explanation
💪 Reliable Engine	Cat 3196/C15 is legendary for durability
🔧 Easy Maintenance	G-series is well-known for serviceability
📦 Parts Availability	Huge aftermarket support worldwide
💰 Good Resale Value	Still in demand in developing markets
& Balanced Power/Weight	Excellent for medium-duty work
🪓 Powerful Ripper	24" penetration is class-leading

⚠️ Limitations

Limitation	Explanation
❌ Older Emissions	Not Tier 4 compliant (limited in some regions)
❌ No GPS/Auto-Grade	Analog controls only (vs. modern E-series)
❌ Lower Fuel Efficiency	Compared to newer D7E3/D7E4 models
❌ Higher Maintenance Costs	As age increases, wear parts become costly

🏁 Summary

The Caterpillar D7G is a rugged, proven, and highly capable medium bulldozer that served the construction and mining industries for over 5 years (1989–1994). With 250 hp, excellent blade/ripper capabilities, and the legendary Cat reliability, it remains a popular machine in the used equipment market, especially in developing countries where its simplicity and durability are highly valued.

🔑 Bottom Line: The D7G is a "workhorse" — not the newest, but one of the most dependable and versatile medium dozers Caterpillar ever built.
