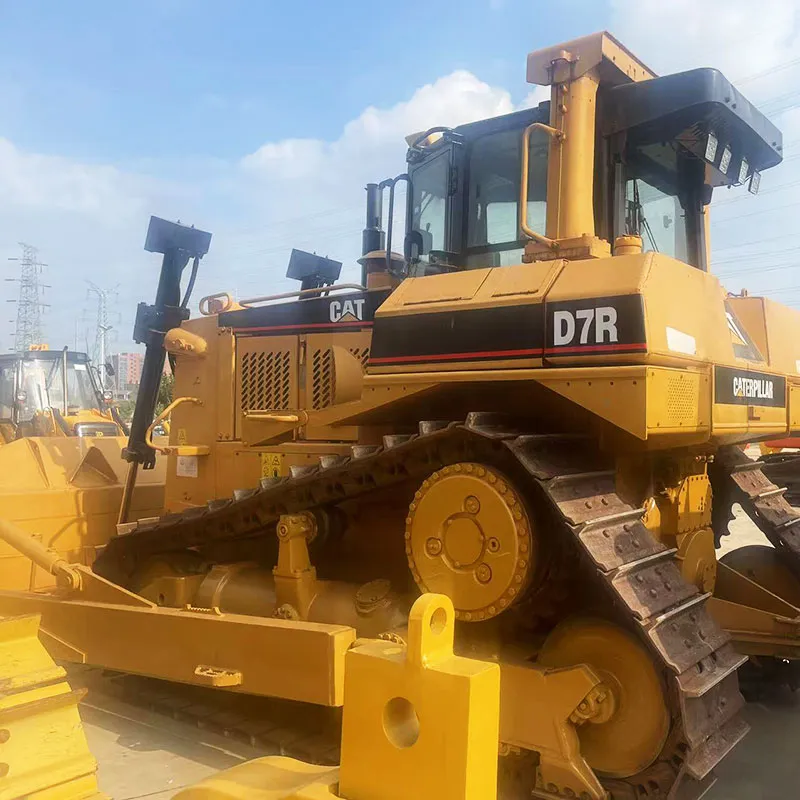

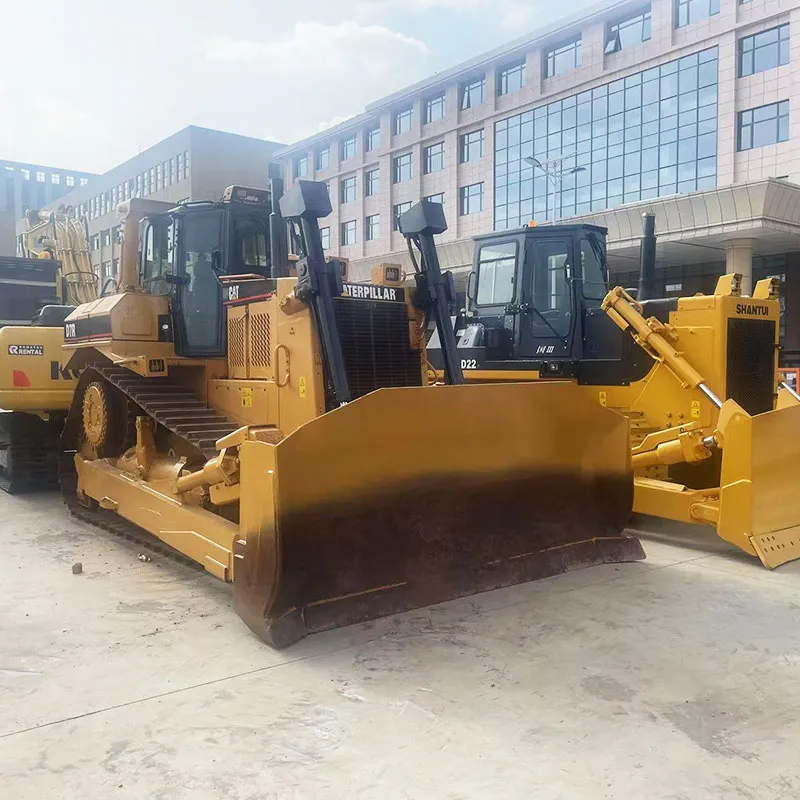

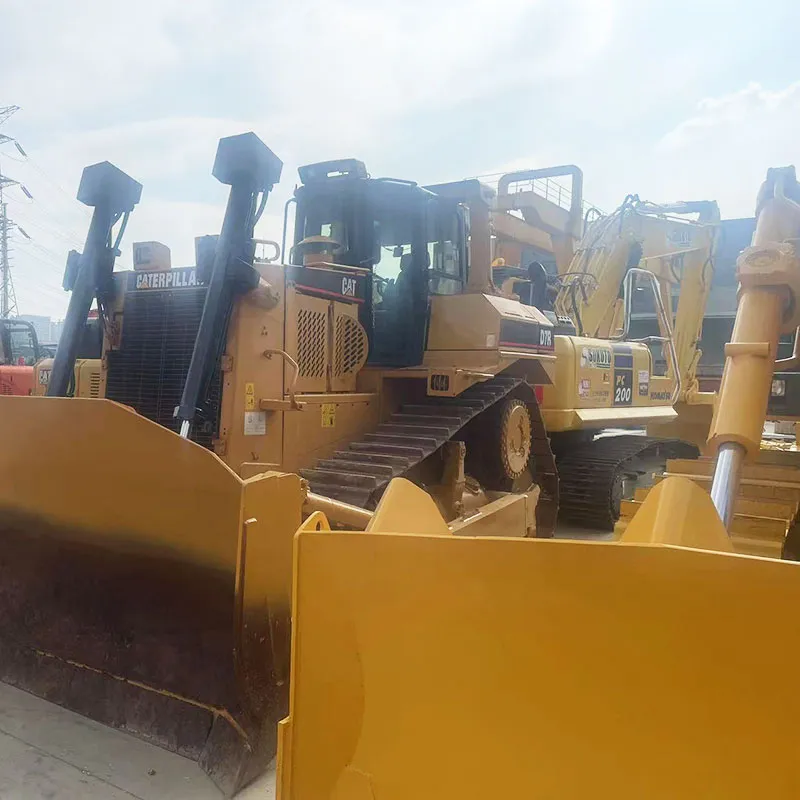

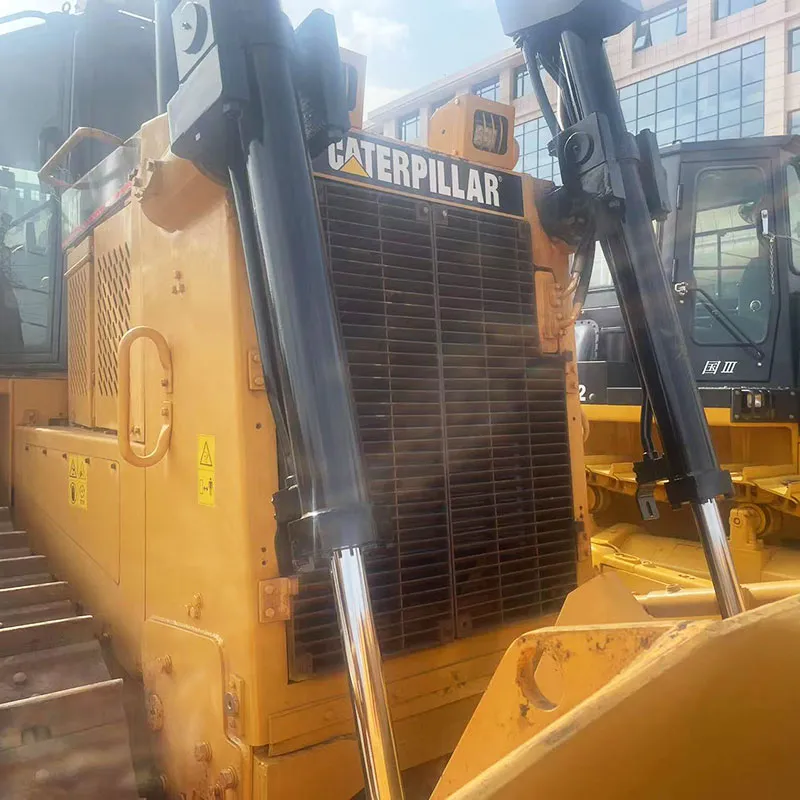

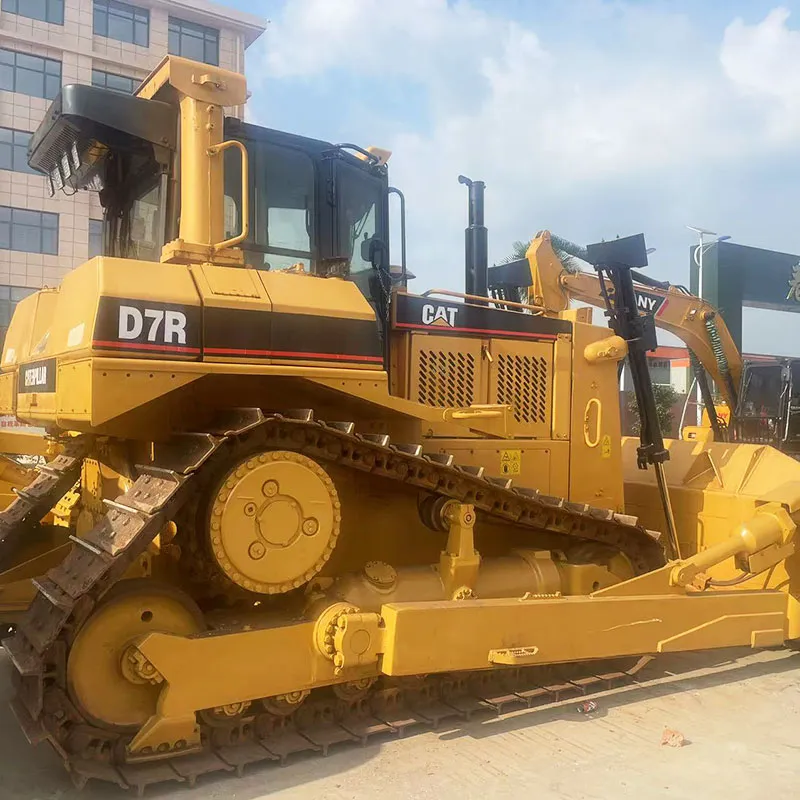

Used Caterpillar D7RBulldozer

Reading: 33

🏗️ Overview

Item	Detail
Manufacturer	Caterpillar Inc.
Type	Medium Track-Type Tractor (Dozer)
"R" Designation	Ripper equipped (comes with single-shank ripper)
Production Years	~1986–1996 (D7R); 1996–2001 (D7R II)
Class	Medium Dozer (between D6 and D8)
Successor	Caterpillar D7E / D7E2 (ACERT Series)

The D7R is one of Caterpillar's most iconic and widely used medium-sized dozers. It earned a strong reputation for power, reliability, versatility, and durability across construction, mining, land clearing, and pipeline industries.

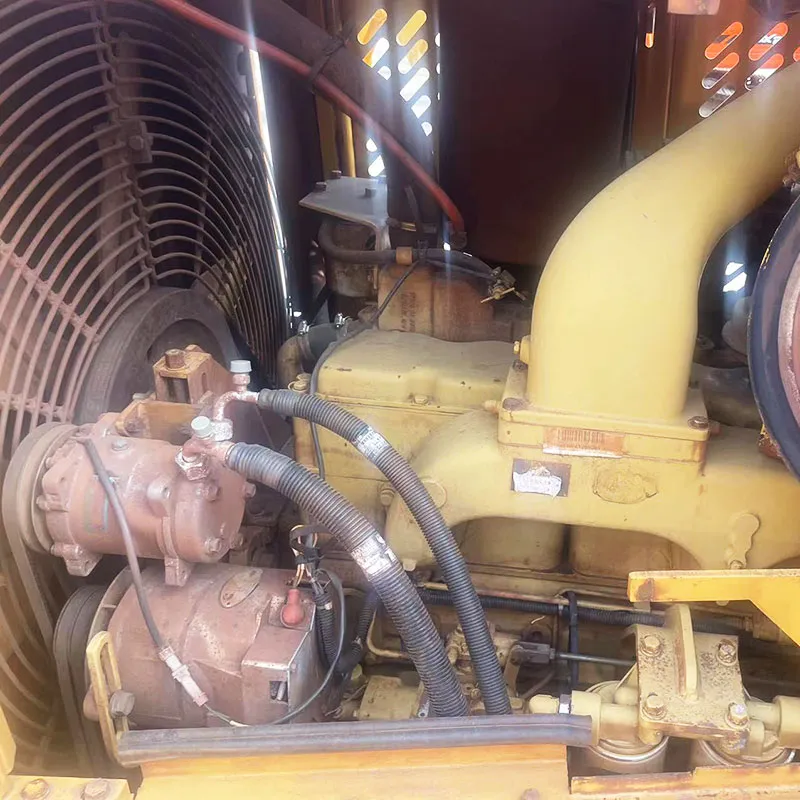

🔧 Engine Specifications

Specification	D7R (Original)	D7R II (Improved)
Engine Model	Cat 3196	Cat C-15 ACERT
Type	6-cylinder, turbocharged, aftercooled diesel	6-cylinder, turbocharged, aftercooled, electronic
Displacement	19.1 L (1,166 in³)	15.2 L (929 in³)
Rated Power	~250 hp (186 kW) @ 2,200 rpm	~250 hp (186 kW) @ 2,200 rpm
Peak Torque	~756 lb-ft (1,025 N·m)	~746 lb-ft (1,011 N·m)
Emissions	Pre-Tier / Tier 0	Tier 1 / ACERT
Fuel Capacity	~120–140 gallons (454–530 L)	~140 gallons (530 L)

✅ The D7R II introduced ACERT (Advanced Combustion Emission Reduction Technology), improving fuel efficiency and reducing emissions while maintaining the same power output.

&mission & Drivetrain

Feature	Detail
Transmission Type	Power Shift (Planetary)
Gears	6 Forward / 2 Reverse
Speeds (Fwd)	0–7.7 mph (0–12.4 km/h)
Speeds (Rev)	0–8.2 mph (0–13.2 km/h)
Torque Converter	Single-stage, lock-up capability
Final Drives	Sealed, lubricated planetary

📐 Dimensions & Weight

Specification	Value
Operating Weight	46,000–48,000 lbs (20,865–21,772 kg)
Ground Length (w/ blade)	~19.5 ft (5.94 m)
Ground Width (tracks)	~9 ft 7 in (2.92 m)
Ground Height (to ROPS)	~10 ft 4 in (3.15 m)
Track Gauge	7 ft 4 in (2.24 m)
Track Shoe Width	24 in (610 mm) — triple grouser pads
Ground Pressure	~7.5–8.0 psi (52–55 kPa)

🔩 Blade Specifications

Blade Type	Straight (S-Blade)	Universal (U-Blade)
Width	12 ft (3.66 m)	14 ft (4.27 m)
Height	4 ft 2 in (1.27 m)	4 ft 8 in (1.42 m)
Capacity	3.8–4.0 yd³ (2.9–3.1 m³)	4.3–4.6 yd³ (3.3–3.5 m³)
Best For	Dozing, grading, finishing	Carrying loose material, stockpiling

🪝 Ripper Specifications

Feature	Detail
Type	Single-shank, rear-mounted
Ripping Depth	18–24 in (457–610 mm) typical
Max Ripping Depth	Up to 28 in (711 mm) in soft ground
Shank Adjustment	Hydraulic — 3 positions (transport, work, deep)
Teeth	Replaceable ripper teeth (chisel or pointed)

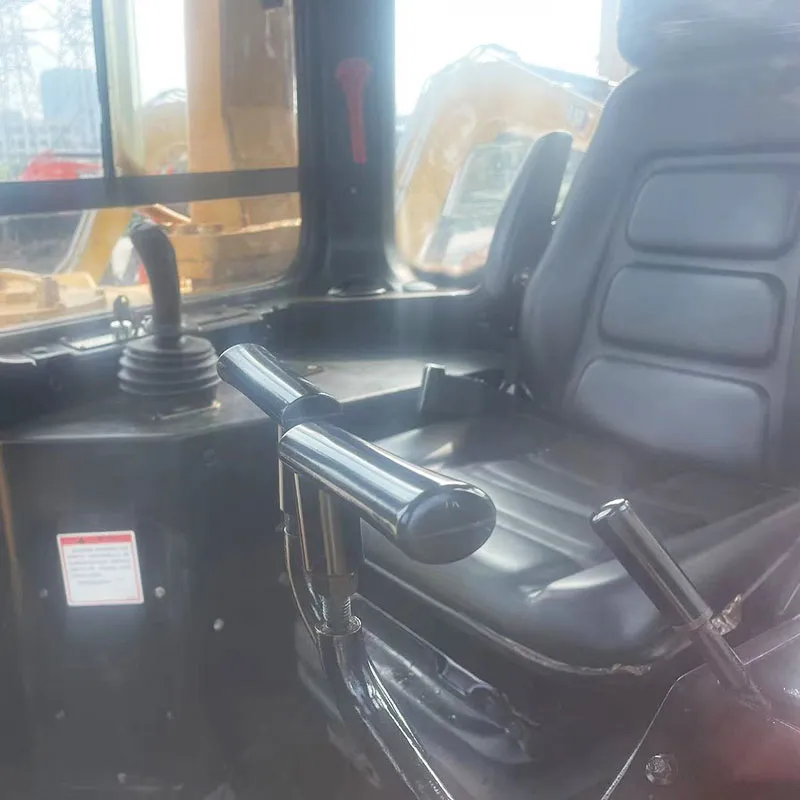

🏢 Cab & Operator Environment

Feature	Detail
Cab Type	ROPS/FOPS certified (Rollover/Falling Object Protection)
Climate Control	Heater & Air Conditioner (standard on D7R II)
Seat	Suspended, adjustable, with armrests
Visibility	Excellent all-around with large glass panels
Controls	Levers for blade, ripper, throttle; foot pedals for direction
Noise Level	~75–78 dB(A) (with ROPS enclosure)
Monitoring	Engine gauges, hour meter, temperature, fuel level

🛠️ Hydraulic System

Specification	Detail
System Pressure	3,480 psi (240 bar)
Flow Rate	~24 GPM (91 L/min)
Blade Control	Hydraulic — tilt, lift, angle, side shift
Ripper Control	Hydraulic — lift, depth, angle

📊 Performance Summary

Parameter	Value
Max Drawbar Pull	~28,000–32,000 lbs (12,700–14,500 kg)
Rimpull (at max torque)	~24,000 lbs (10,900 kg)
Gradeability	Up to 35% (19°) depending on conditions
Fuel Consumption	~5–8 GPH (19–30 L/h) depending on load
Service Life	10,000–15,000+ hours with proper maintenance

🎯 Typical Applications

Application	Description
🏗️ Road Construction	Grading, sub-base preparation, haul road maintenance
🌲 Land Clearing	Pushing trees, brush, stumps (with ripper)
🛢️ Pipeline Construction	Trenching, backfilling, right-of-way clearing
⛏️ Mining (Small-Medium)	Overburden removal, bench dozing
🗑️ Landfill Operations	Spreading, compacting, daily cover
🏚️ Demolition	Pushing debris, site cleanup
🌾 Agriculture	Large-scale earthmoving, pond/levee construction
🌊 Flood Control	Levee building, emergency earthmoving

✅ Strengths (Why It's So Popular)

Strength	Explanation
💪 Powerful	250 hp in a ~47,000 lb machine = excellent power-to-weight ratio
🔧 Reliable	Cat 3196/C-15 are legendary for longevity — 15,000+ hrs common
🔄 Versatile	Blade + Ripper makes it a complete earthmoving package
🚜 Good Traction	Wide tracks with triple grousers = excellent in mud/soft ground
💰 Parts Availability	Huge global parts network, still widely supported
📈 Resale Value	Holds value well due to Cat brand reputation
🪑 Comfortable Cab	One of the best operator environments in its class

⚠️ Limitations

Limitation	Detail
📏 Size	Too large for tight urban jobs (D6 is better for that)
⛽ Fuel Use	Higher consumption than smaller dozers (~6-8 GPH under load)
🔄 Transport	Requires lowboy trailer — not as mobile as wheeled loaders
🔩 Maintenance Cost	Higher than smaller machines due to engine/track size
📉 Age	Most units are 20–35+ years old; finding low-hour examples is harder

🔄 D7R Series Evolution

Model	Years	Key Changes
D7G	1977–1986	Predecessor; 3196 engine, ~225 hp
D7R	1986–1996	Upgraded to 250 hp, improved transmission, better cab
D7R II	1996–2001	ACERT C-15 engine, improved hydraulics, better cab/HVAC
D7E / D7E2	2001–2006+	Electronic engine controls, Auto-Shift (D7E2)
D7 XE / D7 XE2	2020s (rebranded)	Next-gen with Cat Grade technology, electrification options

🏁 Bottom Line

The Caterpillar D7R is a workhorse medium dozer that defined the class for over a decade. With 250 horsepower, a ripper, excellent reliability, and a comfortable cab, it was (and still is) one of the most sought-after dozers on the used equipment market. Whether you're grading a highway, clearing land, or building a landfill — the D7R gets the job done. 🚜💪

Would you like more details on any specific aspect — such as maintenance, pricing, comparisons with D6/D8, or the D7R II vs D7R differences?
