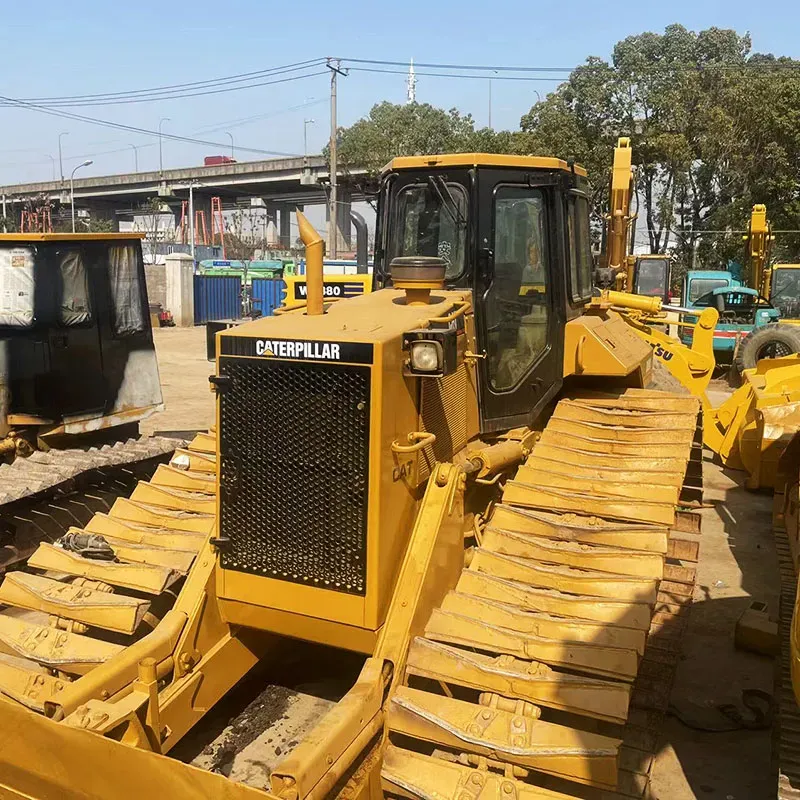

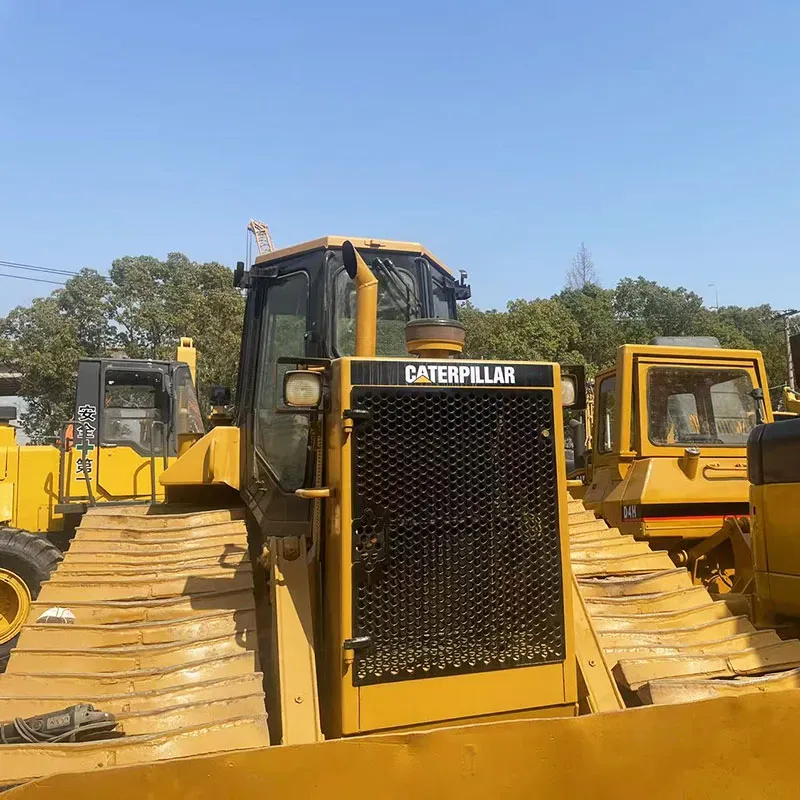

Used Caterpillar D6MBulldozer

Reading: 19

🏢 Overview

Item	Detail
Manufacturer	Caterpillar Inc.
Model	D6M
Production Years	1994 – 2001
Series	D6 Series (Medium Dozer)
Predecessor	Caterpillar D6H
Successor	Caterpillar D6N / D6T
Designation "M"	Stands for "Modular" — referring to its modular design for easier maintenance

The D6M is a medium-sized crawler dozer widely used in construction, mining, road building, land clearing, pipeline work, and demolition. It was one of Caterpillar's most popular dozers of the mid-1990s.

⚙️ Technical Specifications

Specification	Value
Engine Model	Caterpillar 3196 TA (Turbocharged & Aftercooled)
Engine Type	6-cylinder, inline, water-cooled diesel
Displacement	19.1 L (1,165 cu in)
Rated Power	205 hp (153 kW) @ 2,200 rpm
Torque	695 lb-ft (942 N·m) @ 1,400 rpm
Operating Weight	~35,578 lbs (16,138 kg)
Ground Pressure	~6.7 psi (46 kPa)
Track Gauge (Width)	24 in (610 mm) — single grouser
Ground Contact Length	~125 in (3,175 mm)
Track Shoe Width	24 in (610 mm)
Number of Track Shoes	41 per side
Transmission	Powershift, 3F / 3R
Travel Speed (Forward)	0 – 7.5 mph (0 – 12.1 km/h)
Blade Capacity (Straight / S-Blade)	4.0 cu yd (3.06 m³)
Blade Capacity (Universal / U-Blade)	5.4 cu yd (4.13 m³)
Ripper Capacity	Single shank, max depth ~18 in (457 mm)
Fuel Capacity	~100 gal (379 L)
Hydraulic Flow	35 gpm (132 L/min)

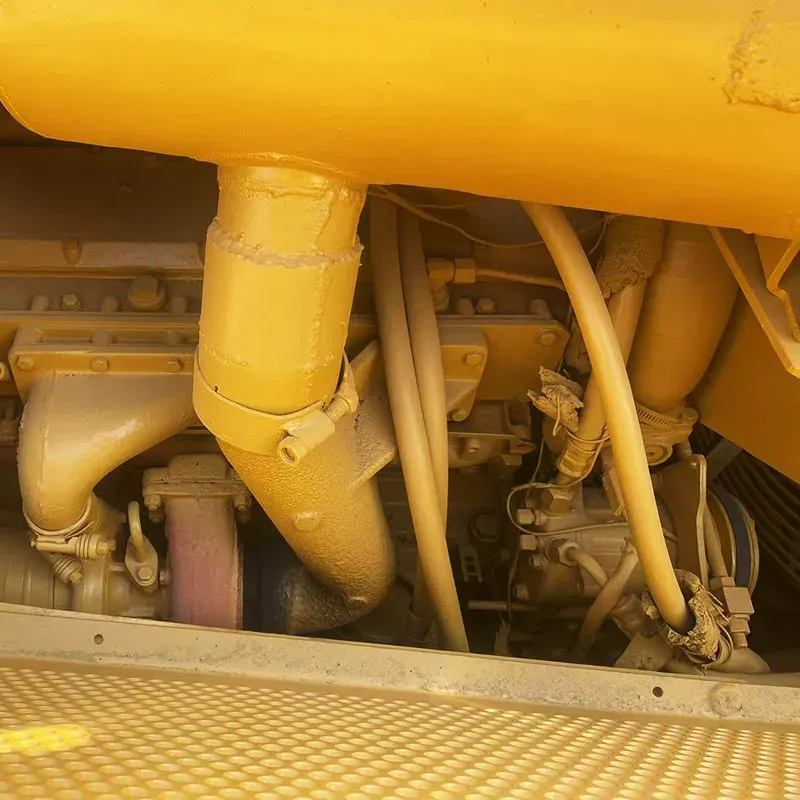

🔧 Engine — Caterpillar 3196 TA

Feature	Detail
Configuration	6-cylinder inline, turbocharged & aftercooled
Bore x Stroke	5.4 in x 5.4 in (137 x 137 mm)
Compression Ratio	16.5:1
Air Filtration	Dry type with pre-cleaner
Fuel System	Electronic unit injection (EUI)
Emissions	Meets EPA Tier 1 / EU Stage I
Starting System	Electric start, 24V

The 3196 engine is known for its reliability, fuel efficiency, and easy serviceability. It was one of Cat's workhorse engines of that era.

🛠️ Key Features & Design Highlights

✅ 1. Modular Design ("M")

The D6M introduced a modular concept — major components (engine, transmission, final drives) can be removed as complete units, drastically reducing downtime.
Easier field maintenance compared to the D6H.

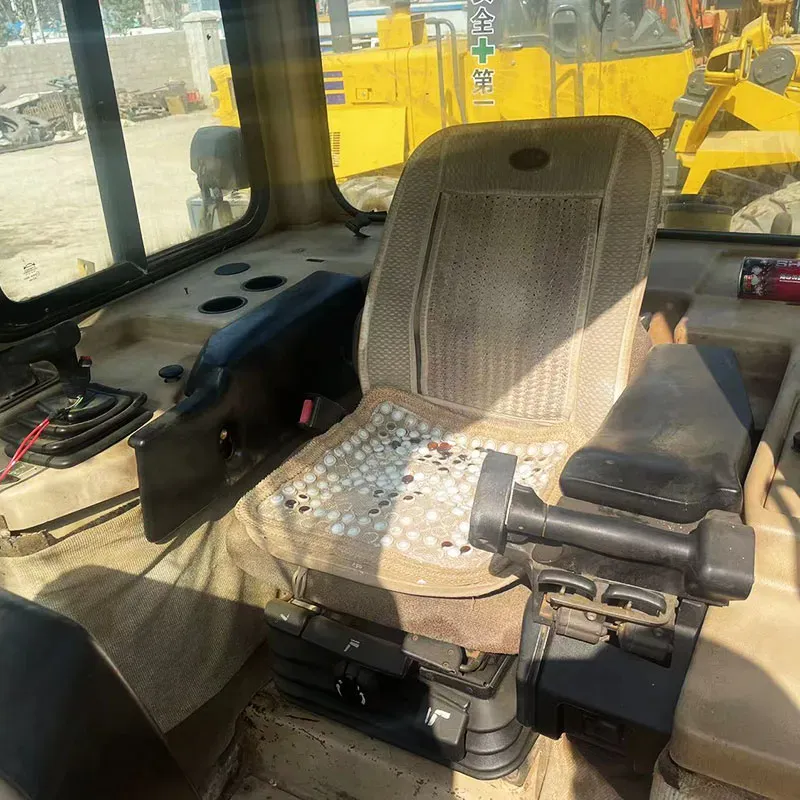

✅ 2. ROPS/FOPS Cab

Fully enclosed cab with:
- ROPS (Rollover Protective Structure)
- FOPS (Falling Object Protective Structure)
- Air conditioning & heating
- Suspended seat with seatbelt
- Excellent all-around visibility

✅ 3. Powershift Transmission

Smooth 3-speed forward / 3-speed reverse
No clutch pedal needed
Excellent for precision work

✅ 4. Single Lever Controls

Joystick-style blade control
One-lever blade & ripper operation
Easy to operate, reduces operator fatigue

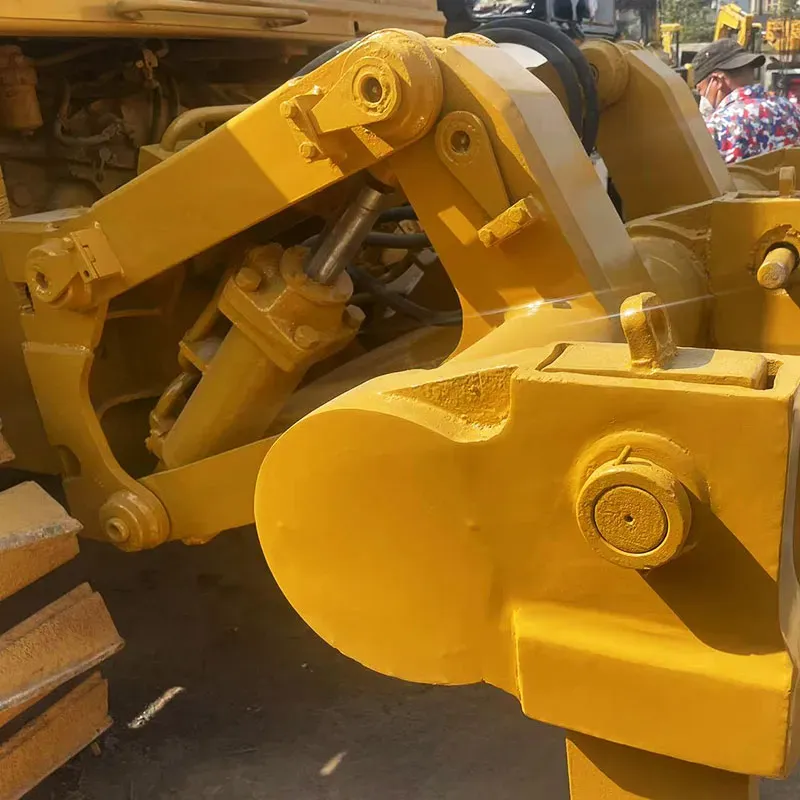

✅ 5. Advanced Hydraulic System

Load-sensing hydraulic system
Ride Control (available option) — automatically adjusts blade height for smoother operation
Auxiliary hydraulic circuits available

✅ 6. Undercarriage

Heavy-duty single grouser track shoes (24" wide)
Sealed & lubricated (S&L) track chain
Durable for rocky and abrasive terrain

📊 Performance Data

Parameter	Value
Maximum Drawbar Pull	~22,000 lbs (9,979 kg)
Ripping Force (Max)	~31,000 lbs (14,061 kg)
Gradeability	35% (with ripper)
Tipping Load (Rear)	~17,500 lbs (7,938 kg)
Blade Push Force (Max)	~19,000 lbs (8,618 kg)

🆚 Comparison: D6H vs D6M vs D6N

Spec	D6H (1985–1994)	D6M (1994–2001)	D6N (2001–2007)
Engine	3196 (natural aspirated)	3196 TA (turbo)	C9 ACERT (330 hp)
Power	180 hp	205 hp	300 hp
Weight	~35,000 lbs	~35,578 lbs	~41,000 lbs
Design	Conventional	Modular	ACERT + Elec. systems
Emissions	Tier 0	Tier 1	Tier 2

The D6M was a significant step up from the D6H due to the turbocharged engine and modular design.

🌍 Applications

Industry	Use
🏗️ Construction	Site prep, grading, backfilling
🛣️ Road Building	Road construction & maintenance
🌲 Forestry	Land clearing, fireline construction
🛢️ Oil & Gas	Pipeline right-of-way, pad construction
& Mining	Haul road maintenance, waste dumping
🏚️ Demolition	Pushing debris, site cleanup
🌾 Agriculture	Land leveling, pond construction

🔩 Maintenance Highlights

Item	Interval (Approx.)
Engine Oil Change	500 hrs
Fuel Filters	500 hrs
Hydraulic Oil & Filter	2,000 hrs
Transmission Oil	4,000 hrs
Final Drive Oil	4,000 hrs
Track Tension Adjustment	500 hrs (check)
Coolant Change	2,400 hrs

The D6M's modular design means engine and transmission can be swapped in ~4 hours with proper equipment.

📈 Market Status (2024–2025)

Aspect	Detail
Production	❌ Discontinued (ended ~2001)
Used Market Price	$30,000 – $65,000 USD (depending on hours & condition)
Availability	Good — widely available on used equipment markets
Parts Support	✅ Excellent — Caterpillar still supports D6 series parts
Popularity	Still very popular in developing countries & rental fleets

✅ Advantages ✅

✔️	Advantage
1	Proven, reliable 3196 engine
2	Modular design = fast repairs
3	Comfortable, well-designed cab
4	Good power-to-weight ratio (205 hp / 35,578 lbs)
5	Excellent parts availability worldwide
6	Strong resale value
7	Versatile — works in many applications

❌ Disadvantages ❌

❌	Disadvantage
1	Older emissions (Tier 1) — may face restrictions
2	Less powerful than modern D6T/D6X (300+ hp)
3	No electronic monitoring (compared to newer models)
4	Older hydraulic system — less efficient than modern load-sensing

🎯 Summary

The Caterpillar D6M is a legendary medium dozer that bridged the gap between the older D6H and the modern D6N/D6T. With its 205 hp turbocharged engine, modular design, and proven reliability, it remains one of the most sought-after used dozers in the world — especially in markets where affordability and parts availability matter most.
