Used Sany 205Excavator

Reading: 22

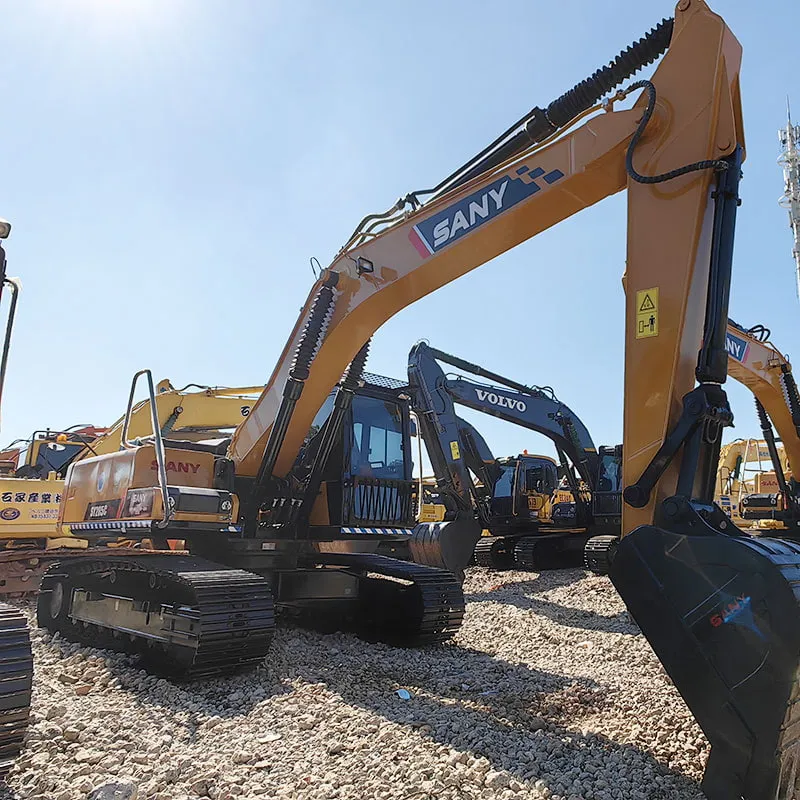

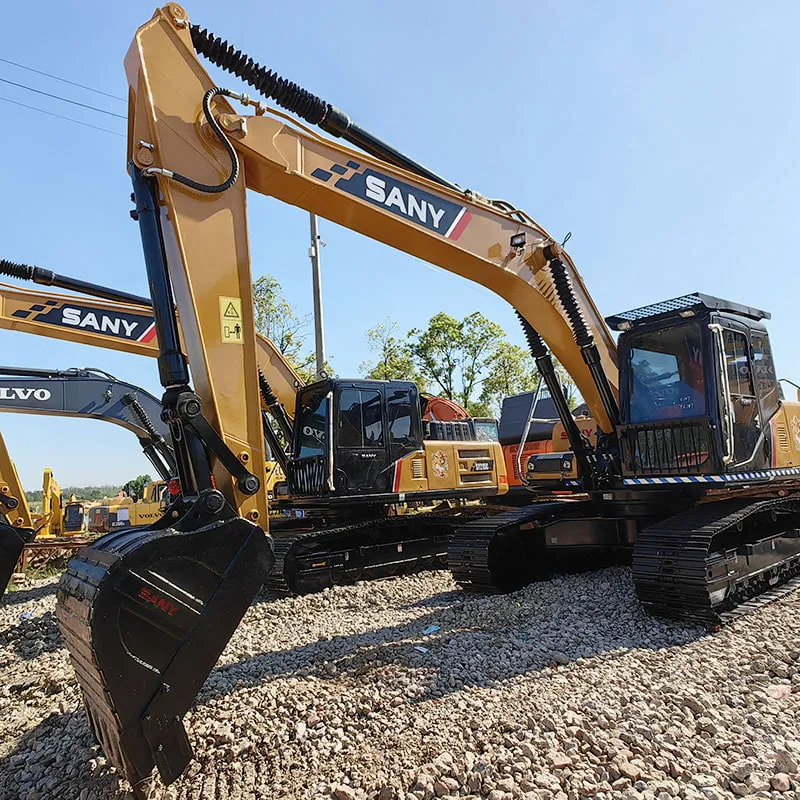

The SANY SY205C is a 20-ton class (medium-sized) hydraulic crawler excavator manufactured by SANY Heavy Industry, one of the world's top construction machinery makers (ranked #1 globally in concrete machinery, top 5 in excavators). The "C" designation indicates it belongs to SANY's upgraded/intelligent generation.

📋 1. KEY SPECIFICATIONS

Parameter	Details
Model	SY205C (SY205C-10 / SY205C Pro variants also exist)
Operating Weight	~20,300 – 20,800 kg (≈20.5 tons)
Engine	Isuzu AA-6HK1XQS (6-cylinder, turbocharged, intercooled)
Engine Power	110 kW (148 hp) @ 2,000 rpm
Emission Standard	Euro III / EPA Tier 3 / China III
Bucket Capacity	0.83 m³ (standard) / 0.93 m³ (rock bucket)
Max Digging Depth	~6,650 – 6,700 mm
Max Digging Reach	~9,700 – 9,800 mm
Max Dumping Height	~7,150 – 7,200 mm
Max Digging Force	~143 – 147 kN
Max Tractive Force	~133 – 137 kN
Fuel Tank Capacity	~400 L
Hydraulic System	Load-sensing + Variable displacement pump
Swing Speed	~11 rpm
Travel Speed	~3.5 / 5.8 km/h (low/high)

🔧 2. ENGINE & POWER SYSTEM

Feature	Detail
Engine Brand	Isuzu (Japan) — renowned for durability & fuel efficiency
Displacement	7.79 L
Technology	Common rail direct injection, turbocharged & intercooled
Advantage	Excellent fuel economy (~18–22 L/hr depending on workload), low emissions, long service life

✅ The Isuzu engine is one of the biggest selling points — reliable, easy to maintain, and widely available globally.

🧠 3. INTELLIGENT & SMART FEATURES (C-Series Highlights)

Smart Feature	Description
📡 SANY Smart Control System	Real-time monitoring of engine load, fuel consumption, working hours
🖥️ LCD Display	Large color screen showing all machine parameters, fault codes, maintenance alerts
📊 Eco Mode / Power Mode	Operator can switch between fuel-saving and high-performance modes
🛰️ GPS & Fleet Management	Optional SANY cloud platform for remote machine tracking, diagnostics
🔄 Auto-idle System	Engine automatically reduces RPM when not working → saves 10–15% fuel
📈 Work Efficiency Analysis	Tracks productivity data for optimization

🪑 4. OPERATOR CAB & COMFORT

Feature	Detail
Cab Type	ROPS/FOPS certified, spacious & sealed
Air Conditioning	Full automatic A/C with air filter
Seat	Suspension seat with armrest, adjustable
Controls	Pilot-operated joysticks, electronic throttle (optional)
Noise Level	≤72 dB(A) — relatively quiet for its class
Visibility	Large front/side windows, rear-view camera available
Storage	Cup holders, phone holder, document pocket

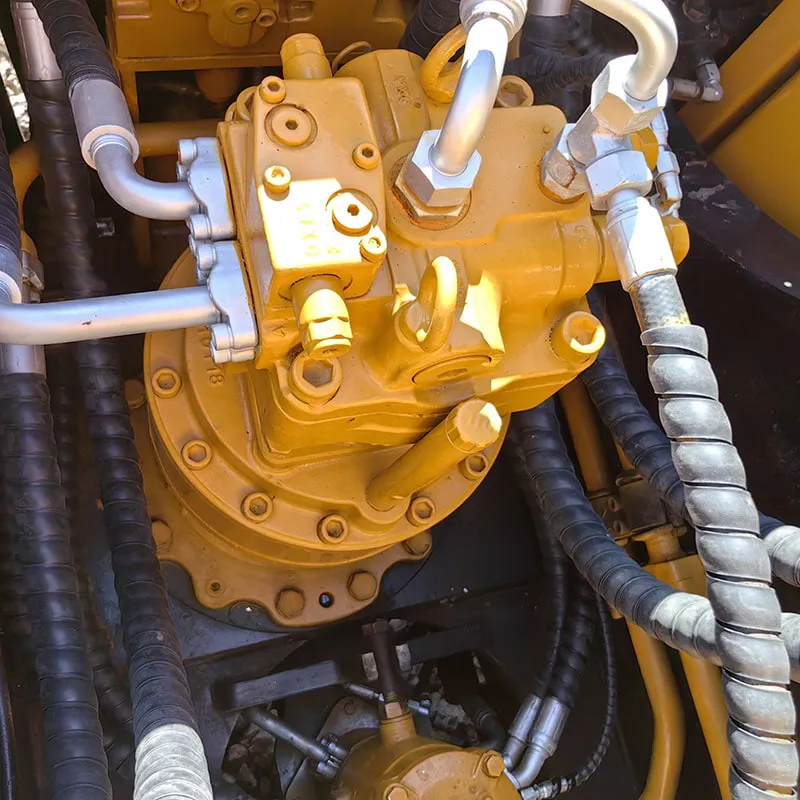

🔩 5. HYDRAULIC SYSTEM & WORK EQUIPMENT

Component	Detail

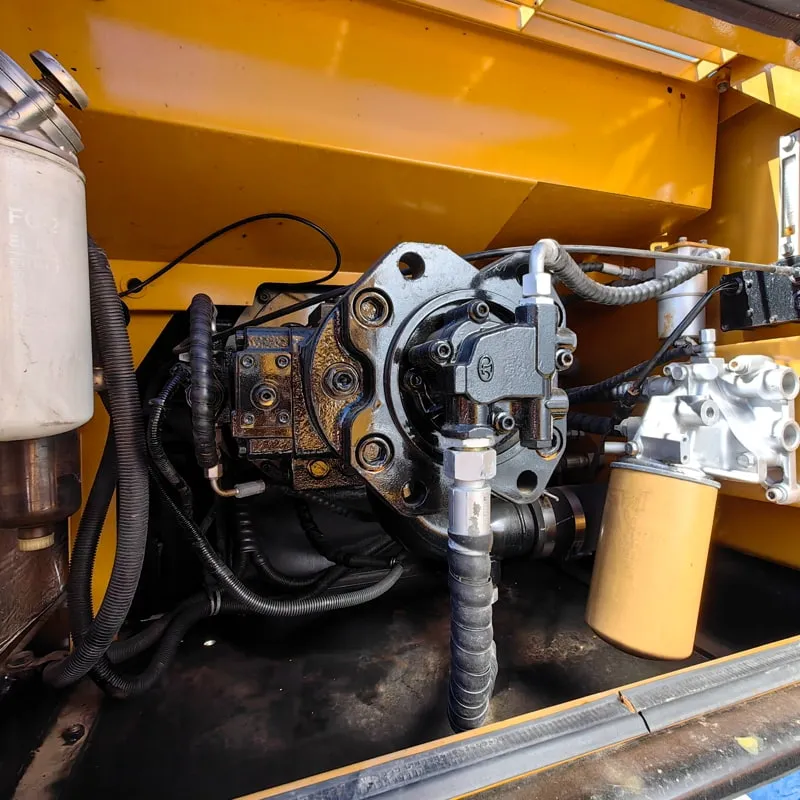

Main Pump	KYB / Bosch Rexroth variable displacement axial piston pump
System Pressure	34.3 MPa (350 bar)
Flow Rate	2 × 195 L/min

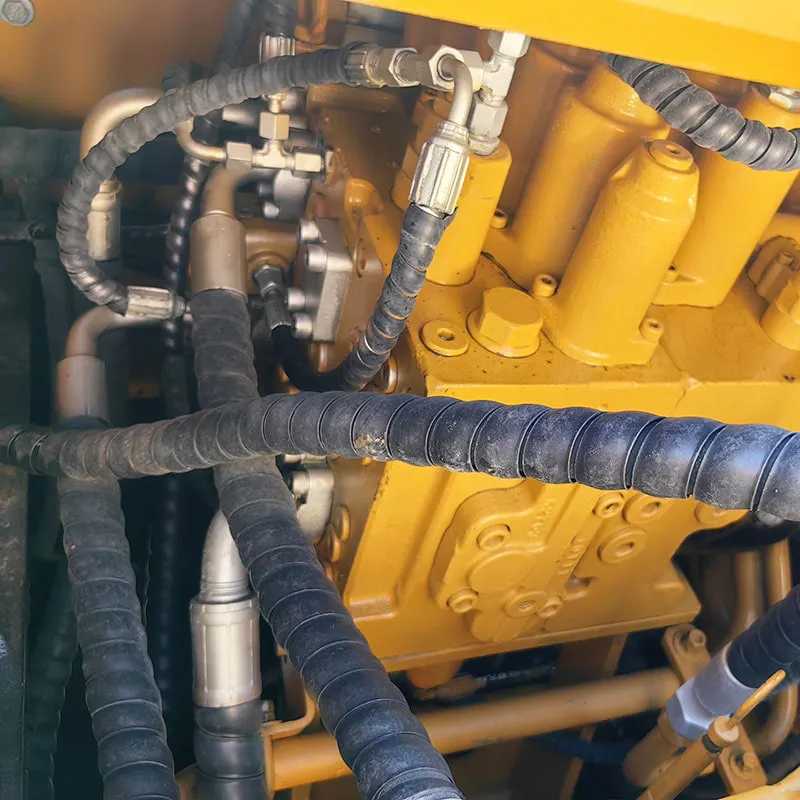

Valve	Load-sensing, pressure-compensated control valve
Attachments Available	✅ Standard bucket ✅ Rock bucket ✅ Hydraulic breaker ✅ Thumb ✅ Quick coupler ✅ Grapple ✅ Compaction plate ✅ Ripper
Auxiliary Hydraulics	2 circuits available for attachments

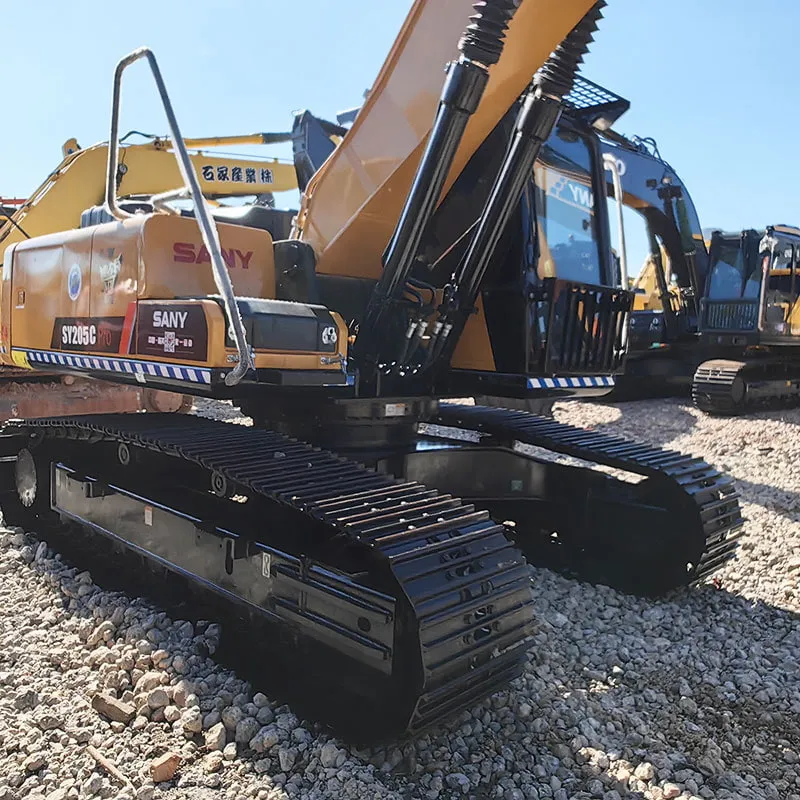

🛡️ 6. UNDERCARRIAGE & DURABILITY

Component	Detail
Track Shoe Width	600 mm (triple grouser available)
Track Frame	Heavy-duty X-frame, high-strength steel
Rollers	5 per side (sealed & lubricated)
Bottom Roller	2 per side
Sprocket	Driven, replaceable teeth
Service Life	Undercarriage designed for 5,000–8,000 hours
Ground Pressure	~46 kPa — good for soft ground

🏗️ 7. TYPICAL APPLICATIONS

Application	Suitability
🏗️ Excavation & Earthmoving	⭐⭐⭐⭐⭐ Primary use
🪨 Mining & Quarrying	⭐⭐⭐⭐ (with rock bucket/breaker)
🏢 Building Demolition	⭐⭐⭐⭐ (with hydraulic breaker)
🛤️ Pipeline Laying	⭐⭐⭐⭐
🌲 Land Clearing / Forestry	⭐⭐⭐⭐ (with thumb/grapple)
🏗️ Road Construction	⭐⭐⭐⭐⭐
🏗️ Foundation Work	⭐⭐⭐⭐⭐

🆚 8. COMPETITORS COMPARISON

Model	Weight	Power	Bucket	Price Range (USD)
SANY SY205C	20.5T	148 hp	0.83 m³	$85,000 – $100,000
CAT 320 GC	20.6T	157 hp	0.93 m³	$110,000 – $130,000
Komatsu PC200-8	20.0T	143 hp	0.82 m³	$105,000 – $125,000
Doosan DX225LC-5	22.5T	155 hp	0.93 m³	$100,000 – $120,000
XCMG XE200DA	20.0T	143 hp	0.83 m³	$80,000 – $95,000

💰 SANY's biggest advantage = Best price-to-performance ratio — comparable performance to CAT/Komatsu at 15–25% lower price.

✅ 9. ADVANTAGES SUMMARY

✅ Strengths	Details
💰 Cost-Effective	15–25% cheaper than Japanese brands
🔧 Easy Maintenance	Isuzu engine + SANY global parts network
🧠 Smart Technology	Fleet management, fuel saving, real-time monitoring
&Fuel Efficient**	Auto-idle + Eco mode saves 10–15% fuel
🛡️ Reliable	SANY's "Golden Quality" standard, 2,000+ hr warranty
🌍 Global Support	SANY has 300+ service centers in 150+ countries

⚠️ Considerations	Details
🔄 Resale Value	Slightly lower than CAT/Komatsu (but improving fast)
🏭 Parts Availability	Good in Asia/Africa/Middle East, growing in Europe/Americas

📞 10. AFTER-SALES & WARRANTY

Item	Detail
Warranty	12 months / 2,000 hours (whichever comes first)
Extended Warranty	Available up to 3 years / 5,000 hours
Service Network	300+ SANY service stations worldwide
Parts Delivery	Major parts available within 24–48 hours globally
Training	Free operator & maintenance training provided

🏆 FINAL VERDICT

Rating	Score
⭐ Overall Rating	4.5 / 5
💰 Value for Money	⭐⭐⭐⭐⭐
🔧 Reliability	⭐⭐⭐⭐½
🧠 Technology	⭐⭐⭐⭐½
🛡️ Durability	⭐⭐⭐⭐
🌍 Global Support	⭐⭐⭐⭐

🎯 The SANY SY205C is an EXCELLENT choice for contractors who want CAT/Komatsu-level performance at a significantly lower price, with modern smart features and strong global support. It's especially popular in Southeast Asia, Africa, Middle East, South America, and increasingly in Europe.
