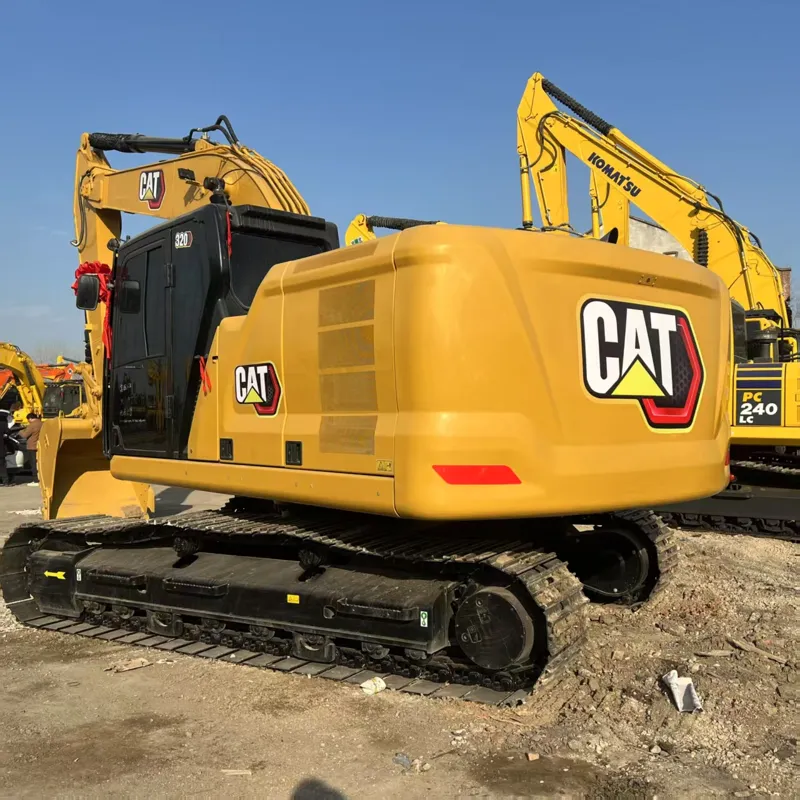

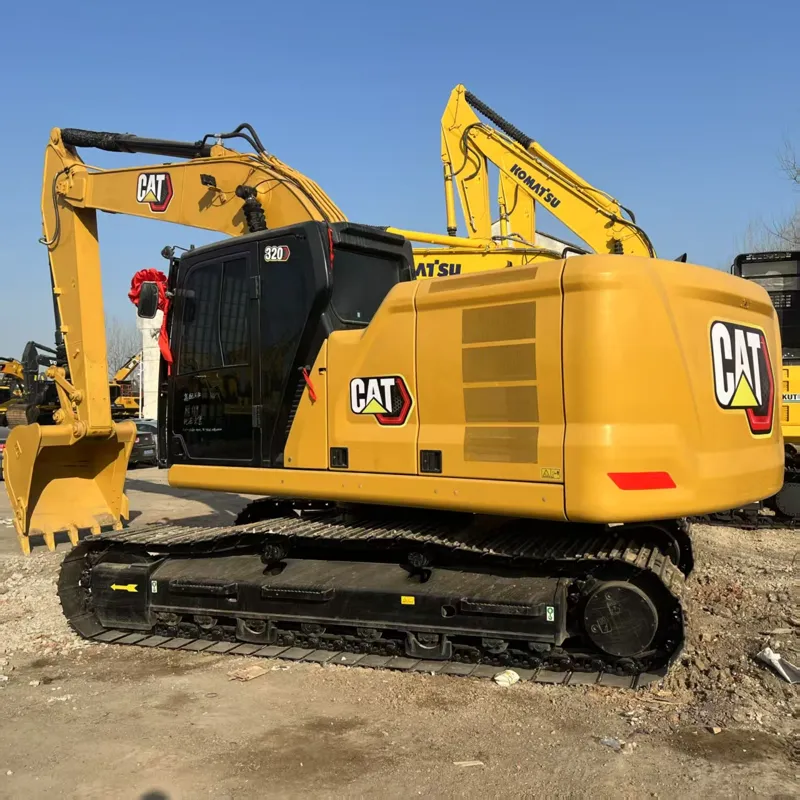

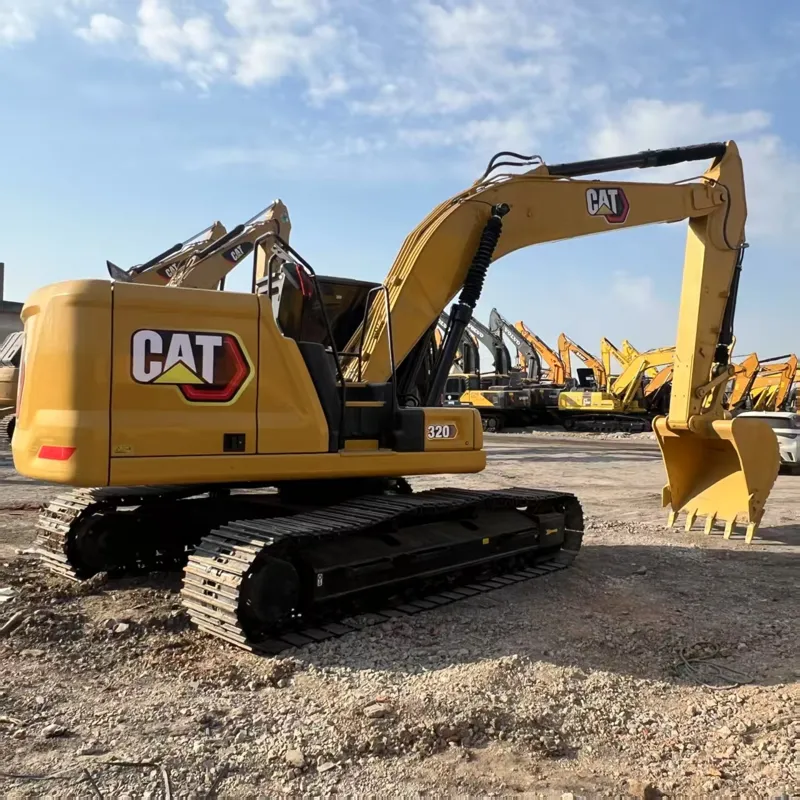

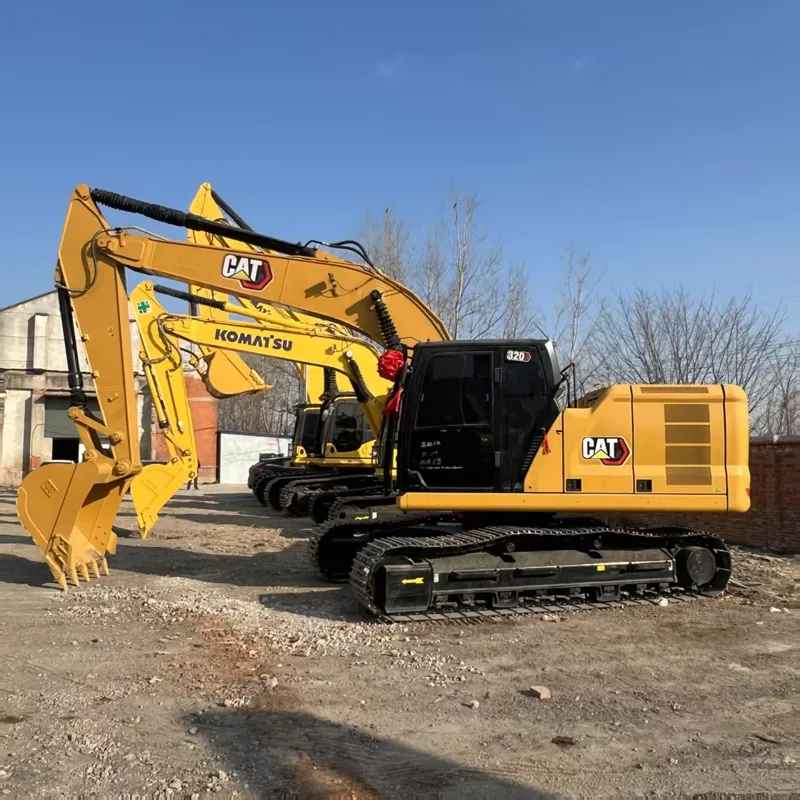

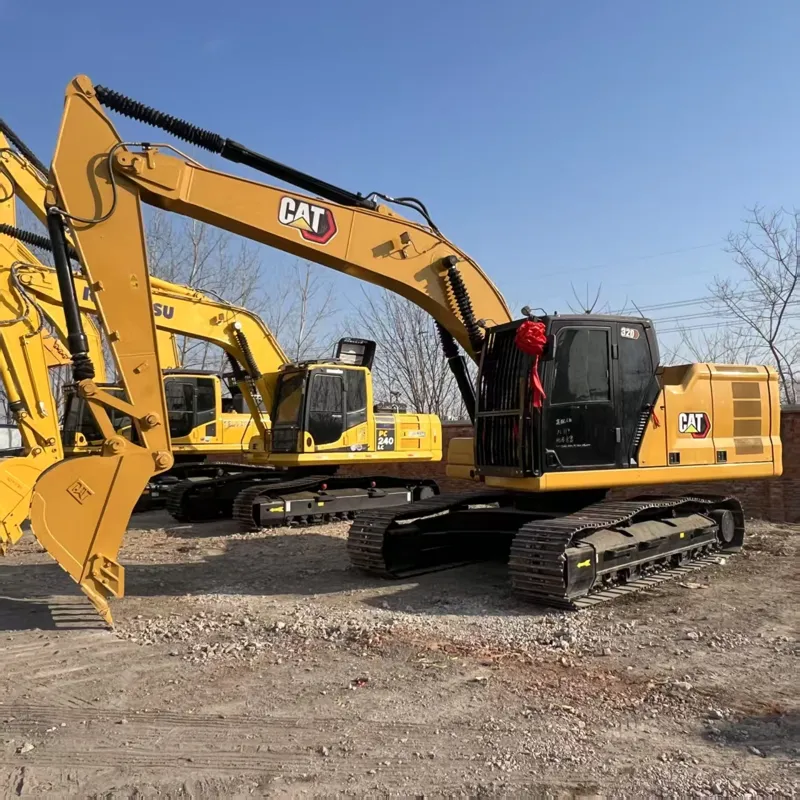

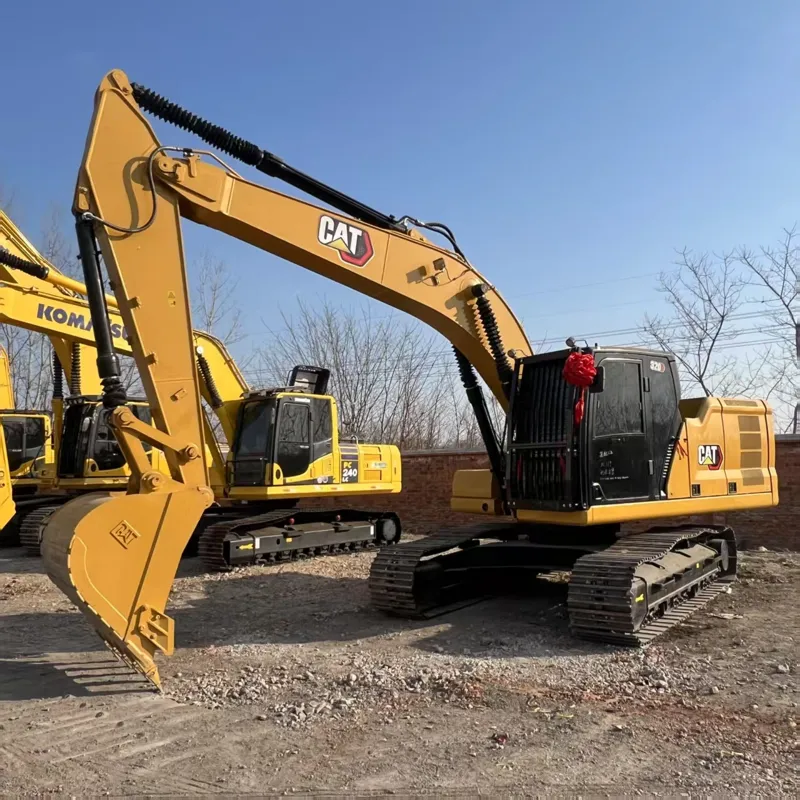

Used Caterpillar 320GCExcavator

Reading: 26

📌 Overview

The CAT 320GC is a mid-size (20-ton class) hydraulic excavator belonging to Caterpillar's G Series (GC = General Construction). It was introduced to replace the legacy 320D model and is designed for a wide range of general construction, earthmoving, and utility applications. It sits between the smaller 315GC and the larger 323GC in Cat's lineup.

🔧 Key Specifications

Parameter	Specification
Engine	Cat® C4.4 ACERT® Turbocharged Diesel
Cylinders	4-cylinder, in-line
Net Power	110 hp (82 kW) @ 2,000 rpm
Operating Weight	~20,500 kg (45,200 lb)
Bucket Capacity	0.84 – 1.05 m³ (1.1 – 1.38 yd³)
Max Digging Depth	6,710 mm (22 ft 0 in)
Max Reach (Ground Level)	9,810 mm (32 ft 2 in)
Max Dumping Height	7,030 mm (23 ft 1 in)
Max Breakout Force	~124 kN (27,900 lbf)
Track Gauge	2,590 mm (8 ft 6 in)
Tail Swing Radius	2,760 mm (9 ft 1 in)
Fuel Tank Capacity	380 L (100 gal)
Hydraulic Flow	2 × 143 L/min (38 gpm)
Operating Pressure	34.5 MPa (5,000 psi)

🛠️ Engine & Powertrain

Feature	Detail
Model	Cat C4.4 ACERT®
Displacement	4.4 L (268 cu in)
Turbocharger	Yes, with aftercooler
Emission Standard	EPA Tier 4 Final / EU Stage V
DEF (Diesel Exhaust Fluid)	Required (SCR system)
Fuel Efficiency	Up to 15% better than the 320D
Auto Engine Speed Control	Reduces fuel consumption during idle/light work

The C4.4 ACERT engine is known for its reliability, fuel efficiency, and low maintenance cost, making it ideal for long-hour operation on job sites.

🏗️ Hydraulic System

Feature	Detail
System Type	Load-Sensing (LS) with pressure/flow compensation
Pump Type	Variable displacement axial piston
Total Flow	2 × 143 L/min (38 gpm)
Auxiliary Hydraulics	2 circuits available (for breakers, grapples, thumbs)
Boom Regeneration	Optional — improves cycle times by ~10%

The hydraulic system is designed for smooth, precise control and supports a wide range of attachments.

🖥️ Technology & Smart Features (Standard on GC Series)

Technology	Description
🔗 Cat Product Link™	Remote machine monitoring, diagnostics, fleet management
📐 2D Grade Ready	Standard — ready for 2D grade control (laser/GPS)
📐 3D Grade Ready	Optional — GPS-based 3D machine control (Cat GRADE with 3D)
🖥️ Cat Payload	Optional — real-time payload weighing (±1% accuracy)
📱 Cat VisionLink	Cloud-based fleet management platform
🔋 Eco Mode	Standard — automatically optimizes engine & hydraulic performance for fuel savings
🔄 Auto Engine Idle	Engine auto-idles when not working, reducing fuel burn
📊 On-board Diagnostics	Easy troubleshooting via LED indicators & display

💺 Operator Comfort & Cab

The 320GC features Cat's next-generation GC cab, a significant upgrade from the 320D:

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Seat	Air-suspended, heated, high-back with armrests
Climate Control	Auto-climate air conditioning + heating
Display	7" (178 mm) or 10" (254 mm) touchscreen monitor
Joystick Controls	Proportional pilot controls with auto-return
Noise Level	~72 dB(A) — quieter than previous generation
Visibility	Improved all-around visibility with larger windows
Storage	Multiple compartments, USB ports, 12V outlet
Lighting	LED work lights (front, rear, cab)

🔩 Undercarriage & Durability

Component	Detail
Track Type	Steel, triple-grouser (600 mm / 24 in wide)
Track Shoe Width	600 mm (24 in)
Ground Pressure	~46 kPa (6.7 psi)
Boom/Arm	Heavy-duty fabricated with reinforced pins
Service Intervals	Extended — up to 2,000 hours between major services
Greasing Points	Centralized auto-lube system available
Undercarriage Life	Designed for 5,000+ hours with proper maintenance

📊 Performance Summary

Metric	Value
Fuel Consumption	~13–18 L/hr (3.4–4.8 gal/hr) depending on workload
Cycle Time (Loading Truck)	~12–15 seconds (with 1 m³ bucket)
Swing Speed	10.5 rpm
Travel Speed	4.8 km/h (3.0 mph)
Gradeability	70% (35°)
Max Trench Dig Depth	~5,600 mm (18 ft 4 in)

🆚 320GC vs 320D (Key Improvements)

Feature	320D (Old)	320GC (New)
Power	110 hp	110 hp (same)
Fuel Efficiency	Baseline	~15% better
Cab	Older design	New GC cab (quieter, more comfortable)
Technology	Basic	Product Link, Eco Mode, Grade Ready
Service Intervals	1,000 hrs	2,000 hrs
Emissions	Tier 4 Interim	Tier 4 Final / Stage V
Display	Smaller screen	7"/10" touchscreen
Resale Value	Lower	Higher (newer tech)

🎯 Typical Applications

Application	Suitability
🏗️ General Excavation	⭐⭐⭐⭐⭐
🛣️ Road Construction	⭐⭐⭐⭐⭐
🏢 Building Foundations	⭐⭐⭐⭐⭐
🕳️ Utility Trenching	⭐⭐⭐⭐
🪨 Landscaping & Grading	⭐⭐⭐⭐⭐
🏭 Demolition (with breaker)	⭐⭐⭐⭐
🌲 Forestry (with grapple)	⭐⭐⭐⭐
🪨 Quarrying (light duty)	⭐⭐⭐

💰 Approximate Pricing (2024 Estimates)

Configuration	Price Range (USD)
New Machine (Base)	$140,000 – $165,000
With Grade Control (2D)	$165,000 – $185,000
With Grade Control (3D)	$185,000 – $210,000
Used (2019–2022, 3,000–5,000 hrs)	$95,000 – $130,000

Prices vary by region, dealer, and configuration.

✅ Strengths & ❌ Limitations

✅ Strengths	❌ Limitations
Excellent fuel efficiency	Not suited for heavy mining
Low operating cost	Max dig depth ~6.7m (deeper machines available)
Advanced technology standard	Higher purchase price than 320D
Great operator comfort	Limited lift capacity vs. 323GC+
Strong resale value	DEF fluid required (adds operating cost)
Versatile attachment compatibility
Extended service intervals

🏆 Verdict

The CAT 320GC is one of the best-selling mid-size excavators in the world for good reason. It offers the perfect balance of power, efficiency, technology, and comfort for general contractors. It's an excellent upgrade from the 320D and remains highly competitive against rivals like the Komatsu PC200-11, John Deere 200G LC, and Hitachi ZX200-6.
