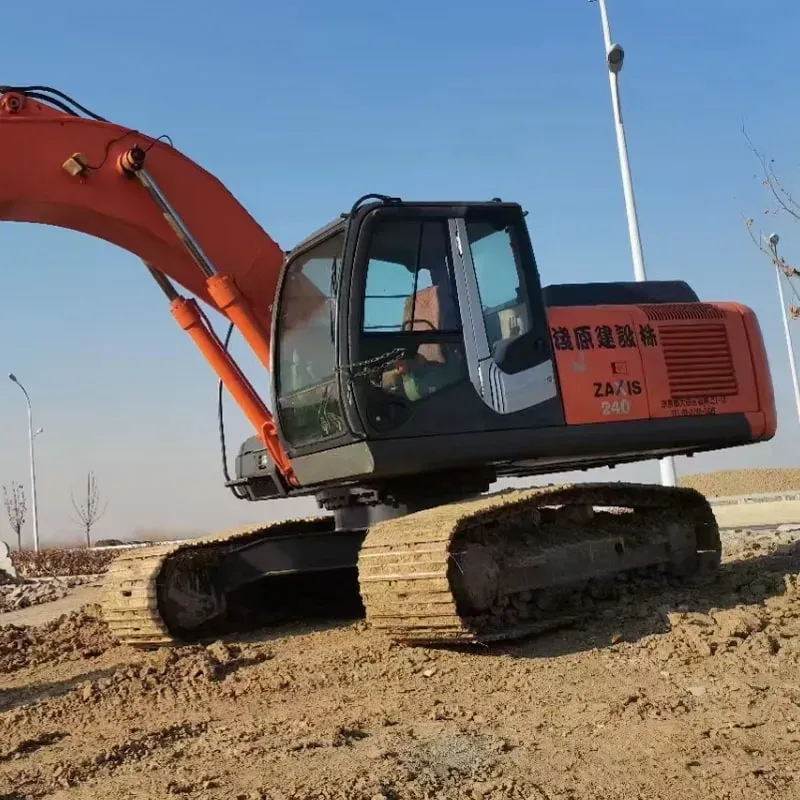

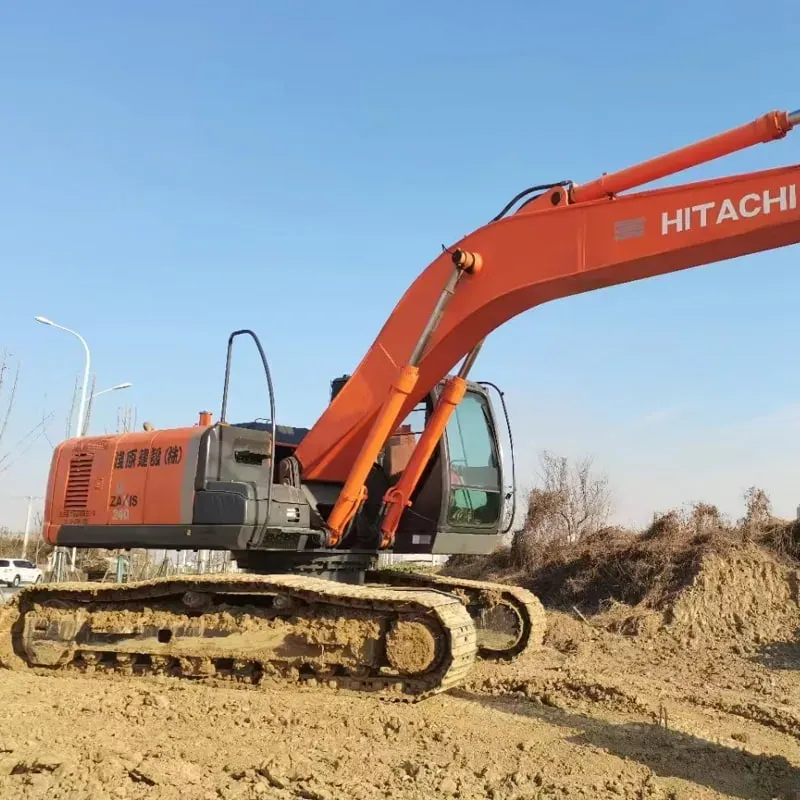

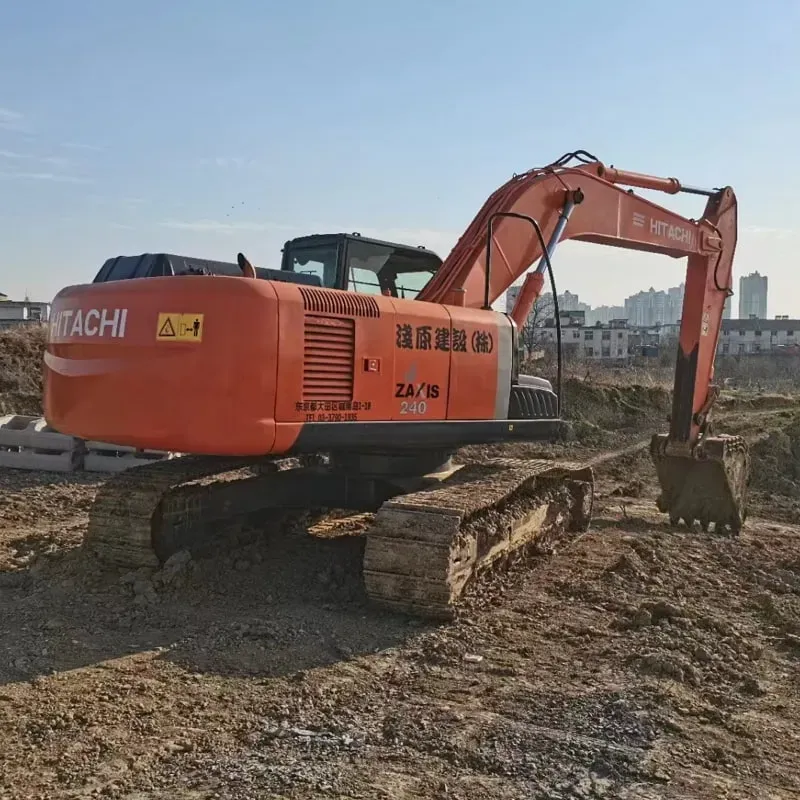

Used Hitachi ZX240-3Excavator

Reading: 35

📋 General Overview

Specification	Details
Manufacturer	Hitachi Construction Machinery (HCM)
Model	ZX240-3
Generation	3rd Generation (2010s–Present)
Class	Medium Excavator (24-ton class)
Primary Application	General construction, earthmoving, demolition, mining

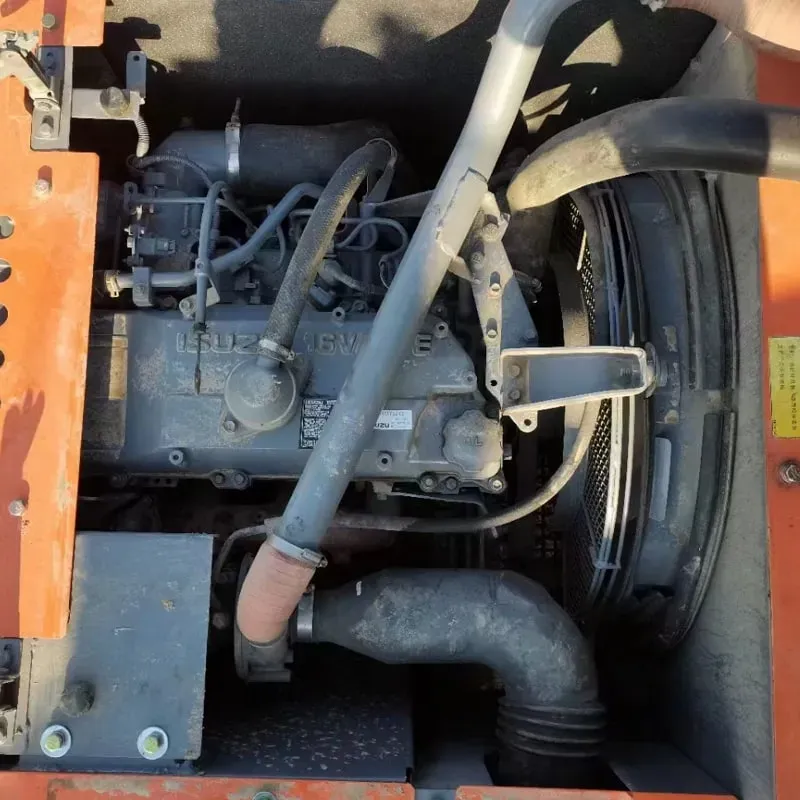

🔧 Engine Specifications

Parameter	Specification
Engine Model	Isuzu AH-6HK1XQA
Type	6-cylinder, in-line, turbocharged, intercooled diesel
Displacement	6.494 liters
Rated Power	177 hp (132 kW) @ 2,000 rpm
Max Torque	~650 Nm @ 1,400 rpm
Emissions Standard	EPA Tier 4 Final / EU Stage IIIB
Fuel Tank Capacity	~400 liters

⚖️ Dimensions & Weight

Parameter	Specification
Operating Weight	24,000 – 24,700 kg (varies by configuration)
Transport Length	~9,810 mm
Transport Width	~2,990 mm
Transport Height	~3,180 mm
Ground Clearance	~460 mm
Track Width	600 mm (standard)
Track Shoe Width	600 mm

💪 Performance (Digging Capabilities)

Parameter	Specification
Max Digging Depth	~7,630 mm
Max Digging Reach	~10,100 mm
Max Dumping Height	~7,380 mm
Max Vertical Wall Digging	~5,460 mm
Boom Digging Force	~161 kN (16,400 kgf)
Arm Digging Force	~113 kN (11,500 kgf)
Bucket Capacity	0.8 – 1.1 m³ (standard)
Max Bucket Breakout Force	~147 kN

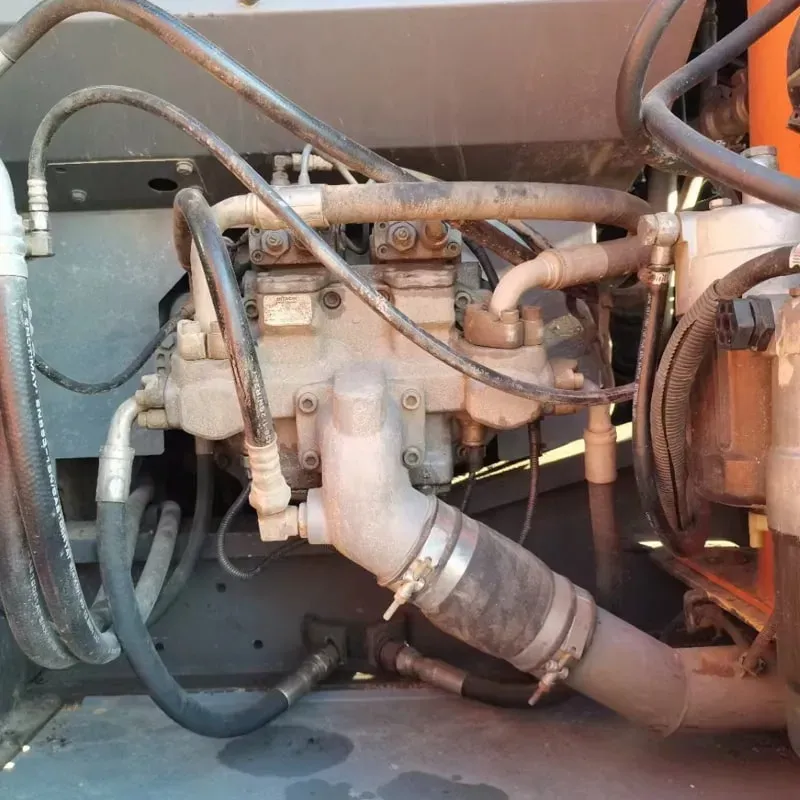

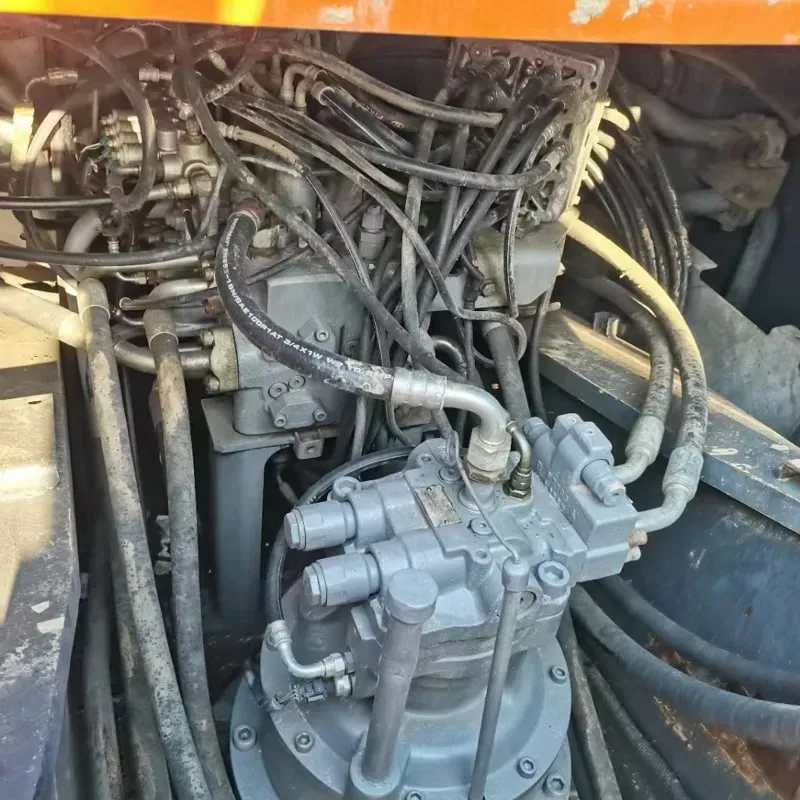

🛢️ Hydraulic System

Parameter	Specification
Pump Type	Variable displacement axial piston pump (×2)
System Pressure	~35 MPa (5,075 psi)
Total Flow Rate	~2 × 248 L/min (496 L/min)
Swing Mechanism	Hydraulic motor with brake
Travel Motor	Variable displacement axial piston motor (×2)
Swing Speed	~9.5 rpm
Travel Speed	~5.0 km/h

🖥️ Key Features & Technologies

1. iCONS (Intelligent Control System)

Automatically optimizes engine speed and hydraulic flow based on work conditions
Improves fuel efficiency by up to 10-15% compared to previous models
Reduces operator fatigue with intelligent workload management

2. Eco Mode & Power Mode

Eco Mode: Prioritizes fuel savings for light-duty work
Power Mode: Delivers maximum power for heavy-duty applications
Seamless switching between modes

3. Advanced Operator Cabin

Feature	Details
ROPS/FOPS Certified	Yes
Air Conditioning	Full automatic climate control
Seat	Suspension seat with armrest, adjustable
Display	7-inch LCD multi-function monitor
Controls	Pilot-operated joysticks with pattern change valve
Noise Level	~68 dB(A) (cab interior)
Visibility	Enhanced all-around visibility with large windows

4. Hitachi ZX-Link / Telematics

Remote machine monitoring
Fleet management capability
Real-time data: fuel consumption, operating hours, location, fault codes
Predictive maintenance alerts

5. Swing Boom Reduction System

Reduces tail swing radius during operation
Ideal for working in confined spaces near structures
~40% reduction in tail swing

6. Auto Idle Stop System

Engine automatically reduces to idle when controls are not operated for a set time
Saves fuel and reduces emissions during breaks

7. Dozer Blade & Ripper Options

Front dozer blade (straight/angle)
Rear ripper (1-shank, 2-shank, 3-shank)
Enhances versatility for grading and ripping tasks

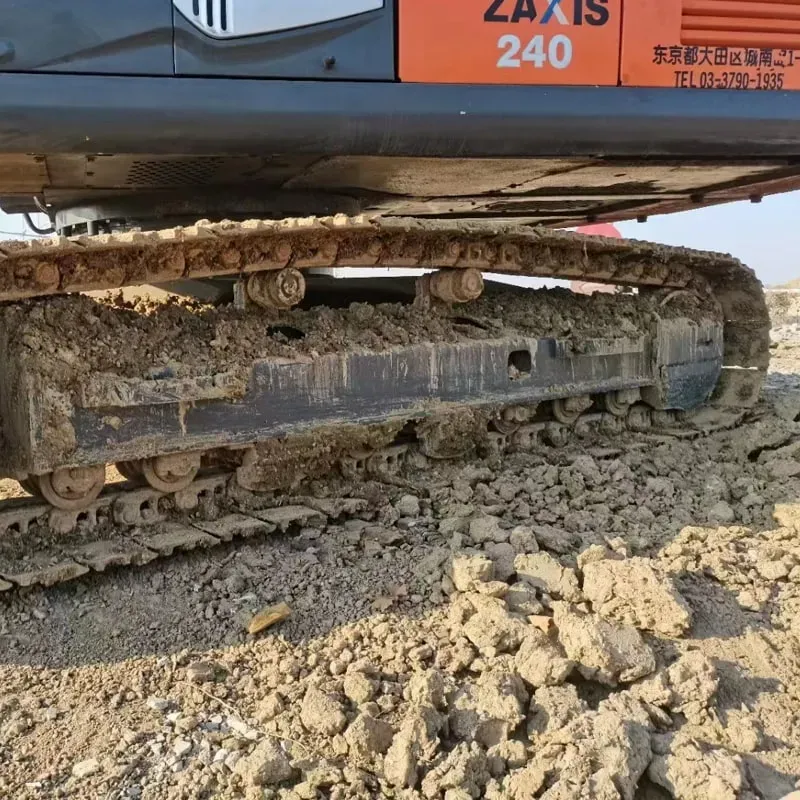

🔄 Undercarriage Options

Configuration	Description
Standard Tracks	600 mm triple-grouser shoes
Wide Tracks	700 mm (for better stability)
Long Reach Undercarriage	Extended frame for extended reach arm
High-Flotation Tracks	800 mm (for soft ground/swamp)

📊 Comparison with Competitors

Spec	ZX240-3	CAT 324 GC	Komatsu PC240LC-11	Volvo EC240D
Power	177 hp	172 hp	174 hp	174 hp
Operating Weight	~24,500 kg	~24,500 kg	~24,000 kg	~24,200 kg
Max Dig Depth	7,630 mm	7,450 mm	7,520 mm	7,480 mm
Bucket	0.8-1.1 m³	0.8-1.1 m³	0.8-1.0 m³	0.8-1.0 m³

✅ Advantages

Advantage	Description
⚡ Fuel Efficiency	iCONS system provides best-in-class fuel economy
🎯 Precision	Excellent fine control with responsive hydraulics
🛋️ Comfort	One of the quietest and most comfortable cabins in class
🔧 Reliability	Proven Isuzu engine with low maintenance costs
📡 Technology	Advanced telematics and smart features
💰 Resale Value	Strong residual value in the market

📋 Summary

The Hitachi ZX240-3 is a highly competitive 24-ton medium excavator that excels in:

✅ Fuel efficiency (industry-leading with iCONS)
✅ Operator comfort (premium cab design)
✅ Versatility (multiple configurations available)
✅ Smart technology (telematics, auto-idle, eco/power modes)
✅ Reliability & durability (proven Isuzu engine)

It is an ideal choice for general contractors, rental companies, and mining operations looking for a productive, fuel-efficient, and technologically advanced medium excavator.

📌 Note: Specifications may vary slightly by market/region. Always consult your local Hitachi dealer for exact specifications and available configurations.
