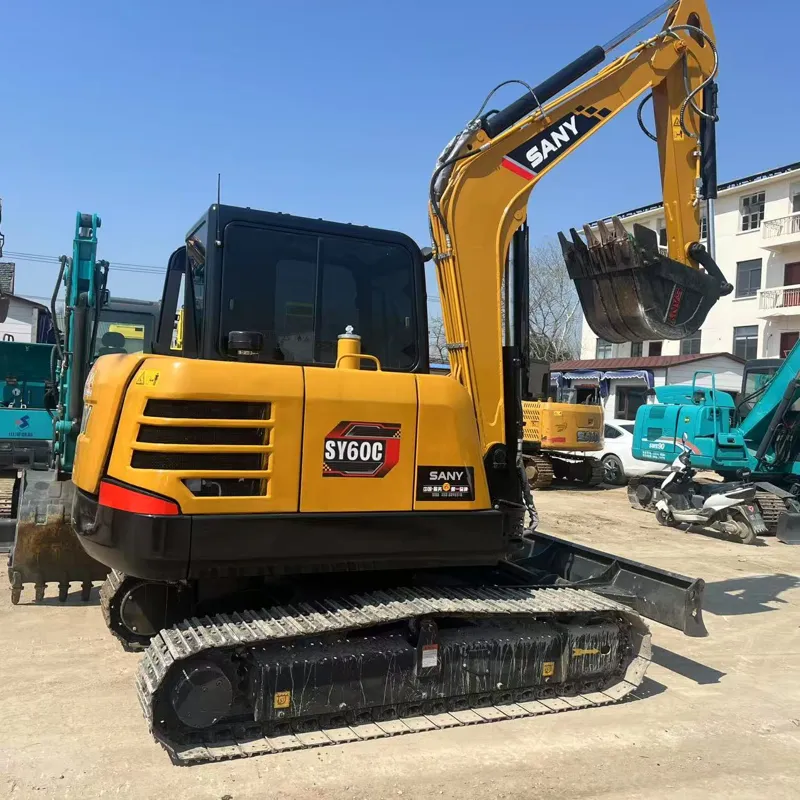

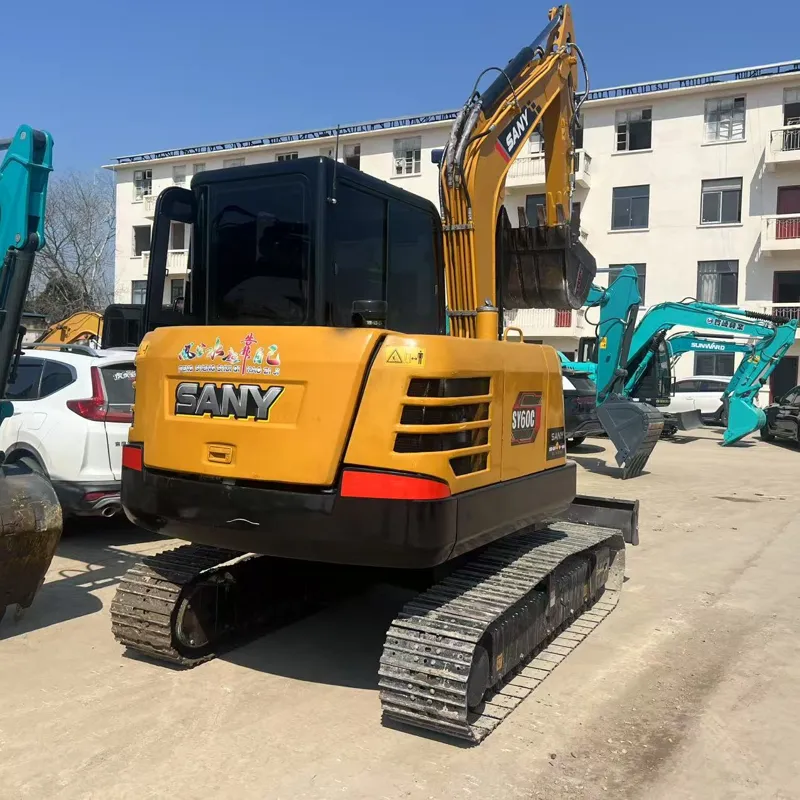

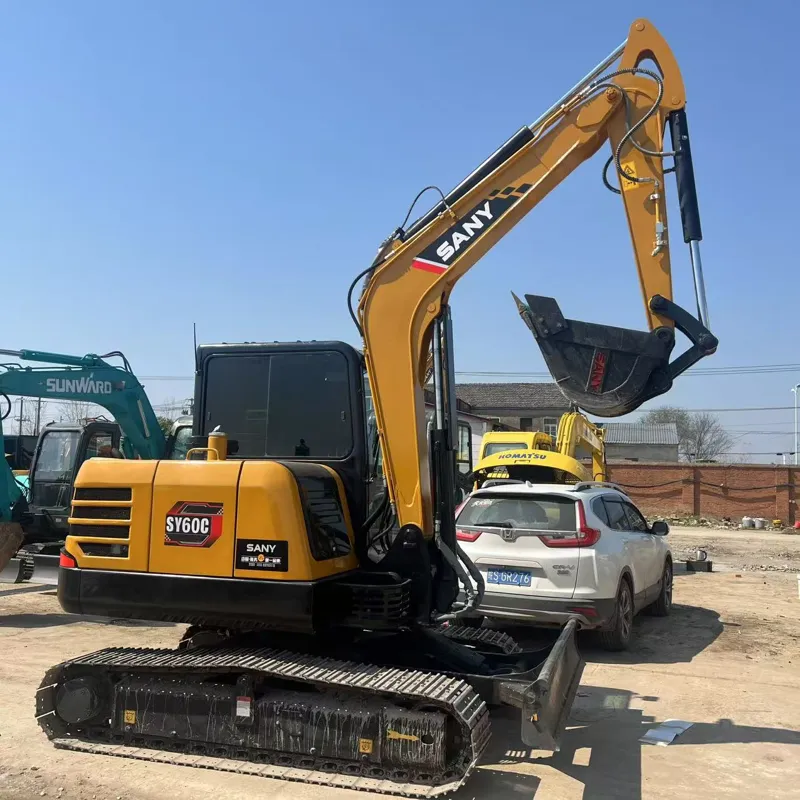

The SANY SY60C is a 6-ton class (≈5,800 kg operating weight) crawler mini excavator manufactured by SANY Heavy Industry Co., Ltd., one of the world's top 3 construction machinery makers. It is widely used for small-scale excavation, landscaping, utility work, and urban construction where larger machines can't fit.

📋 1. GENERAL OVERVIEW

Parameter	Details
Model	SY60C (Crawler) / SY60U (Zero Tail Swing)
Class	6-ton Mini Excavator
Manufacturer	SANY Heavy Industry (Changsha, China)
Origin	China 🇨🇳
Application	Municipal works, landscaping, pipeline laying, small demolition, agriculture
Certification	CE, EPA (depending on market)

& 2. ENGINE SPECIFICATIONS

Parameter	Details
Engine Model	Yuchai YC4F85-T20 (most common) / Isuzu (some markets)
Type	4-cylinder, water-cooled, turbocharged diesel
Displacement	3.76 L
Rated Power	40.4 kW (54 HP) @ 2,200 rpm
Emission Standard	Tier 2 / Stage IIIA (China) / EPA Tier 4 Final (export)
Fuel Tank Capacity	~100 L
Cooling System	Water-cooled with radiator

✅ The Yuchai engine is known for reliability, fuel efficiency, and easy maintenance.

🔧 3. HYDRAULIC SYSTEM

Parameter	Details
Pump Type	Variable displacement axial piston pump
System Flow	~110–120 L/min
Working Pressure	21 MPa (3,045 psi)
Control Mode	Pilot joystick control (smooth & precise)
Auxiliary Flow	Available for attachments (breaker, auger, etc.)

📐 4. DIMENSIONS & WEIGHT

Parameter	SY60C	SY60U (Zero Tail)
Operating Weight	~5,800 kg	~5,900 kg
Overall Length	5,910 mm	5,300 mm (shorter!)
Overall Width	1,850 mm	1,850 mm
Overall Height	2,600 mm	2,590 mm
Ground Clearance	350 mm	350 mm
Track Width	180 mm (rubber) / 300 mm (steel)	180 mm (rubber) / 300 mm (steel)

🔑 The SY60U has a zero tail swing design, making it ideal for tight spaces near walls and buildings.

💪 5. PERFORMANCE / WORKING RANGE

Parameter	Value
Max Digging Depth	3,680 mm
Max Digging Reach	6,250 mm
Max Vertical Wall Digging	~3,300 mm
Max Dumping Height	~4,200 mm
Max Dumping Reach	~4,100 mm
Bucket Capacity	0.18–0.23 m³ (standard)
Swing Speed	~10 rpm
Swing Angle	360° continuous
Travel Speed	2.8 / 4.8 km/h (2-speed)
Gradeability	70% (35°)
Ground Pressure	~32 kPa (low ground pressure = less damage)

🪵 6. CABIN & OPERATOR COMFORT

Feature	Details
✅ Enclosed Cabin	ROPS/FOPS certified, all-weather protection
✅ Air Conditioning	Standard (heating + cooling)
✅ Seat	Suspended, adjustable, with armrests
✅ Display	LCD monitor (engine hours, diagnostics, fuel level)
✅ Lighting	LED work lights (front + rear)
✅ Noise Level	~72 dB(A) — relatively quiet
✅ Pilot Controls	Ergonomic joysticks, thumb-operated auxiliary valve
✅ Windshield Wiper	Standard

🛠️ 7. ATTACHMENTS & VERSATILITY

The SY60C supports quick-coupler and various attachments:

Attachment	Use Case
🪣 Standard Bucket	General digging (180–230 mm)
🔨 Hydraulic Breaker	Concrete/rock breaking
🔩 Auger / Earth Drill	Fence posts, tree planting
🦷 Thumb / Grapple	Log handling, demolition debris
🪤 Hydraulic Shear	Scrap metal cutting
🚜 Dozer Blade	Grading, leveling
🪵 Pallet Fork	Material handling
🔄 Tilt Rotator	Precise attachment positioning

🆚 8. COMPETITORS COMPARISON

Model	Weight	Power	Dig Depth	Price Range (USD)
SANY SY60C	5,800 kg	54 HP	3,680 mm	$45,000–$55,000
CAT 306 CR	6,000 kg	51 HP	3,700 mm	$60,000–$70,000
Komatsu PC60	6,000 kg	47 HP	3,680 mm	$58,000–$68,000
XCMG XE60DA	6,000 kg	52 HP	3,700 mm	$42,000–$52,000
Doosan DX60	6,000 kg	50 HP	3,700 mm	$55,000–$65,000
JCB 8065	6,100 kg	48 HP	3,750 mm	$55,000–$65,000

💰 SANY offers excellent value for money — comparable performance at a lower price than Japanese/European brands.

✅ 9. KEY ADVANTAGES

Advantage	Explanation
💰 Cost-Effective	20–30% cheaper than CAT/Komatsu
🔧 Easy Maintenance	Yuchai engine — widely available parts in Asia/Africa/South America
🏗️ Compact Size	Fits through standard gates, narrow alleyways
⚡ Fuel Efficient	~4–5 L/hour (idle ~2 L/hr)
🔄 360° Swing	Full rotation for flexible working
🌍 Global Dealer Network	SANY has 150+ countries coverage
🛡️ Warranty	Typically 1 year / 2,000 hours (varies by market)
🔌 Electrical System	24V, easy for aftermarket accessories

⚠️ 10. LIMITATIONS

Limitation	Details
❌ Not for heavy-duty work	Max 6 tons — can't replace 20-ton excavators
❌ Limited breakout force	~30 kN (moderate)
❌ Parts availability**	Good in Asia/Africa, but can be slower in Europe/Americas vs. CAT/Komatsu
❌ Resale value	Lower than Japanese brands in some markets

🌐 11. TARGET MARKETS

Region	Popularity
🇨🇳 China	⭐⭐⭐⭐⭐ (Home market, #1 seller)
🌏 Southeast Asia	⭐⭐⭐⭐⭐ (Very popular)
🌍 Africa	⭐⭐⭐⭐ (Growing fast)
🌎 South America	⭐⭐⭐⭐
🇺🇸 Europe/USA	⭐⭐⭐ (Growing, competing with Chinese brands)
🇦🇺 Australia	⭐⭐⭐

📊 12. QUICK SUMMARY TABLE

Spec	Value
Model	SANY SY60C
Weight	5,800 kg
Engine	Yuchai 54 HP Diesel
Dig Depth	3,680 mm
Bucket	0.18–0.23 m³
Swing	360°
Price	~$45,000–$55,000 USD
Best For	Landscaping, utility, small construction, rental

🎯 FINAL VERDICT

The SANY SY60C is one of the best value-for-money 6-ton mini excavators in the world. It delivers reliable performance, low operating costs, and strong after-sales support — making it an excellent choice for contractors, rental companies, and small-scale projects globally. If budget is a priority without sacrificing quality, SANY is hard to beat. 🏆
