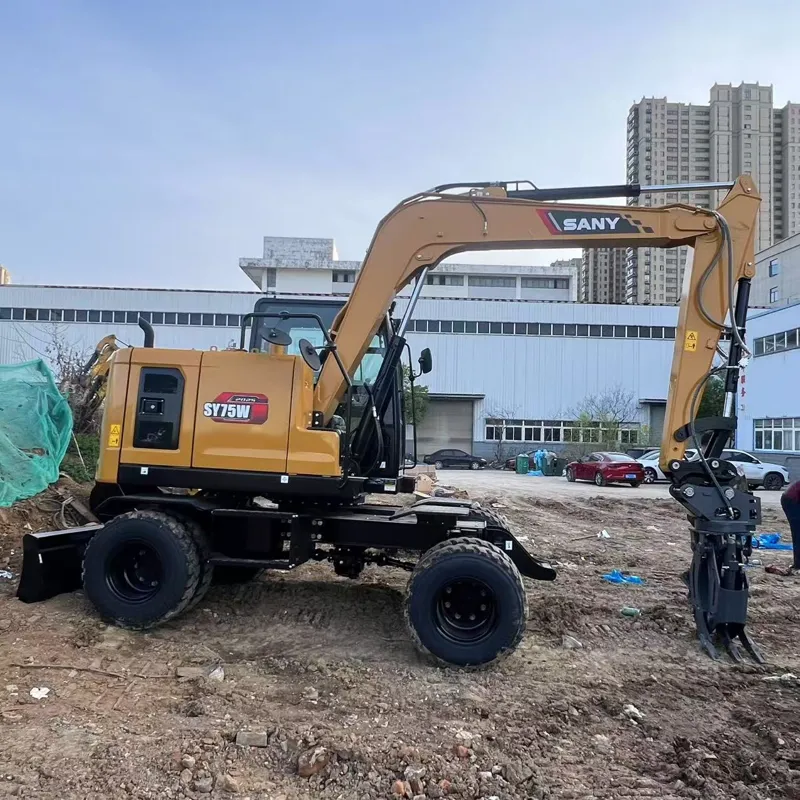

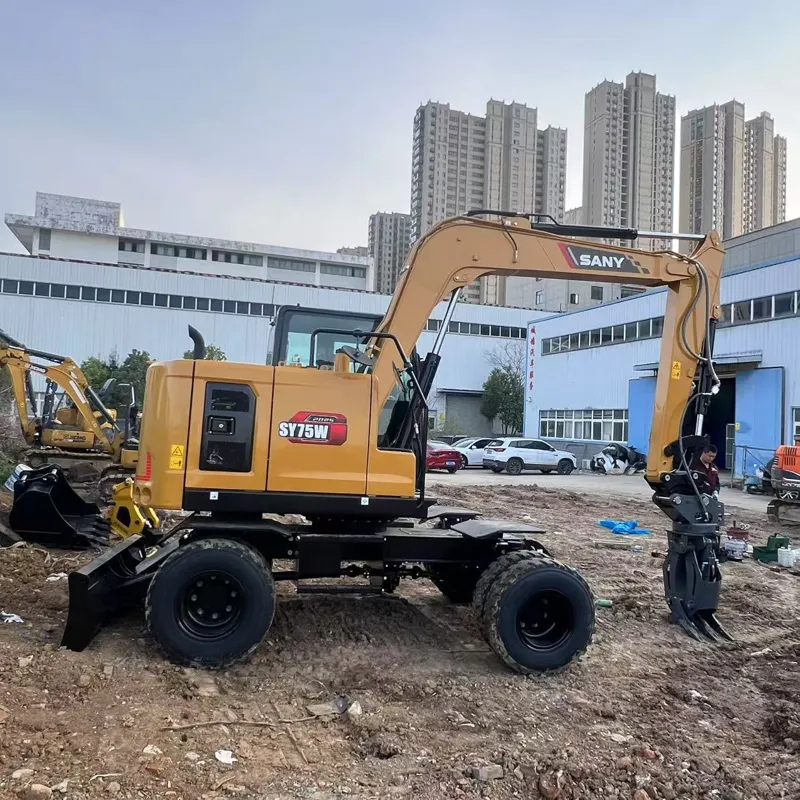

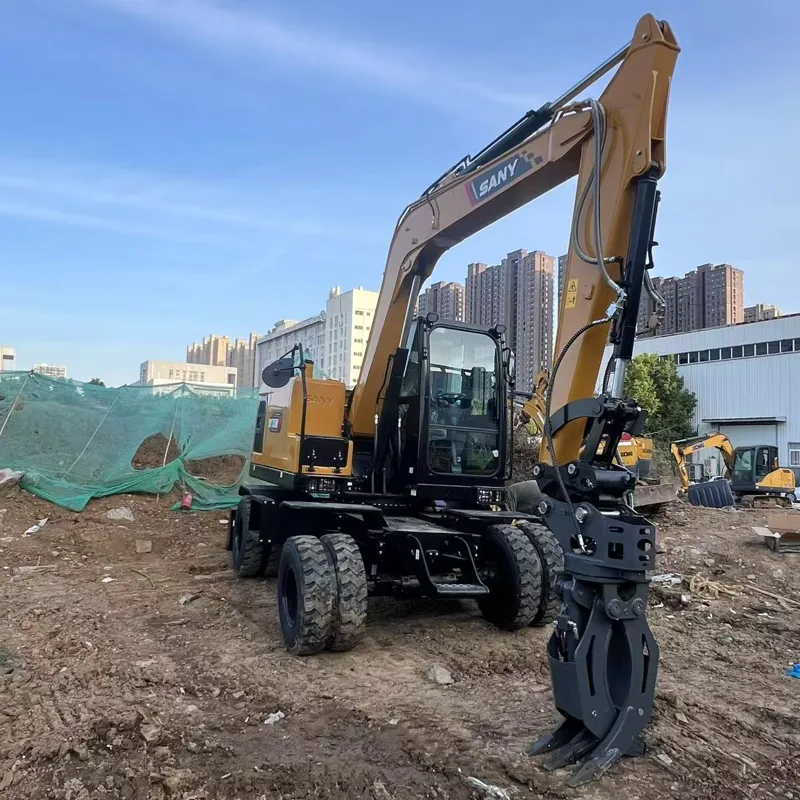

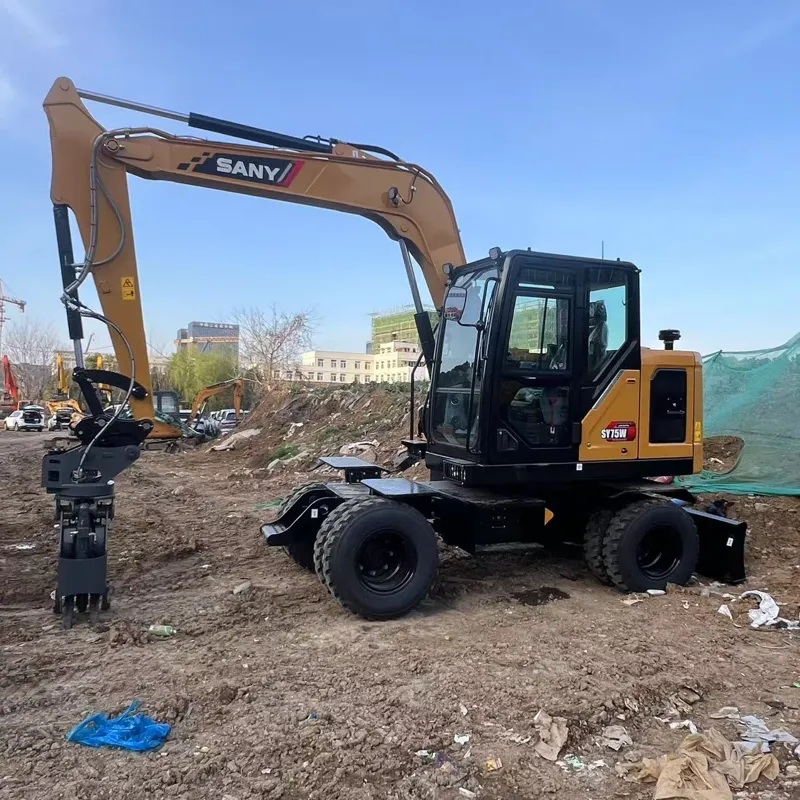

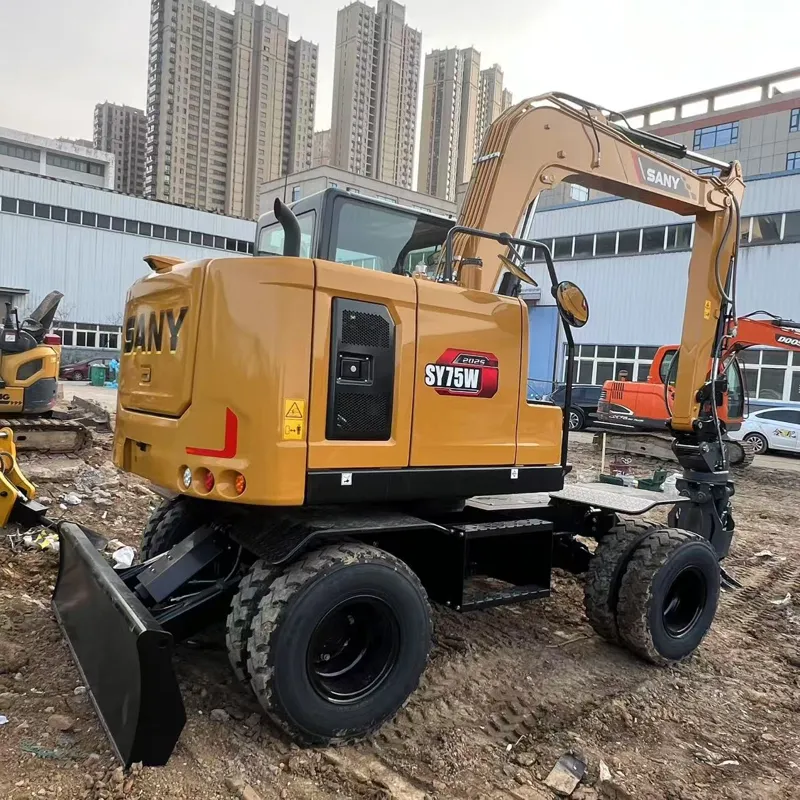

Used Sany 75 wheel Excavator

Reading: 30

📌 1. OVERVIEW

The SANY SY75W is a 7.5-ton class wheel-type mini excavator produced by SANY Group, one of the world's top 3 construction machinery manufacturers (headquartered in Changsha, China). It is designed for urban construction, pipeline laying, landscaping, road maintenance, and other projects requiring high mobility and compact size.

Compared to crawler mini excavators, the wheel version offers faster repositioning on roads (up to ~30 km/h) without needing a trailer.

📌 2. KEY SPECIFICATIONS

Parameter	Details
Model	SY75W
Operating Weight	~7,200 – 7,500 kg
Engine	Yangchai YC4FA / Yanmar 4TNV98 (diesel)
Engine Power	~45 – 52 kW (60 – 70 HP)
Emission Standard	China III / Stage IIIB (some markets: Tier 4 Final)
Bucket Capacity	0.15 – 0.30 m³ (standard)
Max Digging Depth	~4,200 – 4,500 mm
Max Digging Reach	~7,500 – 8,200 mm
Max Dumping Height	~5,500 – 5,800 mm
Max Digging Force	~35 – 40 kN
Travel Speed	~0 – 30 km/h (road speed)
Gradeability	~58% (30°)
Fuel Tank	~120 – 140 L
Hydraulic Oil Tank	~60 – 80 L

📌 3. ENGINE & POWER SYSTEM

Feature	Details
Engine Brand	Yangchai (Yuchai) or Yanmar (depending on market)
Type	4-cylinder, turbocharged, water-cooled diesel
Displacement	~2.4 – 3.3 L
Fuel Efficiency	~8 – 12 L/hour (varies with workload)
Cooling System	Water radiator + hydraulic oil cooler
After-treatment	DPF (Diesel Particulate Filter) for emission compliance

📌 4. HYDRAULIC SYSTEM

Feature	Details
Pump Type	Variable displacement axial piston pump
System Pressure	~21 – 25 MPa (3000 – 3600 PSI)
Flow Rate	~90 – 110 L/min
Auxiliary Hydraulic Lines	1 – 2 sets (for hammer, grapple, auger, etc.)
Hydraulic Quick Coupler	Available (for fast attachment change)

📌 5. CHASSIS & MOBILITY

Feature	Details
Drive Type	4WD (4-wheel drive)
Tires	7.50-16 or 8.25-16 (pneumatic rubber tires)
Steering	Hydrostatic power steering (pilot joystick)
Brakes	Wet disc brakes (sealed)

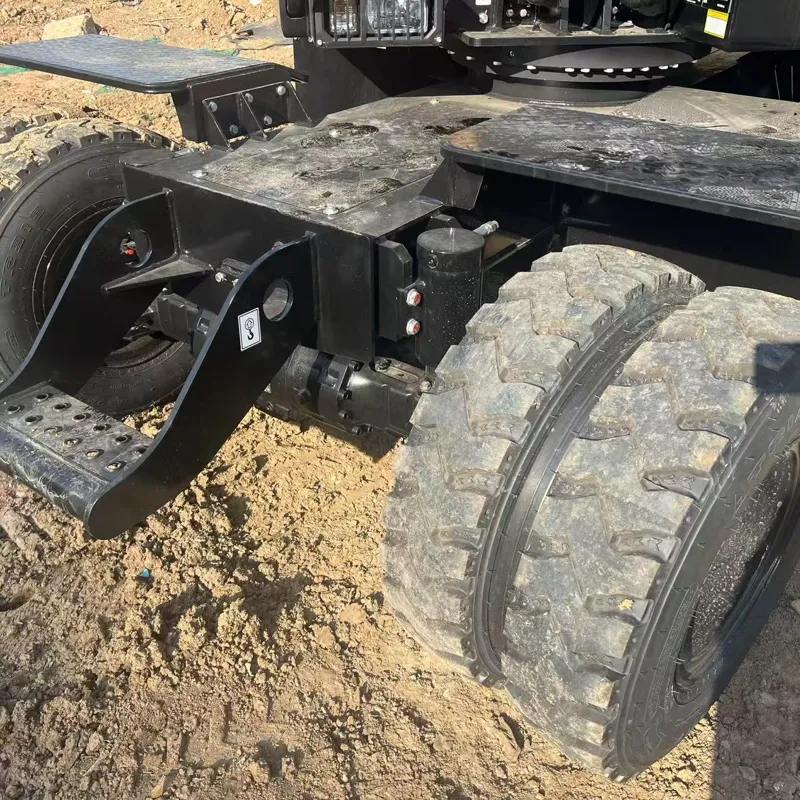

Stabilizers (Outriggers)	Front & rear hydraulic outriggers for stability
Dozer Blade	Optional (front-mounted)
Road Speed	Up to ~30 km/h (no trailer needed)

✅ Key Advantage: Can drive on public roads legally in many countries, saving transportation costs.

📌 6. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified enclosed cab
Air Conditioning	✅ Standard
Seat	Suspension seat with armrest
Control	Pilot joystick + foot pedals (intuitive)
Display	LCD monitor (engine info, fault codes, hours)
Noise Level	~72 – 76 dB(A) (relatively quiet)
Visibility	Large front/rear/side windows, rear-view camera (on some models)

📌 7. WORKING EQUIPMENT (ATTACHMENTS)

The SY75W supports quick-change attachments via hydraulic quick coupler:

Attachment	Application
🪣 Standard Bucket	General digging, loading
🔨 Hydraulic Breaker (Hammer)	Concrete/rock breaking
🪓 Hydraulic Grapple	Scrap handling, demolition
🔧 Auger / Earth Drill	Fence post holes, piling
🪝 Ripper (Single Shank)	Hard ground breaking
🧹 Sweeper Brush	Road cleaning
🌲 Forestry Grapple	Log handling

📌 8. APPLICATIONS

Industry	Use Case
🏗️ Urban Construction	Trench digging, utility installation
🛣️ Road Maintenance	Pothole repair, sidewalk work
🌳 Landscaping	Tree planting, garden excavation
🔧 Pipeline Work	Water/gas/sewer pipe laying
🏚️ Demolition	Small building tear-down (with hammer)
🌾 Agriculture	Drainage, irrigation ditches

📌 9. ADVANTAGES vs COMPETITORS

Feature	SANY SY75W	Komatsu PW75	Doosan DX75W
Price	💰💰 (More affordable)	💰💰💰	💰💰💰
After-sales Network	⭐⭐⭐⭐⭐ (Global, strong in Asia/Africa/SA)	⭐⭐⭐⭐⭐	⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Build Quality	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐
Parts Availability	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Warranty	12–18 months (varies)	12 months	12 months

📌 10. PRICE RANGE (Approximate, 2024)

Region	Price (USD)
🇨🇳 China	$35,000 – $45,000
🌏 Southeast Asia	$40,000 – $52,000
🌍 Africa / Middle East	$45,000 – $55,000
🌎 South America	$50,000 – $60,000
🇪🇺 Europe	€55,000 – €70,000

(Prices vary by configuration, attachments, and dealer)

📌 11. SUMMARY — WHO SHOULD BUY IT?

✅ Ideal For	❌ Not Ideal For
Small contractors	Large-scale mining
Municipal/utility work	Heavy earthmoving (>10,000 kg class needed)
Rental companies (high ROI)	Extreme cold climates (no cabin heater in base model)
Budget-conscious buyers	Users requiring Tier 4 Final (US/EU) — check availability

🏆 FINAL VERDICT

The SANY SY75W is one of the best value-for-money wheel excavators in the 7–8 ton class. With SANY's massive global service network, competitive pricing, and versatile attachment compatibility, it's an excellent choice for urban and light-duty construction worldwide.
