Used Volvo 210Excavator

Reading: 26

📋 Overview

The Volvo EC210 is a 21-tonne class (mid-size) crawler excavator belonging to Volvo Construction Equipment's renowned E-Series. It is one of the most popular and versatile excavators in the 20–25 tonne segment, widely used in construction, mining, road building, demolition, and landscaping.

It replaced the older B-Series (EC210B) and C-Series (EC210C) and has gone through multiple generations: D → E → F → G → H → L → NLC (latest).

⚙️ Technical Specifications (EC210 E/F/G Series)

Parameter	Specification
Operating Weight	~20,700 – 21,500 kg (45,600 – 47,400 lbs)
Engine	Volvo D6.1E / D6.1F AE3
Engine Type	4-cylinder, turbocharged diesel with intercooler
Displacement	6.1 liters
Power Output	134 – 155 hp (99 – 115 kW) @ 1,800 rpm
Max Torque	~560 Nm @ 1,400 rpm
Fuel Tank Capacity	~400 liters (106 gal)
Bucket Capacity (Std.)	0.8 – 1.1 m³ (1.0 – 1.4 cu yd)
Max Digging Depth	6,700 – 7,100 mm (22.0 – 23.3 ft)
Max Reach (Ground Level)	9,800 – 10,000 mm (32.2 – 32.8 ft)
Max Digging Height	~9,700 mm (31.8 ft)
Breakout Force (Boom)	~140 – 150 kN (31,500 – 33,700 lbf)
Swing Speed	~10 rpm
Travel Speed	~4.5 km/h (2.8 mph)
Ground Pressure	~46 kPa (6.7 psi)
Swing Boom Angle	Left/Right ~45°

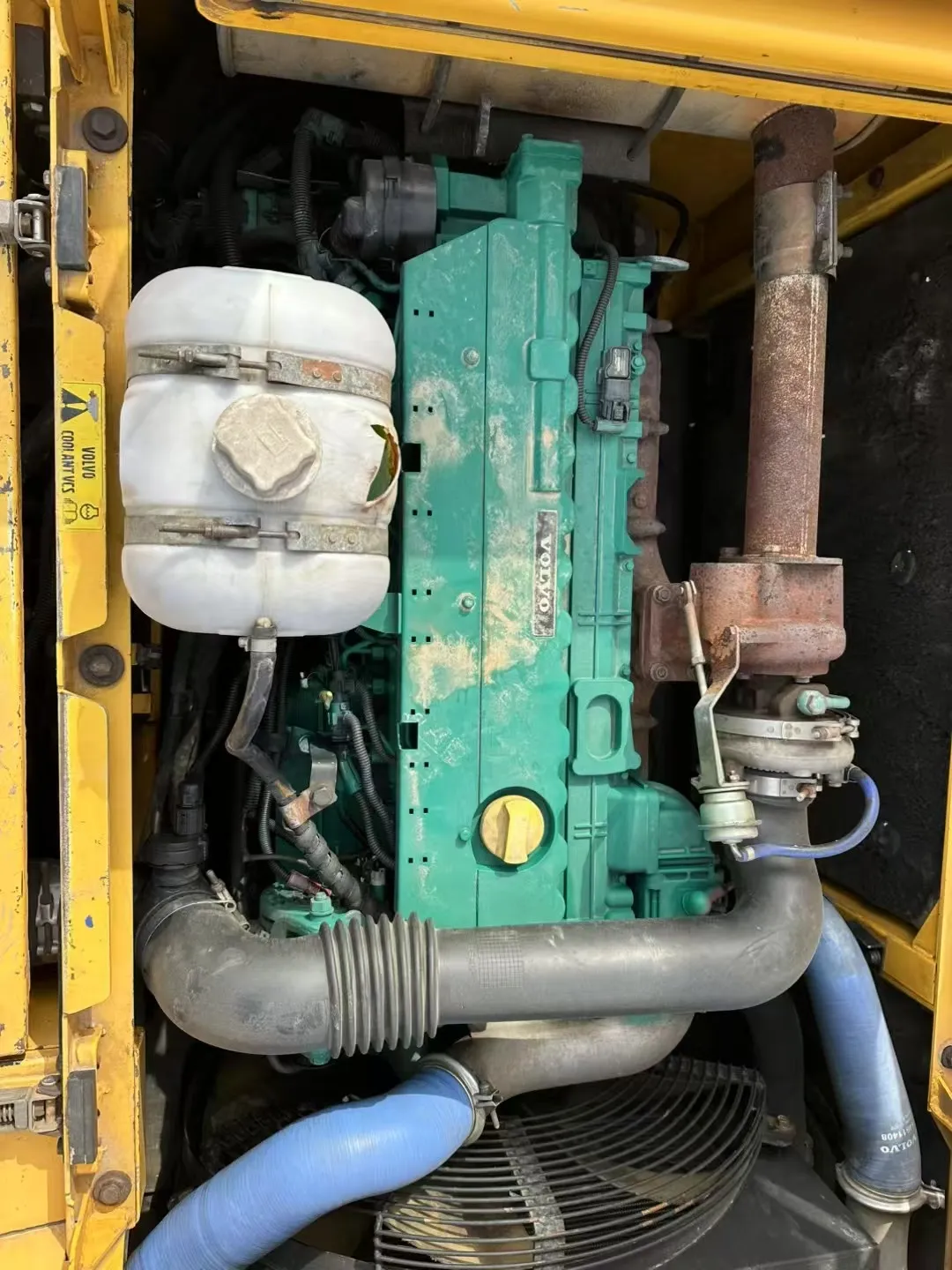

🧠 Engine & Powertrain

Feature	Detail
Engine Model	Volvo D6.1 (Stage V / Tier 4 Final compliant)
Emission Standard	EU Stage V / EPA Tier 4 Final (with DPF + SCR)
Fuel System	Common rail direct injection
Aftertreatment	Diesel Particulate Filter (DPF) + Selective Catalytic Reduction (SCR) with AdBlue
Transmission	Hydrostatic with variable displacement pump
Hydraulic System	Load-sensing, variable flow
Pump Flow	~2 × 200 L/min (dual pump)
System Pressure	350 bar (5,075 psi)

🏗️ Key Features & Technologies

🔹 1. Volvo Co-Pilot (Intelligent Machine Control) ⭐ Latest NLC Model

3D machine control with GPS/GNSS
Auto-grade, auto-depth, auto-swing
Dramatically improves productivity & precision
Reduces operator skill dependency

🔹 2. CareTrack™ Telematics

Real-time machine monitoring
Fuel consumption tracking
Maintenance alerts & diagnostics
Idle time management
Fleet management integration

🔹 3. ECO Mode / Green Mode

Optimizes engine RPM & hydraulic flow
Saves up to 15% fuel compared to standard mode
Automatic power matching to workload

🔹 4. Auto-Idle

Engine automatically shuts down after preset idle time (e.g., 5 min)
Restarts instantly when controls are used

🔹 5. Auto-Swing Stop

Automatically stops swing when no operation for set time
Reduces fuel waste & cycle time

🔹 6. PLN (Power Loss Neutral)

Maintains hydraulic pressure during travel
Smoother operation & less wear

🔹 7. Ride Control System (RCS) ⭐ On EC210L

Suspension system for the undercarriage
Reduces vibration by up to 30%
Significantly improves operator comfort on long shifts

🔹 8. Volvo LINK

Quick-coupler ready
Easy attachment change (bucket, breaker, grapple, thumb)
Pin-grabber or mechanical coupler options

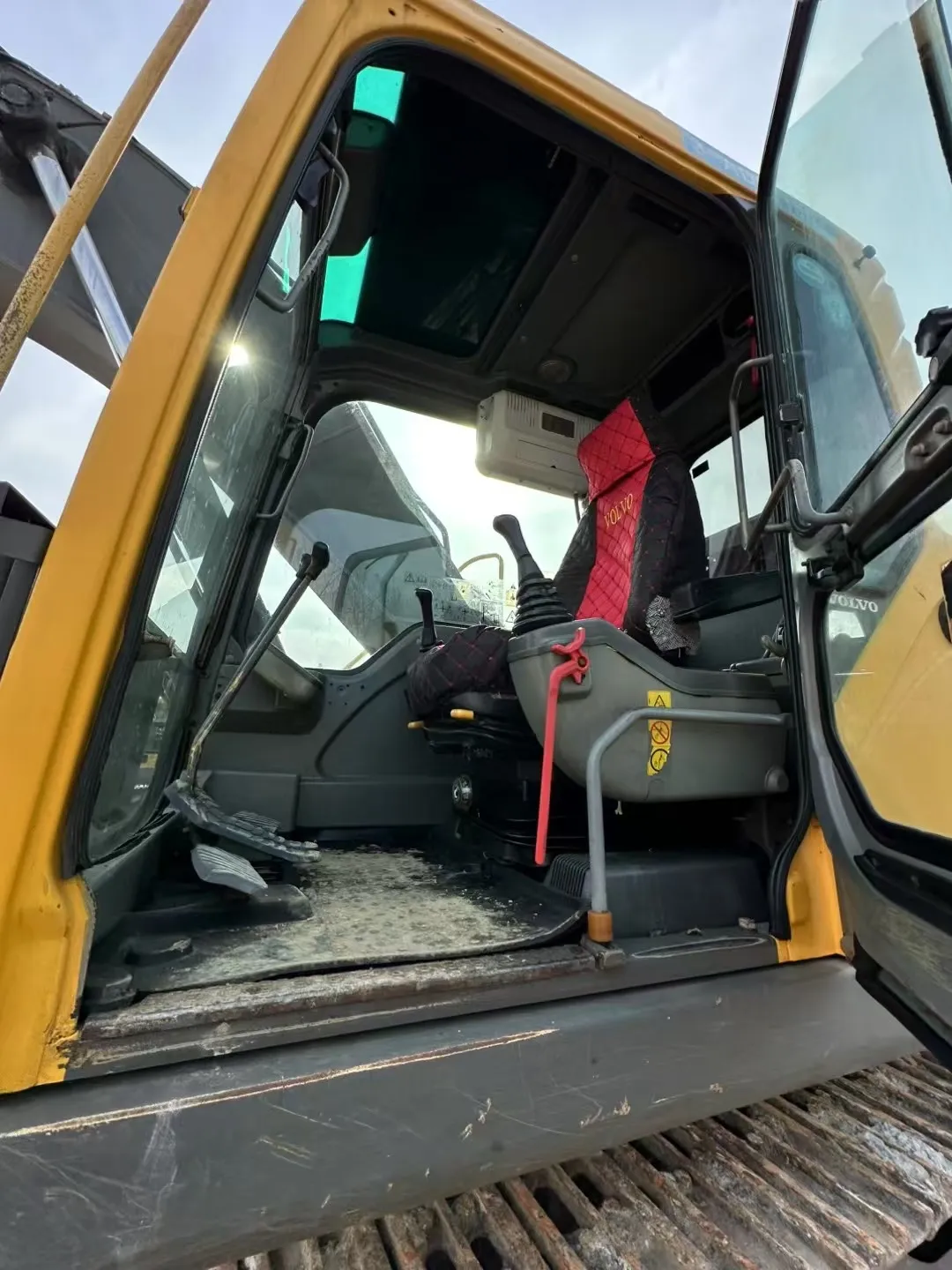

🏠 Operator Cab & Comfort

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized & filtered
Noise Level	~72 dB(A)
Seat	Air-suspended, heated, with armrests
Climate Control	Full AC + heating
Display	7-inch (older) / 9-inch (newer) color touchscreen
Controls	Ergonomic joysticks with integrated buttons
Visibility	Large panoramic windows, rear-view camera
Storage	Spacious with USB charging, cup holders
Lighting	LED work lights (front, rear, boom)

🔧 Versatility & Attachments

The EC210 is a true workhorse — compatible with a wide range of attachments:

Attachment	Application
🪣 Standard/HD Bucket	General excavation
🔨 Hydraulic Breaker	Demolition, rock breaking
🦷 Ripper (Single/Multi)	Hard ground, frozen soil
🦾 Hydraulic Thumb	Material handling, loading
🪓 Grapple/Sorting Grapple	Waste, scrap, logging
🔧 Tiltrotator	360° rotation of attachment
🔩 Pile Driver	Foundation work
🌲 Forestry Shear	Tree cutting
🛢️ Magnetic Coupler	Scrap handling

📊 Model Generations Timeline

Generation	Years (Approx.)	Key Upgrade
EC210B	2003–2006	Original B-series, Volvo D6E engine
EC210C	2006–2013	C-series, improved cabin, D6E engine
EC210D	2013–2017	D-series, Stage IIIB, better fuel economy
EC210E	2017–2020	E-series, Stage IV, ECO mode, CareTrack
EC210F	2020–2022	Updated engine, improved hydraulics
EC210G	2022–2024	Enhanced telematics, improved cooling
EC210H	2024+	Further refinement
EC210L ⭐	2023+	Ride Control System, premium comfort
EC210NLC ⭐	2024+	Volvo Co-Pilot (3D MC), next-gen

💰 Approximate Pricing (2024–2025)

Market	Price Range (USD)
New Machine	$130,000 – $185,000
Used (5–8 yrs)	$60,000 – $110,000
Used (10+ yrs)	$35,000 – $60,000

Prices vary by region, configuration, hours, and attachments.

✅ Advantages (Why Choose EC210?)

✅ Strength	Explanation
🏆 Reliability	Volvo's legendary build quality & durability
&Fuel Efficiency**	Among the best in class (~15–20 L/hr)
🛠️ Low Maintenance	Long service intervals, easy access
📶 Telematics	CareTrack gives full fleet visibility
🧘 Comfort	Best-in-class cab with RCS option
🔄 Resale Value	Excellent residual value
🌐 Dealer Network	Volvo has one of the largest global networks
📈 Technology	Co-Pilot 3D MC makes it future-ready

🆚 Competitors

Model	Weight	Power	Notes
🟠 Cat 321 GC	~21,900 kg	142 hp	Strong dealer network
🟡 Komatsu PC210LC-11	~21,200 kg	134 hp	Known for hydraulics
🔴 Hitachi ZX225USLC-7	~22,500 kg	142 hp	Good fuel economy
🟢 Doosan DX225LC-7	~22,300 kg	140 hp	Competitive pricing
🔵 Volvo EC210	~21,000 kg	155 hp	Best tech & comfort

🎯 Ideal Applications

🏗️ Application	Suitability
General earthmoving	⭐⭐⭐⭐⭐
Road construction	⭐⭐⭐⭐⭐
Mining (medium-scale)	⭐⭐⭐⭐
Demolition	⭐⭐⭐⭐⭐
Pipeline/utility work	⭐⭐⭐⭐⭐
Landscaping	⭐⭐⭐⭐
Foundation work	⭐⭐⭐⭐
River/canal dredging	⭐⭐⭐

📝 Summary

The Volvo EC210 is arguably the most well-rounded 21-tonne excavator on the market. It combines Volvo's signature reliability, fuel efficiency, operator comfort, and cutting-edge technology (especially with Co-Pilot and Ride Control). Whether you're doing general excavation or precision grading with 3D machine control, the EC210 delivers exceptional productivity, low operating costs, and high resale value.
