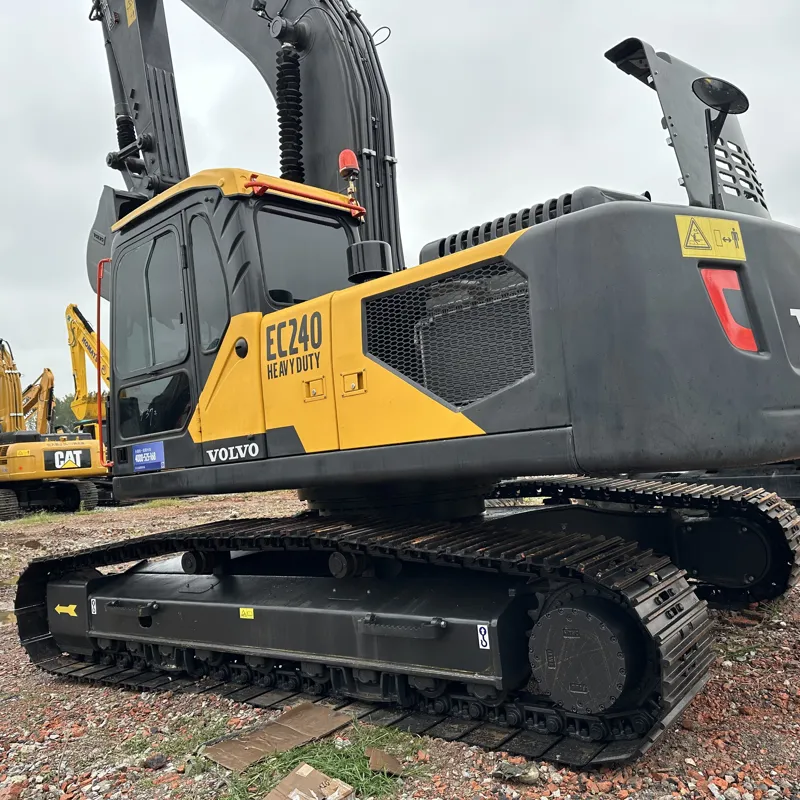

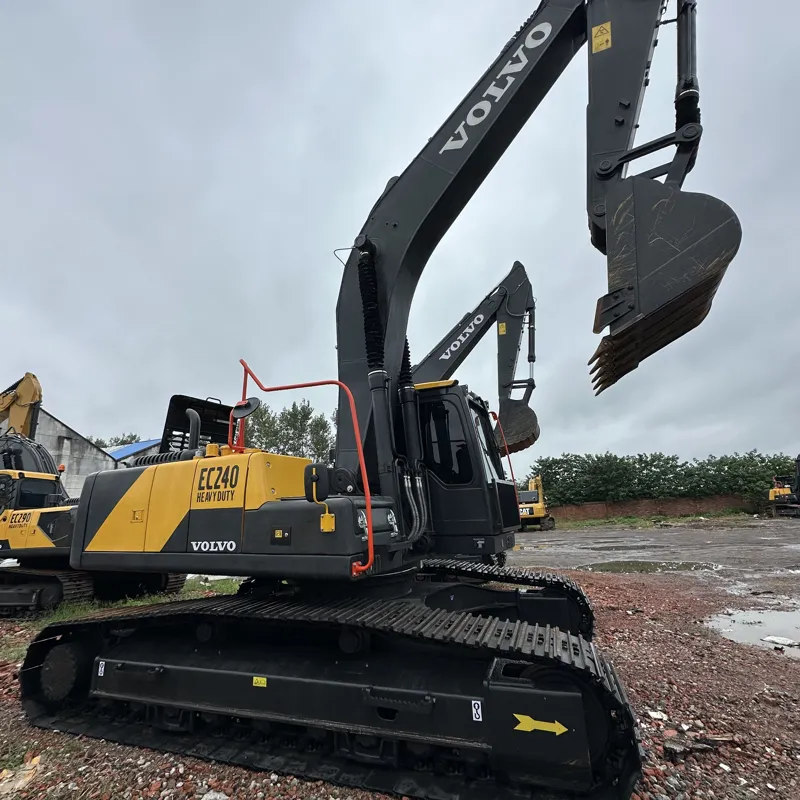

Used Volvo 240Excavator

Reading: 68

The Volvo EC240 is a 24-tonne class mid-to-large hydraulic excavator manufactured by Volvo Construction Equipment. It is one of the most popular models in Volvo's E-Series lineup, widely used in construction, mining, road building, and general earthmoving applications.

📋 Overview

Feature	Details
Model	Volvo EC240B / EC240C / EC240D / EC240E
Class	24-tonne (Mid-Large Excavator)
Manufacturer	Volvo Construction Equipment (Sweden)
Production	1990s – Present
Primary Use	General construction, road building, landscaping, mining

& Technical Specifications (EC240E — Latest Generation)

Parameter	Specification
Operating Weight	~23,800 – 24,500 kg

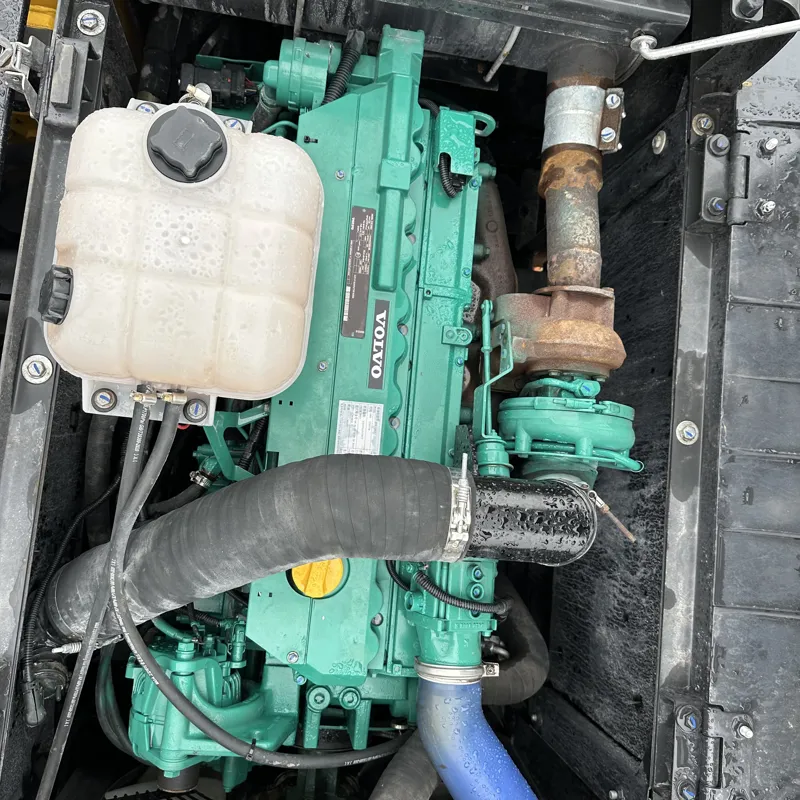

Engine	Volvo D7.2E (Stage V / Tier 4 Final)
Engine Power	~150 kW (201 hp) @ 1,800 rpm
Max Torque	~870 Nm @ 1,400 rpm
Fuel Tank Capacity	~400 liters

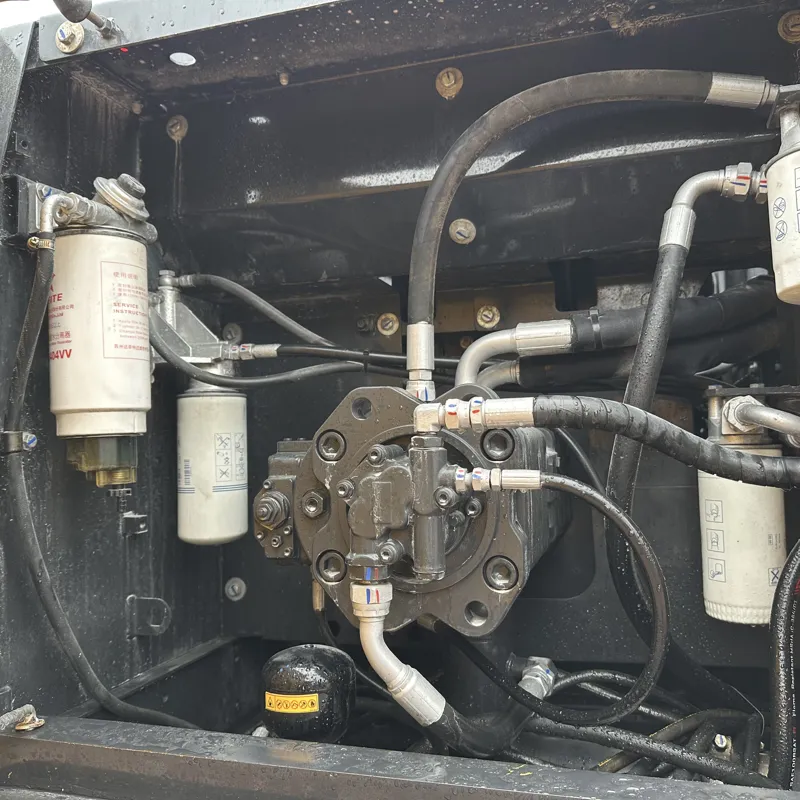

Hydraulic System	Load-Sensing (LS) with variable displacement pump
Max Pump Flow	~2 × 170 L/min (or 2 × 200 L/min w/ boost)
System Pressure	350 bar (5,075 psi)
Max Digging Depth	~7,100 – 7,500 mm
Max Reach (Ground Level)	~9,500 – 10,000 mm
Max Digging Reach (at ground level)	~10,400 mm
Max Dumping Height	~7,200 mm
Bucket Capacity (Standard)	0.9 – 1.2 m³
Blade Width	3,200 mm
Track Width	600 mm (triple grouser option available)
Transport Width	2,990 mm
Transport Height	3,190 mm
Transport Length	10,040 mm

Specs may vary slightly depending on configuration (long reach, demolition, etc.)

🔄 Model Generations

Generation	Years	Key Features
EC240B	1990s – early 2000s	Volvo TD71 engine, ~120 kW, mechanical controls
EC240C	2000s – mid 2010s	Volvo D6D engine, ~118 kW, improved cab & hydraulics
EC240D	2014 – 2020	Volvo D7.2 engine, ~130 kW, E-Series cab, integrated electronics
EC240E ⚡	2020 – Present	Volvo D7.2E, ~150 kW, fully electric armrest controls, improved fuel efficiency (~10% better), new cab design

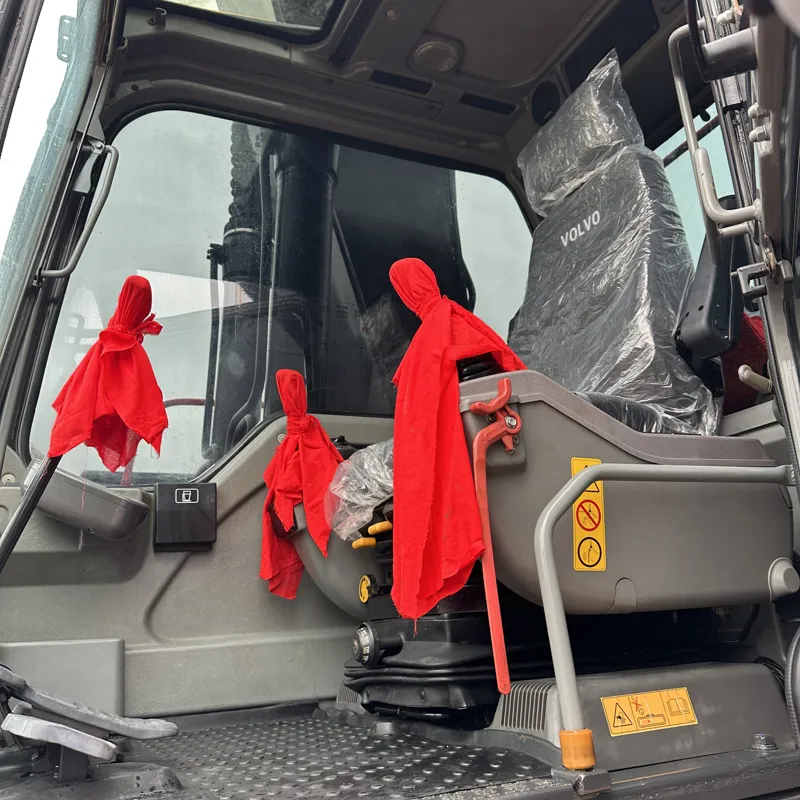

🖥️ Cab & Operator Comfort (EC240E)

Feature	Description
🪑 Suspended Seat	Air-suspended with heating & ventilation
🖥️ Display	12" high-resolution touchscreen (Volvo Co-Pilot)
🎮 Controls	Fully electronic joystick controls (E-handle)
🔊 Sound Level	~70 dB(A) — very quiet
❄️ AC	Full climate control with auto mode
📹 Cameras	Rear-view & side-view camera system
🔒 ROPS/FOPS	Fully certified Roll-Over & Falling Object Protection
📡 Telematics	Volvo Co-Pilot with machine monitoring, fuel tracking, diagnostics

🔧 Key Technologies

Technology	Benefit
⚡ E-Series / Electric Controls	Smoother operation, less fatigue, precise control
🛢️ Eco-Mode / Power Mode	Optimize fuel consumption vs. performance
🧠 Volvo Co-Pilot	Real-time machine data, fleet management, GPS tracking
🔄 Auto-Idle & Auto-Shutdown	Saves fuel when machine is idle
🚿 Auto-Lubrication	Reduces maintenance time
🔩 Quick Coupler Ready	Easy attachment change (hydraulic quick coupler)
🦷 Reinforced Undercarriage	Heavy-duty for mining & quarrying use

🏗️ Common Attachments & Configurations

Configuration	Application
Standard Bucket (0.9–1.2 m³)	General earthmoving
Long Reach (18m)	Deep excavation, dredging
Demolition (with shears/grapple)	Building demolition
Material Handling (with magnet)	Scrap handling
Grading Blade	Road grading & leveling
Thumb	Log handling, pipe loading
Hydraulic Breaker	Rock breaking, concrete
Compaction Wheel	Trench compaction

📊 Performance Comparison (vs. Competitors)

Model	Weight	Power	Bucket	Dig Depth
🔵 Volvo EC240E	24.0 t	201 hp	1.0 m³	7.1 m
🟡 CAT 324 GC	24.4 t	195 hp	1.0 m³	7.2 m
🟢 Komatsu PC240LC-11	24.0 t	191 hp	1.0 m³	7.0 m
🔴 Hitachi ZX240-6	24.3 t	190 hp	1.0 m³	7.1 m
🟠 Doosan DX235LCR-5	23.8 t	187 hp	1.0 m³	6.9 m

⚡ Volvo EC240E generally leads in fuel efficiency, operator comfort, and technology integration.

✅ Advantages of Volvo EC240

✅ Pros	❌ Cons
Excellent fuel efficiency (~10% better than D-series)	Higher purchase price than some competitors
Best-in-class operator comfort & low noise	Parts can be expensive
Advanced telematics (Co-Pilot)	Heavier than some rivals (slightly)
Strong resale value	Limited dealer network in some regions
Excellent after-sales support (Volvo CE)
High durability & uptime

💰 Approximate Pricing (2024 Estimates)

Region	New Price (USD)
🇺🇸 North America	$180,000 – $230,000
🇪🇺 Europe	€170,000 – €220,000
🇨🇳 China	¥1,200,000 – ¥1,600,000
🇮🇳 India	₹1.8 – ₹2.5 Crore
🌐 Used (5-8 yrs)	$70,000 – $120,000

Prices vary based on configuration, attachments, and market.

🏆 Summary

	Rating
⭐ Overall Rating	⭐⭐⭐⭐⭐ (4.8/5)
🛢️ Fuel Efficiency	⭐⭐⭐⭐⭐
🪑 Operator Comfort	⭐⭐⭐⭐⭐
💪 Durability	⭐⭐⭐⭐⭐
📈 Resale Value	⭐⭐⭐⭐⭐
🔧 Service Network	⭐⭐⭐⭐

🔑 The Volvo EC240E is considered one of the BEST 24-tonne excavators in the world, especially praised for its fuel efficiency, operator comfort, cutting-edge technology, and reliability. It is an excellent choice for contractors who value low operating costs and high productivity.

Would you like more details on any specific aspect — such as maintenance schedule, compare with another model, or rental pricing? 🚜
