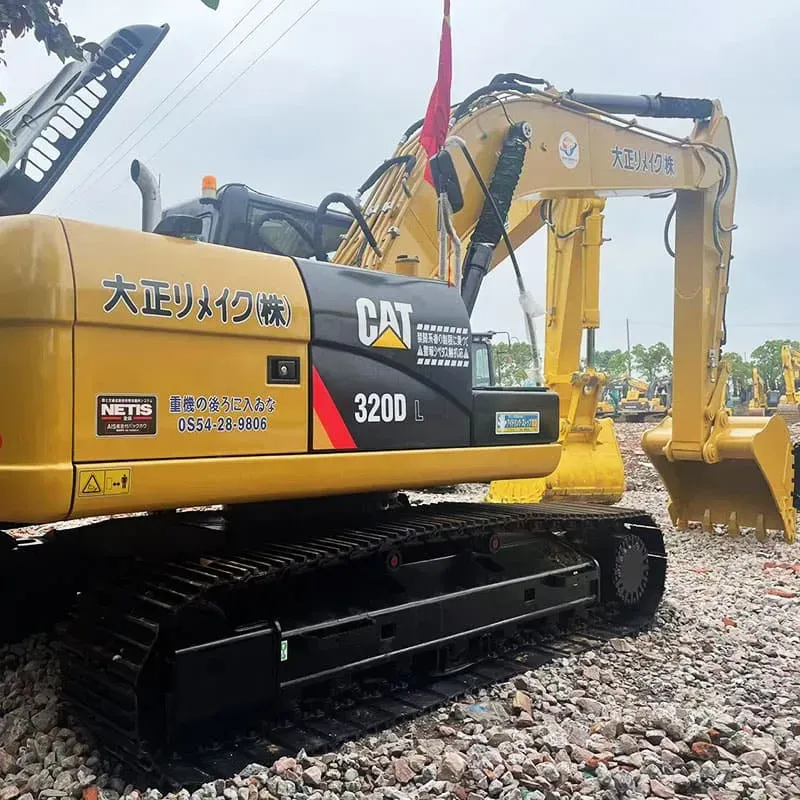

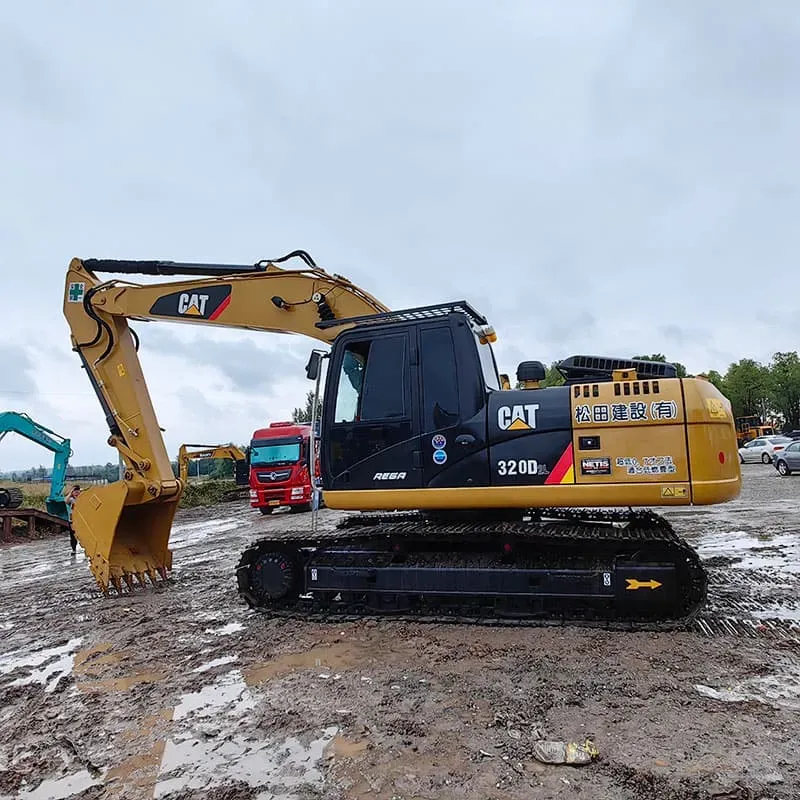

Used Caterpillar 320DLExcavator

Reading: 23

📌 1. OVERVIEW

The Cat 320DL is a 20-ton class, next-generation hydraulic excavator from Caterpillar's D-Series (D2) lineup. The "DL" designation stands for:

Letter	Meaning
D	Next-Generation D-Series (upgraded platform)
L	Long Undercarriage — extended track frame for superior stability

It is one of the most popular mid-size excavators globally, widely used in construction, mining, road building, demolition, and utility work.

📌 2. KEY SPECIFICATIONS

Parameter	Specification
Operating Weight	~20,400 – 21,000 kg (45,000 – 46,300 lbs)
Engine	Cat C4.4 ACERT® Diesel (Turbocharged & Aftercooled)
Engine Power	130 hp (97 kW) @ 2,000 rpm
Torque Rise	Up to 25% (excellent for heavy loads)
Bucket Capacity	0.84 – 1.13 m³ (1.1 – 1.48 cu yd)
Max Digging Depth	~6,680 mm (21.9 ft)
Max Reach	~9,680 mm (31.8 ft)
Max Digging Force	~135 kN (30,350 lbf)
Max Breakout Force	~92 kN (20,700 lbf)
Track Width	600 mm (24 in) shoes
Fuel Tank Capacity	~370 L (98 gal)
Hydraulic Flow	2 × 113 L/min (30 GPM) main pumps
Operating Pressure	350 bar (5,075 psi)
Swing Speed	11.5 rpm
Travel Speed	4.8 km/h (3.0 mph)

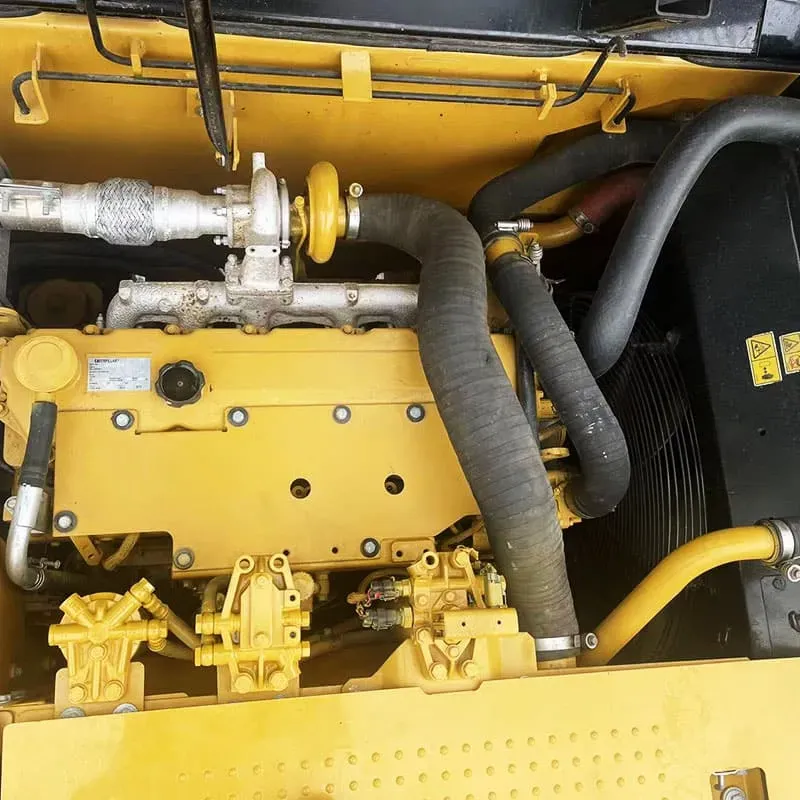

📌 3. ENGINE — Cat C4.4 ACERT®

Feature	Detail
Displacement	4.4 L (268 cu in)
Emissions	Tier 4 Final / Stage V compliant
Technology	DOC + DPF (Diesel Oxidation Catalyst + Diesel Particulate Filter) — NO DEF (Diesel Exhaust Fluid) required ✅
Cooling	Separate circuit cooling with debris-resistant radiators
Advantages	Lower fuel consumption, reduced maintenance, no DEF hassle

⚡ The 25% torque rise feature automatically boosts engine power when extra force is needed (e.g., digging hard ground or lifting heavy loads).

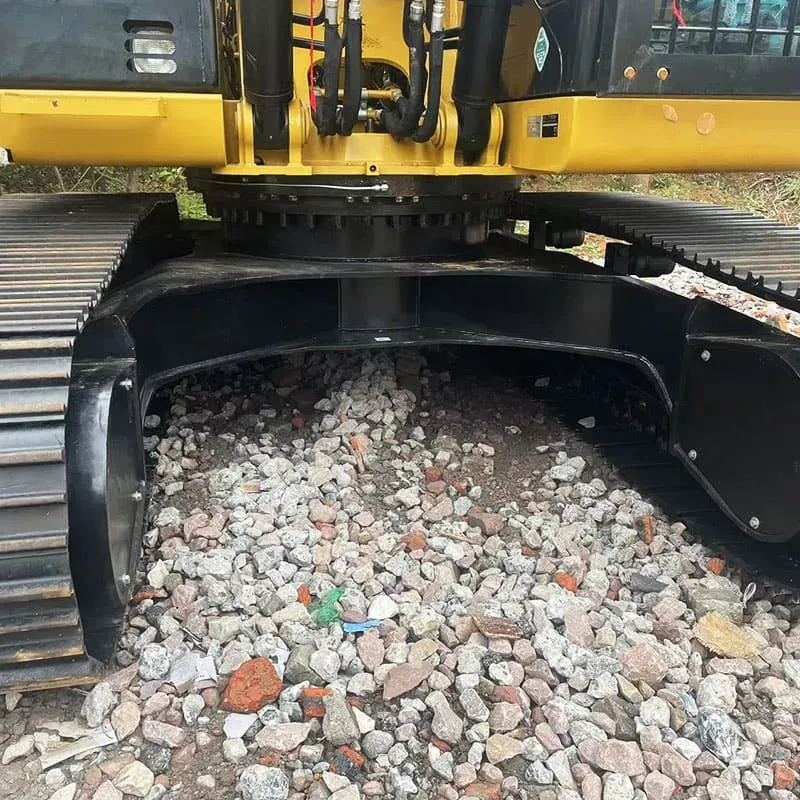

📌 4. "L" — LONG UNDERCARRIAGE ADVANTAGES

The 320DL has a longer track frame compared to the standard 320D:

Benefit	Explanation
✅ Greater Stability	Wider footprint = safer when lifting heavy loads at reach
✅ Better Weight Distribution	Improved balance on uneven terrain
✅ Enhanced Lifting Capacity	Can handle heavier work tools (hydraulic breakers, grapples, etc.)
✅ Reduced Ground Pressure	~46 kPa — suitable for soft/muddy ground

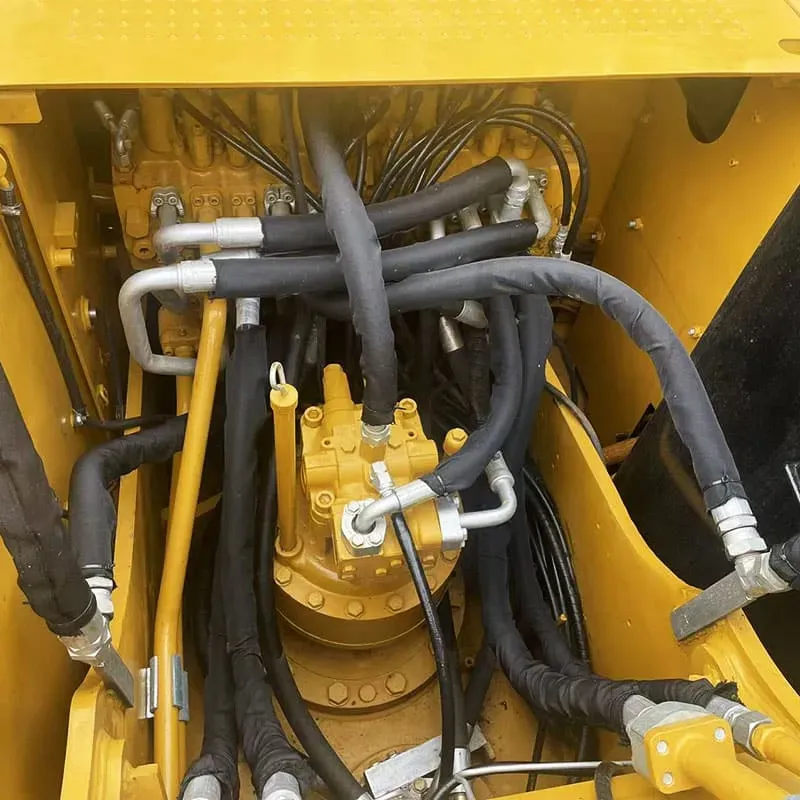

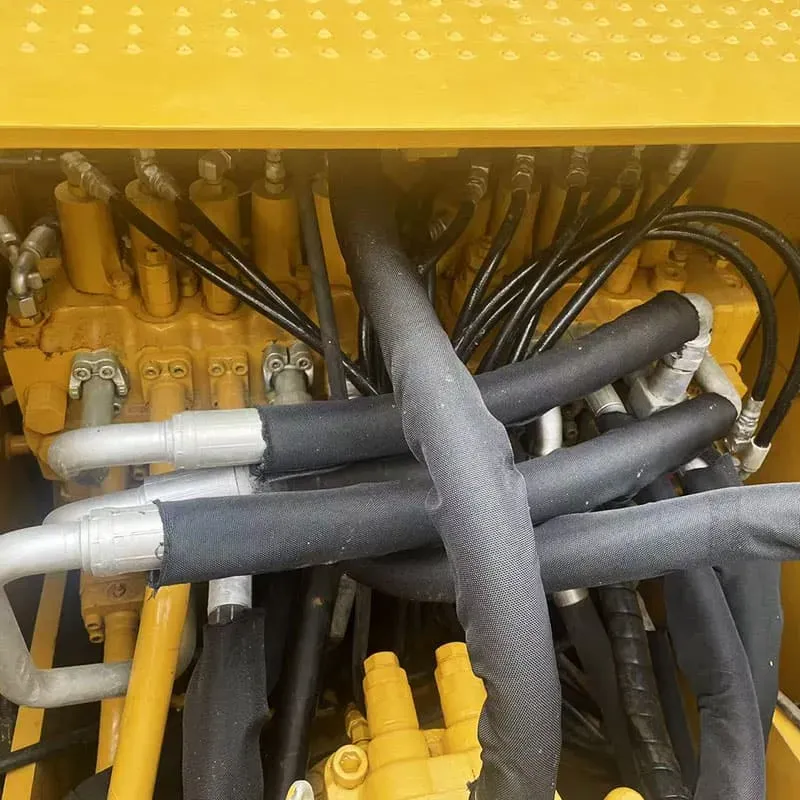

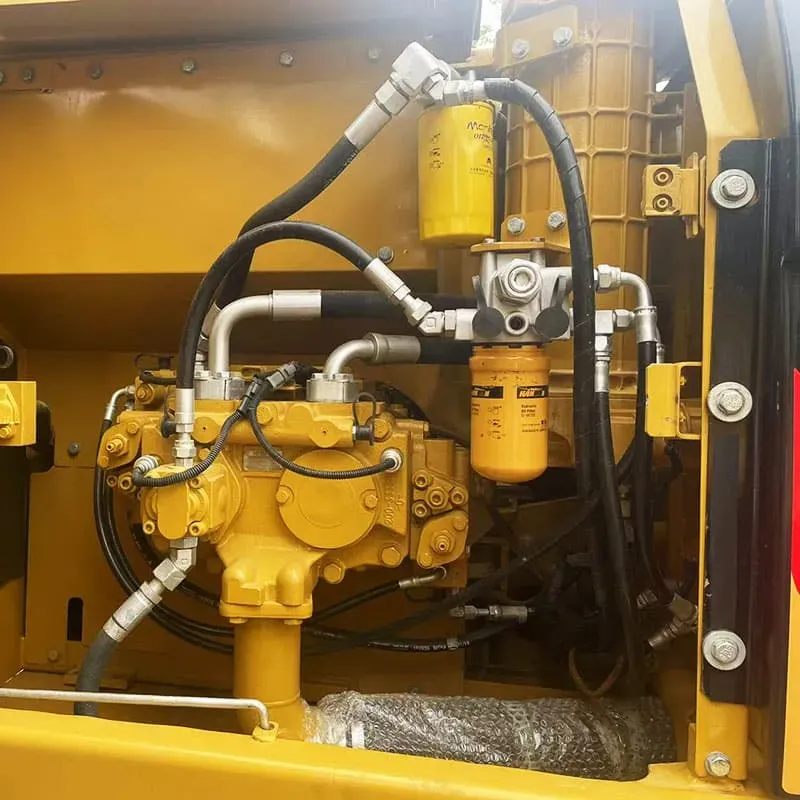

📌 5. HYDRAULIC SYSTEM

Feature	Specification
Pump Type	Variable Displacement Axial Piston
Total Flow	226 L/min (60 GPM)
System Pressure	350 bar (5,075 psi)
Auxiliary Hydraulics	2 circuits (standard) — for thumbs, breakers, shears
Hydraulic Quick Coupler	Available as factory option ✅
Work Tool Selector	Electronic — auto-adjusts flow/pressure for attachment

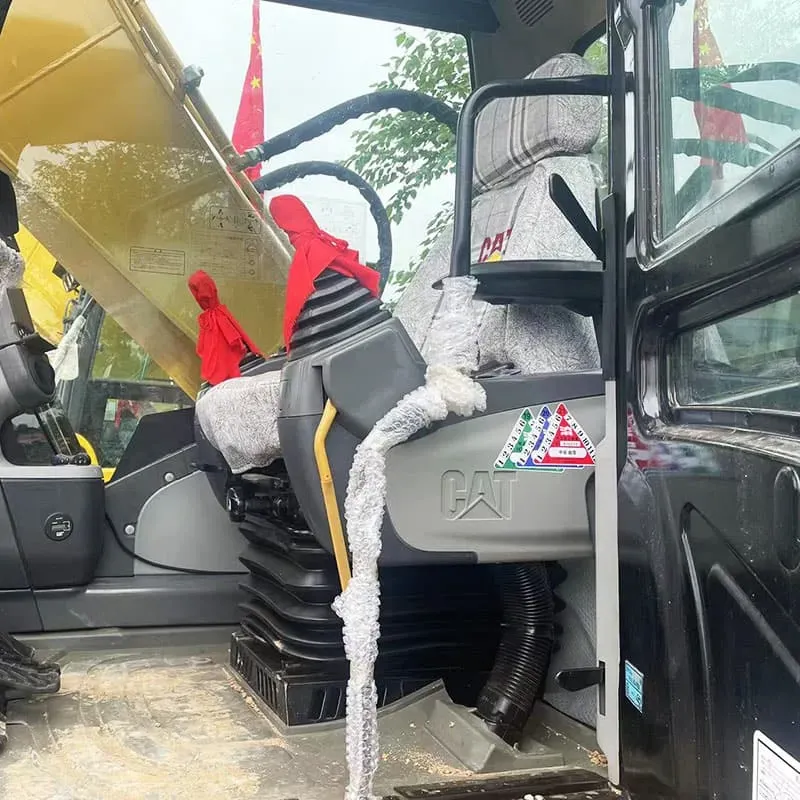

📌 6. CAB & OPERATOR COMFORT 💺

The 320DL features Caterpillar's next-gen D-series cab:

Feature	Detail
ROPS/FOPS	Fully certified (Rollover & Falling Object Protection)
Noise Level	~72 dB(A) — very quiet for its class
Air Conditioning	Auto climate control with filter
Seat	Suspended, heated, adjustable with armrests
Display	7" (178 mm) color LCD touchscreen monitor
Controls	Joystick with programmable buttons, thumb-operated auxiliary controls
Camera System	Rearview & side-view cameras (optional)
USB/Bluetooth	Media connectivity 🎵
Visibility	Large glass area, excellent all-around visibility

📌 7. SMART TECHNOLOGY & TELEMATICS 📡

Technology	Function
Cat Product Link™	Real-time machine monitoring — location, hours, fuel, diagnostics
Cat Grade with 2D	Optional — GPS-guided blade/bucket positioning
Cat Payload	Optional — real-time bucket load weighing (±1% accuracy)
Cat Detect	Optional — object detection using radar/camera for safety
VisionLink®	Fleet management platform for construction managers

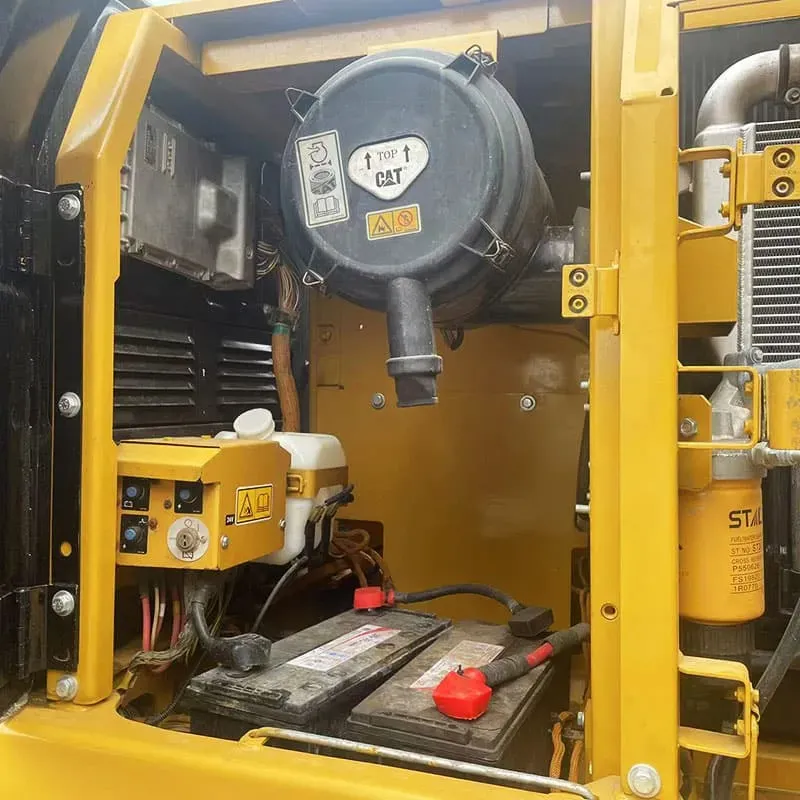

📌 8. MAINTENANCE & SERVICEABILITY 🔧

Caterpillar designed the 320DL for easy maintenance:

Feature	Benefit
🚪 Ground-level access to most service points	No need to climb
🔄 500-hour service intervals (vs. older 250hr)	Less downtime
🛢️ Extended drain intervals — oil change every 1,000 hours	Lower operating cost
🧹 Easy-clean radiators with debris screens	Reduces overheating in dusty conditions
🔋 Centralized grease points	Faster daily lubrication
📋 Electronic technician (ET) diagnostic port	Quick fault diagnosis

📌 9. COMMON WORK TOOL ATTACHMENTS

Attachment	Application
🪣 General Purpose Bucket	Excavation, loading
🔨 Hydraulic Breaker (Hammer)	Rock breaking, demolition
🦴 Grapple / Orange Peel	Scrap handling, sorting
✂️ Hydraulic Shear	Demolition, scrap cutting
🪓 Thumb	Pipe handling, precision work
🔩 Tiltrotator	Versatile attachment rotation
🧹 Rake / Ripper	Grading, soil loosening

📌 10. APPLICATIONS

Industry	Use Case
🏗️ General Construction	Foundation excavation, trenching, backfilling
🛣️ Road Building	Grading, utility installation
& Mining & Quarrying	Loading trucks, bench excavation
🏚️ Demolition	Building teardown with breaker/shear
🔌 Utilities	Pipe laying, cable trenching
🌊 Dredging	Canal/river maintenance (long reach)
🌲 Landscaping	Grading, pond digging

📌 11. COMPARISON: 320D vs 320DL

Feature	320D (Standard)	320DL (Long)
Track Frame	Standard	Longer (+300mm)
Stability	Good	Excellent
Lifting Capacity	Good	Better (especially at reach)
Ground Pressure	~48 kPa	~46 kPa
Weight	~20,000 kg	~20,400 kg
Best For	General work	Heavy lifts, breakers, long-reach work

📌 12. STRENGTHS & WEAKNESSES

✅	Strengths
✔️	Excellent fuel efficiency (~15-18 L/hr)
✔️	No DEF required (Tier 4 Final)
✔️	Superior operator comfort
✔️	Strong hydraulics for heavy attachments
✔️	Low maintenance cost
✔️	Excellent resale value
✔️	Wide dealer & parts network worldwide

⚠️	Considerations
⚠️	Higher purchase price vs. competitors (Komatsu PC200, Volvo EC200)
⚠️	DL version is heavier — may need permits for transport
⚠️	Cat parts can be expensive (but widely available)

📌 13. PRICE RANGE (Approximate, 2024)

Condition	Price (USD)
🟢 New	$180,000 – $230,000 (depends on configuration)
🟡 Used (3,000-5,000 hrs)	$110,000 – $160,000
🔴 Used (8,000+ hrs)	$75,000 – $110,000

(Prices vary by region, configuration, and market conditions)

📌 14. SUMMARY

Category	Rating
💪 Power	⭐⭐⭐⭐ (130 hp — great for 20-ton class)
& Efficiency	⭐⭐⭐⭐⭐ (No DEF, low fuel burn)
💺 Comfort	⭐⭐⭐⭐⭐ (Best-in-class cab)
🔧 Reliability	⭐⭐⭐⭐⭐ (Cat proven track record)
💰 Value	⭐⭐⭐⭐ (Higher upfront, lower TCO)
🏆 Overall	⭐⭐⭐⭐½

🏅 Bottom Line:
The Cat 320DL is a workhorse mid-size excavator — ideal for contractors who need reliability, fuel efficiency, operator comfort, and heavy-duty capability in one machine. The "L" long undercarriage makes it the go-to choice when you need extra stability for breakers, grapples, or long-reach work. It's one of the best-selling excavators in the 20-ton class worldwide. 🌍
