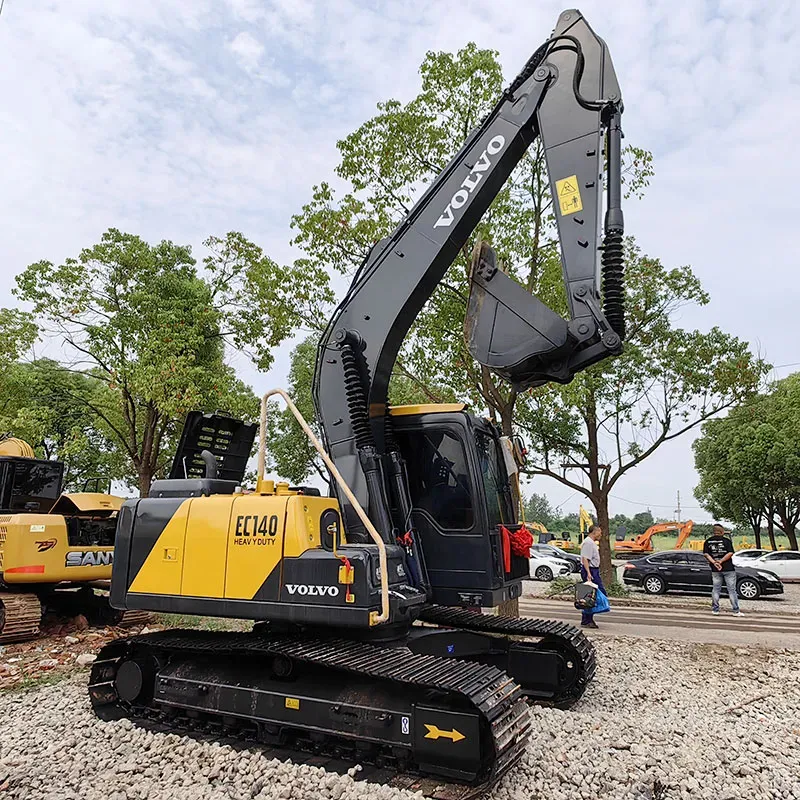

Used Volvo 140Excavator

Reading: 14

📌 1. OVERVIEW

Item	Details
Model	Volvo EC140E / EC140EL
Class	Mid-size Crawler Excavator (14-tonne / 14T class)
Manufacturer	Volvo Construction Equipment (Sweden)
Generation	E-Series (Latest — launched ~2020)
Primary Use	General earthmoving, road construction, utilities, landscaping, demolition

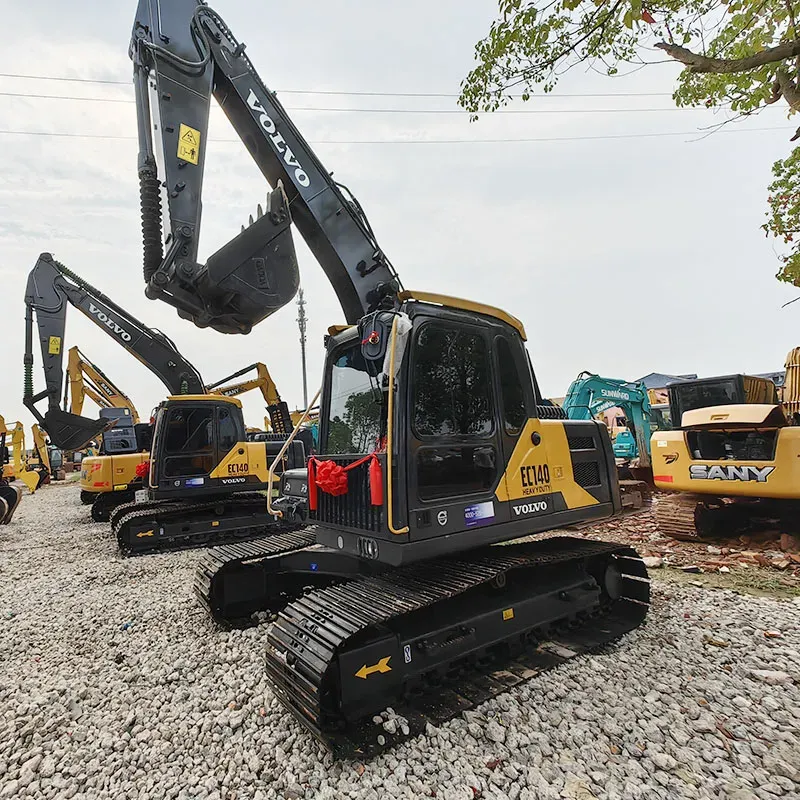

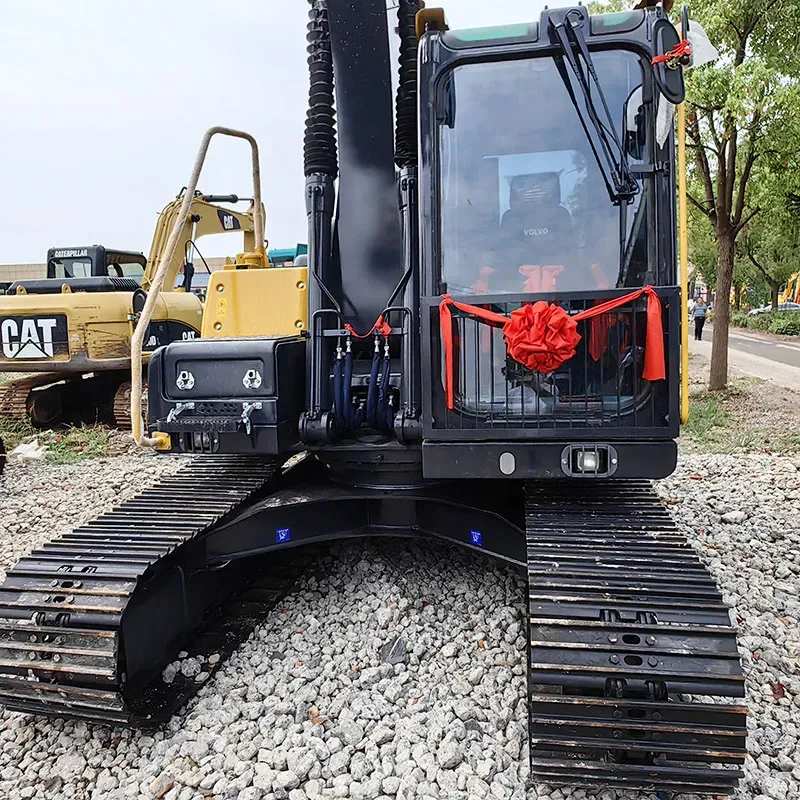

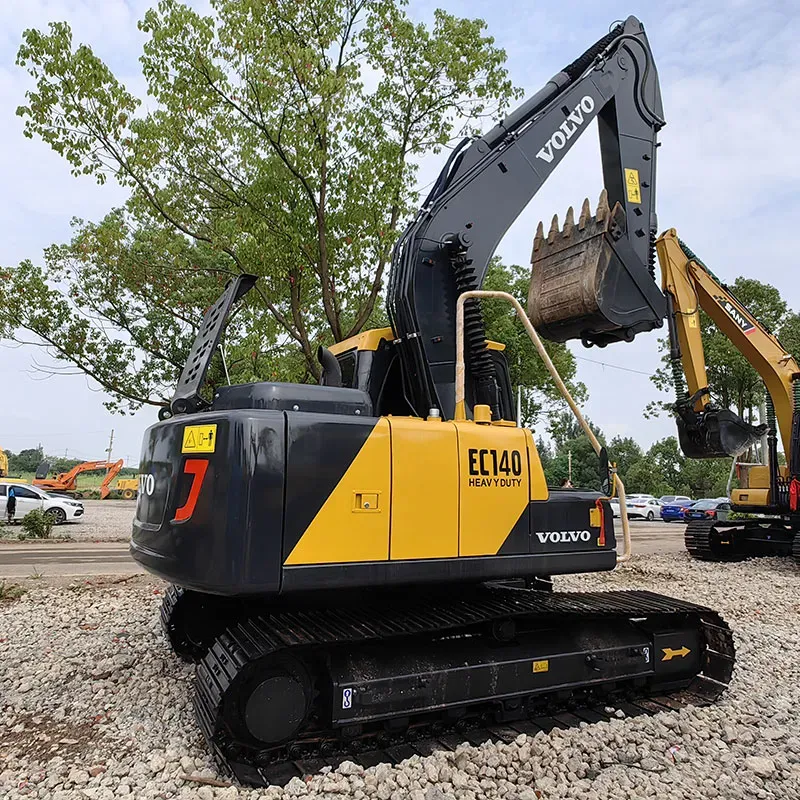

The Volvo EC140 is one of Volvo's most popular and versatile mid-range excavators, designed to deliver high productivity, fuel efficiency, and operator comfort in the 14-tonne segment. It sits between the EC120E and EC160E in Volvo's lineup.

& 2. ENGINE & POWERTRAIN

Specification	Details

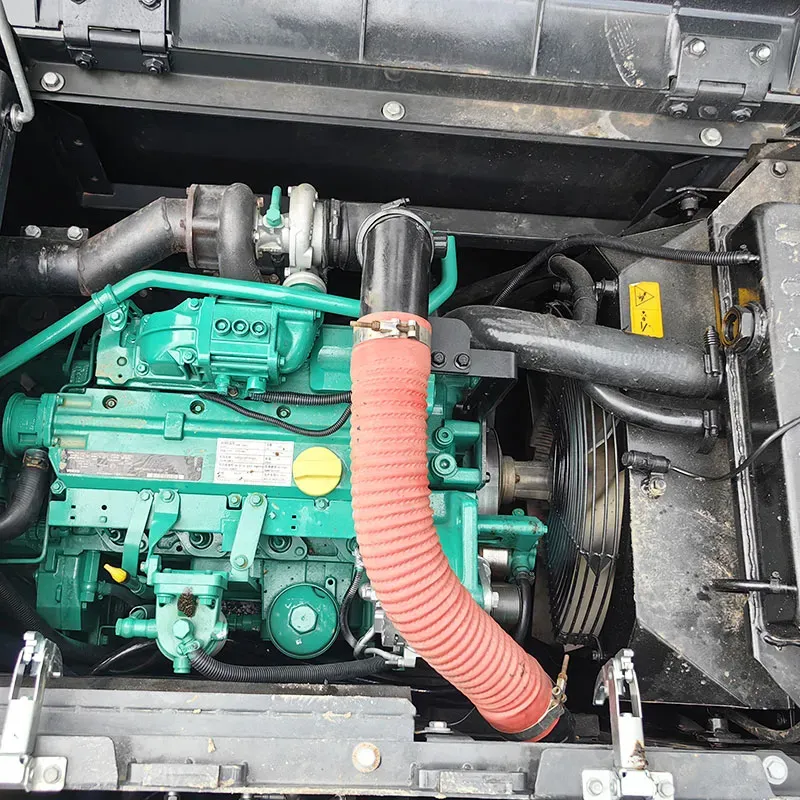

Engine Model	Volvo D4.2
Engine Type	4-cylinder, turbocharged, intercooled diesel
Displacement	4.2 liters
Power Output	~110–118 HP (82–88 kW) @ 1,800 rpm
Emission Standard	Stage V (EU) / Tier 4 Final (EPA)
Aftertreatment	DPF + SCR (DEF/AdBlue) — No EGR (cleaner, more reliable)
Fuel Tank Capacity	~250–300 liters

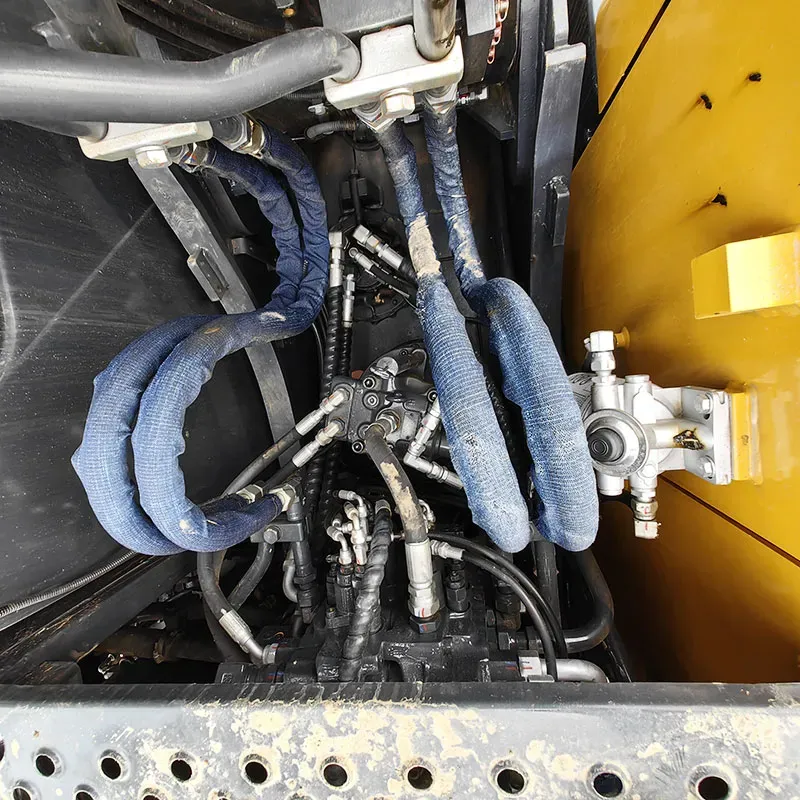

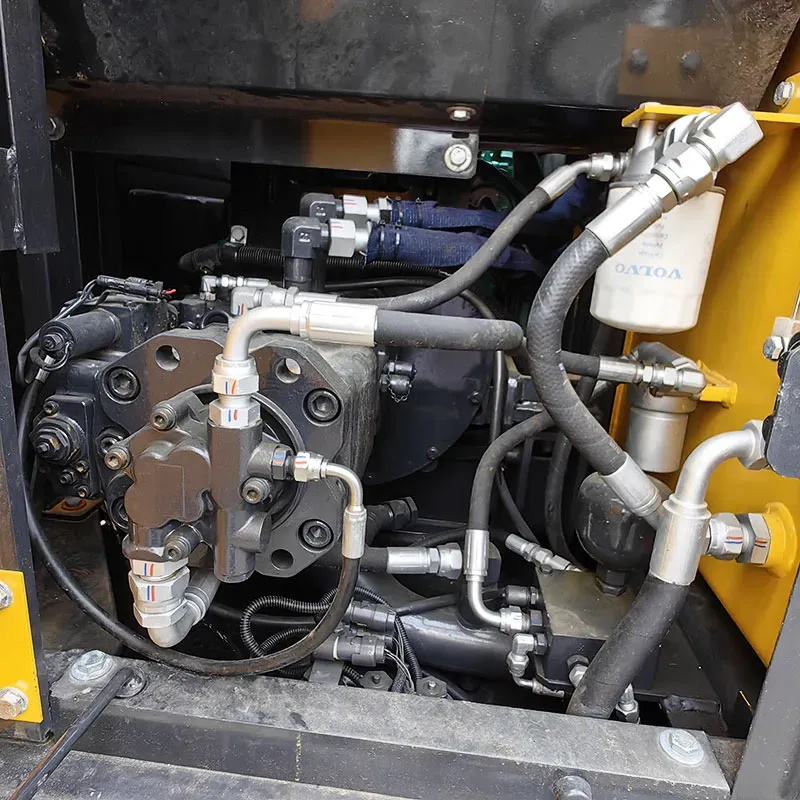

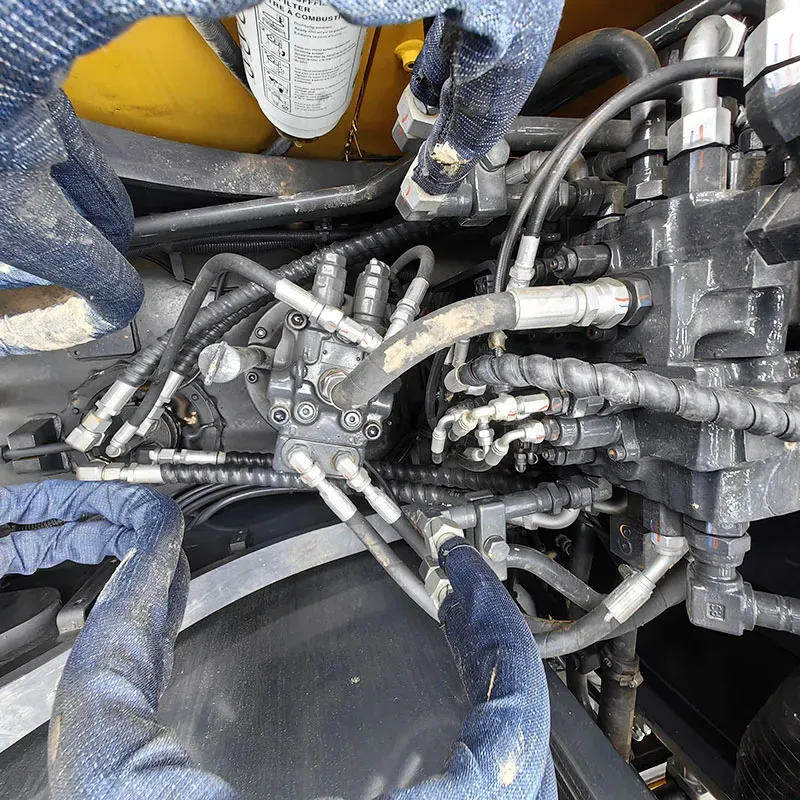

Hydraulic Pump	Load-sensing variable displacement piston pump
Hydraulic Flow	~250–280 L/min
System Pressure	350 bar (5,076 psi)

🔑 Key Point: Volvo's D4.2 engine is known for no EGR design, which reduces maintenance and improves reliability compared to competitors.

📐 3. DIMENSIONS & WEIGHT

Specification	EC140E (Standard)	EC140EL (Long Reach)
Operating Weight	~14,000–14,600 kg	~14,800–15,400 kg
Transport Length	~7,500 mm	~8,500 mm
Transport Width	~2,550 mm	~2,550 mm
Transport Height	~2,980 mm	~3,050 mm
Ground Clearance	~430 mm	~430 mm
Track Width	600 mm (standard) / 450 mm (narrow option)	600 mm
Boom Length Options	5.4 m / 5.9 m	6.5 m / 7.0 m
Arm Length Options	2.5 m / 2.95 m / 3.0 m	2.95 m / 3.0 m

🪣 4. DIGGING PERFORMANCE

Parameter	Value (Approx.)
Max Digging Depth	6,500–7,100 mm
Max Reach (Ground Level)	9,000–9,600 mm
Max Digging Height	9,500–10,000 mm
Max Dump Height	6,700–7,200 mm
Bucket Capacity	0.45 – 0.70 m³ (varies by config)
Max Breakout Force (Boom)	~95–105 kN
Max Breakout Force (Arm)	~65–72 kN
Max Teeth Pull	~105–115 kN
Swing Speed	~10.5 RPM
Travel Speed	5.0 km/h (High) / 3.2 km/h (Low)
Gradeability	70% (35°)
Tail Swing Radius	~2,200 mm

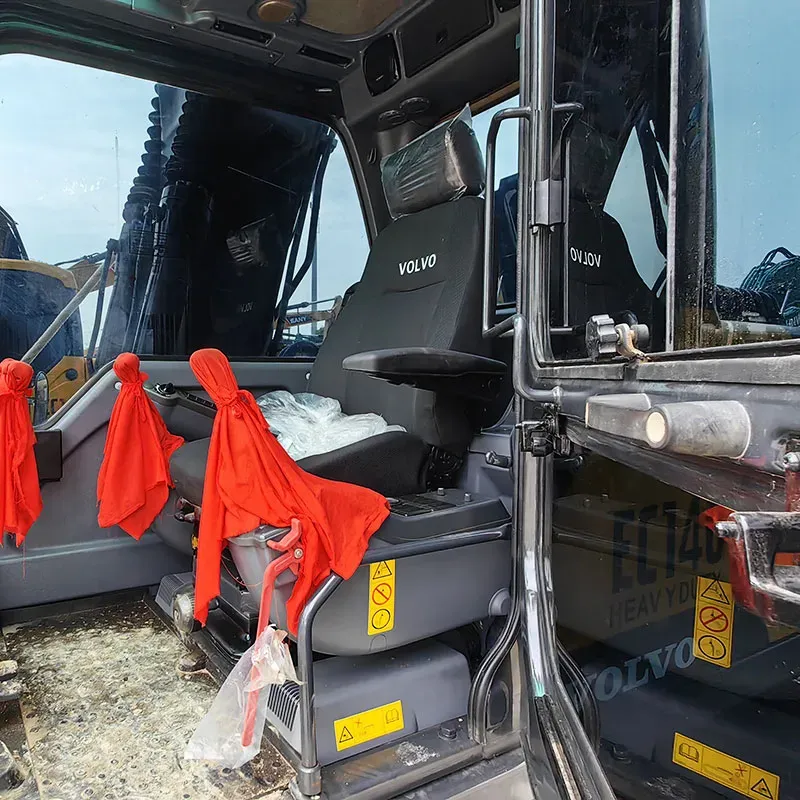

🖥️ 5. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified, pressurized
Air Conditioning	Standard with automatic climate control
Seat	Air-suspended, heated, with armrests — fully adjustable
Display	9-inch high-resolution touchscreen (Volvo Co-Pilot)
Controls	Electronic joysticks with pattern change capability
Visibility	Large glass area, excellent all-round visibility
Noise Level	~67 dB(A) (very quiet for its class)
Camera System	Rear-view & side-view cameras (optional)
Lighting	LED work lights (front, rear, boom)

🤖 6. SMART TECHNOLOGY & TELEMATICS

Technology	Description
📡 CareTrack	Volvo's telematics system — tracks location, fuel usage, idle time, maintenance alerts, diagnostics
🗺️ Volvo Co-Pilot	Touchscreen interface showing real-time machine data, 3D machine view, attachment settings
🟢 ECO Mode	Reduces engine RPM when full power isn't needed — saves up to 15% fuel
🔄 Auto Engine Idle Shutdown	Engine auto-stops after preset idle time (saves fuel & reduces emissions)
📊 Active Tip	(Optional) GPS-assisted digging system for precise grading
🔧 Volvo Uptime Center	Remote diagnostics & software updates

🔧 7. ATTACHMENTS & VERSATILITY

The EC140E is designed for quick attachment change using the Volvo quick coupler (Q-Coupler) or mechanical coupler:

Attachment Options	Application
🪣 Standard Bucket	General digging, loading
🔨 Hydraulic Breaker	Demolition, rock breaking
✂️ Hydraulic Shear	Metal cutting, demolition
🪝 Grapple	Material handling, scrap
🔩 Thumb	Pipe handling, log grabbing
🪄 Tiltrotator	360° rotation for versatile positioning
🕳️ Auger	Post-hole drilling, piling
🧹 Rake / Clean-up bucket	Grading, landscaping
❄️ Hydraulic Hammer	Rock excavation

💡 The EC140EL (Long Reach) version is especially popular for utility work, dredging, and deep excavation where extended reach is needed.

💰 8. FUEL EFFICIENCY & OPERATING COSTS

Metric	Value
Fuel Consumption	~10–14 L/hour (varies by application)
Service Interval	500 hours (oil & filter) / 1,000 hours (major service)
Oil Change	Every 500 hours
Hydraulic Oil Change	Every 2,000 hours
Track Life	~2,000–3,000 hours (depending on ground conditions)
Estimated Hourly Cost	~$45–$65 USD/hr (varies by region)

🏆 9. KEY ADVANTAGES

✅ Advantage	Explanation
🚀 High Productivity	Optimized hydraulics + powerful engine for its class
&Fuel Efficient**	ECO mode + auto idle + load-sensing hydraulics
🔇 Low Noise	One of the quietest in its class (~67 dB)
🛠️ Low Maintenance	No EGR engine = fewer issues, longer intervals
🧠 Smart Tech	CareTrack + Co-Pilot = better fleet management
💺 Best-in-class Comfort	Pressurized cab, air seat, great visibility
🔄 Versatile	Wide range of boom/arm/attachment combinations
🌍 Global Support	Volvo's worldwide dealer network
📈 Strong Resale Value	Volvo holds value very well in the used market

🆚 10. COMPARISON WITH COMPETITORS

Feature	Volvo EC140E	CAT 314 GC	Komatsu PC140LC-11	Doosan DX140LCR-5
Power	118 HP	125 HP	120 HP	122 HP
Weight	14,600 kg	14,800 kg	14,200 kg	14,300 kg
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐
Comfort	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐

📋 11. SUMMARY

Category	Rating
⭐ Overall	⭐⭐⭐⭐⭐ (4.8/5)
💪 Power & Performance	⭐⭐⭐⭐⭐
⛽ Fuel Economy	⭐⭐⭐⭐⭐
💺 Comfort	⭐⭐⭐⭐⭐
🤖 Technology	⭐⭐⭐⭐⭐
🔧 Reliability	⭐⭐⭐⭐⭐
💰 Value for Money	⭐⭐⭐⭐☆

🎯 WHO SHOULD BUY THE VOLVO EC140E?

Buyer Type	Why?
🏢 Contractors	Versatile, reliable, low TCO
🏗️ Road Builders	Excellent digging + grading capability
⚡ Utility Companies	EC140EL long reach + tiltrotator options
🌳 Landscapers	Quick attachment change, compact size
🔨 Demolition Firms	High breakout force + hammer/shear options
📊 Fleet Managers	CareTrack telematics = full visibility

🗣️ Bottom Line: The Volvo EC140E is widely regarded as one of the best mid-size excavators on the market, offering an exceptional balance of power, efficiency, comfort, and technology. It's the go-to choice for operators who want premium features without the premium price tag of larger machines.
