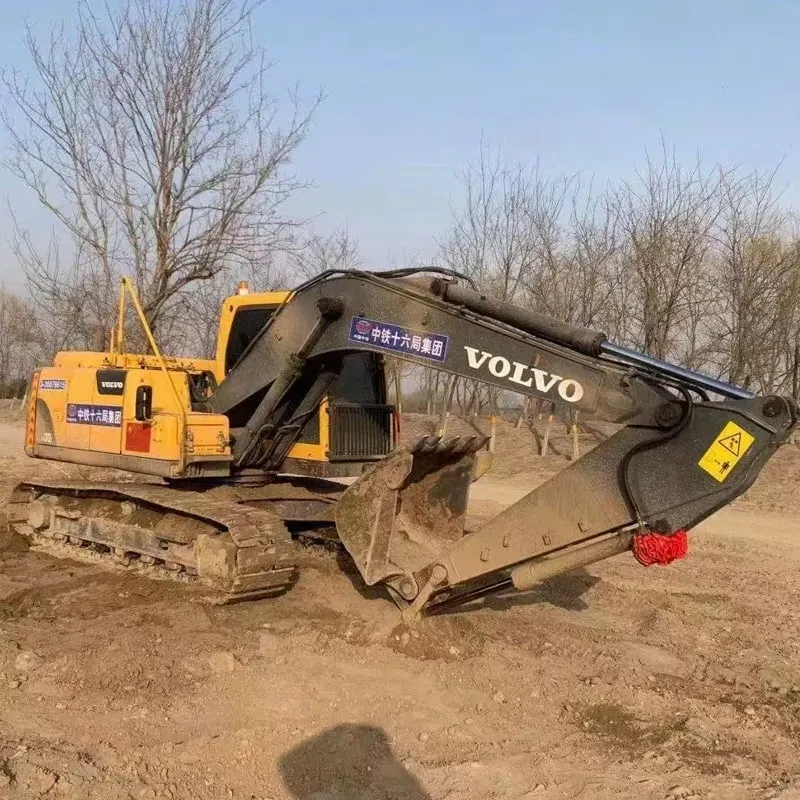

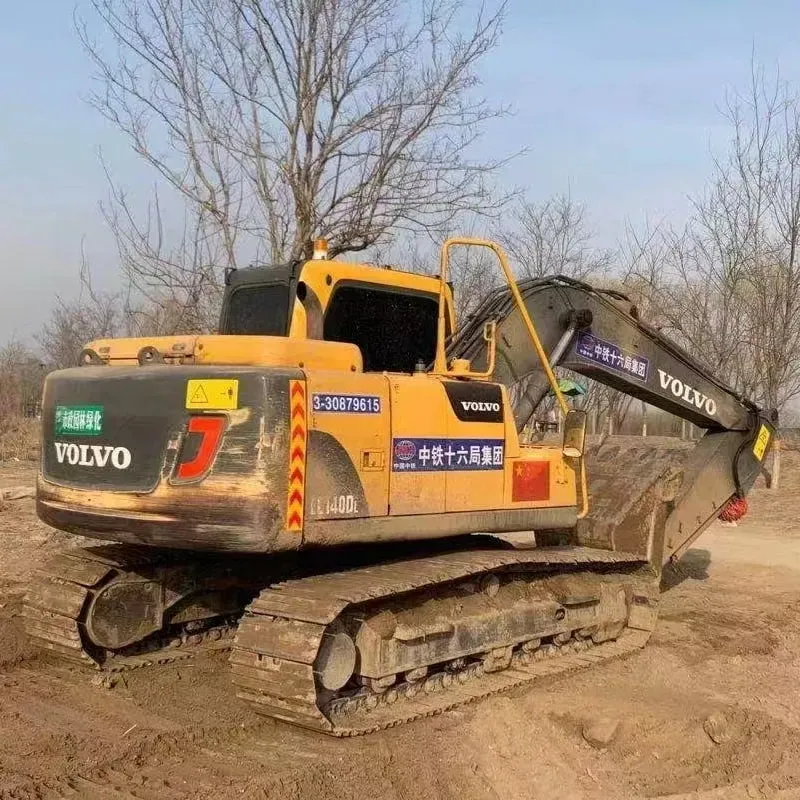

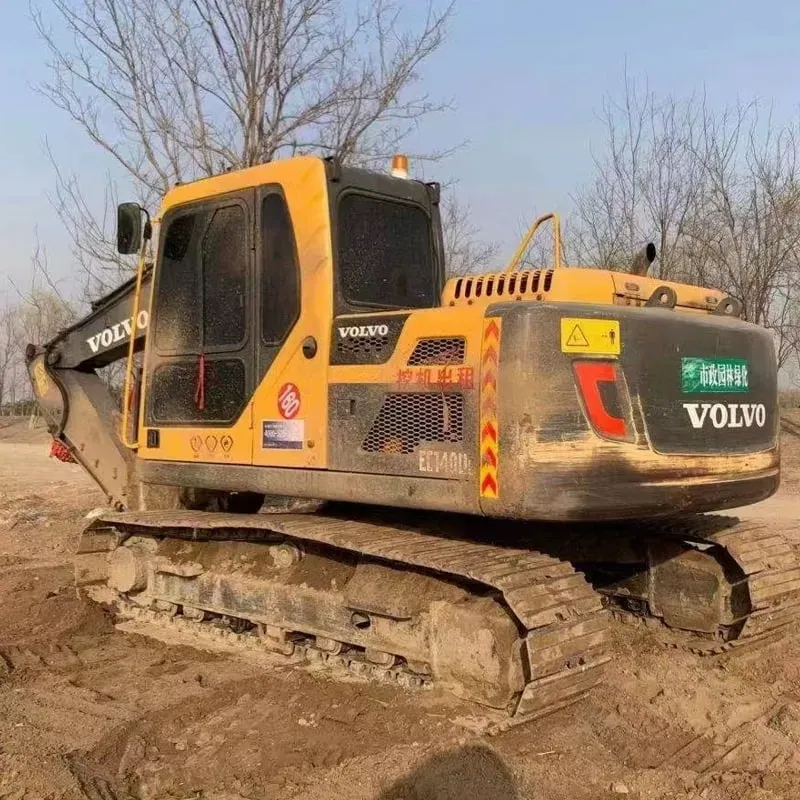

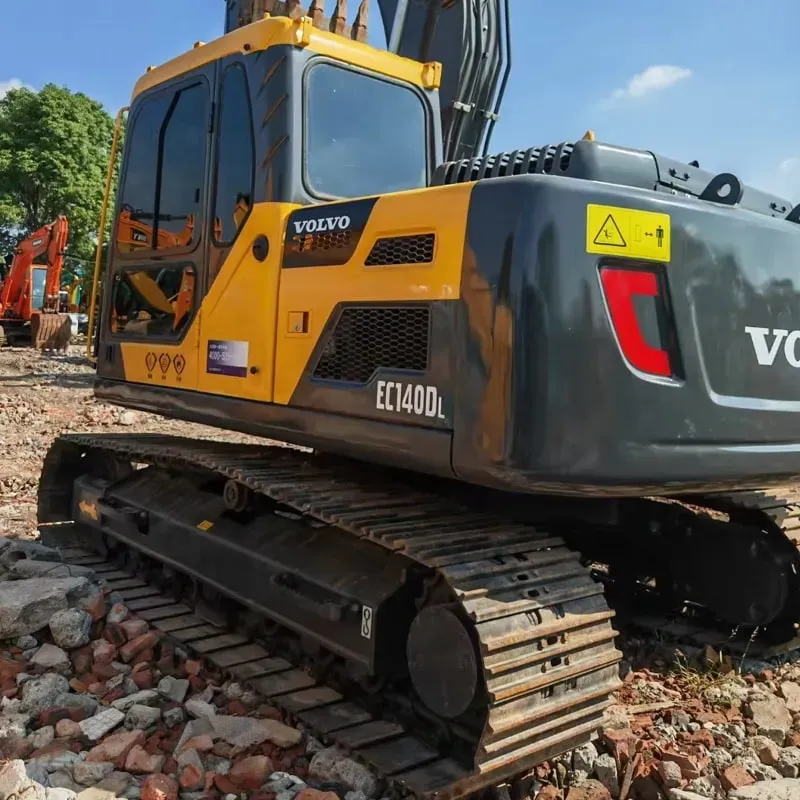

Used Volvo 140Excavator

Reading: 10

📌 1. OVERVIEW

The Volvo EC140 is a mid-size (14-ton class) crawler excavator manufactured by Volvo Construction Equipment (Volvo CE). It is part of Volvo's E-Series (E-Generation) lineup, designed for versatility, fuel efficiency, and operator comfort. It sits between the EC120 and EC160 models, making it ideal for a wide range of construction, road building, utility, and landscaping applications.

Category	Details
Manufacturer	Volvo Construction Equipment
Series	E-Series (E-Generation)
Class	14-ton / Mid-size Crawler Excavator
Current Generation	EC140E / EC140EL
Production	Sweden (originally), now global plants

🔧 2. GENERATIONS / MODEL EVOLUTION

Generation	Model	Production Years (Approx.)	Key Notes
1st	EC140B	~2003–2006	Earlier design, D6E engine
2nd	EC140C	~2006–2013	Updated cab & hydraulics
3rd	EC140D	~2013–2020	Stage IIIB/IV engines, improved electronics
4th (Current)	EC140E / EC140EL	2020–Present	Latest tech, Stage V engine, telematics, E-series cab

⚙️ 3. TECHNICAL SPECIFICATIONS (EC140E – Latest Generation)

Parameter	Specification
Operating Weight	13,800 – 14,500 kg (varies by configuration)
Engine	Volvo D4.4 (Stage V / Tier 4 Final)
Engine Power	97 kW (130 hp) @ 1,900 rpm
Max Torque	~520 Nm
Fuel Tank Capacity	~260 L
Hydraulic System	Load-Sensing (LS) with variable displacement pump
Max Hydraulic Flow	~2 × 120 L/min (dual pump)
Working Pressure	350 bar (35 MPa)
Bucket Capacity	0.45 – 0.65 m³ (standard), up to 0.8 m³ (heavy duty)
Max Digging Depth	~6,300 – 6,700 mm
Max Reach (Ground Level)	~8,500 – 9,100 mm
Max Dumping Height	~7,100 mm
Max Digging Force (Boom)	~92 kN
Max Digging Force (Arm)	~65 kN
Travel Speed	5.0 km/h (High) / 3.2 km/h (Low)
Ground Pressure	~46 kPa
Gradeability	70% (35°)
Tail Swing Radius	2,650 mm (zero tail swing on some configs)

⚠️ Specs may vary slightly by region and configuration (EL = Long Reach version).

🚜 4. KEY FEATURES & HIGHLIGHTS

🏗️ A. E-Series Cab (Latest Generation)

Feature	Detail
Design	Spacious, fully enclosed cab with excellent visibility
ROPS/FOPS	Fully certified Roll-Over & Falling Object Protection
Seat	Air-suspended, heated, with armrests
Noise Level	~67 dB(A) – one of the quietest in class
Climate Control	Advanced HVAC with auto mode
Display	7-inch (or 10-inch optional) touchscreen monitor
Camera System	Rear-view & side-view cameras standard
Joystick Controls	Ergonomic, with auto-idle & boom suspension

🧠 B. Intelligent Machine Controls (IMC)

Volvo Co-Pilot – Semi-automatic digging (auto-boom, auto-swing, auto-bucket)
Grade Control Ready – 2D/3D grade control compatible (Topcon, Trimble, Leica)
Volvo Active Control – Reduces boom/arm swing for precision work
Intelligent Boom Control – Smoother, faster cycle times

🔋 C. Fuel Efficiency & Sustainability

Feature	Benefit
Eco Mode	Reduces engine RPM automatically → saves up to 15% fuel
Auto-Idle	Engine shuts off when not in use
Hydraulic Eco Mode	Optimizes pump flow → less energy waste
Stage V Engine	Meets latest emission standards (Euro V / EPA Tier 4 Final)
DEF (AdBlue) System	SCR technology for clean emissions
Regeneration Mode	Recovers energy during boom lowering

📡 D. Connectivity – Volvo CE Telematics

System	Function
CareTrack	Fleet management, location tracking, machine health
Volvo Active Care	Preventive maintenance alerts
Volvo Construction Equipment App	Remote monitoring from smartphone
Fuel Tracking	Real-time fuel consumption data
Utilization Reports	Track idle time, working hours, productivity

🔩 5. UNDERCARRIAGE & STRUCTURE

Component	Details
Track Width	600 mm (standard) / 450 mm (narrow) / 700 mm (wide) options
Track Shoes	Triple-grouser (standard) or single-grouser (urban)
Dozer Blade	Available (straight or angled)
Boom & Arm	High-strength steel, reinforced stress points
Counterweight	Cast iron, optimized for stability
X-Frame	Reinforced for heavy attachments

🛠️ 6. ATTACHMENT VERSATILITY

The EC140E supports quick coupler and is compatible with:

Attachment	Application
🪣 Standard Bucket	General excavation
🔨 Hydraulic Hammer (Breaker)	Rock breaking, demolition
✂️ Hydraulic Shear	Demolition, scrap cutting
🪵 Grapple	Log handling, waste sorting
🔄 Thumb	Material handling, pipe loading
🔩 Auger / Drill	Foundation piling
🧹 Tiltrotator	Multi-purpose (45° tilt)
🌊 Dredging Bucket	Waterway/port work
🌲 Forestry Grapple	Timber harvesting

📊 7. APPLICATIONS

Sector	Typical Use
🏗️ General Construction	Foundation, trenching, backfilling
🛣️ Road Building	Grading, ditching, pipe laying
💧 Utilities	Water, gas, sewer line installation
🏙️ Urban/Demolition	Tight-space work, building demolition
🌳 Landscaping	Grading, planting, drainage
🏔️ Mining & Quarrying	Light to medium rock breaking
🏭 Industrial	Plant maintenance, material handling

🆚 8. COMPETITOR COMPARISON

Model	Weight (t)	Power (hp)	Bucket (m³)	Dig Depth (m)
Volvo EC140E	14.0	130	0.45–0.65	6.3–6.7
Cat 314 GC	14.3	130	0.46–0.62	6.5
Komatsu PC140LC-11	14.0	110	0.40–0.54	6.1
Hitachi ZX140LC-7	14.0	111	0.40–0.53	6.2
Doosan DX140LCR-5	14.2	114	0.42–0.55	6.3
Kobelco SK140LC-10	14.0	110	0.42–0.53	6.1

✅ Volvo EC140E Advantage: Better fuel efficiency, superior cab comfort, advanced IMC/Co-Pilot, strong resale value, excellent dealer network.

💰 9. APPROXIMATE PRICING (2024 Estimate)

Configuration	Price Range (USD)
EC140E (Standard)	$130,000 – $155,000
EC140EL (Long Reach)	$150,000 – $175,000
EC140E with Hammer/Shear	$160,000 – $190,000+

Prices vary by region, dealer, options, and market conditions.

✅ 10. SUMMARY – WHY CHOOSE VOLVO EC140?

✅ Strengths	❌ Considerations
🏆 Best-in-class operator comfort & cab	💰 Higher purchase price vs some competitors
&ellent fuel efficiency (Eco mode)	🔧 Volvo-specific parts may cost more
🤖 Advanced Co-Pilot & IMC technology	📉 Komatsu may offer slightly lower entry price
📡 Strong telematics & fleet management
🔧 Excellent dealer network & support
📈 Strong resale value
🔇 One of the quietest in class
🛡️ High build quality & durability

🎯 CONCLUSION

The Volvo EC140E is a top-tier mid-size excavator that combines productivity, comfort, technology, and efficiency. It is ideal for contractors who value operator satisfaction, fuel savings, and smart machine features. Whether for general construction, utilities, or demolition, the EC140E delivers reliable performance with cutting-edge technology.
