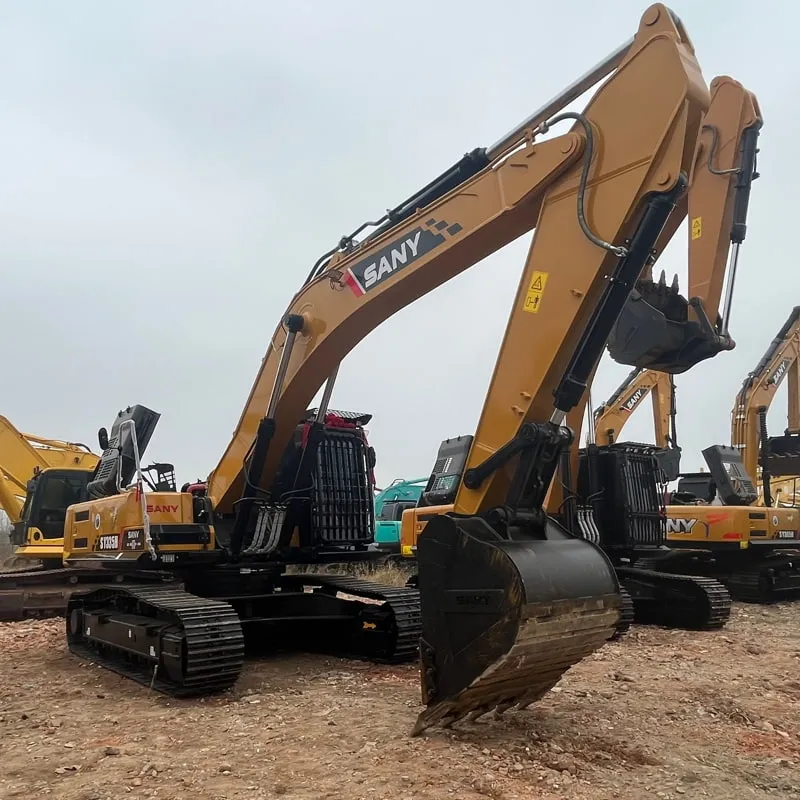

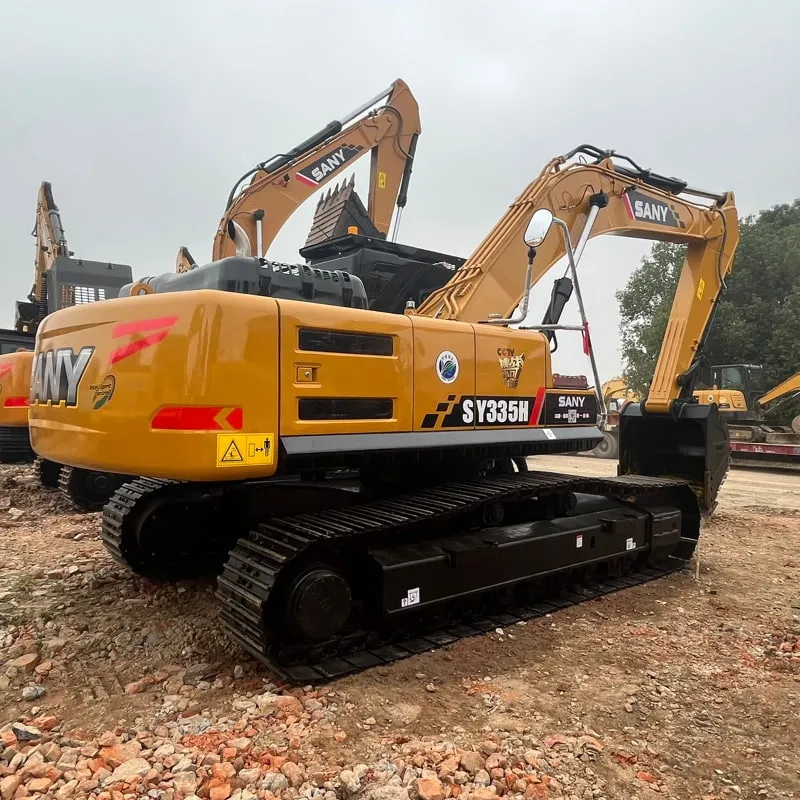

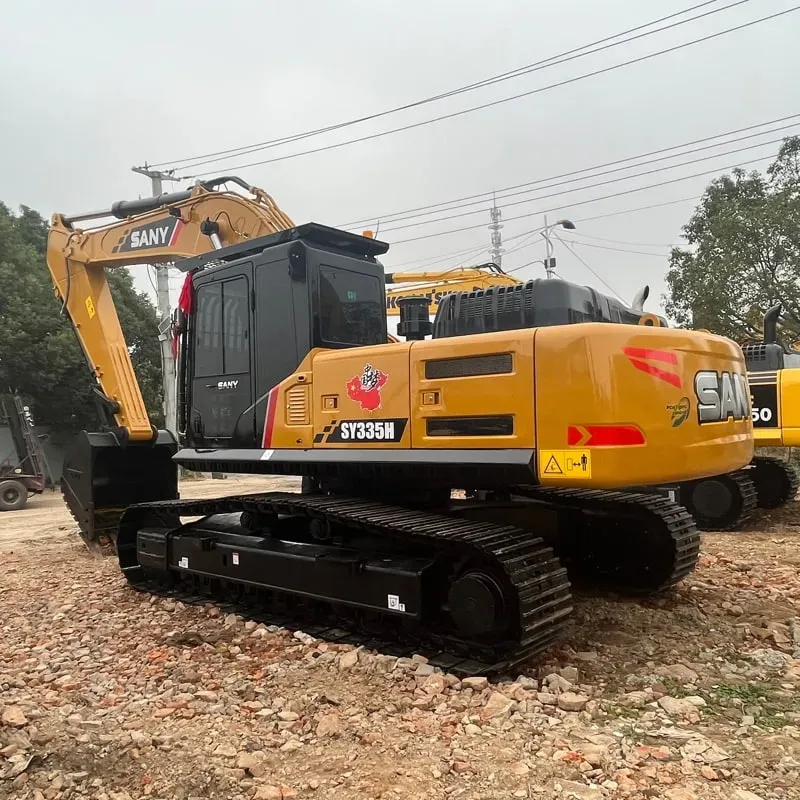

Used Sany 335Excavator

Reading: 63

🏭 1. OVERVIEW

Item	Details
Manufacturer	SANY Heavy Industry Co., Ltd. (China)
Model	SY335C / SY335H / SY335U (various variants)
Class	33–35 Ton (Medium-Large Excavator)
Application	Excavation, mining, demolition, road construction, material handling
Production Base	SANY Industrial Park, Changsha, China + global factories

The SANY SY335 is one of SANY's flagship mid-to-large crawler excavators, designed to compete with machines like the CAT 336, Komatsu PC350, and Volvo EC350E. It is known for its high performance, fuel efficiency, and intelligent technology.

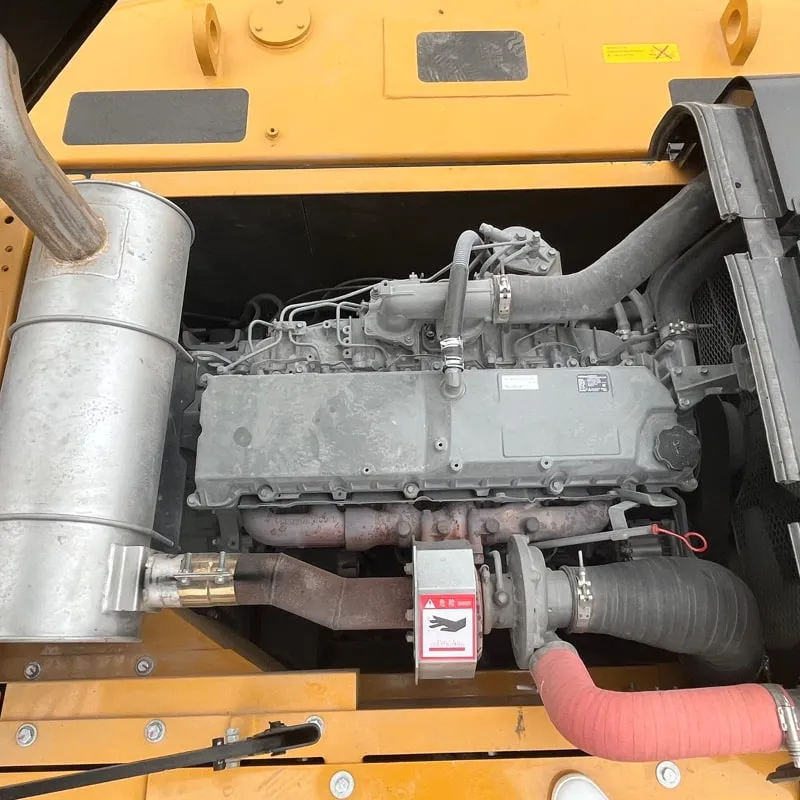

⚙️ 2. ENGINE SPECIFICATIONS

Parameter	Details
Engine Model	Mitsubishi 6D22-TC (or Isuzu AH-6HK1X in some markets)
Type	6-cylinder, turbocharged, intercooled diesel
Displacement	~7.54 L
Rated Power	180–200 kW (241–268 HP) @ 2,000 rpm
Max Torque	~920 N·m @ 1,400 rpm
Emission Standard	EPA Tier 4 Final / EU Stage V / China III
Fuel Tank Capacity	~400–500 L

✅ The engine is known for durability, low fuel consumption, and strong low-end torque — ideal for heavy-duty digging.

🔧 3. HYDRAULIC SYSTEM

Parameter	Details

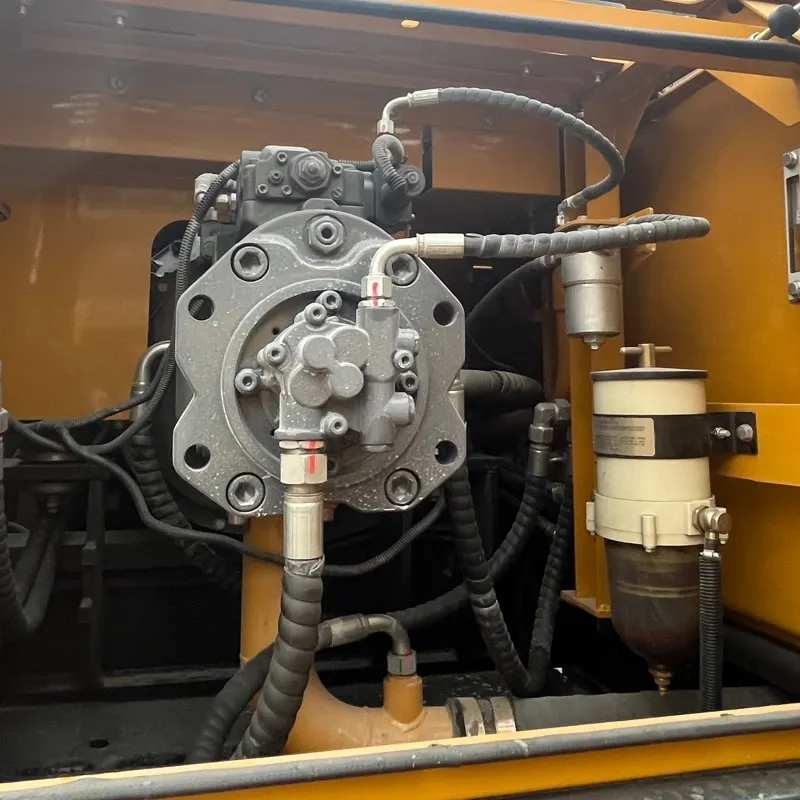

Main Pump Type	Variable displacement axial piston pump (2 pumps)
System Pressure	34.3 MPa (5,000 psi)
Total Flow Rate	~2 × 260–300 L/min (~520–600 L/min)
Control System	Electronic proportional control + Load-Sensing (LS)

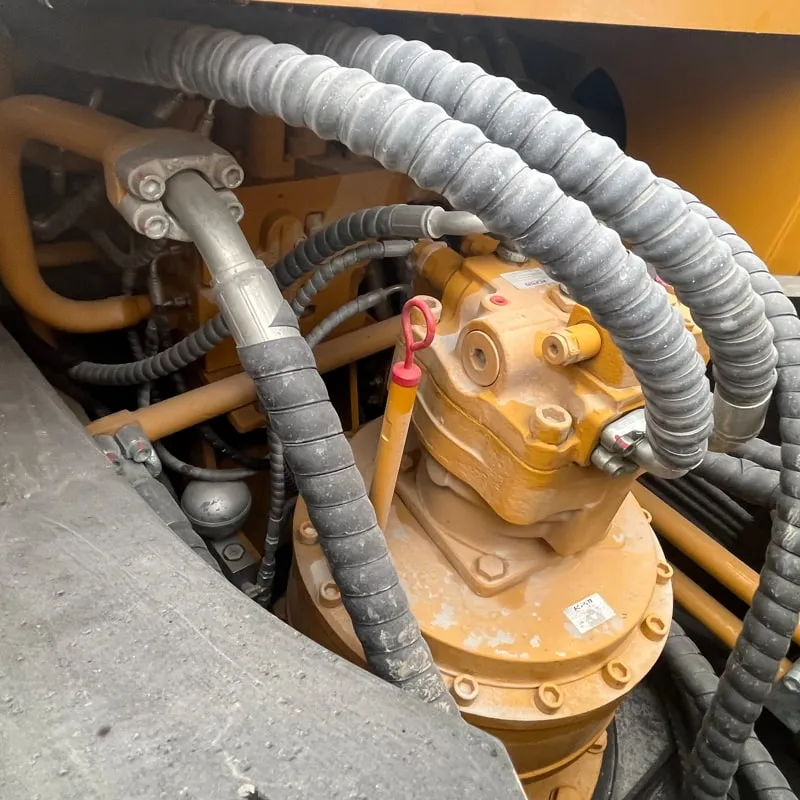

Swing Mechanism	Hydraulic motor with brake
Travel Motor	Variable displacement axial piston motor (x2)

✅ The hydraulic system delivers fast cycle times and smooth operation even under heavy loads.

📐 4. DIMENSIONS & WEIGHT

Parameter	Specification
Operating Weight	33,000–35,000 kg (33–35 tons)
Transport Length	~10,800 mm
Transport Width	~3,190 mm
Transport Height	~3,250 mm
Track Width	600 mm (standard) / 700 mm (wide)
Ground Clearance	~460 mm
Track Length on Ground	~4,200 mm

📊 5. PERFORMANCE (WORKING RANGE)

Parameter	Specification
Max Digging Depth	~7,200 mm
Max Digging Reach	~10,000 mm
Max Digging Height	~10,200 mm
Max Dumping Height	~7,100 mm
Max Vertical Wall Digging	~6,500 mm
Max digging force (boom)	~180 kN
Max digging force (arm)	~130 kN
Bucket tear-out force	~175 kN

🪣 6. BUCKET OPTIONS

Bucket Type	Capacity	Application
Standard Bucket	1.2–1.4 m³	General earthmoving
Heavy Duty Bucket	1.4–1.6 m³	Hard soil, gravel
Rock Bucket	1.0–1.2 m³	Quarry, mining
Grading Bucket	1.3–1.5 m³	Road grading, leveling
Thumb	Available	Log handling, demolition
Hydraulic Quick Coupler	Available	Fast attachment change

🖥️ 7. INTELLIGENT TECHNOLOGY (SANY iCARE / SCC)

This is where SANY really stands out:

Feature	Description
🧠 SANY iCore Intelligent Control	AI-powered system that automatically optimizes engine speed & pump flow for fuel savings up to 10–15%
📶 SANY SCC (Smart Construction Cloud)	GPS telematics — real-time monitoring of location, fuel, hours, maintenance alerts via app/web
🎯 Auto-Idle	Engine automatically reduces RPM when idle — saves fuel
🔄 Eco / Power Mode	Switchable modes for fuel efficiency vs. maximum performance
📷 360° Rear Camera	Standard for safety
🛡️ Anti-Theft System	GPS tracking + engine immobilizer
📊 Hour Meter & Diagnostics	Full OBD-style diagnostic system
🌡️ Smart Air Conditioning	Climate-controlled cab

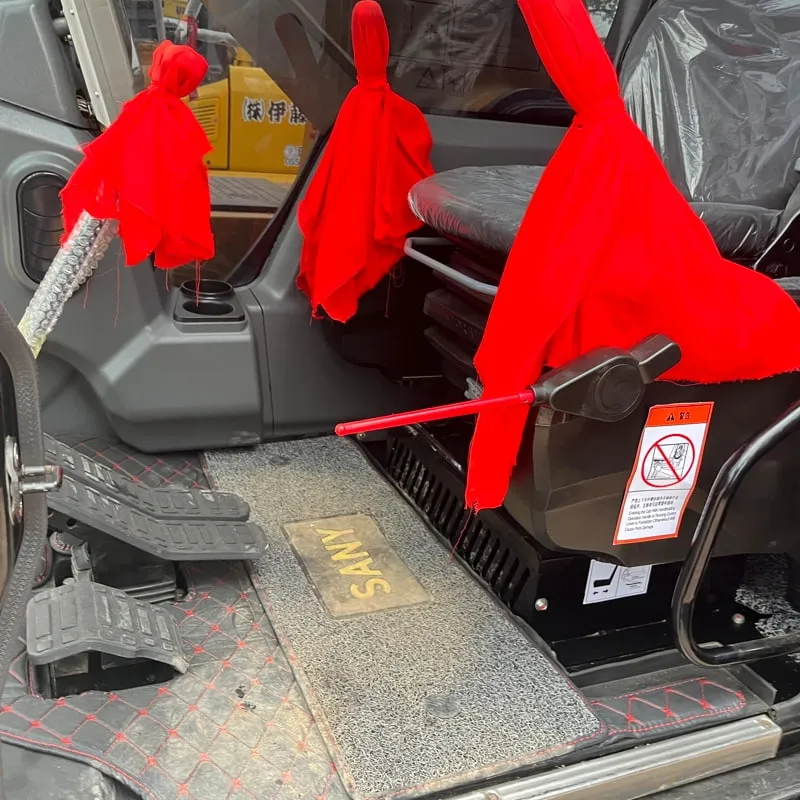

💺 8. OPERATOR CAB & COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed
Seat	Air-suspended, heated, adjustable
Display	7–10 inch LCD color monitor (multiple languages)
Controls	Electronic joystick with multifunction buttons
Noise Level	~72 dB(A) — relatively quiet
Air Conditioning	Auto climate control with filter
Storage	Ample storage compartments
Visibility	Large glass area, excellent all-round visibility

🔄 9. VARIANTS

Model	Description
SY335C	Standard Crawler — most common version
SY335H	Hydraulic variant — optimized for specific markets
SY335U	Urban/Compact version — zero tail swing, narrow body for city work
SY335E	Electric version (newer, battery-electric)

🆚 10. COMPARISON WITH COMPETITORS

Spec	SANY SY335	CAT 336	Komatsu PC350
Power	180–200 kW	194 kW	184 kW
Operating Weight	~33–35T	~36T	~35T
Max Dig Depth	~7.2m	~7.4m	~7.3m
Smart Tech	⭐⭐⭐⭐⭐	⭐⭐⭐	⭐⭐⭐⭐
Price	💰💰 (Most Affordable)	💰💰💰💰	💰💰💰
After-sales	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐

🏆 SANY's advantage: Best price-to-performance ratio, superior intelligent/smart features, and rapidly growing global service network.

🌍 11. GLOBAL PRESENCE

SANY is now the world's largest excavator manufacturer by volume (2023–2024). The SY335 is sold in:

🇨🇳 China (largest market)
🇺🇸 North America
🇪🇺 Europe
🇸🇪 Scandinavia
🇦🇺 Australia
🇸🇦 Middle East
🇸🇪 Southeast Asia
🇿🇦 Africa
🇧🇷 South America

✅ 12. KEY ADVANTAGES SUMMARY

Advantage	Detail
💰 Cost-Effective	15–30% cheaper than Japanese/European brands
🧠 Smart Technology	AI-powered fuel saving, telematics, app control
💪 Strong & Durable	SANY's proven chassis & boom structure
🔧 Easy Maintenance	Simplified service points, long intervals
🌐 Global Support	200+ service centers worldwide
⚡ Fuel Efficient	Up to 15% less fuel than competitors

📝 13. TYPICAL PRICE RANGE (2024)

Region	Approximate Price (USD)
China	$120,000 – $150,000
Southeast Asia	$140,000 – $170,000
Europe/Australia	$170,000 – $210,000
North America	$180,000 – $220,000

(Prices vary by configuration, bucket type, and market)

🎯 CONCLUSION

The SANY SY335 is an excellent mid-large excavator that offers:

✅ Near-premium performance at a mid-range price✅ Industry-leading smart/connected technology✅ Strong, reliable build quality✅ Rapidly expanding global service network

It's an ideal choice for contractors looking for a high-value alternative to CAT, Komatsu, or Volvo — especially in markets where total cost of ownership matters most.

Would you like me to go deeper into any specific aspect — like maintenance schedule, attachment options, or a specific variant? 🚜
