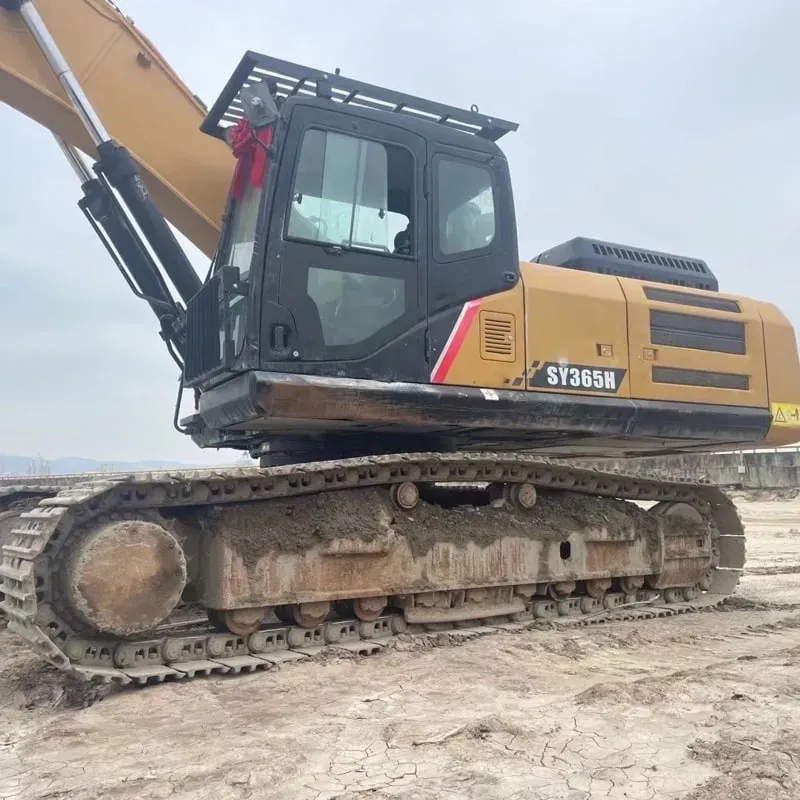

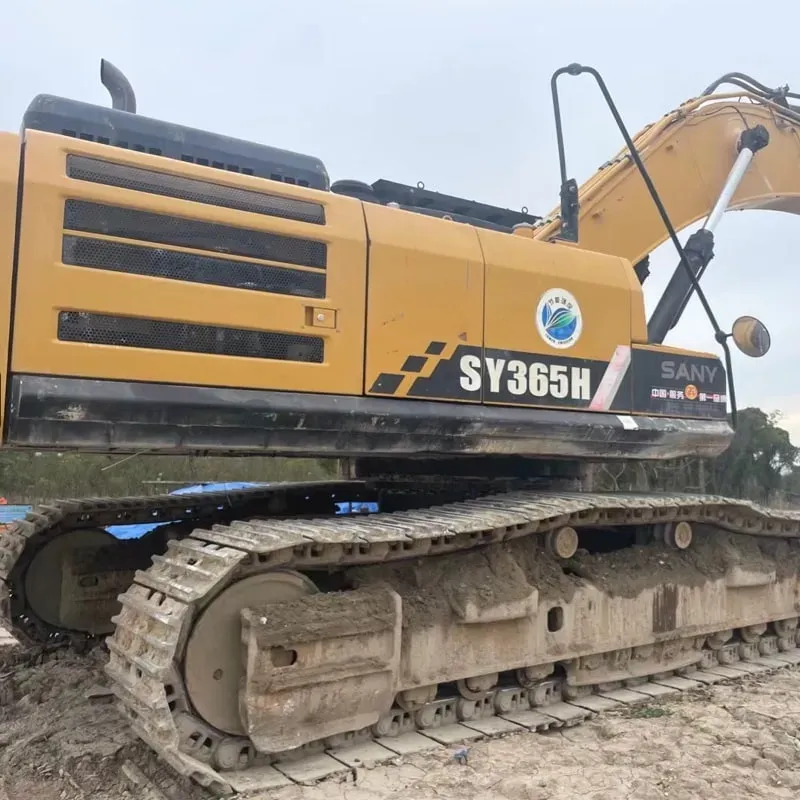

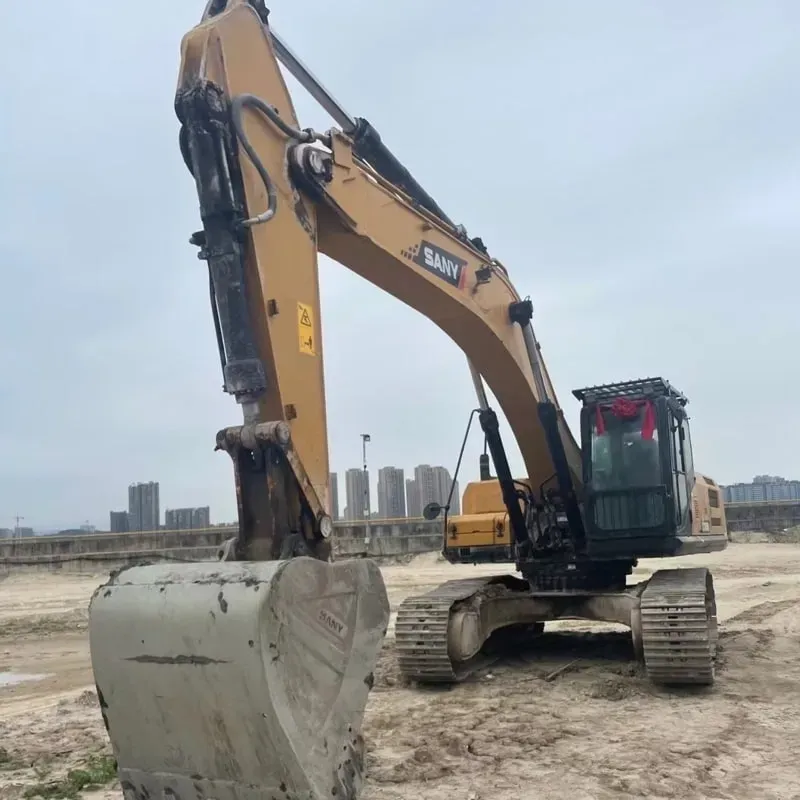

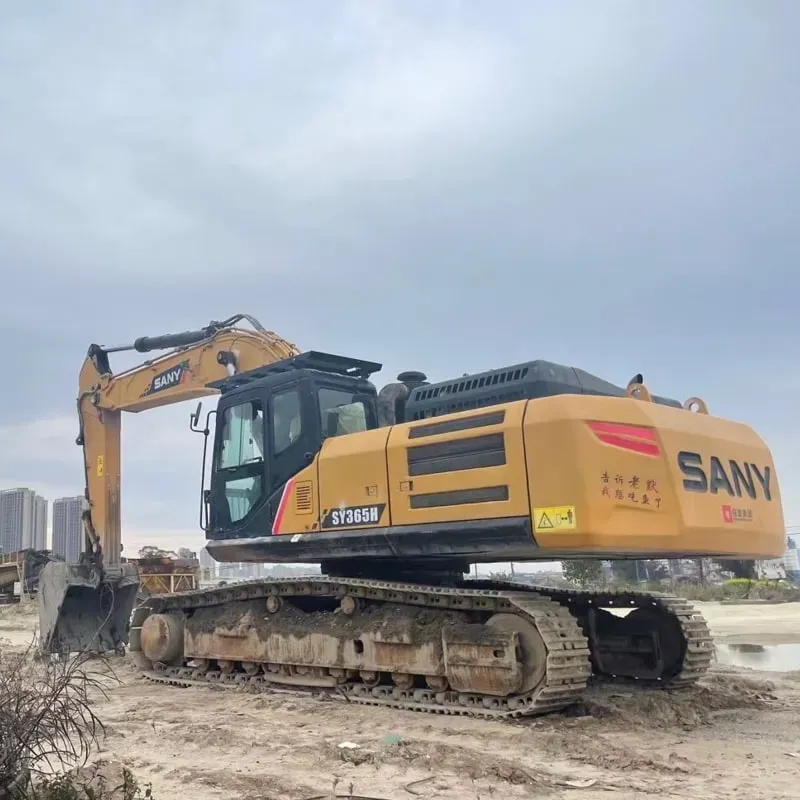

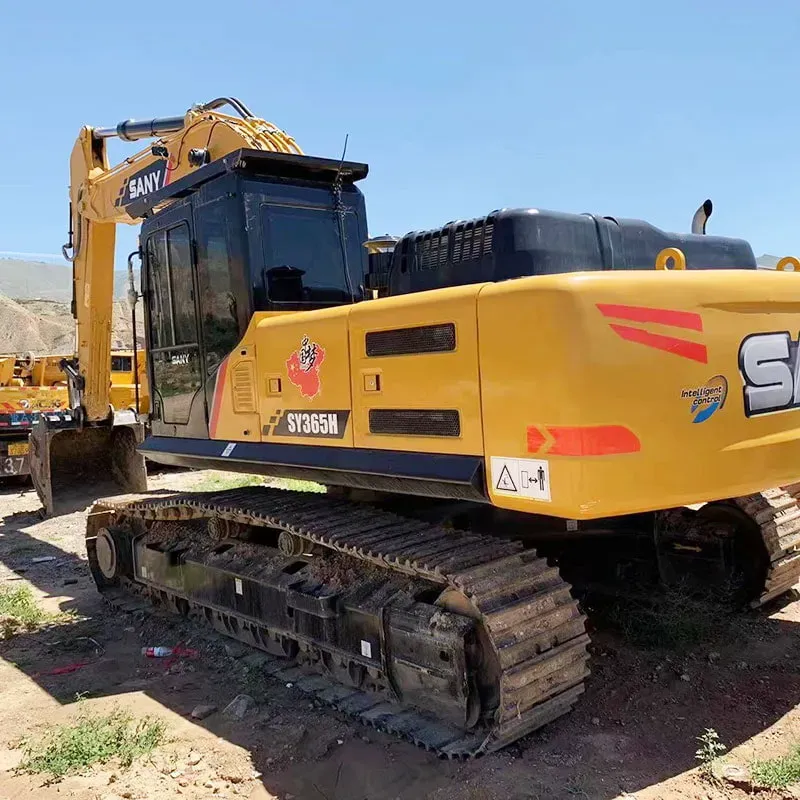

Used Sany 365Excavator

Reading: 15

🏢 1. MANUFACTURER OVERVIEW

Item	Detail
Brand	SANY (三一重工)
Parent Company	SANY Group Co., Ltd. (China)
Founded	1989, Changsha, Hunan, China
Global Ranking	Top 3 construction machinery manufacturers worldwide
Reputation	Known for high quality, strong durability, and competitive pricing

📋 2. MODEL OVERVIEW

Parameter	SY365H (H-Series)	SY365C (C-Series)
Class	36-ton (medium-large)	36-ton (medium-large)
Target Market	Global / Premium	China / Cost-effective
Positioning	High-efficiency, fuel-saving	Value-for-money
Production	Changsha, China (export worldwide)	Changsha, China

The SY365H is the more popular and widely exported version internationally.

🔧 3. ENGINE SPECIFICATIONS

Specification	Detail
Engine Model	Isuzu AH-6HK1XQB (or Isuzu CC-6HK1)
Type	6-cylinder, in-line, turbocharged, intercooled diesel
Displacement	7.79 L
Rated Power	~240–260 HP (179–194 kW) @ 2,000 rpm
Max Torque	~960 N·m @ 1,400 rpm
Emission Standard	Stage III / Tier 4 Final (EPA)
Fuel Type	Diesel
Fuel Tank Capacity	~550–600 L

✅ The Isuzu engine is renowned for reliability, fuel efficiency, and low maintenance costs.

&4. HYDRAULIC SYSTEM

Specification	Detail

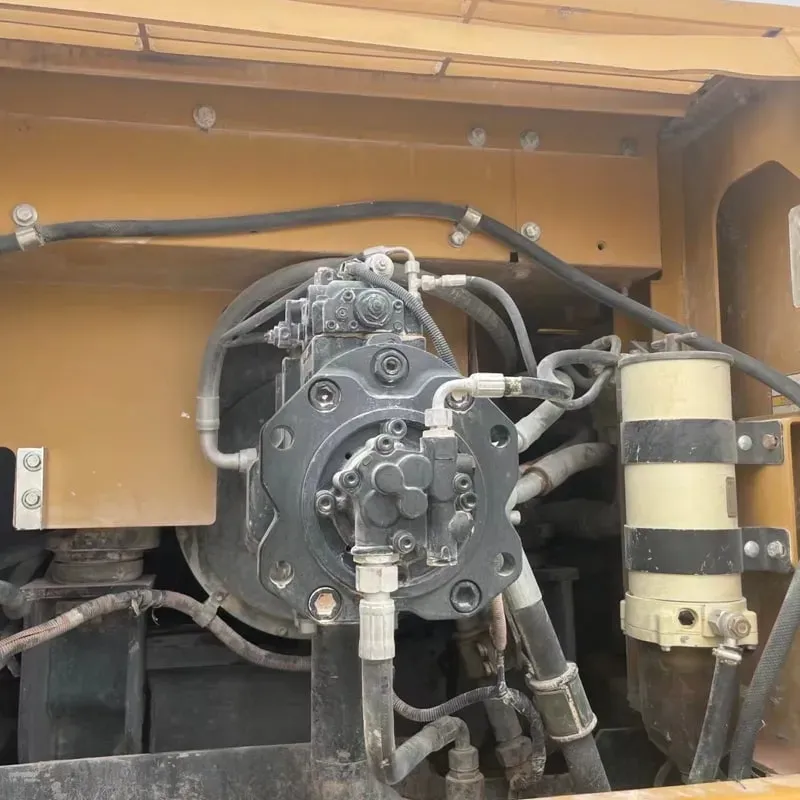

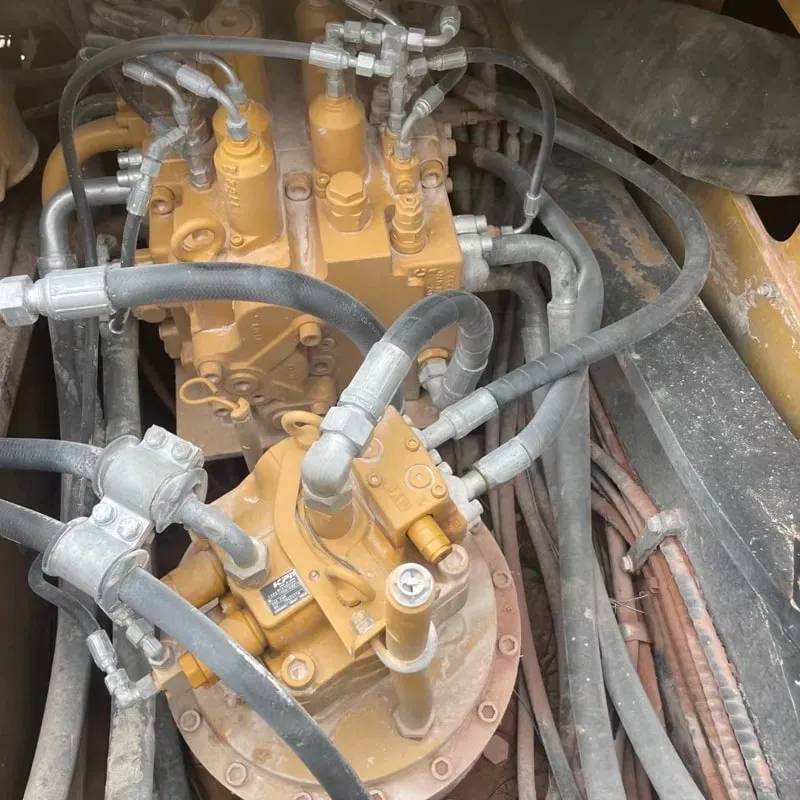

Main Pump Type	Double variable-displacement axial piston pump
System Pressure	34.3 MPa (standard) / 39.2 MPa (high-flow mode)
Flow Rate	~2 × 280 L/min
Control System	Load-sensing + EPC (Electronic Pilot Control)
Swing Mechanism	Hydraulic motor with brake
Travel Motor	Double-speed axial piston motor

📐 5. DIMENSIONS & WEIGHT

Parameter	Value
Operating Weight	35,500 – 36,500 kg
Transport Length	~10,920 mm
Transport Width	~3,190 mm
Transport Height	~3,250 mm
Ground Clearance	~460 mm
Track Gauge	2,500 mm
Track Shoe Width	600 mm (triple-grouser optional)
Track Length on Ground	~4,100 mm
Tail Swing Radius	~3,190 mm

🪣 6. WORKING PERFORMANCE (SY365H)

Performance	Value
Max Digging Depth	~7,200 – 7,500 mm
Max Digging Reach	~10,000 – 10,500 mm
Max Dumping Height	~7,500 mm
Max Dumping Reach	~9,900 mm
Max Vertical Wall Digging	~6,800 mm
Max Pulling Force	~220 kN
Bucket Capacity (Standard)	1.2 – 1.6 m³
Breakout Force (Bucket)	~175 kN
Breakout Force (Arm)	~125 kN

🖥️ 7. CAB & OPERATOR COMFORT

Feature	Detail
Cab Type	ROPS/FOPS certified, fully enclosed
Air Conditioning	✅ Auto climate control
Seat	Air-suspension, heated, adjustable
Monitor	7-inch LCD color display
Camera System	Rearview + side cameras (optional)
Noise Level	≤ 73 dB(A) (very quiet for its class)
Control	Electronic joystick (pilot control)
USB/Bluetooth	✅ Available
Vibration Dampening	Rubber-mounted cab

🛡️ 8. KEY TECHNOLOGIES & HIGHLIGHTS

Technology	Description
🔋 SANY Smart Control System	Auto-idle, auto-deceleration, fuel-saving mode
📊 SANY iCare / IoT Platform	Remote monitoring, fault diagnosis, fleet management
🔄 Positive Flow Control (PFC)	Precise hydraulic control, energy saving ~10-15%
🔩 Reinforced Working Device	High-strength steel, extended service life
🧱 Modular Design	Easy maintenance, quick part replacement
🛢️ Fuel Efficiency	~15–20% less fuel consumption vs. competitors
🔧 Long Service Intervals	Engine oil change: 500h / Hydraulic oil: 3,000h

🌍 9. APPLICATIONS

Application	Suitability
🏔️ Mining & Quarrying	⭐⭐⭐⭐⭐ Excellent
🏗️ General Construction	⭐⭐⭐⭐⭐ Excellent
🛣️ Road Building	⭐⭐⭐⭐⭐ Excellent
🏚️ Demolition	⭐⭐⭐⭐ Very Good
🌊 Dredging	⭐⭐⭐⭐ Very Good
🌲 Landscaping	⭐⭐⭐⭐ Good
📦 Material Handling	⭐⭐⭐⭐ Good (with grapple/shear)

💰 10. PRICE RANGE (2024 Estimate)

Region	Approximate Price (USD)
China (SY365C)	$120,000 – $150,000
International (SY365H)	$150,000 – $190,000
With Attachments	+$15,000 – $40,000

💡 SANY offers excellent value for money — typically 10-20% cheaper than Caterpillar 336 / Komatsu PC360 with comparable performance.

🆚 11. COMPETITOR COMPARISON

Feature	SANY SY365H	CAT 336	Komatsu PC360	Doosan DX360
Power	240-260 HP	261 HP	255 HP	260 HP
Weight	~36.5 t	~36.5 t	~35.8 t	~36.3 t
Bucket	1.2-1.6 m³	1.3-1.7 m³	1.2-1.5 m³	1.2-1.6 m³
Price	💰💰	💰💰💰💰	💰💰💰	💰💰💰
After-sales	⭐⭐⭐⭐	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐	⭐⭐⭐⭐

✅ 12. PROS & CONS

✅ ADVANTAGES	❌ DISADVANTAGES
Excellent fuel efficiency	Brand perception still behind CAT/Komatsu in some markets
Very competitive pricing	Parts availability may be limited in some regions
Isuzu engine = reliable	Resale value slightly lower than CAT/Komatsu
Advanced IoT/smart features	Dealer network still growing globally
Low maintenance cost
Comfortable, quiet cab
Strong digging force

🎯 13. SUMMARY

The SANY SY365H is a world-class 36-ton excavator that delivers CAT/Komatsu-level performance at a significantly lower price. With its Isuzu engine, smart control system, IoT connectivity, and outstanding fuel economy, it has become one of the best-selling Chinese excavators globally — especially in Southeast Asia, Africa, South America, the Middle East, and Central Asia.

📌 Best for: Buyers who want high performance + low operating cost without paying the premium for Japanese/American brands.

Would you like more details on a specific aspect — such as attachments, maintenance schedule, or comparison with a specific model? 🚜

Non flooded

No accident

Original product

High quality and low price

We guarantee the quality of each machine and promise
to offer you the most favorable price.

Used Sany 365Excavator

RELATED PRODUCTS

Sany 365

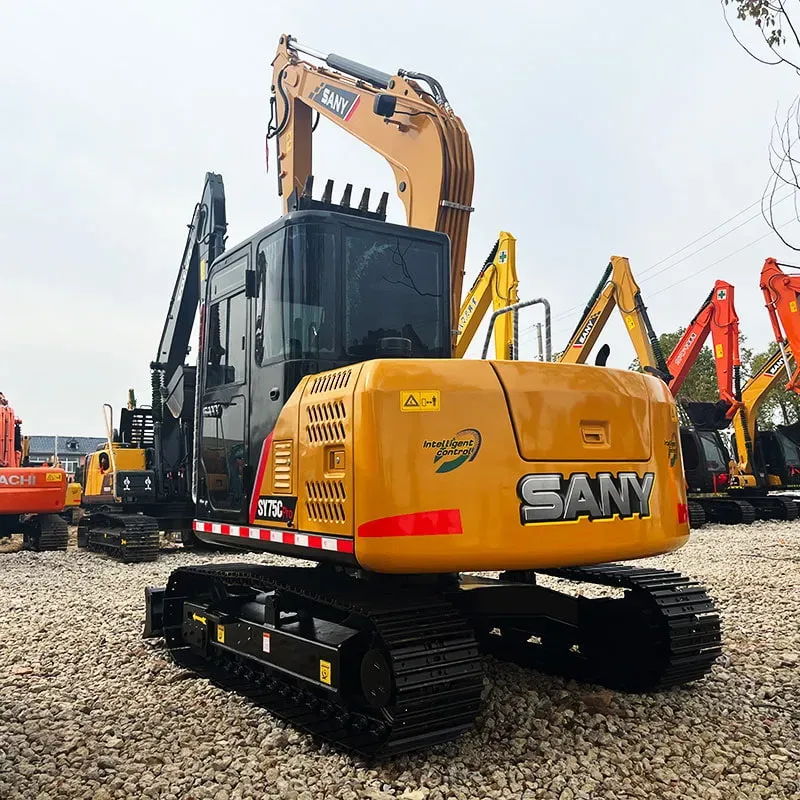

Sany 75

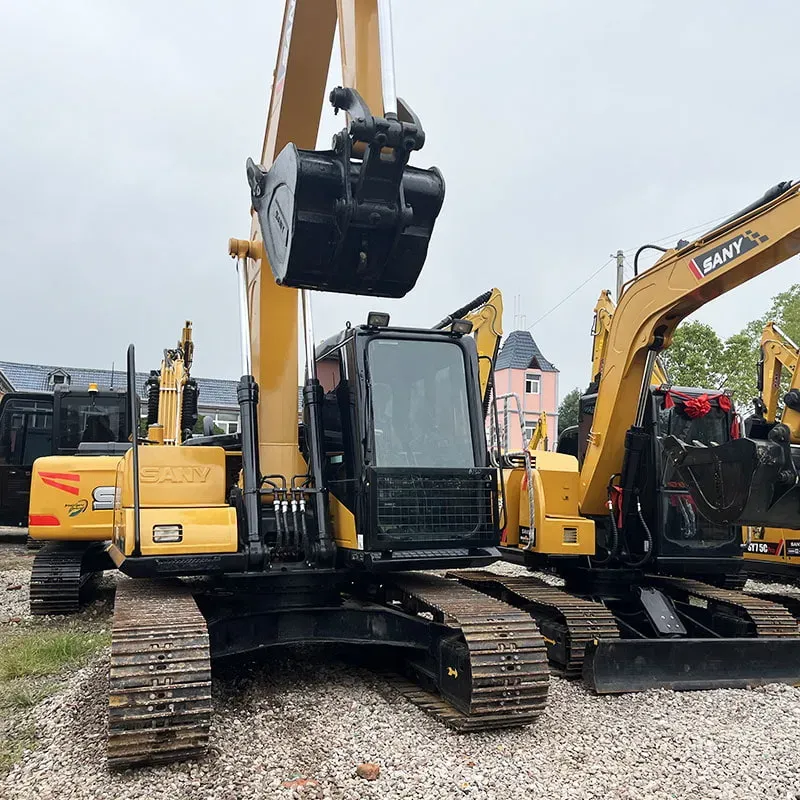

Sany 155
