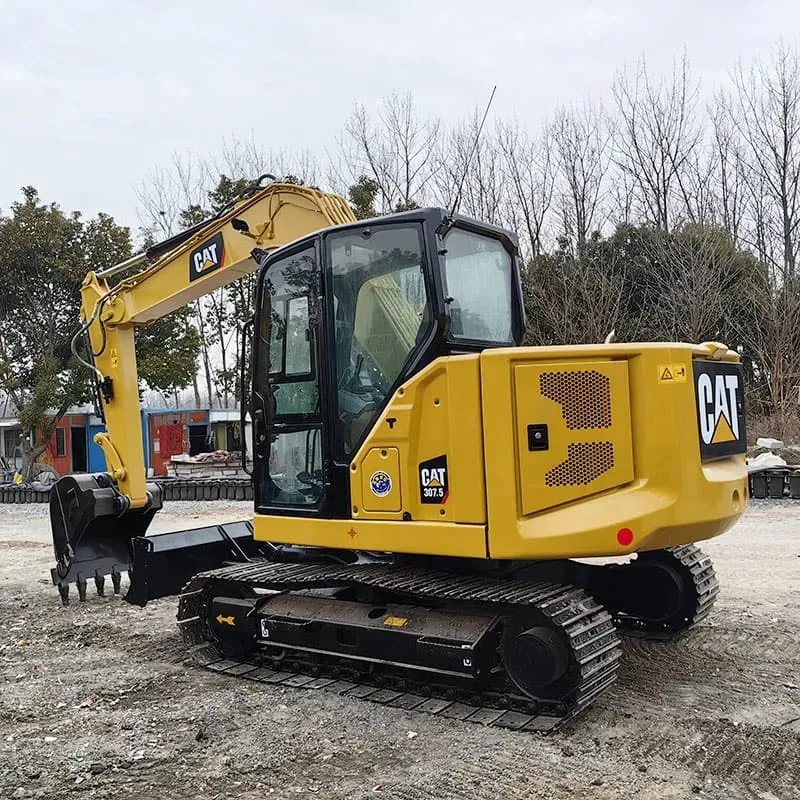

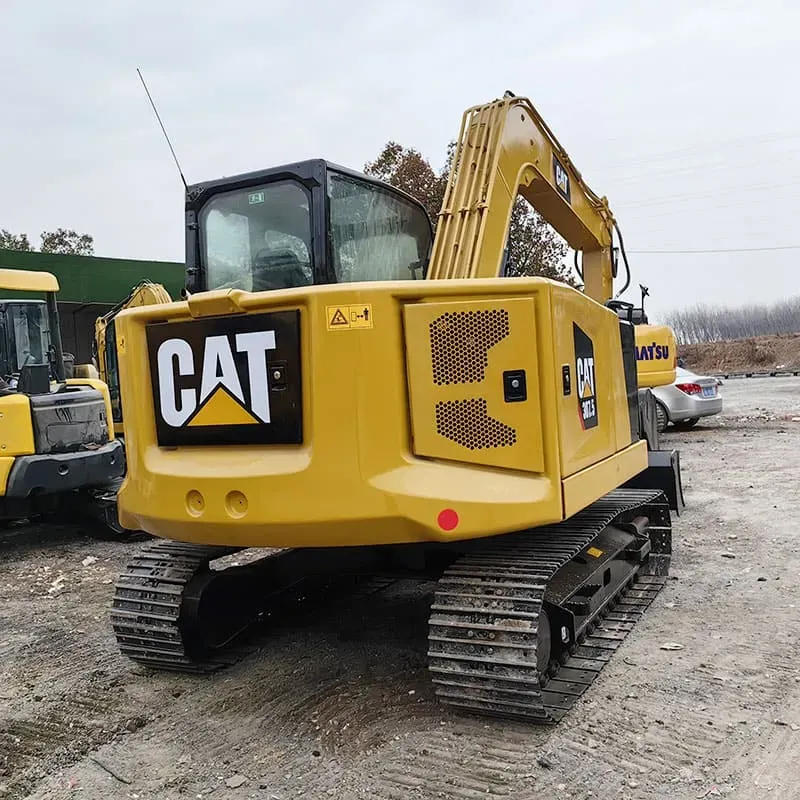

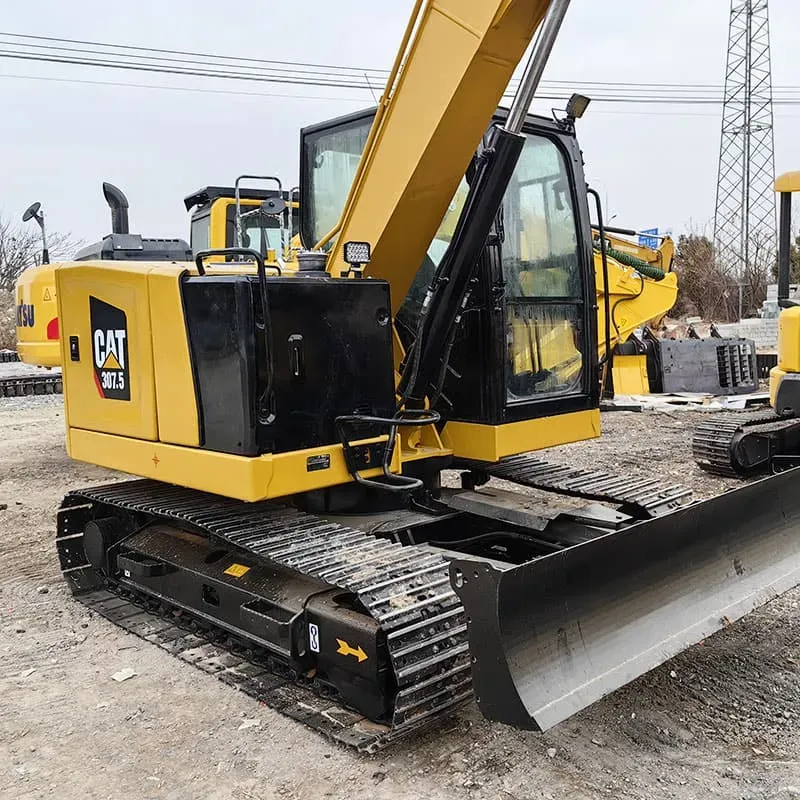

Used Caterpillar 307.5Excavator

Reading: 13

📌 Overview

The CAT 307.5 (also marketed as 307.5 CR) is a 7-ton class mini/compact excavator from Caterpillar's next-generation lineup. It replaces the popular 307/307.5 models and is designed for versatility, efficiency, and operation in tight spaces. It's widely used in landscaping, utility work, small construction, trenching, and demolition.

🔧 Key Technical Specifications

Parameter	Specification
Operating Weight	~7,500 kg (16,535 lbs)
Engine	Cat C3.3 B – 4-cylinder turbocharged diesel
Net Power	40.5 kW (55 HP) @ 2,200 rpm
Max Digging Depth	4.27 m (14.0 ft)
Max Reach (Ground Level)	5.64 m (18.5 ft)
Bucket Capacity	0.20 – 0.28 m³ (0.26 – 0.37 cu yd)
Blade Width	1,800 mm (71 in)
Tail Swing	Zero Tail Swing (ZTS)
Track Width	1,800 mm (adjustable)
Hydraulic Flow	~100 L/min (26.4 gpm)
Operating Pressure	35 MPa (5,075 psi)
Fuel Tank Capacity	~110 L (29 gal)

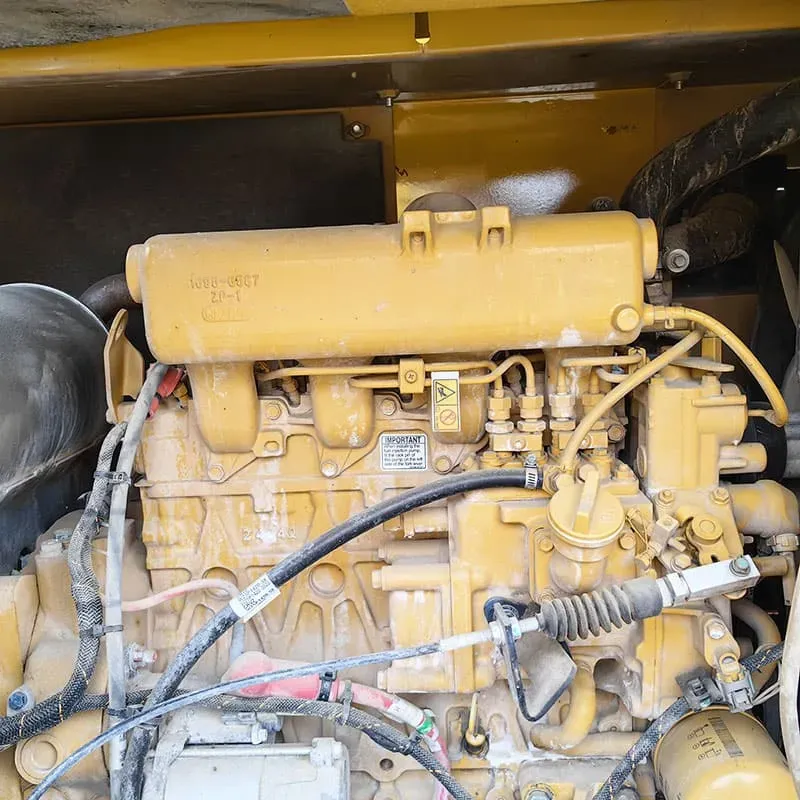

🎛️ Engine Details — Cat C3.3 B

Feature	Detail
Displacement	3.3 L
Cylinders	4 in-line, turbocharged
Emissions	Stage V / EPA Tier 4 Final
Cooling	Liquid-cooled
Fuel System	Common rail direct injection
Aftertreatment	DOC + DPF + SCR (DEF)

✅ The engine is fuel-efficient and meets the strictest emission standards globally.

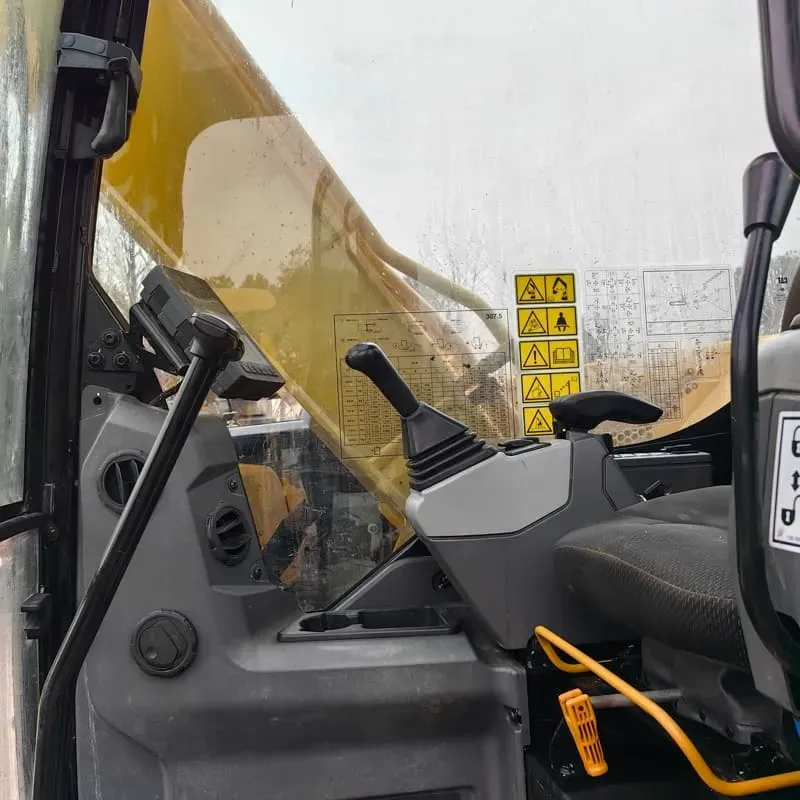

🖥️ Cab & Operator Comfort

The 307.5 offers an enclosed cab option with:

Feature	Detail
🪟 ROPS/FOPS	Fully certified rollover & falling object protection
💺 Air-suspended seat	With armrests & adjustable controls
🖥️ 7" Touchscreen Monitor	Real-time machine info, diagnostics, camera view
❄️ HVAC	Heating & air conditioning
💡 LED Work Lights	Full 360° visibility
🔊 Radio Ready	Bluetooth & USB connectivity
🚪 Wide-open door	Easy entry/exit

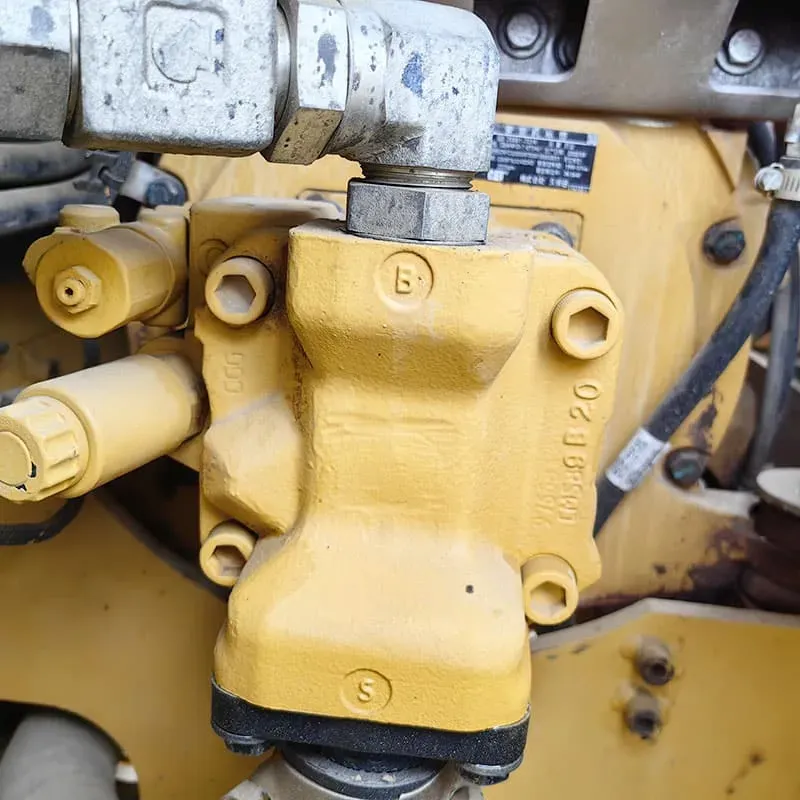

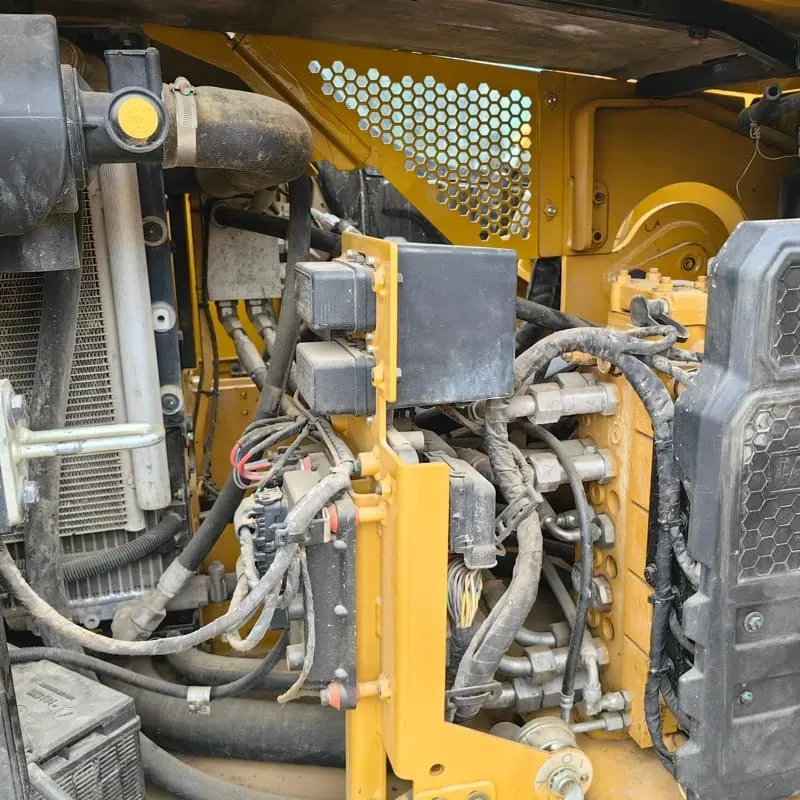

🛠️ Hydraulic System & Attachments

Feature	Detail
Hydraulic Pattern	Auxiliary lines (2nd & 3rd)
Quick Coupler Ready	✅ Yes — for fast attachment changes
Thumb Ready	✅ Yes
Piping Ready	✅ Yes — for hammer/breaker lines
Compatible Attachments	Buckets, augers, breakers, grapples, rakes, thumbs, compaction wheels, etc.

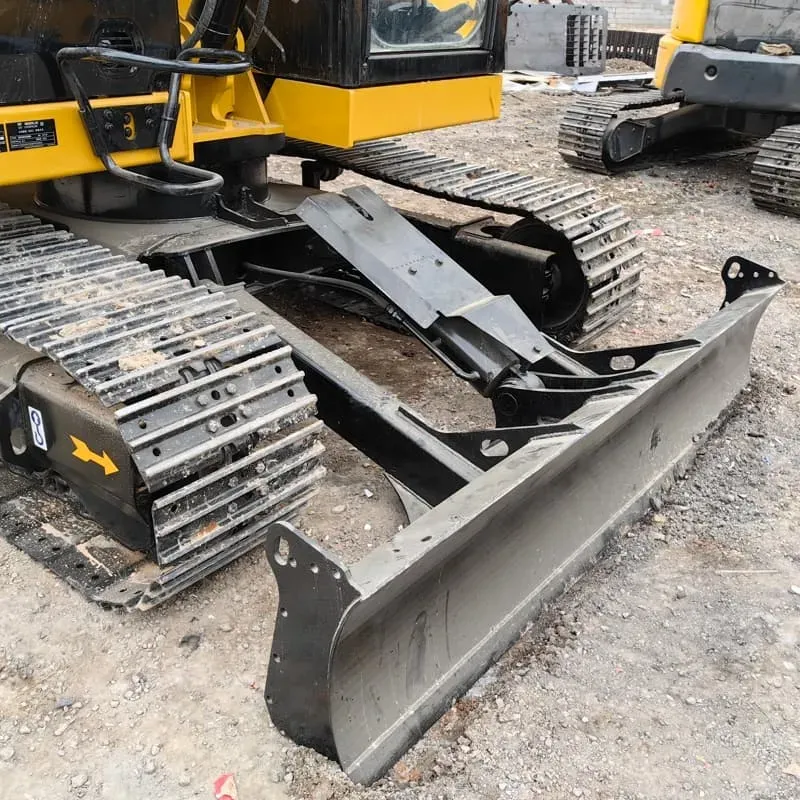

🛤️ Undercarriage Options

Type	Application
Steel Tracks (400mm)	General construction, rocky terrain
Rubber Tracks (400mm)	Road travel, paved surfaces, reduced damage
Track Width	Adjustable: 1,400 – 1,800 mm

🔄 Tracks can be swapped in the field for versatility.

⚡ Smart Features & Technology

Technology	Description
🟢 Eco Mode	Reduces engine RPM when full power isn't needed — saves up to 20% fuel
🔄 Auto-Idle	Engine automatically reduces RPM during inactivity
📊 Cat Product Link™	Telematics for fleet management, location tracking, usage data
🛡️ Security	Password-protected machine start
🔧 Diagnostics	Real-time fault codes via touchscreen
📷 Rearview Camera	Standard on cab models

📐 Dimensions (Approximate)

Dimension	Measurement
Length (w/ bucket on ground)	~5,960 mm (19.6 ft)
Width (tracks)	1,800 mm (71 in)
Height (to cab top)	~2,600 mm (8.5 ft)
Ground Clearance	~380 mm (15 in)

🎯 Ideal Applications

Application	Why 307.5?
🌿 Landscaping	Zero tail swing = works near structures
🔌 Utility/Trenching	Narrow width + deep dig
🏠 Residential Construction	Compact size fits through gates
🧱 Small Demolition	Hydraulic breaker ready
🌾 Agriculture	Rubber track option, versatile attachments
🏗️ Road Work	Pipe laying, curb work

✅ Advantages Summary

Advantage	Detail
⭐ Compact & Maneuverable	ZTS design — works in tight spaces
&Fuel Efficient**	Eco mode + auto-idle
🔧 Low Maintenance	Easy access to filters, daily checks
📱 Connected	Cat Product Link for fleet management
🛡️ Durable	Built to Cat's world-class reliability standards
💰 Strong Resale Value	Caterpillar brand = high residual value

🆚 Competitor Comparison

Model	Weight	Power	Dig Depth
CAT 307.5	7,500 kg	55 HP	4.27 m
Komatsu PC78US-11	7,800 kg	52 HP	4.05 m
John Deere 75G	7,450 kg	51 HP	4.12 m
Kubota KX080-4	8,070 kg	50 HP	4.25 m
Volvo ECR75	7,600 kg	53 HP	4.35 m

🏆 The CAT 307.5 is competitive with slightly higher power and excellent after-sales support (Cat dealer network is the largest globally).

💰 Approximate Pricing (2024-2025)

Configuration	Estimated Price (USD)
Open Station (ROPS)	$55,000 – $65,000
Enclosed Cab (FOPS/ROPS)	$70,000 – $85,000
With rubber tracks	+$3,000 – $5,000
With quick coupler	+$2,000 – $3,000

(Prices vary by region, dealer, and configuration)

🏁 Conclusion

The Caterpillar 307.5 is a best-in-class 7-ton mini excavator that combines:

✅ Compact size with powerful performance
✅ Fuel efficiency & smart technology
✅ Operator comfort & safety
✅ Unmatched dealer support & resale value

It's an excellent choice for contractors who need a reliable, versatile, and productive machine for small to medium-scale projects. 🚜💪

Would you like more details on any specific aspect — like attachment options, maintenance schedule, or comparison with another model? 😊

Non flooded

No accident

Original product

High quality and low price

We guarantee the quality of each machine and promise
to offer you the most favorable price.

Used Caterpillar 307.5Excavator

RELATED PRODUCTS

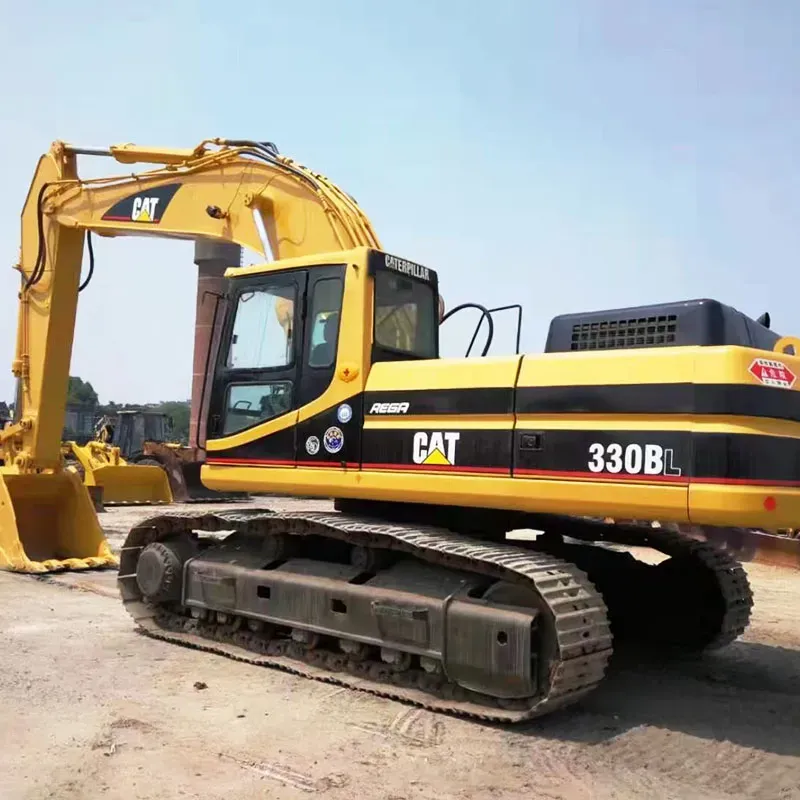

Caterpillar 330BL

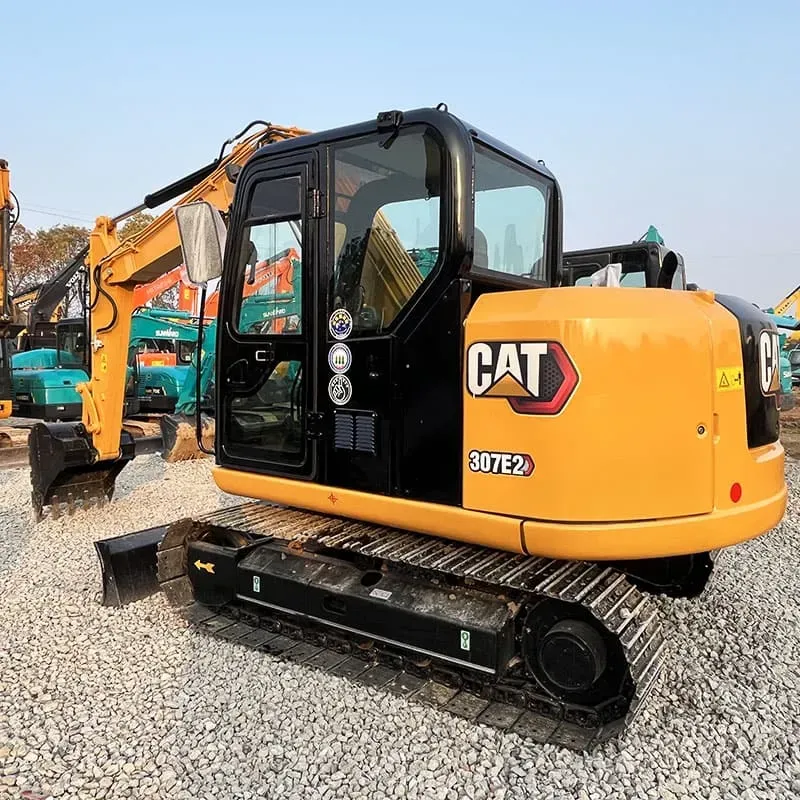

Caterpillar 307E2

Caterpillar 312D2GC

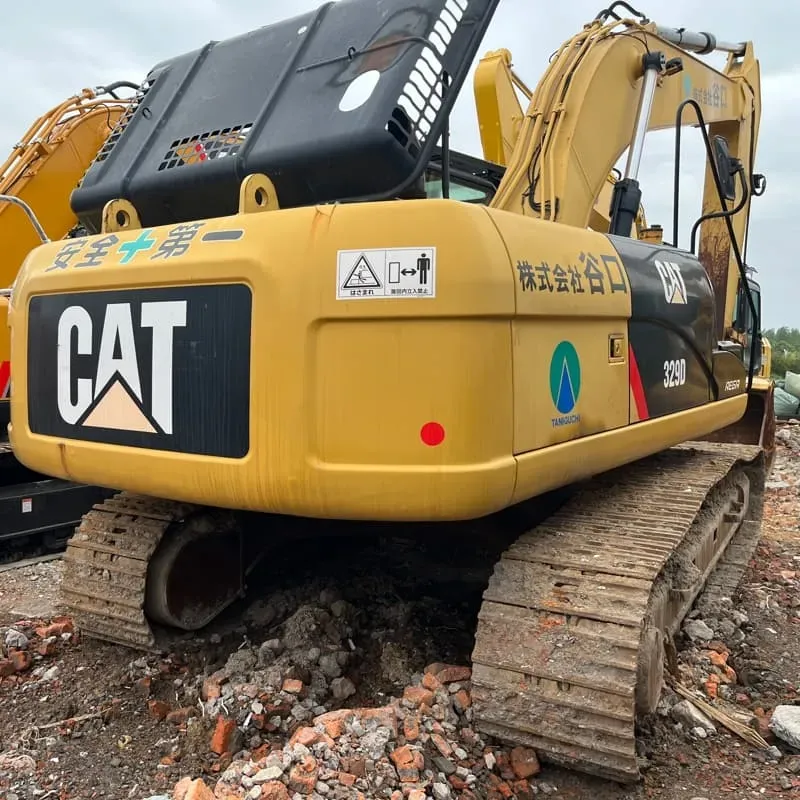

Caterpillar 329D
