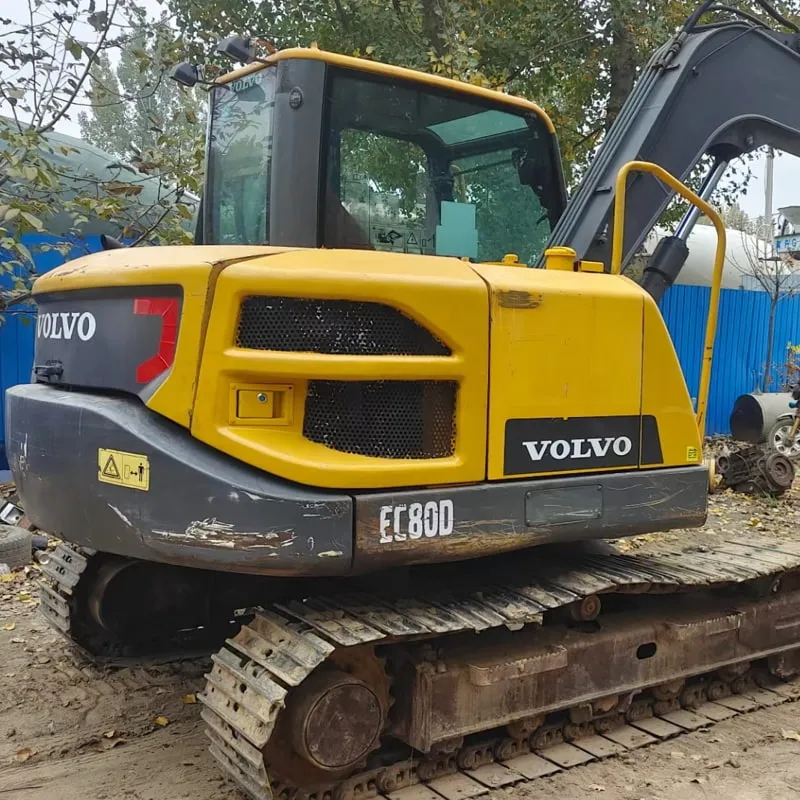

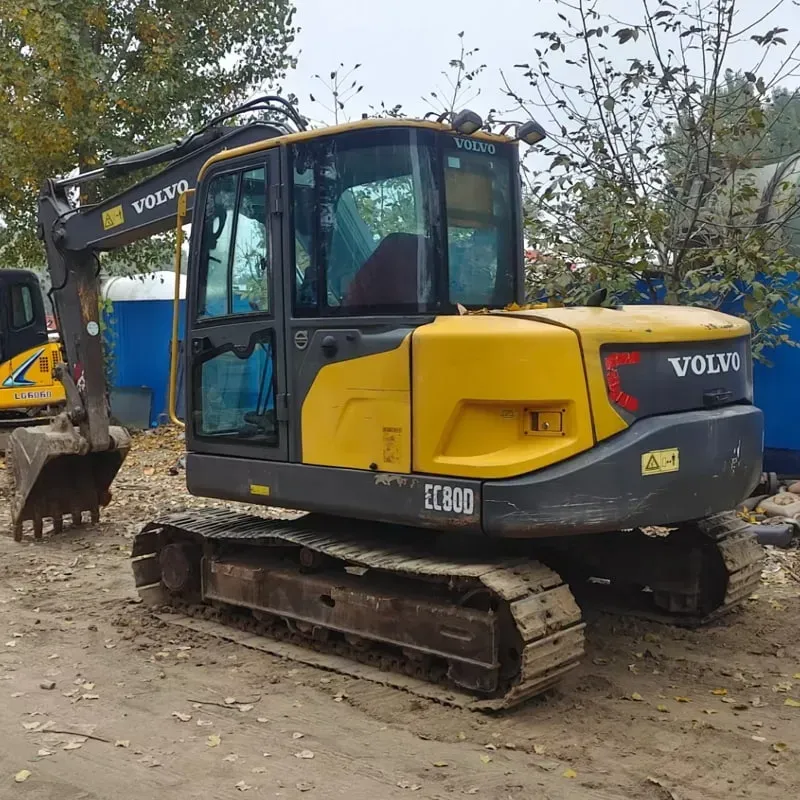

Used Volvo 80DExcavator

Reading: 24

The Volvo EC80D is an 8-tonne class midi excavator from Volvo Construction Equipment's D-series platform. It sits between the compact excavators (ECR series) and the larger excavators (EC140D+), making it ideal for utility work, landscaping, road construction, and small-scale earthmoving.

📋 Key Specifications

Parameter	Details
Operating Weight	~7,800 – 8,200 kg (17,200 – 18,100 lbs)
Engine	Volvo D2.4, 4-cylinder turbo diesel
Power Output	~55 hp (40 kW) @ 2,200 rpm
Emission Standard	Stage V / Tier 4 Final
Hydraulic Flow	~120–140 L/min (load-sensing)
Fuel Tank	~130 L (34 gal)
Max Digging Depth	~4.5 – 4.8 m (14.8 – 15.7 ft)
Max Reach	~7.8 – 8.2 m (25.6 – 26.9 ft)
Bucket Capacity	0.22 – 0.36 m³ (0.29 – 0.47 yd³)
Tail Swing	Compact / Zero Tail Swing (varies by config)

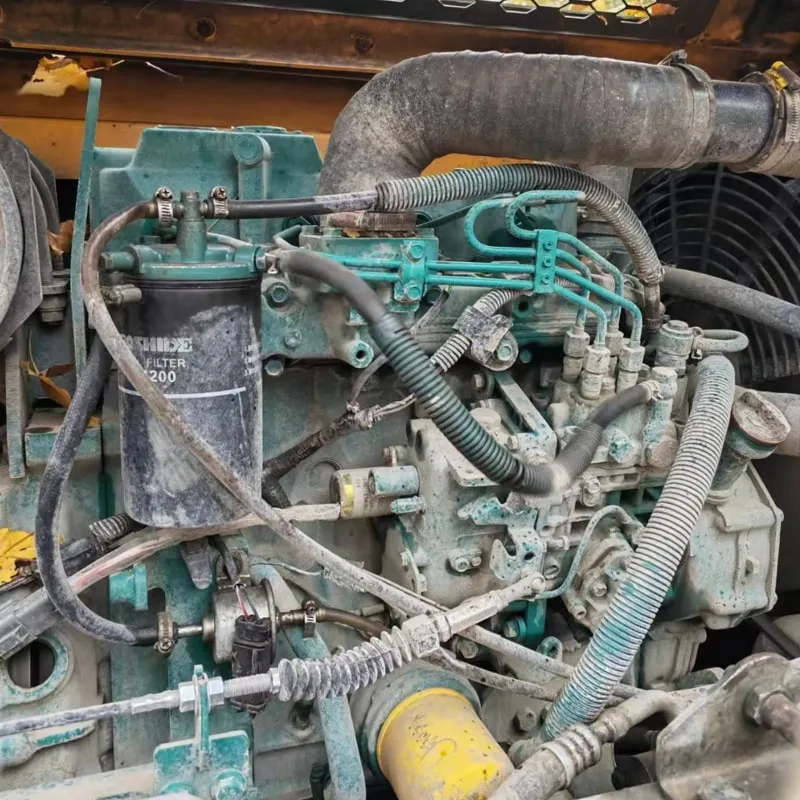

🔧 Engine & Powertrain

Feature	Detail
Engine Model	Volvo D2.4 (in-house)
Type	4-cylinder, turbocharged, intercooled diesel
Displacement	2.4 L
Aftertreatment	DOC + DPF + SCR (no DEF in some markets)
Cooling	Water-cooled
Transmission	Hydrostatic with auto-shift
Travel Speed	~4.8 km/h (3.0 mph)
Gradeability	~70% (35°)

The D2.4 engine is known for reliability, low noise, and fuel efficiency — all hallmarks of Volvo's in-house powertrains.

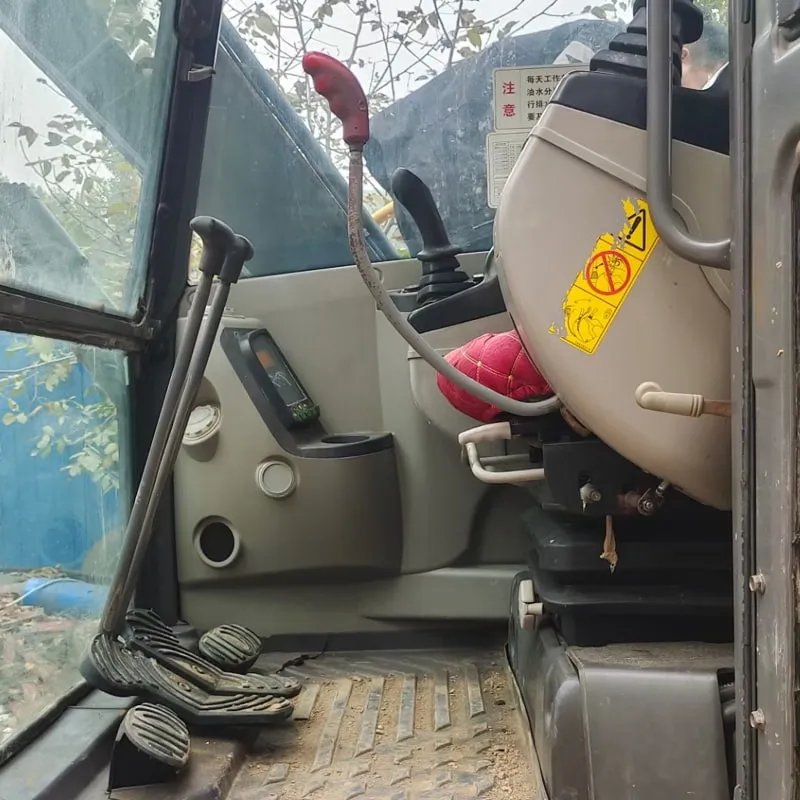

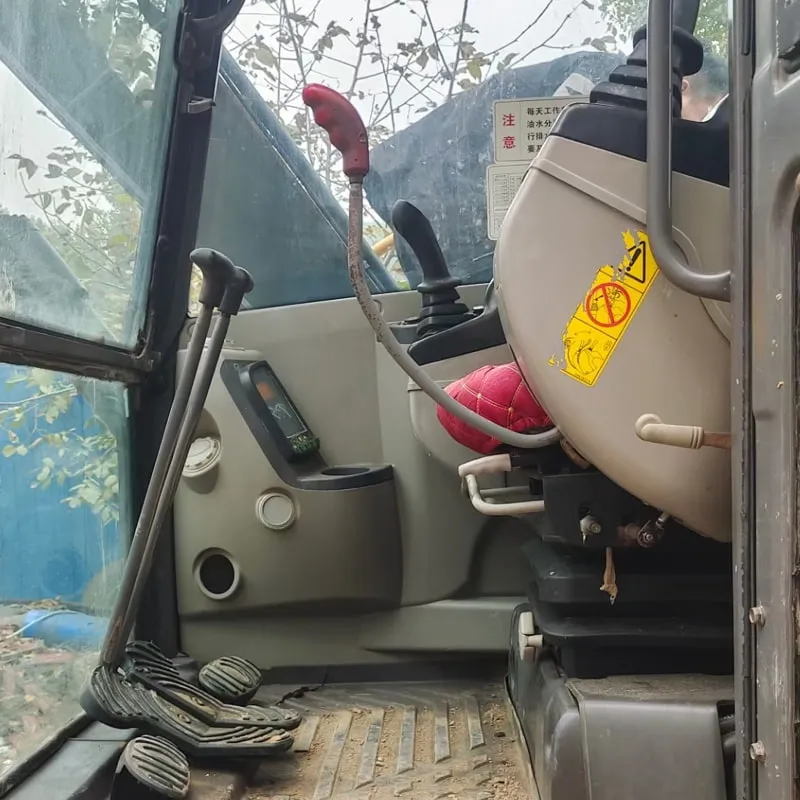

🏠 Cab & Operator Comfort (Care Cab Concept)

The EC80D features Volvo's award-winning Care Cab design:

Feature	Detail
ROPS/FOPS	✅ Certified rollover & falling object protection
Suspension Seat	Air-suspended with armrests
Climate Control	Heating & A/C
Noise Level	~72 dB(A) (very quiet for its class)
Visibility	Large glass area, excellent all-round view
Controls	Intuitive joystick with load-sensing
Display	Multi-function monitor with diagnostics
ECO Mode	One-touch fuel-saving mode (reduces engine RPM)

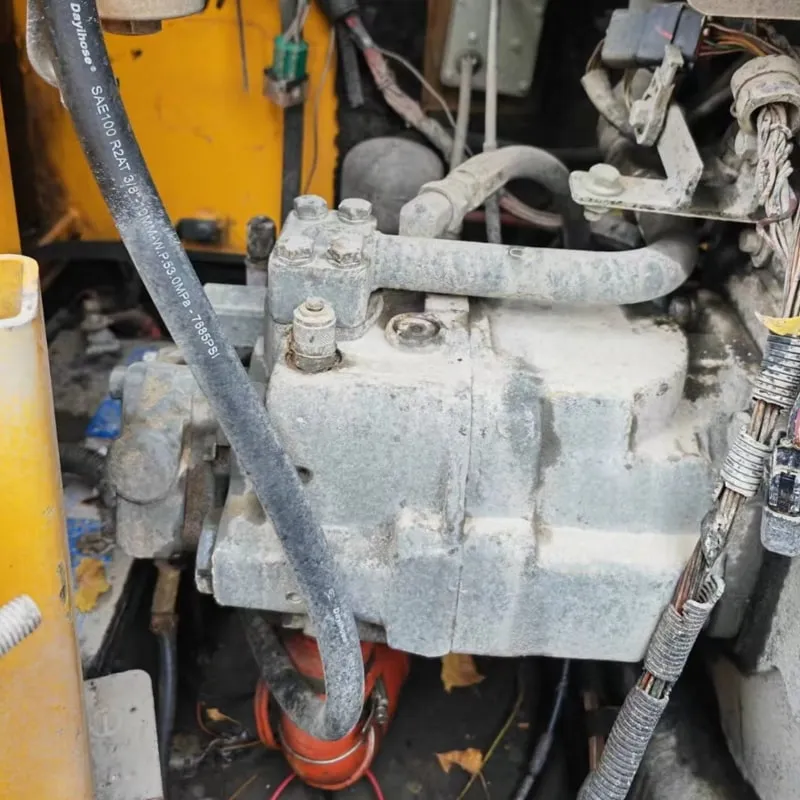

🛠️ Hydraulic System & Work Tools

Feature	Detail
System Type	Load-Sensing (LS) hydraulic system
Auxiliary Lines	1–2 circuits (varies)
Quick Coupler	Available (mechanical or hydraulic)
Piping Ready	✅ Hammer piping pre-installed (option)
Thumb Ready	✅
Grading Blade Ready	✅

Common Attachments:

🪣 Buckets (200–400 mm)
🔨 Hydraulic breaker/hammer
🔧 Thumb (mechanical)
🪚 Tiltrotator (optional)
🪓 Grapple (for waste/demolition)
🚜 Hydraulic grading blade

📡 Technology & Connectivity

Technology	Description
Volvo Co-Pilot	Integrated display with real-time machine info
Volvo Active Control (VAC)	Automated digging (boom/arm/bucket) — boosts productivity up to 30%
Telematics	Volvo LINK ready — remote monitoring, tracking, diagnostics
Eco Pedal	Foot pedal for fuel-efficient operation
Auto-Idle	Engine auto-shuts down when idle to save fuel

⭐ Volvo Active Control (VAC) is a standout feature — it allows semi-automatic digging, making it easier for less-experienced operators to achieve professional results.

⚡ Performance Highlights

Metric	Value
Fuel Consumption	~8–10 L/hr (varies with application)
Breakout Force (Arm)	~35 kN
Breakout Force (Bucket)	~50 kN
Swing Speed	~10 RPM
Swing Torque	~8 kNm

🆚 Comparison with Competitors

Model	Weight	Power	Dig Depth
Volvo EC80D	~8,000 kg	55 hp	~4.7 m
CAT 308 CR	~8,500 kg	55 hp	~4.5 m
Komatsu PC88MR-11	~8,700 kg	58 hp	~4.6 m
Doosan DX80R-7	~8,200 kg	54 hp	~4.6 m
JCB 86C-1	~8,400 kg	55 hp	~4.5 m

Volvo EC80D stands out for cab comfort, low noise, and the VAC system.

✅ Advantages

✅ Pros	❌ Cons
Excellent fuel efficiency (ECO mode)	Higher purchase price vs. some Korean brands
Best-in-class cab comfort & quietness	Limited availability in some markets
Volvo Active Control boosts productivity	Smaller bucket range than some competitors
Strong dealer network & parts availability	Resale value can be slightly lower than CAT/Komatsu
High reliability & low maintenance
Volvo LINK telematics built-in

🎯 Ideal Applications

Application	Suitability
🏗️ Utility trenching	⭐⭐⭐⭐⭐
🌳 Landscaping & grading	⭐⭐⭐⭐⭐
🛣️ Road construction (small)	⭐⭐⭐⭐⭐
🏚️ Light demolition	⭐⭐⭐⭐
🕳️ Pipe laying	⭐⭐⭐⭐⭐
🌾 Agriculture	⭐⭐⭐⭐
🏗️ Large-scale excavation	⭐⭐ (too small)

💰 Approximate Pricing (2024)

Region	Price Range (USD)
Europe	€75,000 – €95,000
North America	$85,000 – $110,000
Asia-Pacific	$70,000 – $90,000
Middle East/Africa	$75,000 – $95,000

Prices vary significantly based on configuration, attachments, and market.

🔄 Predecessor & Generation

Model	Generation	Notes
EC80B	Previous gen	Replaced by EC80D
EC80D	✅ Current (D-series)	Introduced ~2018–2019
EC80E (expected)	Next gen	Rumored for 2025+

📝 Summary

The Volvo EC80D is one of the best midi excavators in the 8-tonne class, offering:

🏆 Top-tier operator comfort (quietest cab in class)
⛽ Excellent fuel economy (ECO mode + Volvo engine)
🤖 VAC technology for productivity gains
📡 Full telematics with Volvo LINK
🔧 Low maintenance with easy service access

It's the go-to choice for contractors who value operator comfort, reliability, and technology over raw power.

⚠️ Note: If you meant the Volvo ECR88D (compact excavator, ~8.8 tonnes) instead, let me know and I can provide that spec sheet as well!

Non flooded

No accident

Original product

High quality and low price

We guarantee the quality of each machine and promise
to offer you the most favorable price.

Used Volvo 80DExcavator

RELATED PRODUCTS

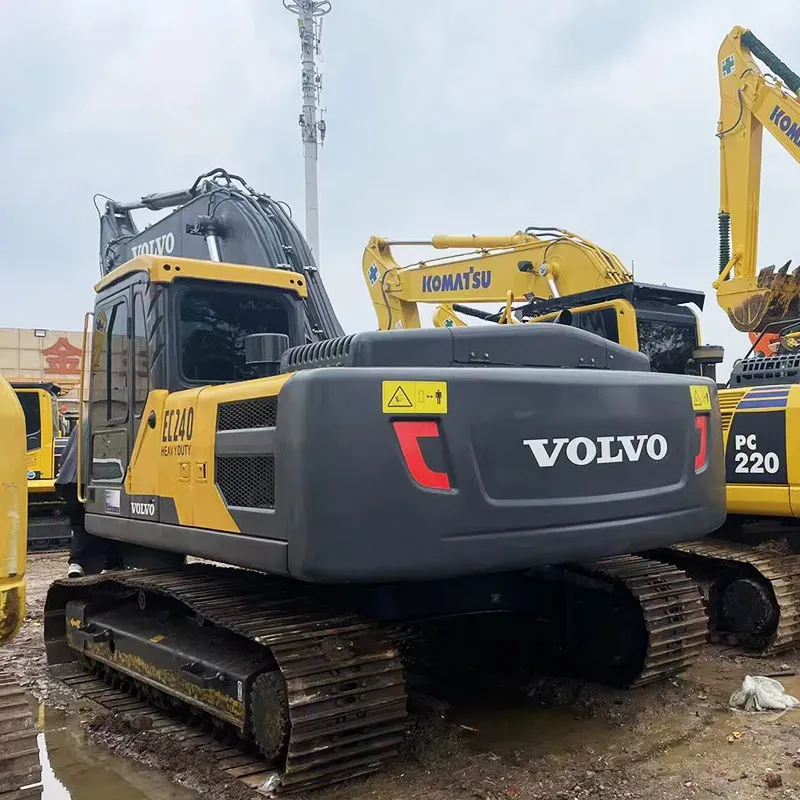

Volvo 240

Volvo 360

Volvo 300D

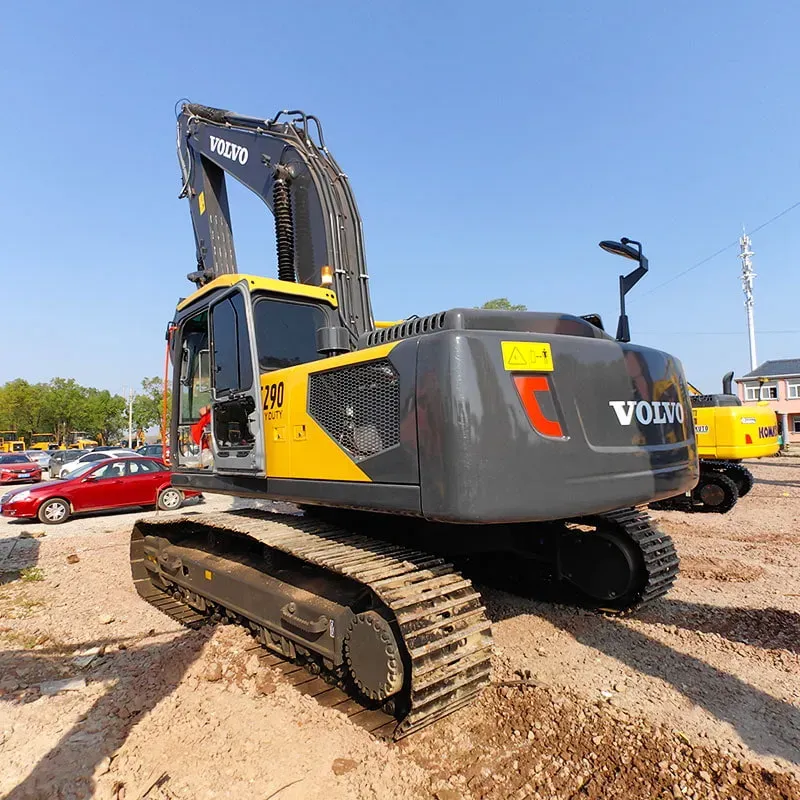

Volvo 290
