The Volvo EC300D is a 30-ton class (mid-size) crawler excavator manufactured by Volvo Construction Equipment (VCE). The "D" designation indicates it meets Stage V / EPA Tier 4 Final emission standards. It is one of the most popular mid-size excavators globally, widely used in construction, road building, mining, and demolition.

📋 1. GENERAL OVERVIEW

Parameter	Specification
Model	EC300D
Class	30-ton (Medium/Large)
Manufacturer	Volvo Construction Equipment (Sweden)
Emission Standard	EU Stage V / EPA Tier 4 Final
Production	Ongoing (part of Volvo D-series)
Primary Markets	Construction, Mining, Infrastructure, Demolition

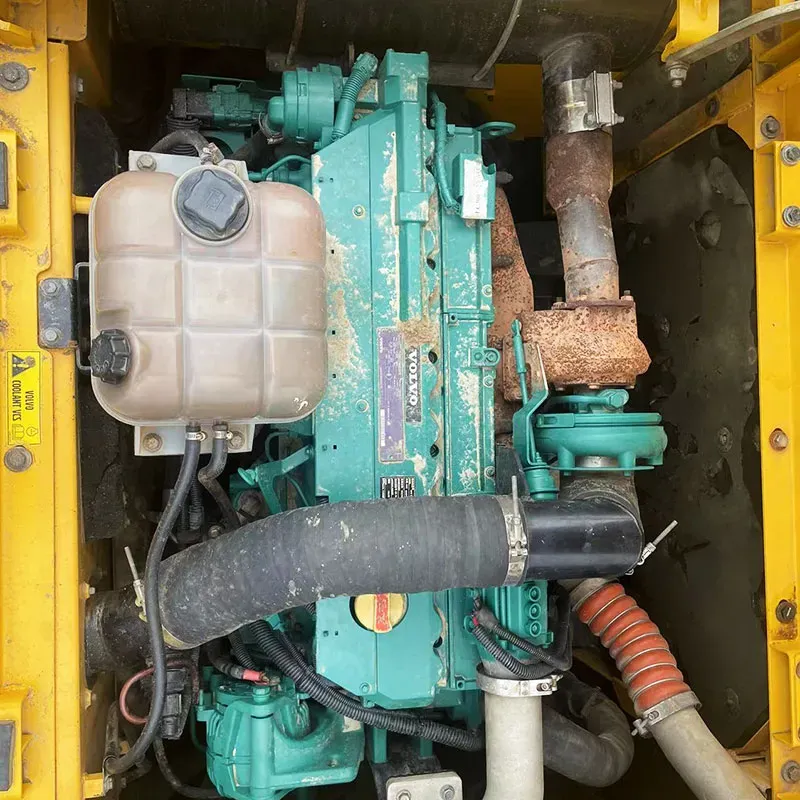

🔧 2. ENGINE SPECIFICATIONS

Feature	Detail
Engine Model	Volvo D7.1E
Type	6-cylinder, inline, turbocharged & intercooled diesel
Displacement	7.1 liters
Rated Power	~185 hp (138 kW) @ 1,800 rpm
Max Torque	~690 Nm (509 lb-ft) @ 1,400 rpm
Emission Tech	SCR (Selective Catalytic Reduction) + DPF (Diesel Particulate Filter) — NO AdBlue/DEF on some markets*
Fuel Tank Capacity	~400 liters (106 US gal)
Cooling System	Pressurized with auto-reverse fan

⭐ Note: Some configurations use DPF-only (no AdBlue) depending on regional regulations.

& 3. HYDRAULIC SYSTEM

Feature	Detail
Pump Type	Load-sensing, variable displacement axial piston
Max System Pressure	350 bar (5,076 psi)
Hydraulic Flow	~2 × 240 L/min (63.4 gpm)
Control System	Electronic proportional joystick control
Auxiliary Hydraulics	Available (2–3 circuits) for attachments

📐 4. DIMENSIONS & WEIGHT

Parameter	Specification
Operating Weight	29,200 – 30,400 kg (64,400 – 67,000 lbs) (varies by configuration)
Transport Length	~9,870 mm (32.4 ft)
Transport Width	2,990 mm (9.8 ft)
Transport Height	3,070 mm (10.1 ft)
Track Length (Ground Contact)	~4,000 mm (13.1 ft)
Track Width	600 mm (23.6 in) — adjustable 500/600/700 mm
Ground Clearance	450 mm (17.7 in)
Tail Swing Radius	2,950 mm (9.7 ft)

🏗️ 5. PERFORMANCE / DIGGING CAPACITIES

Performance Metric	Value
Max Digging Depth	7,440 mm (24.4 ft)
Max Digging Reach	9,980 mm (32.7 ft)
Max Digging Height	9,820 mm (32.2 ft)
Max Dump Height	6,860 mm (22.5 ft)
Max Vertical Wall Dig	7,140 mm (23.4 ft)
Max Force (Boom Cylinder)	~175 kN (39,340 lbf)
Max Force (Arm Cylinder)	~120 kN (26,970 lbf)
Max Force (Bucket Cylinder)	~130 kN (29,220 lbf)

🪣 6. BUCKET CAPACITIES

Bucket Type	Capacity
Standard (GP) Bucket	1.0 – 1.3 m³ (1.3 – 1.7 yd³)
Heavy Duty Bucket	1.1 – 1.6 m³ (1.4 – 2.1 yd³)
Grading/Tilting Bucket	1.2 – 1.5 m³ (1.6 – 2.0 yd³)
Rock Bucket	0.8 – 1.1 m³ (1.0 – 1.4 yd³)
Thumb Available	Yes — hydraulic thumb compatible

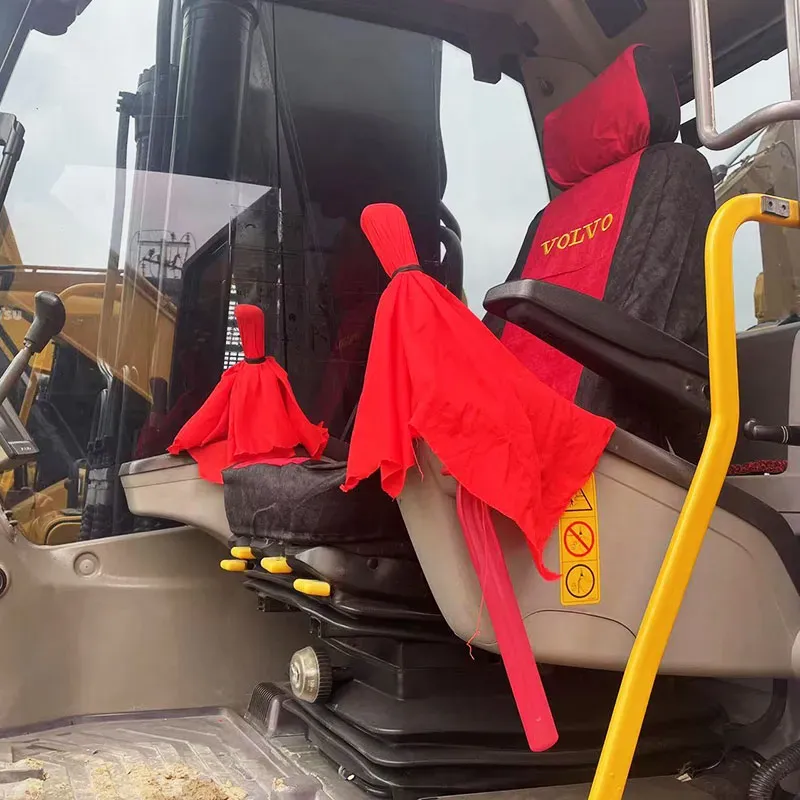

🖥️ 7. CAB & OPERATOR ENVIRONMENT

Feature	Detail
Cab Type	ROPS/FOPS certified, pressurized
Display	12-inch (30 cm) high-resolution touchscreen
Climate Control	Auto climate control with AC
Seat	Air-suspended, heated, with armrests
Sound Level	~68 dB(A) — very quiet for its class
Visibility	Excellent all-around visibility, large windows
Controls	Electronic joysticks with programmable buttons
Lighting	LED work lights (front, rear, cab)
Camera System	Rear-view camera available (optional)

🧠 8. TECHNOLOGY & SMART FEATURES

Technology	Description
🖥️ Co-Pilot	Volvo's intuitive touchscreen interface — controls all machine functions, attachments, and settings from one screen
📡 CareTrack	Volvo's telematics system — real-time machine tracking, fuel monitoring, diagnostics, utilization reports
🌿 ECO Mode	Reduces engine RPM and hydraulic flow to save up to 15% fuel
🔄 Auto-Idle	Engine automatically reduces RPM when not working
🔧 Active Control	Smooth boom/arm movement for precise grading
📊 Grade Assist	2D grade control system for accurate leveling
🔌 Volvo Attachment Quick Coupler	Standard or optional — allows fast attachment changes (hammers, grapples, thumbs, etc.)
📶 Volvo Smart Services	Remote diagnostics and software updates

🛢️ 9. FUEL EFFICIENCY

Metric	Value
Fuel Consumption (Avg)	~20–25 L/hr (5.3–6.6 gal/hr) (depends on application)
ECO Mode Savings	Up to 15% less fuel vs. standard mode
Idle Consumption	Very low due to auto-idle system

🏆 The EC300D is known for being one of the most fuel-efficient machines in its class.

🔄 10. COMMON ATTACHMENTS

Attachment	Application
🔨 Hydraulic Breaker (Hammer)	Demolition, rock breaking
🪓 Hydraulic Grapple	Scrap handling, log sorting
🫳 Hydraulic Thumb	Material handling, precision dig
🔧 Tilt Rotator	360° rotation for versatile work
🔩 Pulverizer/Crusher	Concrete demolition
🪣 Quick Coupler	Fast attachment change
🪥 Rake/Ripper	Ground preparation
📦 Orange Peel Grapple	Scrap & waste handling

✅ 11. KEY ADVANTAGES

Advantage	Details
✅ Fuel Efficiency	Among the best in the 30T class
✅ Low Noise	~68 dB — comfortable operator environment
✅ High Productivity	Strong hydraulic power + fast cycle times
✅ Operator Comfort	Excellent cab, touchscreen, air seat
✅ Reliability	Volvo's reputation for durability & low downtime
✅ Dealer Network	Volvo has one of the largest global dealer networks
✅ Resale Value	Excellent residual value — holds value well
✅ Telematics	CareTrack gives full visibility on fleet management

📊 12. COMPETITORS

Competitor	Model
🇯🇵 Caterpillar	CAT 330 / 330 GC
🇯🇵 Komatsu	PC300LC-11 / PC300
🇯🇵 Hitachi	ZX300LC-7
🇰🇷 Doosan (Develon)	DX300LC-7
🇰🇷 Hyundai	HX300L / HX300LCA
🇯🇵 Kobelco	SK300LC-11
🇸🇪 Volvo	EC300D ⭐

💰 13. APPROXIMATE PRICING (2024)

Region	Price Range (USD)
🇺🇸 North America	$280,000 – $350,000
🇪🇺 Europe	€260,000 – €320,000
🌏 Asia/Other	Varies by market

(Prices vary significantly based on configuration, attachments, and region)

🎯 SUMMARY

Category	Rating (out of 5)
Power & Performance	⭐⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐⭐
Operator Comfort	⭐⭐⭐⭐⭐
Technology	⭐⭐⭐⭐⭐
Reliability	⭐⭐⭐⭐⭐
Resale Value	⭐⭐⭐⭐⭐

The Volvo EC300D is widely regarded as one of the best mid-size excavators in the world, combining Swedish engineering excellence, fuel efficiency, operator comfort, and cutting-edge technology. It's a top choice for contractors who want productivity, low operating costs, and reliability in one machine. 🚜💪
