Used Xcmg 50GNLoader

Reading: 25

🏭 Overview

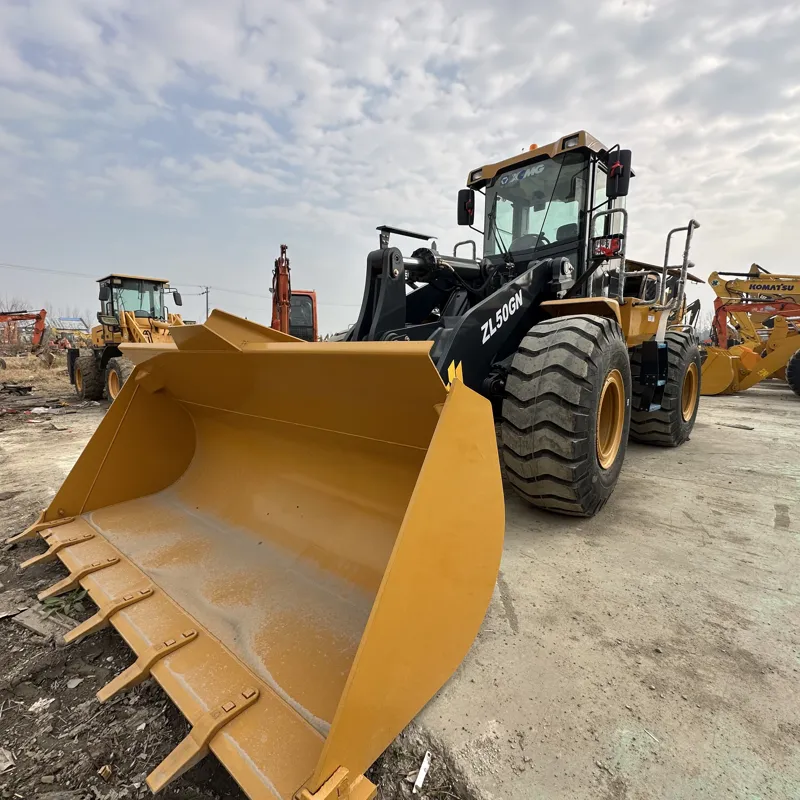

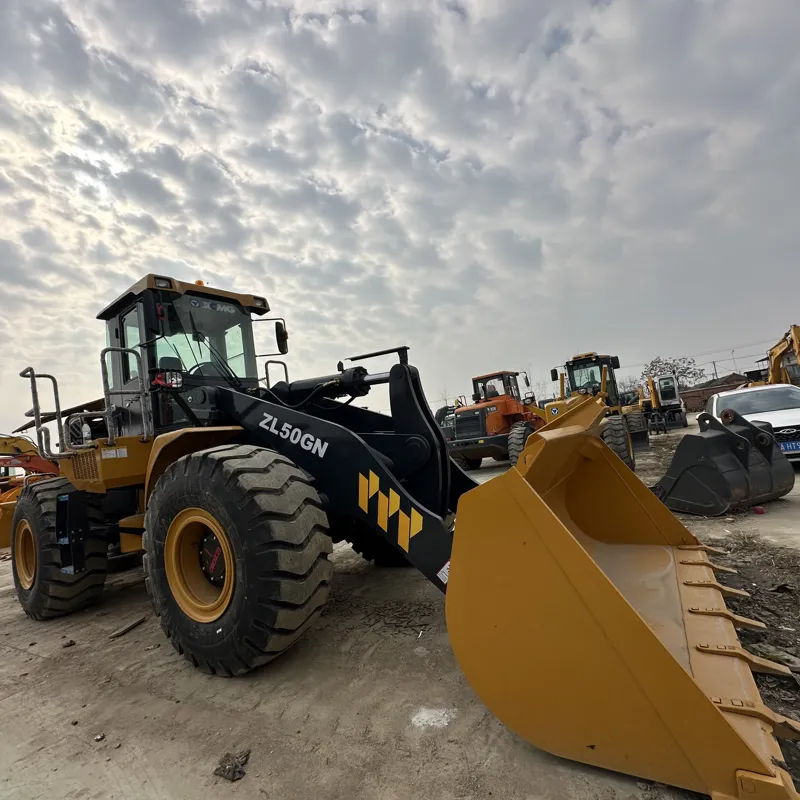

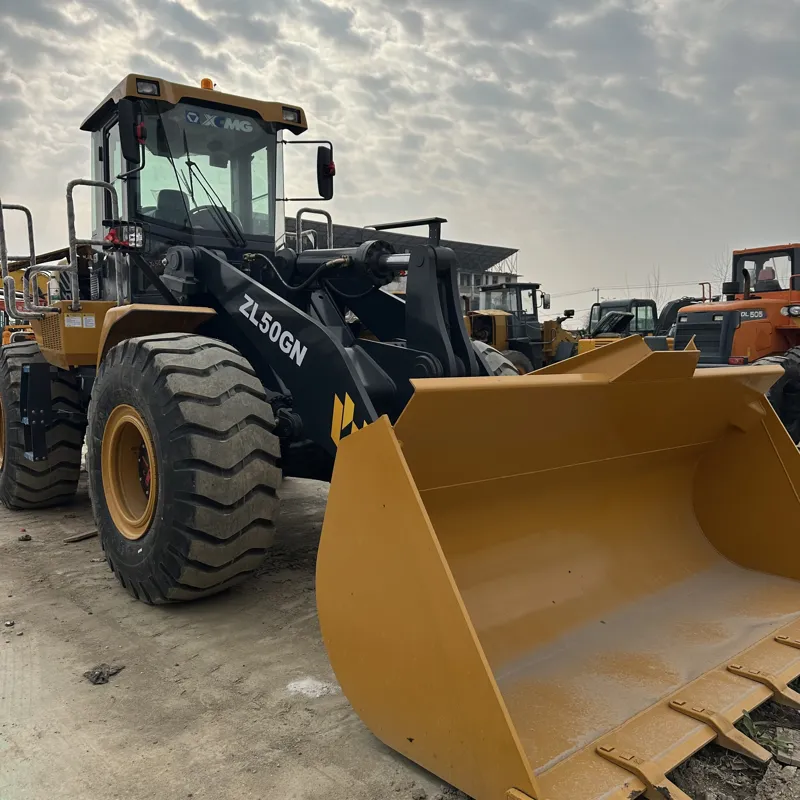

The XCMG LW50GN is a 5-ton (5,000 kg rated load capacity) wheel loader from XCMG's popular GN series, designed for general-purpose earthmoving, loading, and material handling in construction, mining, and agricultural applications. It is known for its reliability, fuel efficiency, and strong cost-performance ratio, making it one of XCMG's best-selling models in the 5-ton class.

📋 Key Technical Specifications

Parameter	Specification
Model	LW50GN
Rated Load Capacity	5,000 kg (5 tons)
Rated Bucket Capacity	3.0 m³ (3.5 m³ optional)
Operating Weight	~16,800 – 17,200 kg
Overall Dimensions (L×W×H)	~7,850 × 3,050 × 3,350 mm
Wheelbase	~3,000 mm
Ground Clearance	~450 mm
Turning Radius (outer)	~6,800 mm

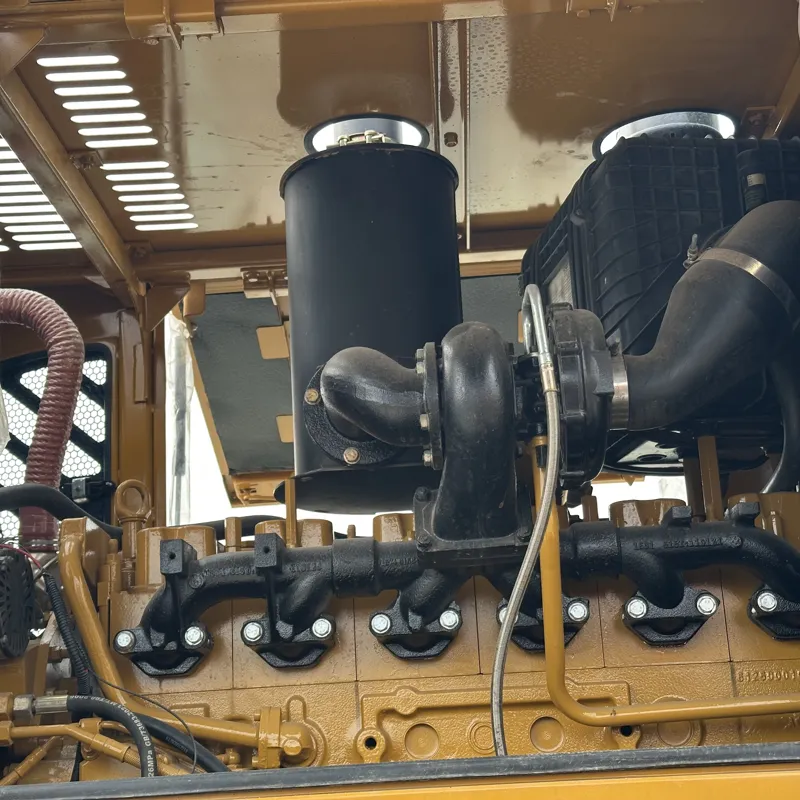

⚙️ Engine & Powertrain

Parameter	Specification

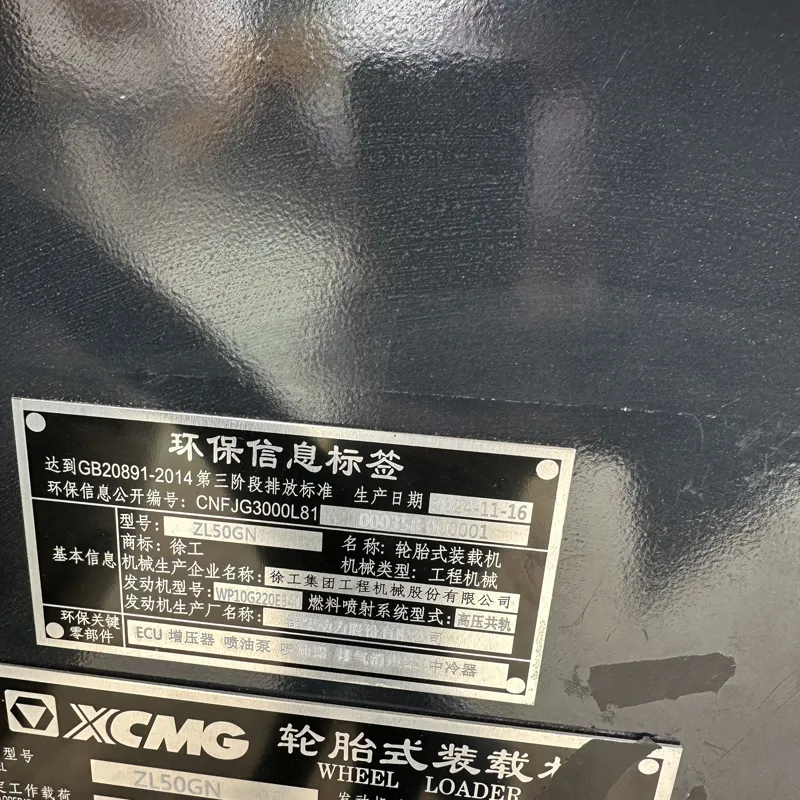

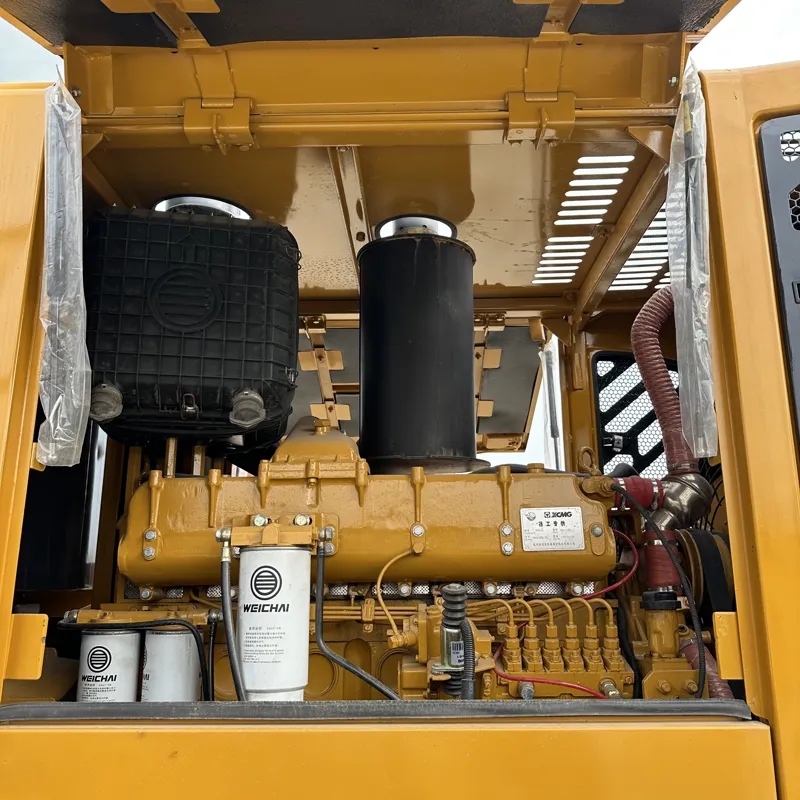

Engine Brand	Weichai (WP10G220E22) or Cummins (QSB6.7) – depending on market
Engine Type	6-cylinder, turbocharged, intercooled diesel
Rated Power	162 kW (220 HP) @ 2,200 rpm
Emission Standard	China III / Euro III (Tier 3 equivalent)
Transmission	Power-shift transmission (Planetary)
Torque Converter	Single-stage, 3-element
Gears	Forward: 4 / Reverse: 4
Max Speed (Forward/Reverse)	~38 km/h / ~32 km/h
Drive System	Full hydrostatic or articulated frame with oscillating axle

🔧 Hydraulic System & Performance

Parameter	Specification
Hydraulic Pump Type	Gear pump / Variable displacement pump
System Pressure	21 MPa (3,050 psi)
Hydraulic Flow	~240 L/min
Max Tractive Force	~175 kN
Bucket Breakout Force	~170 kN
Lifting Time (full load)	~6.5 seconds
Lowering Time (empty bucket)	~3.5 seconds
Cycle Time	~11 – 12 seconds
Max Dumping Height	~3,250 mm
Max Dumping Reach	~1,150 mm
Max Digging Depth	~130 mm

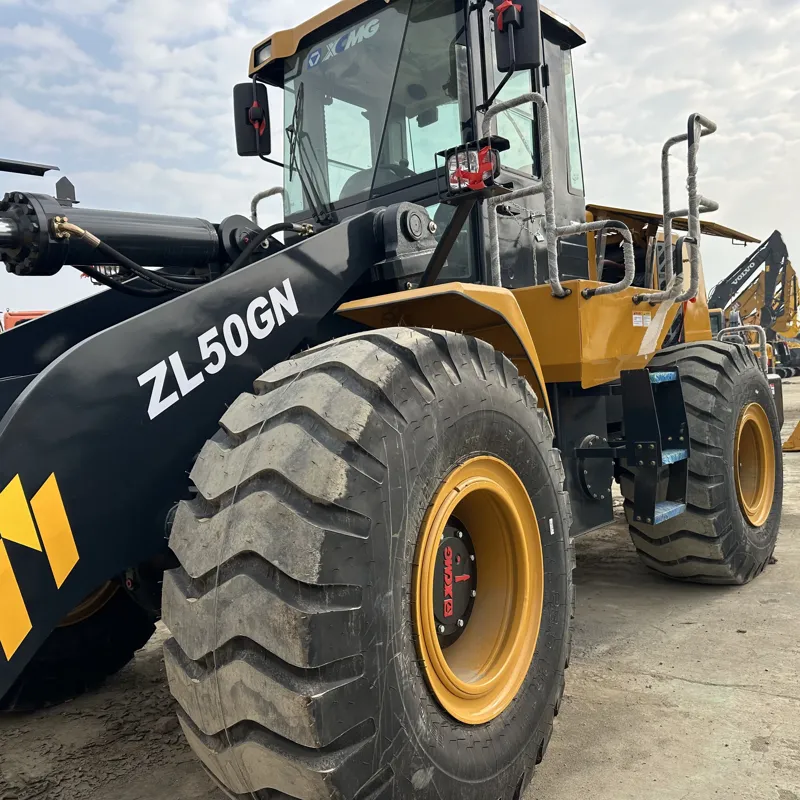

🛞 Tires & Undercarriage

Parameter	Specification
Tire Size	23.5-25 (18PR)
Tire Type	E-3/L-3 off-road pattern
Articulation Angle	±35° (±40° for some versions)
Braking System	Wet disc brakes, full hydraulic
Steering	Articulated frame steering

🛋️ Operator Cab & Comfort

Feature	Description
Cab Type	ROPS/FOPS certified, fully enclosed
Seat	Air-suspension seat with heating (optional)
Climate Control	A/C + heater standard
Monitor	LCD digital display (engine info, fault codes, fuel level)
Joystick Control	Optional electronic joystick
Noise Level	≤ 78 dB(A)
Visibility	Excellent all-around visibility with large glass area
Air Filtration	Dual-stage air filtration system

🔩 Key Features & Highlights

Feature	Detail
✅ GN Series Design	Upgraded frame with reinforced structure for heavy-duty work
✅ Fuel Efficient	Engine + hydraulic system optimized for low fuel consumption (~25-28 L/hr)

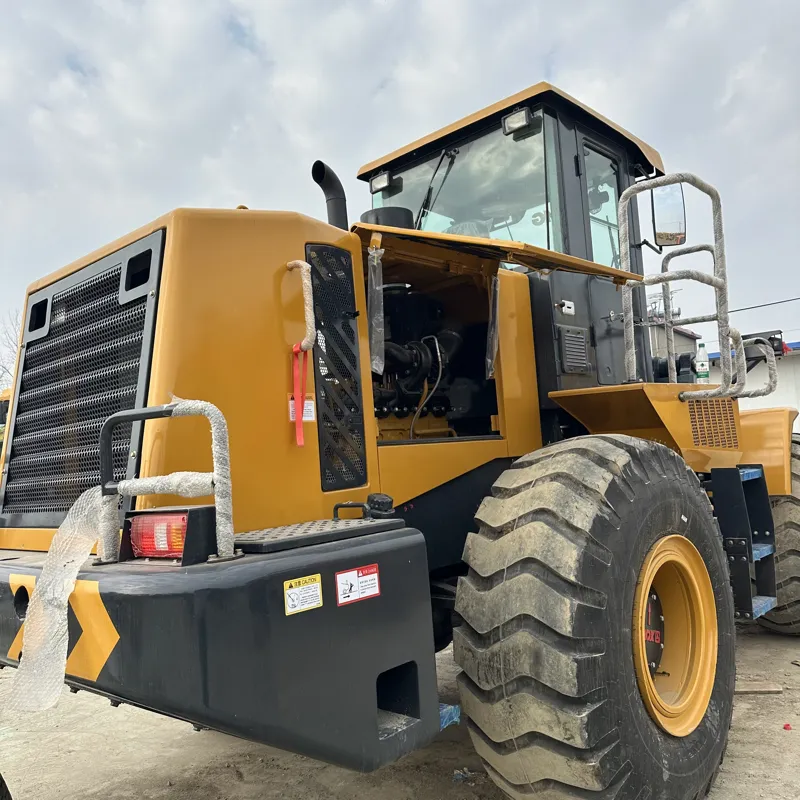

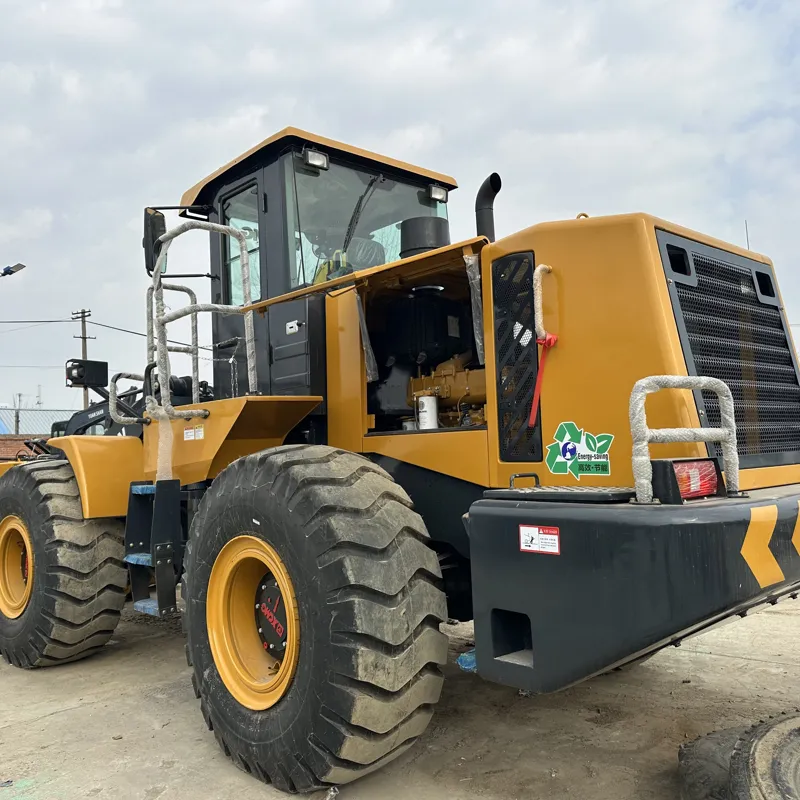

✅ Easy Maintenance	Side-opening hood, ground-level service points, centralized greasing
✅ Strong Breakout Force	~170 kN bucket breakout for tough material handling
✅ Versatile Bucket Options	Standard bucket, rock bucket, grain bucket, snow blade, fork, pallet fork
✅ Durable Axles	Heavy-duty oscillating rear axle for rough terrain
✅ Smart Diagnostics	Onboard fault diagnosis system
✅ Parts Availability	XCMG's global parts network ensures quick spare parts supply

🏗️ Typical Applications

Application	Description
🏗️ Construction Sites	Loading sand, gravel, soil, rubble
⛏️ Mining & Quarries	Rock loading, stockpile management
🌾 Agriculture	Grain, silage, hay bale handling
🏭 Waste Management	Landfill operations, recycling
🛣️ Road Building	Asphalt plant feeding, base course loading
❄️ Snow Removal	With snow blade attachment

📊 Comparison with Competitors

Model	Rated Load	Engine Power	Operating Weight
XCMG LW50GN	5,000 kg	162 kW (220 HP)	~17,000 kg
SDLG L956F	5,000 kg	162 kW (220 HP)	~17,000 kg

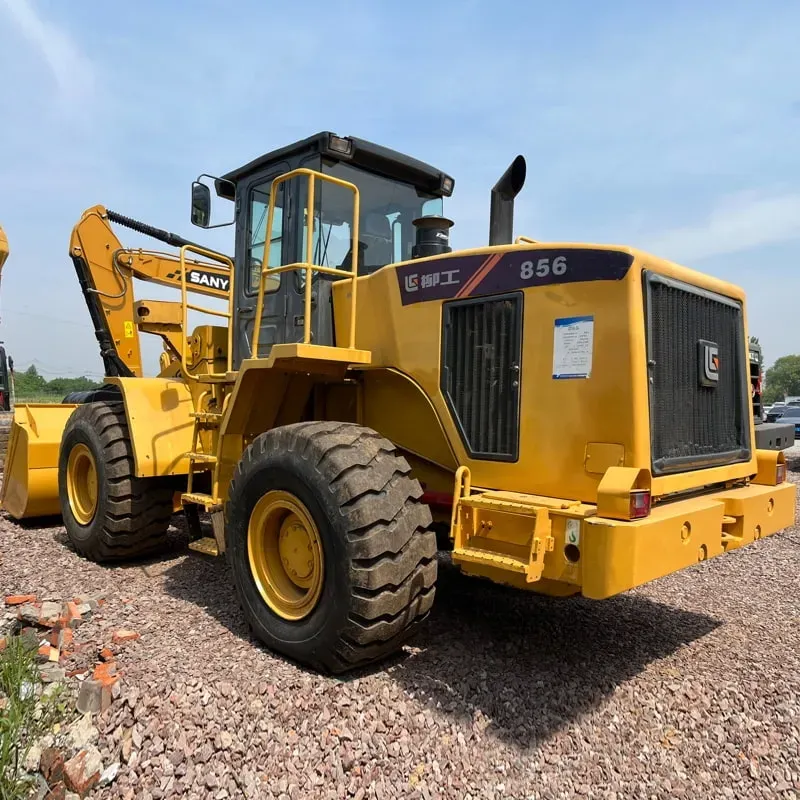

LiuGong CLG856H	5,000 kg	162 kW (220 HP)	~17,200 kg
SEM 656D	5,000 kg	162 kW (220 HP)	~17,000 kg
Cat 950 GC	5,185 kg	169 kW (227 HP)	~19,500 kg

The XCMG LW50GN is competitively priced compared to Cat/Komatsu while offering similar performance, making it very popular in developing markets (Southeast Asia, Africa, South America, Middle East, Central Asia).

💰 Approximate Pricing (2024 Reference)

Region	Price Range (USD)
China (Domestic)	$45,000 – $55,000
Southeast Asia	$50,000 – $60,000
Africa / Middle East	$55,000 – $65,000
South America	$58,000 – $68,000

(Prices vary by configuration, attachments, and dealer)

📈 Summary – Why Choose LW50GN?

✅ Pros	⚠️ Considerations
Excellent price-to-performance ratio	Cab comfort slightly below premium brands
Strong after-sales network globally	Some markets may have longer lead times
Low operating & maintenance costs	Engine brand may vary by region (Weichai vs Cummins)
Proven reliability in harsh conditions	Hydraulic system is good but not class-leading vs CAT
Wide range of attachments available

The XCMG LW50GN is an excellent all-round 5-ton wheel loader — ideal for customers who want reliable, affordable, and fuel-efficient equipment for demanding work environments. It's one of XCMG's flagship models and a strong competitor in the global mid-size loader market. 🚜💪
