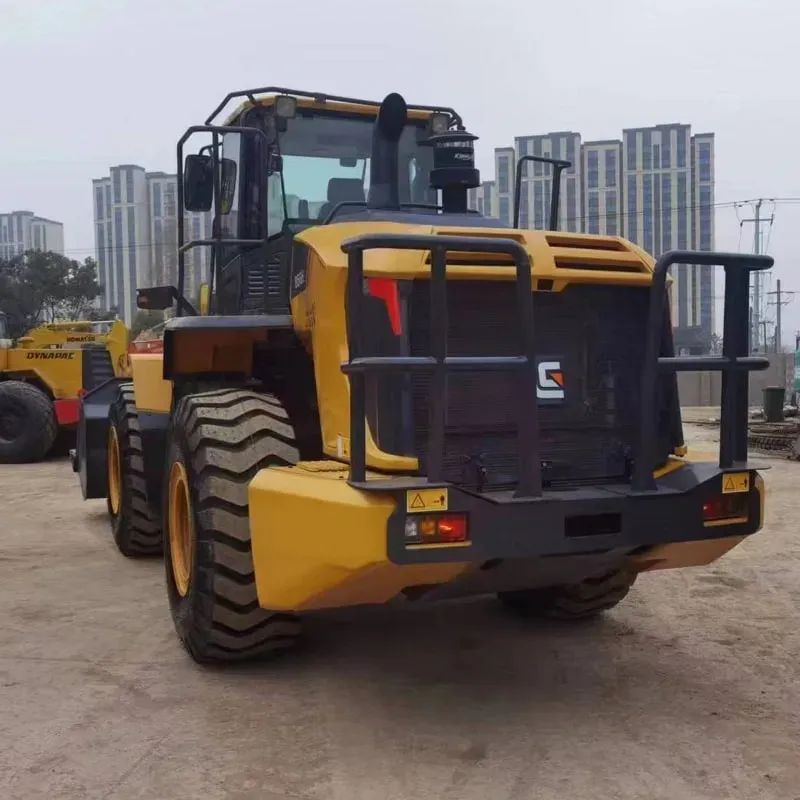

Used Liugong 856HLoader

Reading: 37

📌 1. GENERAL OVERVIEW

Item	Details
Manufacturer	Guangxi LiuGong Machinery Co., Ltd. (柳工)
Model	856H
Series	H-Series (Heavy-duty / Upgraded)
Type	Wheel Loader
Class	5-Ton (Rated Operating Capacity)
Origin	Liuzhou, Guangxi, China
Target Markets	Mining, Quarrying, Construction, Aggregate, Material Handling

The LiuGong 856H is one of LiuGong's flagship wheel loaders in the 5-ton class. The "H" suffix indicates it is the high-performance / heavy-duty upgraded version of the 856 model, featuring enhanced power, hydraulics, and durability for demanding applications.

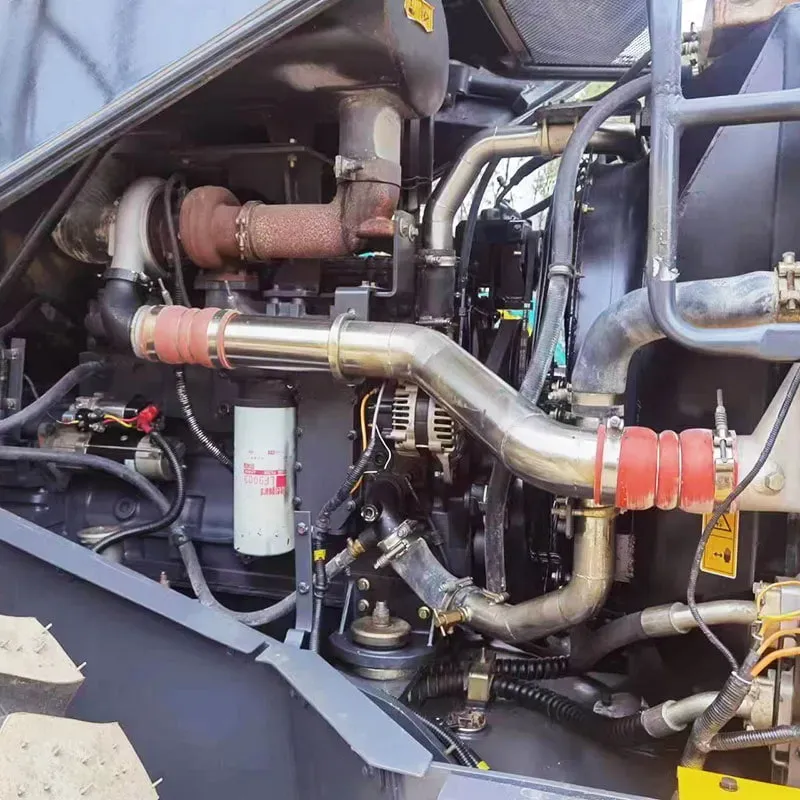

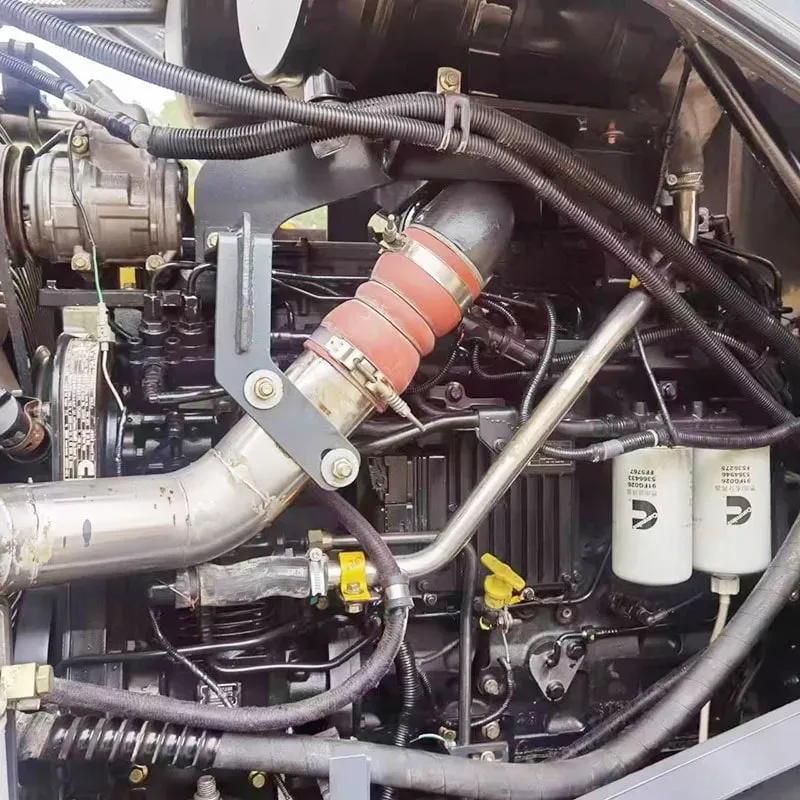

📌 2. ENGINE SPECIFICATIONS

Parameter	Specification
Engine Model	Weichai WP10G220E33 (潍柴)
Type	Turbocharged, Intercooled, Direct Injection Diesel
Rated Power	162 kW (220 HP) @ 2,000 rpm
Max Torque	~850 N·m @ 1,400–1,600 rpm
Emission Standard	China III / Stage IIIA (EPA Tier 4 Final equivalent available in some markets)
Displacement	9.726 L
Cylinders	6 in-line
Fuel Tank Capacity	~280 L

✅ The Weichai WP10 engine is widely recognized for its reliability, fuel efficiency, and strong low-end torque, making it ideal for heavy loading operations.

📌 3. TRANSMISSION & DRIVETRAIN

Parameter	Specification
Transmission Type	Power Shift (Full Powershift)
Gears	4 Forward / 4 Reverse
Top Speed (Forward)	~38 km/h
Top Speed (Reverse)	~30 km/h
Drive Type	Articulated 4WD
Axle	Oscillating rear axle with planetary reduction
Differential Lock	Available (Rear axle diff lock)

✅ The power shift transmission provides smooth, impact-free gear changes, reducing drivetrain shock and extending component life.

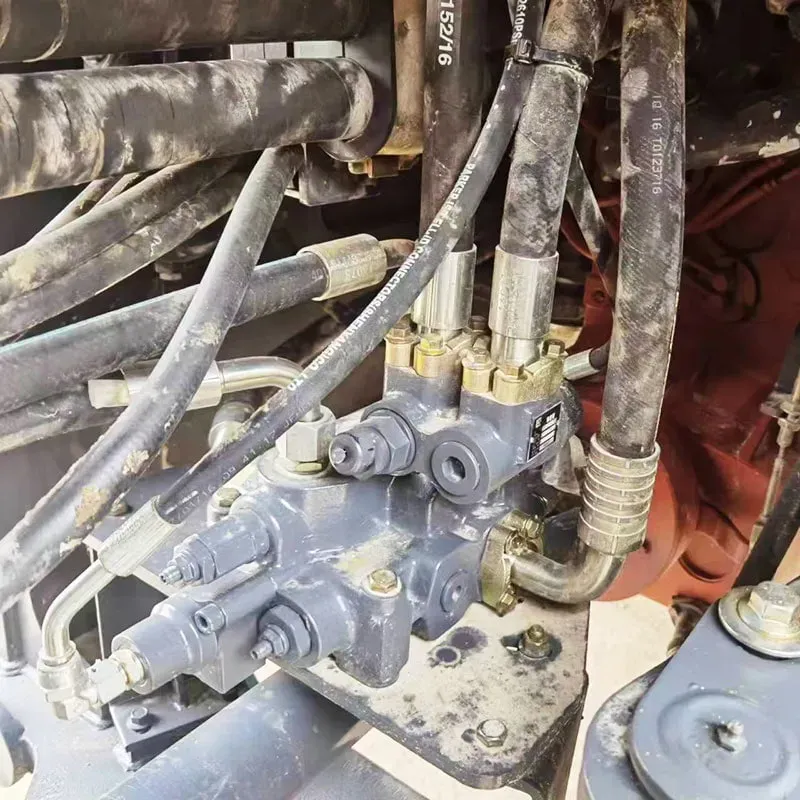

📌 4. HYDRAULIC SYSTEM

Parameter	Specification
System Type	Load-Sensing Hydraulic System (LSS)
Working Pressure	17.5 MPa (2,538 psi)
Pump Flow Rate	~180 L/min (dual pump option available)
Lift Cylinders	2 x Large-bore cylinders
Tilt Cylinders	2
Steering Cylinders	1
Hydraulic Oil Capacity	~120 L

✅ The load-sensing hydraulic system matches pump output to demand, significantly improving fuel efficiency by 10-15% compared to fixed-displacement systems.

📌 5. PERFORMANCE SPECIFICATIONS

Parameter	Specification
Rated Bucket Capacity	3.0 m³ (Standard)
Rated Operating Load (ROL)	5,000 kg (5 tons)
Max Breakout Force	~175 kN
Max Bucket Digging Force	~170 kN
Max Dumping Height	~3,100 mm
Max Dumping Reach	~1,150 mm
Max Digging Depth	~150 mm
Gradeability (Loaded)	30° (~58%)
Turning Radius (Outer)	~6,800 mm
Cycle Time (Loading/Hauling)	~10–12 seconds

📌 6. DIMENSIONS & WEIGHT

Parameter	Specification
Operating Weight	~17,000 – 17,500 kg
Overall Length (with bucket)	~8,450 mm
Overall Width	~3,000 mm
Overall Height (to cab top)	~3,300 mm
Wheelbase	~3,300 mm
Ground Clearance	~450 mm

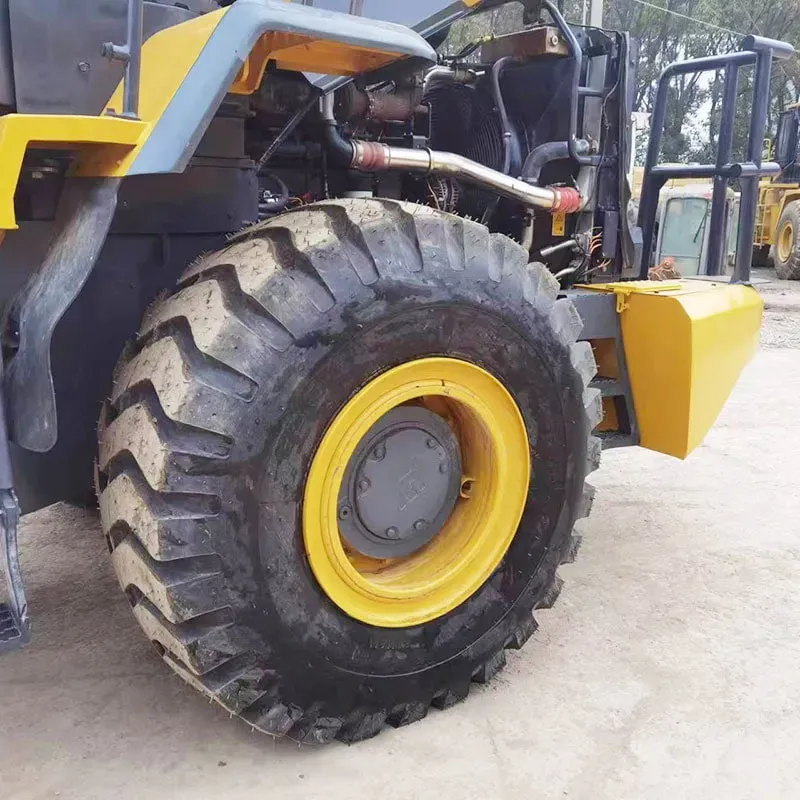

Tire Size	23.5-25 (18PR / 20PR)
Tire Type	E-3/L-3 off-road pattern

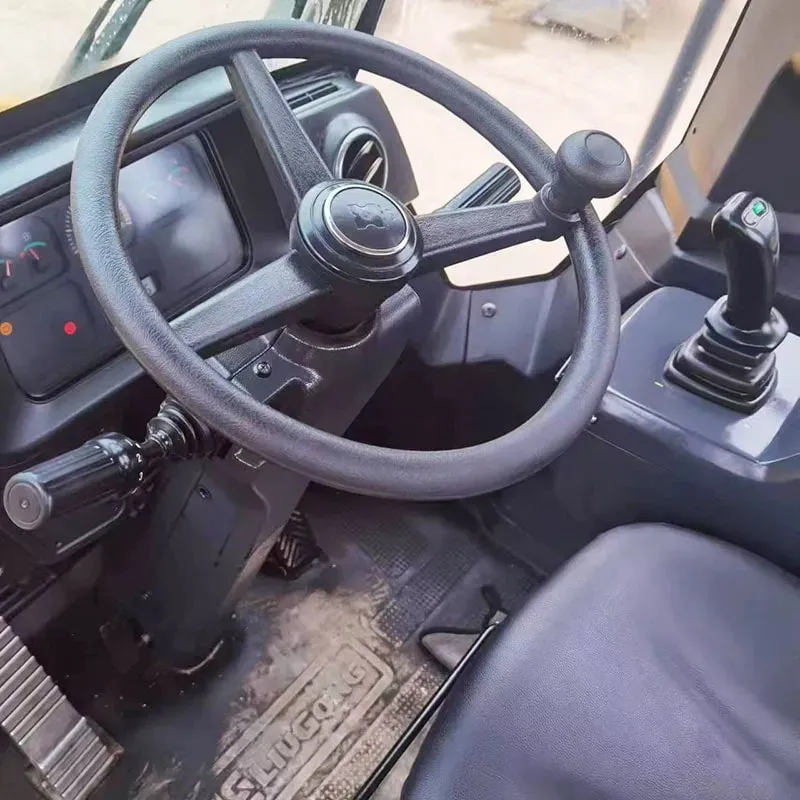

📌 7. CAB & OPERATOR COMFORT ⭐

The 856H features one of the best cabs in its class:

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed
Air Conditioning	✅ Full AC with heating
Seat	💺 Air-suspension seat with armrests
Control	🕹️ Single-lever joystick (optional) + steering wheel
Display	🖥️ LCD monitor with real-time diagnostics
Noise Level	≤ 72 dB(A) (very quiet for its class)
Visibility	Large front/rear/side windows; rearview camera
Other	USB charging, cup holders, storage compartments

✅ LiuGong invests heavily in operator comfort, which translates to higher productivity and lower fatigue during long shifts.

📌 8. KEY FEATURES & TECHNOLOGY HIGHLIGHTS

#	Feature	Description
1	🔧 Weighted Rear Axle	Optional counterweight for improved traction (especially in soft ground)
2	🛡️ Robust Bucket	Heavy-duty bucket with cutting edge, replaceable teeth
3	🧠 Smart Control System	Auto-idle, economy mode, load-sensing match
4	🔄 Quick Coupler	Available — allows fast attachment changes (forks, grapple, snow blade, etc.)
5	🔩 Easy Maintenance	Side-opening hood, ground-level service points, centralized greasing
6	🛑 Anti-slip System	Wheel spin protection for slippery conditions
7	📡 Telematics Ready	GPS tracking, fleet management compatible (Liugong Cloud)
8	🔋 Pre-heater	Engine pre-heating for cold-weather starts

📌 9. ATTACHMENT OPTIONS

The 856H is a versatile workhorse with many available attachments:

Attachment	Application
🪣 Standard Bucket (3.0 m³)	General loading
🔱 Rock Bucket	Mining / Quarrying
🍴 Pallet Forks	Log handling, warehouse
🦾 Log Grapple	Timber industry
❄️ Snow Blade	Winter maintenance
🪨 Material Bucket (Heavy Duty)	Aggregate, scrap metal
🏗️ Sweeper	Road cleaning

📌 10. COMPETITIVE COMPARISON

Model	Rated Load	Power	Weight	Bucket
LiuGong 856H ⭐	5,000 kg	220 HP	~17,200 kg	3.0 m³
XCMG LW500FN	5,000 kg	220 HP	~17,000 kg	3.0 m³
SDLG L956F	5,000 kg	220 HP	~17,100 kg	3.0 m³
SEM 656D	5,000 kg	220 HP	~17,500 kg	3.0 m³
CAT 950 GC	5,000 kg	227 HP	~19,500 kg	3.0 m³

✅ The 856H is competitively priced (typically 10-20% less than CAT/Komatsu) while offering comparable performance, making it an excellent value-for-money choice.

📌 11. ADVANTAGES & DISADVANTAGES

✅ ADVANTAGES

✔️	Benefit
Strong brand	LiuGong is a top 3 Chinese OEM and global Top 10
Excellent value	Lower price than Japanese/European brands
Reliable engine	Weichai WP10 is proven in thousands of machines
Comfortable cab	Among the best in class
Good parts availability	Extensive global dealer network (170+ countries)
Fuel efficient	Load-sensing hydraulics save fuel
Low maintenance cost	Easy access, long service intervals

⚠️ DISADVANTAGES

❌	Concern
Resale value	Lower than CAT/Komatsu (but improving)
Perceived quality	Some operators still prefer Japanese brands
After-sales	Varies by region (strong in Asia/Africa/Middle East)

📌 12. PRICING (Approximate, 2024)

Region	Estimated Price (USD)
🇨🇳 China	~$75,000 – $90,000
🌏 Southeast Asia	~$85,000 – $100,000
🌍 Middle East / Africa	~$90,000 – $110,000
🌎 South America	~$95,000 – $115,000
🇺🇸 North America	~$100,000 – $125,000

Prices vary by configuration, attachments, and dealer.

📌 13. SUMMARY

Category	Rating
💪 Power & Performance	⭐⭐⭐⭐⭐
🧱 Build Quality	⭐⭐⭐⭐
💺 Operator Comfort	⭐⭐⭐⭐⭐
💰 Value for Money	⭐⭐⭐⭐⭐
🔧 Maintenance Cost	⭐⭐⭐⭐
🌍 Global Support	⭐⭐⭐⭐

🎯 BOTTOM LINE

The LiuGong 856H is a high-performance, fuel-efficient, and operator-friendly 5-ton wheel loader that delivers near-premium performance at a mid-range price. It is an excellent choice for contractors, mining companies, and rental fleets looking for reliability and value without compromising on quality. With LiuGong's growing global presence, after-sales support is improving rapidly, making it a safe long-term investment. 🚜💪
