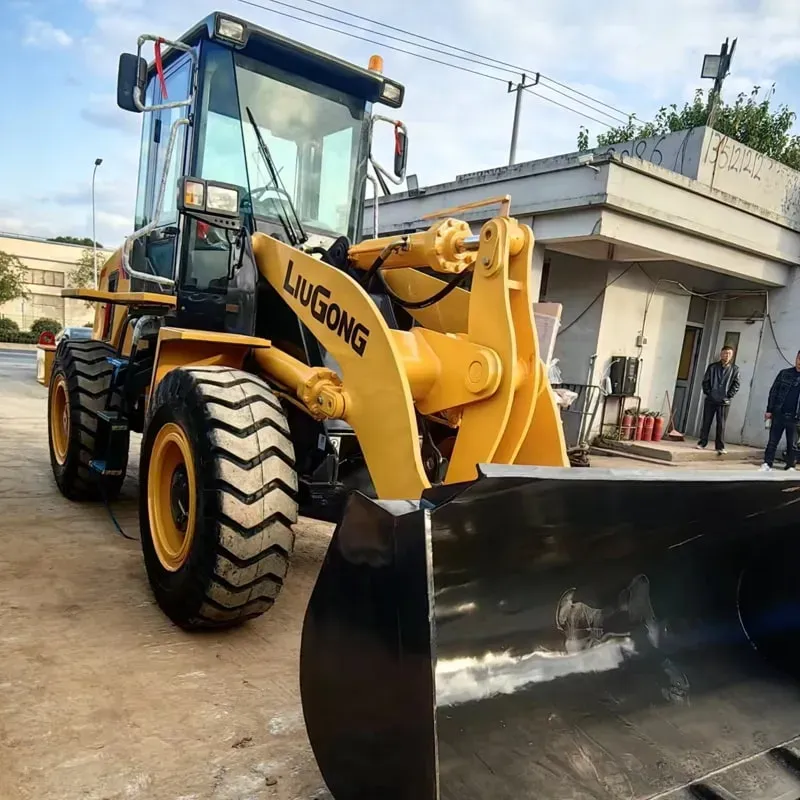

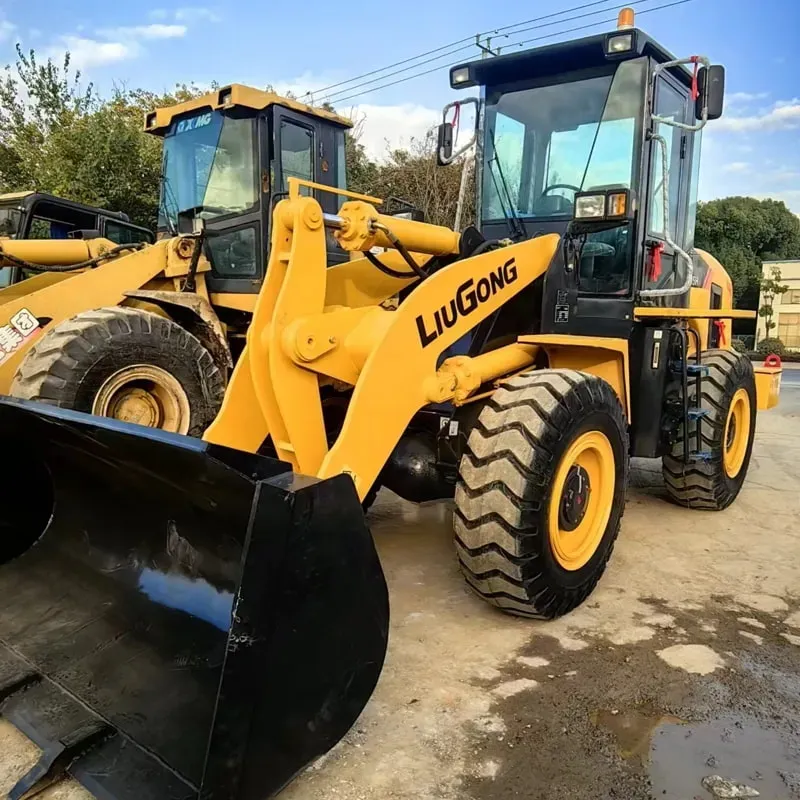

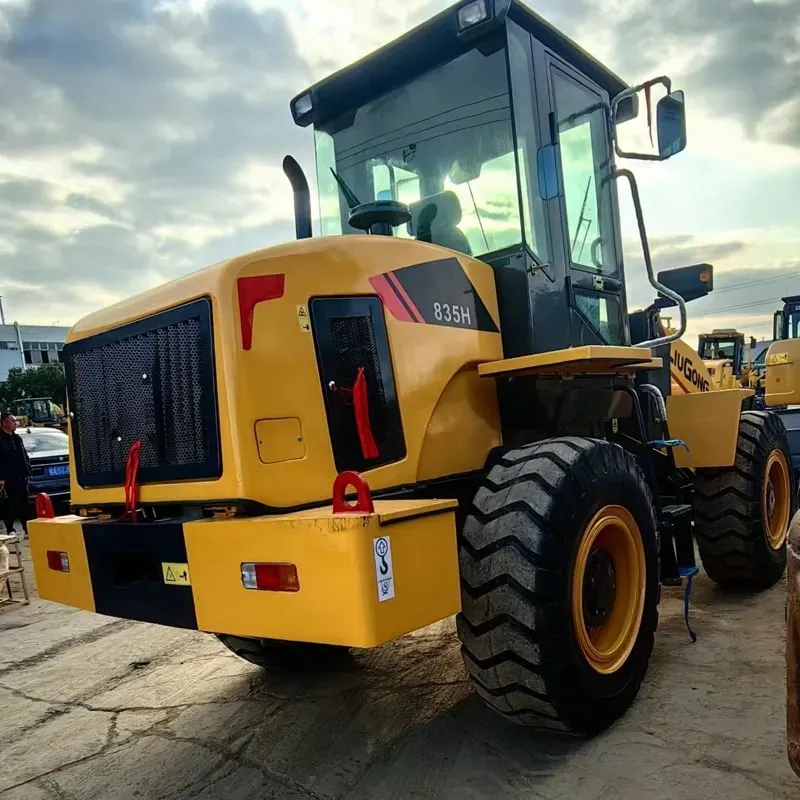

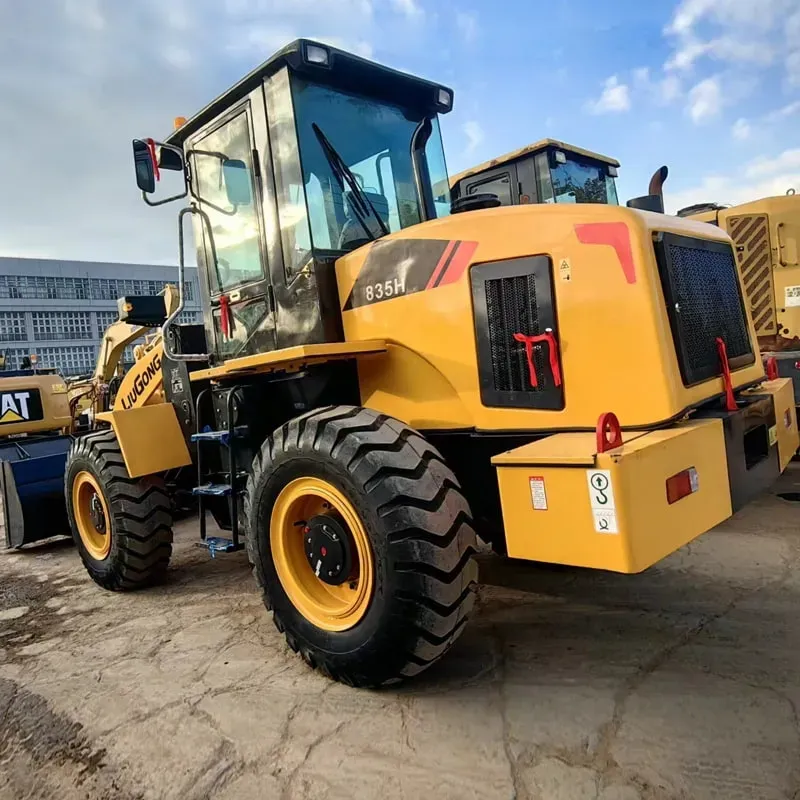

Used Liugong 835HLoader

Reading: 12

🏢 1. Manufacturer Overview

Item	Detail
Company	Guangxi Liugong Machinery Co., Ltd. (柳工)
Headquarters	Liuzhou, Guangxi, China
Founded	1958 — One of China's oldest construction machinery makers
Global Presence	Products sold in 130+ countries; 20+ overseas subsidiaries
Series	H-Series = High Efficiency / Latest Generation (upgraded from G-series)

The 835H is LiuGong's 3.5-ton class wheel loader, targeting mid-scale construction, mining, agriculture, and municipal works. It belongs to the H-series, which emphasizes fuel efficiency, operator comfort, and intelligent control.

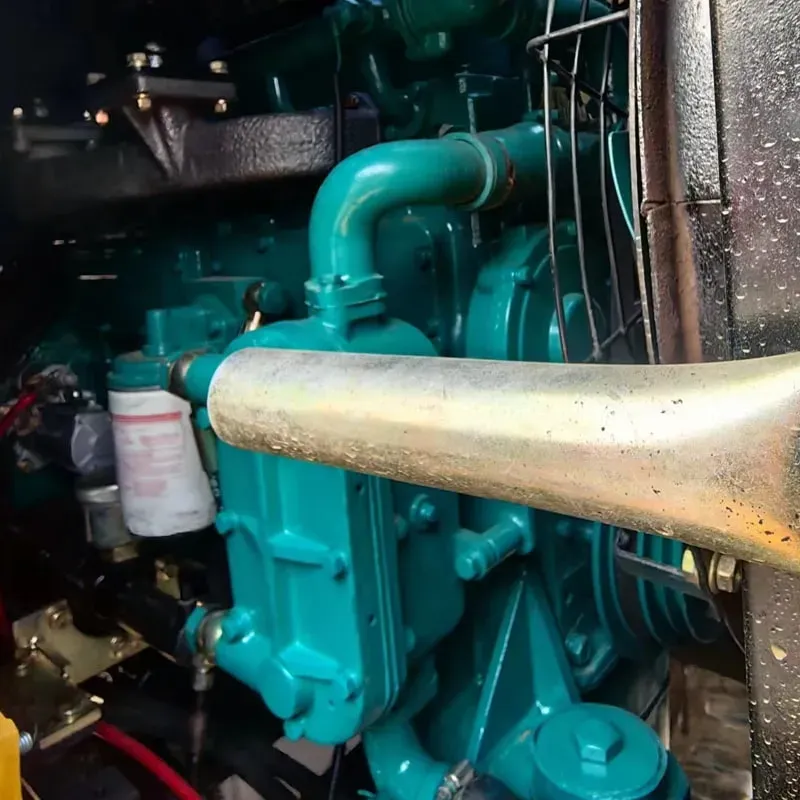

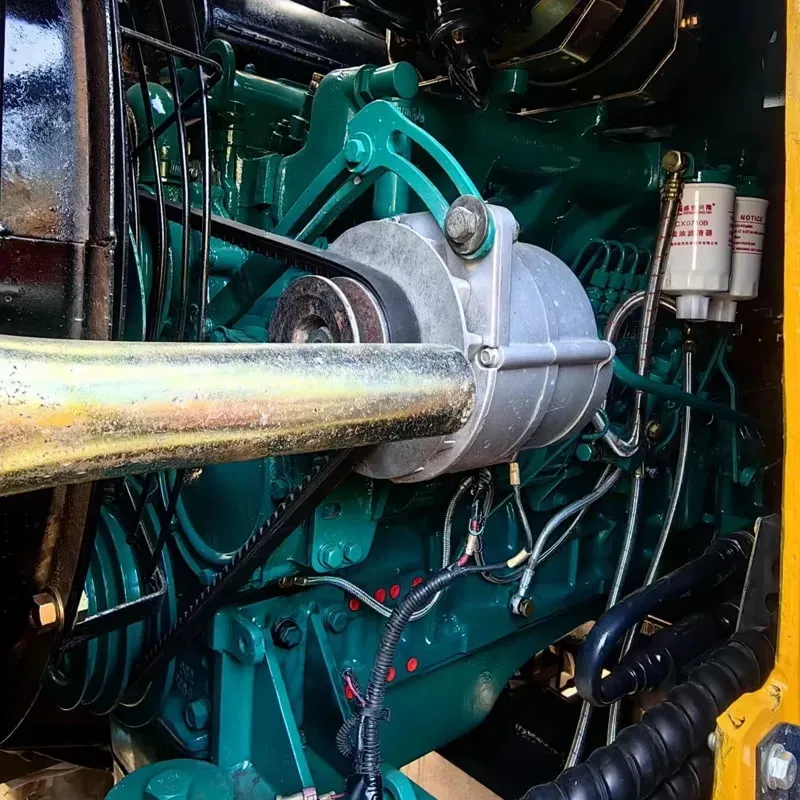

🔧 2. Engine & Powertrain

Parameter	Specification
Engine Model	Cummins QSB3.3 (some markets: Yuchai / LiuGong own)
Type	4-cylinder, Turbocharged, Intercooled Diesel
Displacement	3.3 L
Rated Power	105 kW (≈141 HP) @ 2,200 rpm
Max Torque	~500 N·m @ 1,400 rpm
Emission Standard	China III / EPA Tier 4 Final (via SCR + DPF)
Fuel Tank Capacity	~200 L

✅ The Cummins engine is known for reliability, low fuel consumption, and easy maintenance — a key selling point globally.

📐 3. Key Technical Specifications

Parameter	Value
Rated Bucket Capacity	1.8 – 2.0 m³ (standard)
Operating Weight	~10,800 – 11,200 kg
Max. Breakout Force	~110 – 120 kN
Max. Tractive Force	~100 – 110 kN
Max. Dumping Height	~3,100 – 3,250 mm
Max. Dumping Reach	~1,000 – 1,100 mm
Digging Depth (at max. height)	~100 mm
Gradeability (Full Load)	30° (≈58%)
Travel Speed (Low/High)	0 – 11 km/h / 0 – 35 km/h
Turning Radius (Outside)	~6,500 mm
Tire Size	17.5 – 25 (R4 pattern)

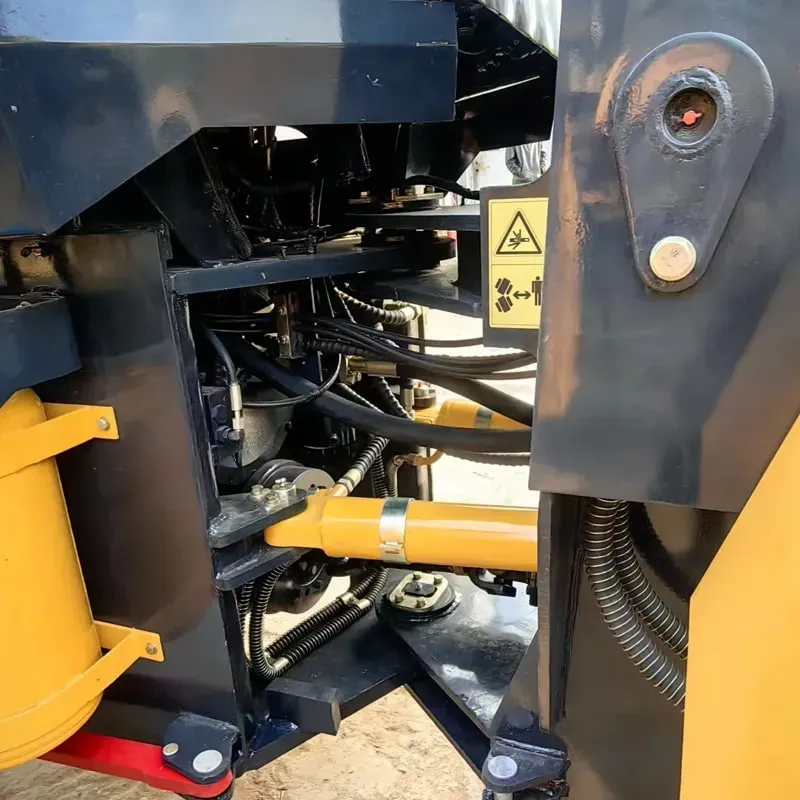

🏗️ 4. Hydraulic System

Feature	Detail
System Type	Load-Sensing (LS) Hydraulic System
Working Pressure	16 – 18 MPa
Pump Type	Gear pump (variable displacement option available)
Flow Rate	~160 – 180 L/min
Cycle Time (Load & Dump)	~9 – 10 seconds
Steering System	Articulated frame steering (ZF or LiuGong proprietary)

🔑 The load-sensing system matches hydraulic flow to demand, saving 10–15% fuel compared to conventional systems.

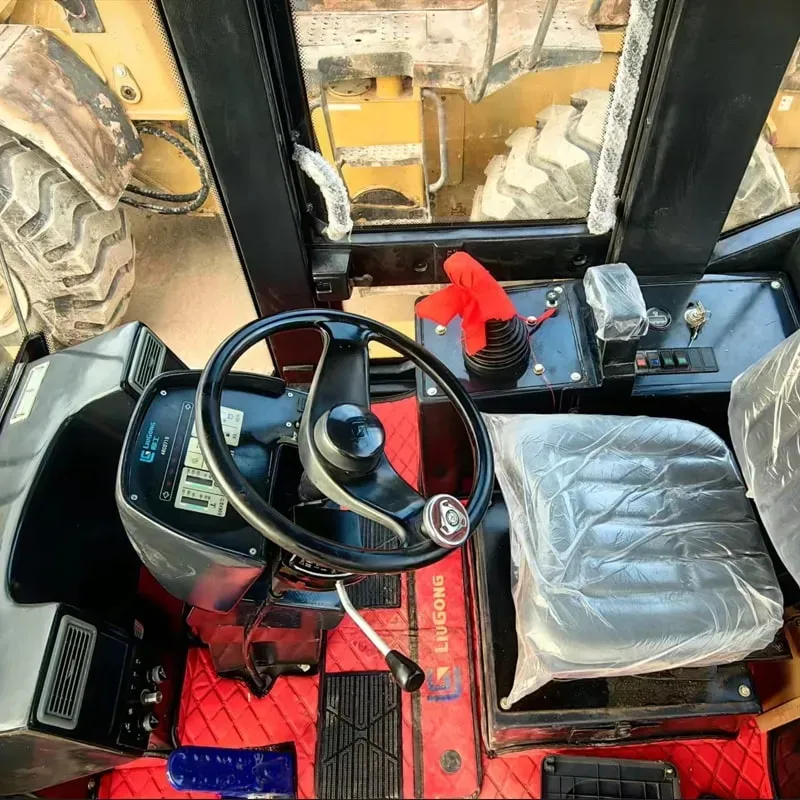

🪑 5. Operator Cab — Comfort & Intelligence (H-Series Upgrade)

This is where the 835H really shines compared to older models:

Feature	Description
Cab Type	ROPS/FOPS certified, fully enclosed, pressurized
Seat	Air-suspension seat with armrest, adjustable in 6 directions
Climate Control	Automatic A/C + heater
Display	7-inch LCD color monitor — shows engine data, fuel, fault codes, camera feed
Controls	Electronic joystick (optional) for bucket & travel — very smooth
Sound Level	≤ 72 dB(A) inside cab
Visibility	Large front/rear glass, rear-view camera standard
Lighting	Full LED working lights (front, rear, side)
USB Charging	Available
Weight	Cab can be tilted forward for engine access

🧠 6. Intelligent Features (H-Series Highlights)

Smart Feature	Function
LiuGong i-CONTROL	Real-time machine monitoring via app/cloud
Auto-Idle	Engine RPM automatically reduces when idle → saves fuel
Weighing System (Optional)	On-board bucket weighing for precise loading
Grade Control Ready	Compatible with 2D/3D GPS grade control
Fault Diagnostics	Real-time electronic diagnostics with code display
Anti-Slip Regulation	Traction control to prevent wheel spin

🛠️ 7. Durability & Maintenance

Aspect	Detail
Axles	Heavy-duty planetary axles with wet brakes
Articulation	Oscillating frame with greasable pins
Lubrication	Centralized automatic lubrication system (saves service time)
Service Intervals	Engine oil change: every 500h; Hydraulic oil: every 2,000h
Ground Clearance	~420 mm
Bucket Teeth	Standardized, easily replaceable (bolt-on or pin-on)
Tire Options	Solid / Semi-pneumatic / Pneumatic (customer choice)

📊 8. Performance Comparison (vs Competitors)

Model	Rated Load	Power	Bucket	Weight
LiuGong 835H	3,500 kg	105 kW	1.8–2.0 m³	~11,000 kg
XCMG LW350HV	3,500 kg	110 kW	1.8–2.2 m³	~11,200 kg
SDLG L936H	3,000 kg	100 kW	1.8 m³	~10,500 kg
CAT 930	3,000 kg	93 kW	1.6–2.0 m³	~10,600 kg
Komatsu WA320-7	3,300 kg	99 kW	1.6–2.2 m³	~10,800 kg

📌 The 835H is very competitive — often priced 10–20% lower than CAT/Komatsu while offering similar specs.

🌍 9. Typical Applications

Application	Suitability
🏗️ Construction sites	⭐⭐⭐⭐⭐
& Mining & quarrying	⭐⭐⭐⭐
🌾 Agriculture (grain, sugarcane)	⭐⭐⭐⭐⭐
🏭 Material handling (gravel, sand, coal)	⭐⭐⭐⭐⭐
🏙️ Municipal works (snow, waste)	⭐⭐⭐⭐
🪵 Log handling	⭐⭐⭐ (with log fork)

💰 10. Approximate Pricing (2024 Reference)

Market	Price Range (USD)
China (domestic)	$55,000 – $70,000
Southeast Asia	$65,000 – $80,000
Middle East / Africa	$70,000 – $85,000
Europe / Australia	$80,000 – $95,000
South America	$75,000 – $90,000

⚠️ Prices vary by configuration (joystick, camera, weighing system, tire type, etc.)

✅ 11. Key Strengths Summary

✅ Strength	Explanation
🏆 Best-in-class fuel efficiency	Load-sensing hydraulics + Cummins engine
🪑 Superior cab comfort	A/C, air seat, LCD panel, low noise
🧠 Smart & connected	i-CONTROL, auto-idle, GPS-ready
💪 Strong breakout force	~115 kN — handles tough materials
🔧 Easy maintenance	Centralized greasing, tilted cab, long intervals
💲 Great value for money	10–20% cheaper than Japanese/European brands
🌐 Global parts network	LiuGong has 300+ dealers worldwide

🔑 12. Who Should Buy the 835H?

Buyer Type	Why 835H?
Contractors (mid-size)	Perfect size, low operating cost
Rental companies	High uptime, easy to maintain, good resale
Mining operations	Strong breakout, durable, affordable
Farmers (large-scale)	Versatile with forks/grapple, comfortable cab
Developing markets	Best price-to-performance ratio

📌 Final Verdict

The LiuGong 835H is one of the best 3.5-ton wheel loaders in its class globally. It combines a reliable Cummins engine, advanced H-series cab technology, fuel-saving hydraulics, and competitive pricing. It's an excellent alternative to CAT, Komatsu, and Volvo at a significantly lower cost — making it a top choice for cost-conscious buyers who don't want to compromise on quality.
