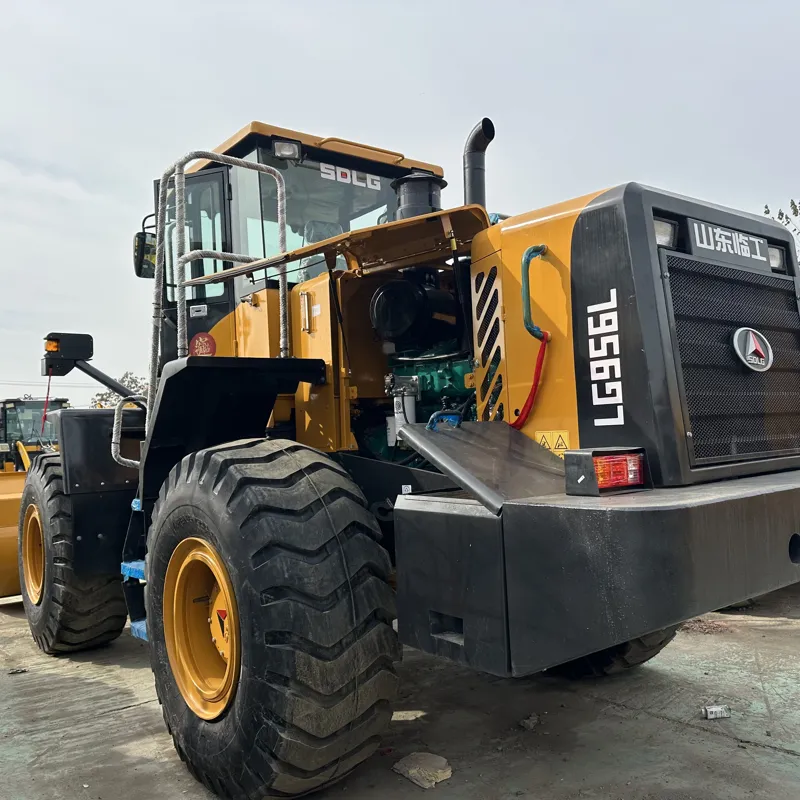

Used Sdlg L956F Loader

Reading: 31

🏢 Overview

Item	Detail
Manufacturer	SDLG (Shandong Lingong Construction Machinery Co., Ltd.)
Parent Company	Volvo Group (acquired in 2006)
Model	L956F
Series	F-Series (new generation)
Class	5-Ton Wheel Loader
Primary Markets	China, Southeast Asia, Middle East, Africa, South America

The SDLG L956F is a flagship 5-ton class wheel loader that benefits from Volvo Group technology transfer, combining Chinese manufacturing cost-efficiency with European engineering standards. It is widely used in mining, construction, quarrying, ports, and material handling.

🔧 Key Technical Specifications

Parameter	Specification
Operating Weight	~16,800 – 17,500 kg
Rated Payload	5,000 kg (5 tons)
Bucket Capacity (Rated)	3.0 m³ (3.9 yd³)
Bucket Capacity (Heaped)	~3.3 – 3.5 m³
Max. Breakout Force	~175 – 180 kN
Max. Dumping Height	~3,200 mm
Max. Dumping Reach	~1,150 mm
Max. Digging Depth	~115 – 130 mm
Max. Travel Speed	~38 km/h
Gradeability	30° (58%)
Turning Radius (Outside)	~7,000 mm
Tire Size	23.5-25 (E-3/L-3 pattern)

🛢️ Engine & Powertrain

Component	Detail

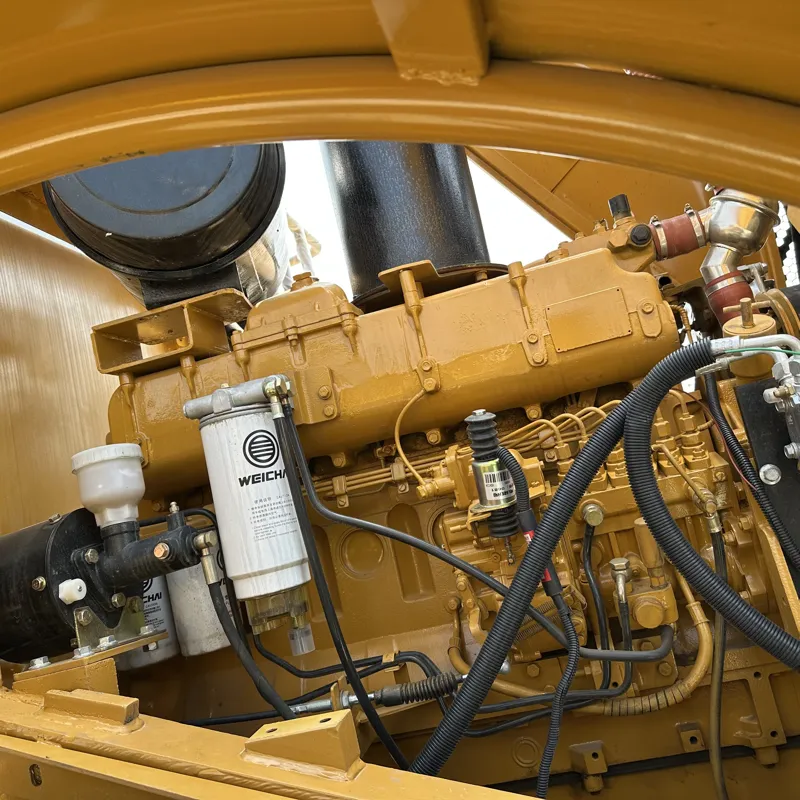

Engine Brand	Weichai WD10G220E21 (most common) / Cummins QSB6.7 (export markets)
Engine Type	6-cylinder, turbocharged, intercooled diesel
Displacement	9.726 L
Rated Power	162 kW (220 HP) @ 2,000 rpm
Emission Standard	China III / Euro III (Tier 3 equivalent)
Fuel Tank Capacity	~280 – 300 L
Transmission	Powershift, 4 Forward / 4 Reverse
Transmission Brand	SDLG proprietary (Volvo-derived technology)
Drive System	Full hydraulic, wet disc brakes
Axles	Heavy-duty planetary reduction axles

✅ The Weichai WD10G engine is one of the most popular powerplants in Chinese loaders — known for strong low-end torque, fuel efficiency, and easy maintenance.

🖐️ Hydraulic System

Feature	Detail
System Type	Load-Sensing (LS) + Flow Sharing
Working Pressure	21 MPa (3,050 psi)
Pump Flow	~2 × 180 L/min (gear pump)

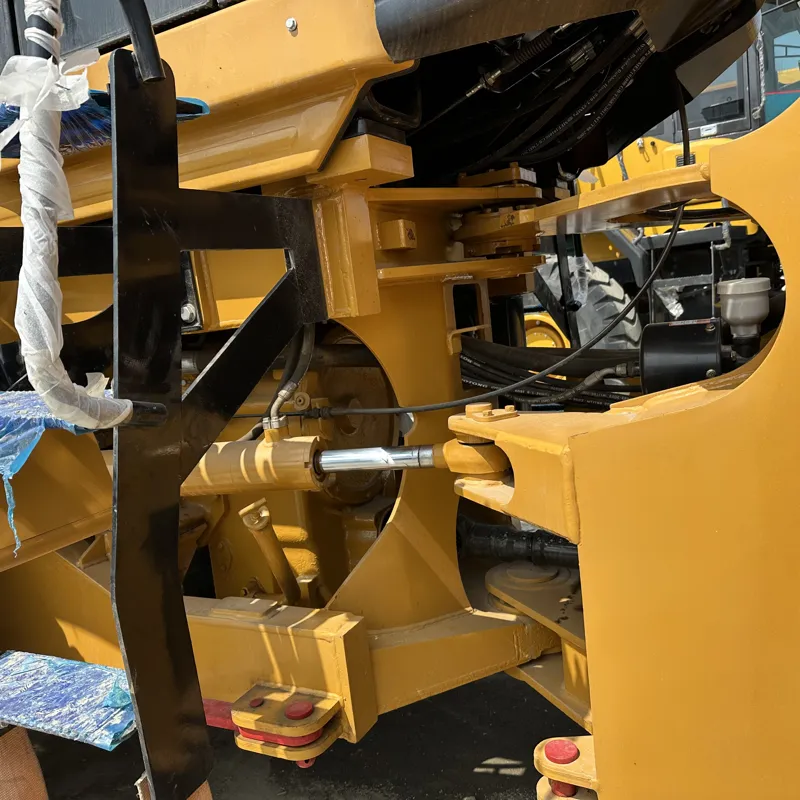

Steering	Articulated, full hydraulic
Cycle Time (Loaded)	~10 – 11 seconds
Hydraulic Oil Cooling	Air-cooled + oil-cooled radiator

The load-sensing hydraulic system ensures fuel-efficient operation by matching oil flow to actual demand.

🛋️ Operator Cab & Comfort

The L956F features a spacious, fully enclosed cab — one of its strongest selling points:

Feature	Detail
Cab Type	ROPS/FOPS certified, full-enclosed
Seat	Air-suspended, adjustable, with armrests
Climate Control	A/C + heater + defroster
Controls	Single-lever joystick + steering wheel (or optional joystick steering)
Display	LCD monitor with machine diagnostics
Noise Level	≤ 78 dB(A) (relatively quiet for its class)
Visibility	Large front/rear windows, rear-view camera (optional)
Sound Insulation	Multi-layer insulation, low vibration

⭐ Key Features & Highlights

#	Feature	Description
1	Volvo Technology	Chassis, axle, and transmission technology inherited from Volvo CE
2	Strong Breakout Force	~175 kN — excellent for heavy-duty loading
3	Fuel Efficiency	Weichai engine + LS hydraulics = lower fuel consumption (~28–32 L/hr)
4	Durability	Heavy-duty structure, reinforced bucket linkage, robust axles
5	Easy Maintenance	Ground-level service points, side-opening engine hood
6	Quick Coupler Ready	Optional hydraulic quick coupler for attachment change
7	Optional Attachments	Snow blade, grapple, forklift tines, pallet forks, sweeper
8	Smart Features	Auto-idle, weight indication, overload protection

🆚 Main Competitors

Model	Payload	Bucket	Engine Power
SDLG L956F ⭐	5,000 kg	3.0 m³	220 HP
LiuGong CLG856H	5,000 kg	3.0 m³	220 HP
XCMG LW500FN	5,000 kg	3.0 m³	220 HP
Sany SW956F	5,000 kg	3.0 m³	220 HP
SEM 655D	5,000 kg	3.0 m³	220 HP
Cat 950 GC	5,400 kg	3.0 m³	235 HP
Komatsu WA320-8	5,000 kg	2.8 m³	200 HP

The L956F is generally considered best value-for-money in the segment, especially in developing markets, thanks to the Volvo heritage + competitive pricing.

📊 Advantages & Disadvantages

✅ Advantages

✅	Description
Strong build quality	Volvo-derived chassis & axles
Great value	15-20% cheaper than Cat/Komatsu with similar specs
Low operating cost	Fuel-efficient, easy parts availability
Comfortable cab	Best-in-class for Chinese brands
Strong after-sales	SDLG has a massive global dealer network

❌ Disadvantages

❌	Description
Resale value	Lower than Cat/Komatsu in some markets
Premium features	Fewer electronics vs. top-tier brands
Engine	Weichai is good but not as refined as Cummins/Cat
Perception	Some operators still prefer Japanese/European brands

💰 Approximate Pricing (2024 Estimates)

Market	Price Range (USD)
China	$75,000 – $95,000
Southeast Asia	$80,000 – $100,000
Middle East / Africa	$85,000 – $105,000
South America	$90,000 – $110,000

(Prices vary by configuration, attachments, and dealer)

🔧 Typical Applications

Application	Details
🪨 Mining & Quarrying	Loading trucks, stockpiling
🏗️ Construction	Earthmoving, road building
🚢 Ports & Logistics	Container handling, bulk material
🪵 Forestry	Log handling (with grapple)
❄️ Winter Maintenance	Snow removal (with blade)
🏭 Steel Mills / Recycling	Scrap metal handling

📋 Summary

Category	Rating (out of 5)
Power & Performance	⭐⭐⭐⭐
Build Quality	⭐⭐⭐⭐⭐
Operator Comfort	⭐⭐⭐⭐⭐
Fuel Efficiency	⭐⭐⭐⭐
Value for Money	⭐⭐⭐⭐⭐
After-Sales Support	⭐⭐⭐⭐
Resale Value	⭐⭐⭐

🎯 Bottom Line

The SDLG L956F is one of the best 5-ton wheel loaders in its class — offering Volvo-level engineering at a Chinese price point. It's an excellent choice for operators who want reliability, comfort, and low operating costs without paying the premium for Cat or Komatsu branding. It is especially popular in Africa, Southeast Asia, the Middle East, and Latin America.
