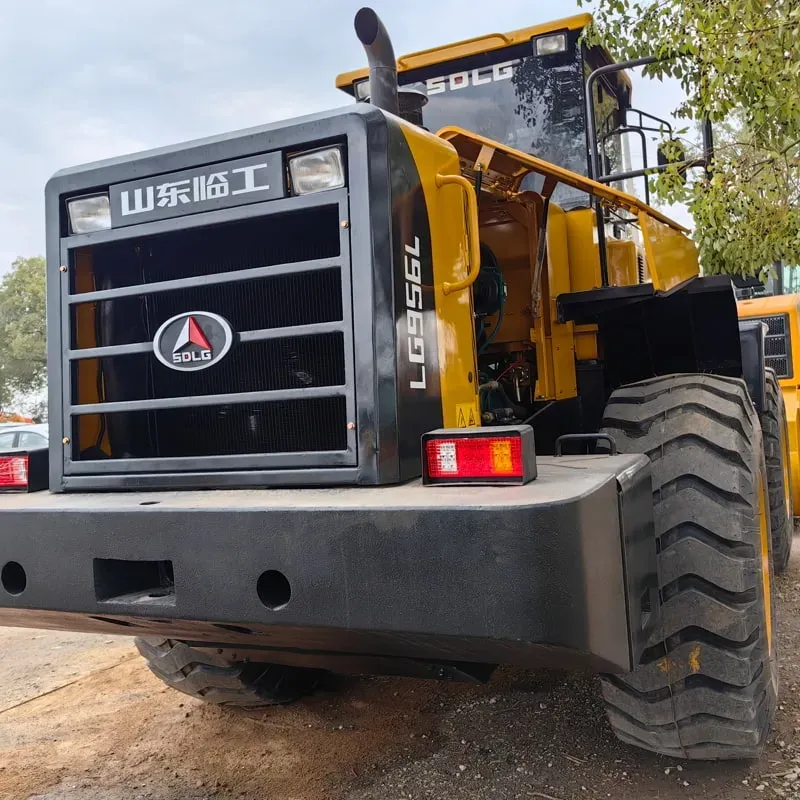

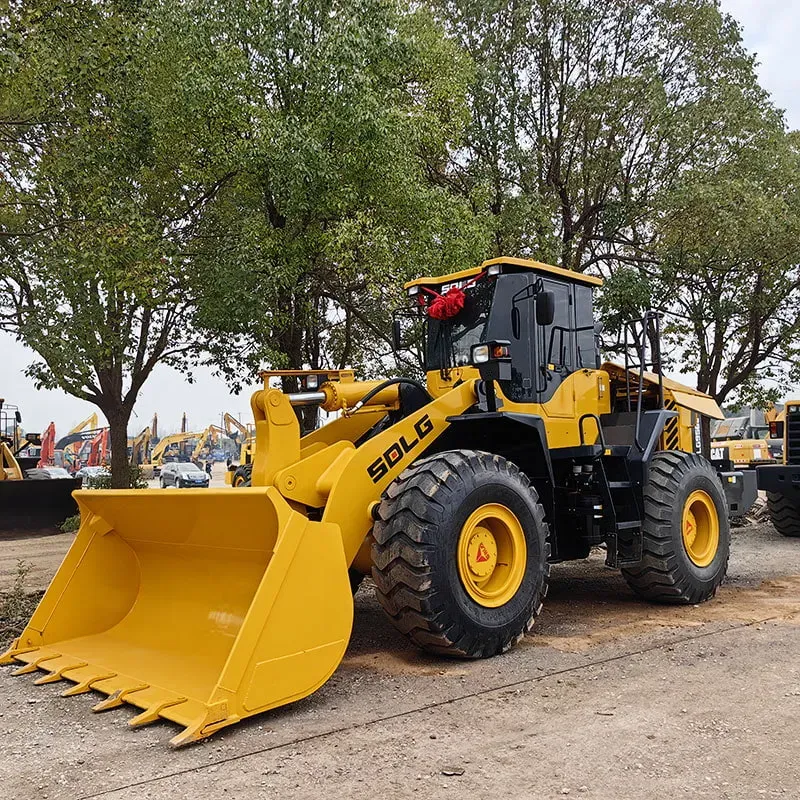

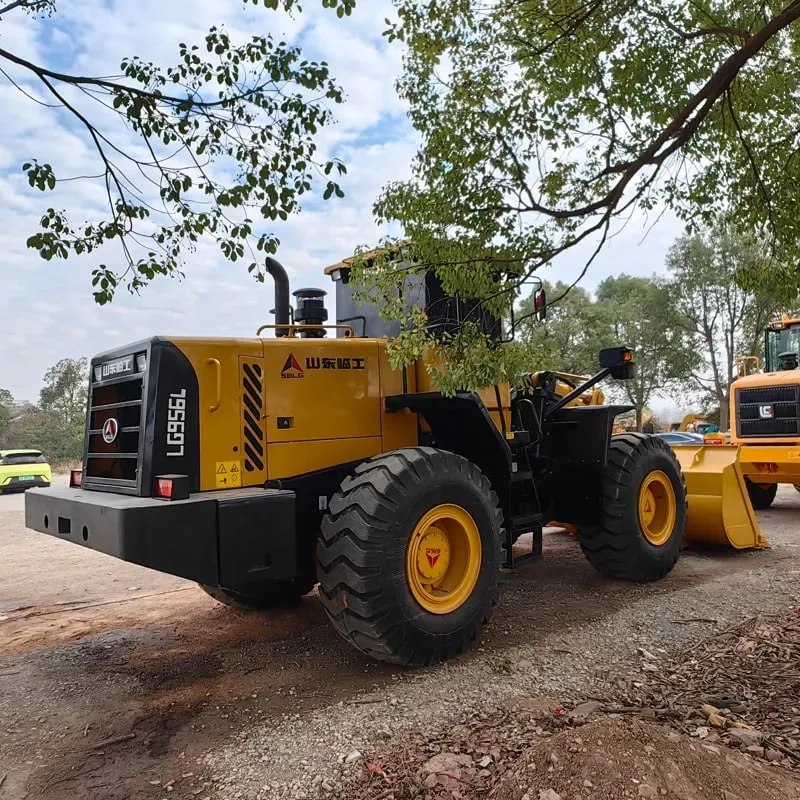

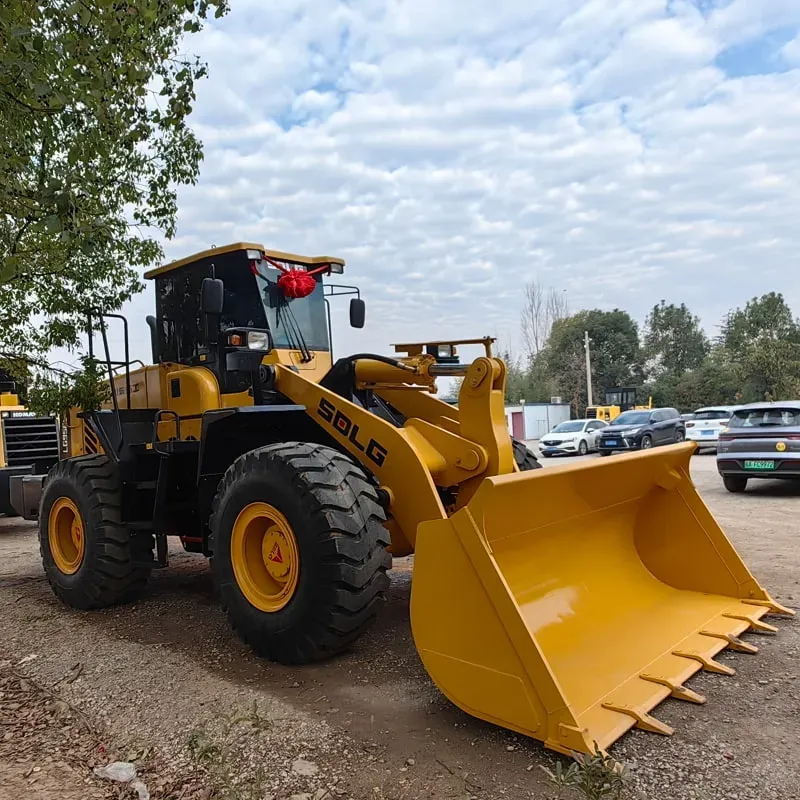

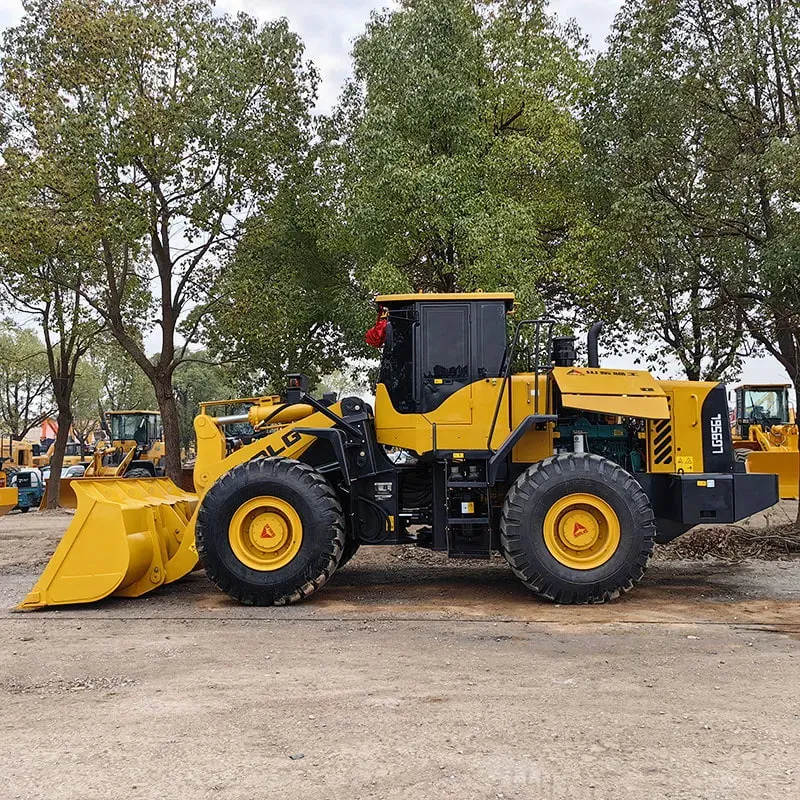

Used Sdlg 956LLoader

Reading: 43

🏭 1. OVERVIEW

Item	Details
Manufacturer	SDLG (Shandong Lingong Construction Machinery Co., Ltd.)
Parent Company	Volvo Group (since 2006)
Model	956L (also known as LG956L)
Type	5-Ton Class Wheel Loader
Application	Mining, construction, aggregate, landfill, logistics
Market	Global (especially Asia, Africa, Middle East, South America)

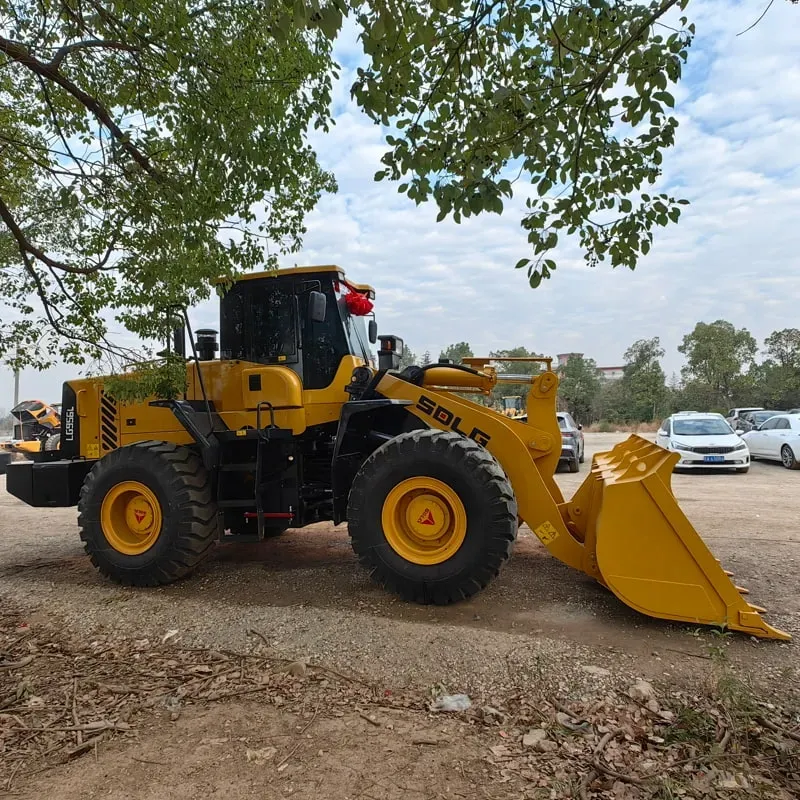

The SDLG 956L is one of SDLG's flagship wheel loaders in the 5-ton segment. It is designed for high productivity, durability, and fuel efficiency, combining Volvo Group technology with competitive Chinese manufacturing costs.

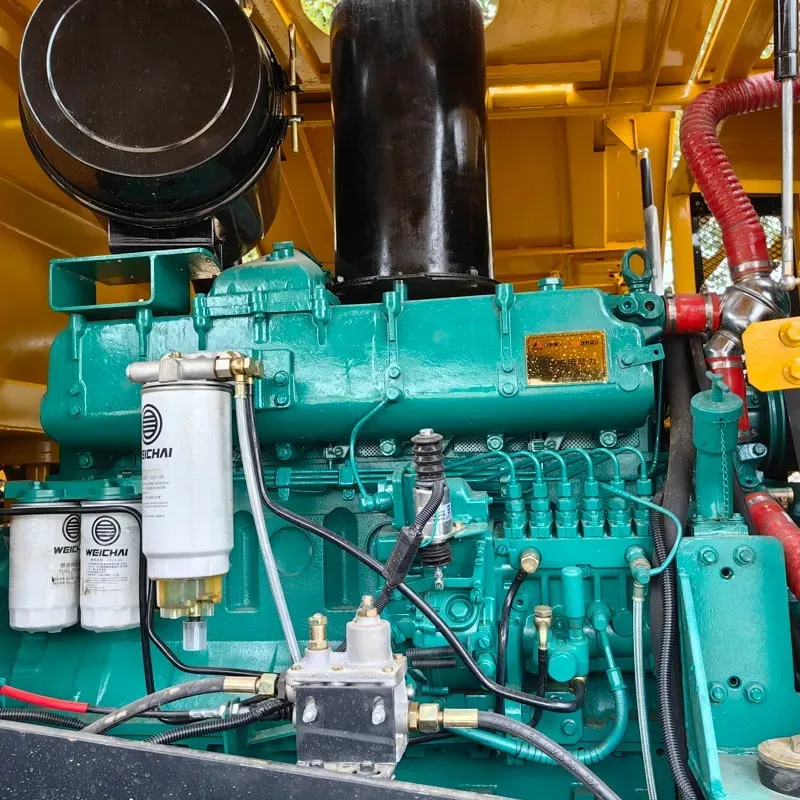

⚙️ 2. ENGINE & POWER SYSTEM

Parameter	Specification

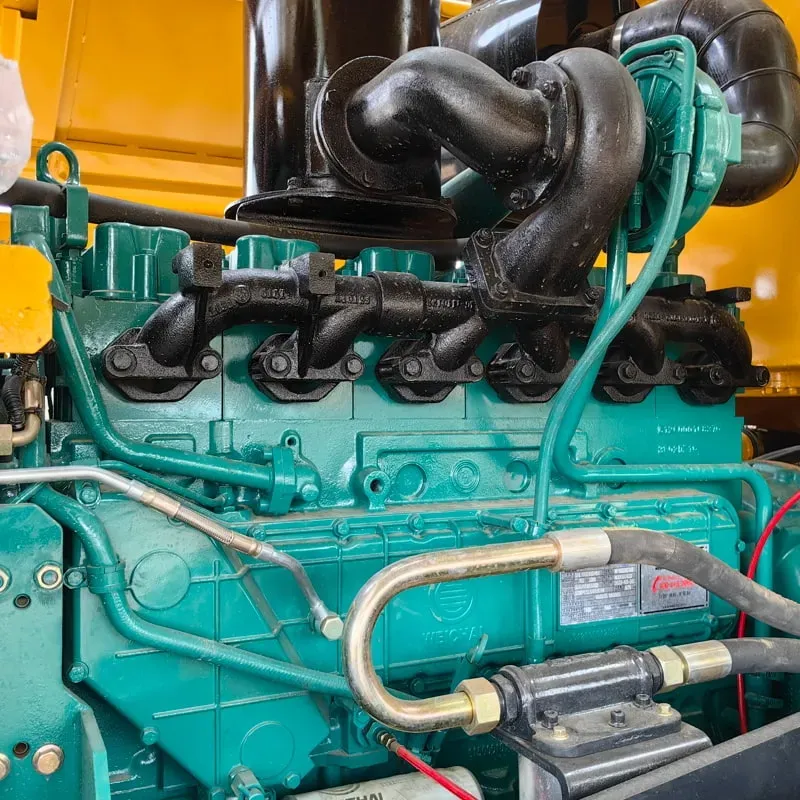

Engine Model	Weichai WP10G220E22 (or WP10.336)
Engine Type	Turbocharged & Intercooled, 6-cylinder inline diesel
Rated Power	162 kW (217 hp) @ 1,900 rpm
Max Torque	~1,050 N·m @ 1,400 rpm
Emission Standard	China III / EPA Tier 3 / EU Stage IIIA
Fuel Tank Capacity	~300 L
Cooling System	High-efficiency radiator with fan clutch

✅ The Weichai engine is renowned for its reliability, low fuel consumption, and wide parts availability globally.

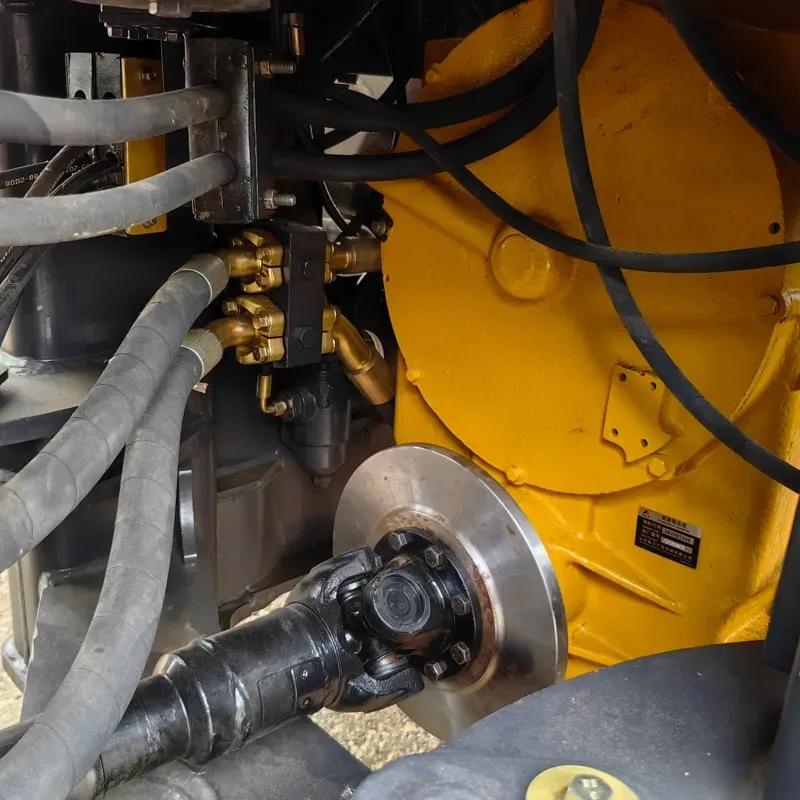

🔄 3. TRANSMISSION & DRIVELINE

Parameter	Specification
Transmission Type	Power Shift Transmission (Fully Automatic)
Gears	4 Forward / 4 Reverse
Transmission Brand	SDLG proprietary / ZF technology influence
Drive Type	4WD (Full-time)
Axle	SDLG heavy-duty planetary reduction axle
Differential Lock	Differential lock on front & rear axle
Speed (Fwd/Rev)	0–11.5 km/h / 0–13.5 km/h

✅ The power-shift transmission eliminates clutch operation, reducing operator fatigue and improving productivity.

🛢️ 4. HYDRAULIC SYSTEM

Parameter	Specification
System Type	Load-Sensing Hydraulic System (CLSS)
Working Pressure	17.5 MPa (2,538 psi)
Pump Type	Gear pump / Variable displacement (optional)
Hydraulic Flow	~190 L/min
Steering Type	Articulated frame steering (oscillating)
Steering Angle	±35°
Cycle Time (Load & Dump)	~9–10 seconds

📊 5. PERFORMANCE & DIMENSIONS

Parameter	Specification
Rated Bucket Capacity	3.0 m³ (3.9 yd³)
Operating Weight	~17,000 kg (37,479 lbs)
Max Breakout Force	~175 kN (39,340 lbf)
Max Tractive Force	~170 kN (38,220 lbf)
Max Dumping Height	~3,250 mm (10.7 ft)
Max Dumping Reach	~1,150 mm (3.8 ft)
Ground Clearance	~460 mm (18.1 in)
Wheelbase	~3,100 mm
Overall Length (w/ bucket)	~8,200 mm (26.9 ft)
Overall Width	~3,000 mm (9.8 ft)
Overall Height (to cab top)	~3,300 mm (10.8 ft)
Tire Size	23.5-25 (18PR E-3/L-3 pattern)
Turning Radius (outer)	~7,200 mm

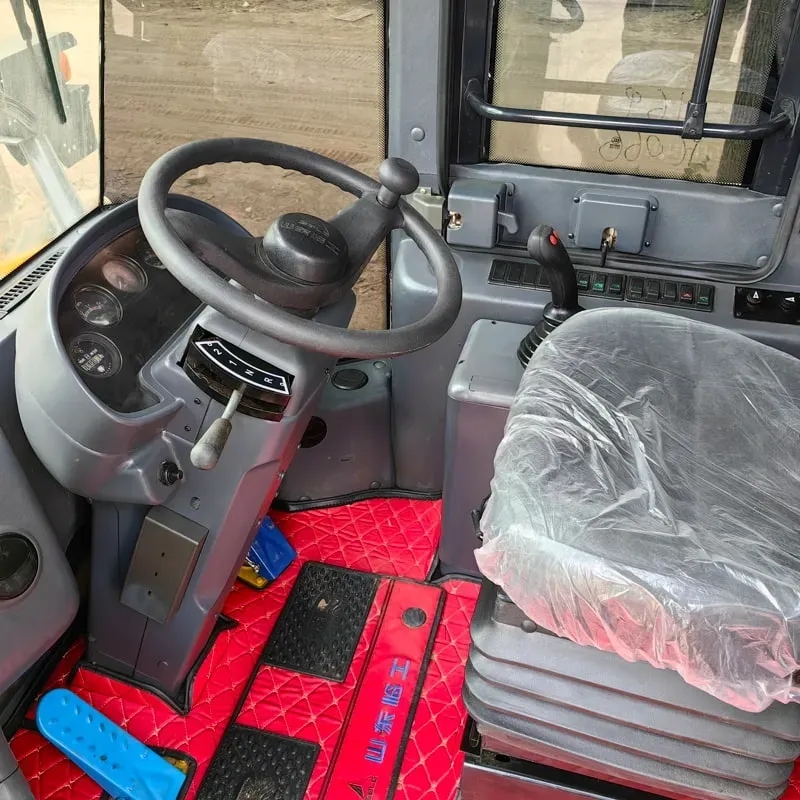

🖥️ 6. CAB & OPERATOR COMFORT

Feature	Details
Cab Type	ROPS/FOPS certified enclosed cab
Seat	Air-suspension seat with armrest, adjustable
Air Conditioning	✅ Fully automatic AC with heating
Control	🕹️ Joystick control (optional) or lever control
Display	7-inch color LCD monitor (engine info, diagnostics)
Lighting	LED work lights (front & rear)
Rear View Camera	✅ Standard
Noise Level	≤78 dB(A)
Steering	Single-hand steering knob (optional)

✅ The cab is designed for 8+ hour shifts with excellent visibility, low noise, and ergonomic controls.

🔧 7. KEY FEATURES & ADVANTAGES

#	Feature	Benefit
1	Volvo Group Technology	Proven driveline & hydraulics from Volvo heritage
2	Weichai Engine	Fuel-efficient, easy to maintain, parts available worldwide
3	Power-Shift Transmission	Smooth operation, less wear, higher productivity
4	Load-Sensing Hydraulics	Optimized power delivery, lower fuel consumption
5	Heavy-Duty Axle & Frame	Designed for severe duty cycles (mining/quarry)
6	Centralized Lubrication	Easy daily maintenance
7	Wide Bucket Options	Rock bucket, coal bucket, grain bucket, snow blade, forklift tines
8	Quick Coupler Ready	Fast attachment change (optional)
9	Tier 3 / China III Emission	Meets most global emission regulations
10	Competitive Price	20–30% cheaper than CAT/Komatsu equivalents

🆚 8. COMPARISON WITH COMPETITORS

Model	Rated Bucket	Power	Operating Weight	Price Range (USD)
SDLG 956L	3.0 m³	217 hp	17,000 kg	$85,000 – $105,000

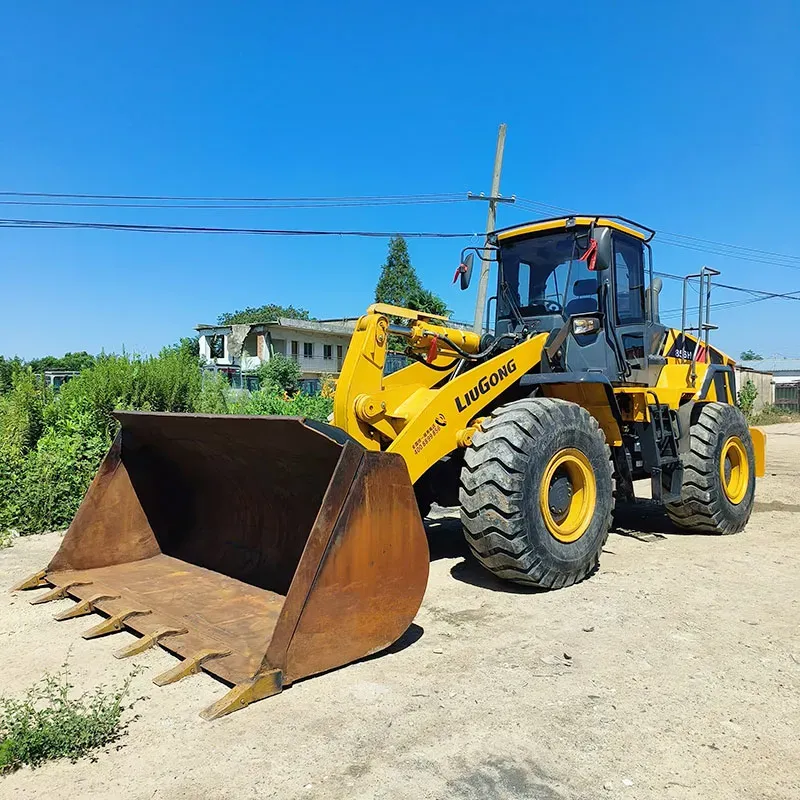

LiuGong CLG856H	3.0 m³	220 hp	17,200 kg	$90,000 – $110,000
XCMG LW500KV	3.0 m³	218 hp	17,000 kg	$88,000 – $108,000
CAT 950 GC	3.0 m³	235 hp	17,800 kg	$140,000 – $170,000
Komatsu WA380-7	3.2 m³	247 hp	18,600 kg	$150,000 – $185,000

🏆 The SDLG 956L offers 80–85% of the performance of CAT/Komatsu at 60–70% of the price — making it extremely popular in developing markets.

🌍 9. TYPICAL APPLICATIONS

Sector	Usage
🏗️ Construction	Earthmoving, road building, site preparation
& Mining & Quarry	Loading trucks, stockpiling, bench loading
🏭 Aggregate	Screening plant feeding, stockpile management
🗑️ Waste & Recycling	Landfill operations, waste handling
🌾 Agriculture & Logistics	Grain handling, biomass, port operations
❄️ Winter Maintenance	Snow removal (with snow blade attachment)

🛡️ 10. WARRANTY & SERVICE

Item	Details
Warranty	12 months / 2,000 hours (whichever comes first)
Engine Warranty	12 months / 2,000 hours
Service Network	200+ dealers in 80+ countries
Parts Availability	Excellent (Weichai + SDLG global network)
SDLG Smart Service	Remote diagnostics & fleet management available

📝 11. SUMMARY

Category	Rating
Power & Performance	⭐⭐⭐⭐☆ (4/5)
Fuel Efficiency	⭐⭐⭐⭐⭐ (5/5)
Build Quality	⭐⭐⭐⭐☆ (4/5)
Operator Comfort	⭐⭐⭐⭐☆ (4/5)
Value for Money	⭐⭐⭐⭐⭐ (5/5)
After-Sales Service	⭐⭐⭐⭐☆ (4/5)

🎯 Bottom Line:
The SDLG 956L is an excellent value-for-money 5-ton wheel loader backed by Volvo Group technology and powered by a proven Weichai engine. It is ideal for customers who want reliable, fuel-efficient heavy equipment without paying premium European/Japanese prices. It is one of the best-selling Chinese wheel loaders globally.
