Used Caterpillar 826Loader

Reading: 20

🏗️ Overview

The Caterpillar 826 is a medium-sized wheel loader that was part of Caterpillar's F-Series (8-Series) of wheel loaders, manufactured primarily during the 1970s–1980s. It was designed for heavy-duty material handling in construction, mining, quarrying, and general earthmoving applications.

The 826 sat between the smaller 816/824 and the larger 834/844 in the F-Series lineup.

📋 Key Specifications

Specification	Details
Manufacturer	Caterpillar Inc.
Model	826 (F-Series)
Type	Wheel Loader
Production Era	~1970s – 1980s
Operating Weight	~35,000 – 38,000 lbs (15,875 – 17,236 kg)
Rated Bucket Capacity	~3.0 – 3.5 cu yd (2.3 – 2.7 m³)
Engine	Caterpillar 3406 / 3408 Diesel
Engine Power	~250 – 275 HP (186 – 205 kW)
Transmission	Power Shift
Top Speed	~22 mph (35 km/h)
Tire Size	23.5-25 (typical for this class)
Hydraulic Flow	~70 – 85 GPM (265 – 322 L/min)
Breakout Force	~22,000 – 25,000 lbs (98 – 111 kN)

Note: Exact specs vary by configuration and model year.

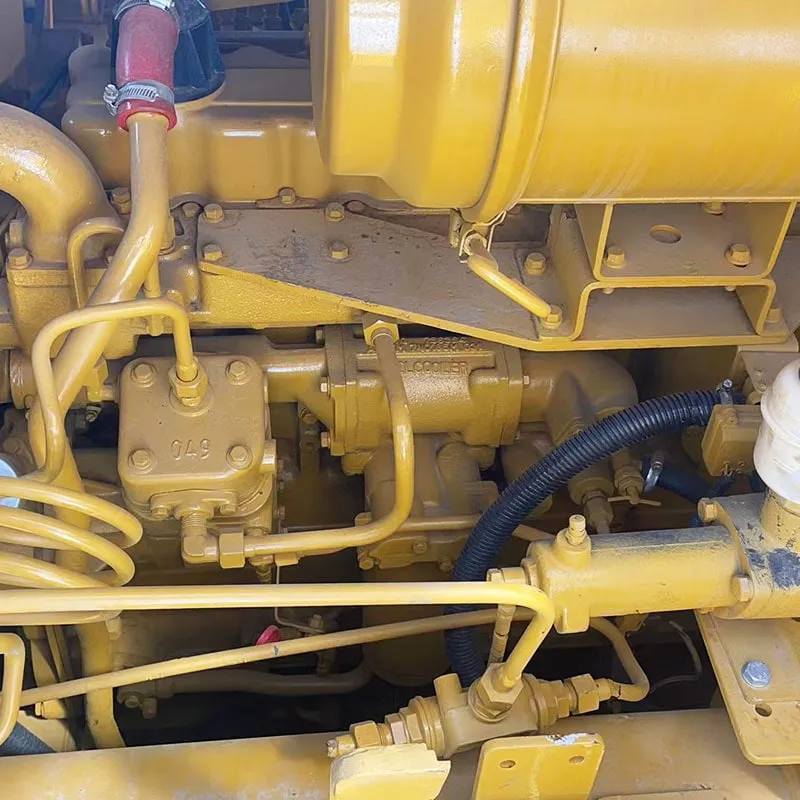

🔧 Engine & Powertrain

Component	Details
Engine Model	Cat 3406 (6-cylinder turbocharged diesel) or 3408 (V8)
Displacement	3406: 659 cu in (10.8 L) / 3408: 855 cu in (14.0 L)
Fuel System	Mechanical fuel injection (early models)
Cooling	Water-cooled with radiator
Transmission	Caterpillar fully powershift transmission
Drive	4-wheel drive (4WD)
Axles	Oscillating front & rear axles for better traction

🪣 Bucket & Work Tools

Feature	Details
Standard Bucket	General purpose, ~3.0 – 3.5 cu yd
Bucket Options	Rock bucket, dirt bucket, snow bucket, waste bucket
Coupler System	Cat pin-on or quick coupler
Tilt Cylinder	Allows bucket angle adjustment
Lift Capacity (at full height)	~13,000 – 15,000 lbs (5,900 – 6,800 kg)
Dump Height	~10 – 11 ft (3.0 – 3.4 m)
Dig Depth	~12 – 14 in (305 – 355 mm)

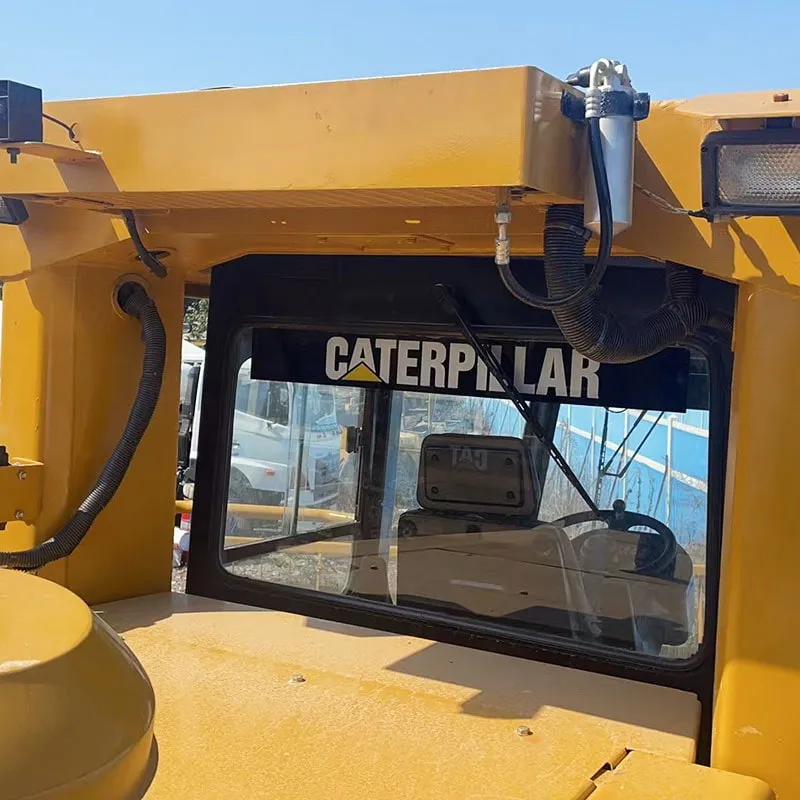

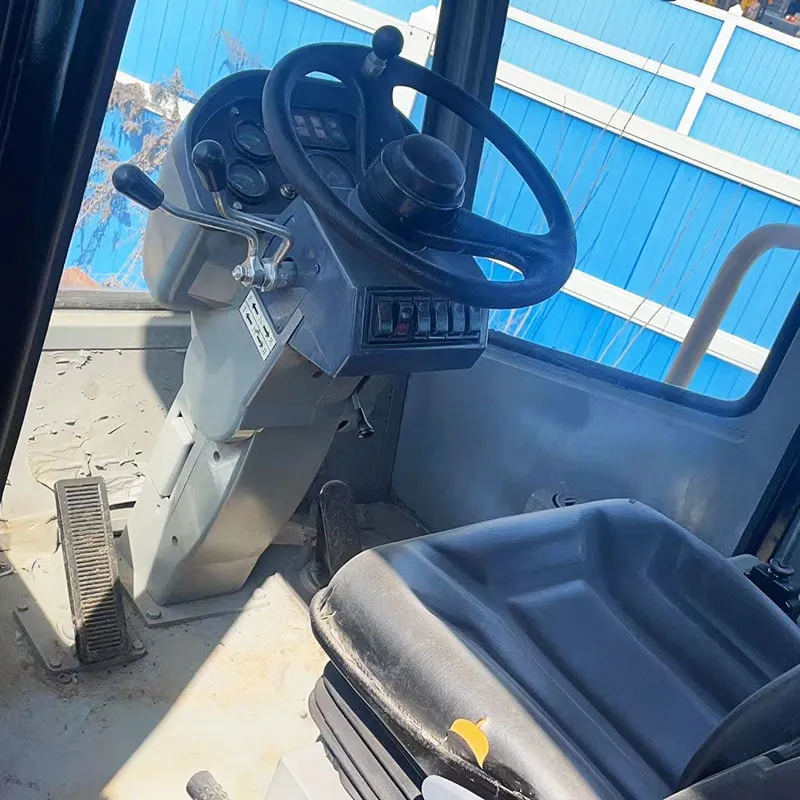

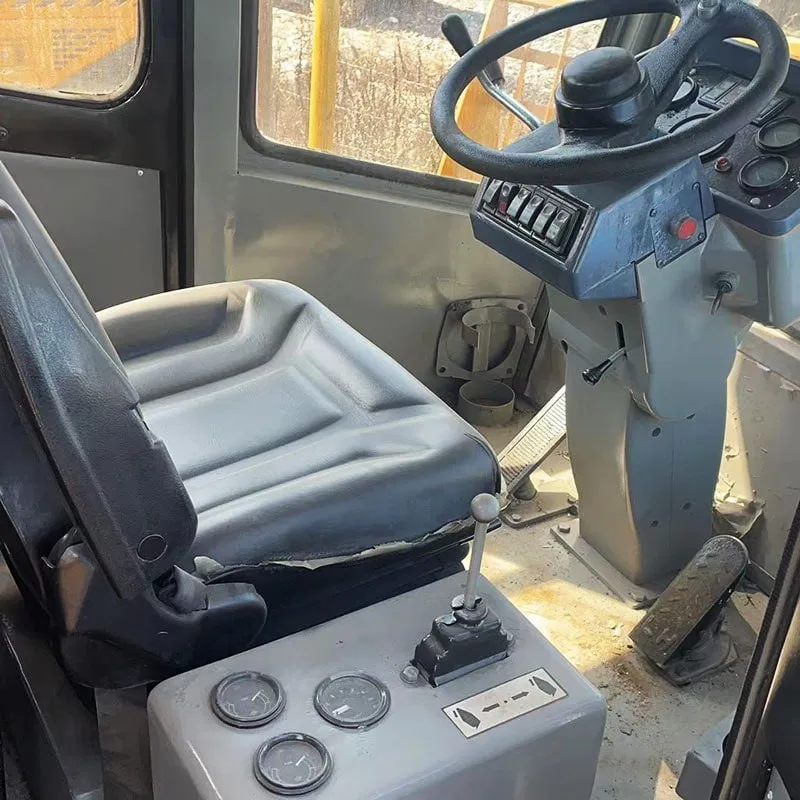

🏢 Cab & Operator Environment

Feature	Details
Cab Type	Enclosed ROPS/FOPS certified cab
Visibility	Good all-around visibility (F-series design)
Seat	Suspended air seat (on later models)
Controls	Levers for lift, tilt, travel, and auxiliary
Climate Control	Heater and optional A/C
Sound Level	~85 dB(A) (relatively quiet for its era)
Instrumentation	Gauges for engine temp, oil pressure, fuel, hydraulic temp

⚡ Performance & Productivity

Metric	Approximate Value
Loading Cycle Time	~18 – 22 seconds
Production Rate	~200 – 300 cu yd/hr (150 – 230 m³/hr) depending on material
Gradeability	~35% (20°)
Turning Radius	~22 – 24 ft (6.7 – 7.3 m)
Fuel Consumption	~8 – 12 GPH (30 – 45 L/hr) under load

🔩 Key Features & Highlights

Feature	Description
✅ Robust Build	Heavy-duty frame and axles for demanding jobs
✅ Articulated Steering	Excellent maneuverability in tight spaces
✅ Oscillating Axles	Better traction on uneven terrain
✅ Power Shift Transmission	Smooth gear changes under load
✅ High Tip Load	Strong breakout force for heavy materials
✅ Versatile	Can be used for loading trucks, stockpiling, snow removal, etc.
✅ Parts Availability	Widely available due to large production numbers
✅ Simple Maintenance	Easy access to engine and hydraulic components

🔄 F-Series Lineup Context

Model	Bucket Capacity	Operating Weight
814	~1.5 cu yd	~20,000 lbs
816	~1.75 cu yd	~23,000 lbs
824	~2.5 cu yd	~30,000 lbs
⭐ 826	~3.0–3.5 cu yd	~35,000–38,000 lbs
834	~4.0 cu yd	~42,000 lbs
844	~5.0 cu yd	~52,000 lbs

The 826 was the "sweet spot" in the medium range — big enough for serious production work but not as large/expensive as the 834/844.

🆚 Comparison with Successor (926 / 9-Series)

Feature	826 (F-Series)	926 (9-Series)
Era	1970s–80s	1990s–2000s
Engine	3406/3408	3196 / C15
Power	~250–275 HP	~300–350 HP
Comfort	Basic cab	Improved cab with A/C
Electronics	Minimal	More diagnostic capabilities
Productivity	Good	~20–30% higher

🛠️ Common Applications

Application	Use Case
🏗️ Construction	Loading haul trucks, site preparation
⛏️ Mining & Quarrying	Loading rock and aggregate
🚛 Truck Loading	Load & carry operations
🪵 Logging	Log handling (with fork attachment)
❄️ Snow Removal	With snow bucket (winter operations)
🏭 Material Handling	Stockpiling, reclaiming, blending
🗑️ Waste Management	Loading waste into trucks/compactors

📌 Summary

Aspect	Rating
Power	⭐⭐⭐⭐ (250–275 HP)
Durability	⭐⭐⭐⭐⭐ (Legendary Cat reliability)
Productivity	⭐⭐⭐⭐ (Good for its class)
Comfort	⭐⭐⭐ (Adequate, improved over time)
Parts Support	⭐⭐⭐⭐⭐ (Excellent availability)
Value (Used Market)	⭐⭐⭐⭐⭐ (Great value for the money)

💰 Current Market (Used)

Region	Approximate Price (USD)
USA	$25,000 – $60,000 (depending on condition & hours)
Europe	€20,000 – €50,000
Asia/Africa	$15,000 – $40,000

The 826 remains popular on the used equipment market due to its ruggedness, simplicity, and low operating costs. Many are still in active service worldwide, especially in developing countries.

The Caterpillar 826 is a workhorse — a reliable, powerful, and versatile wheel loader that earned its reputation through decades of tough service. Even today, it remains a smart buy for operators who need dependable performance without the premium price of newer models. 🚜💪
