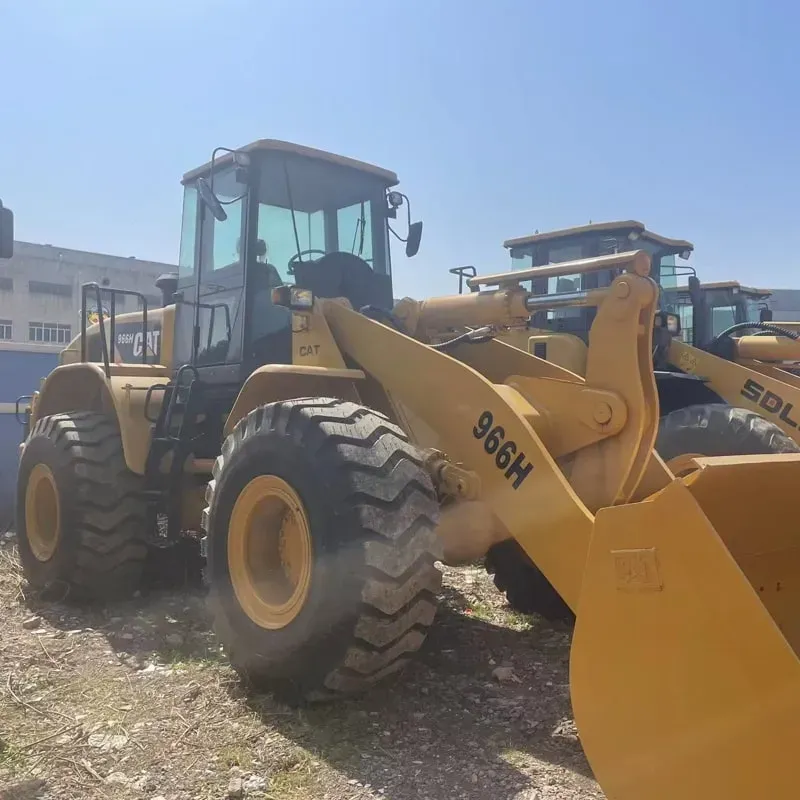

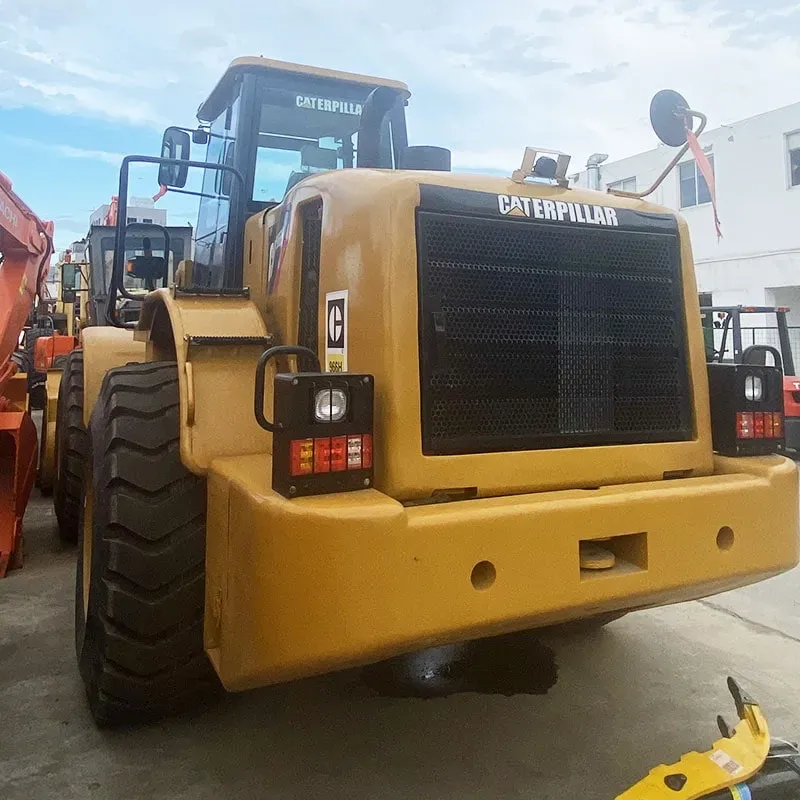

Used Caterpillar 966HLoader

Reading: 26

📌 1. Overview

The Cat 966H is a large wheel loader manufactured by Caterpillar Inc. It belongs to the H-Series (the latest generation of wheel loaders) and is designed for high-production loading, hauling, and stockpiling operations in quarries, mines, large construction sites, and heavy-duty material handling applications.

It is the successor to the 966G and represents a significant upgrade in fuel efficiency, operator comfort, productivity, and technology.

📌 2. Key Specifications

Specification	Details
Engine	Cat® C18 ACERT® — 6-cylinder, turbocharged & aftercooled diesel
Rated Power	330 hp (246 kW) @ 1,800 rpm (Net SAE J1349)
Torque Rise	40% (excellent for heavy loading)
Operating Weight	~75,500 lbs (34,246 kg) (depending on configuration)
Rated Payload	~35,000 lbs (15,876 kg)
Bucket Capacity	3.8 – 5.3 m³ (5.0 – 7.0 yd³) — depending on bucket type
Transmission	ZF fully powershift — 8 forward / 8 reverse gears
Top Speed	39 km/h (24 mph)
Hydraulic Flow	~380 L/min (100 gal/min)
Tire Size	23.5R25 (standard)
Fuel Tank Capacity	~570 L (150 US gal)
Emissions Standard	U.S. EPA Tier 4 Final / EU Stage V

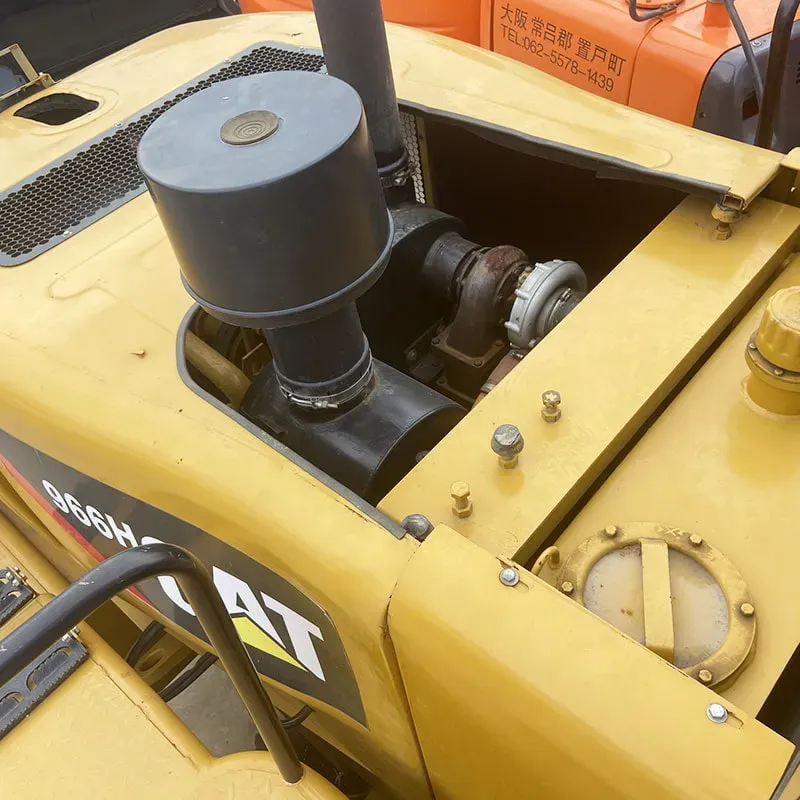

📌 3. Engine — Cat C18 ACERT®

Feature	Detail
Displacement	18.1 L (1,104 in³)
Technology	ACERT® = Advanced Combustion Efficiency Reduction Technology
Turbocharging	Single turbo with aftercooler
Fuel System	Electronically controlled unit injection (EUI)
DPF/SCR	Diesel Particulate Filter + Selective Catalytic Reduction (no DEF required on some configs)
Benefits	✅ Lower fuel consumption (~10-15% vs. 966G) ✅ Lower emissions ✅ Better torque response

📌 4. Transmission & Drive Train

Feature	Detail
Transmission	ZF 8HP fully powershift
Gears	8 forward / 8 reverse
Shifting	Smooth, automatic powershift — no clutch needed
Axles	Heavy-duty oscillation axles
Differential	Limited-slip / lockable
Benefit	✅ Faster cycle times ✅ Smoother operation ✅ Reduced operator fatigue

📌 5. Hydraulic System

Feature	Detail
System Type	Load-Sensing Hydraulic System
Pump Flow	~380 L/min (100 gal/min)
Working Pressure	350 bar (5,076 psi)
Lift Arms	Parallelogram linkage with Z-bar design
Breakout Force	~175 kN (39,300 lbf)
Lift Height	~4,850 mm (15.9 ft) to bucket hinge pin
Dump Height	~3,500 mm (11.5 ft)
Benefit	✅ Fast load-and-carry cycles ✅ Excellent breakout force for tough material

📌 6. Bucket Options

Bucket Type	Capacity	Use
General Purpose (GP)	3.8 – 4.5 m³ (5.0 – 6.0 yd³)	General loading, stockpiling
Coal / Material Handling	4.5 – 5.3 m³ (6.0 – 7.0 yd³)	High-volume loading
Rock / Quarry	Heavy-duty with teeth	Hard rock, quarrying
Snow / Light Material	Wide, low-density	Snow removal, light material
Pallet Forks	Various	Forklift operations

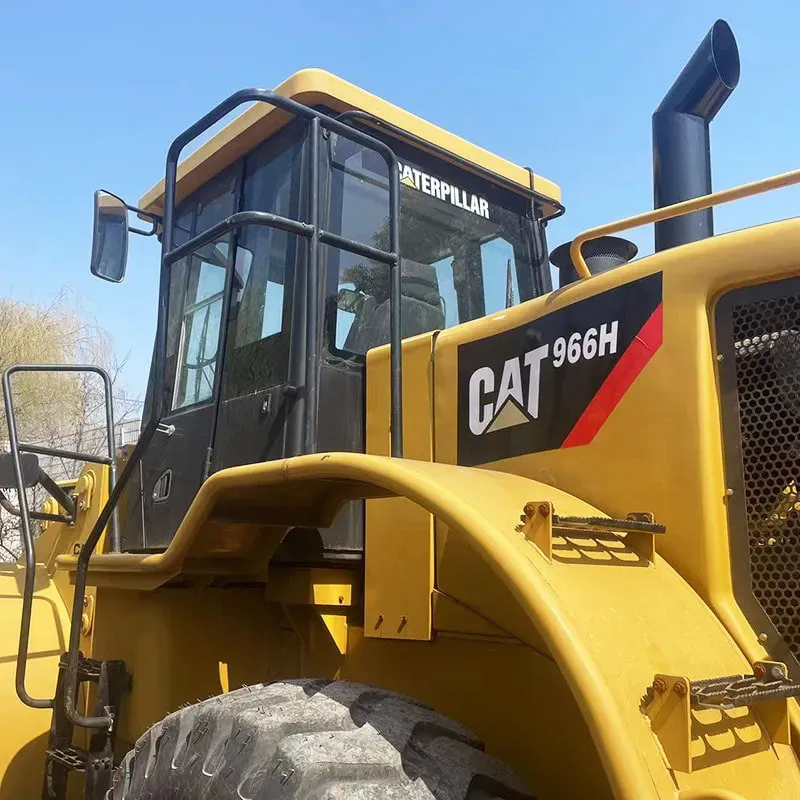

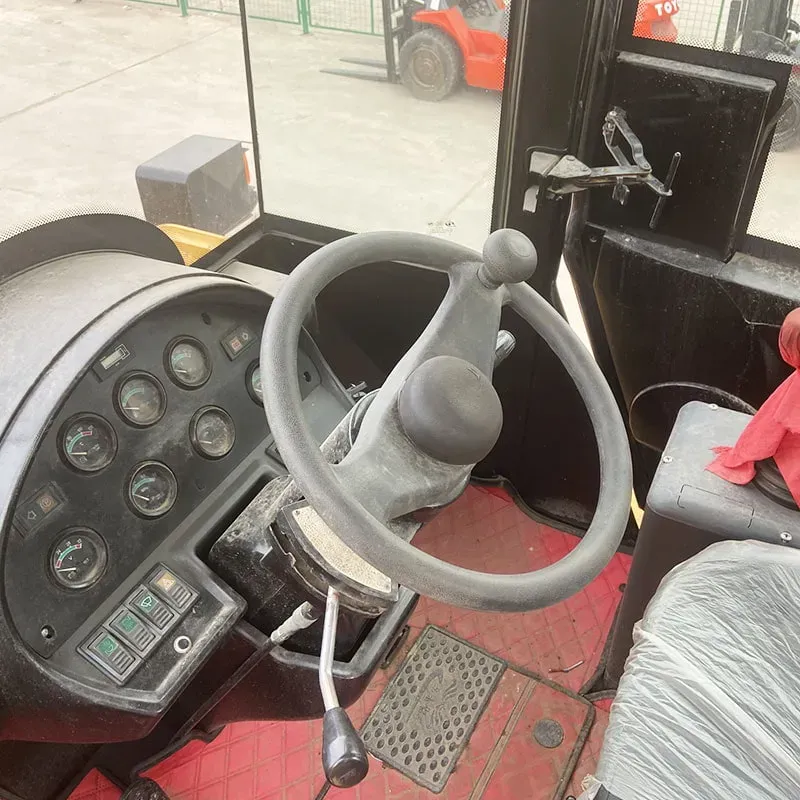

📌 7. Operator Environment (H-Series Cab)

The 966H features Cat's next-generation premium cab:

Feature	Detail
Visibility	Excellent all-around visibility, large glass area
Seat	Air-ride, heated, suspended seat with armrests
Climate Control	Automatic HVAC system
Controls	Electronic joystick controls (left = loader, right = steering)
Display	Large LCD touchscreen monitor — machine info, diagnostics, camera views
Sound Level	~72 dB(A) (very quiet for its class)
ROPS/FOPS	Certified Roll-Over & Falling Object Protective Structure
Camera System	Rearview + optional side cameras
Benefit	✅ Maximum operator comfort = higher productivity & safety

📌 8. Technology & Connectivity

Technology	Detail
Cat Product Link™	Real-time machine monitoring, fleet management
Grade Assist (Optional)	2D/3D grade control for precise leveling
Payload Weighing (Optional)	On-the-go payload measurement — accuracy ±1-2%
Cat Detect (Optional)	Object detection system — alerts operator of nearby people/objects
VisionLink®	Cloud-based fleet management & reporting
Autonomous Ready (Optional)	Ready for autonomous/remote operation

📌 9. Fuel Efficiency & Eco Mode

Feature	Detail
Auto Eco Mode	Automatically adjusts engine rpm to match load demand
Idle Reduction	Auto engine idle shutdown
Hydraulic Efficiency	Load-sensing system = less wasted energy
Fuel Savings	Up to 15% less fuel compared to 966G
Hours/Gallon	Excellent for its class — lower operating cost per hour

📌 10. Applications

Industry	Use
🏗️ Construction	Loading trucks, stockpiling, site preparation
& Mining	Truck loading, quarry operations
🪨 Quarrying	Rock loading, crush & screen plant feeding
🚛 Waste & Recycling	Material handling, landfill operations
🪵 Forestry	Log loading (with forks)
❄️ Snow Removal	With snow bucket
🚢 Ports & Terminals	Bulk material handling

📌 11. Comparison: 966H vs 966G

Feature	966G	966H	Improvement
Power	300 hp	330 hp	+10%
Fuel Efficiency	Baseline	Up to 15% better	✅
Transmission	Powershift	8-speed ZF	Smoother
Cab	Good	Premium H-Series	Much better
Technology	Basic	Product Link, Payload, Grade	✅
Emissions	Tier 3/Stage IIIA	Tier 4 Final/Stage V	✅
Operating Weight	~73,000 lbs	~75,500 lbs	Slightly heavier

📌 12. Maintenance

Feature	Detail
Service Intervals	Extended — up to 1,000 hours between major services
Ground-Level Access	Easy access to filters, drains, check points
Cat Scheduled Oil Sampling (S·O·S™)	Oil analysis for predictive maintenance
Lubrication	Centralized auto-lube system (optional)
Uptime	Designed for maximum availability in 24/7 operations

📌 13. Summary — Why Choose the 966H?

✅ Advantage	Explanation
💪 High Power & Productivity	330 hp + fast cycle times = more tons moved per hour
⛽ Fuel Efficient	Up to 15% fuel savings vs. previous model
🪑 Operator Comfort	Premium H-Series cab = happier, more productive operators
📡 Smart Technology	Payload, grade control, telematics, autonomous-ready
🔧 Low Operating Cost	Extended service intervals, durable components
🌱 Eco-Friendly	Tier 4 Final / Stage V emissions compliant
💰 Strong Resale Value	Cat machines hold value very well

📌 14. Quick Reference Card

Parameter	Value
Model	Cat 966H
Class	Large Wheel Loader
Power	330 hp (246 kW)
Payload	~35,000 lbs (15,876 kg)
Bucket	3.8 – 5.3 m³ (5 – 7 yd³)
Weight	~75,500 lbs (34,246 kg)
Speed	39 km/h (24 mph)
Transmission	ZF 8-speed powershift
Emissions	Tier 4 Final / Stage V

🏆 Bottom Line: The Caterpillar 966H is one of the best-in-class large wheel loaders in the world — combining raw power, fuel efficiency, operator comfort, and smart technology for maximum productivity in the most demanding applications.
