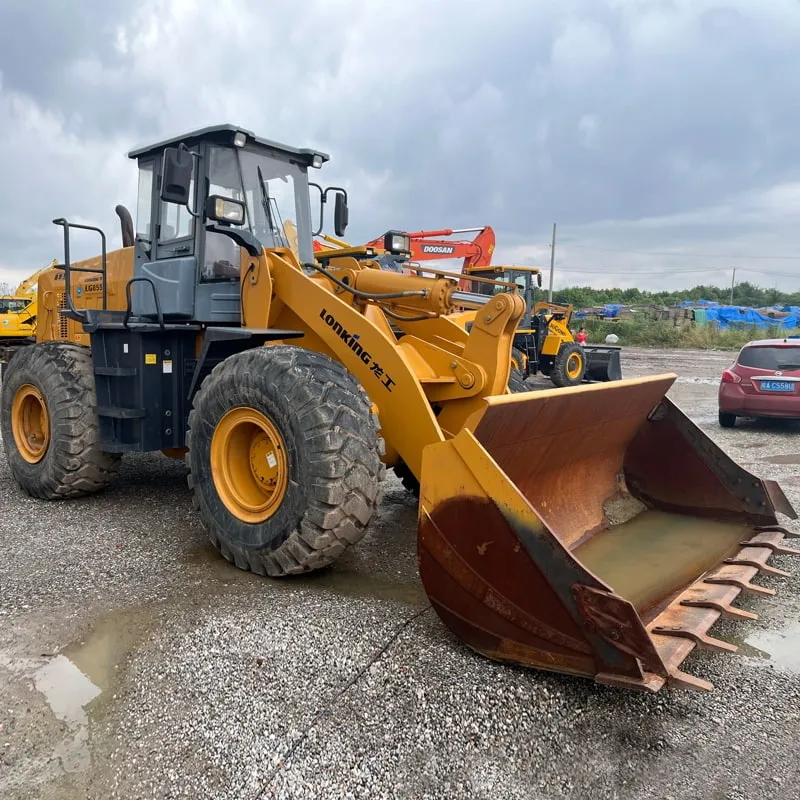

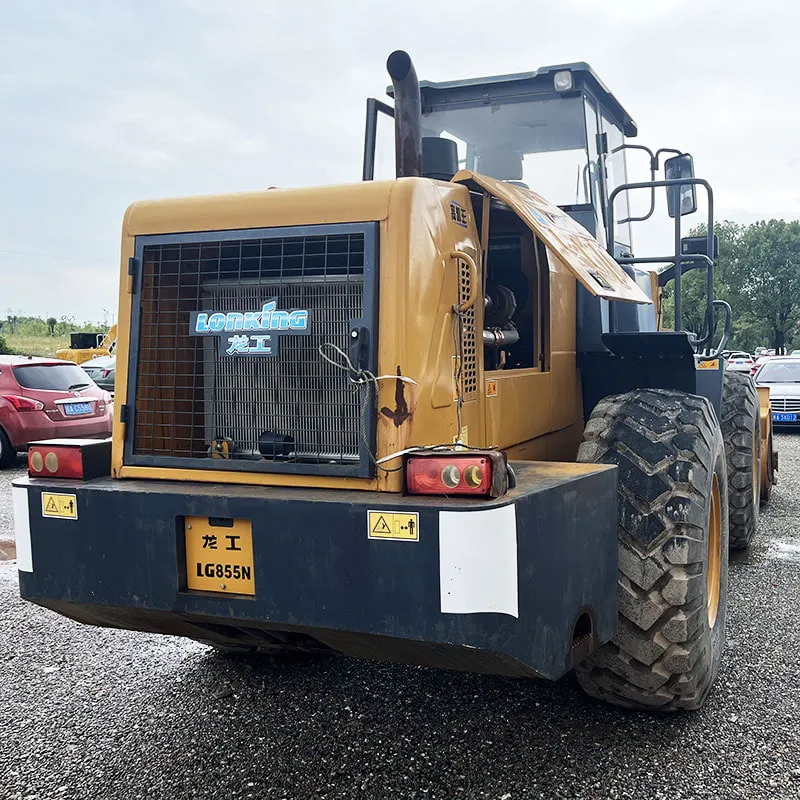

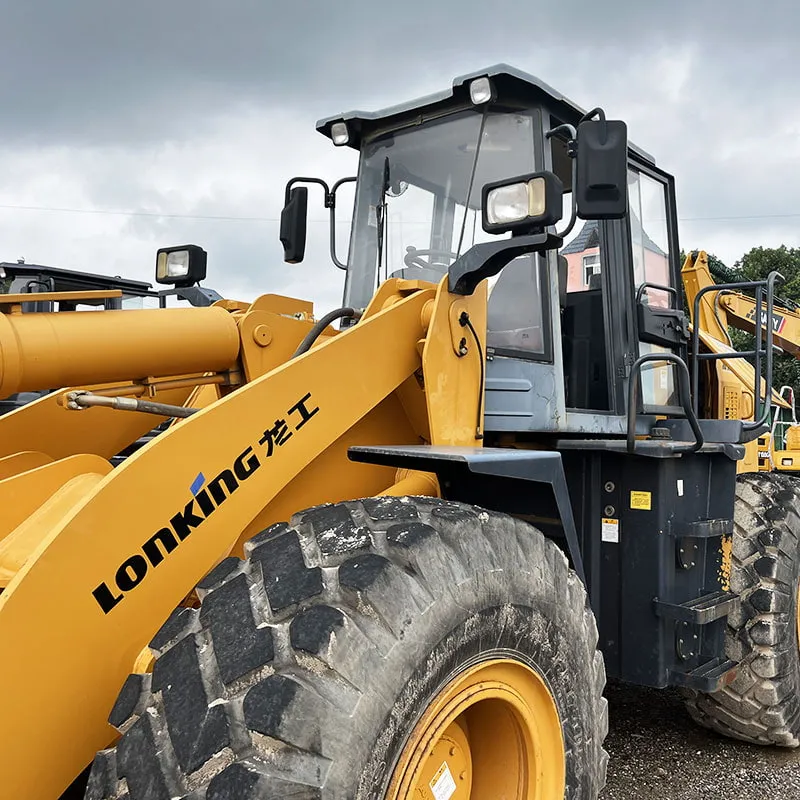

Used Lonking 855NLoader

Reading: 29

📌 1. Overview

Item	Details
Manufacturer	LonKing Holdings Ltd. (龙工), China
Model	CDM855N / LG855N
Class	5-Ton Wheel Loader
Production	Ongoing (widely exported globally)
Application	Mining, construction, agriculture, municipal works, ports

The CDM855N is one of LonKing's best-selling 5-ton class wheel loaders, known for its strong performance, durability, and competitive pricing compared to brands like CAT, Komatsu, and LiuGong.

⚙️ 2. Key Technical Specifications

Parameter	Specification
Rated Bucket Capacity	3.0 m³ (3.0–3.3 m³ optional)
Rated Load	5,000 kg (5 tons)
Operating Weight	~16,800 kg
Max. Tractive Force	~170 kN
Max. Breakout Force	~170 kN
Max. Dump Height	~3,150 mm
Max. Dump Reach	~1,150 mm
Max. Digging Depth	~120 mm (bucket)
Bucket Dump Time	~6.5 seconds
Lifting Time (Full Load)	~6.0 seconds
Gradeability	30° (58%)
Turning Radius (Outside)	~6,500 mm
Travel Speed (Low/High)	0–11 km/h / 0–38 km/h
Tire Size	23.5-25 (18PR)
Fuel Tank Capacity	~280 L

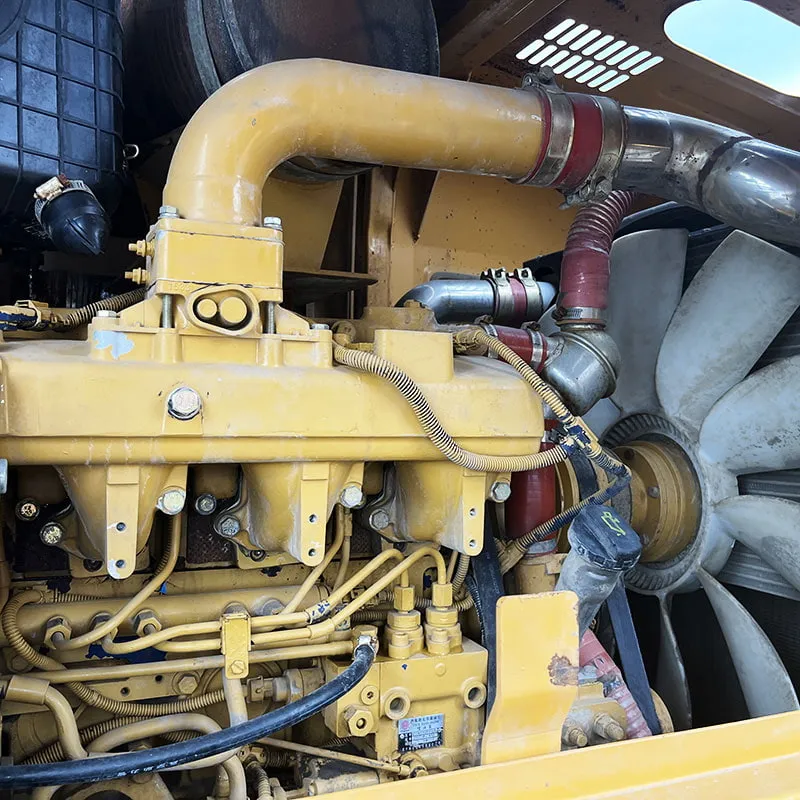

🔧 3. Engine & Powertrain

Component	Details
Engine Brand	Weichai (潍柴) WP10G220E21 / WP10.270
Engine Type	6-cylinder, turbocharged, intercooled diesel
Displacement	9.726 L
Rated Power	162 kW (220 HP) @ 2,000 rpm
Emission Standard	China III / Euro III (Tier 3) — some versions Euro V
Torque Converter	Single-stage, 3-element
Transmission	Power-shift, 2F/2R (planetary gear)
Drive Type	4×4 articulated
Axle	Planetary reduction axle with differential lock

✅ The Weichai engine is renowned for its reliability, fuel efficiency, and easy maintenance — a key reason for the 855N's popularity.

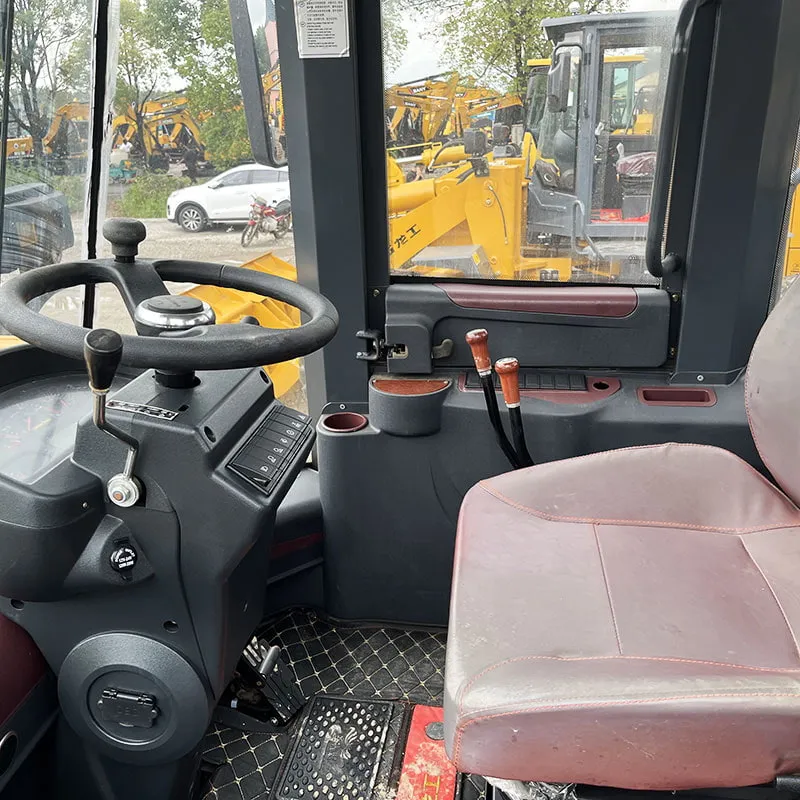

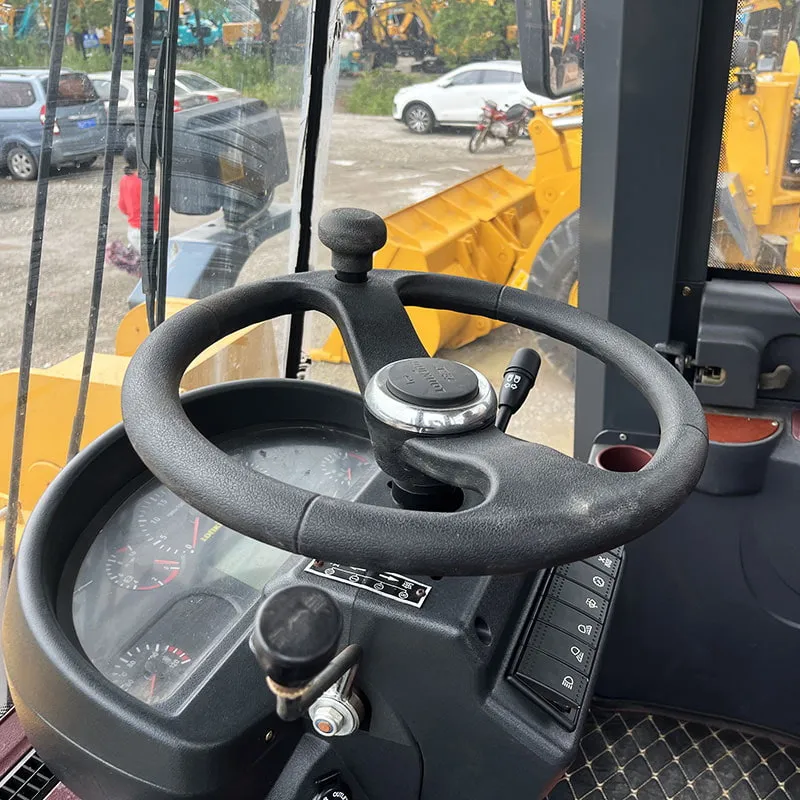

🛋️ 4. Cab & Operator Comfort

Feature	Details
Cab Type	ROPS/FOPS certified, fully enclosed, air-conditioned
Seat	Suspension seat with adjustable armrest
Controls	Joystick pilot control (optional) / Lever control
Display	LCD instrument panel with engine diagnostics
Noise Level	≤78 dB(A)
Visibility	Large front windshield, rear-view camera (optional)
Climate	Heater + A/C as standard

🛡️ 5. Hydraulic System

Parameter	Details
System Type	Load-sensing, closed-center hydraulic system
System Pressure	21 MPa (3,050 psi)
Pump Flow	~230 L/min (gear pump)
Steering	Articulated, hydraulic steering
Attachments	Bucket, forks, grapple, snow blade, sweep broom, etc.

🔩 6. Key Features & Advantages

✅ Feature	Description
💪 High Breakout Force	~170 kN — excellent for hard material loading
🛢️ Fuel Efficient	Weichai engine optimized for low fuel consumption (~28–32 L/hr)
🔄 Quick Cycle Time	Fast lift & dump cycle for high productivity
🛠️ Easy Maintenance	Ground-level service points, side-opening hood
❄️ Cold Climate Ready	Pre-heater, cold-start aid available
📐 Strong Structure	Reinforced boom and bucket for heavy-duty use
💰 Cost-Effective	20–30% cheaper than CAT/Komatsu equivalents
🌍 Global Parts Support	LonKing has 1,000+ dealers worldwide

🆚 7. Comparison with Competitors

Model	Rated Load	Power	Bucket	Price (Approx.)
LonKing CDM855N	5,000 kg	220 HP	3.0 m³	$55,000–$70,000
LiuGong CLG855N	5,000 kg	220 HP	3.0 m³	$60,000–$75,000
XCMG LW500FN	5,000 kg	220 HP	3.0 m³	$65,000–$80,000
CAT 950 GC	5,000 kg	235 HP	3.2 m³	$120,000–$150,000
Komatsu WA500-8	5,000 kg	230 HP	3.0 m³	$110,000–$140,000

🏆 The CDM855N offers 80–90% of the performance at 50% of the price of Western brands.

🌍 8. Markets & Applications

Region	Usage
🇨🇳 China	Construction, mining, infrastructure
🌏 Southeast Asia	Quarrying, palm oil plantations, ports
🌍 Africa	Mining, road construction
🌎 South America	Agriculture, material handling
🏗️ Middle East	Construction, desert operations

📝 9. Summary

✅ Pros	⚠️ Cons
Excellent value for money	After-sales service varies by region
Reliable Weichai engine	Lower resale value vs. CAT/Komatsu
Strong & durable build	Cab finish not as premium as Western brands
Low operating cost	Limited availability of some spare parts in remote areas
High productivity	Brand perception still growing globally

🎯 Final Verdict

The LonKing CDM855N is an excellent choice for budget-conscious buyers who need a reliable, powerful 5-ton wheel loader for heavy-duty work. It delivers near-premium performance at a fraction of the cost, making it one of the top-selling Chinese wheel loaders worldwide. 🚜💪
